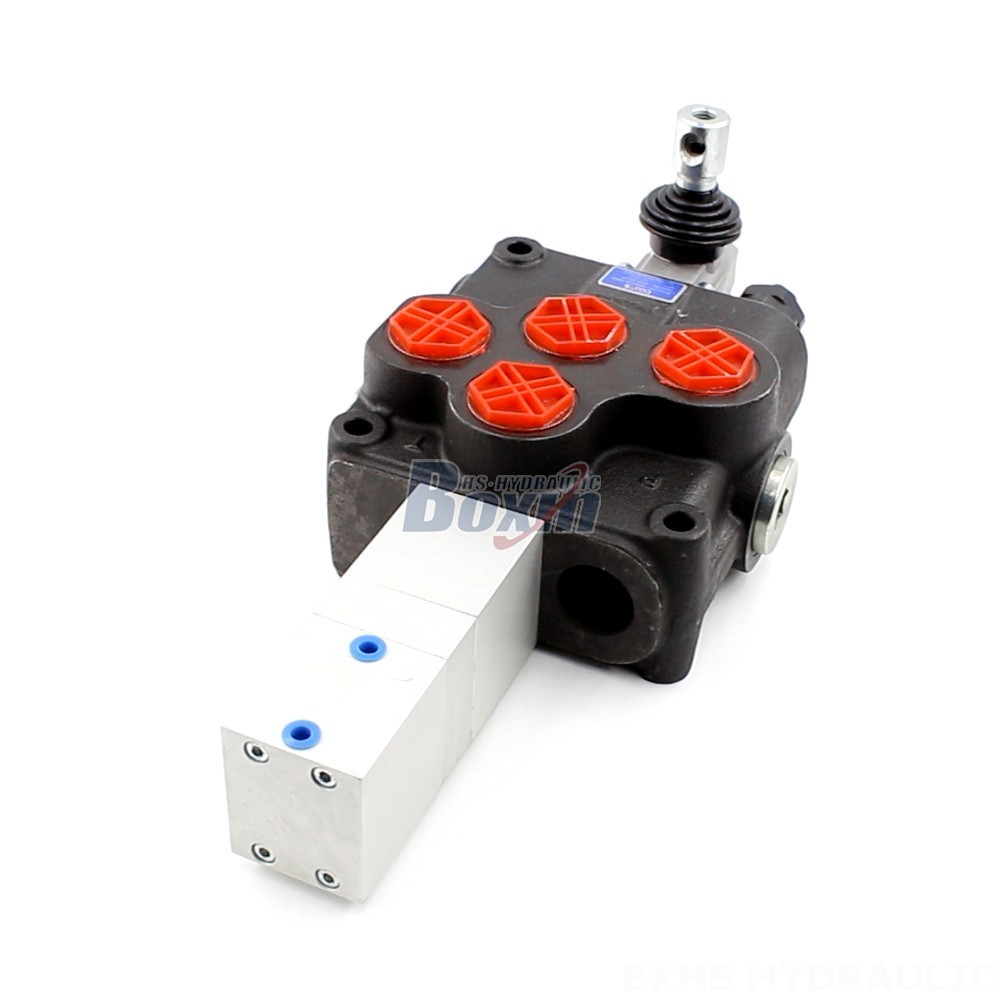

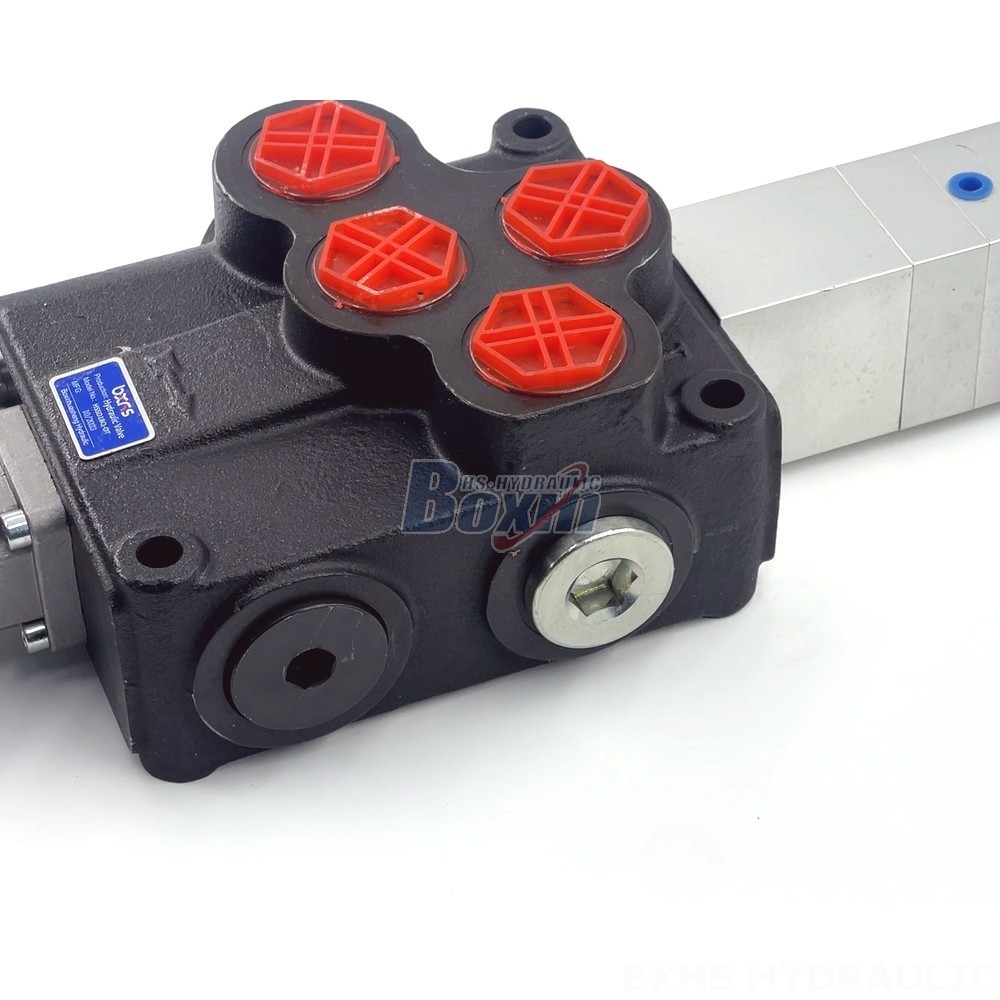

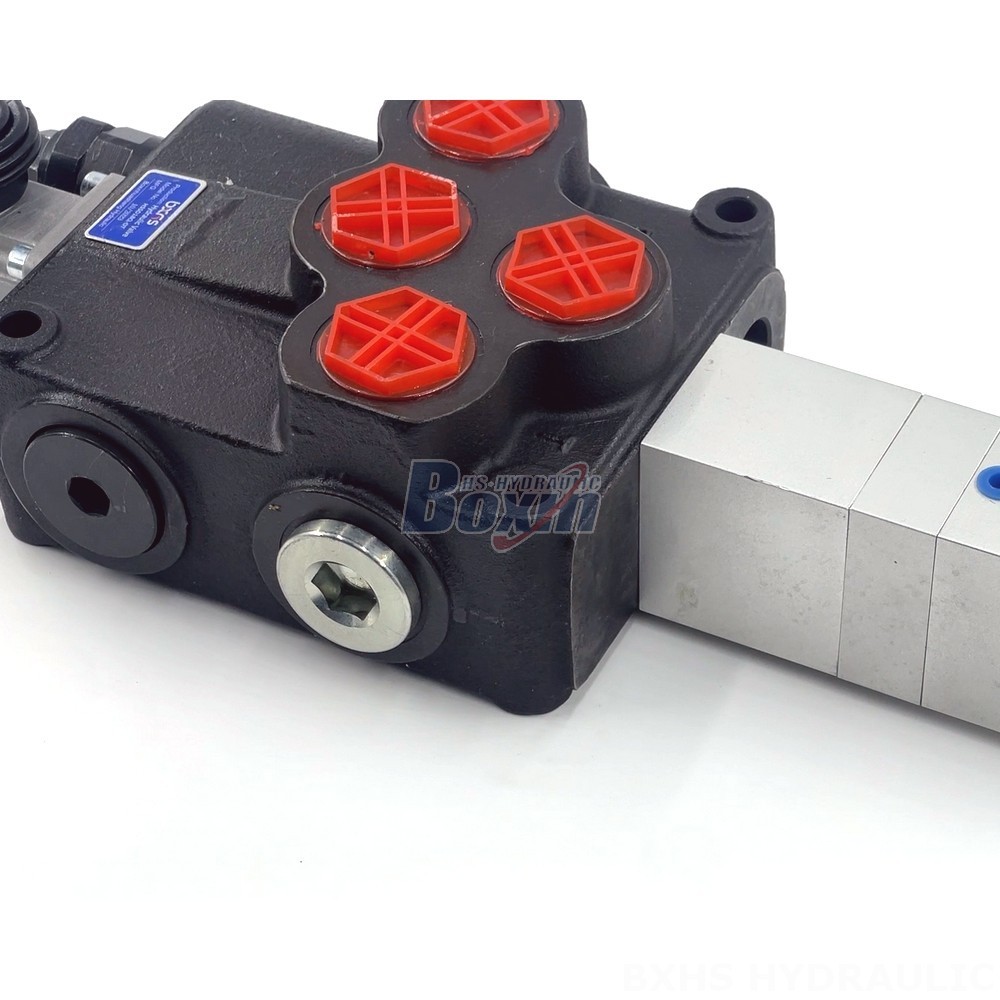

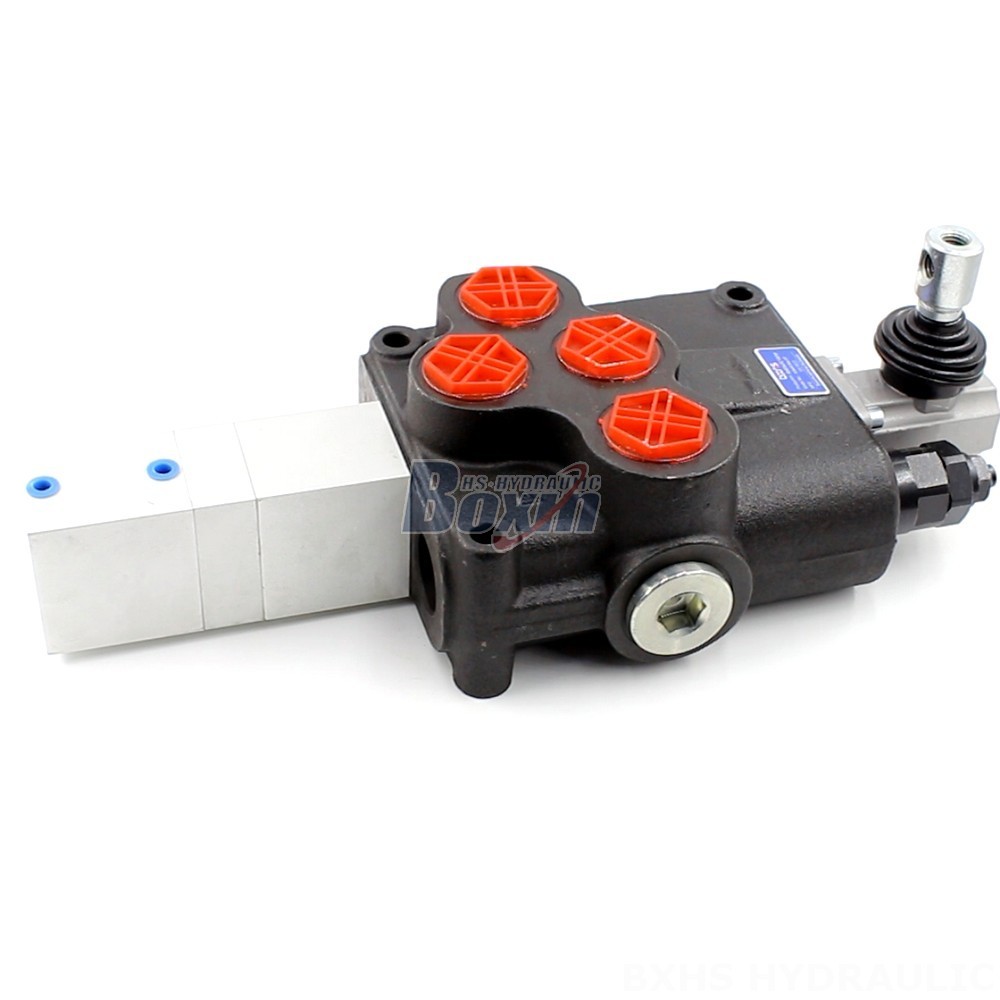

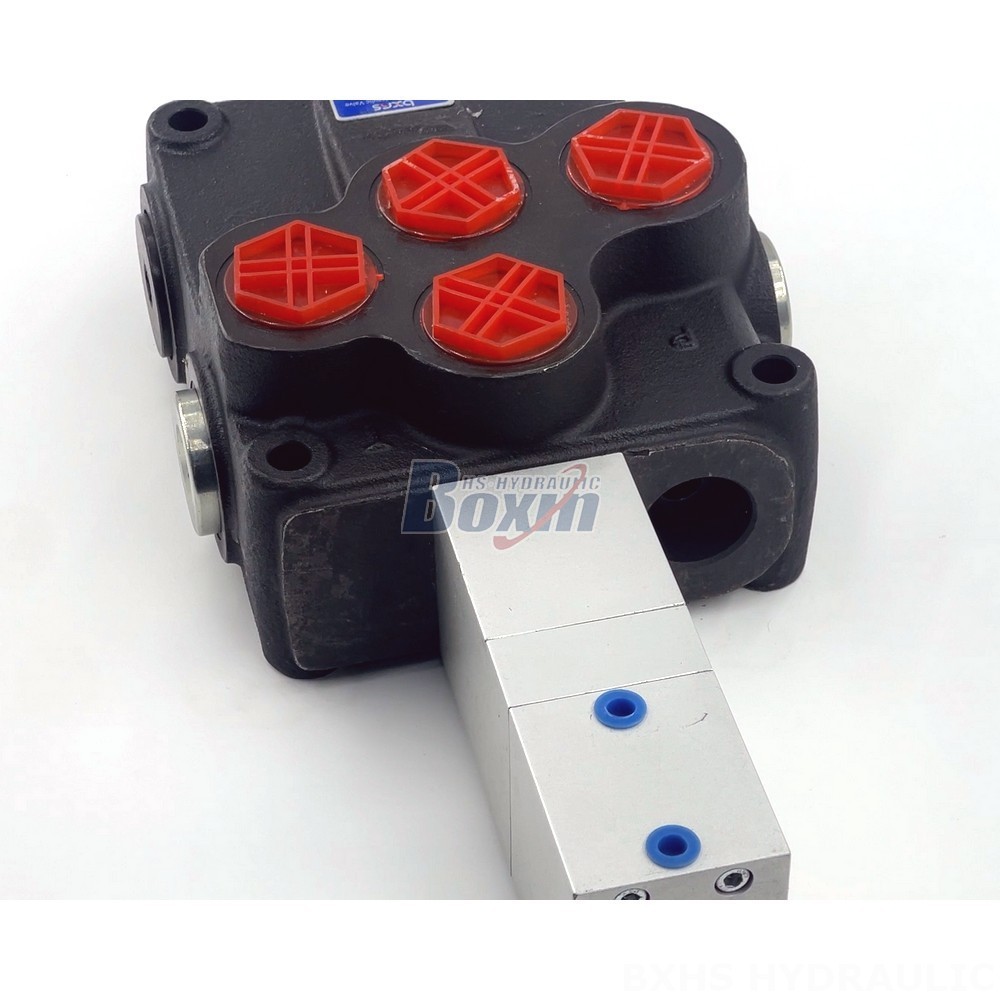

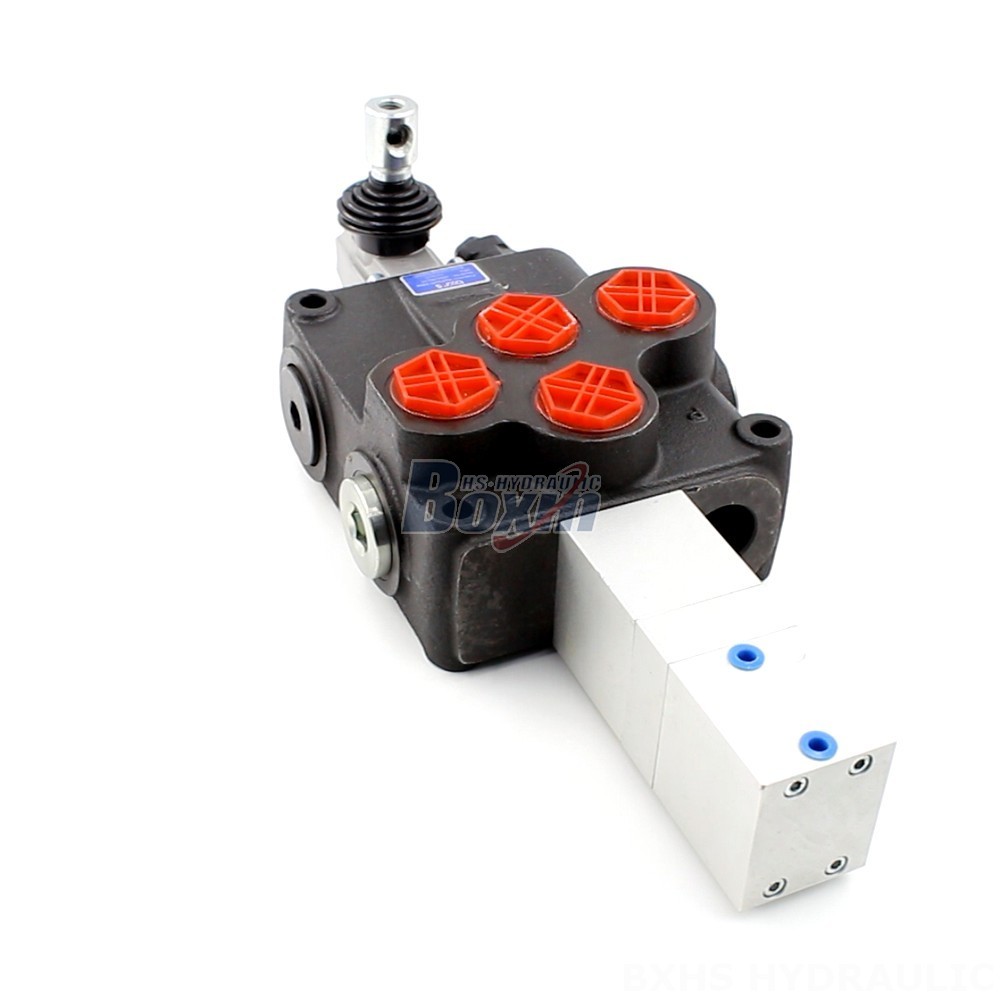

The SD18 Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It offers precise control of fluid flow and is constructed from high-quality materials for long-lasting durability.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
**SD18 Pneumatic Directional Control Valve: Technical Specifications**
**Control Method:** Pneumatic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:**-40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
