Produksi & Pengiriman
Waktu Produksi 15-30 Hari
924 Pandangan Mencari Produk Ini

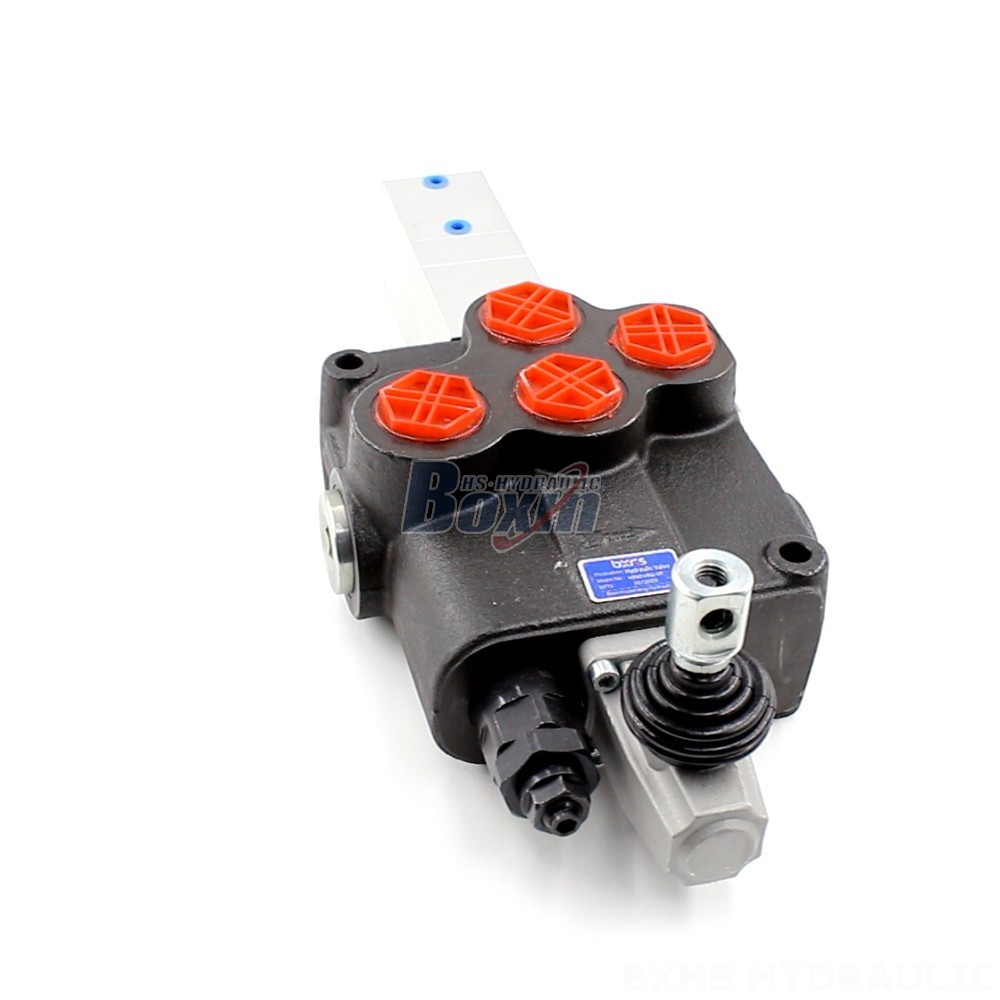

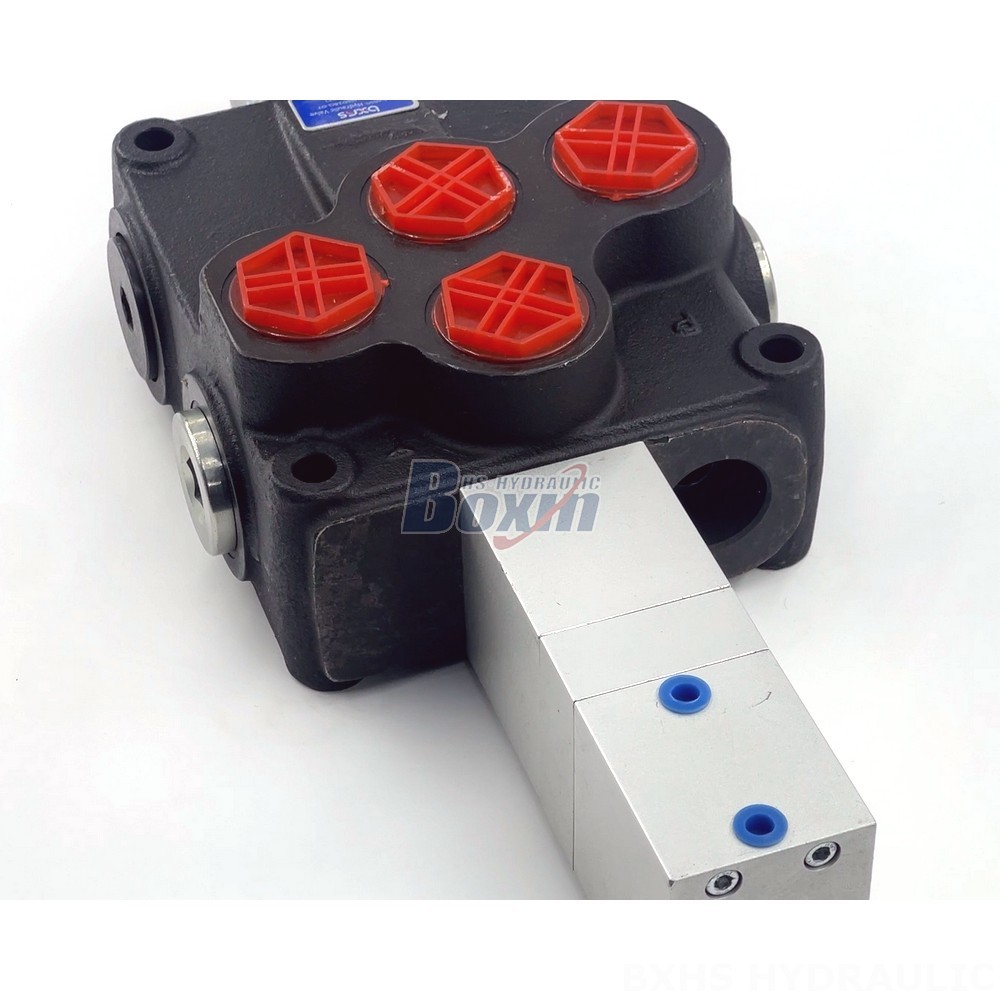

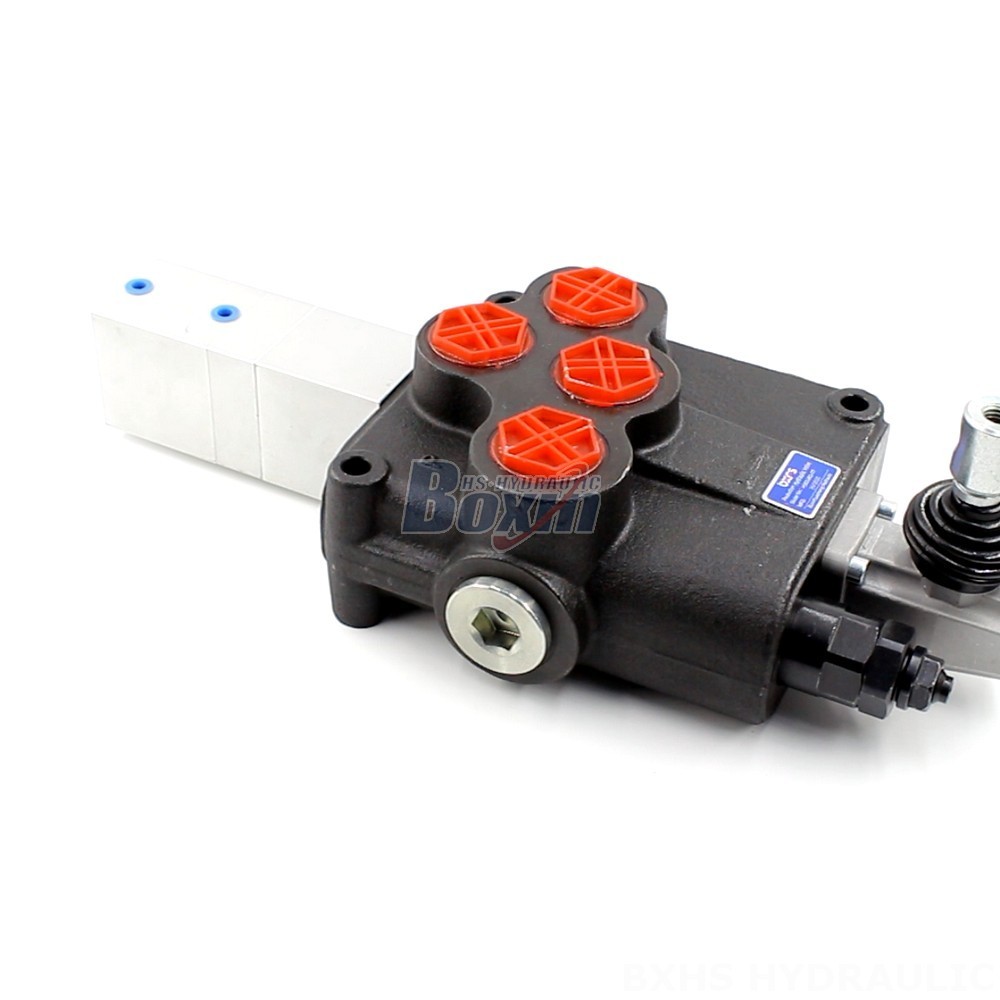

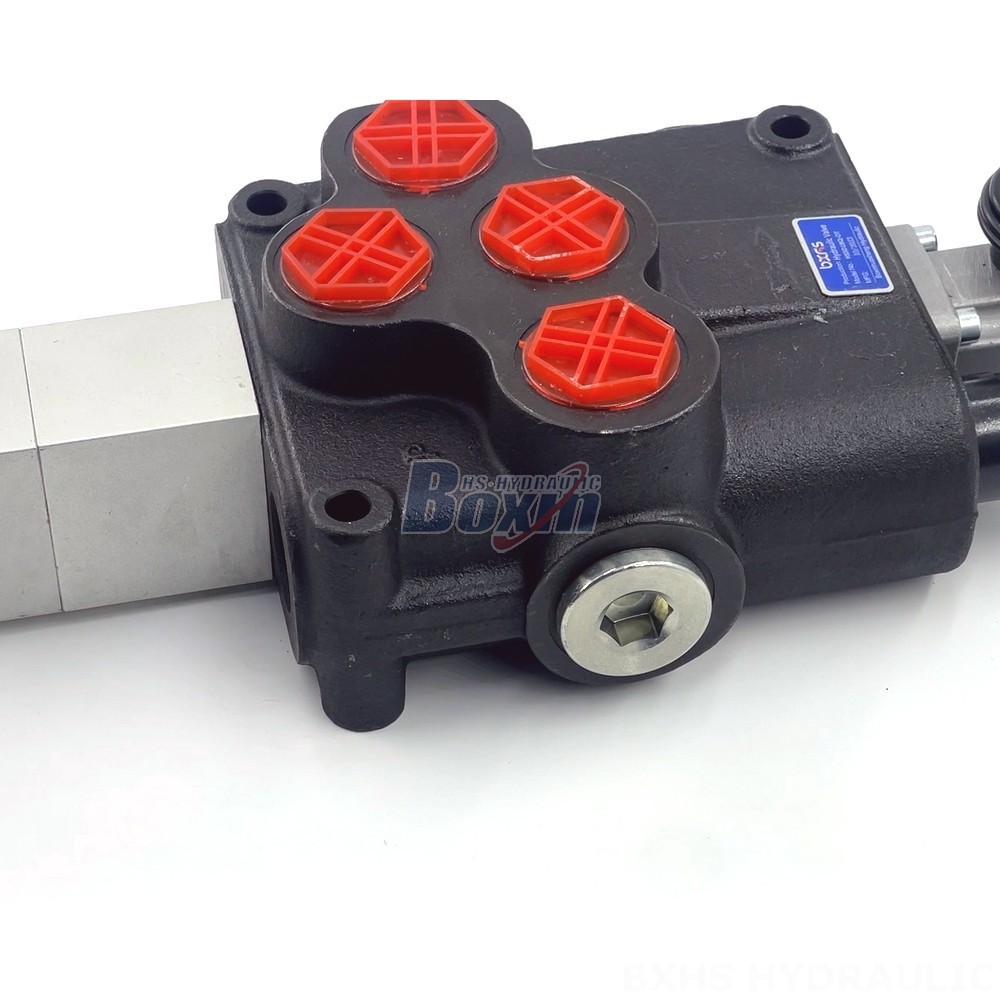

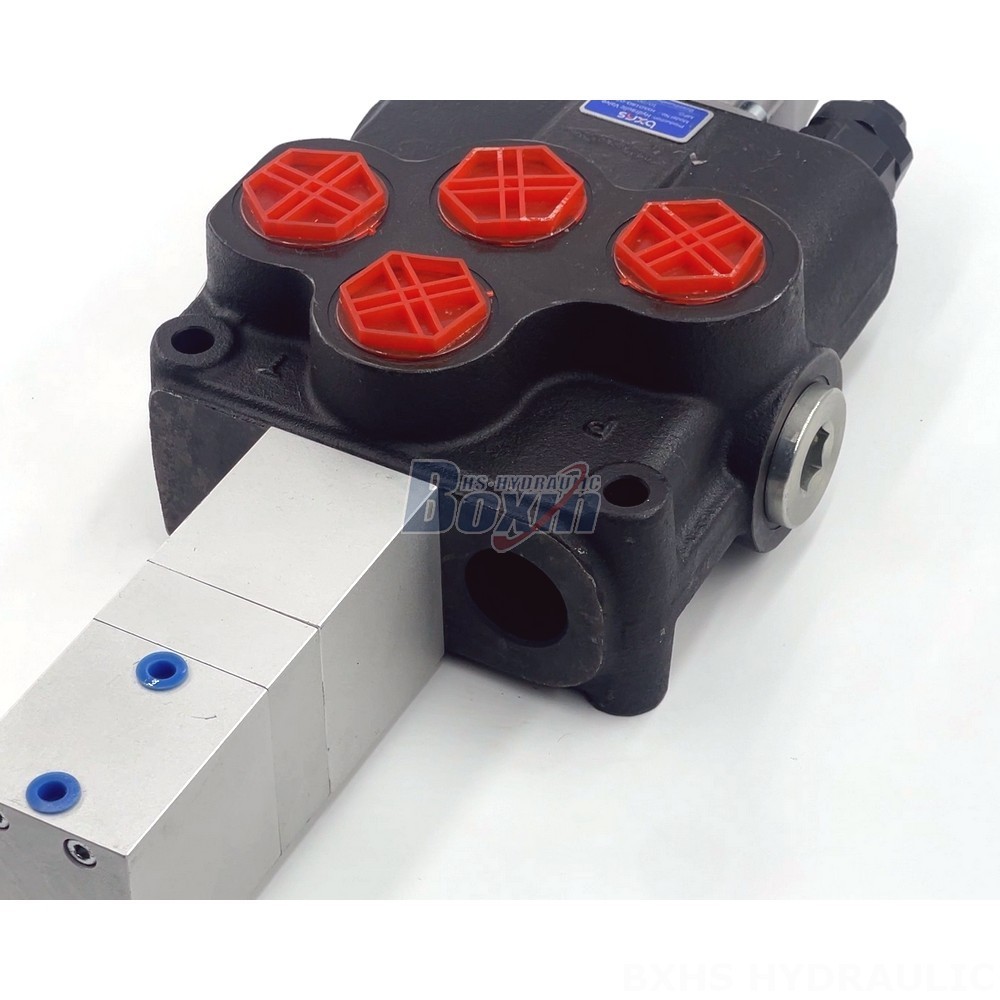

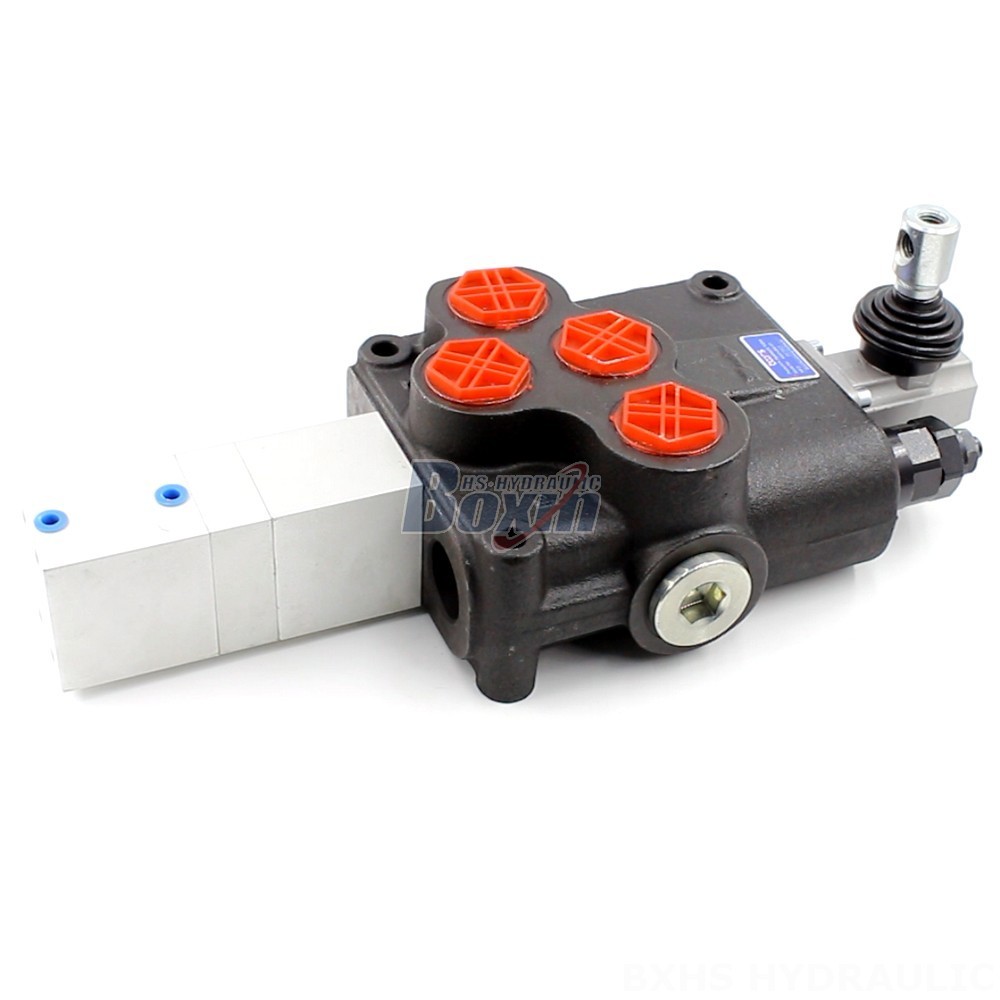

The SD18 Series Hydraulic Block Pneumatic Valve is a high-performance, reliable valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. We offer private label, OEM, and custom manufacturing services to meet your specific needs.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
This hydraulic block valve features a monoblock structure, 1 section, and 1 spool. It has a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi). The operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt). The valve can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F), or -40°C to +60°C (-40°F to +140°F). We offer private label, OEM, and custom manufacturing services to tailor the valve to your specific requirements. We also work with distributors, wholesalers, agents, and traders to bring our products to a global market.
