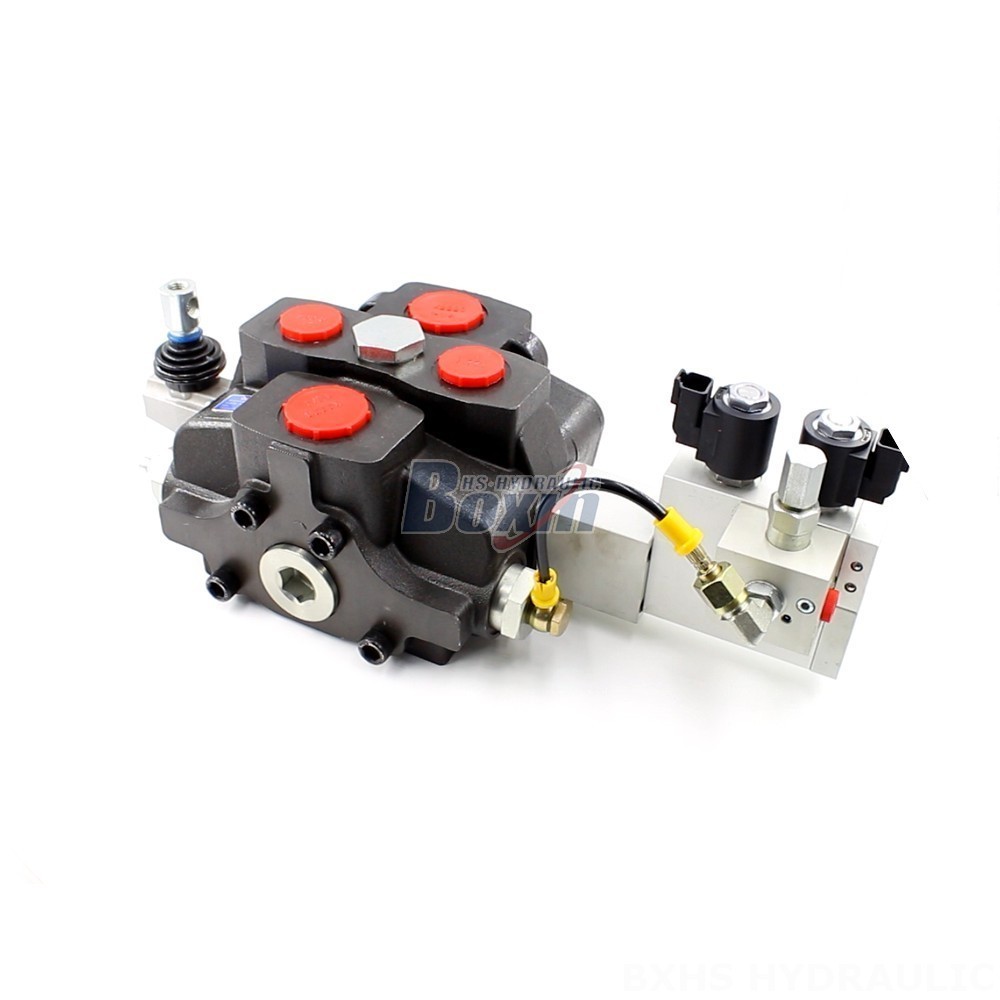

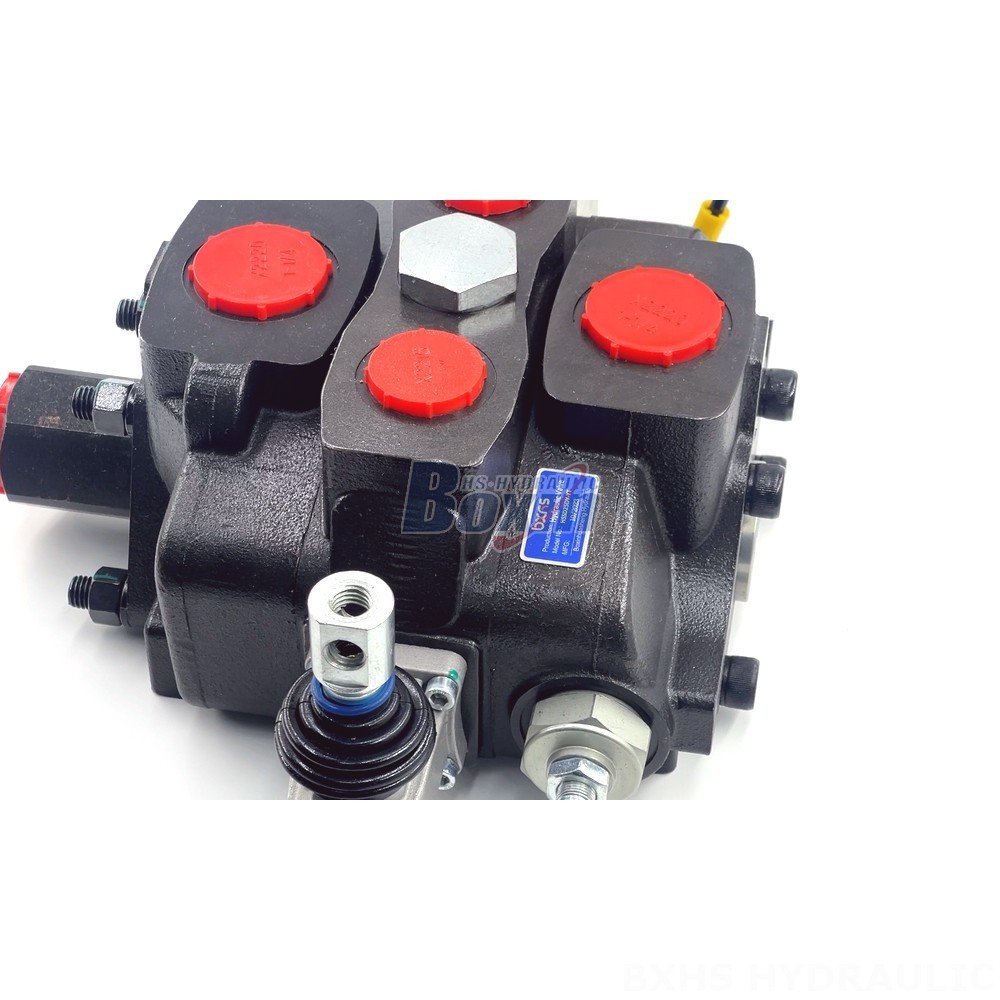

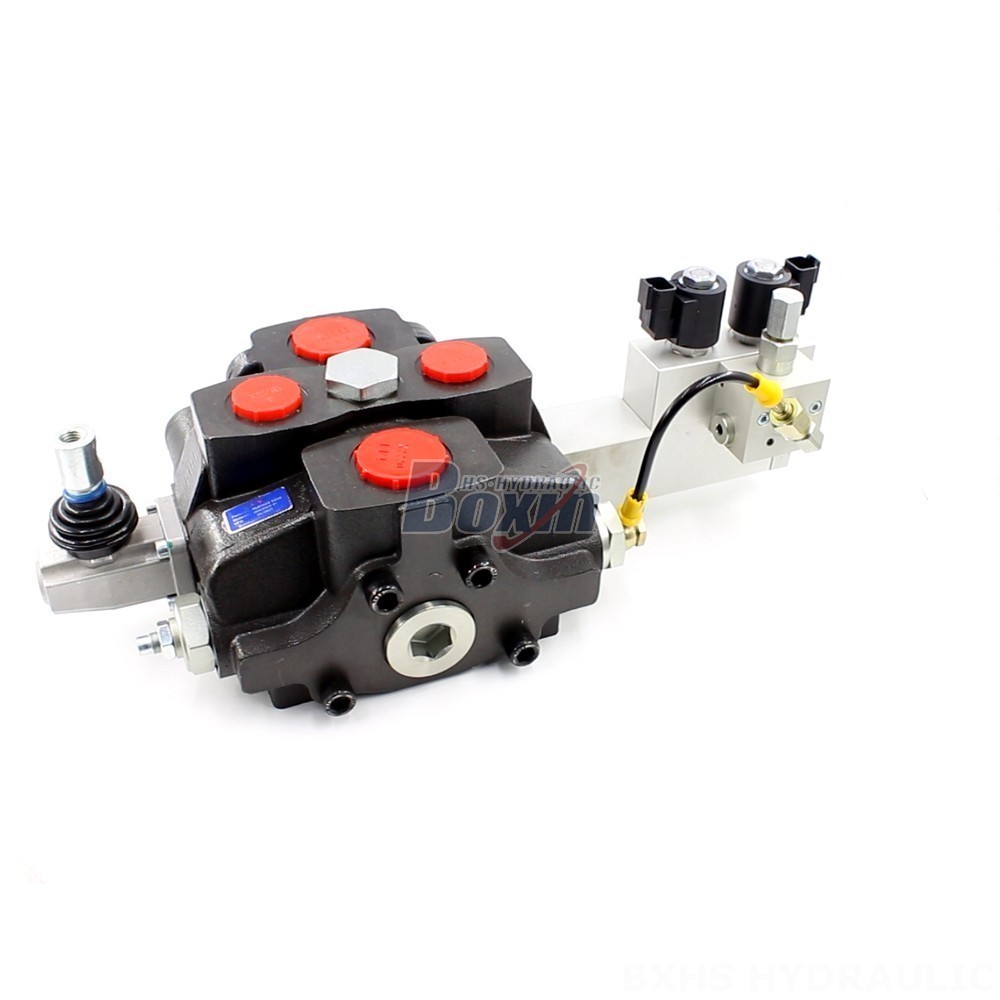

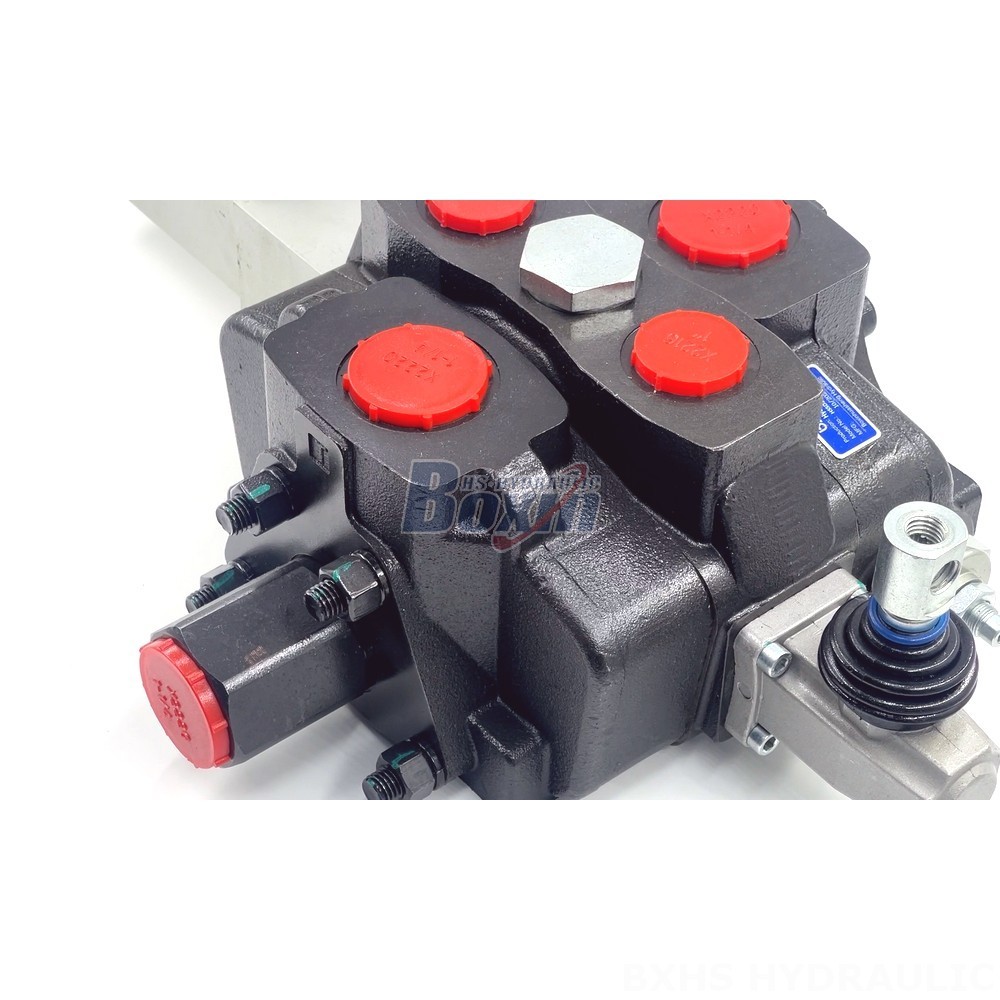

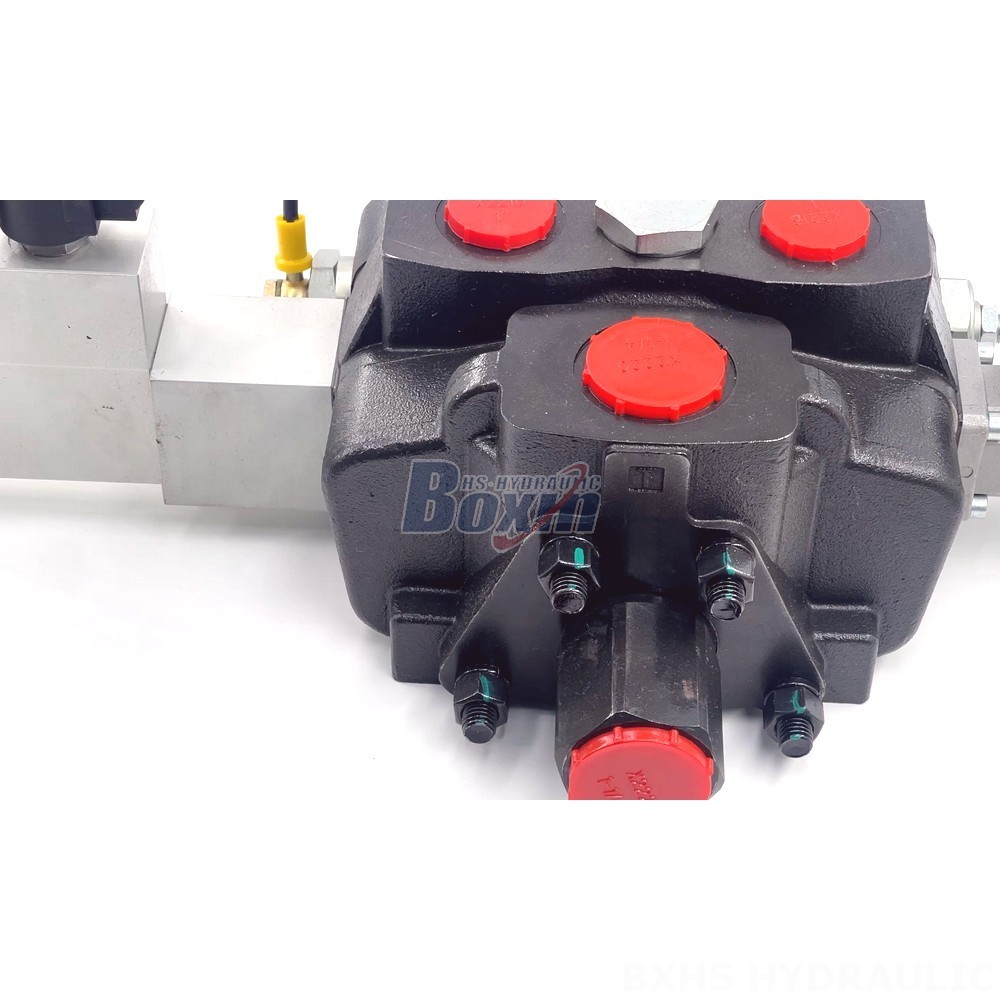

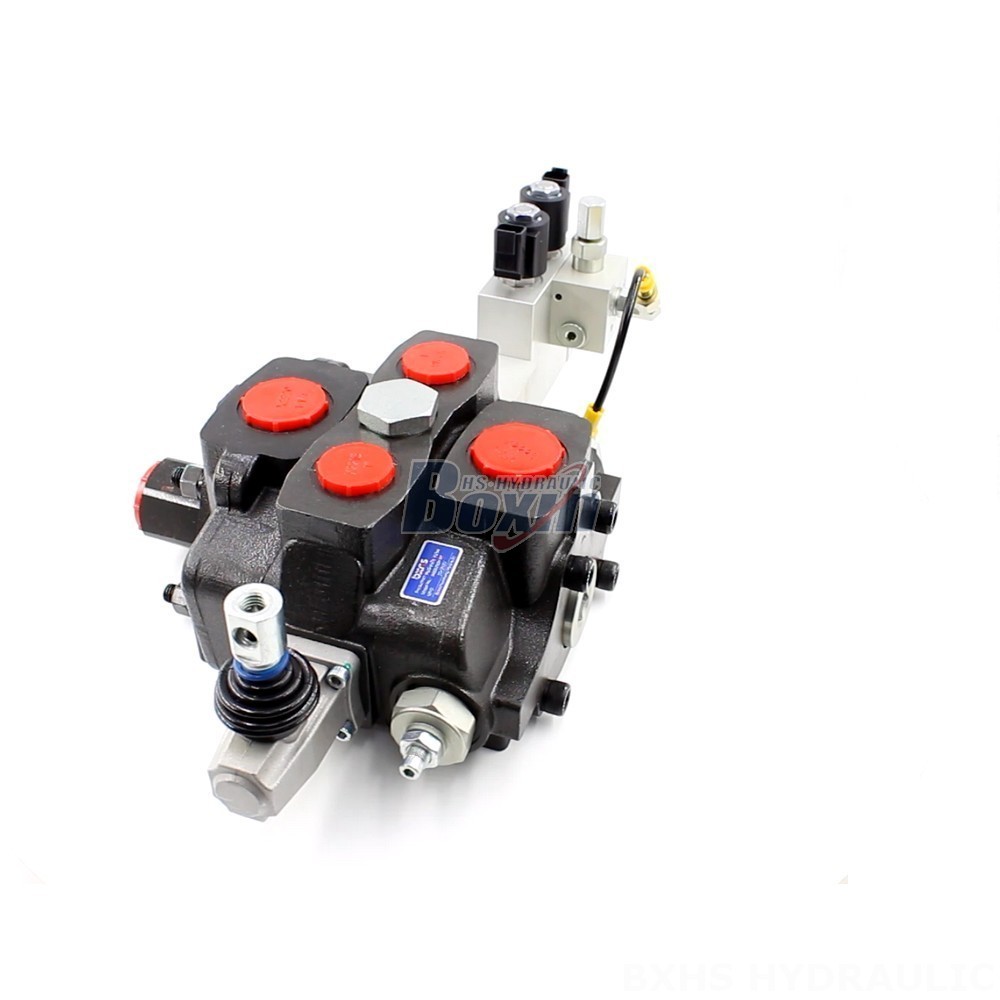

The SD25 Electro-hydraulic Directional Valve is a high-quality, monoblock valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 240 L/min and a max pressure of 315 bar, this valve is suitable for a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
| Seri SD25 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 240 L/menit (63,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1, SAE 16 |
| Port Keluar | G1-1/4, SAE 16 |
| Ukuran Port | G1, G1-1/4, SAE 12 |
The SD25 Series Electro-hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding applications. Featuring a monoblock construction, it offers high flow rates and pressure capabilities for efficient operation. The valve is designed for ease of installation and maintenance. Its wide operating temperature range (-40°C to +80°C) ensures reliable performance in various environmental conditions. The SD25 valve is suitable for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders, making it an ideal choice for manufacturers and suppliers of construction, agricultural, and industrial equipment.
