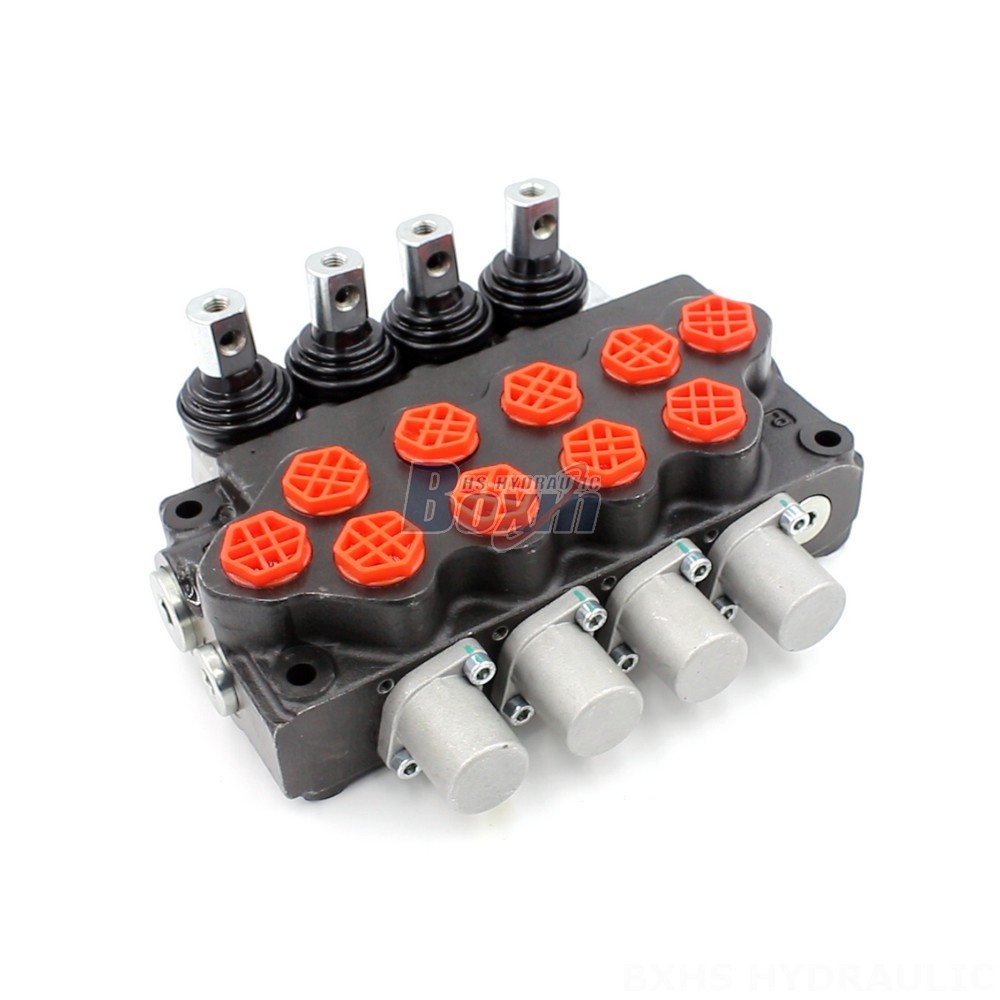

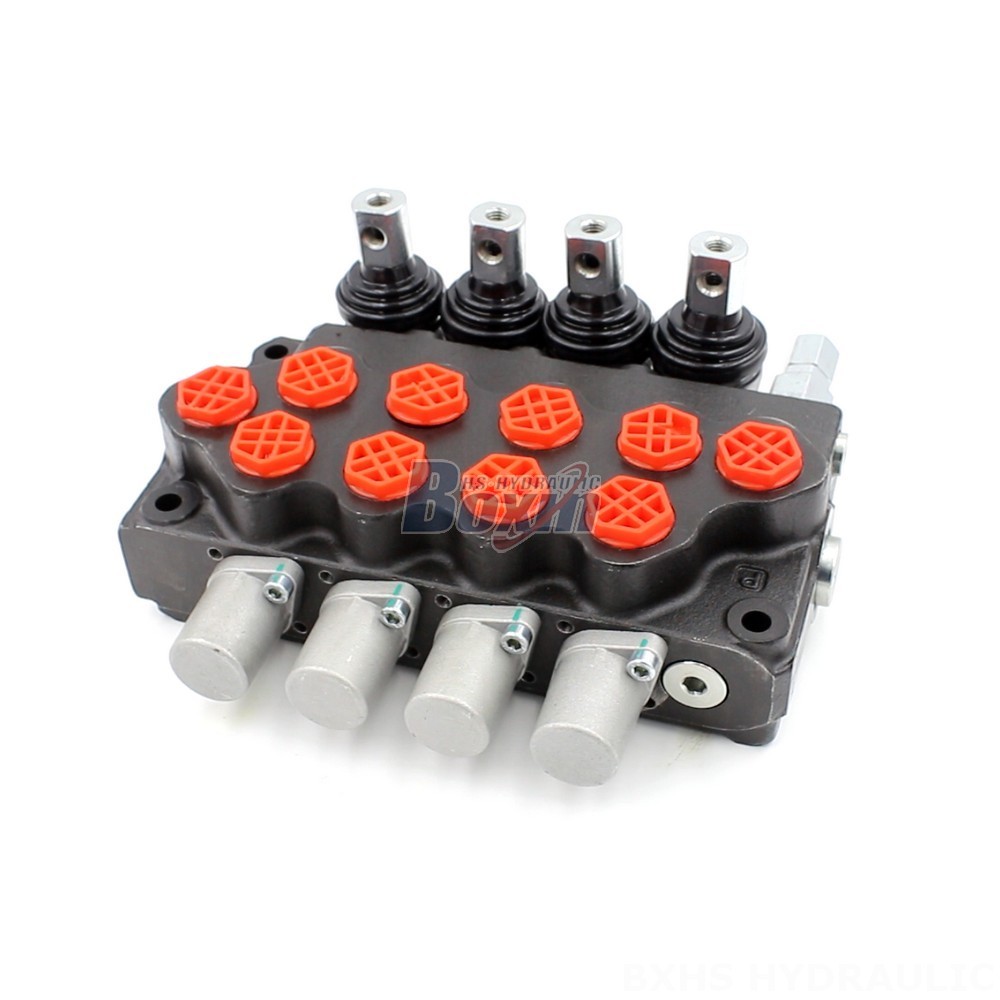

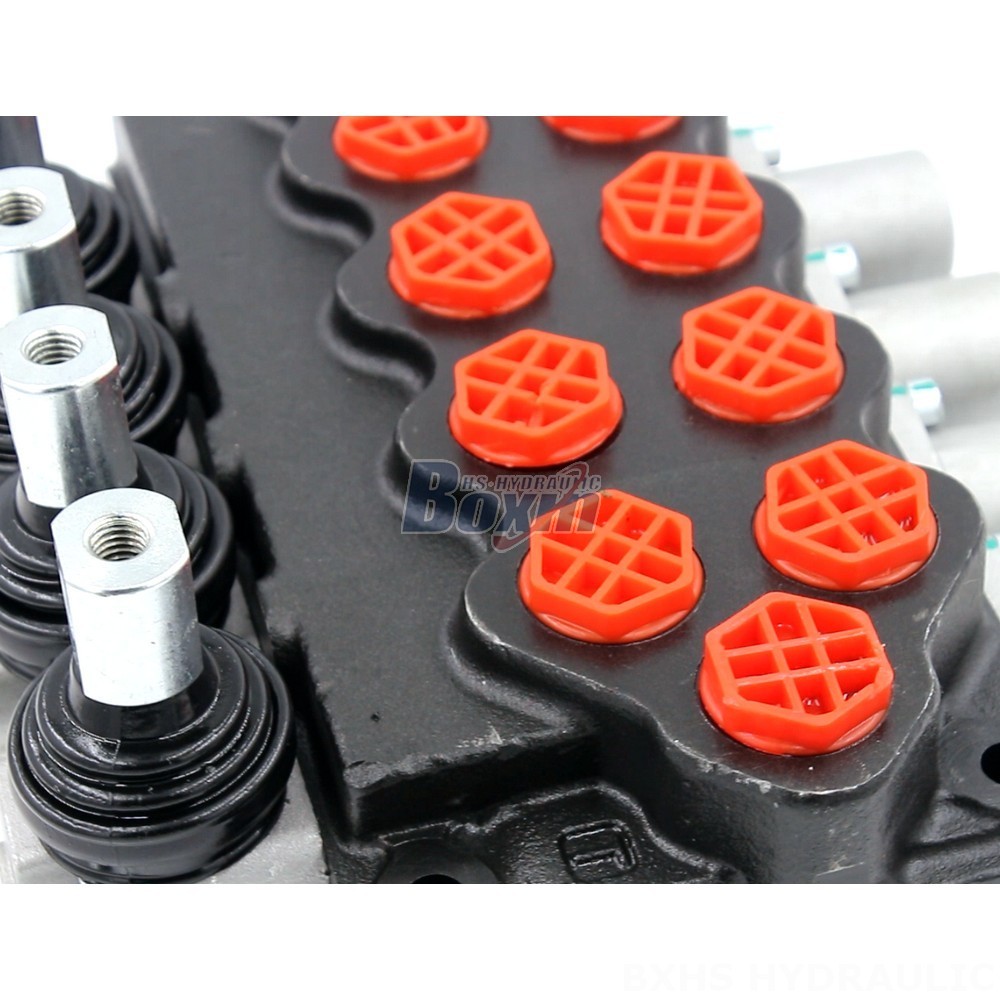

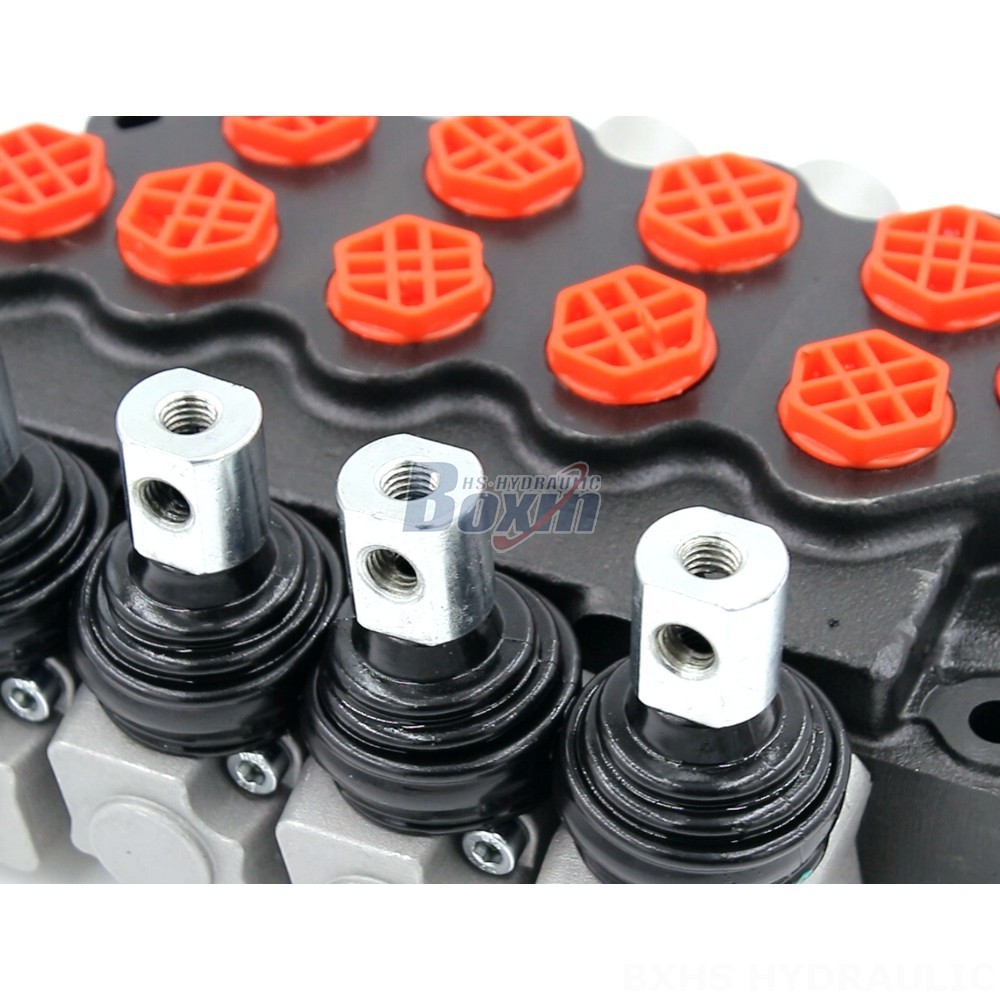

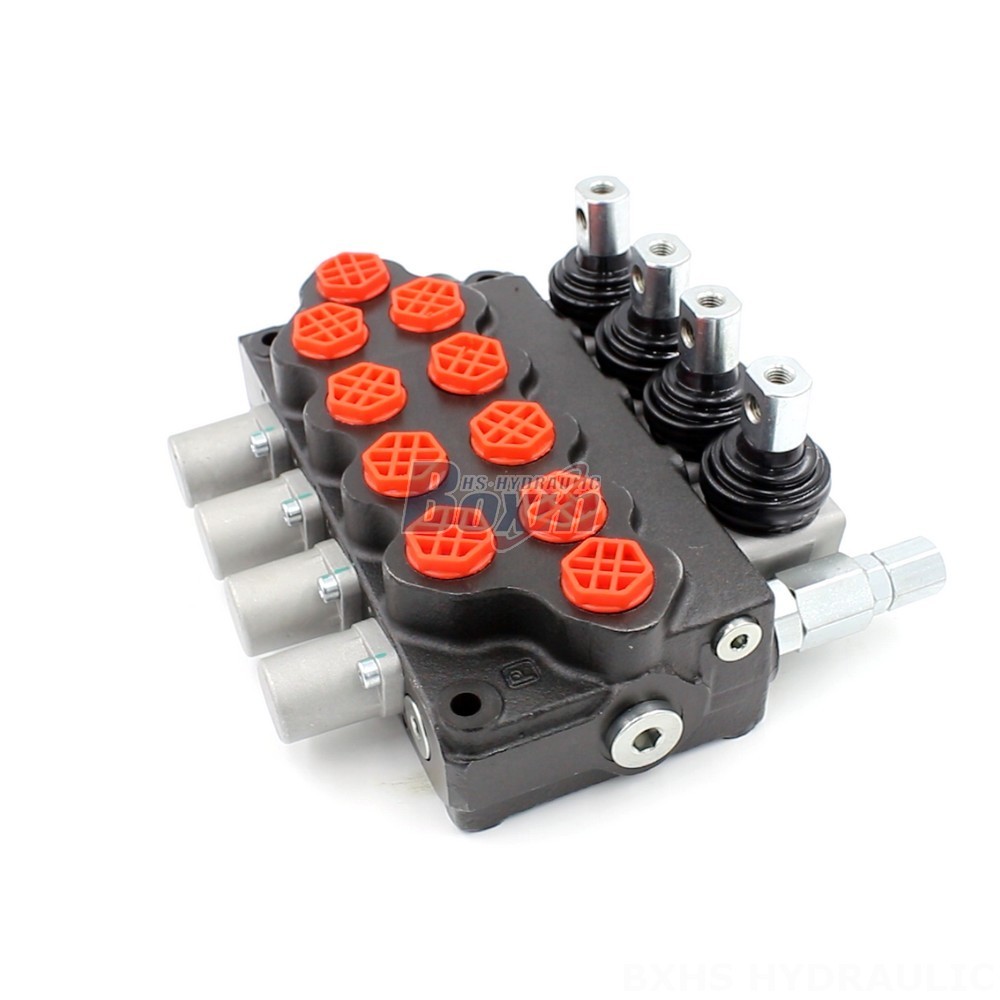

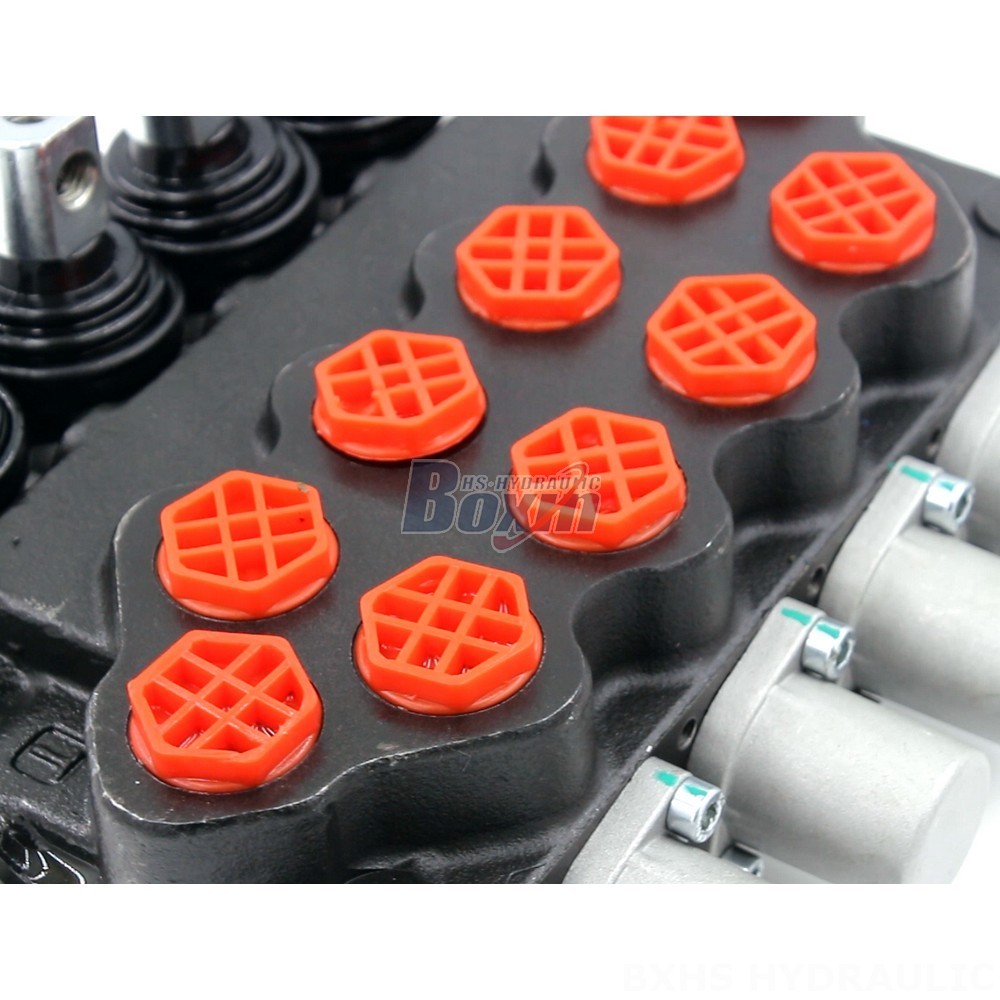

The SD5-G38 4-Spool Hydraulic Valve is a premium hydraulic solution designed for demanding applications in various industries. Its robust construction, high flow capacity, and exceptional pressure handling capabilities make it ideal for heavy-duty machinery and equipment.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* **4-Spool Design:** Provides precise control over multiple hydraulic circuits.
* **Monoblock Construction:** Ensures durability and leak-free operation.
* **Manual Control:** Offers intuitive and responsive operation.
* **High Flow Rate (40 L/min):** Supports efficient operation of hydraulic systems.
* **High Pressure Capacity (305 bar):** Handles demanding pressure requirements with ease.
* **Versatile Temperature Range (-40°C to +60°C):** Suitable for operation in extreme environments.
* **Wide Application Area:** Ideal for material handling, construction, earth moving, agriculture, and industrial vehicles.
* **Compatible Models:** Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
