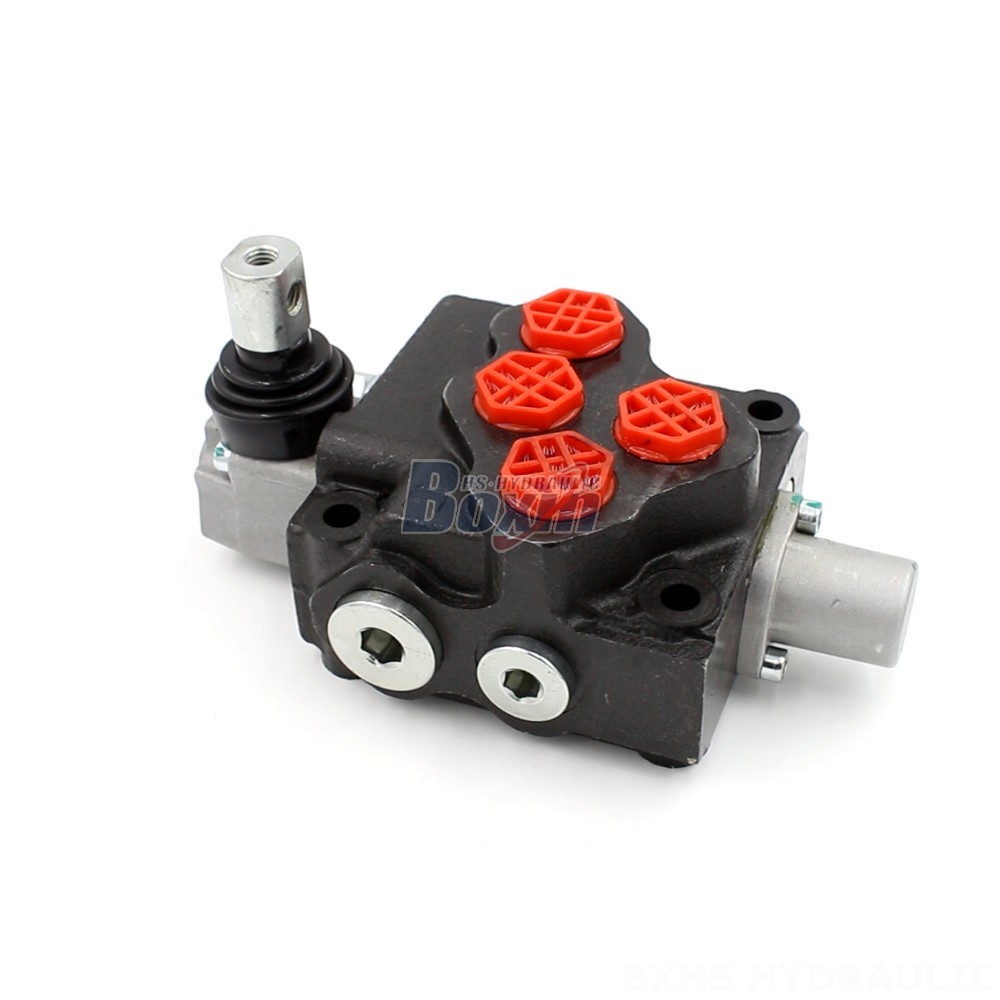

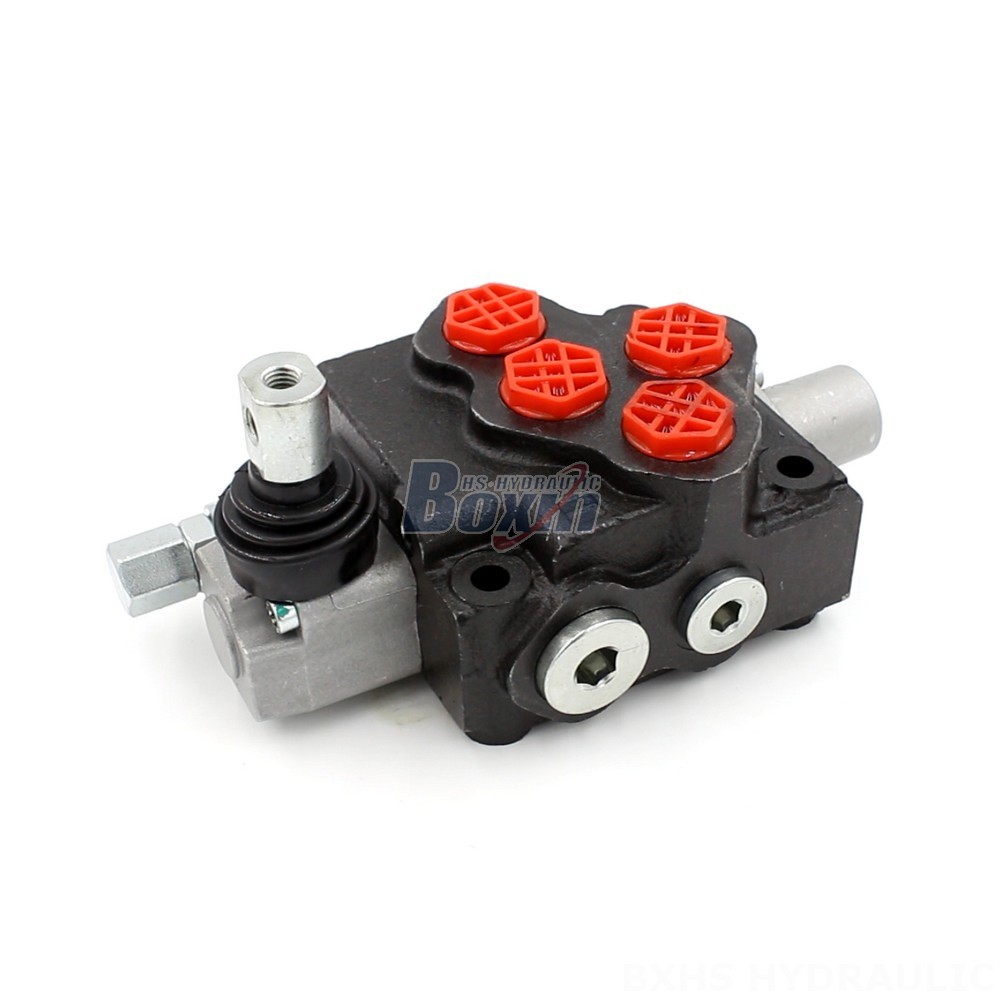

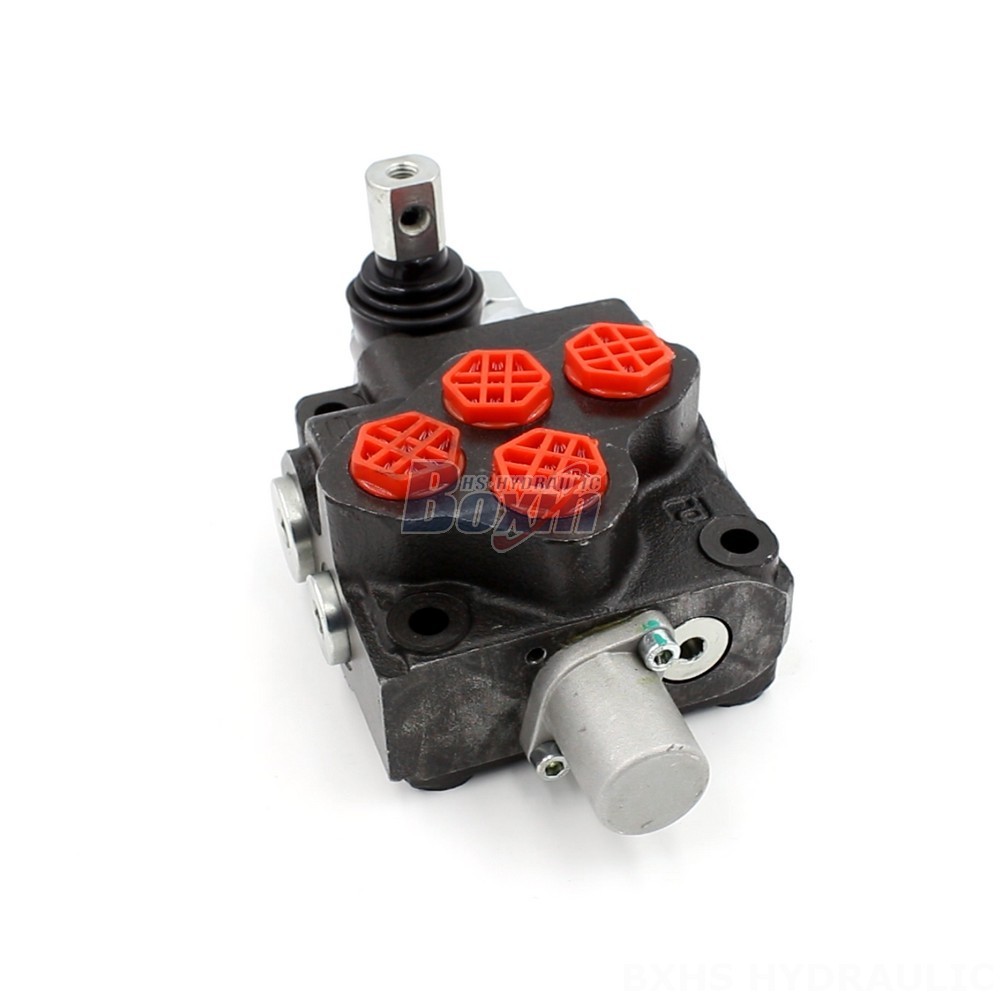

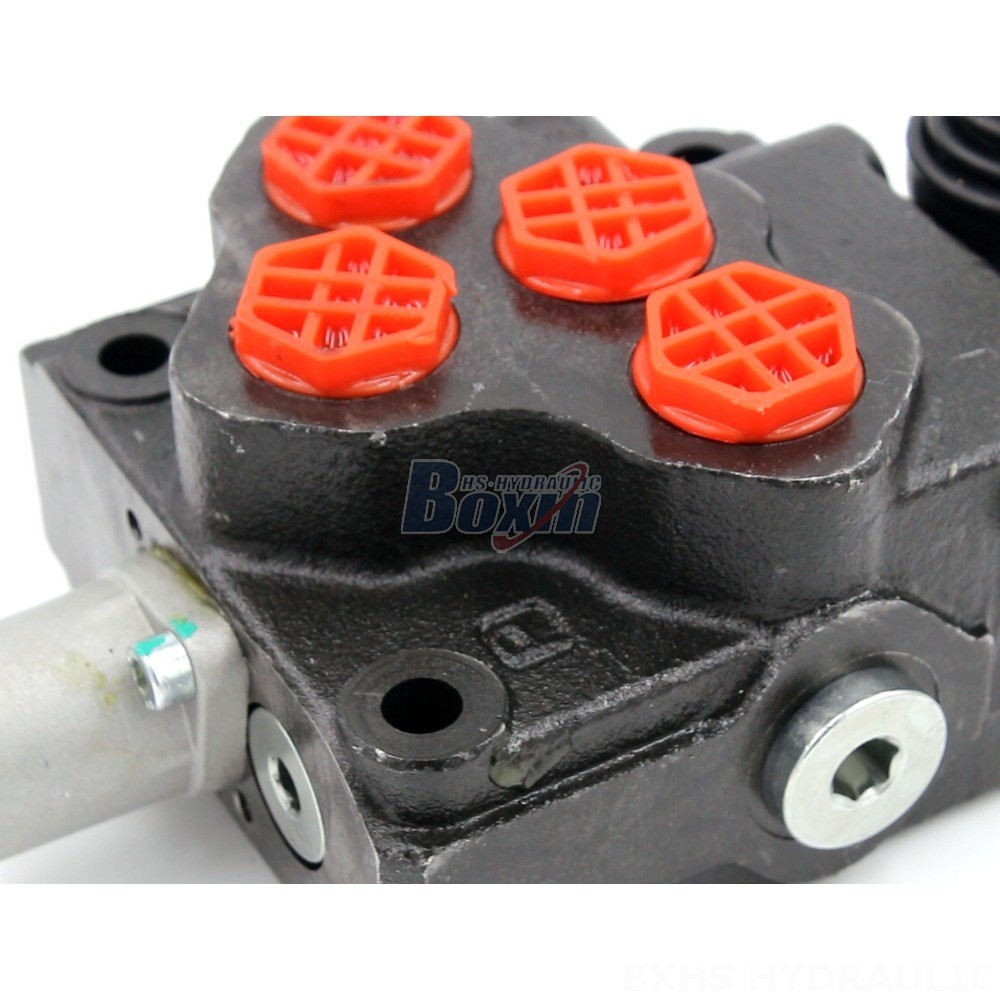

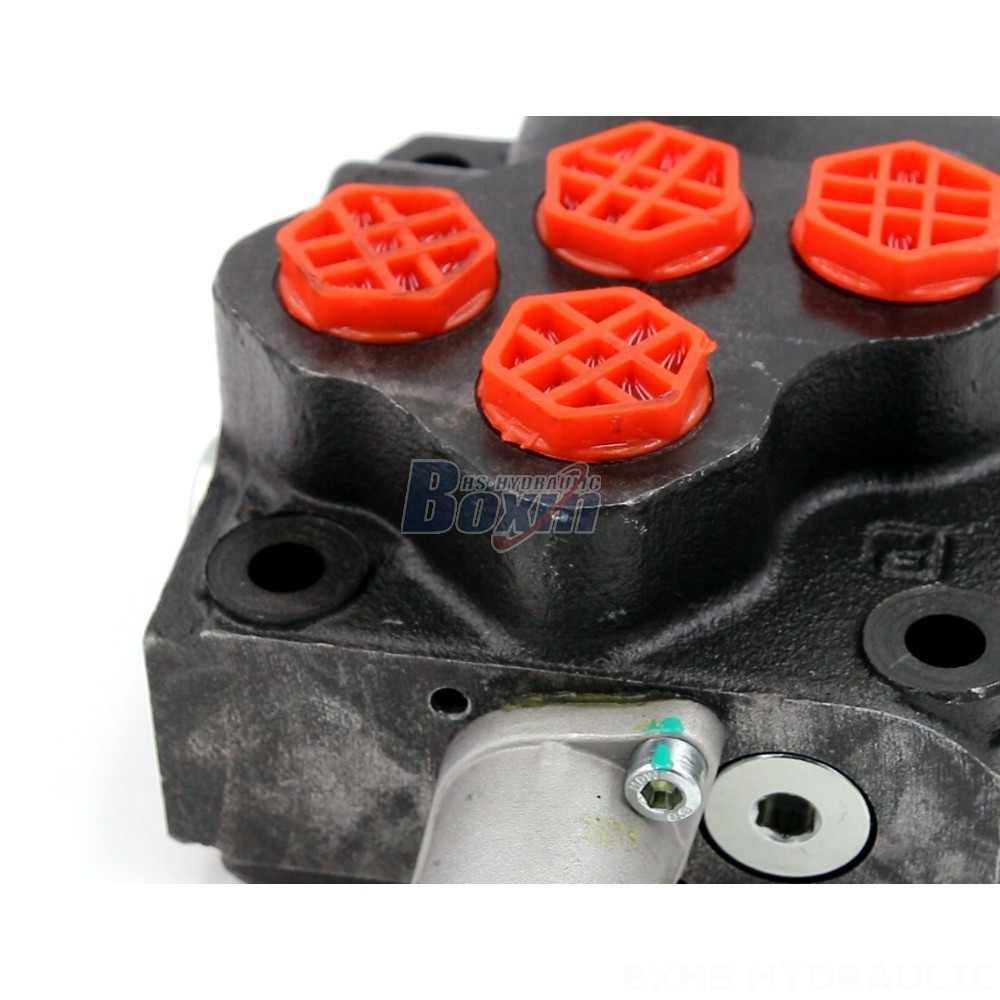

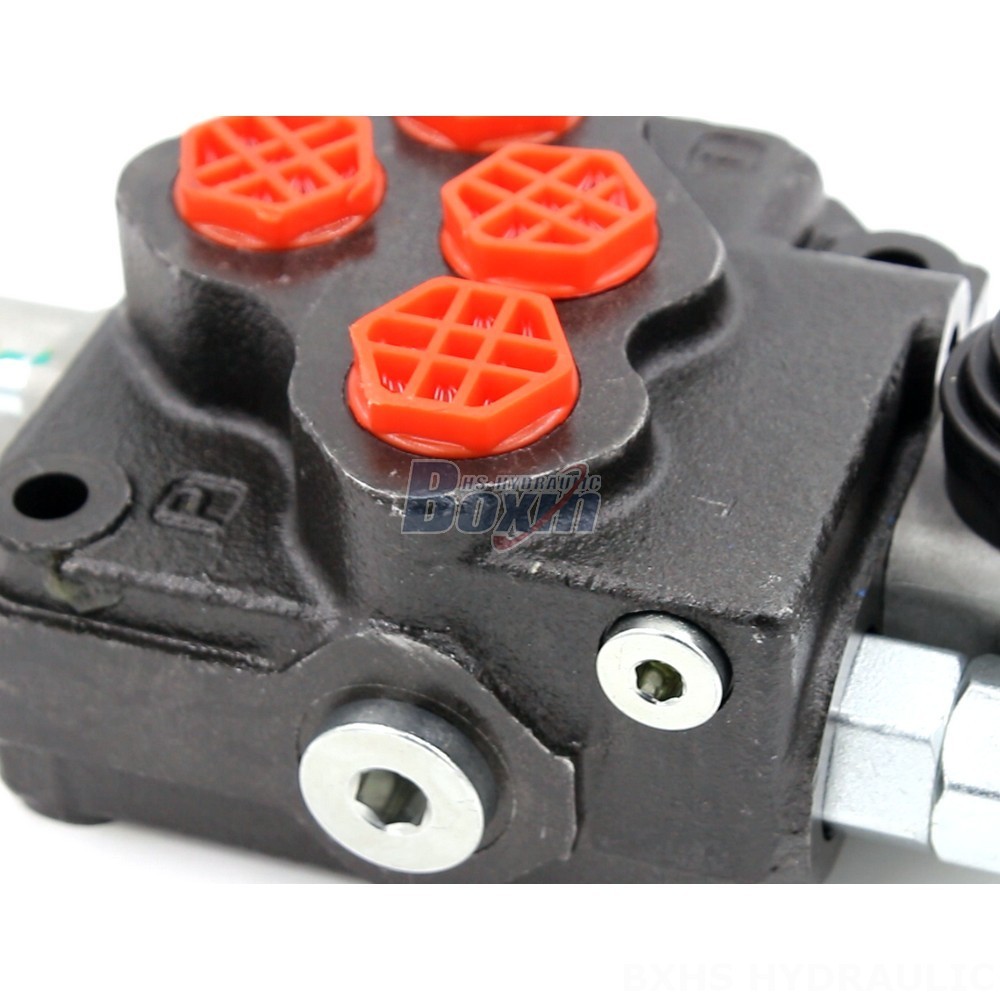

The Twoway Forklift Valve SD5-G38 is a reliable and durable directional valve designed for a variety of material handling and industrial applications. It features manual control, a monoblock structure, and a rated flow of 40 L/min. This valve is ideal for telehandlers, forklifts, and other heavy machinery. We offer OEM, ODM, and private label services to meet your specific needs.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The Twoway Forklift Valve SD5-G38 is a high-performance directional valve designed for use in demanding hydraulic systems. It is a monoblock valve with manual control and a rated flow of 40 L/min. This valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. We are a leading manufacturer of hydraulic products and offer a comprehensive range of services, including OEM, ODM, and private labeling. We can customize the valve to meet your specific requirements and offer competitive pricing on bulk orders. Contact us today to discuss your needs and explore how our Twoway Forklift Valve SD5-G38 can benefit your business.
