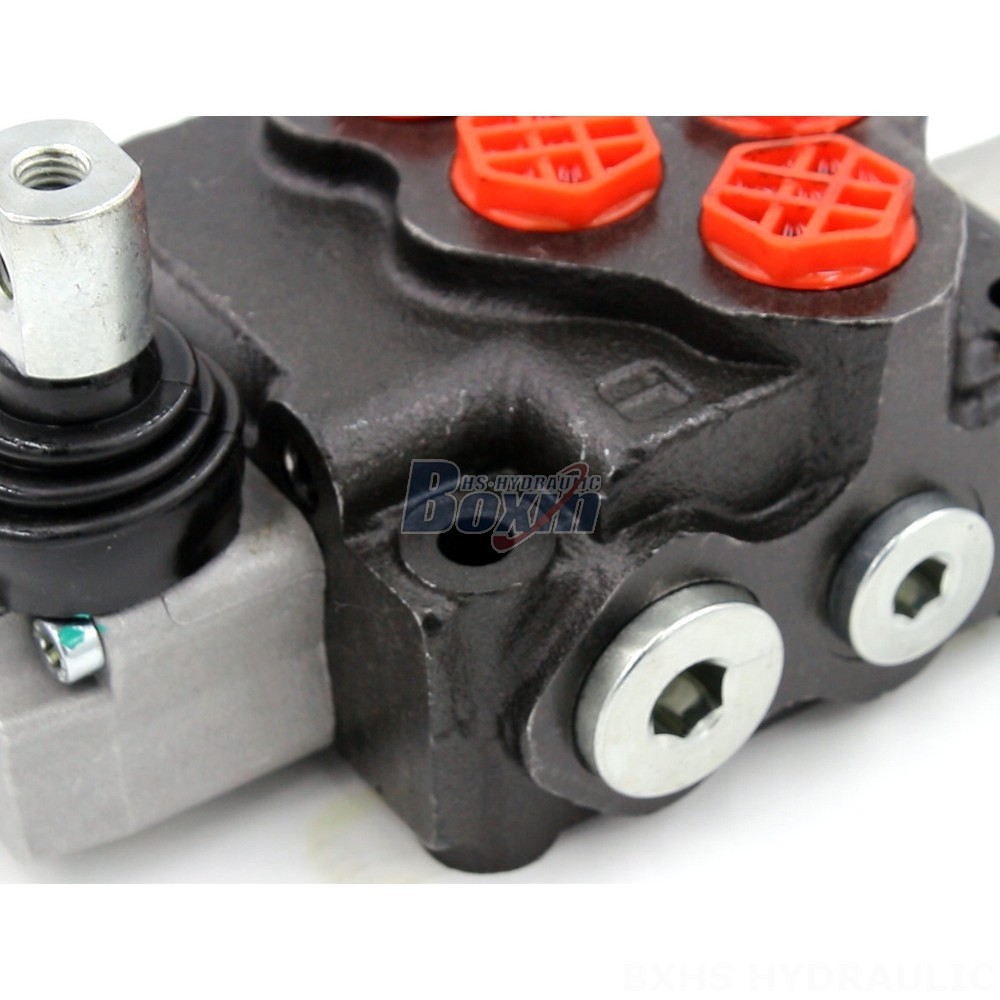

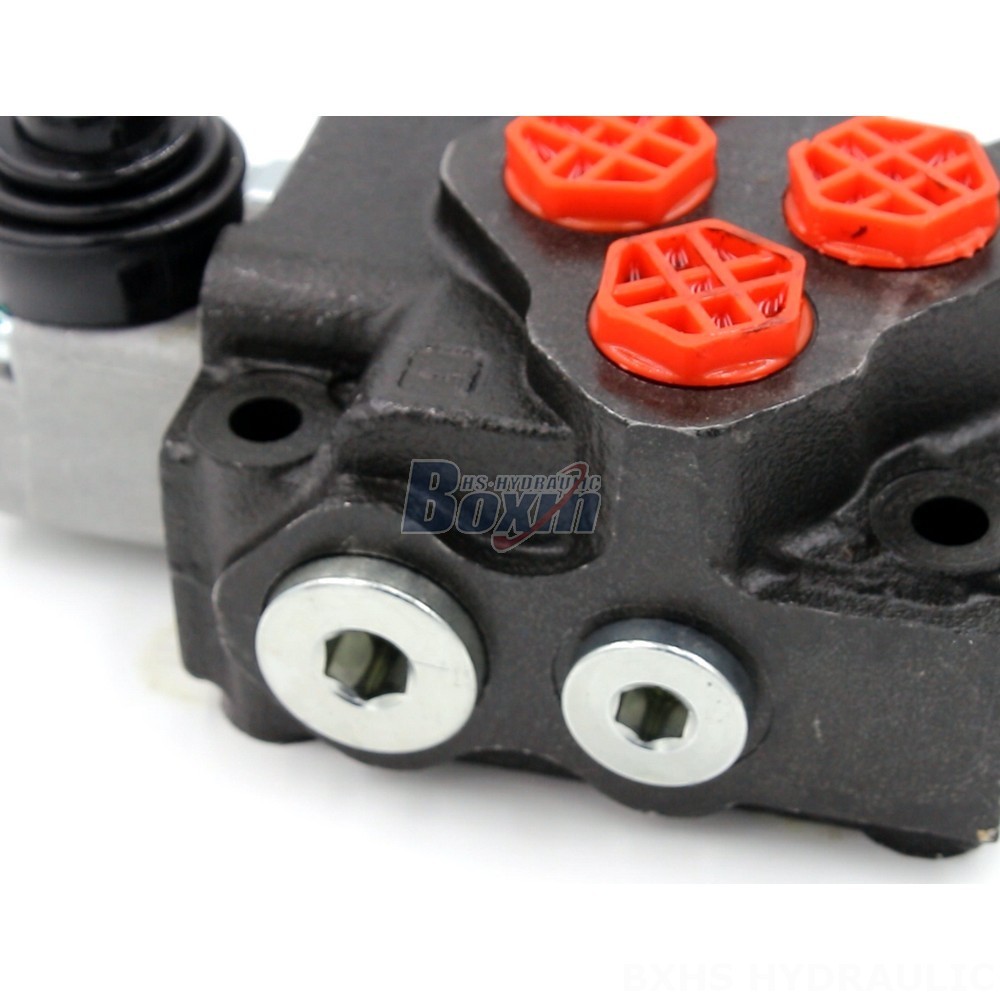

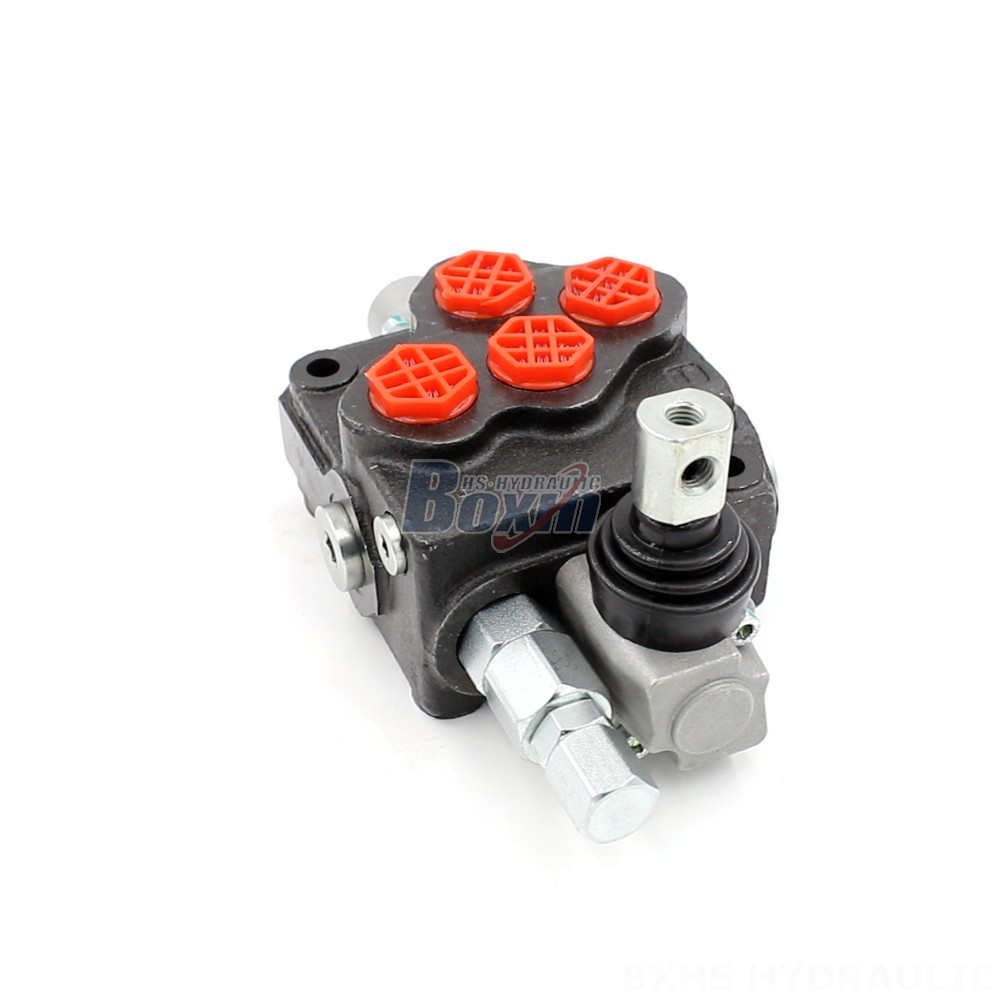

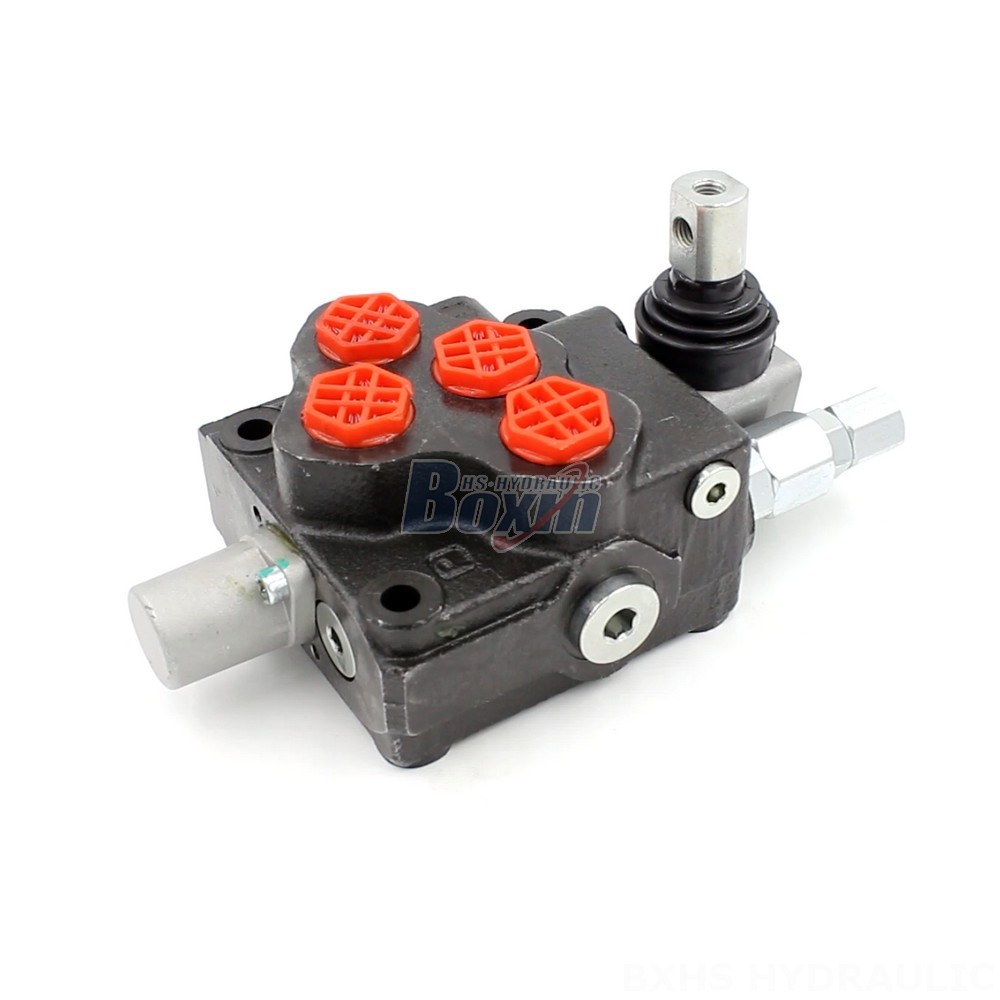

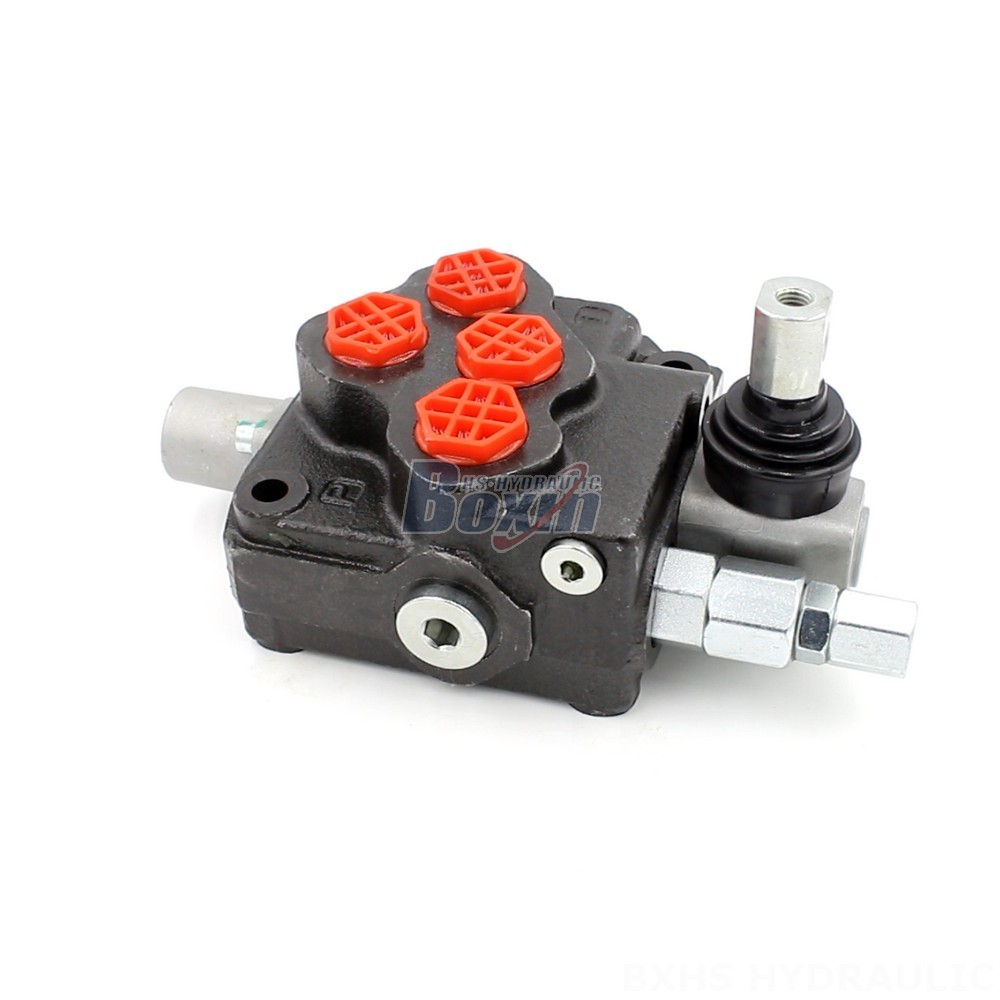

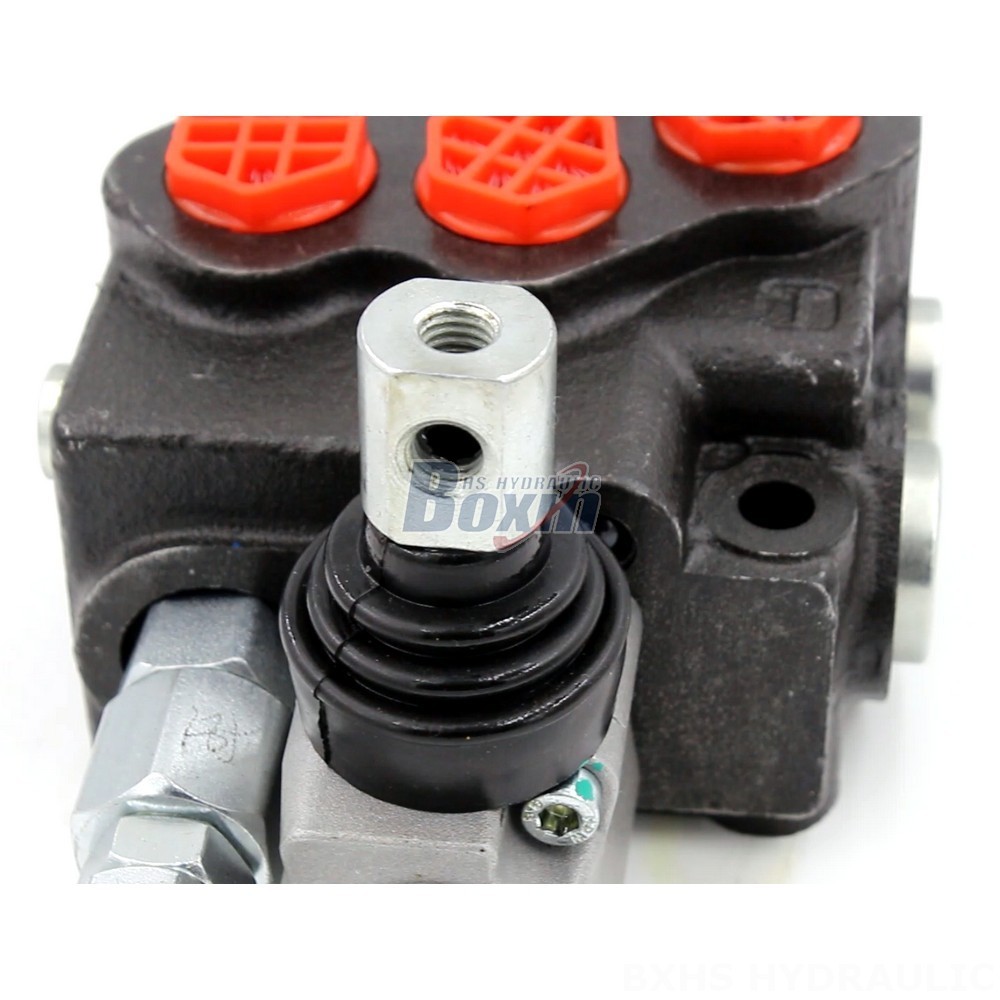

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G3/8

Port Keluar:G3/8

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri SD5 Katup Arah Monoblok

Ukuran kemasan:23*20*12

Kelas kotor:3.80 kg

Ketersediaan: Tersedia

1186 Pandangan Mencari Produk Ini

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need

SD5-G38 Manual 1 Spool Monoblock Directional Valve: The Valve You Need drawing image

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual valve features a compact monoblock design, a rated flow of 40 L/min, and a maximum pressure rating of 305 bar.

Seri SD5 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +60°C (-40°F hingga +140°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 305 bar (4400 psi)
Port Masuk G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Port Keluar G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Ukuran Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Manual 1 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. This robust valve features a single spool design, a compact monoblock structure, and a rated flow of 40 L/min. The valve is capable of handling pressures up to 305 bar, making it suitable for demanding applications. It's designed for use in a variety of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. The SD5-G38 is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, and seeding machines.
