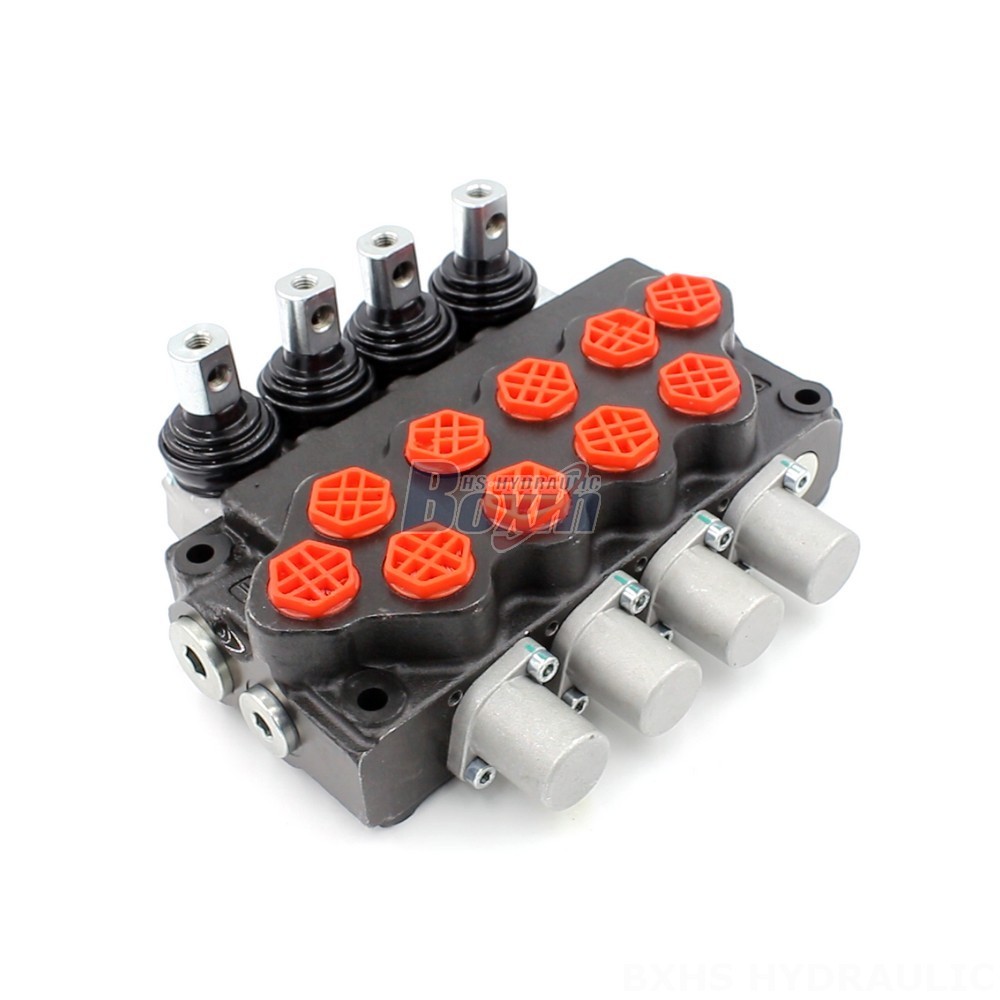

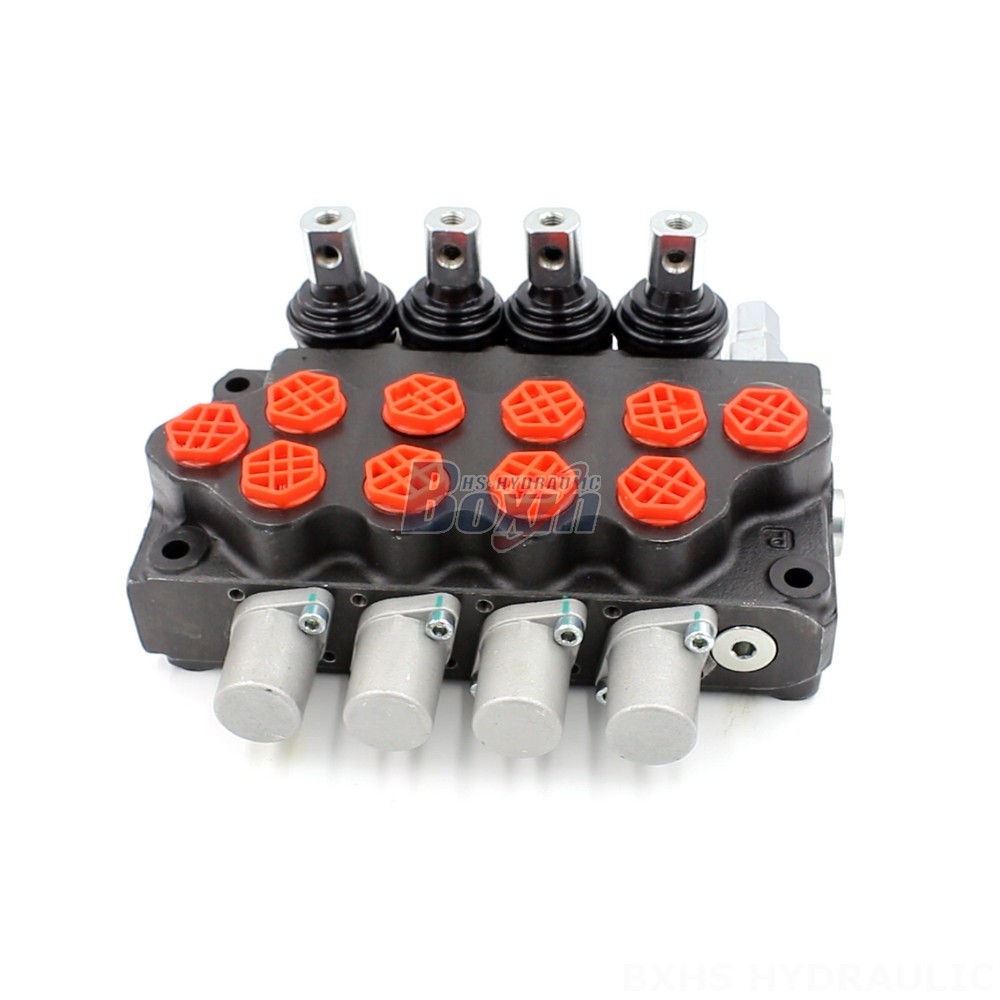

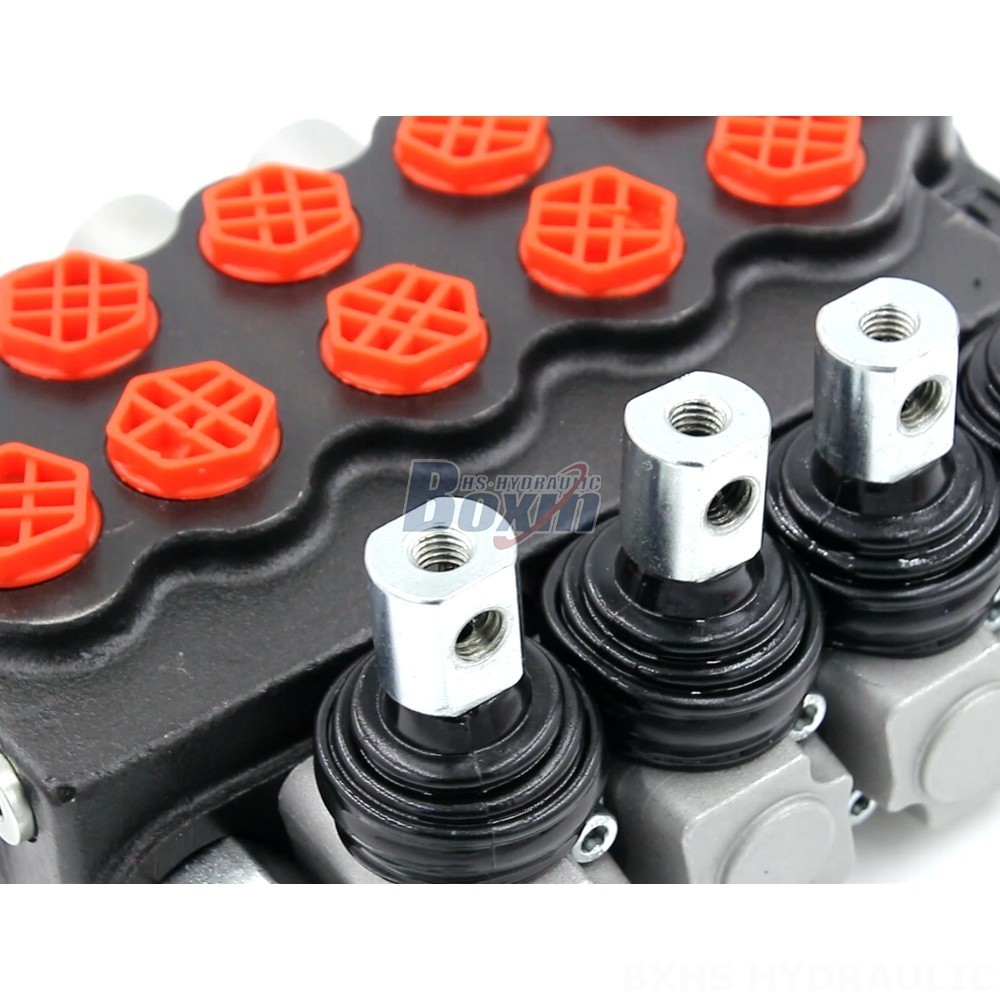

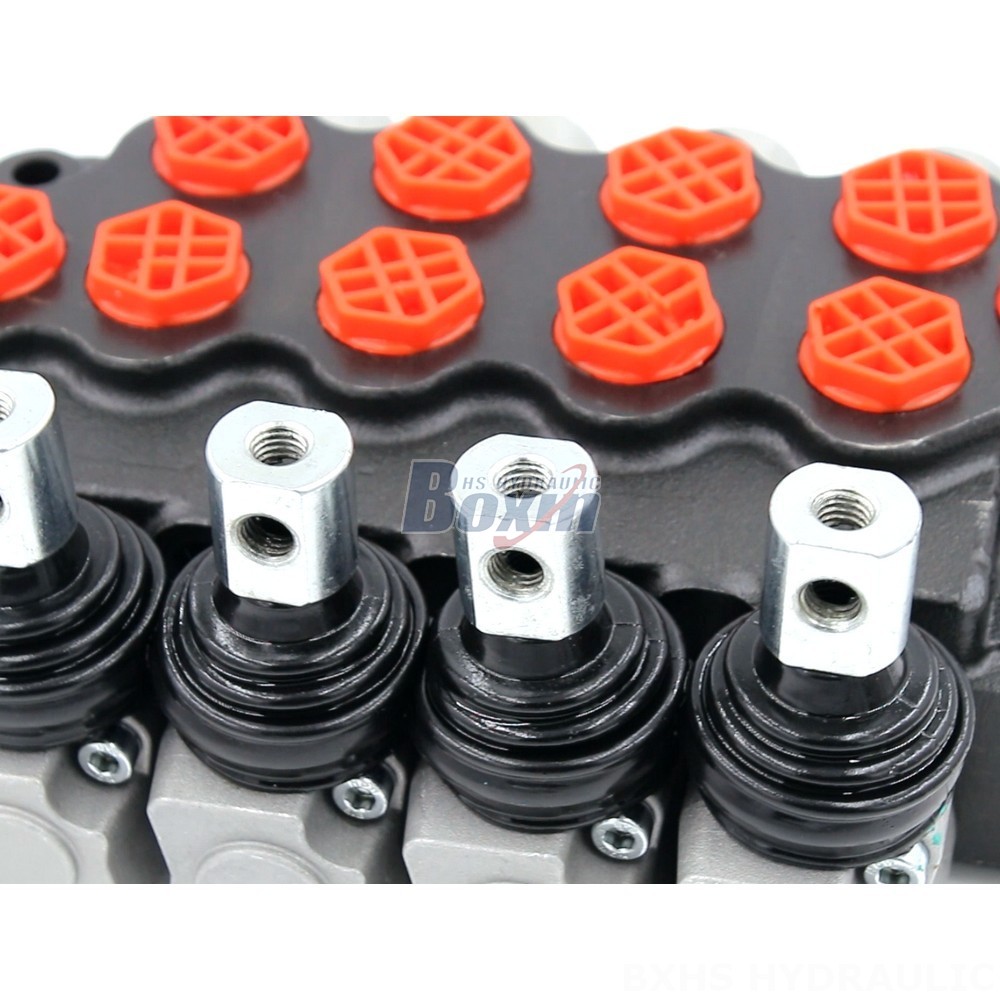

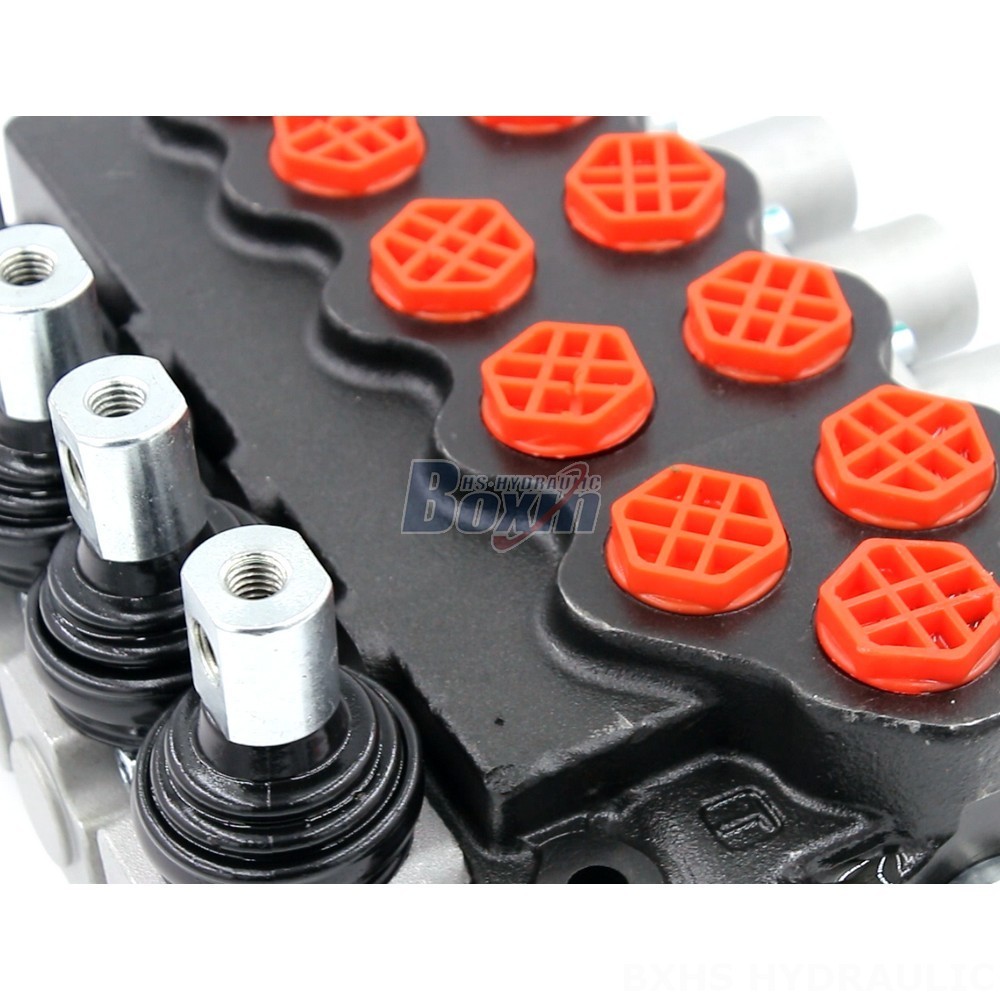

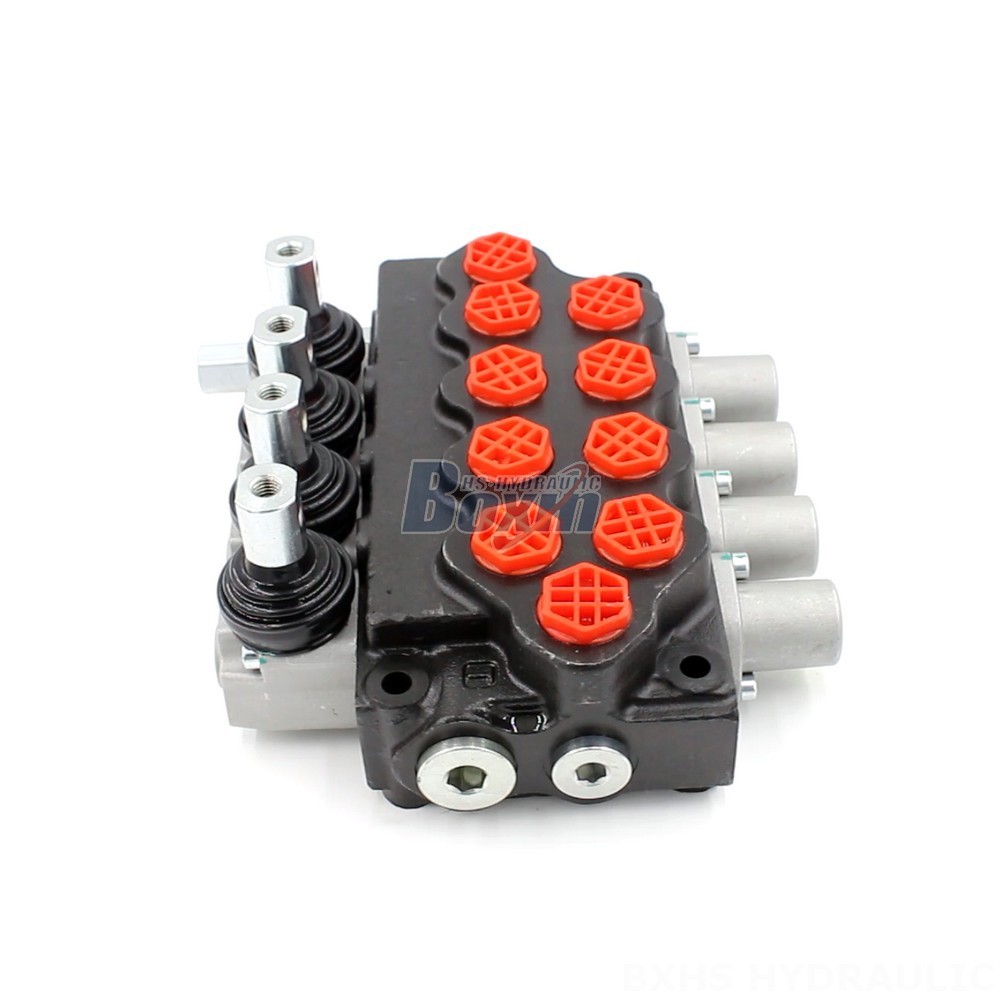

The SD5-G38 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its robust monoblock construction, manual control, and high pressure capacity, this valve offers reliable and precise flow control.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Key Features:**
* Manual control for precise flow adjustment
* Monoblock construction for durability and leak-free performance
* 4 spool design for versatile flow control
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 305 bar (4400 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Wide ambient temperature range (-40°C to +60°C / -40°F to +140°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
* Industrial vehicles (e.g., sweepers, scrubbers)
**Benefits:**
* Improved flow control and efficiency
* Enhanced system performance and reliability
* Reduced maintenance and downtime
* Suitable for a wide range of hydraulic applications
