The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

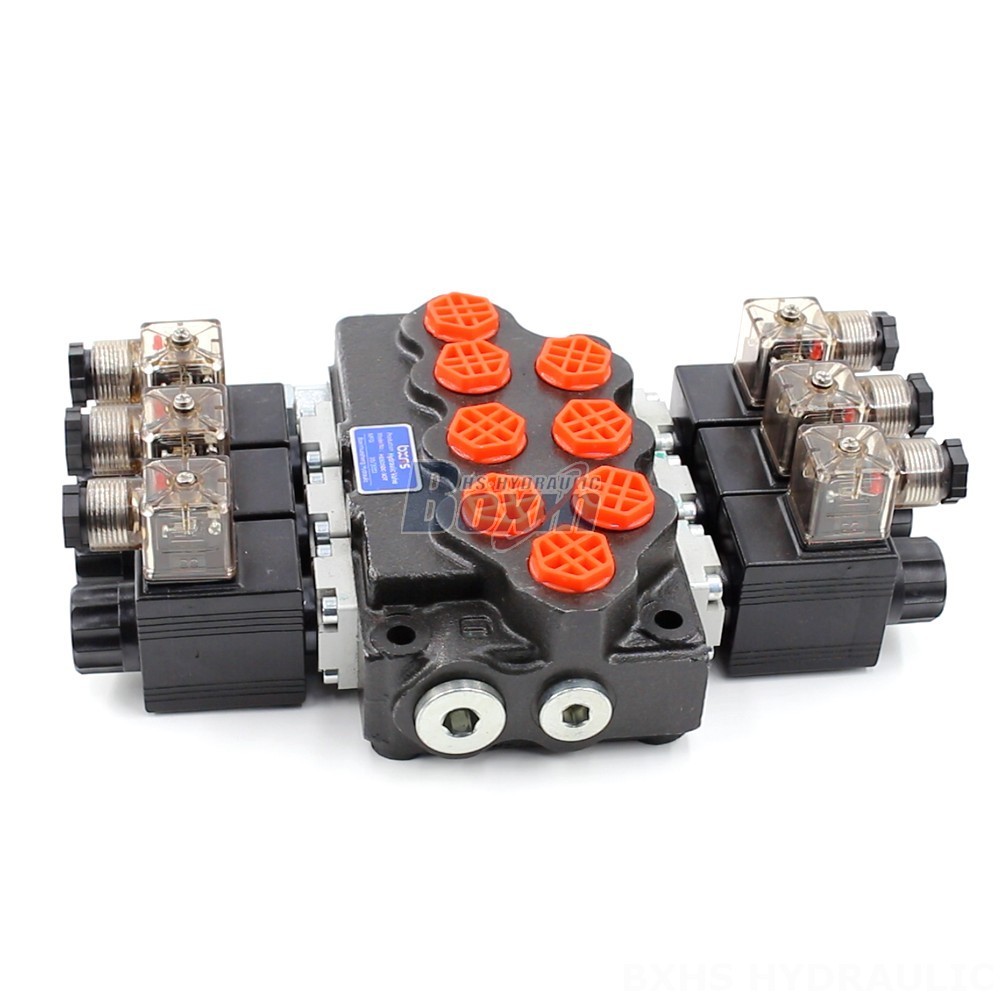

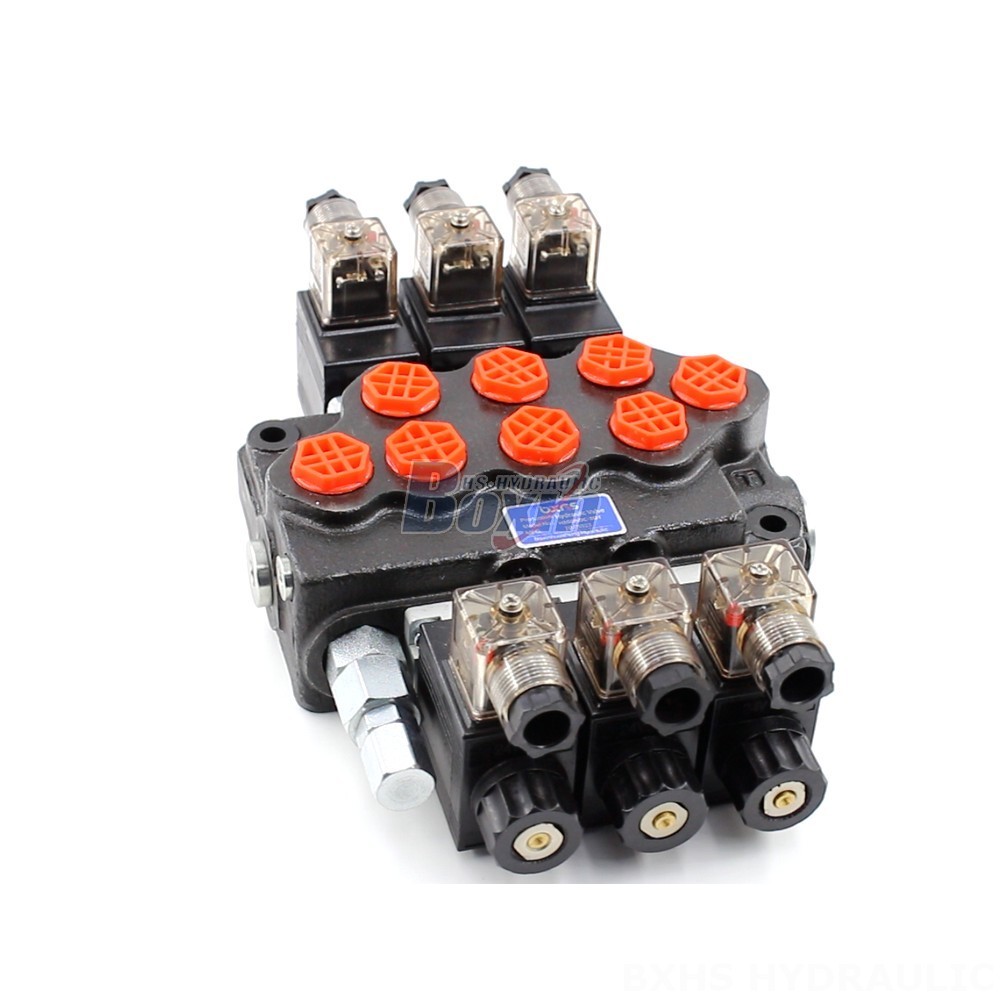

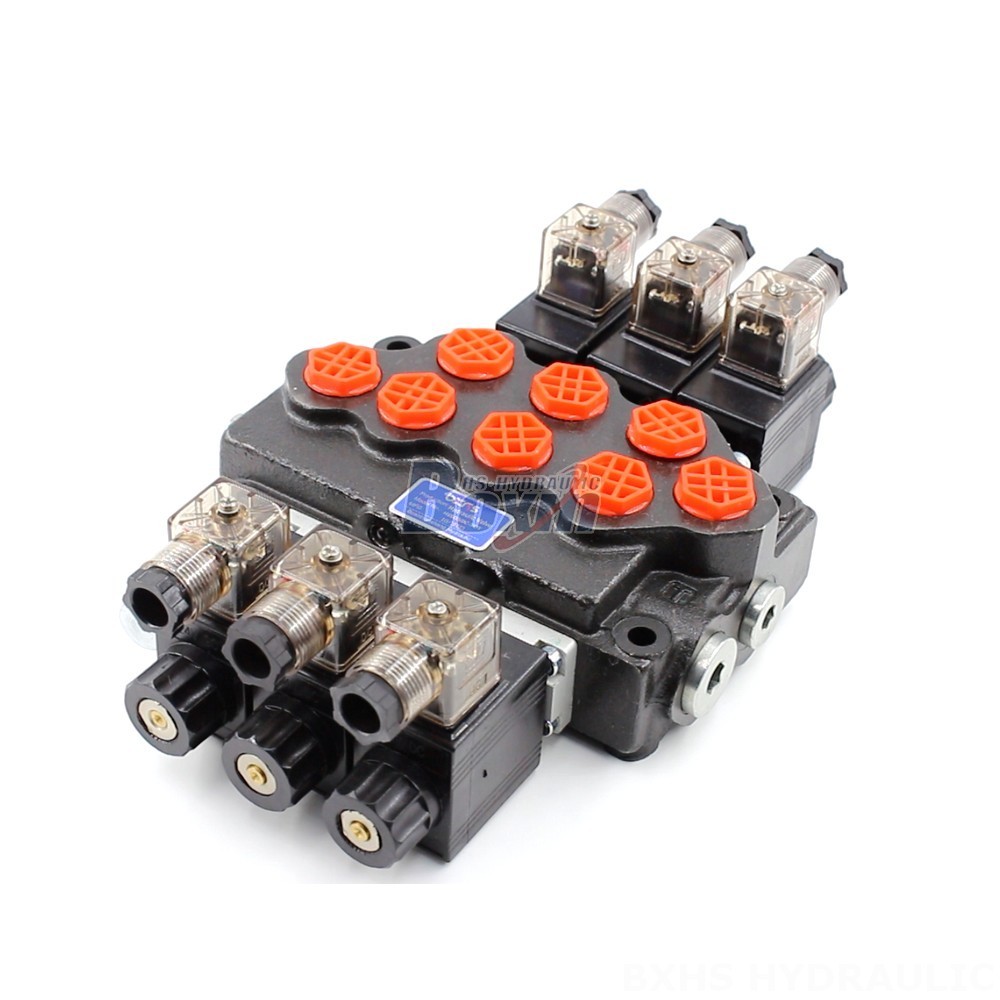

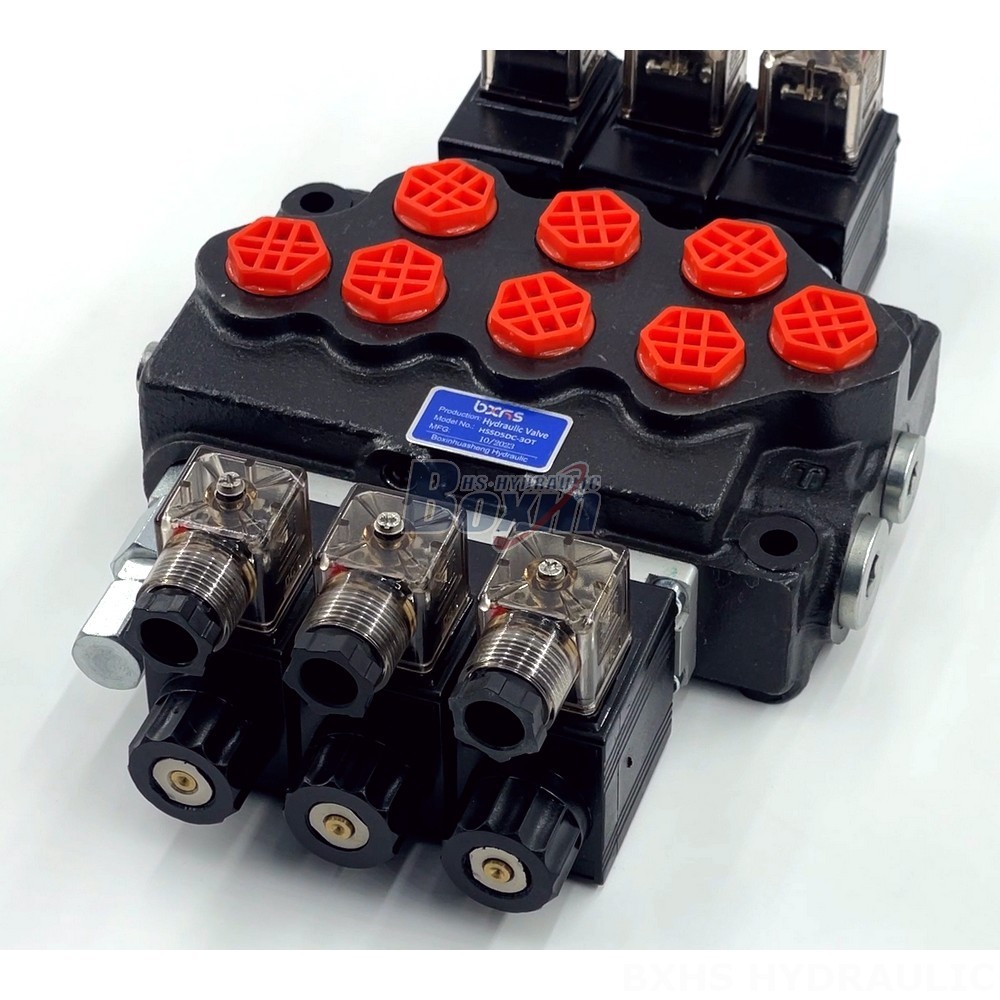

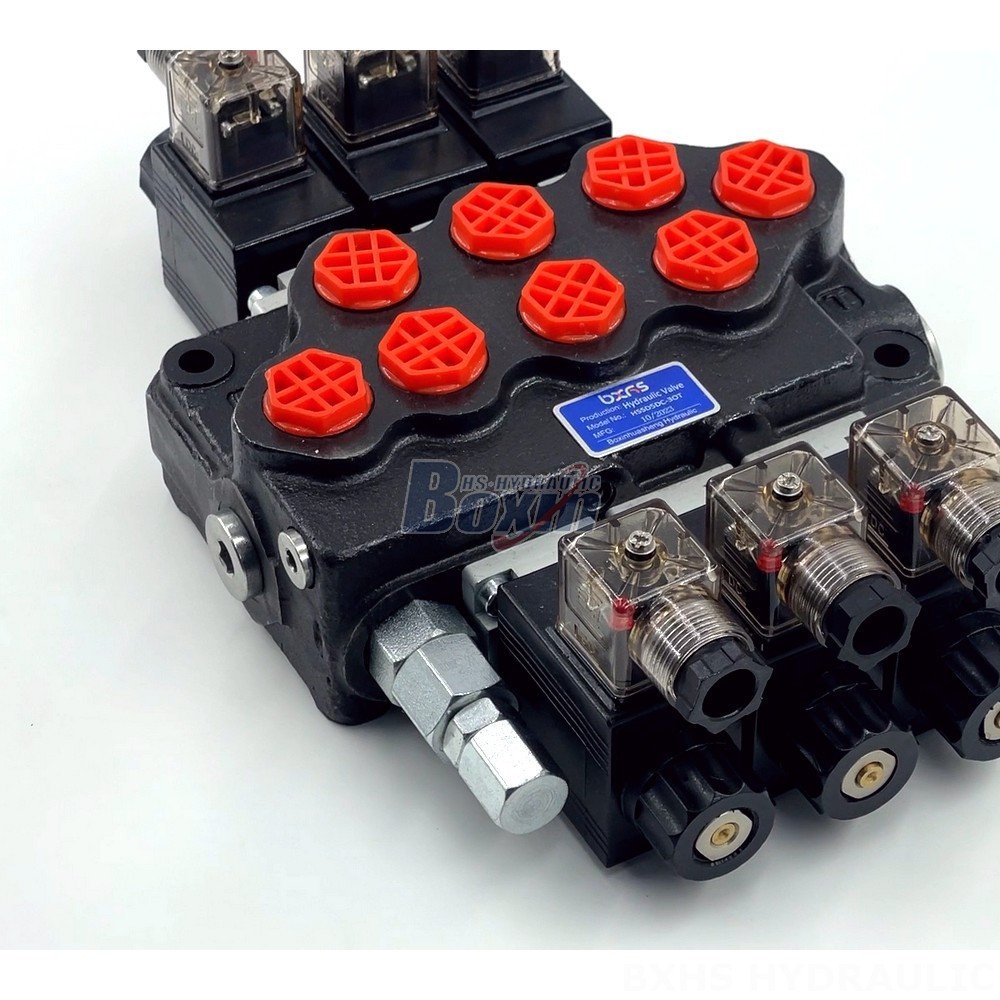

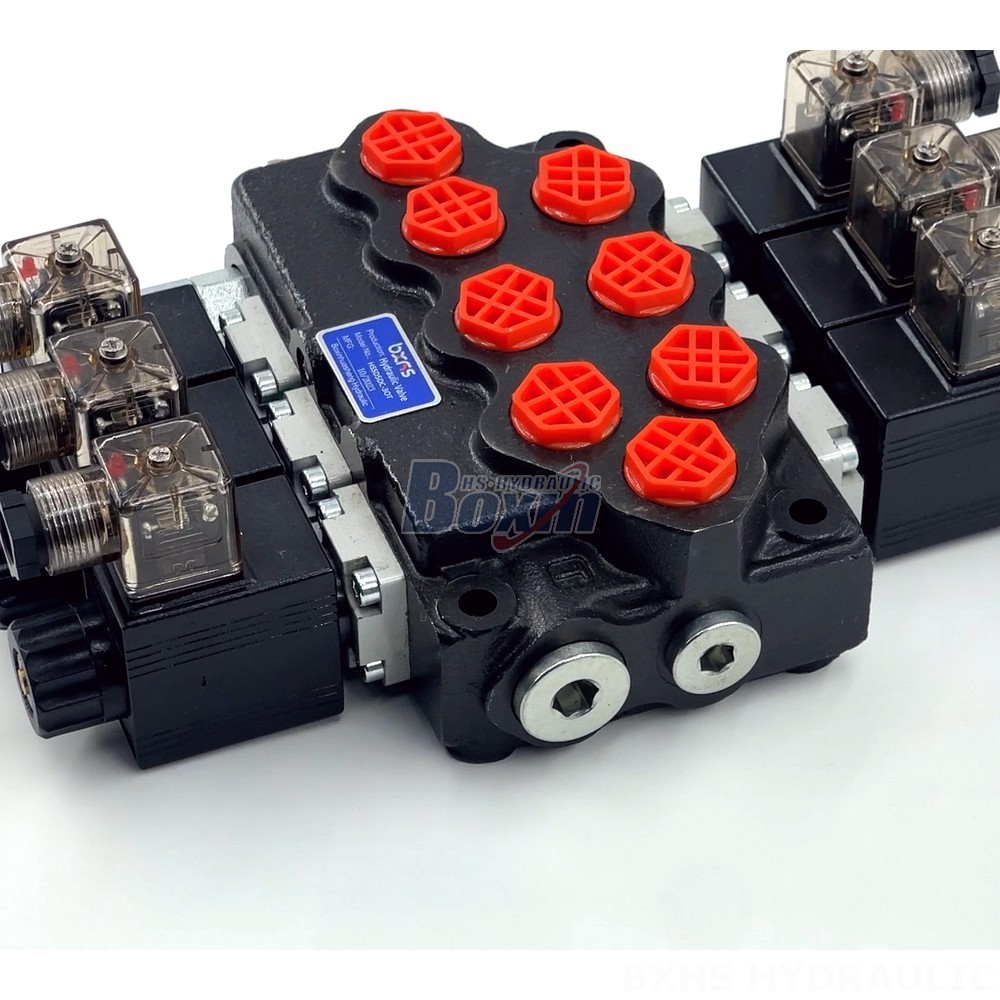

This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.
