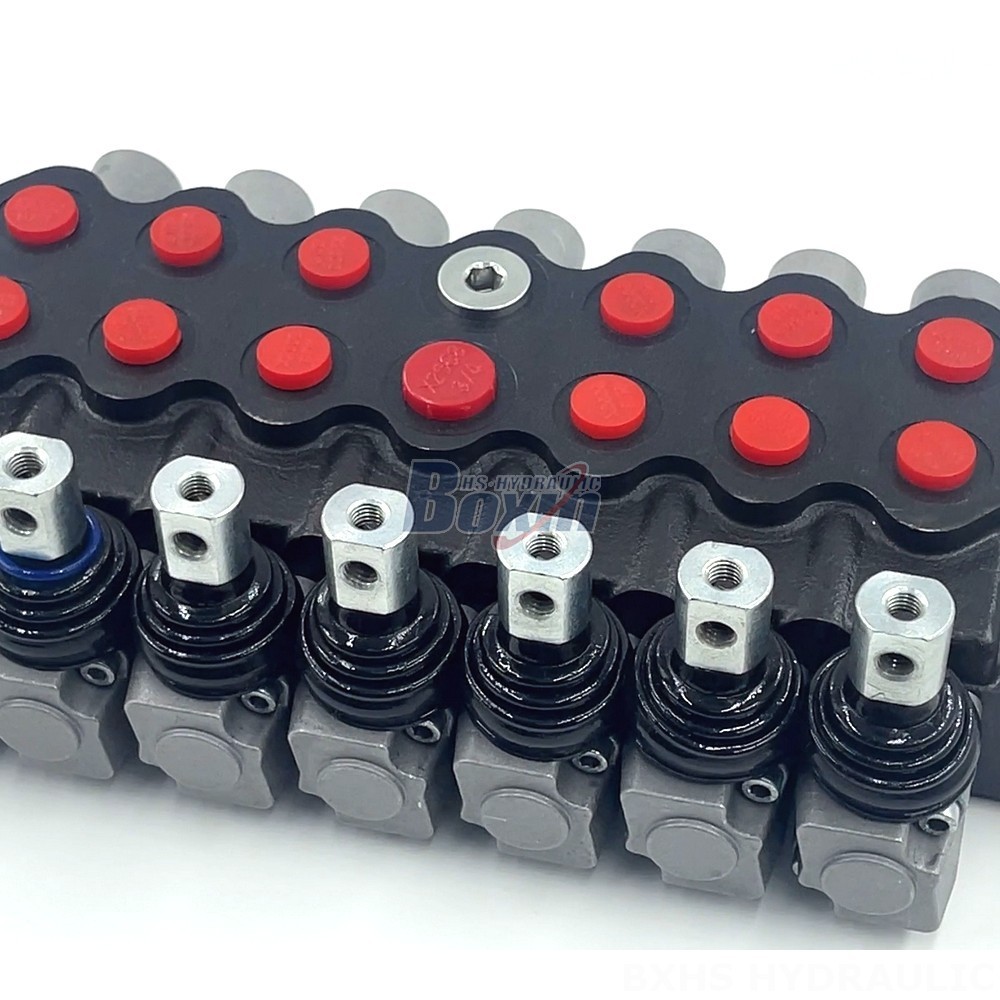

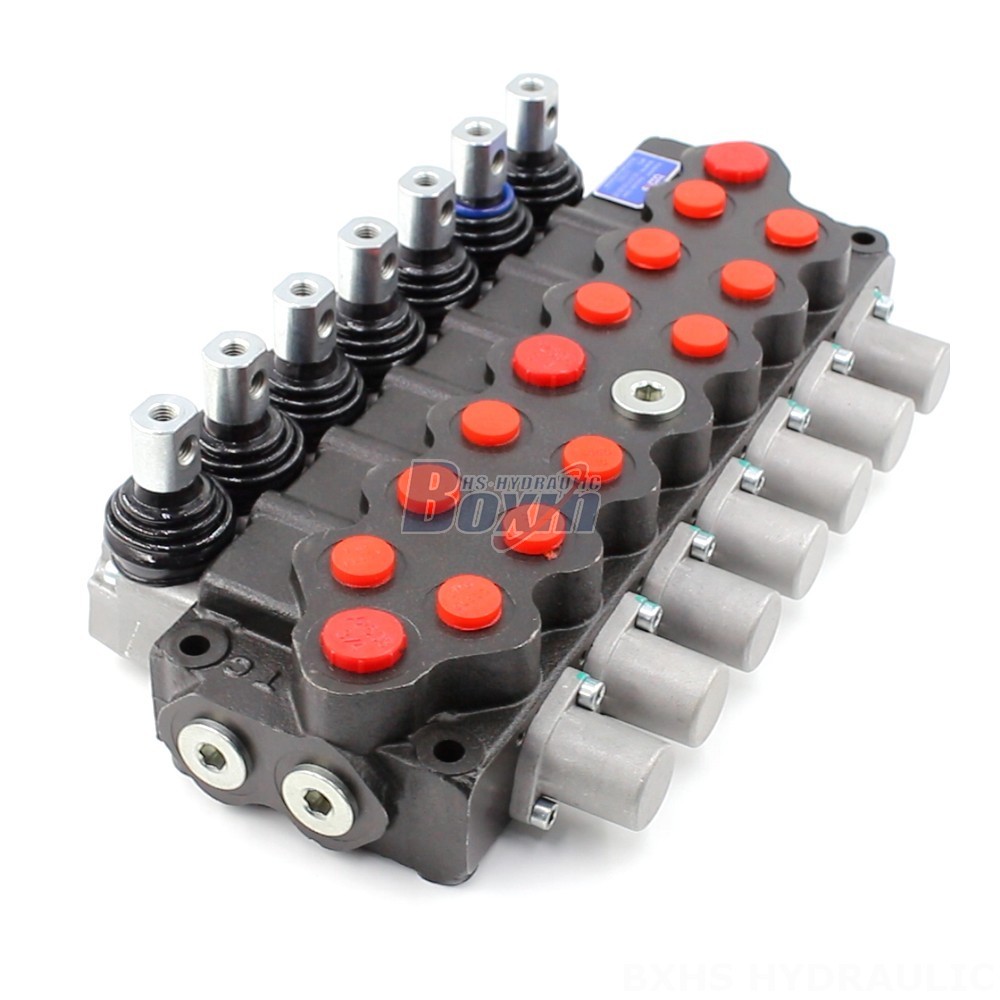

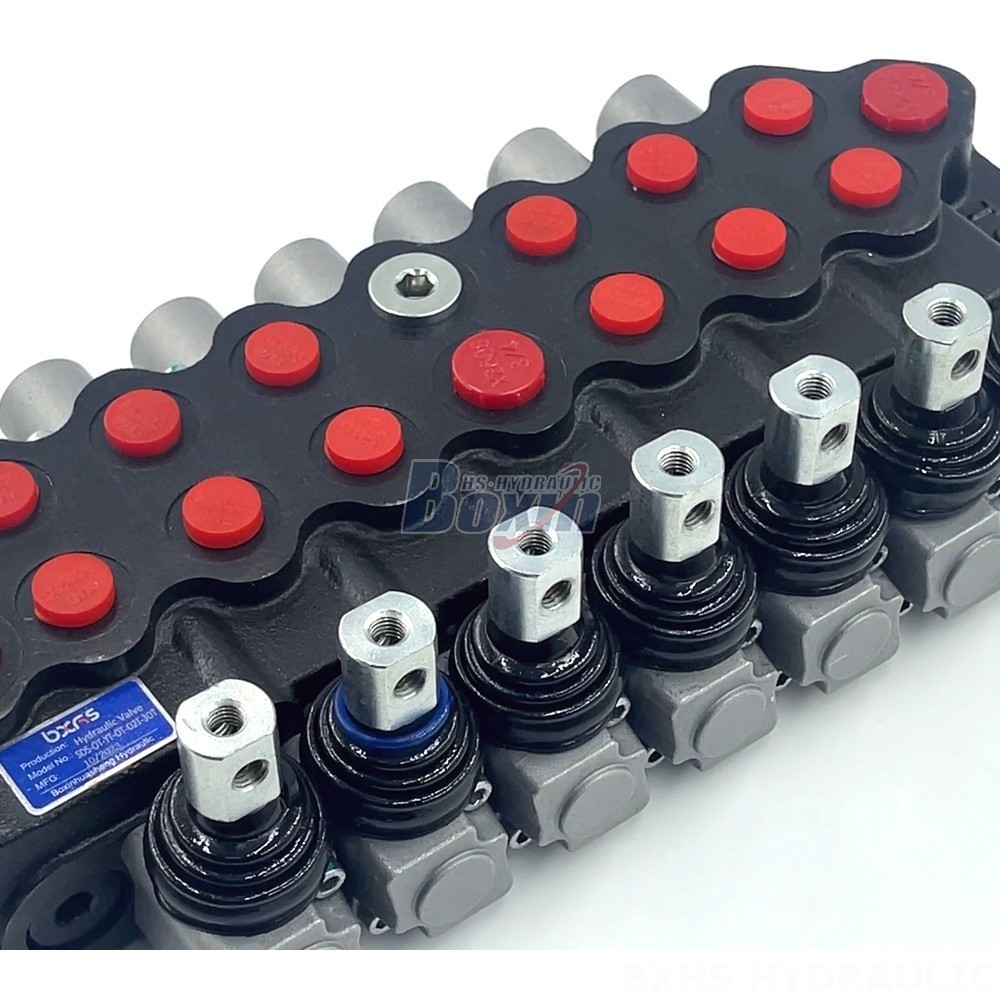

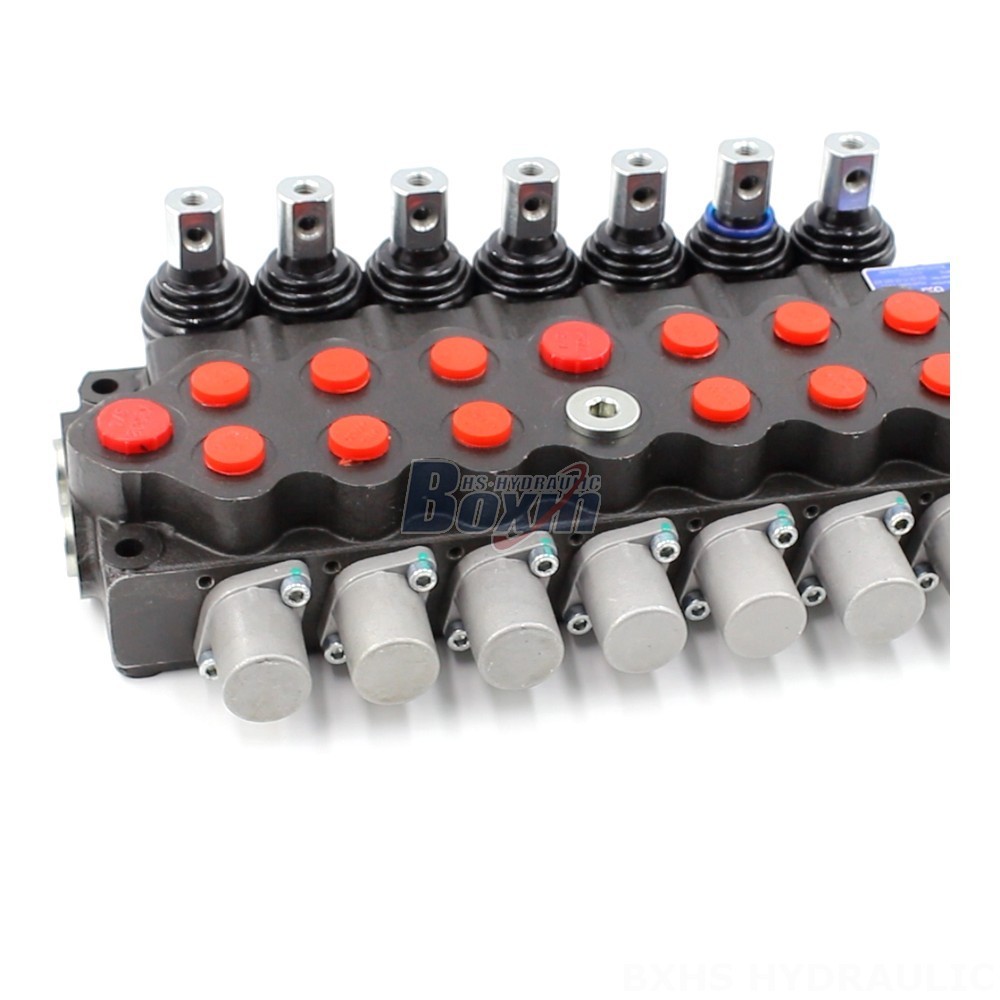

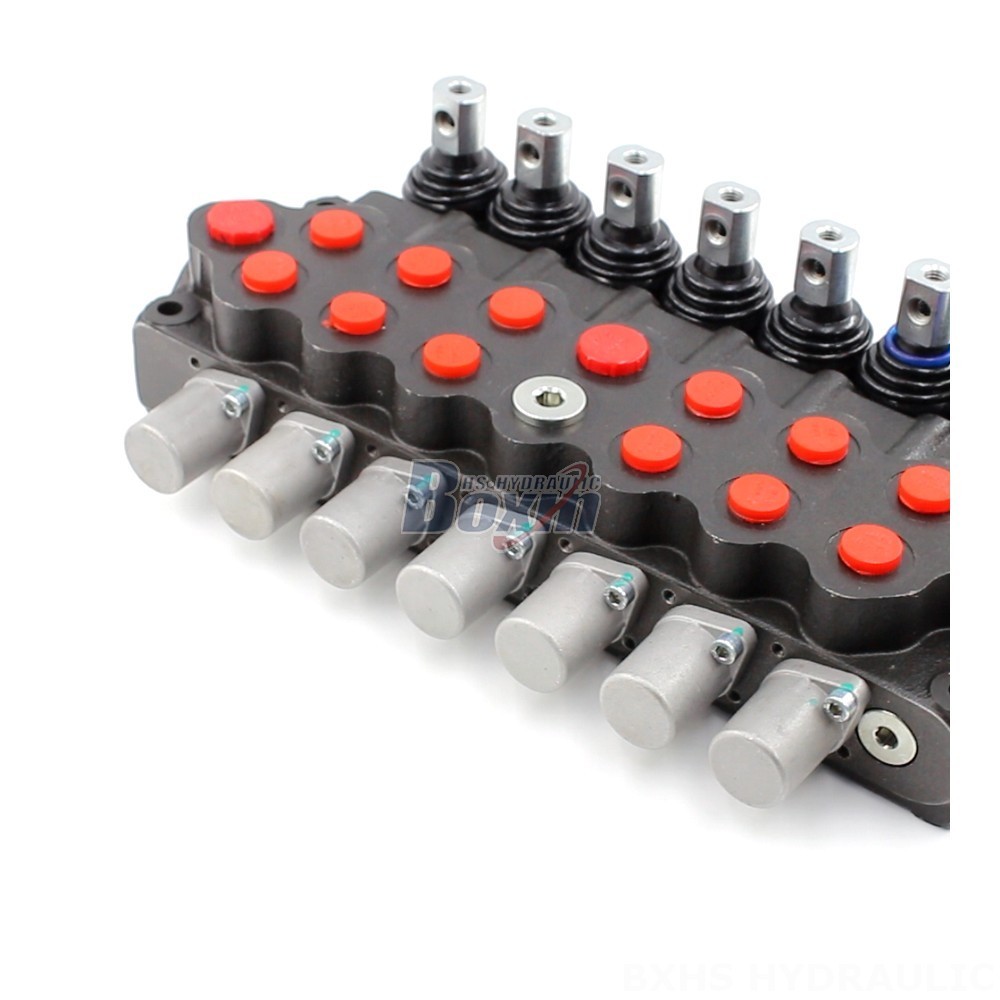

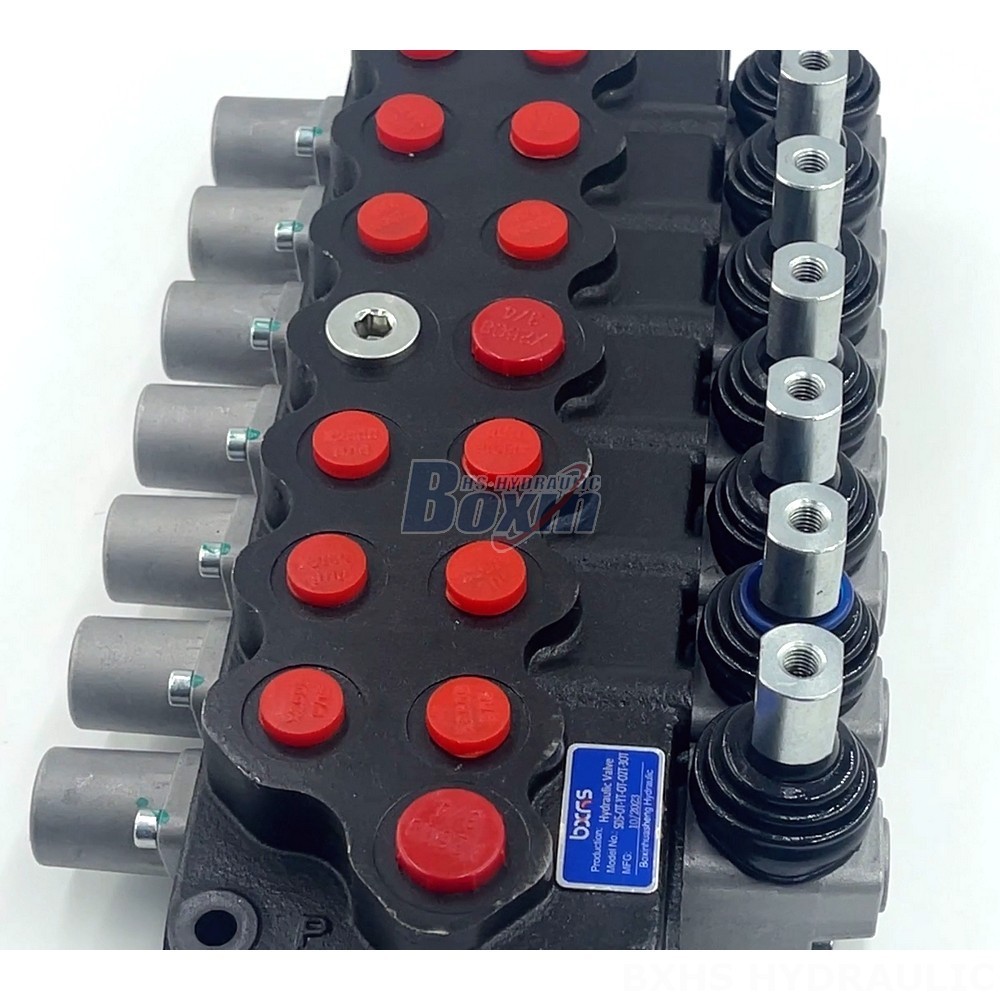

The SD5 Series Hydraulic Valve is a 7-section manual directional valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This robust monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for a wide range of equipment.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The Hig Tech SD5 Manual Directional Valve is a high-performance hydraulic valve engineered for demanding applications. Its 7-section design provides precise control over hydraulic circuits, while the monoblock structure ensures durability and reliability. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for powering telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. The valve operates smoothly across a wide viscosity range and can withstand temperatures from -40°C to +60°C. Its manual control system offers easy and intuitive operation, making it a versatile choice for a variety of hydraulic applications.
