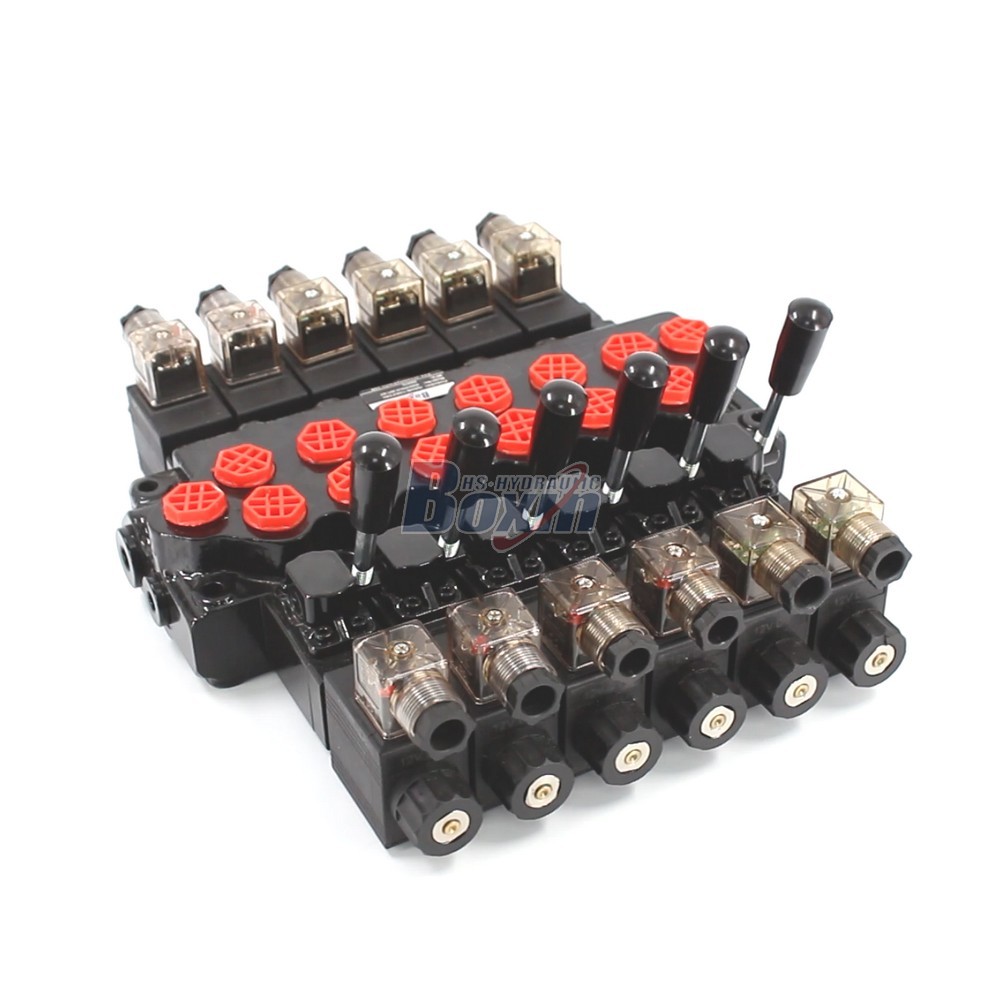

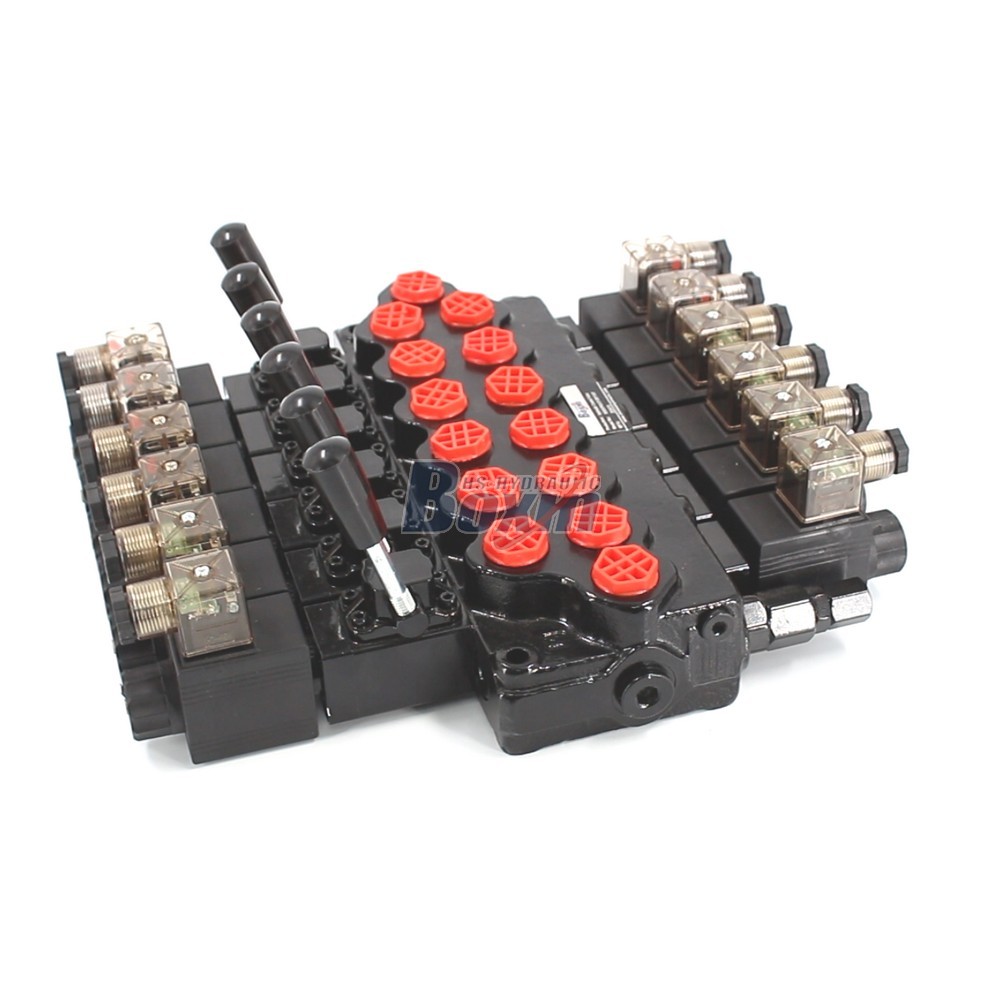

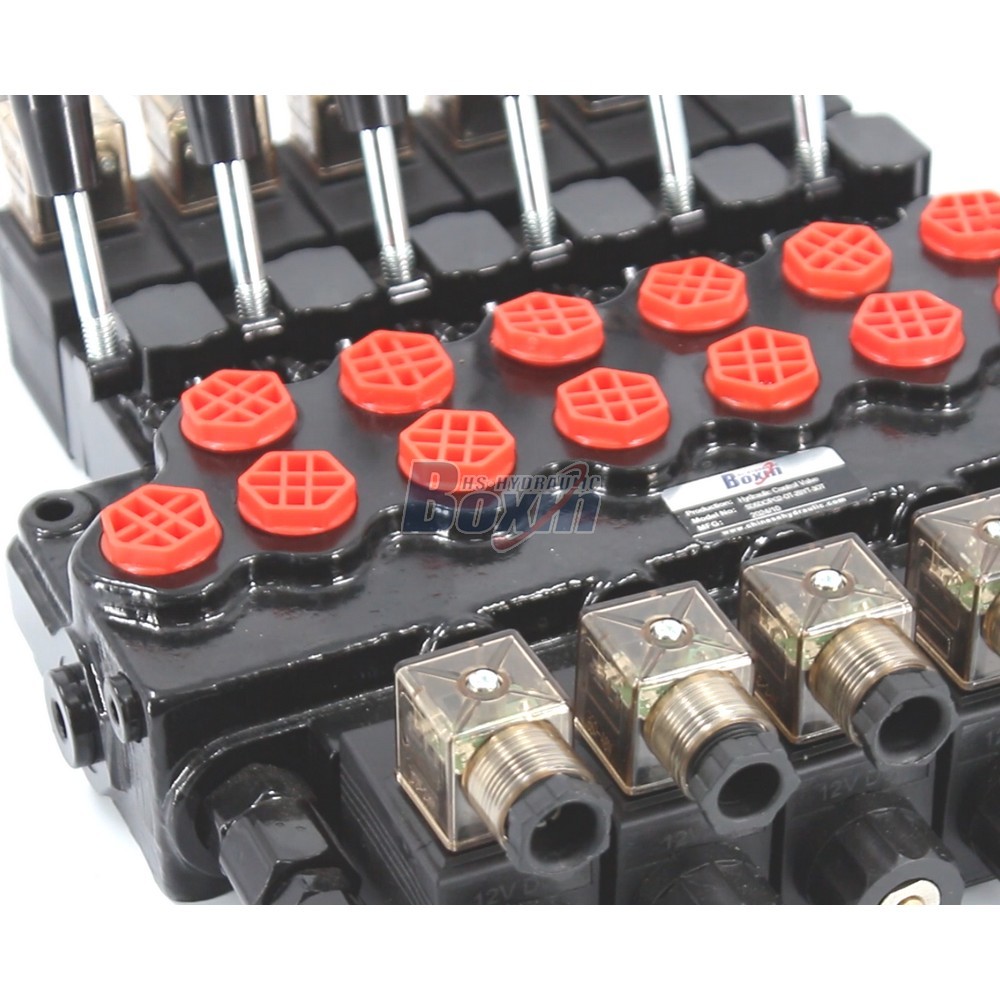

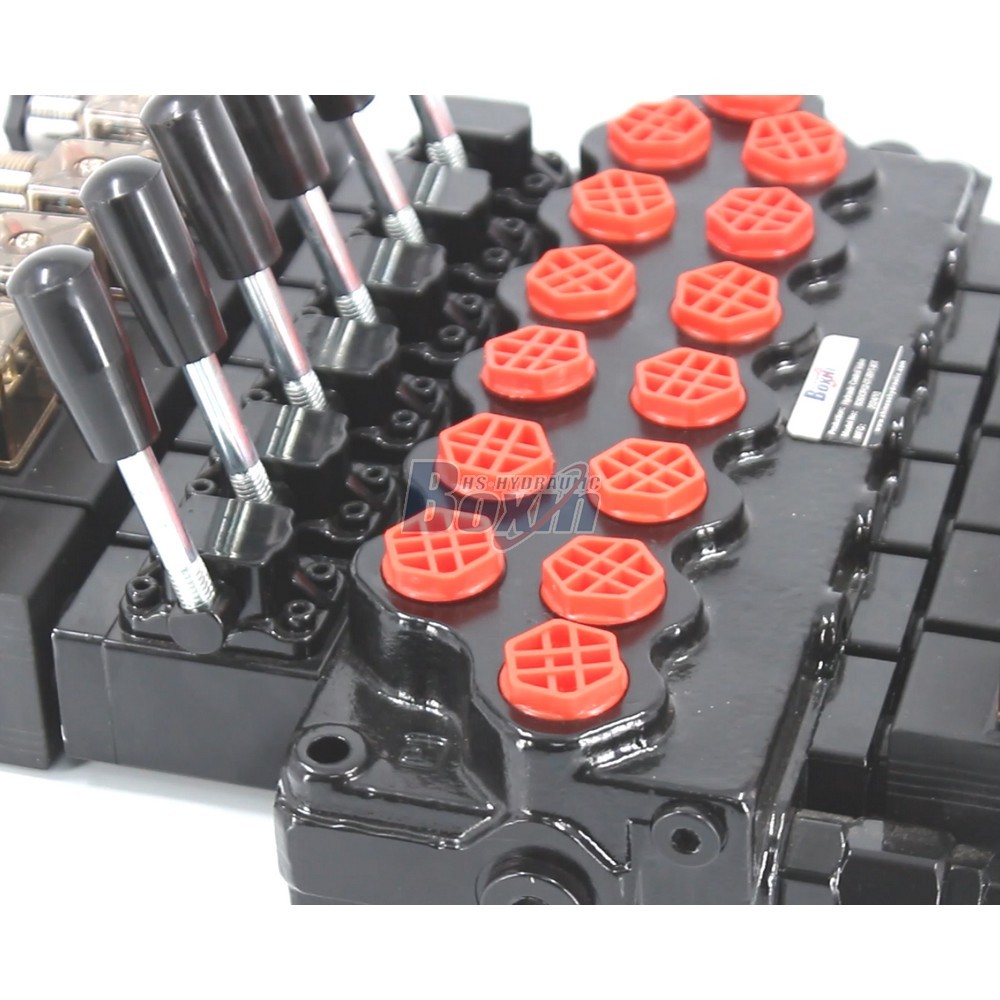

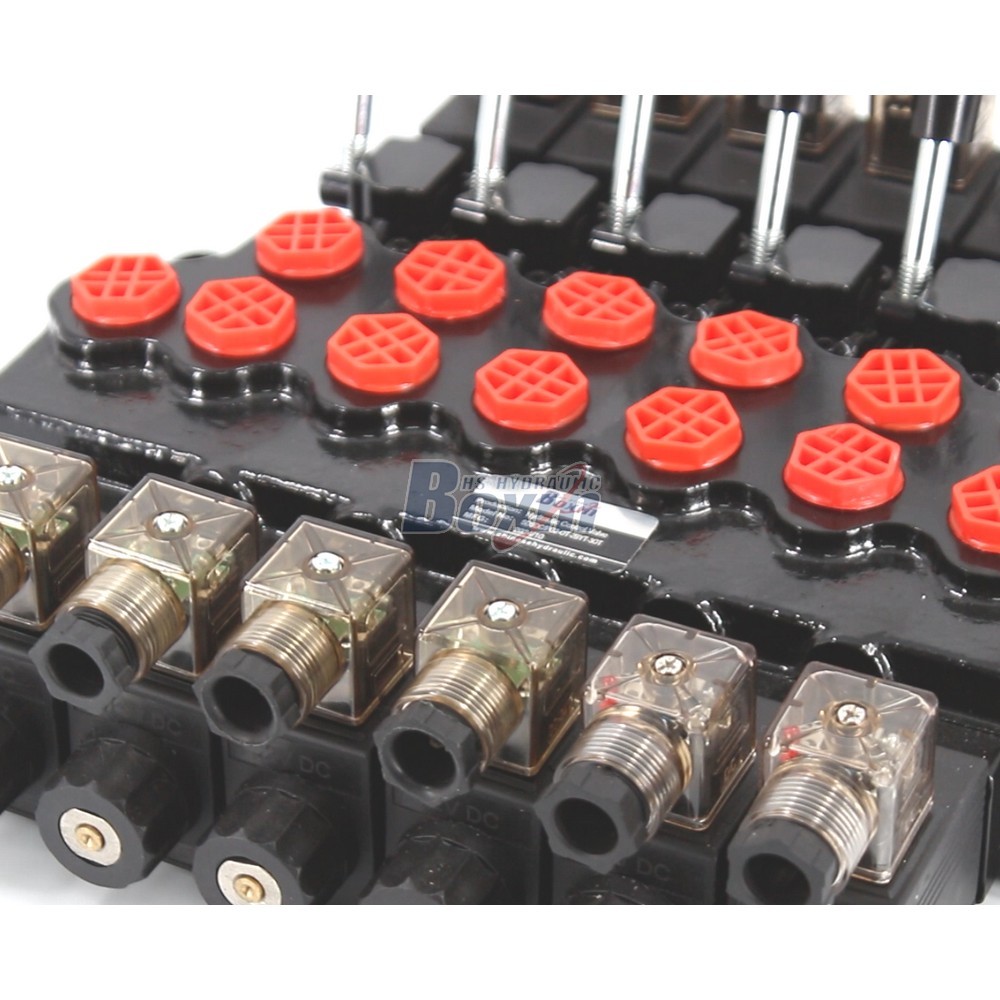

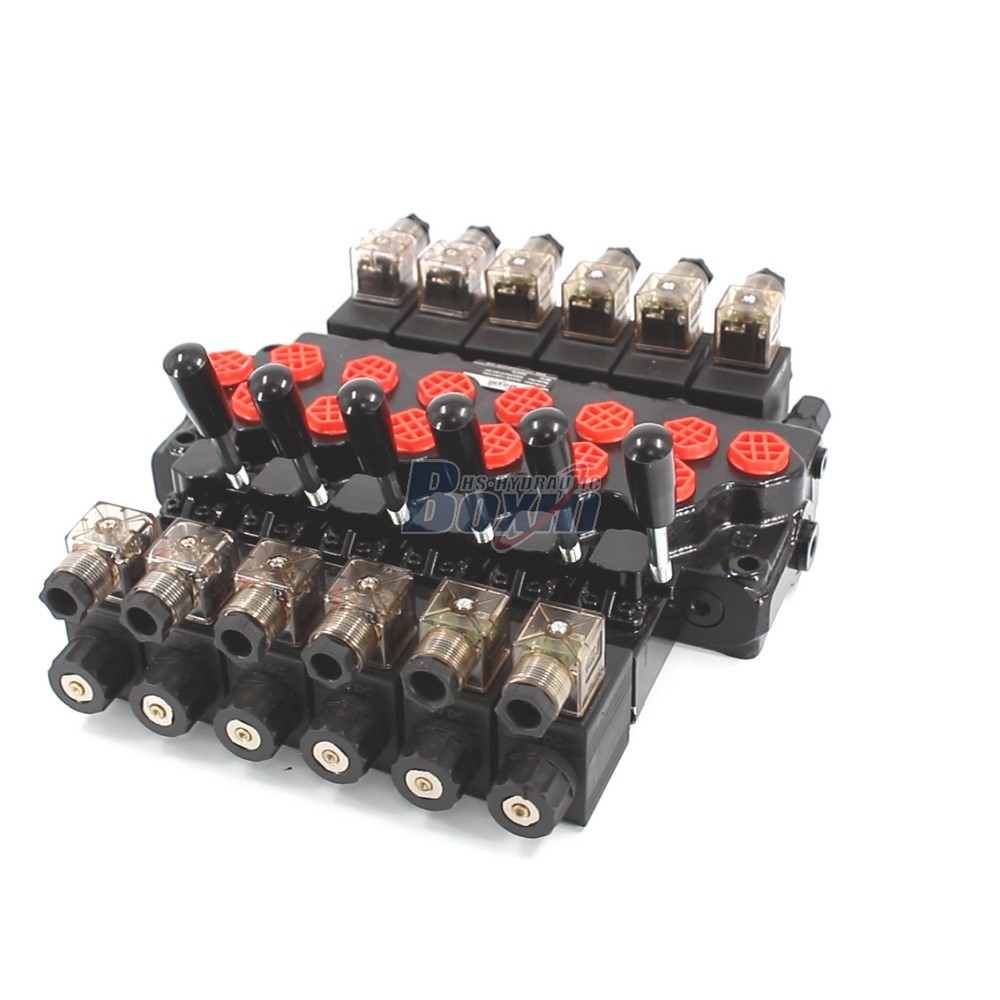

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

Metode Kontrol:Selenoid

Spul:6 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri SD5 Katup Arah Monoblok

Ukuran kemasan:31*29*10

Kelas kotor:14.00 kg

Ketersediaan: Tersedia

89 Pandangan Mencari Produk Ini

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation

SD5-PG2 Series 6 Spool Directional Control Valve with Solenoid Operation drawing image

The SD5-PG2 Series is a high-performance 6-spool solenoid directional control valve designed for precision flow management. With a 45 L/min flow rate and 315 bar pressure capacity, it serves diverse heavy-duty applications including construction, agriculture, and material handling machinery.

Seri SD5 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +60°C (-40°F hingga +140°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 305 bar (4400 psi)
Port Masuk G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Port Keluar G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Ukuran Port G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

As a prominent manufacturer specializing in advanced fluid power solutions, we provide the SD5-PG2 Series 6 Spool Solenoid Directional Control Valve to global markets. Our facility excels in precision engineering, offering comprehensive services in manufacturing, OEM, private labeling, and custom design to meet specific project requirements. We support large-scale factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Our valves are engineered for reliability in demanding environments such as tractors, forklifts, mini-excavators, and harvesters. By choosing our factory direct supply, partners gain access to competitive pricing, robust logistical support, and consistent manufacturing quality. We welcome inquiries for tailored hydraulic solutions and invite industry professionals to discuss partnership opportunities to expand our reach in the global construction and industrial vehicle sectors.
