Produksi & Pengiriman
Waktu Produksi 15-30 Hari

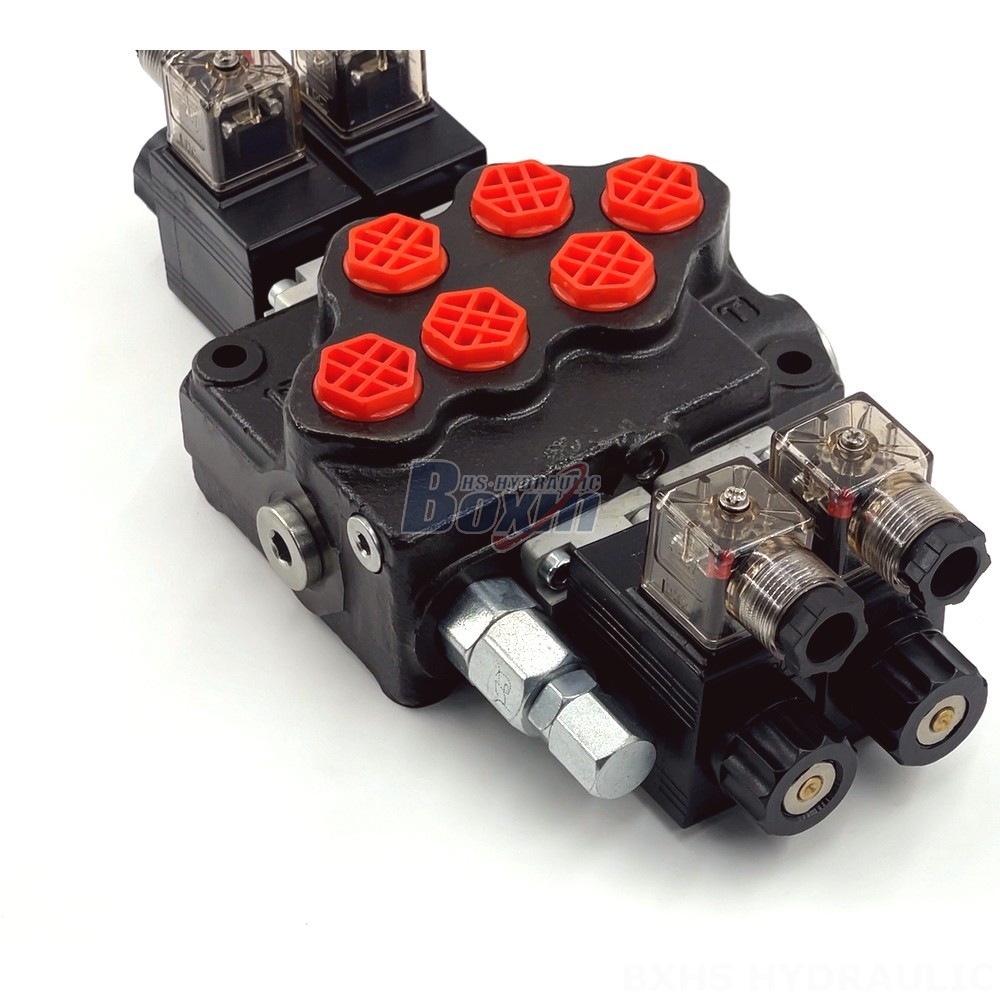

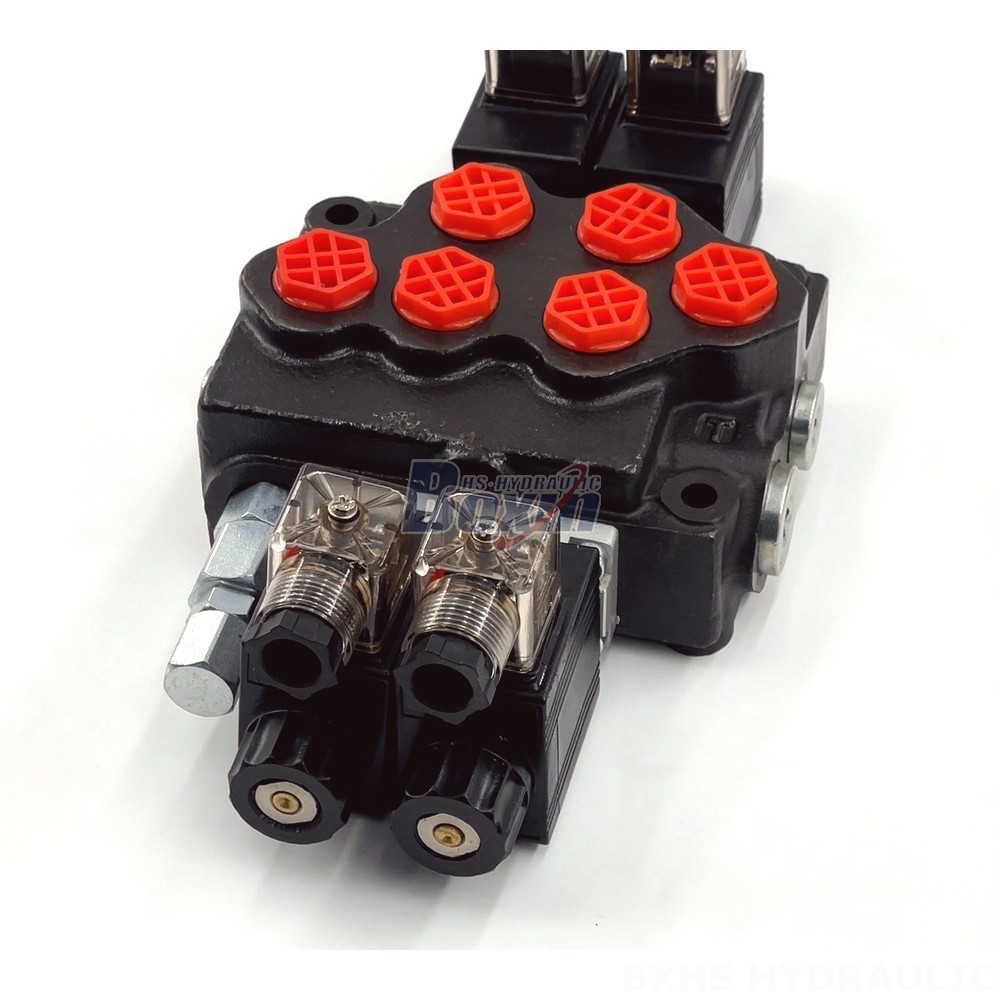

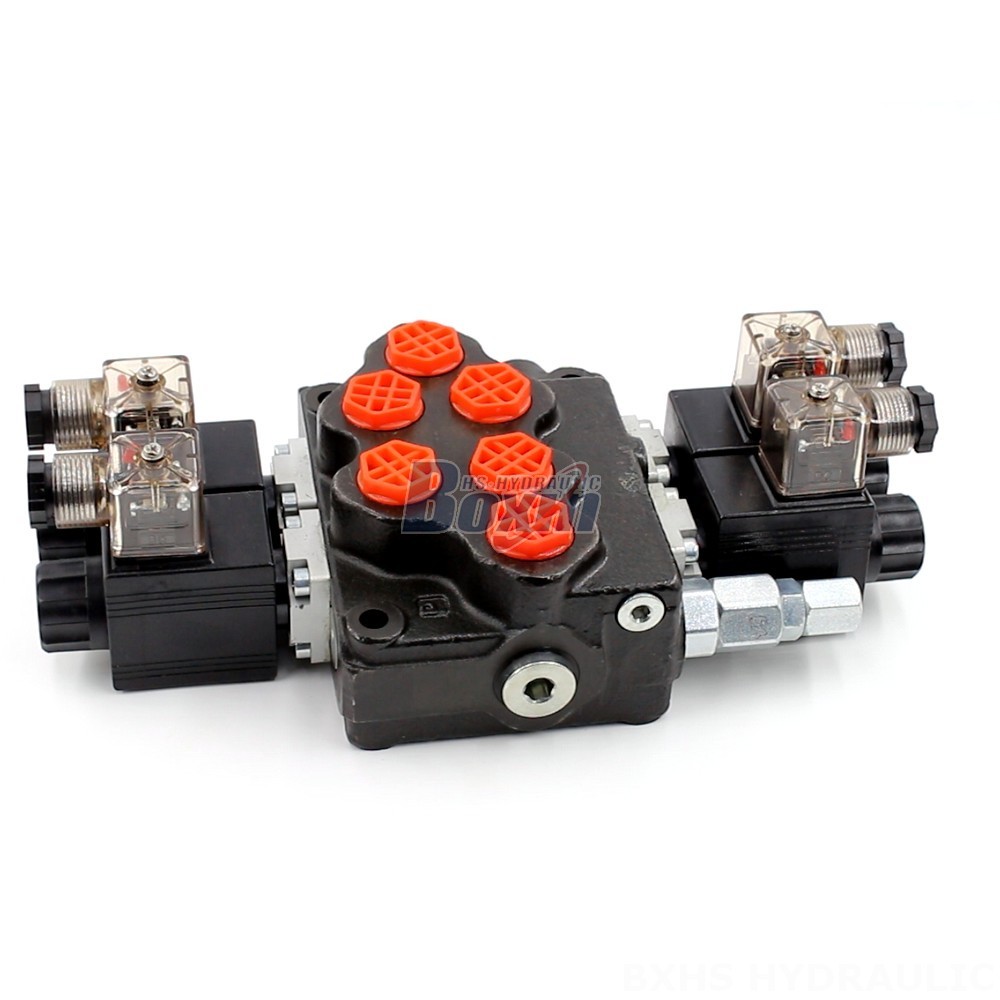

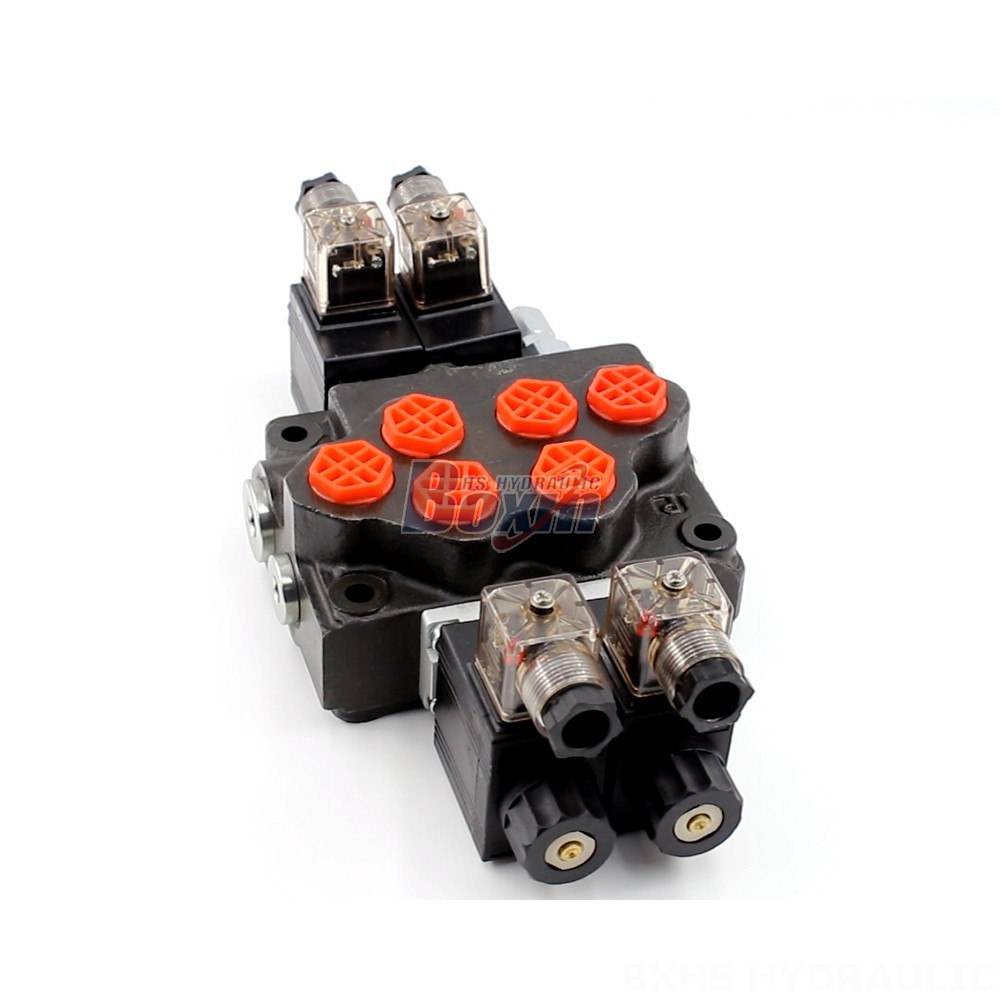

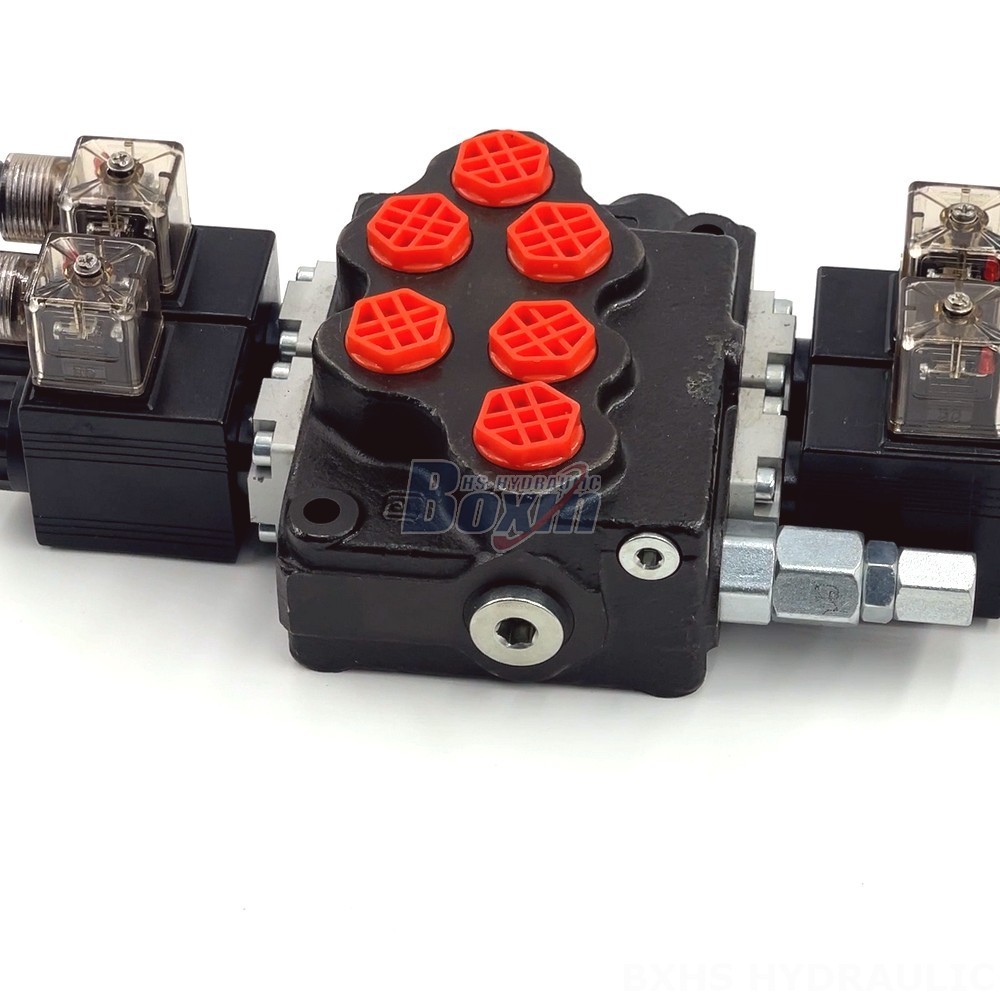

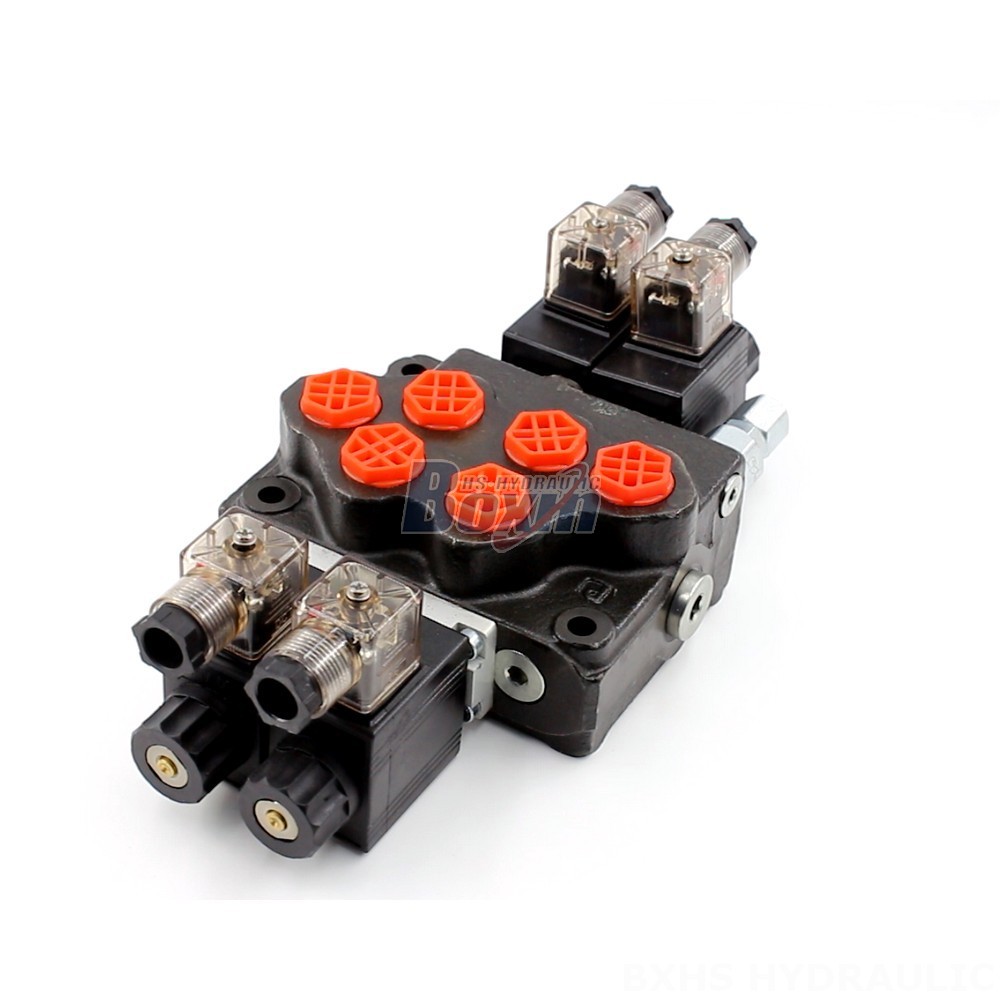

The Hydraul Valved Manual SD5 Solenoid Valve is a high-performance, reliable valve ideal for a variety of applications, including material handling, construction, and agriculture. We offer private label, OEM, and custom manufacturing services to meet your specific needs. This valve features a compact design, robust construction, and a wide operating range. It's designed for reliable performance in demanding environments.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The Hydraul Valved Manual SD5 Solenoid Valve is a 2-section monoblock valve designed for reliable control of hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 305 bar, this valve is ideal for a wide range of applications. This valve is available in various configurations, including private label, OEM, and custom manufactured options. We offer flexible manufacturing solutions to meet your specific requirements, allowing you to incorporate your brand, specifications, and unique features. Our custom manufacturing capabilities allow us to adjust the valve's design, materials, and performance characteristics to perfectly align with your application. Contact us today to discuss your project and explore the possibilities of our high-quality, customized hydraulic solutions.
