The SD8-Electric Unloading Valve is a 5-position, 4-solenoid, 12v/24v hydraulic directional control valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for various applications including material handling, construction, agriculture, and industrial vehicles.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |

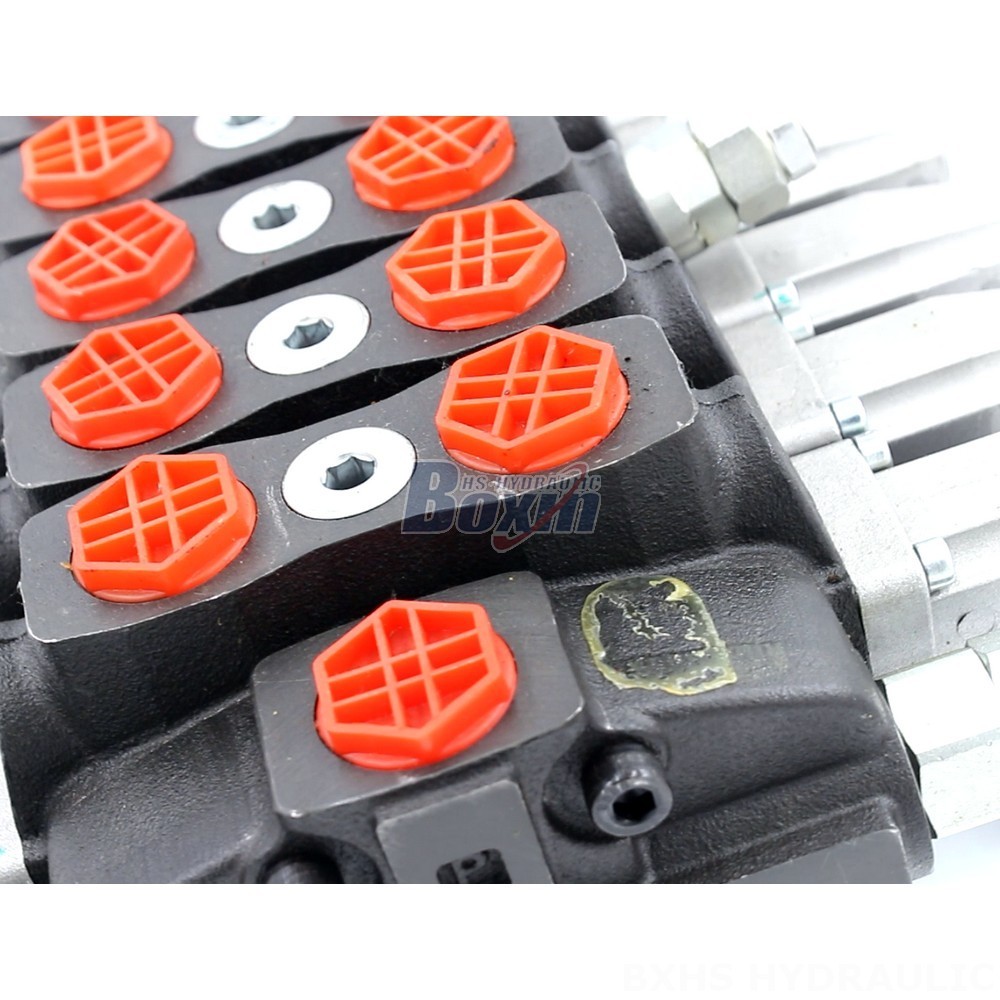

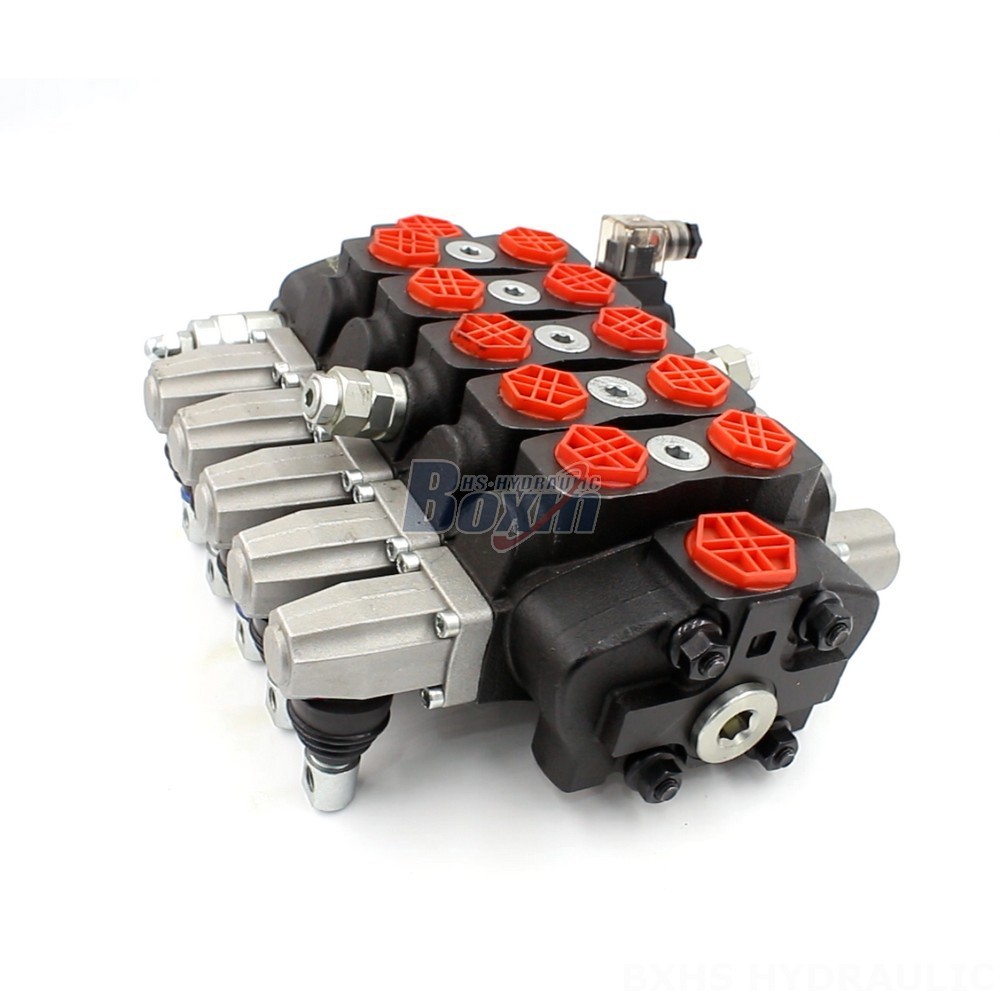

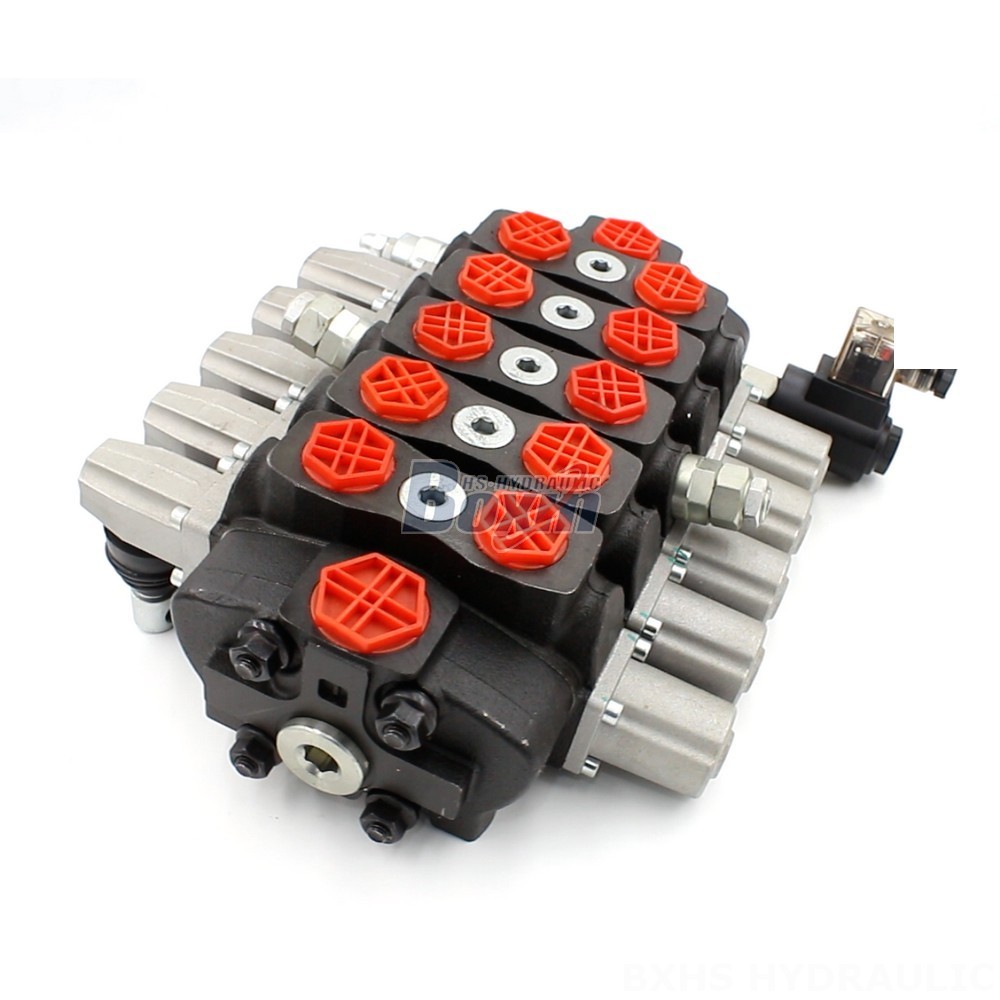

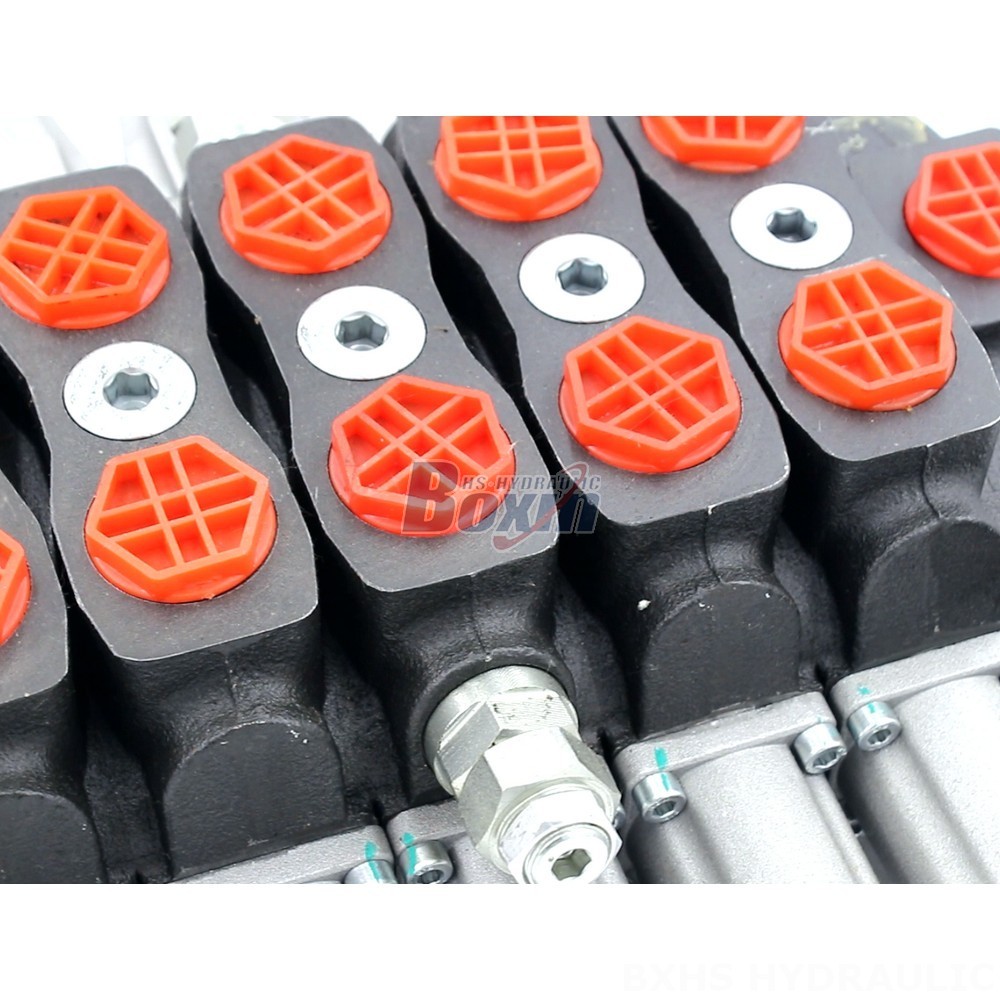

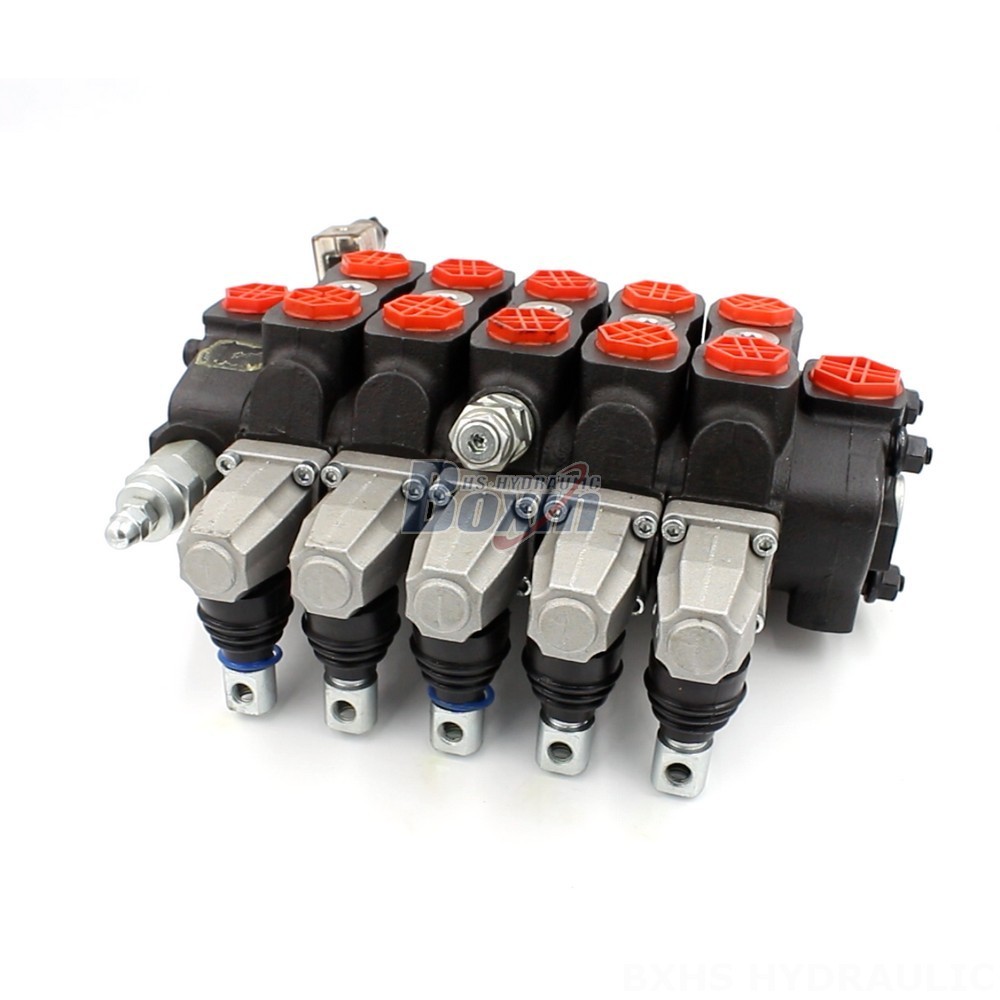

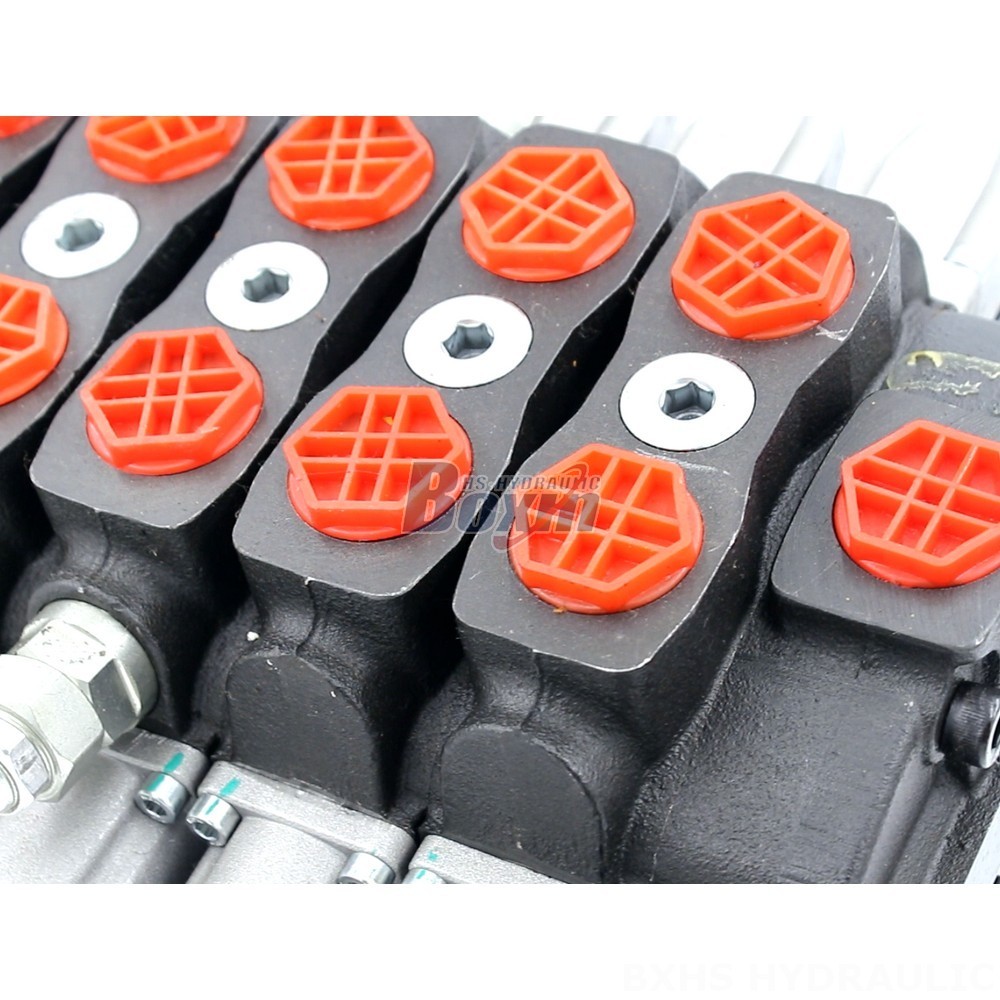

**SD8-Electric Unloading Valve**
The SD8-Electric Unloading Valve is a high-performance hydraulic directional control valve designed for a wide range of applications. With its 5-position, 4-solenoid configuration, it offers precise and reliable control of hydraulic systems. The valve is available in 12v and 24v options, making it suitable for use in various electrical systems.
**Key Features:**
* 5-position, 4-solenoid configuration
* Rated flow of 90 L/min
* Maximum pressure of 350 bar
* Manual control
* Compact and durable design
* Suitable for various applications, including material handling, construction, agriculture, and industrial vehicles
The SD8-Electric Unloading Valve is an excellent choice for applications requiring high flow capacity, precise control, and reliable performance. Its robust construction and high-quality components ensure long-lasting operation even in demanding conditions.
