The SD8-Electric unloading valve is a 4-spool, manually controlled sectional directional valve designed for hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve provides precise and efficient control of hydraulic functions.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |

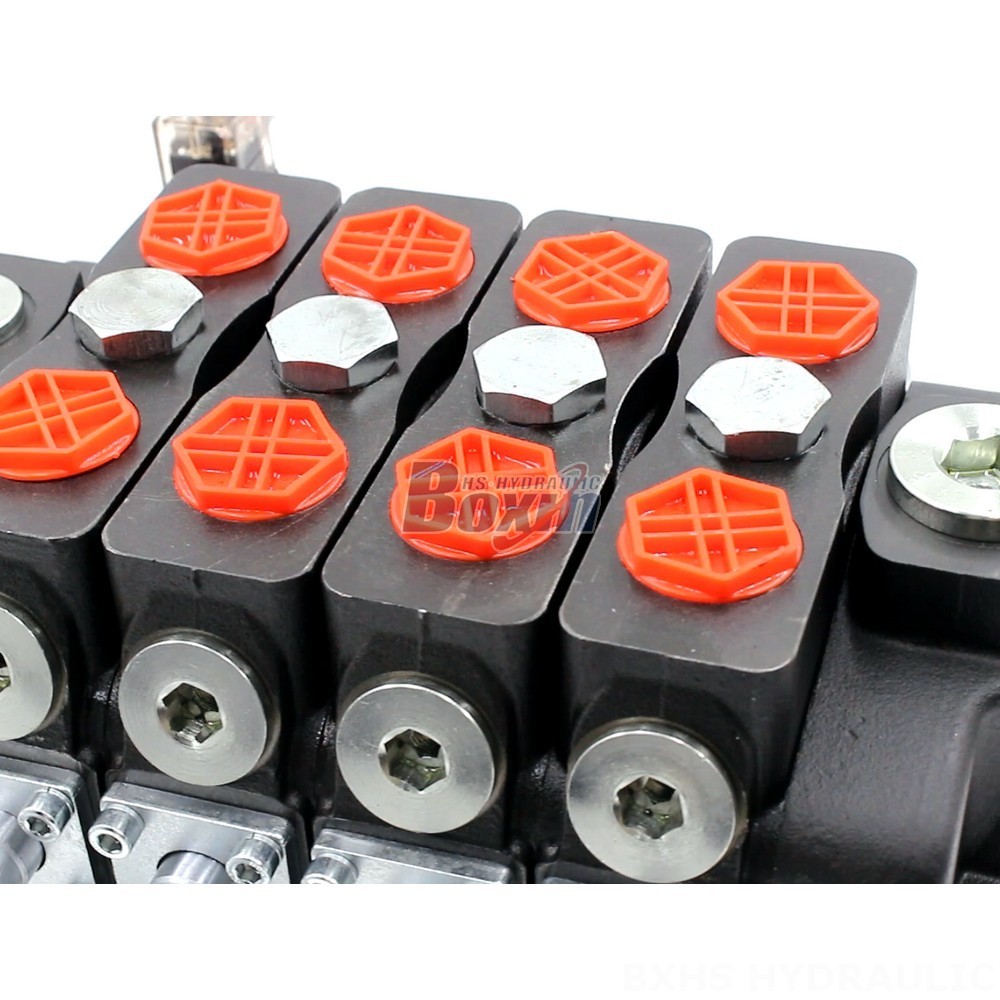

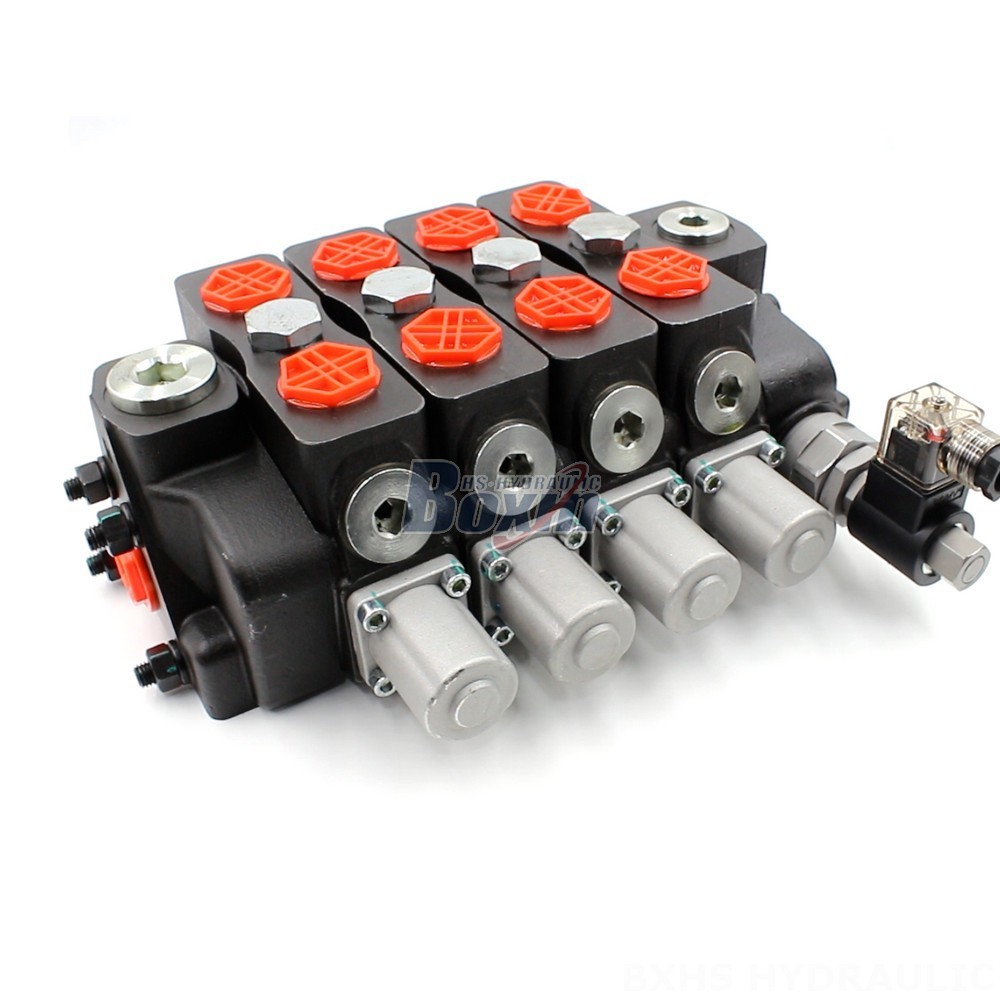

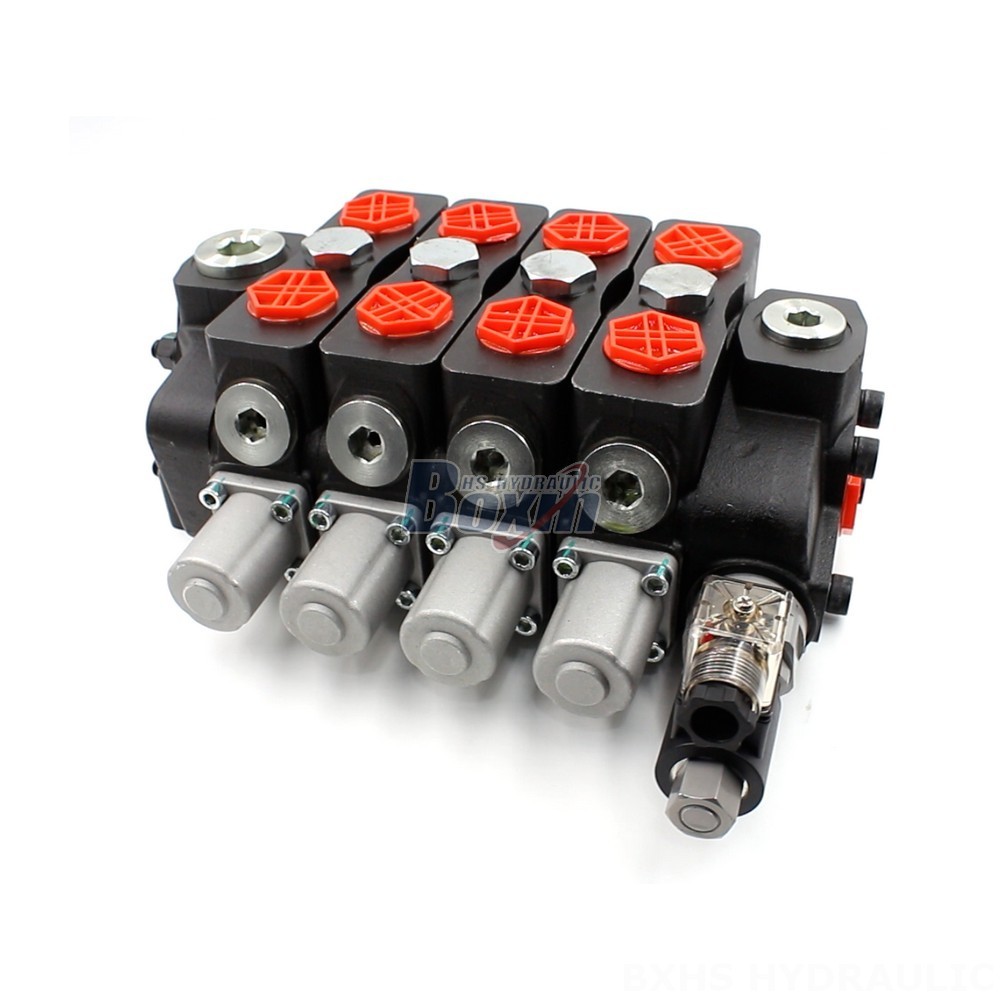

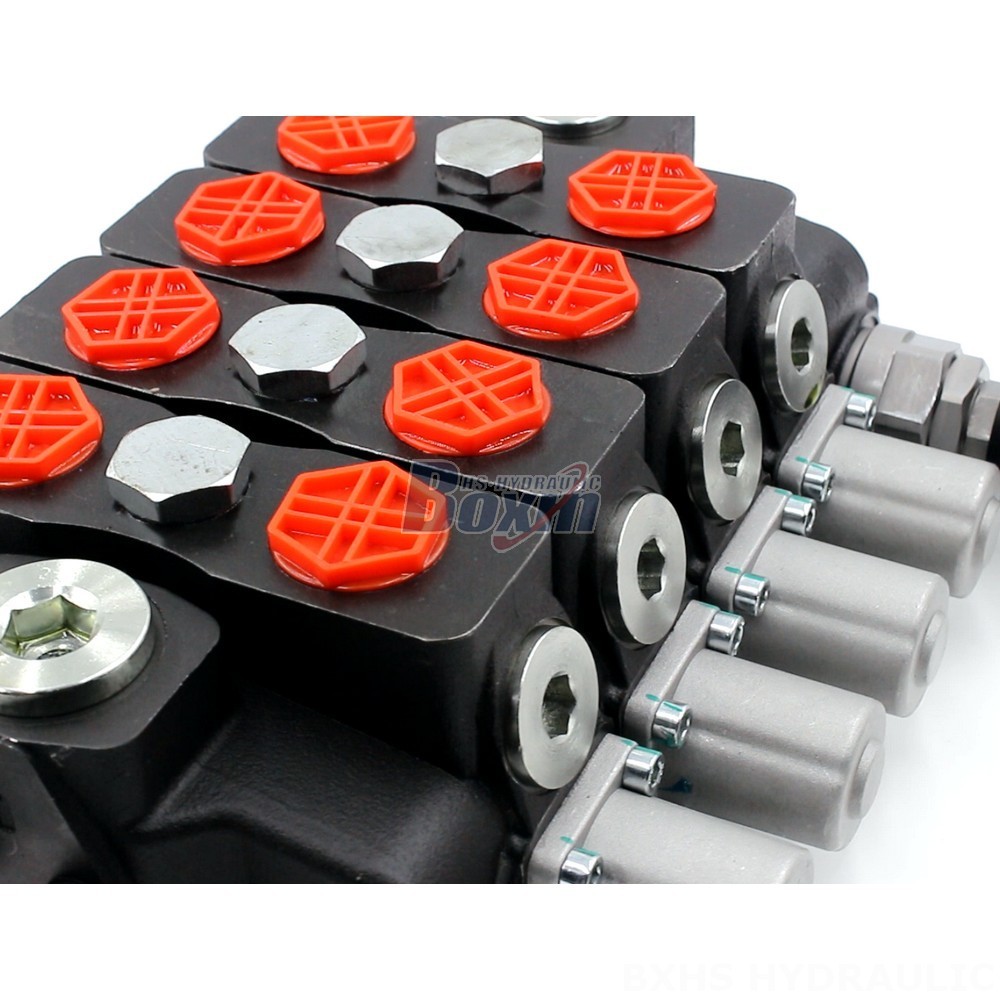

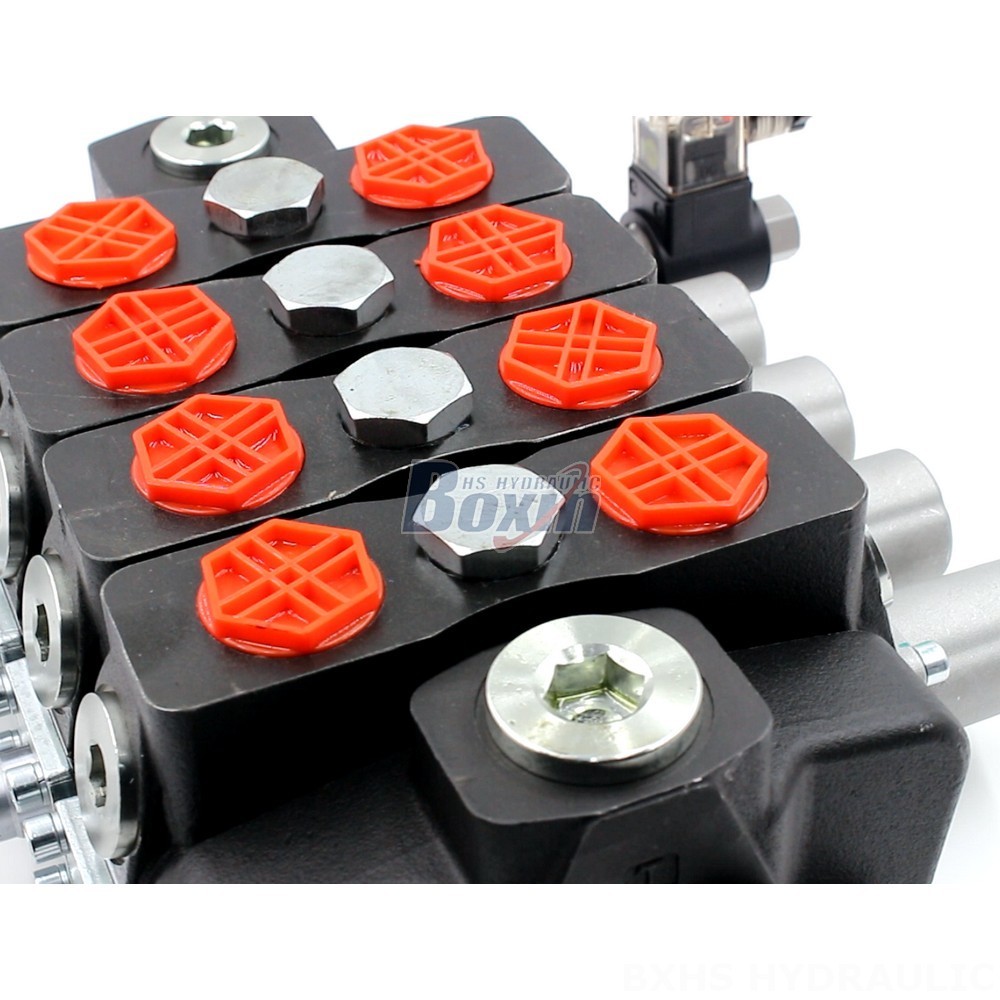

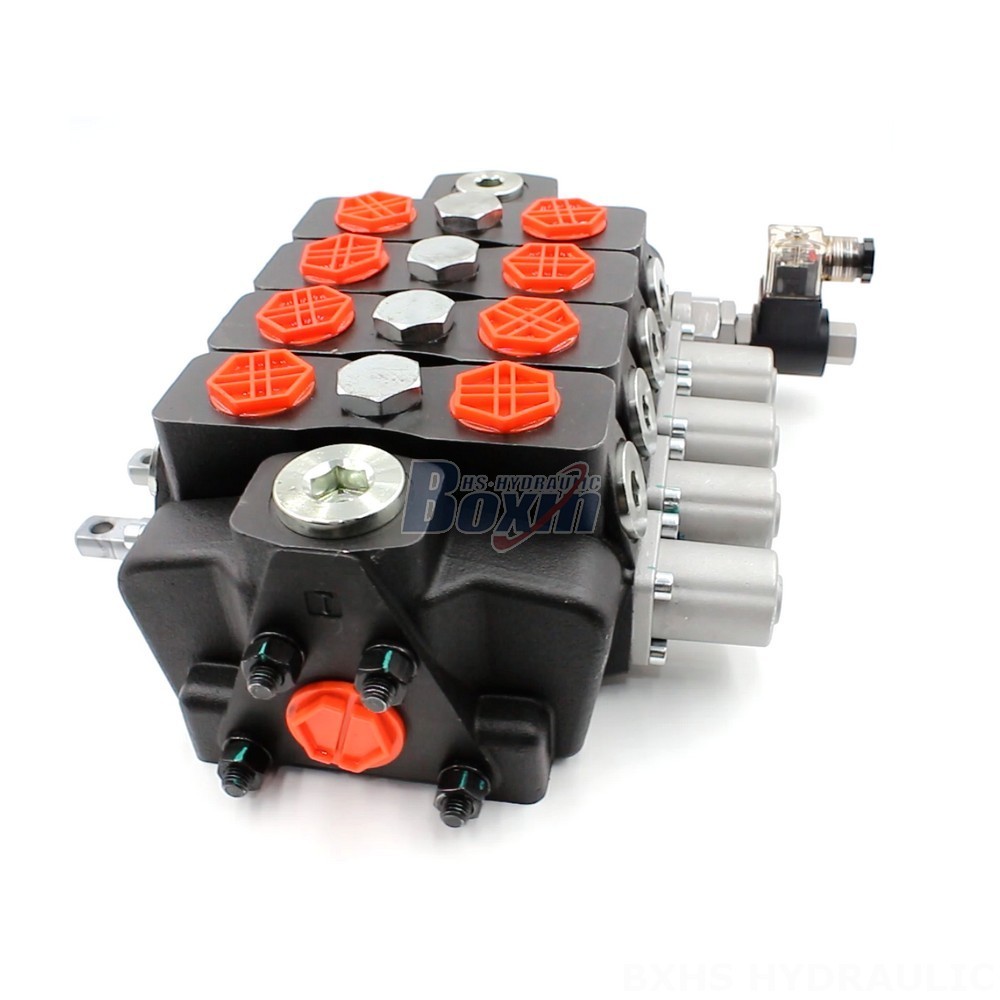

**SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 90 L/min (23.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Spool:** 4 Spool
**Series:** SD8 Series
The SD8-Electric unloading valve is a versatile and reliable solution for a wide range of hydraulic applications. Its robust design and high-quality components ensure long-lasting performance and durability. The valve's compact size and modular design make it easy to integrate into existing systems or design new ones.
**Key Features:**
* Manual control for precise operation
* High flow capacity (90 L/min)
* High pressure rating (350 bar)
* Suitable for various applications
* Compact and modular design
* Durable and reliable construction
