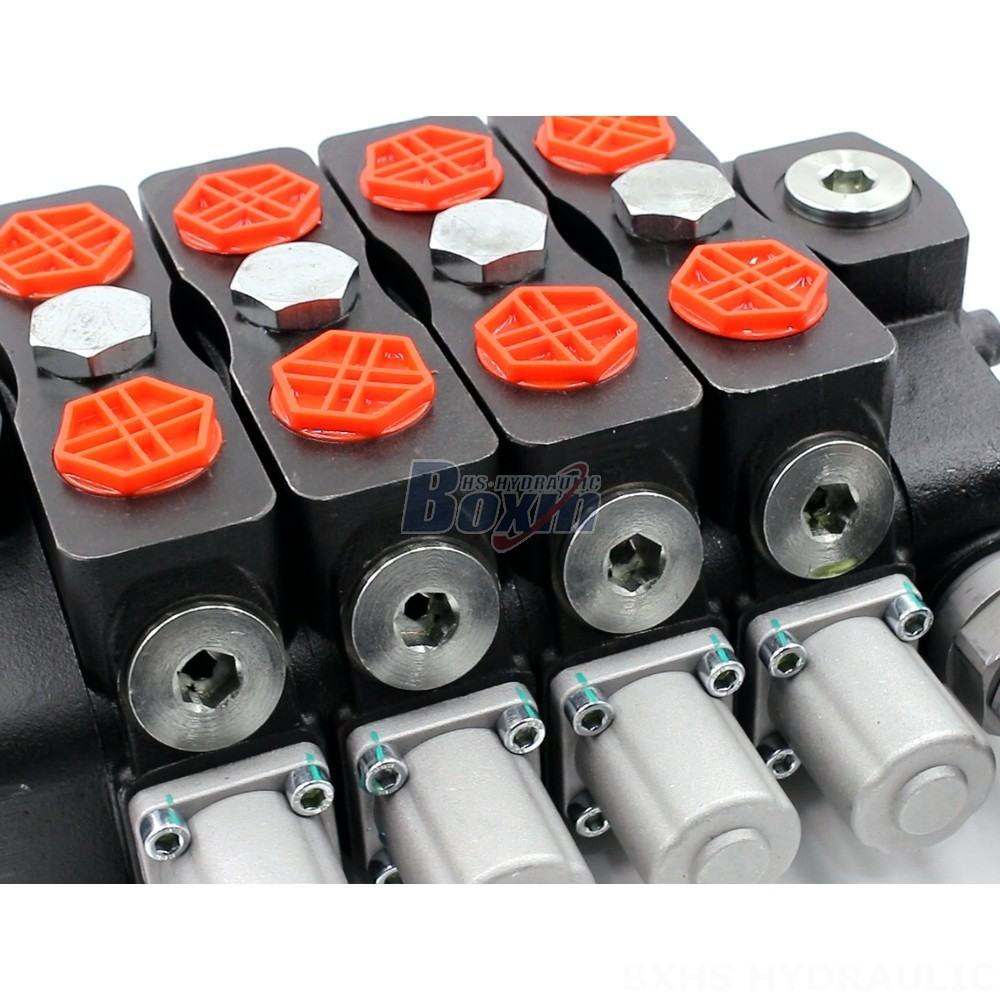

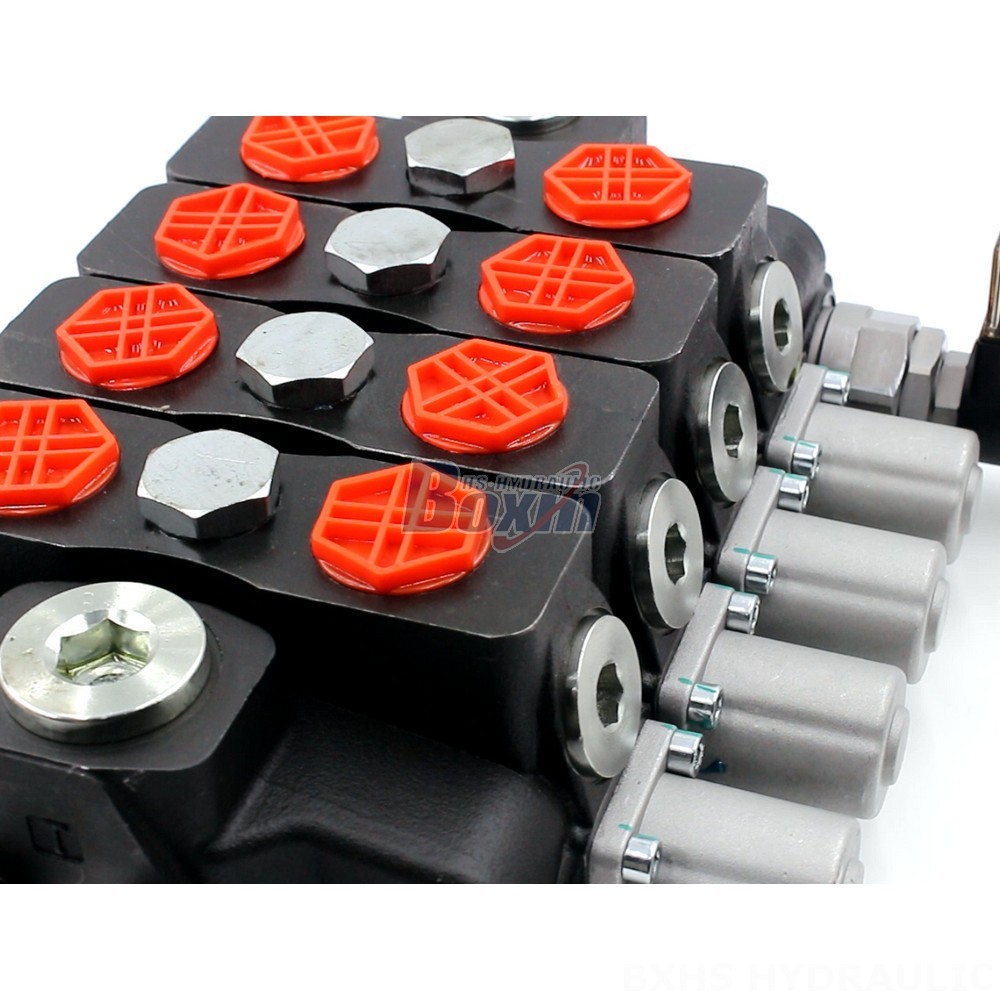

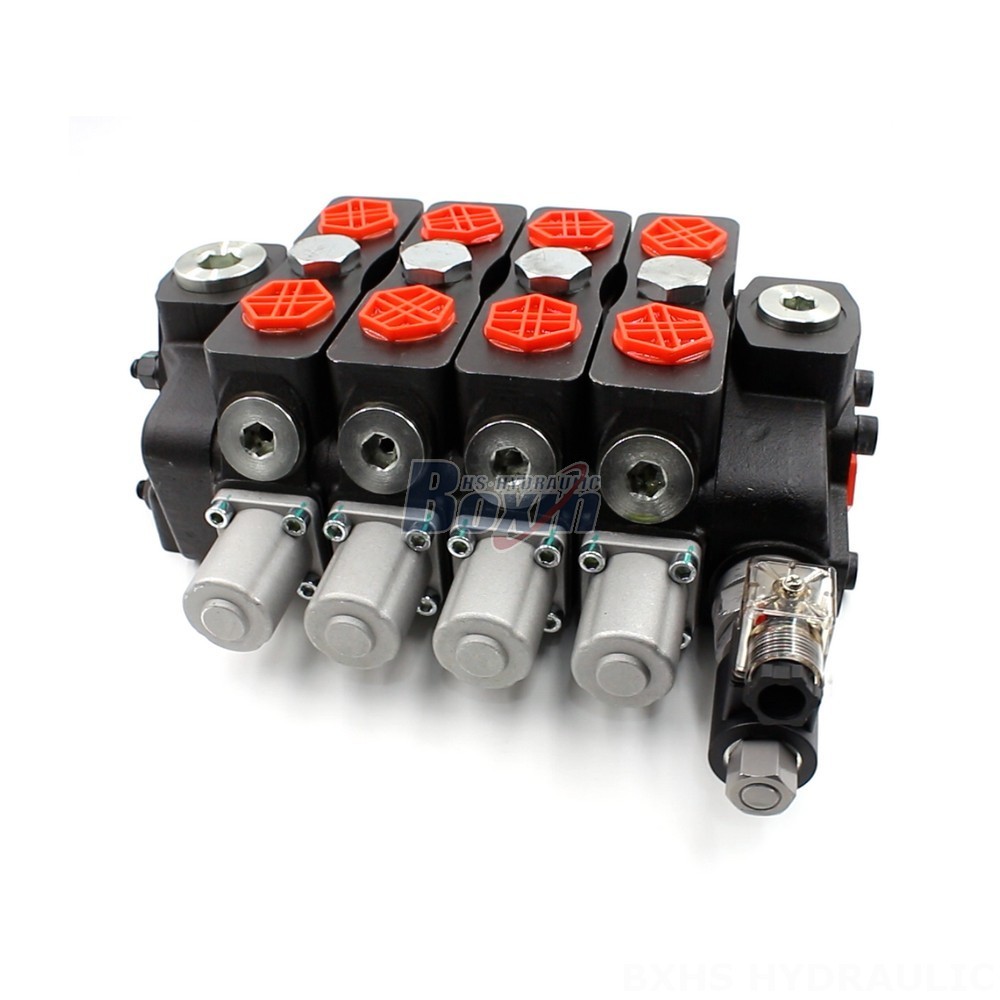

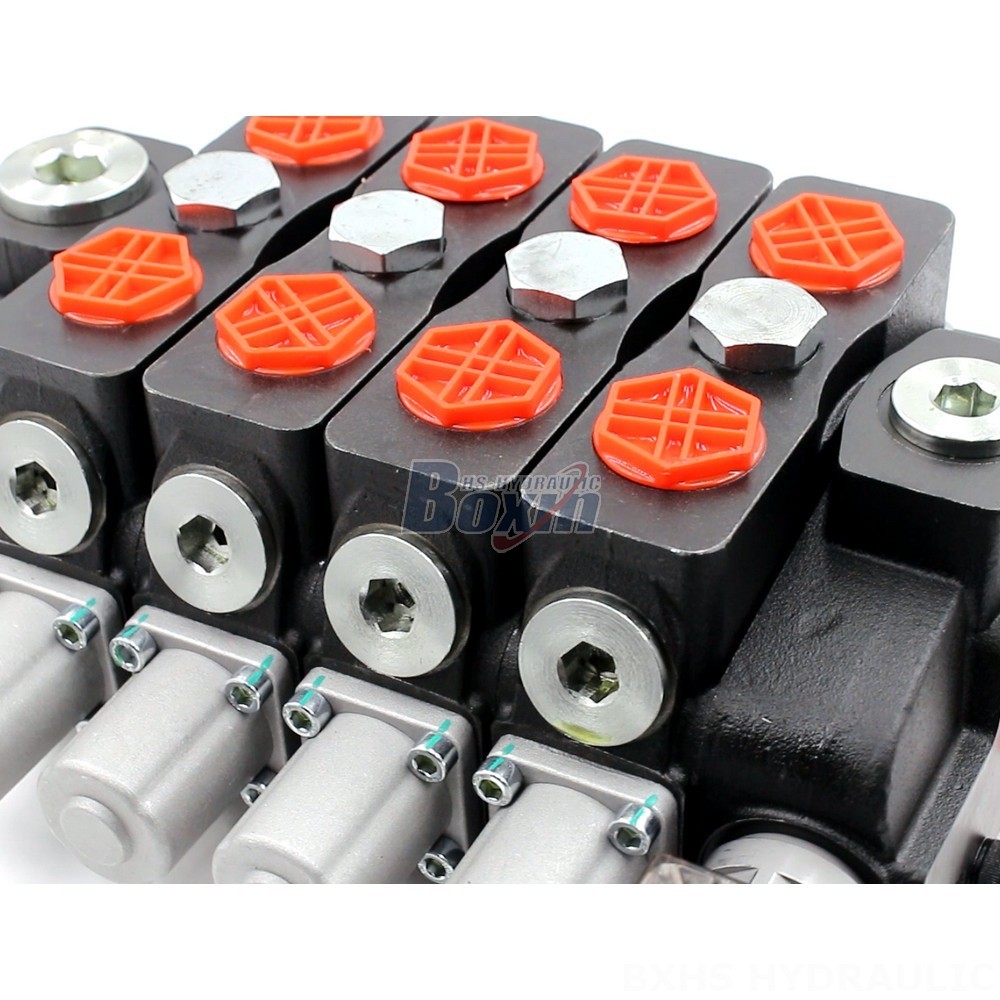

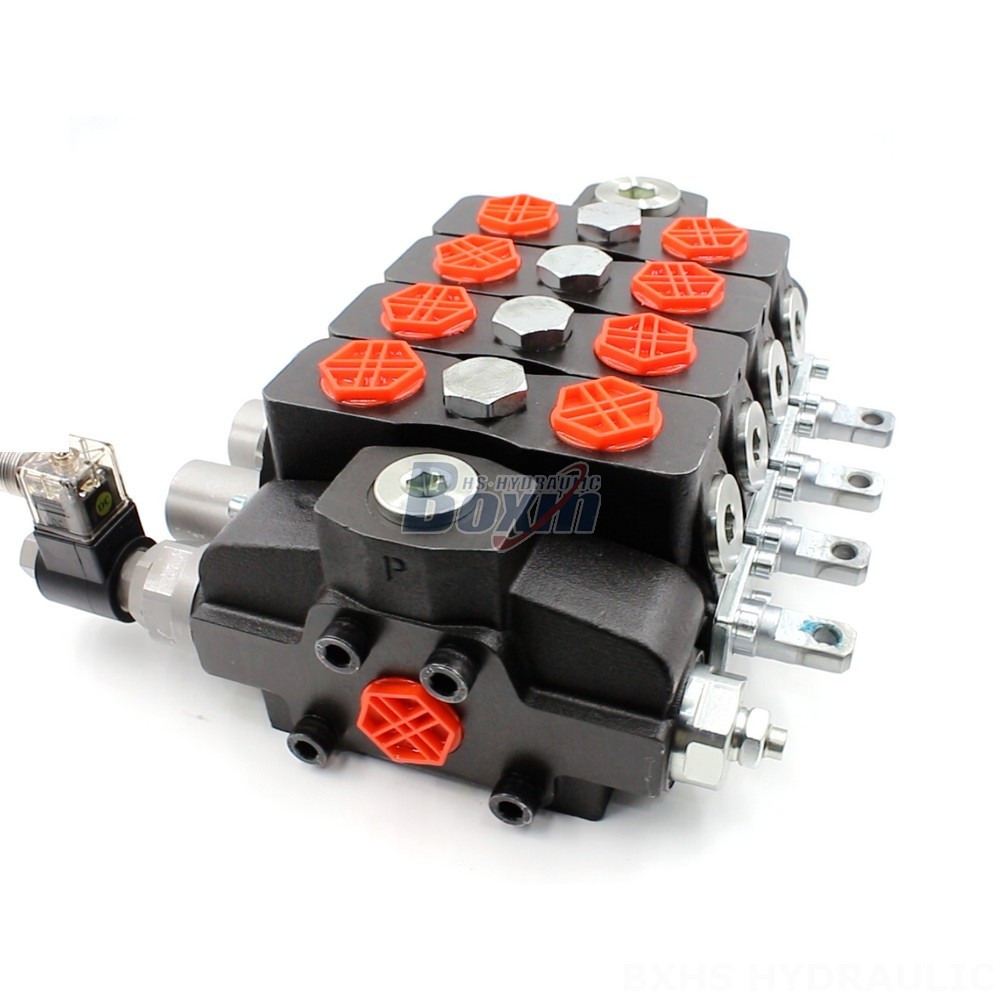

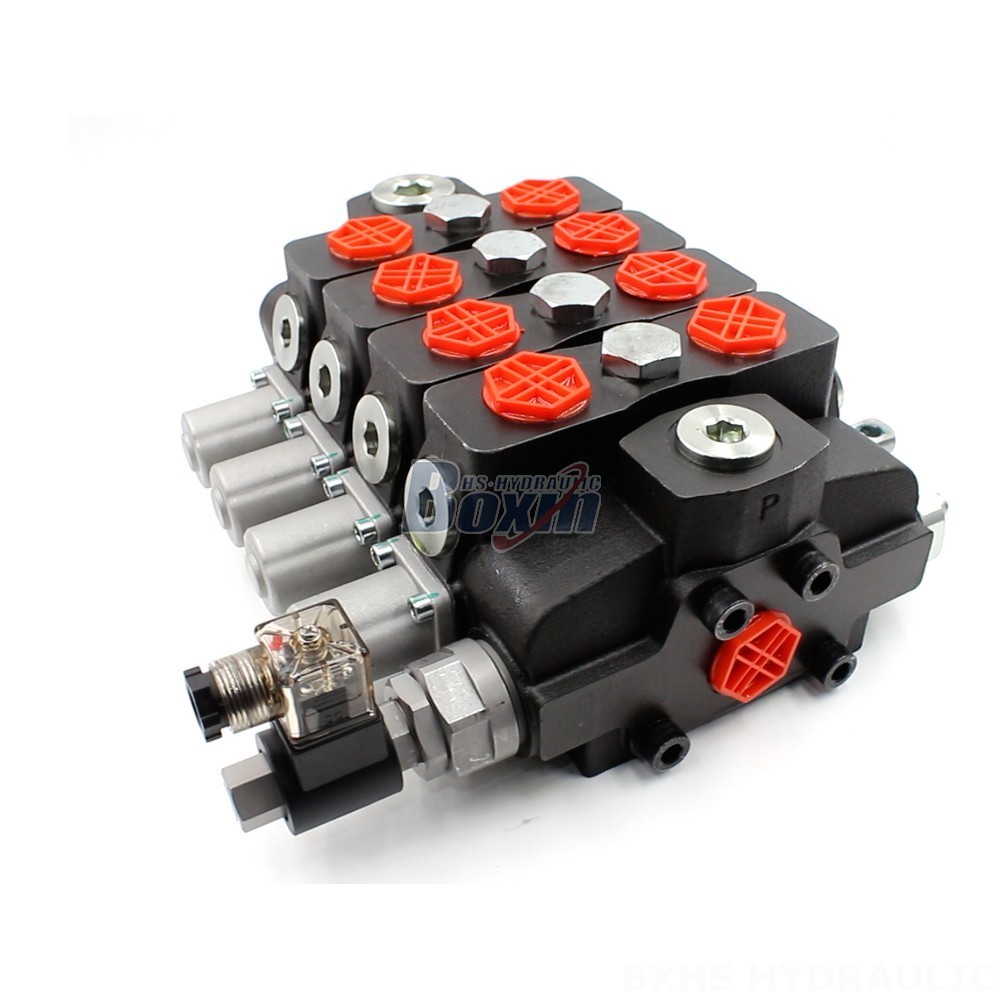

The SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 90 L/min and a maximum pressure of 350 bar, this valve is capable of handling demanding hydraulic systems. The manual control and 4 spool design provide precise and reliable control over the flow of hydraulic fluid.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
**Key Features:**
* Manual control for precise and reliable operation
* 4 spool design for versatile flow control
* Rated flow of 90 L/min (23.8 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural equipment
* Industrial vehicles
**Benefits:**
* Improved efficiency and productivity
* Reduced downtime and maintenance costs
* Enhanced safety and reliability
