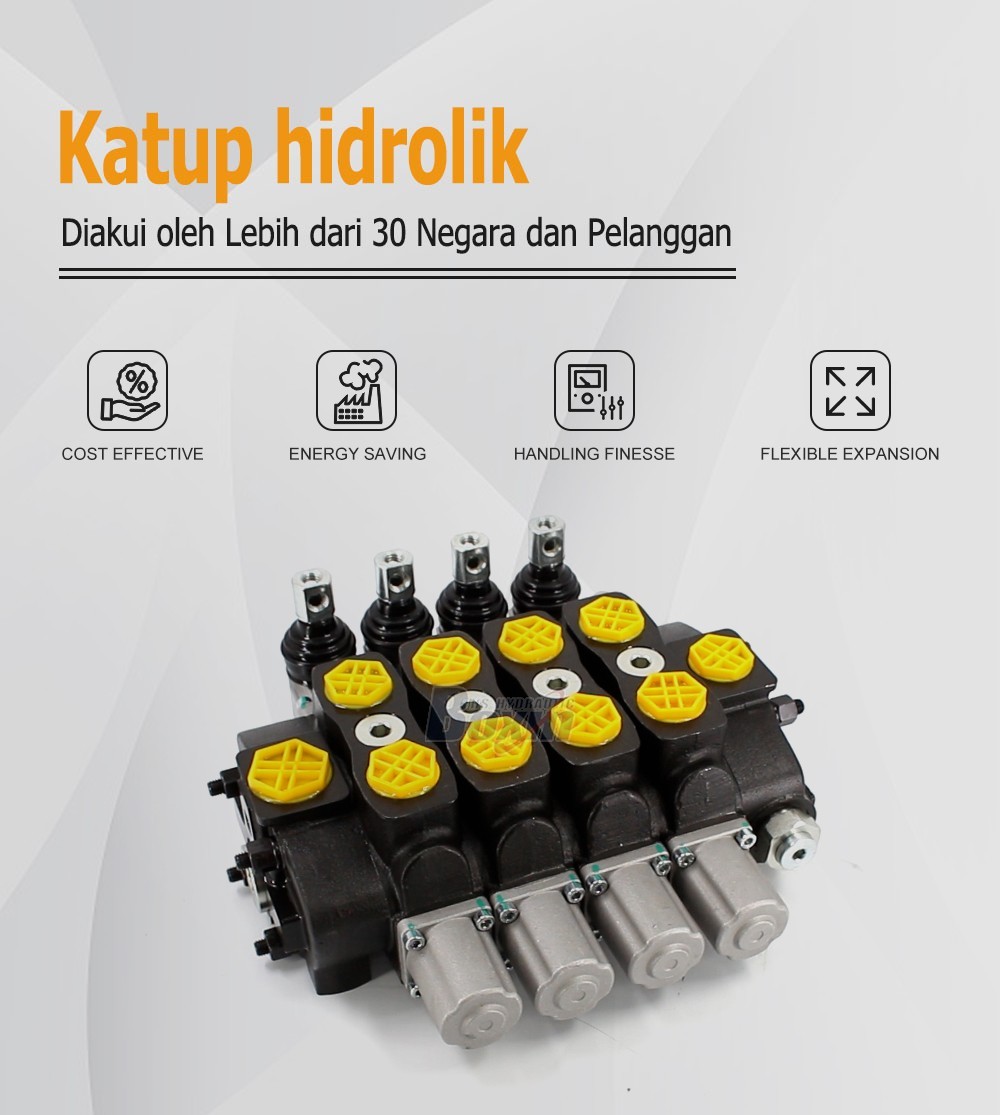

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:32*36*16

Kelas kotor:18.00 kg

Ketersediaan: Tersedia

104 Pandangan Mencari Produk Ini

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

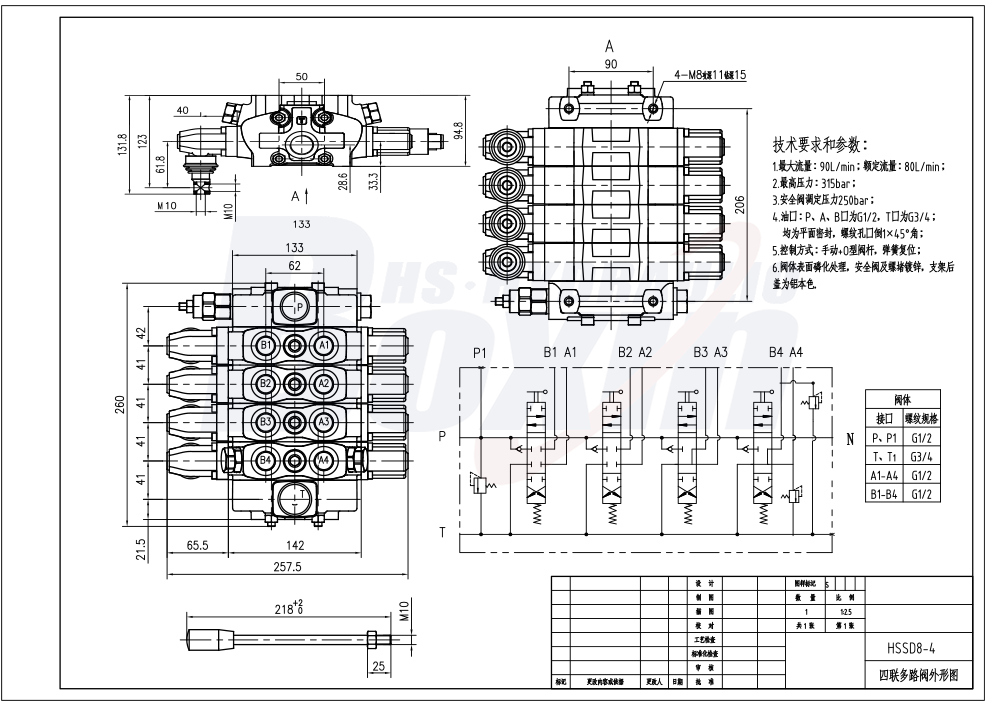

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 4 Spool Manual Sectional Directional Valve is a high-performance hydraulic control solution designed for flow rates up to 80 L/min and pressures up to 315 bar. Ideal for material handling, agriculture, and construction machinery, it offers precise manual control for versatile industrial applications.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

As a leading manufacturer of hydraulic components, we specialize in offering the SD8 Series 4 Spool Sectional Directional Valve to the global market. This robust manual valve is engineered for demanding environments, featuring a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capability of 315 bar (4600 psi). It is widely applicable for forklifts, mini-excavators, tractors, skid steer loaders, and wood splitters. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom configurations to meet specific technical requirements. Our factory ensures stable supply and competitive wholesale pricing for large-scale orders. We are actively seeking long-term cooperation with international distributors, wholesalers, agents, and professional traders. By partnering with us, you gain access to factory-direct supply, reliable technical support, and high-quality hydraulic solutions tailored for construction, agricultural, and industrial vehicle sectors.
