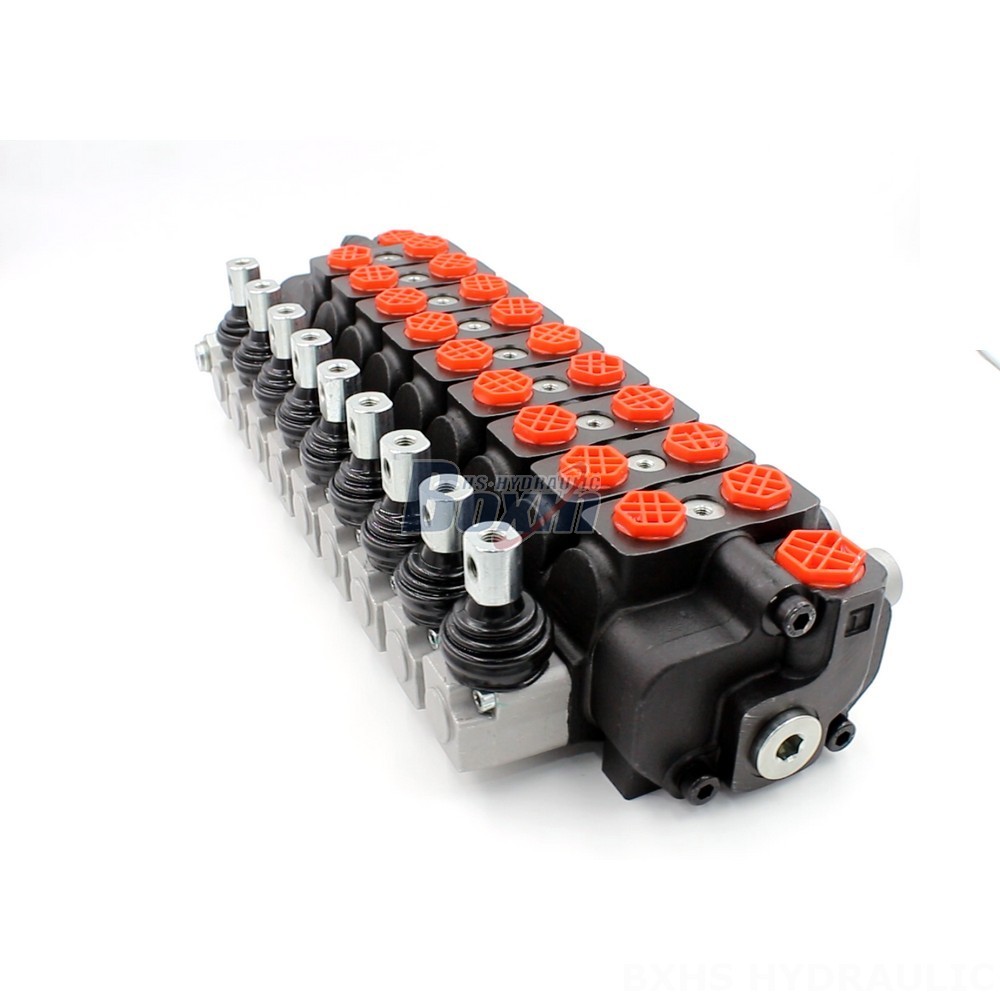

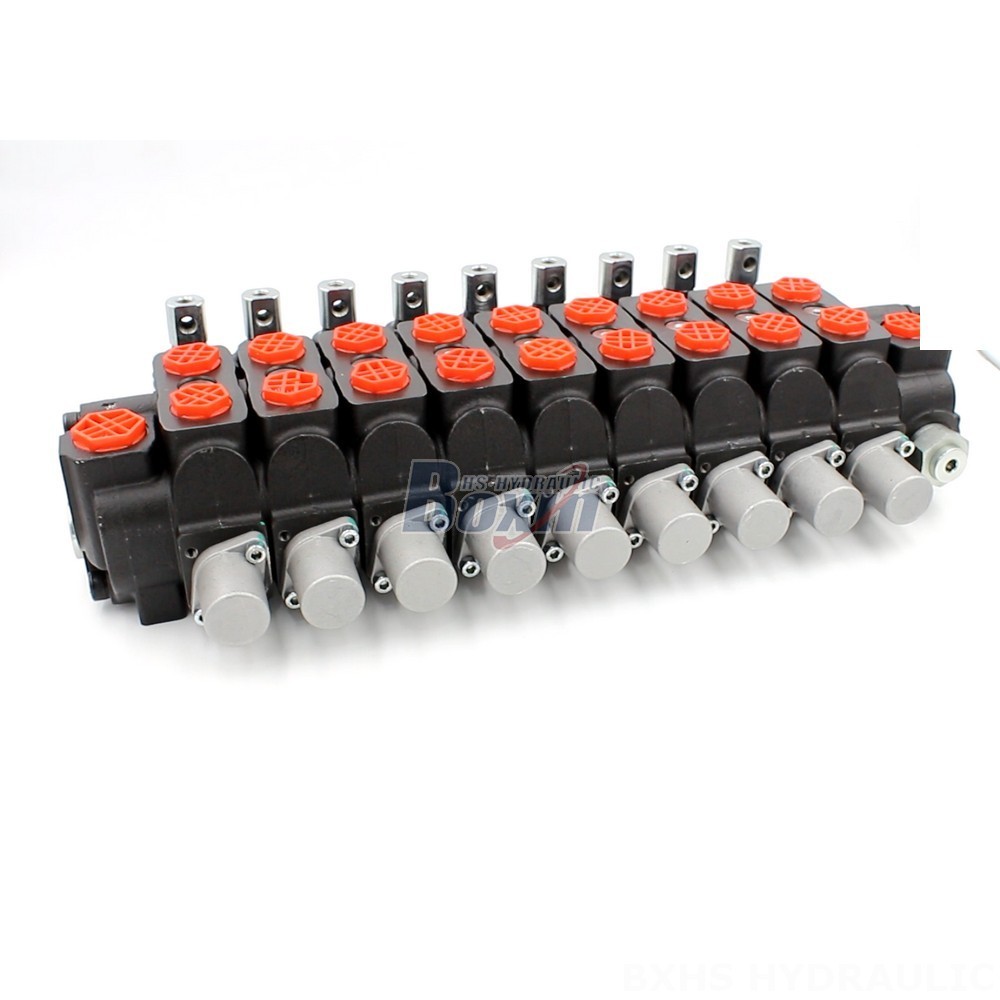

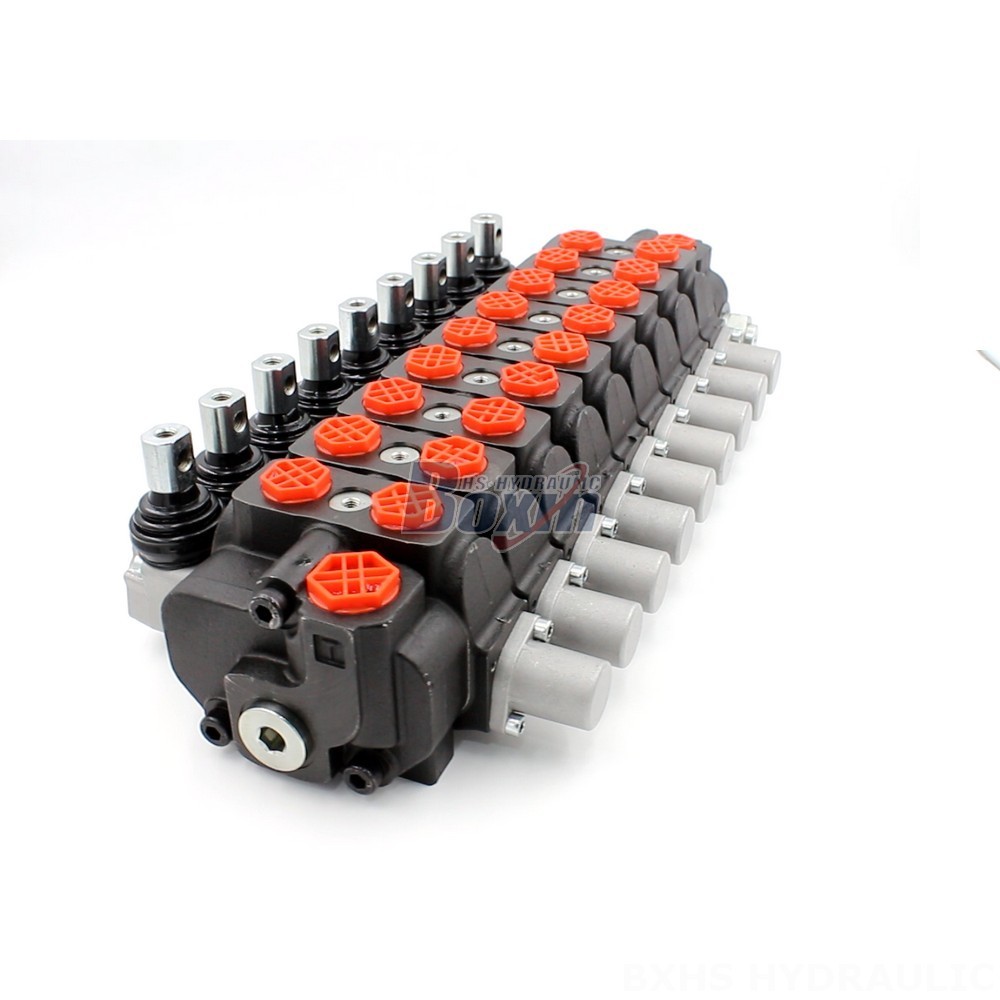

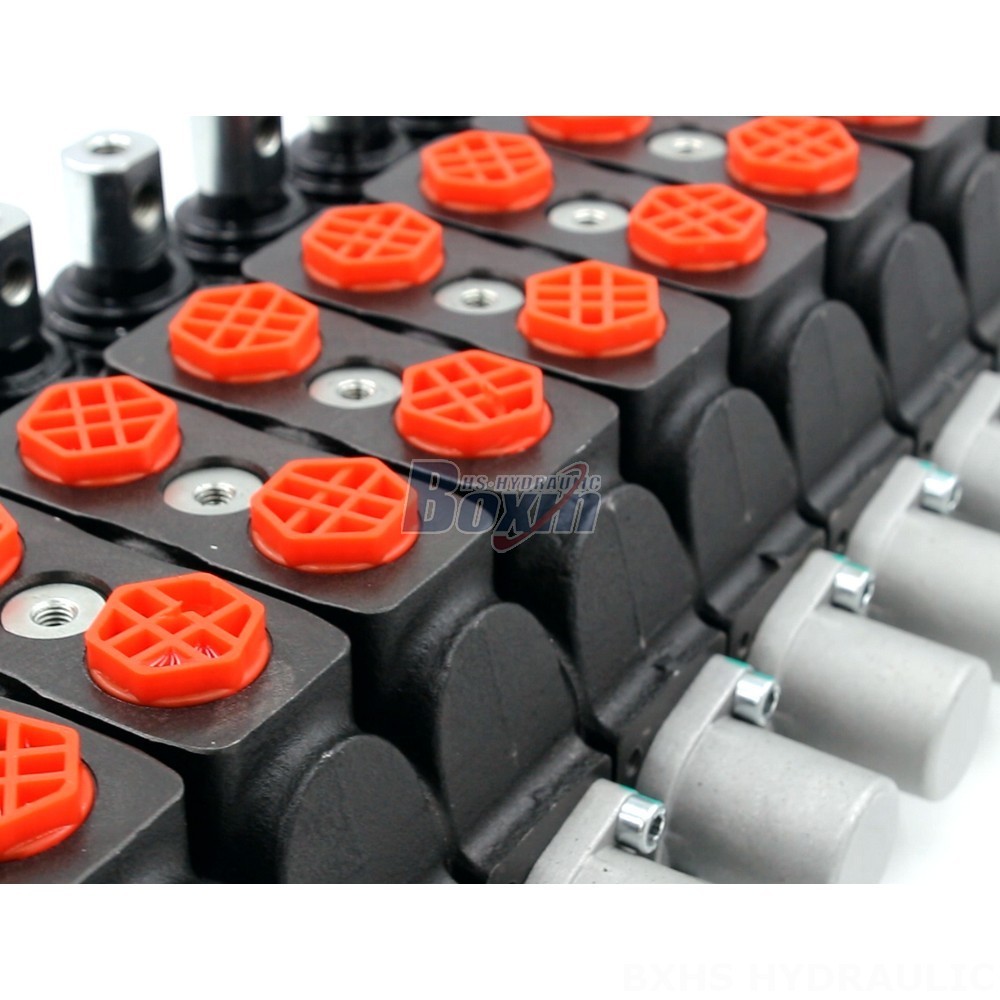

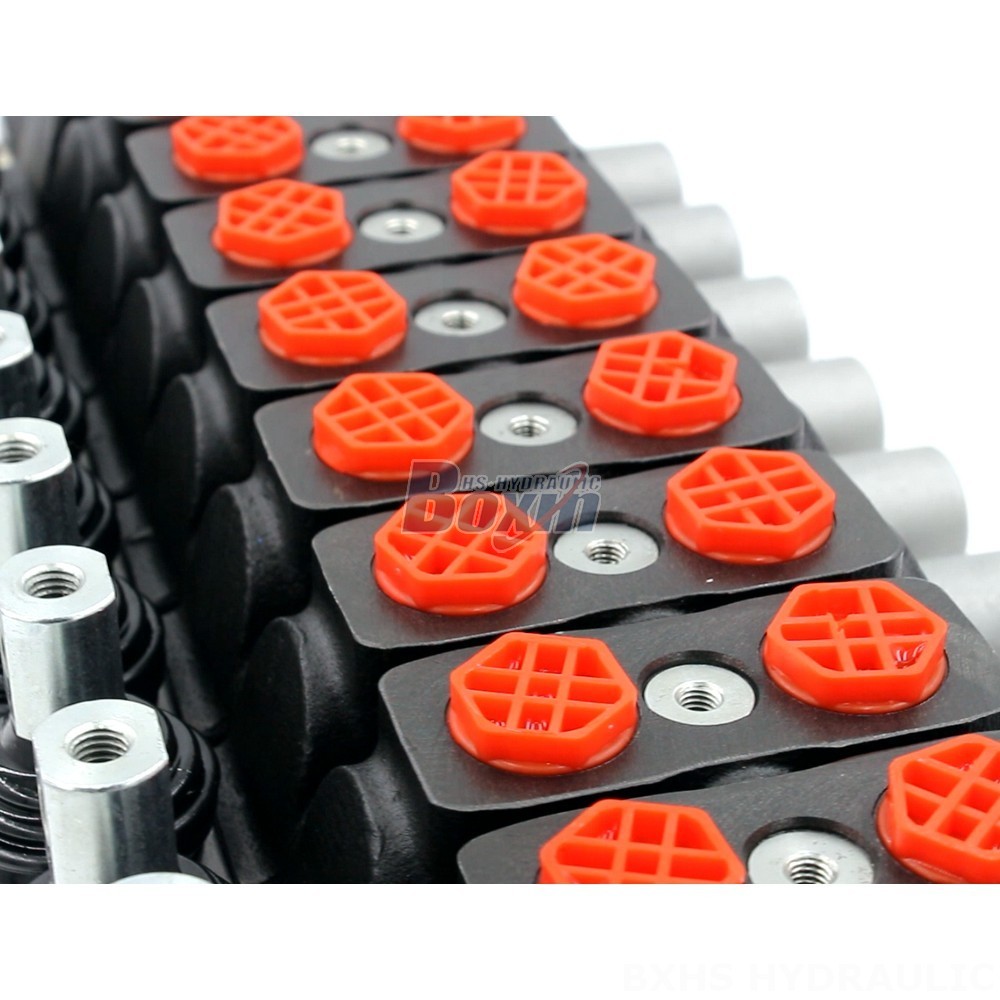

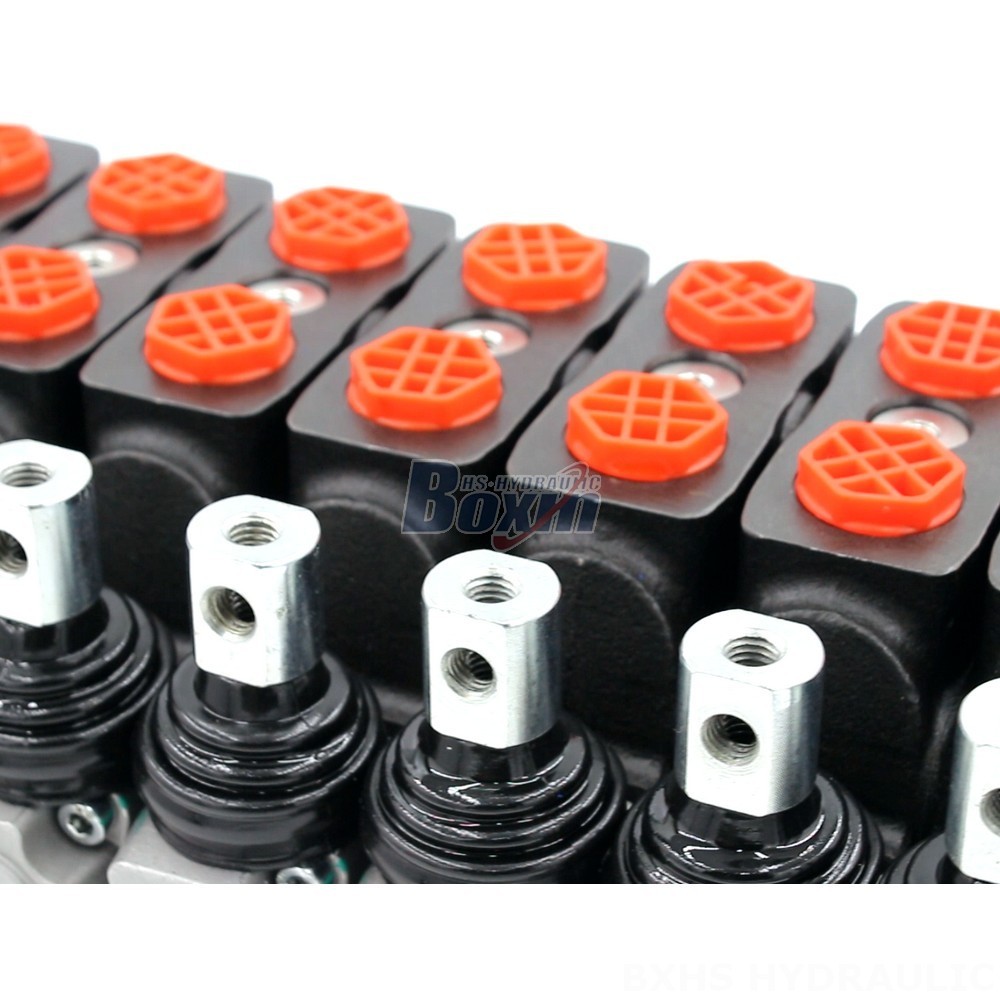

The SD8 Manual Hydraulic Directional Valve is a high-performance, 9-section, sectional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers manual control, a rated flow of 90 L/min, and a maximum pressure of 350 bar.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
The SD8 Series Manual Hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 9-section, sectional valve features a manual control mechanism for easy operation. Its rated flow of 90 L/min and maximum pressure of 350 bar make it ideal for heavy-duty applications. The valve is designed to operate in temperatures ranging from -40°C to +80°C, making it suitable for a wide range of environments. It is compatible with a variety of hydraulic systems and is commonly used in telehandlers, forklifts, cranes, excavators, loaders, and other industrial vehicles.
