Produksi & Pengiriman
Waktu Produksi 15-30 Hari

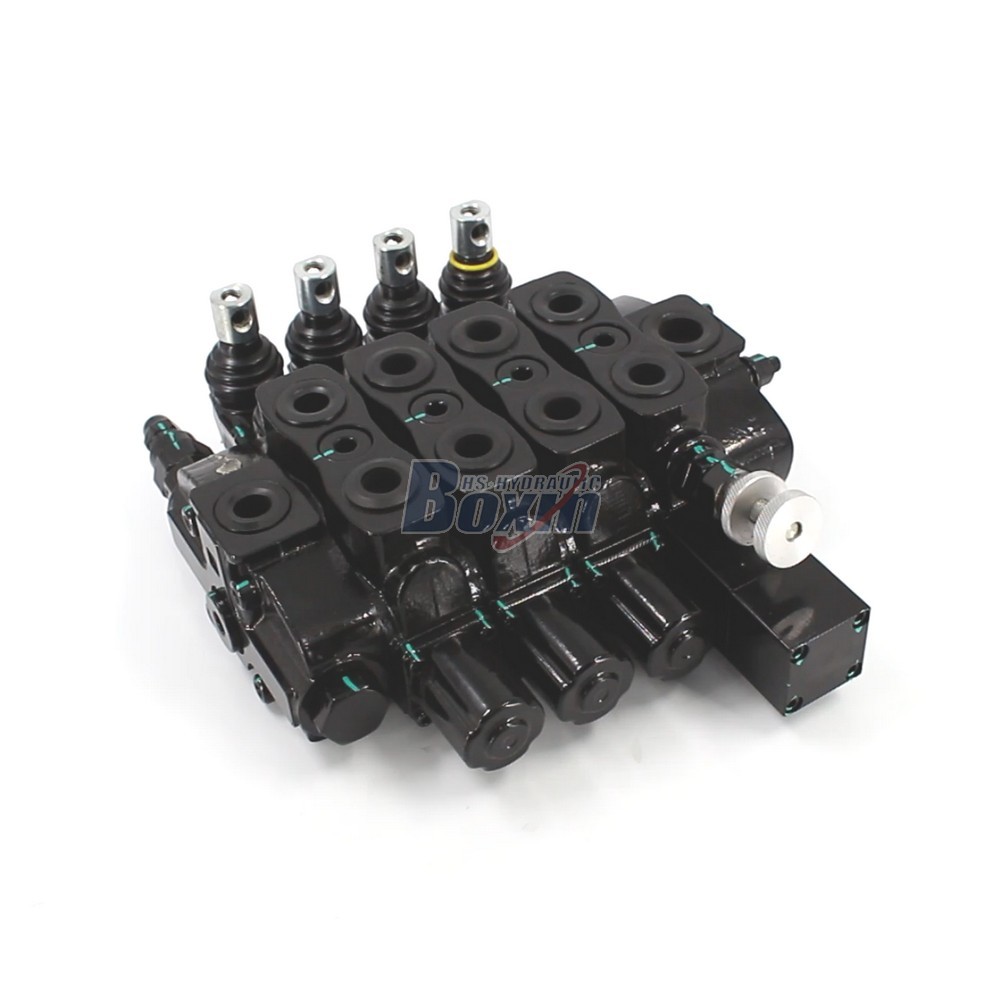

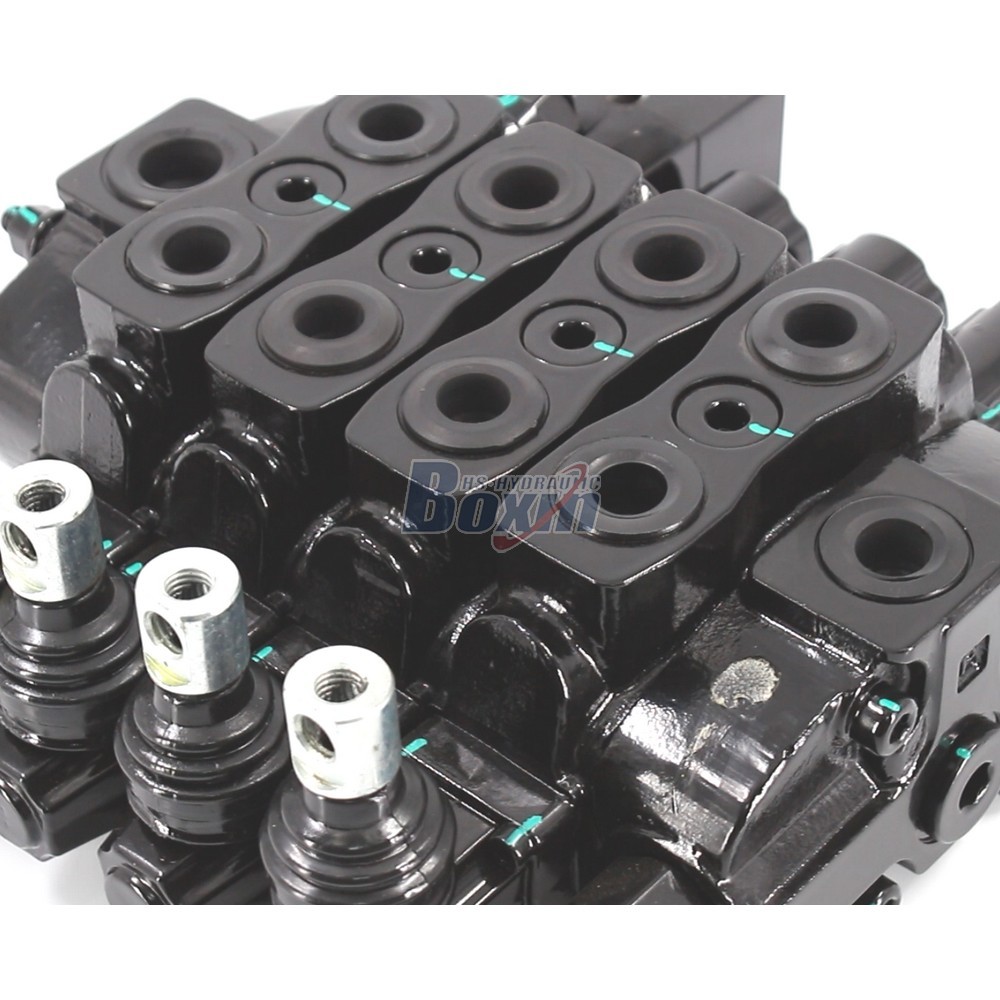

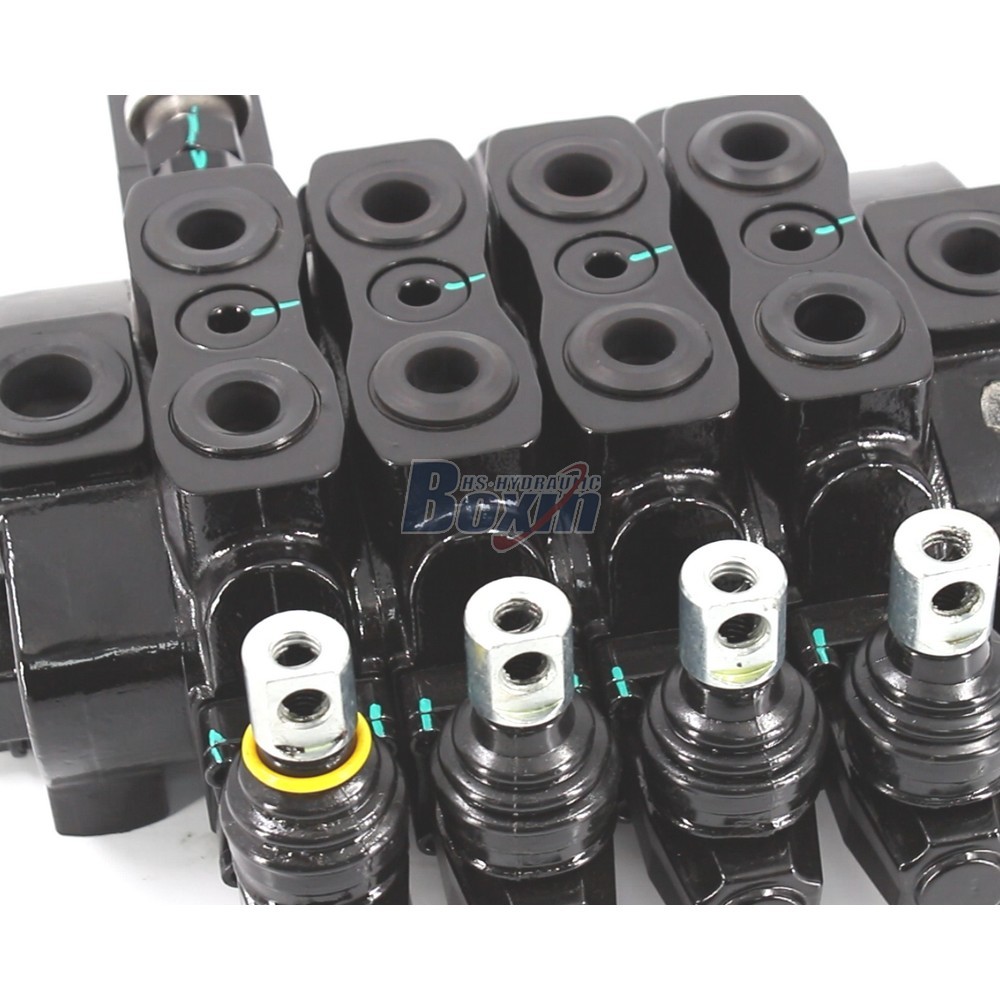

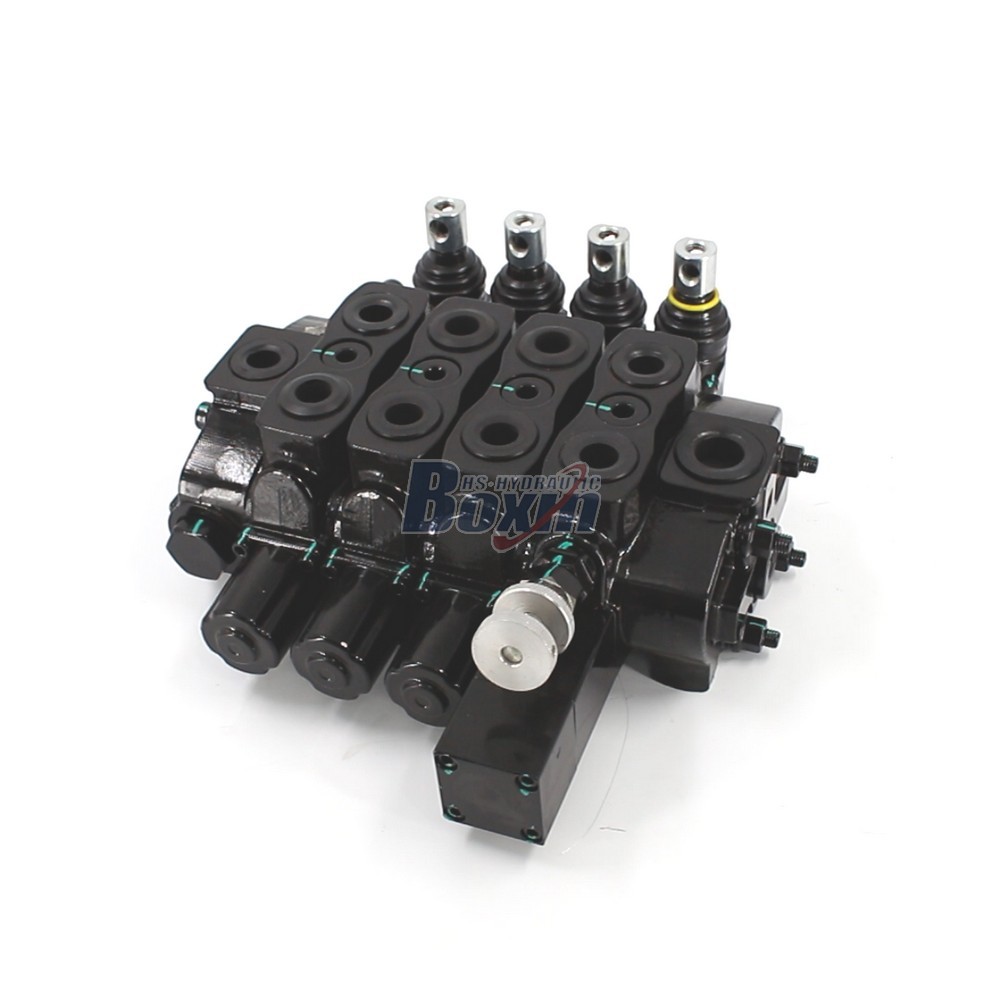

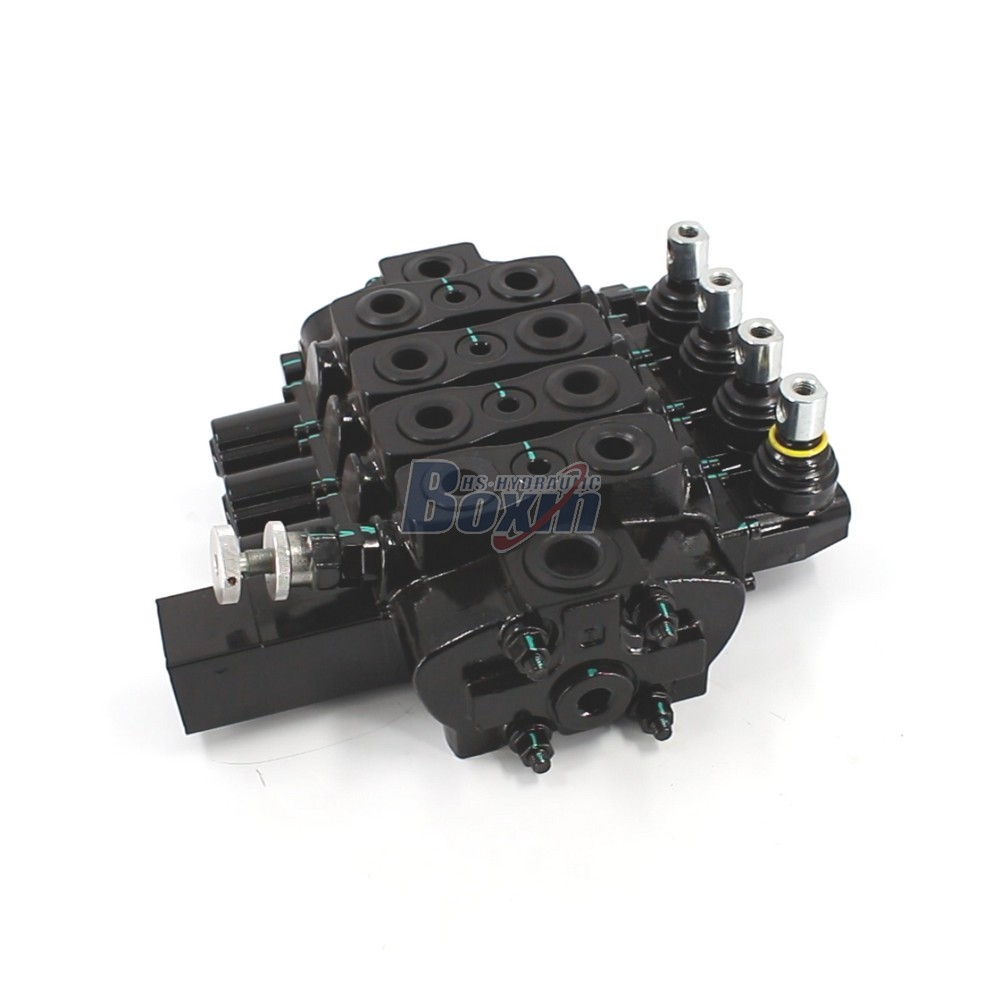

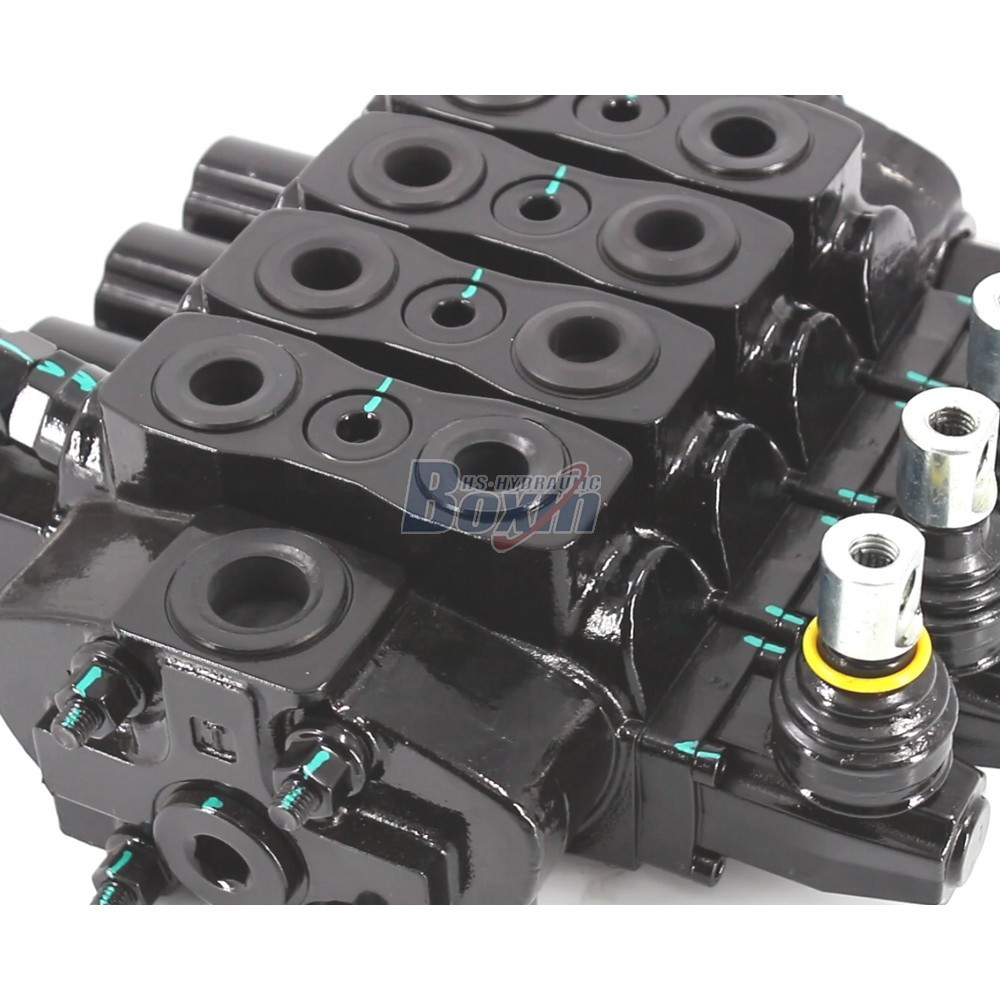

The SD8-OTAMW is a high-performance 4-spool manual sectional directional control valve designed for precise hydraulic system management. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve is engineered for durability and versatility in demanding applications including construction, agriculture, and material handling equipment.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
As a leading manufacturer of premium hydraulic solutions, we offer the SD8-OTAMW 4-spool manual sectional directional valve for global distribution. This robust valve supports a flow rate of 80 L/min (21.2 US gpm) and handles pressures up to 315 bar, making it ideal for mini-excavators, wheel loaders, and tractors. Our factory provides comprehensive OEM, private label, and custom manufacturing services to meet specific technical requirements. We are actively seeking long-term partnerships with distributors, wholesalers, and international traders. By choosing our factory-direct supply, you benefit from professional-grade engineering, wholesale pricing, and reliable lead times. Whether you need customized configurations for specialized industrial vehicles or bulk inventory for retail, our production facility is equipped to support your business growth with high-quality hydraulic components.
