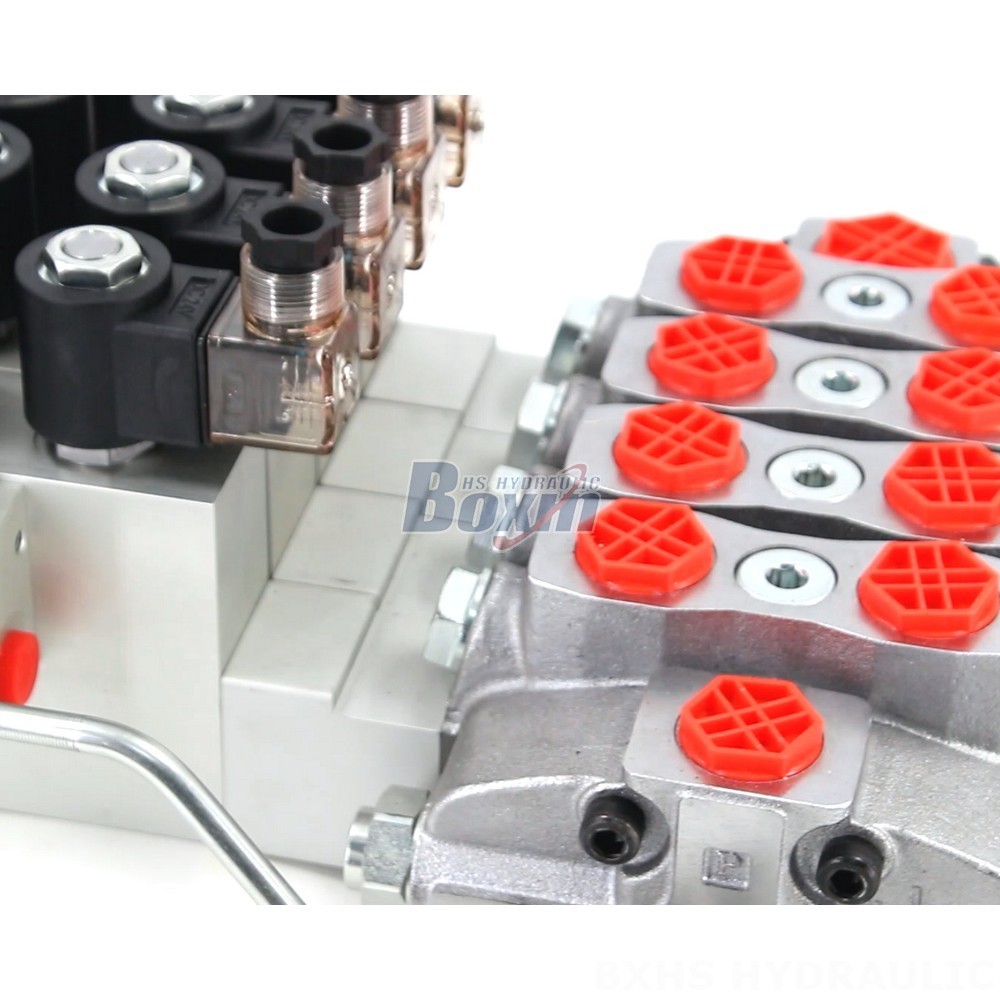

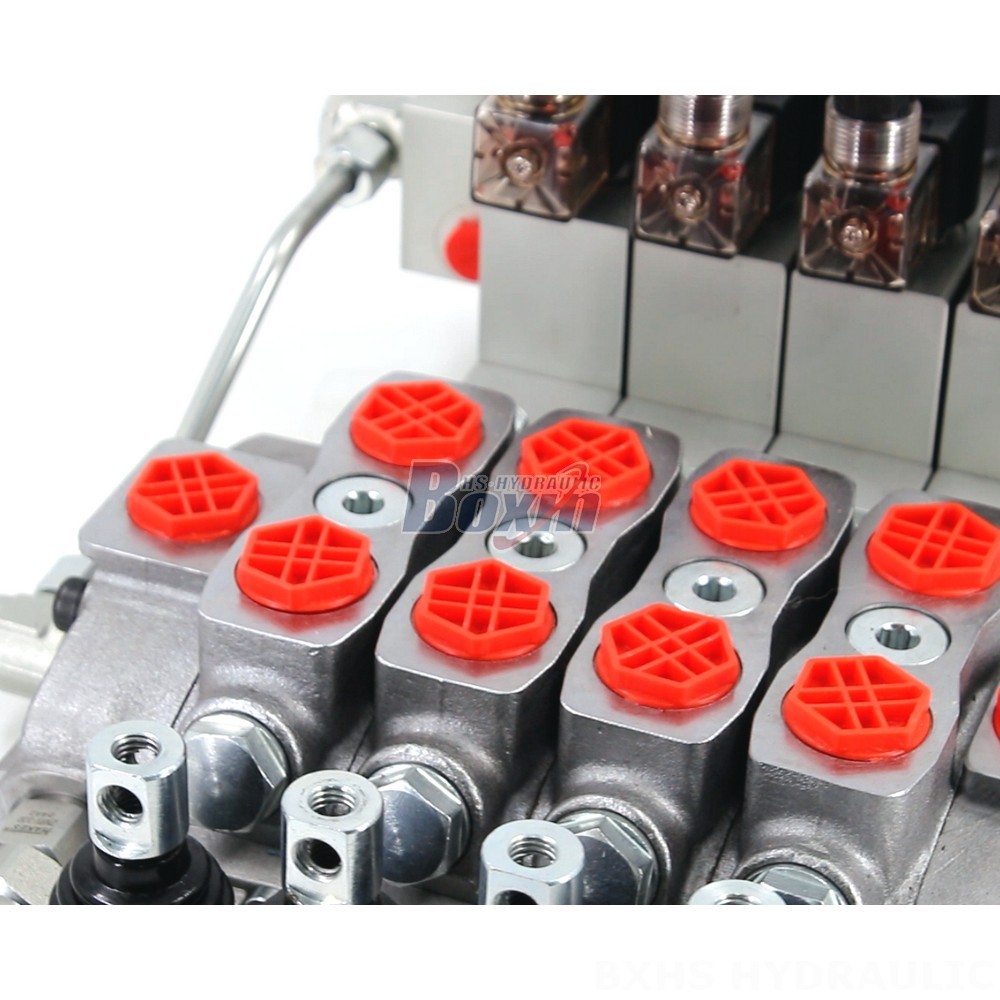

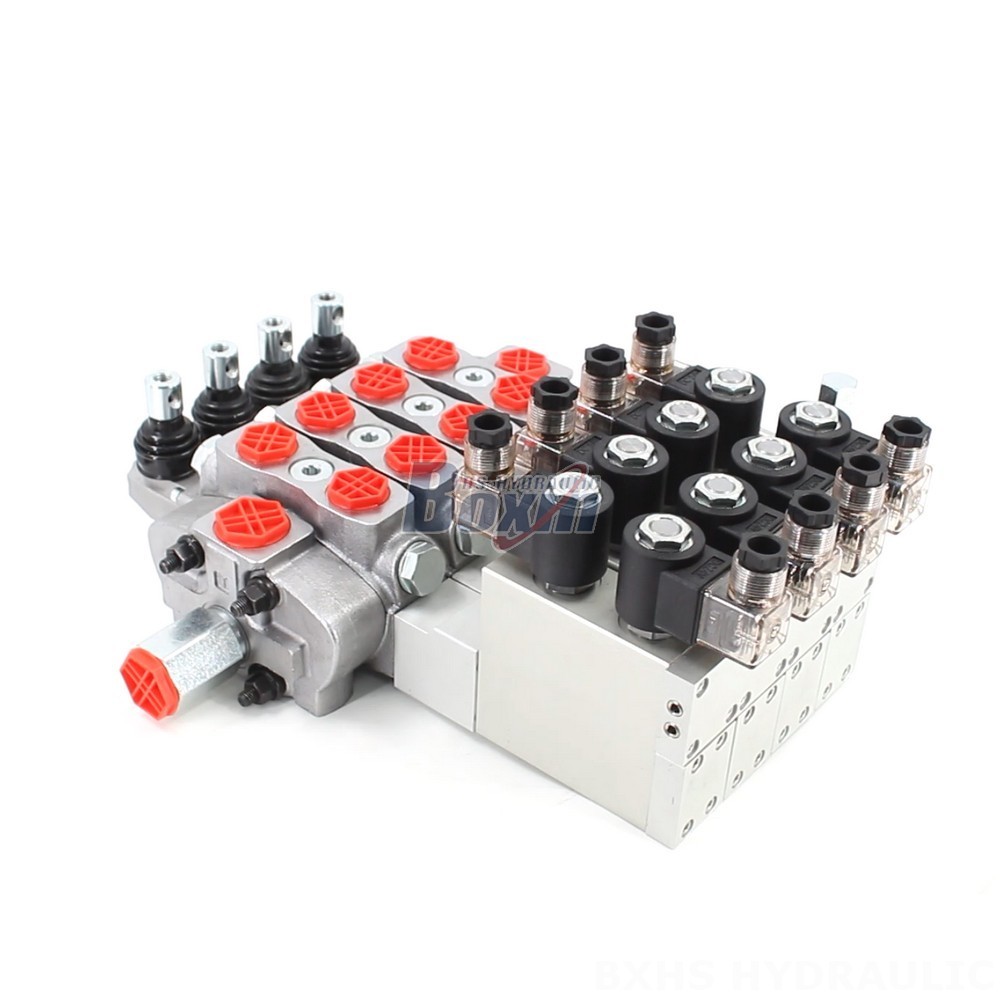

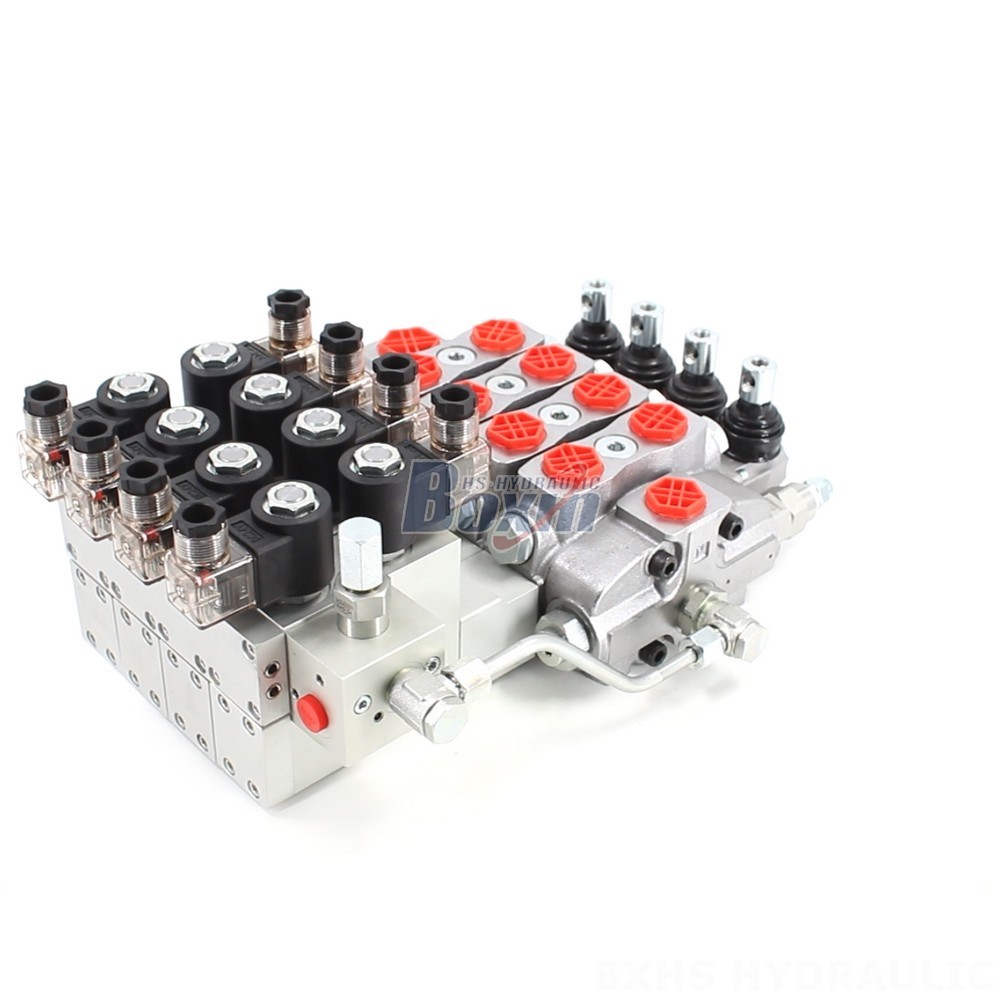

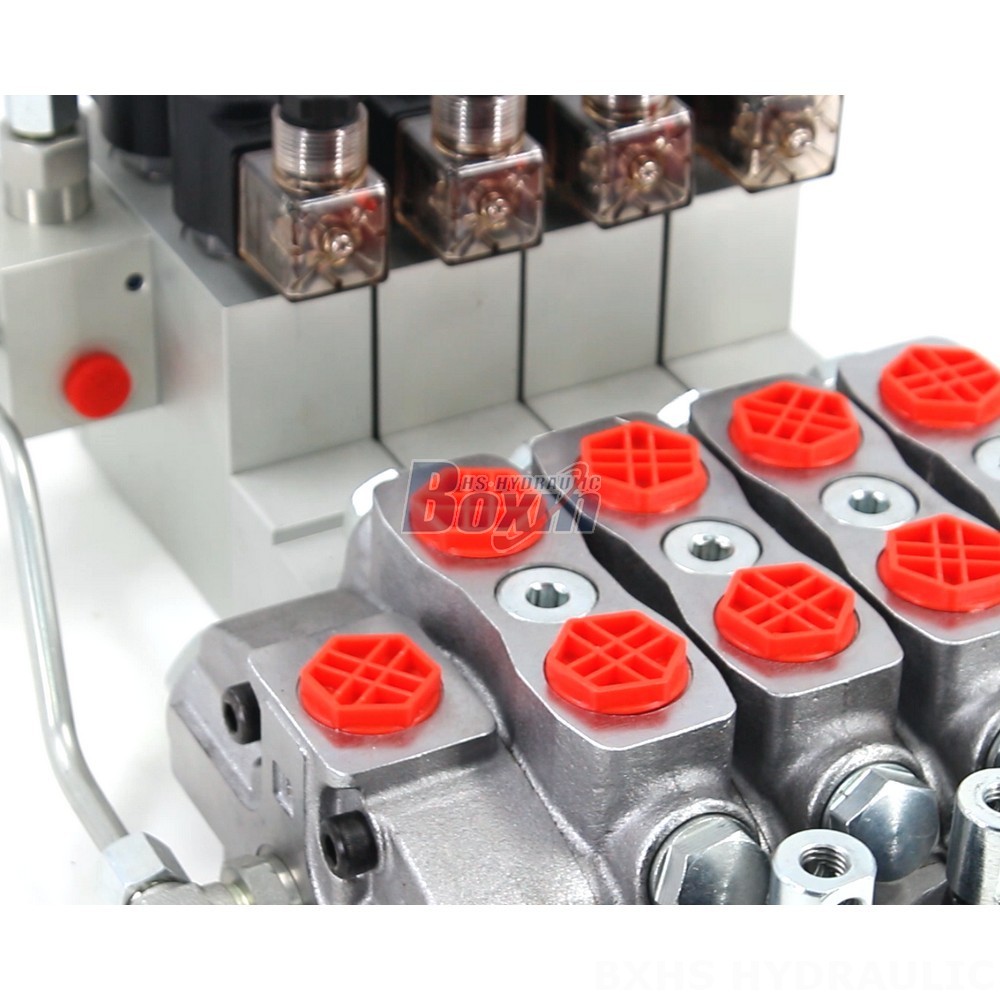

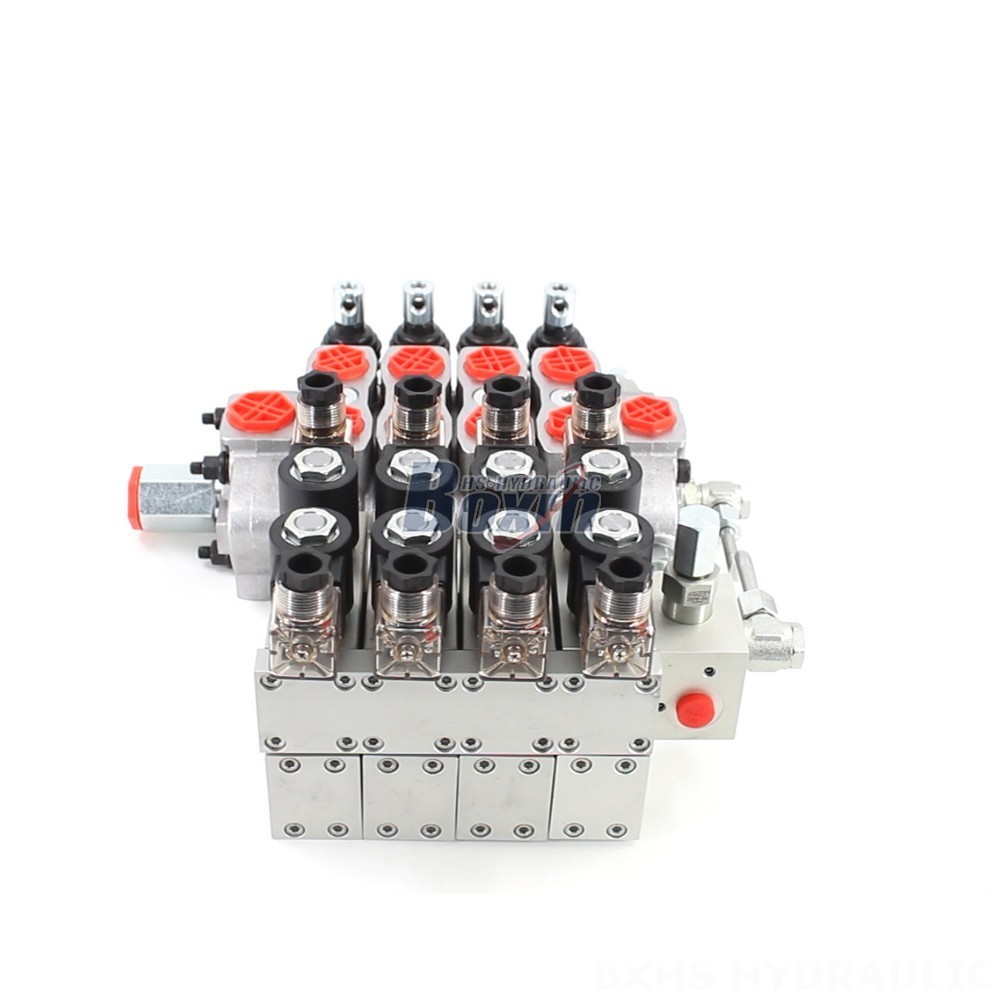

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

Metode Kontrol:Elektro-hidraulik

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:40*35*20

Kelas kotor:28.00 kg

Ketersediaan: Tersedia

549 Pandangan Mencari Produk Ini

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct

SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve - Factory Direct drawing image

High-quality SD8-PG2 electro-hydraulic 4-spool sectional directional valve, offering 90 L/min flow rate and 350 bar max pressure. Ideal for material handling, construction, and agricultural applications. Factory direct pricing and OEM/private label options available.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M22×1.5, SAE 10
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Ukuran Port G1/2, M22×1.5, SAE 10

The SD8-PG2 Electro-Hydraulic 4 Spool Sectional Directional Valve is a high-performance hydraulic component manufactured by our factory. We offer factory direct pricing, ensuring competitive advantage for our customers. This robust valve boasts a rated flow of 90 L/min (23.8 US gpm) and a maximum pressure of 350 bar (5100 psi) or 250 bar (3600 psi), making it suitable for a wide range of applications, including material handling, construction and earth moving, industrial vehicles, and agriculture. Specific applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, backhoe loaders, mini-excavators, midi-excavators, harvesters, and balers. This 4-section, electro-hydraulic sectional valve operates reliably within a temperature range of -40°C to +80°C (-40°F to +176°F) and a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt).

**We are a leading hydraulic product manufacturer offering:**
* **Manufacturing:** High-quality production of the SD8-PG2 and other hydraulic valves.
* **OEM (Original Equipment Manufacturing):** We provide custom designs and manufacturing to meet your specific requirements. Partner with us to integrate our valves seamlessly into your equipment.
* **Private Labeling:** Brand your own hydraulic valves with your company logo and specifications.
* **Customization:** Tailor the valve's specifications to match your unique application needs.
* **Wholesale:** Bulk orders available at competitive factory-direct prices.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with us to access high-quality, reliable hydraulic valves at competitive prices. Contact us today to discuss your needs and explore potential collaborations. We are a factory direct supplier offering competitive pricing, high-quality products, and flexible OEM and private labeling options. Choose a reliable and experienced hydraulic valve manufacturer – choose us.
