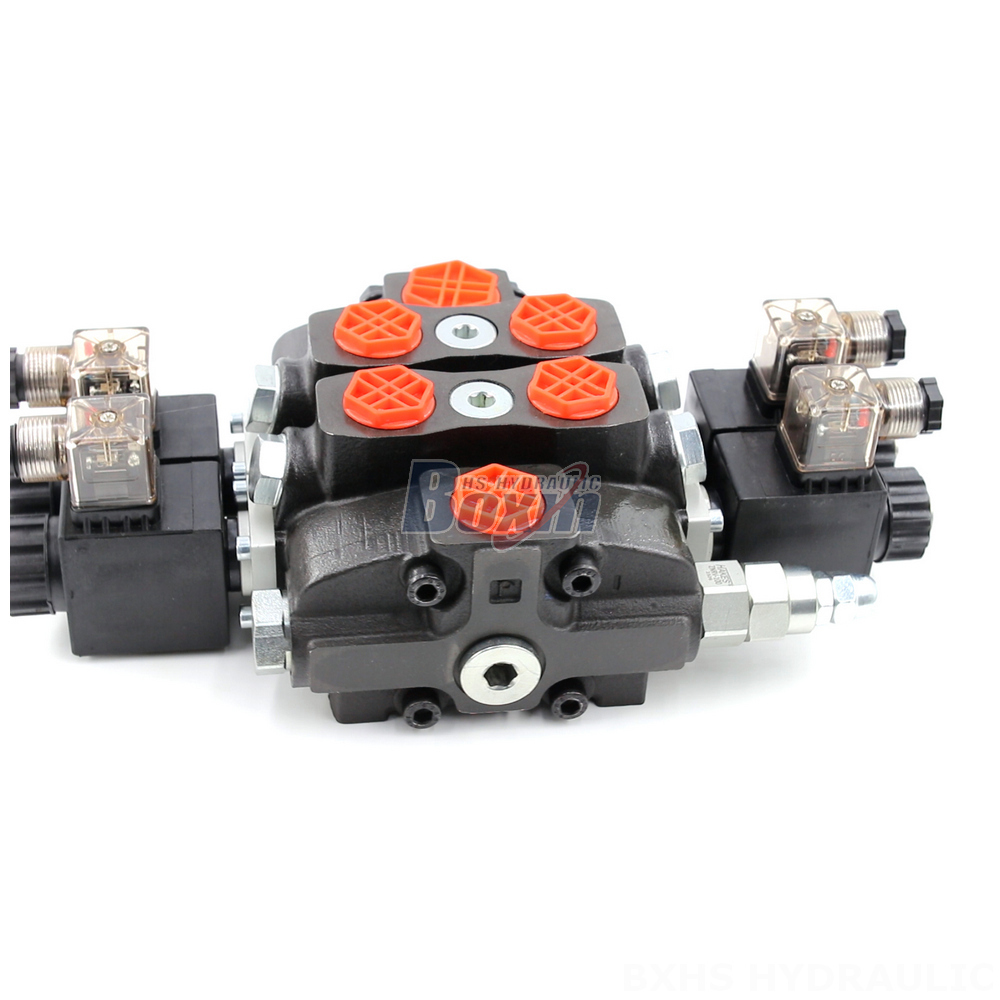

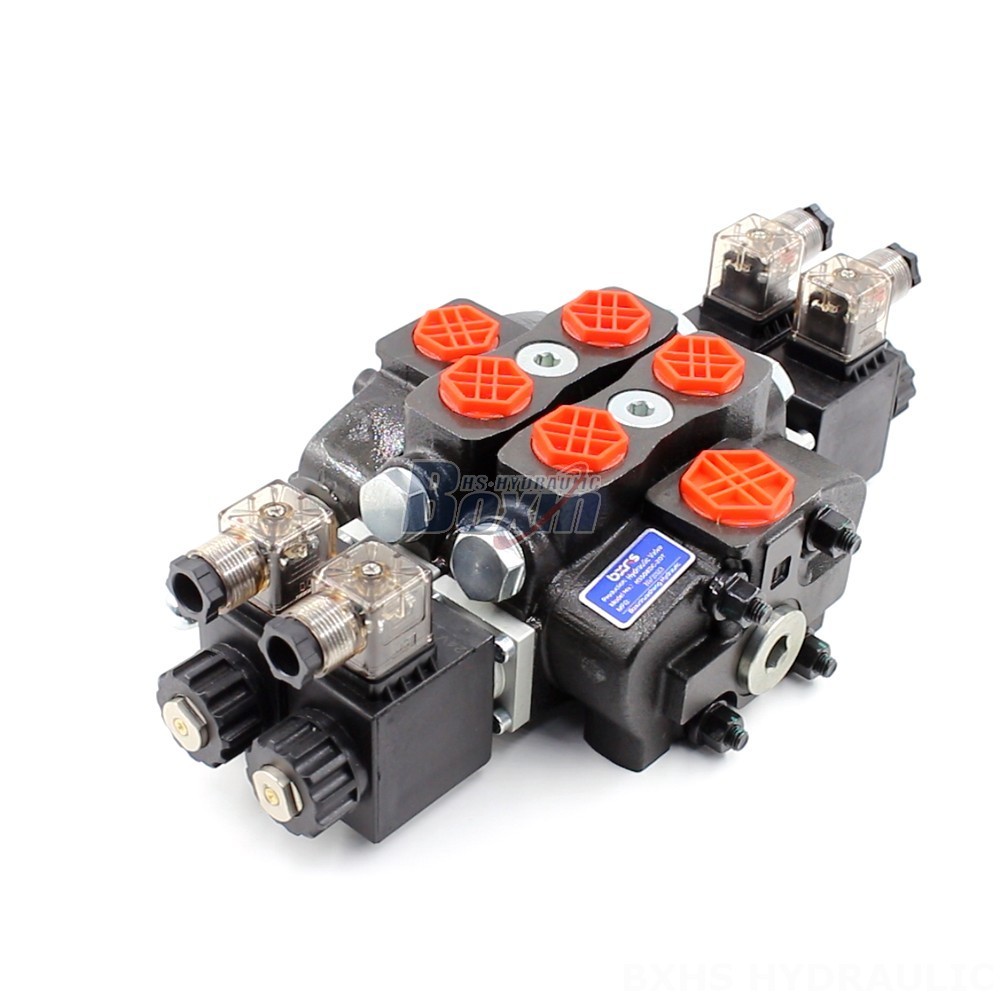

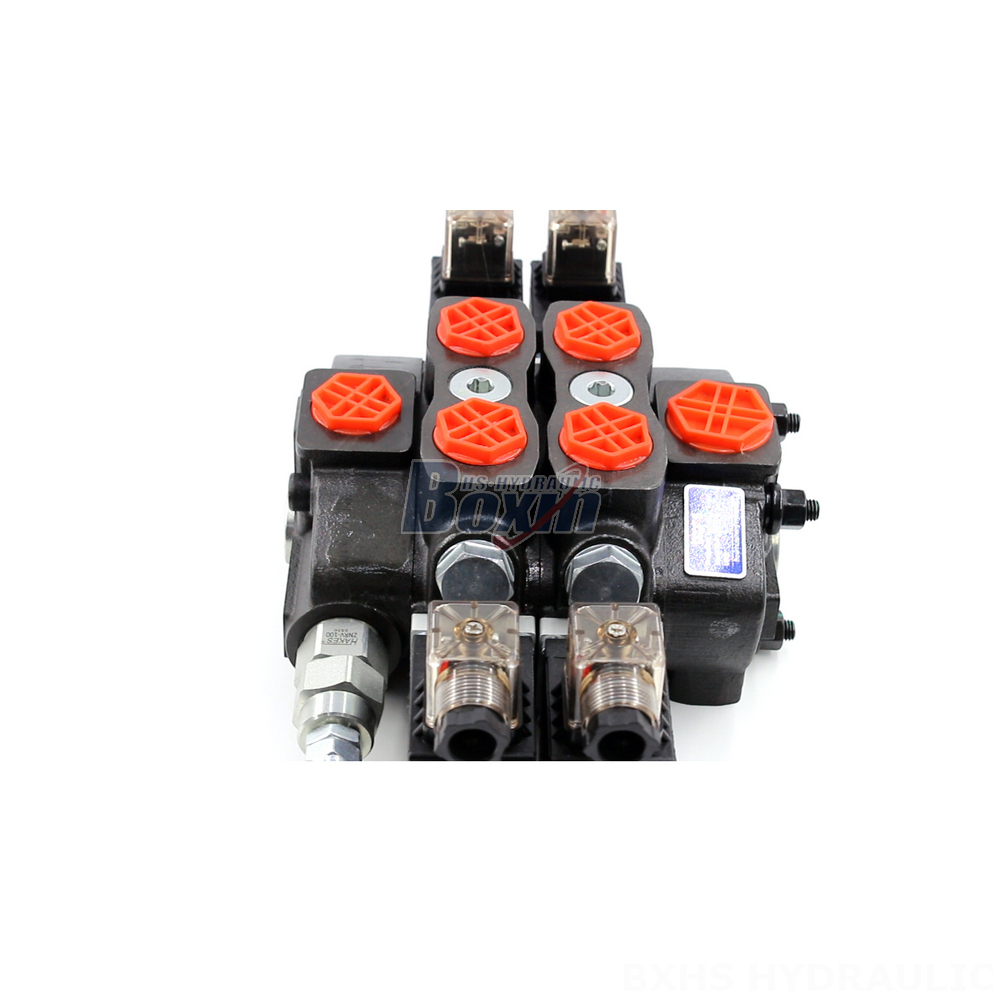

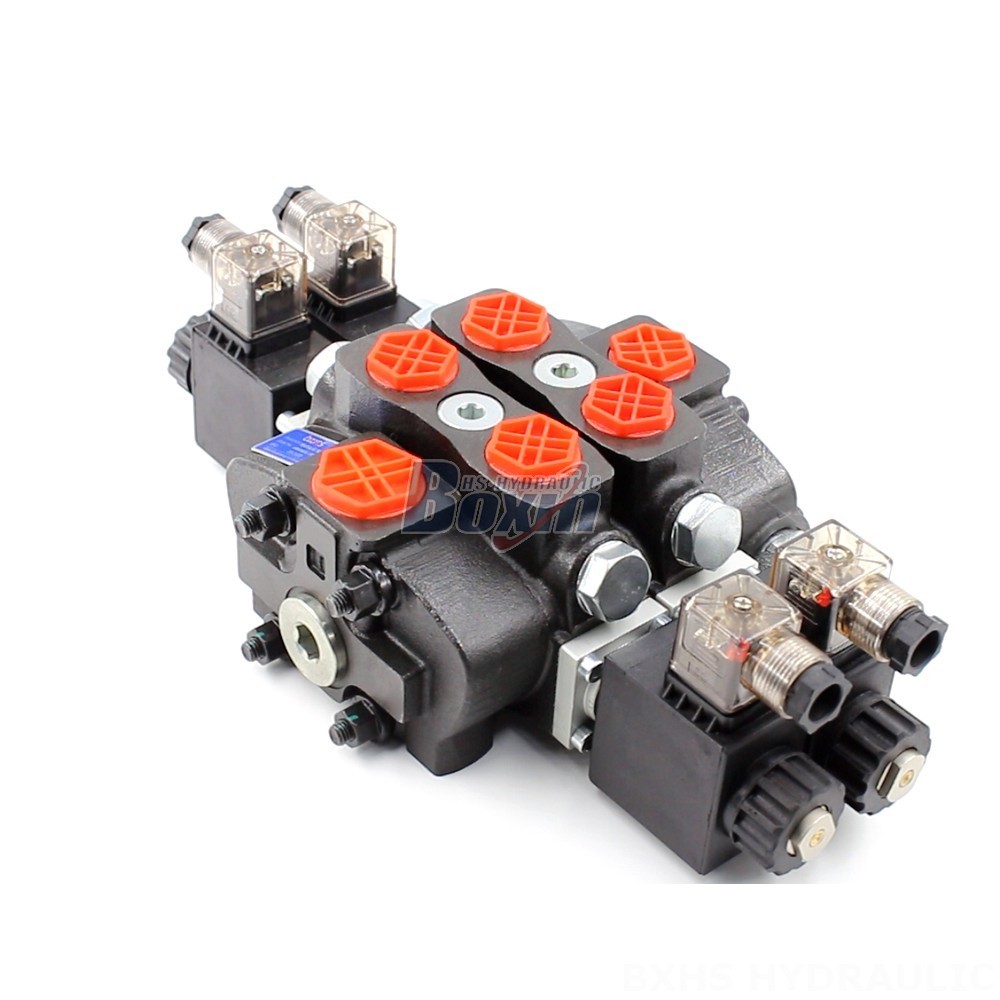

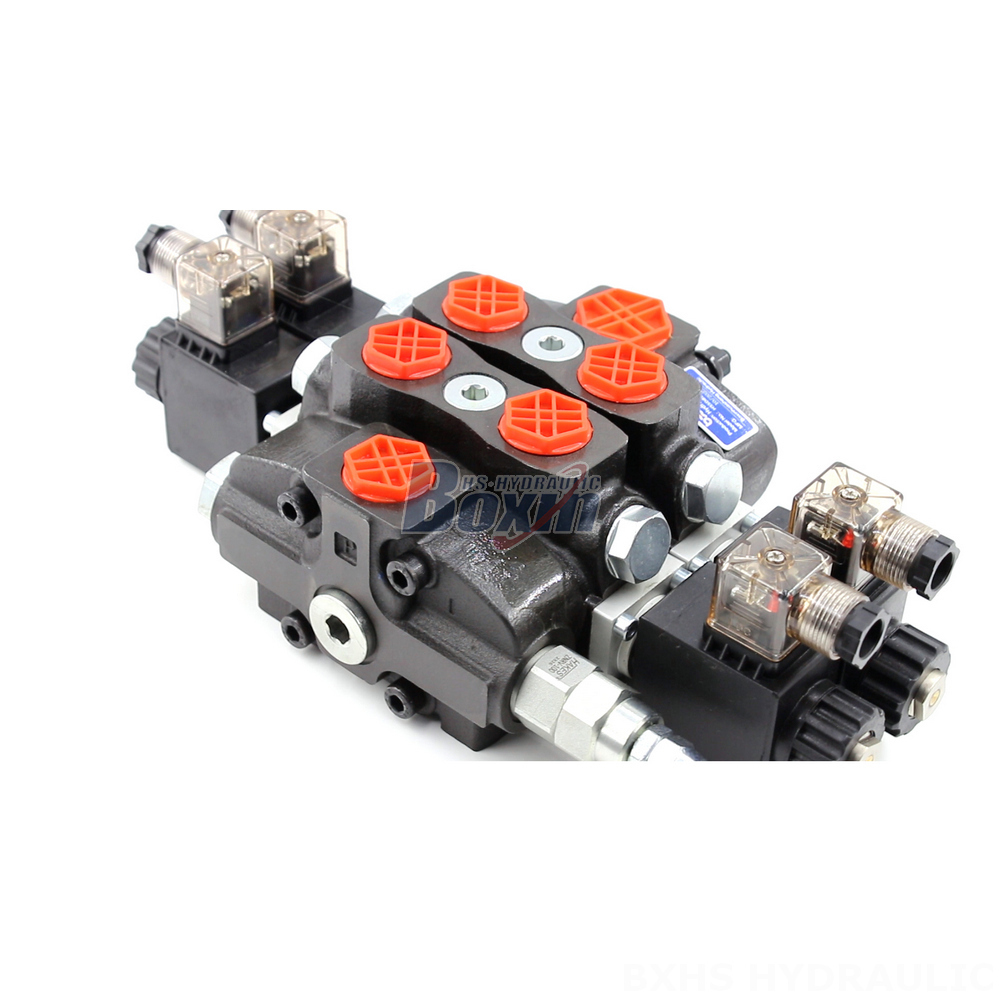

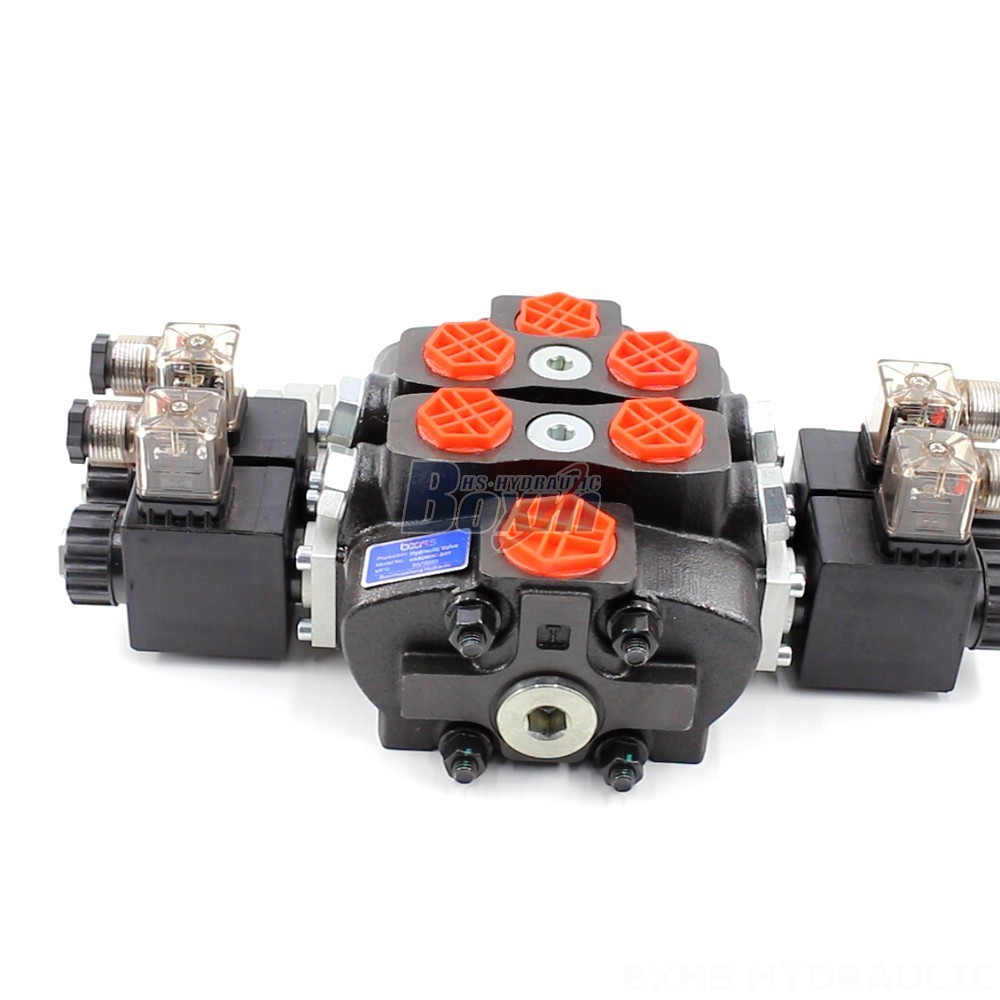

The Hydraulic Valve Control Flow On Off 60 Gpm SD8 Solenoid Valve is a high-performance, reliable valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a compact design, high flow rate, and durable construction, making it ideal for controlling hydraulic systems in a wide range of equipment.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
This 2-section, sectional valve offers a rated flow of 90 L/min (23.8 US gpm) and can withstand a maximum pressure of 350 bar (5100 psi). It is designed for use with hydraulic fluids with a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) and can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The valve features a 2-spool configuration and is part of the SD8 series. We offer OEM, ODM, private labeling, and custom solutions to meet your specific needs. Contact us today to discuss your requirements and explore how we can help you achieve your project goals.
