Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1174 Pandangan Mencari Produk Ini

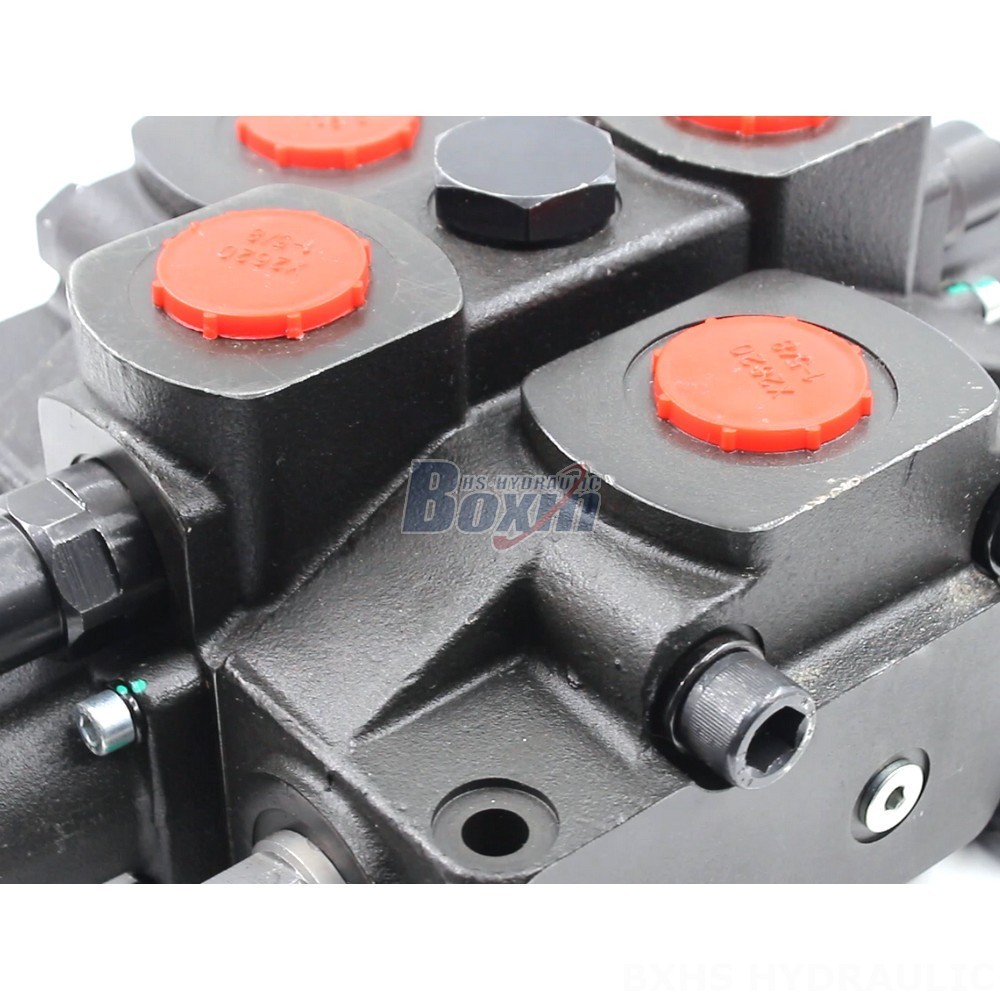

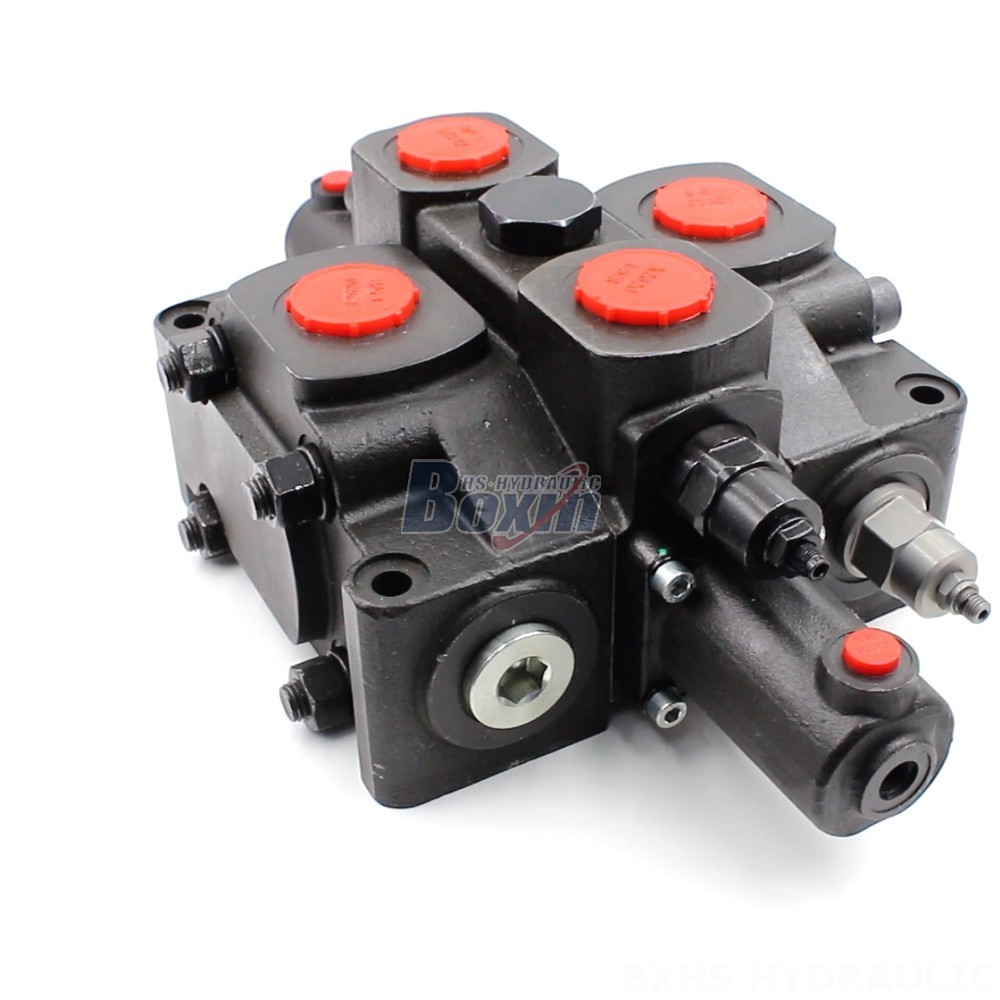

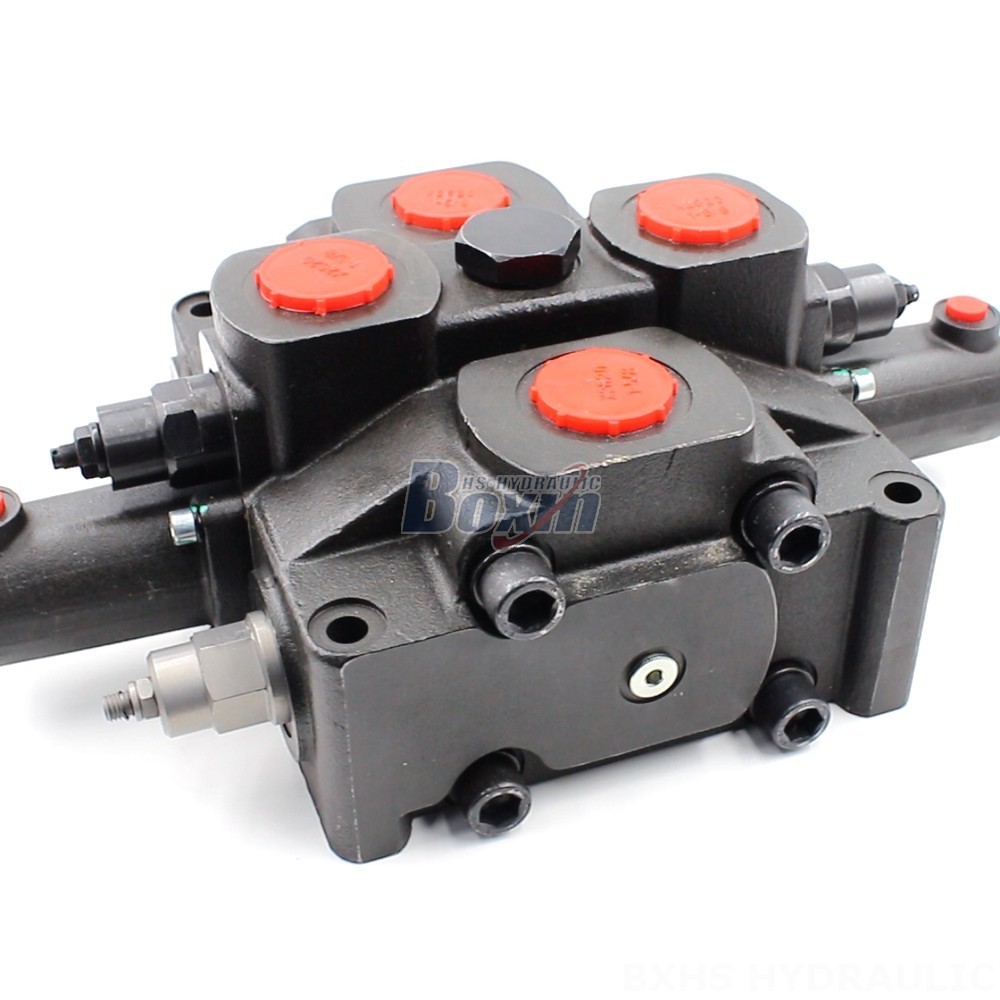

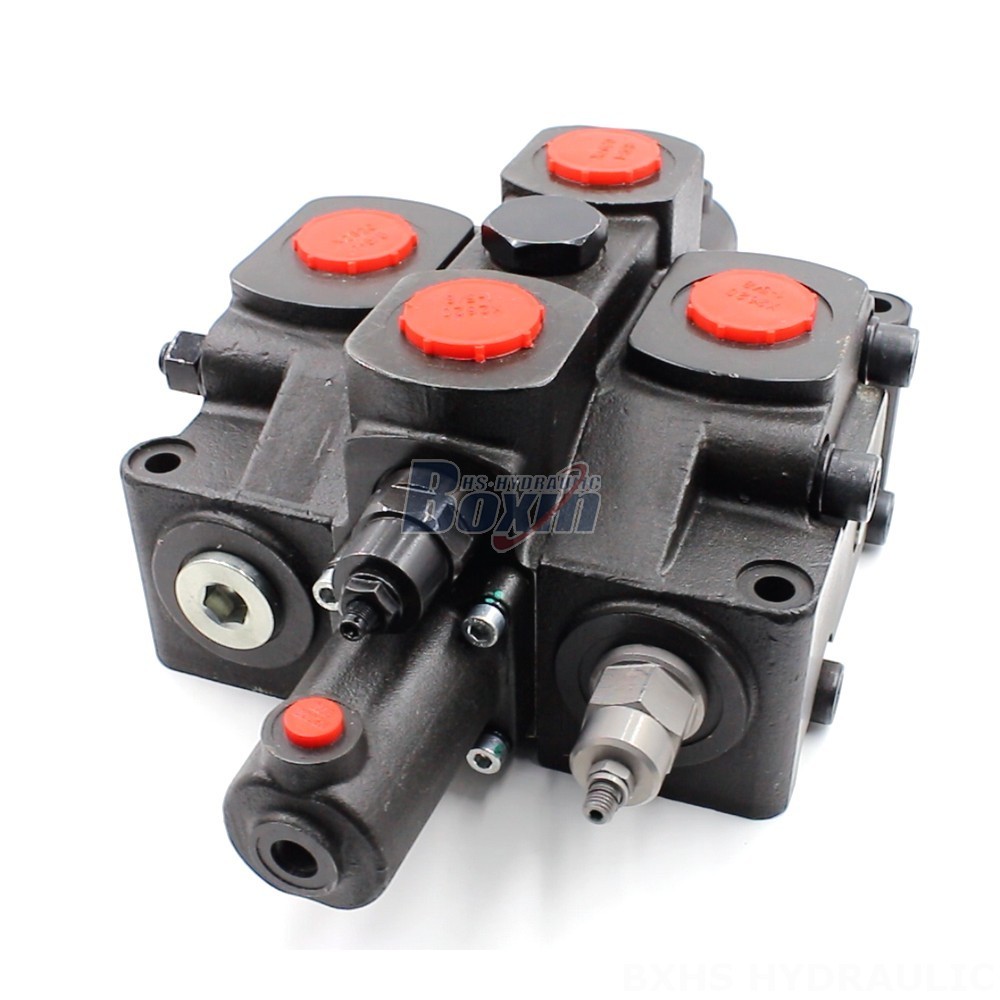

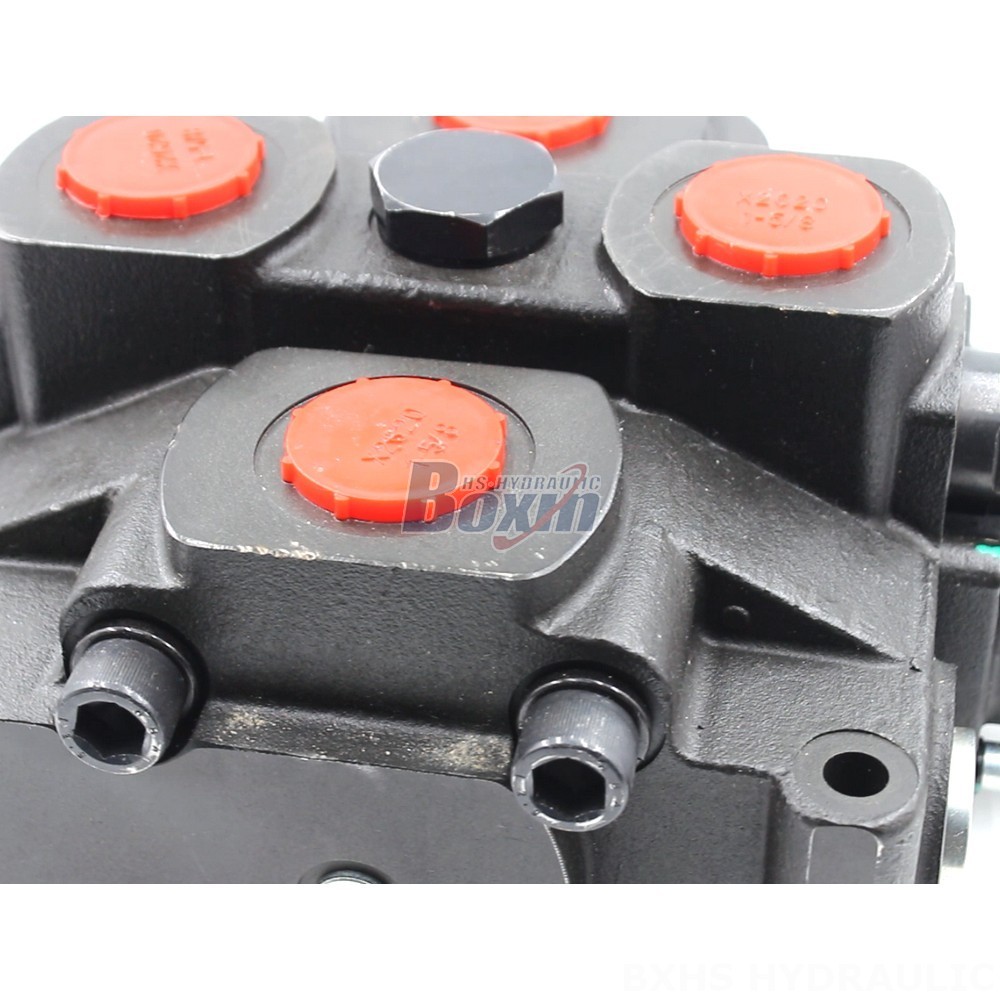

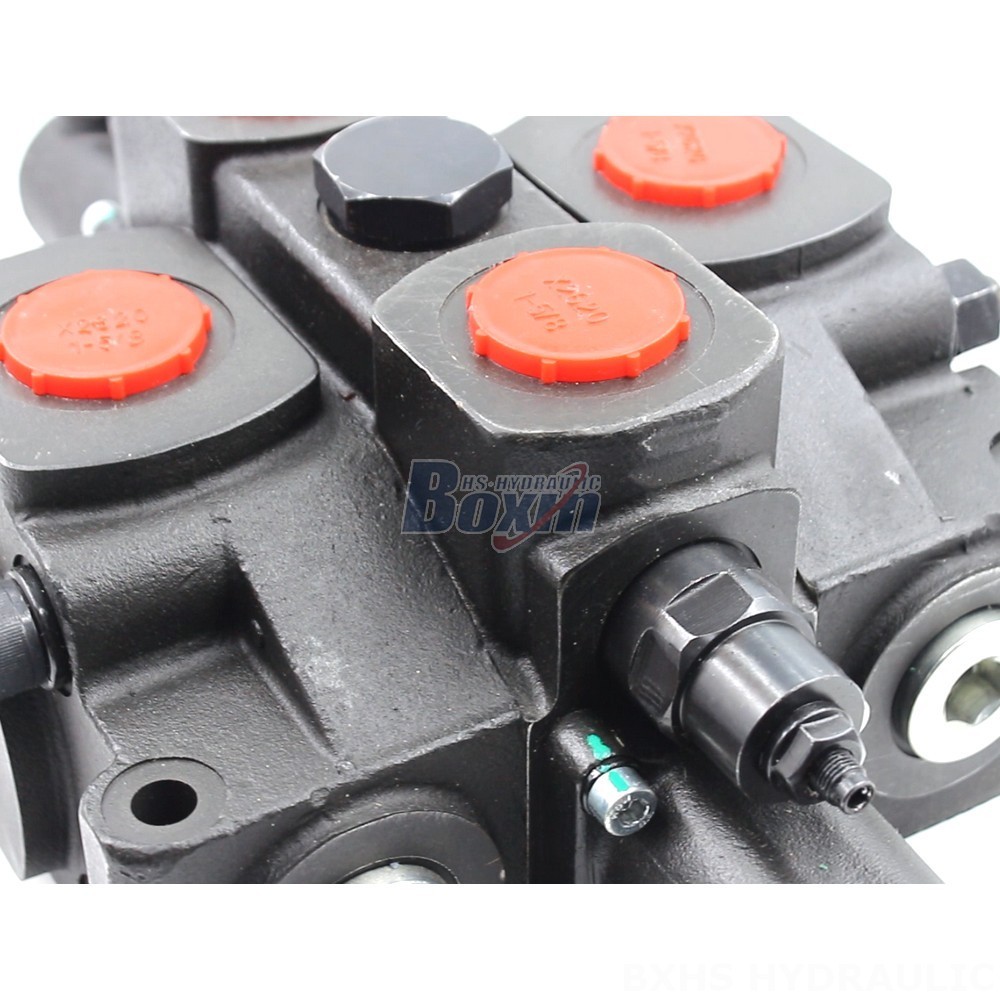

The SDS380 Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 380 L/min and a maximum pressure of 350 bar, this valve is capable of handling demanding hydraulic systems. Its sectional design allows for easy customization and maintenance, making it a versatile choice for various applications.
| Seri SDS380 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 380 L/menit (100,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1-1/2, SAE 20 |
| Port Keluar | G1-1/2 |
| Ukuran Port | G1-1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**SDS380 Hydraulic Directional Valve**
**Control Method:** Hydraulic
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 380 L/min (100.4 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Series:** SDS380 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MINI-EXCAVATOR
- SKID STEER LOADER
- WHEEL LOADER
- TRACTOR AND FRONT-END LOADER
- HARVESTER
