The Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 160 L/min and a maximum pressure of 350 bar, this valve is capable of handling even the most demanding applications. The manual control and 4 spool design provide precise and reliable control over the flow of hydraulic fluid.
| Seri SDS180 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G3/4, G1, SAE 12 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G3/4, G1, SAE 12 |

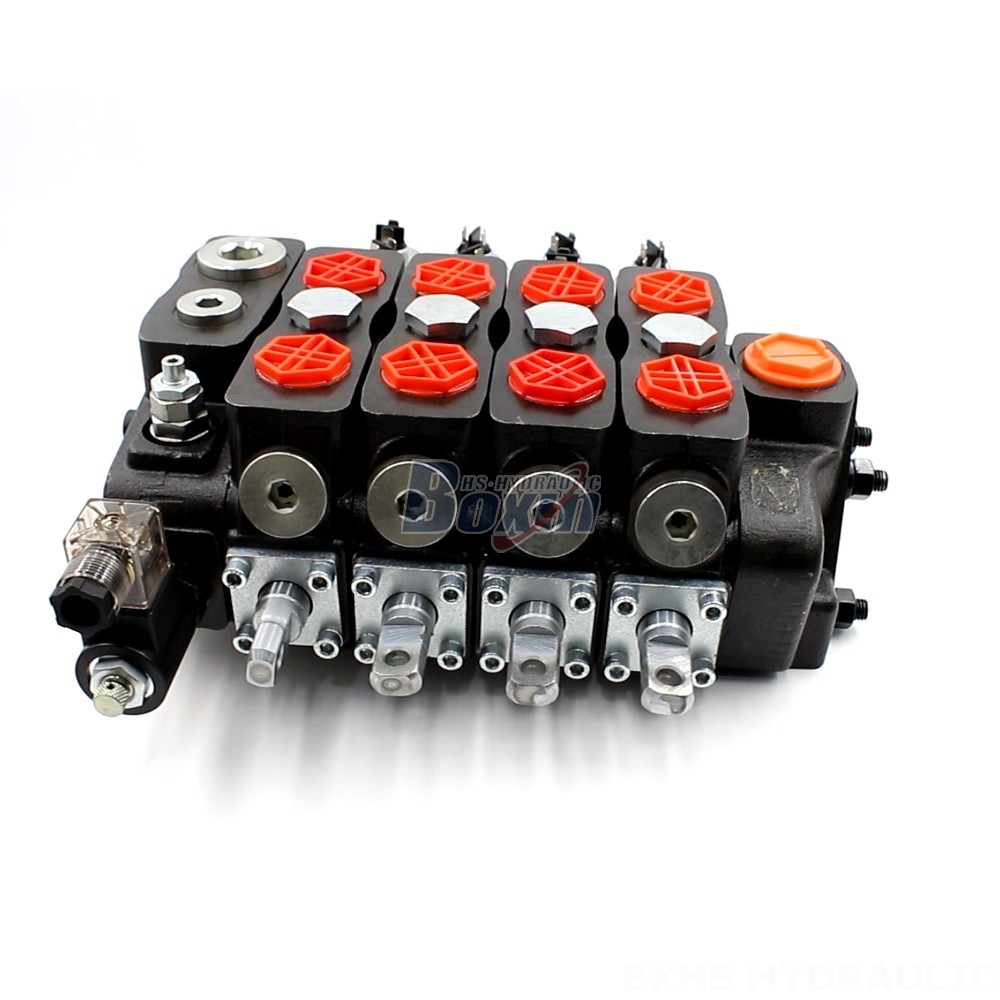

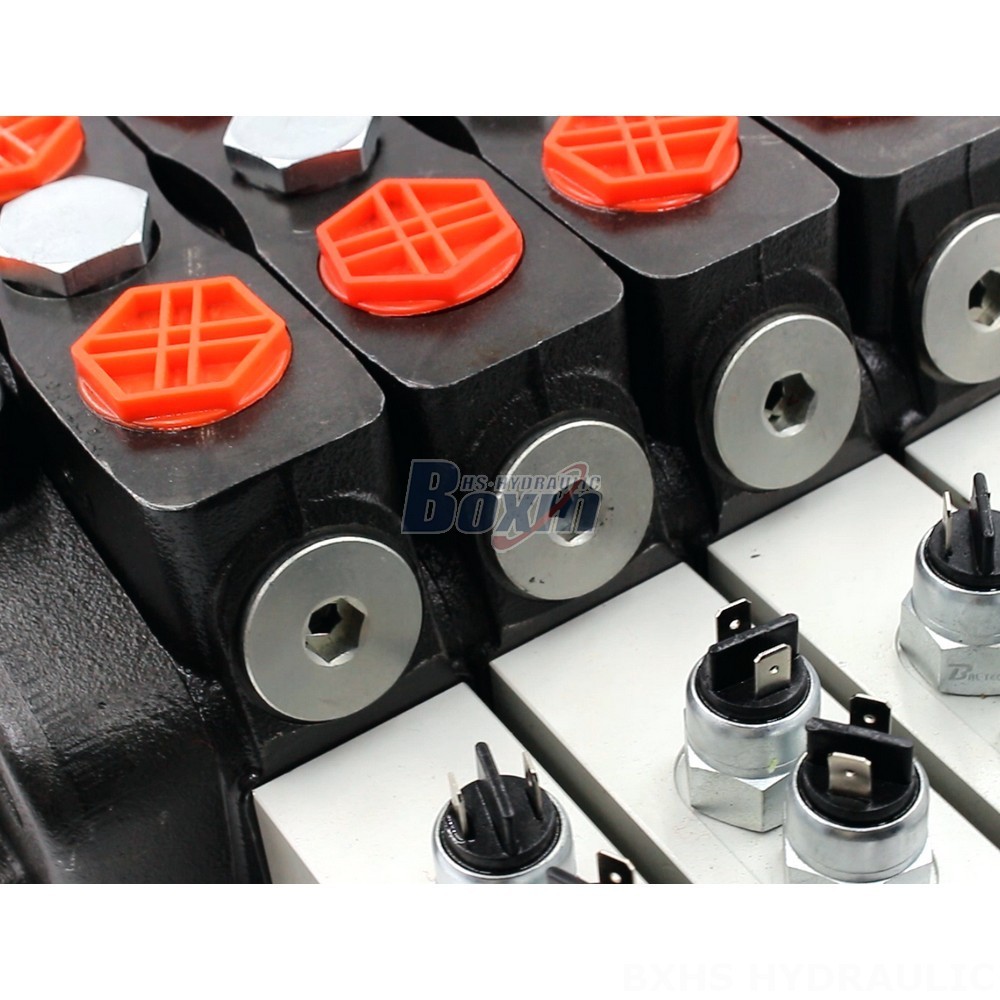

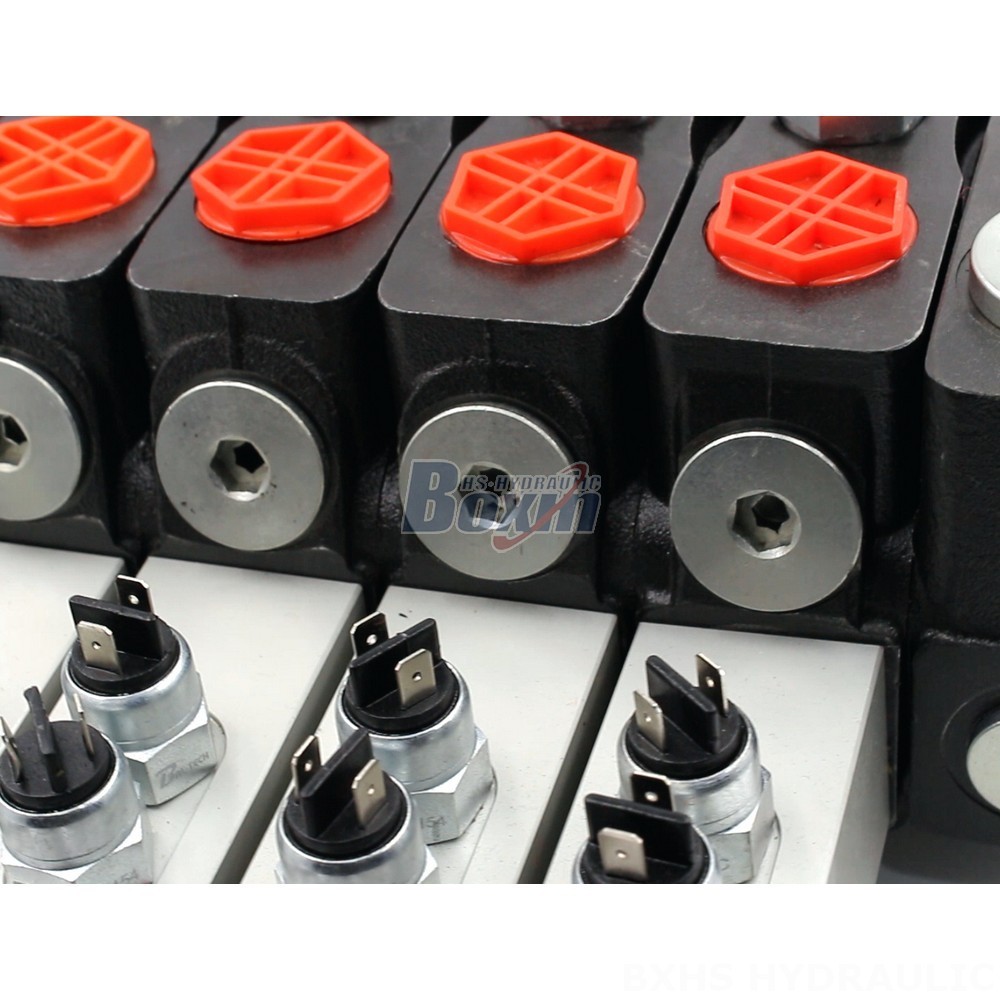

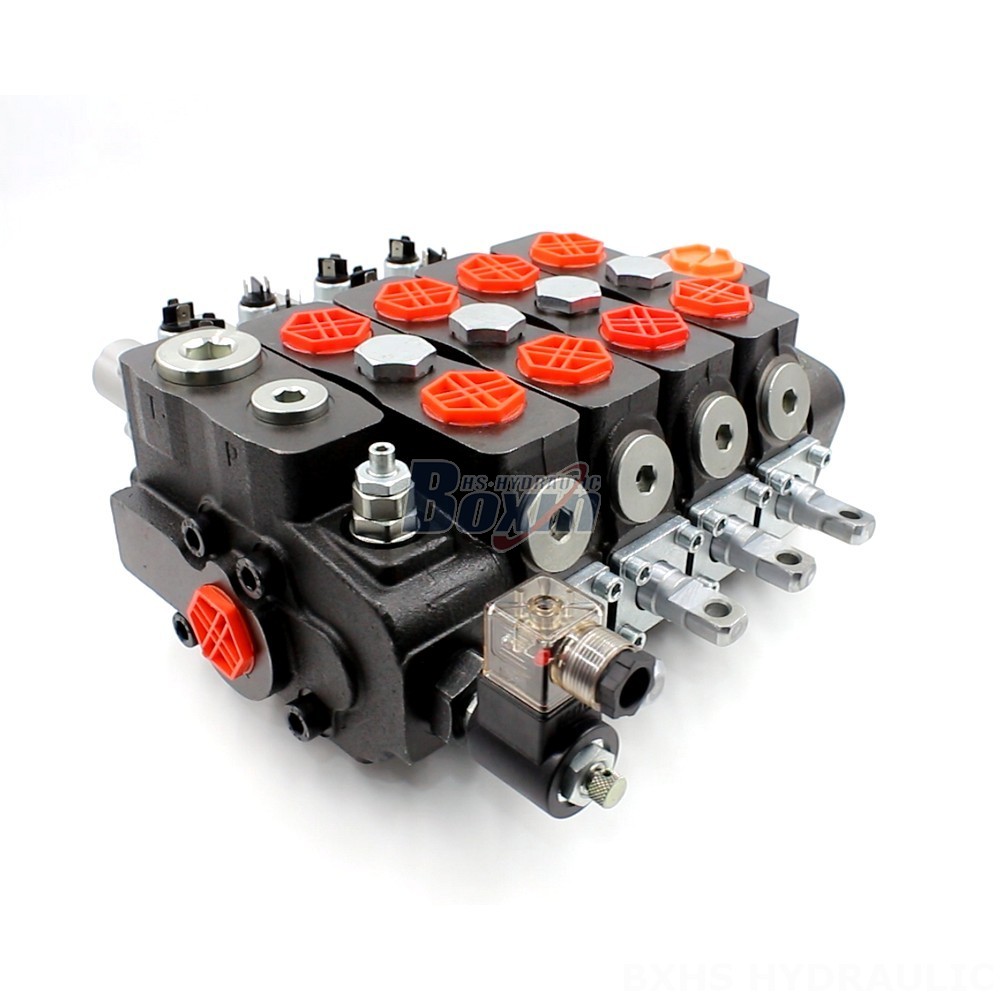

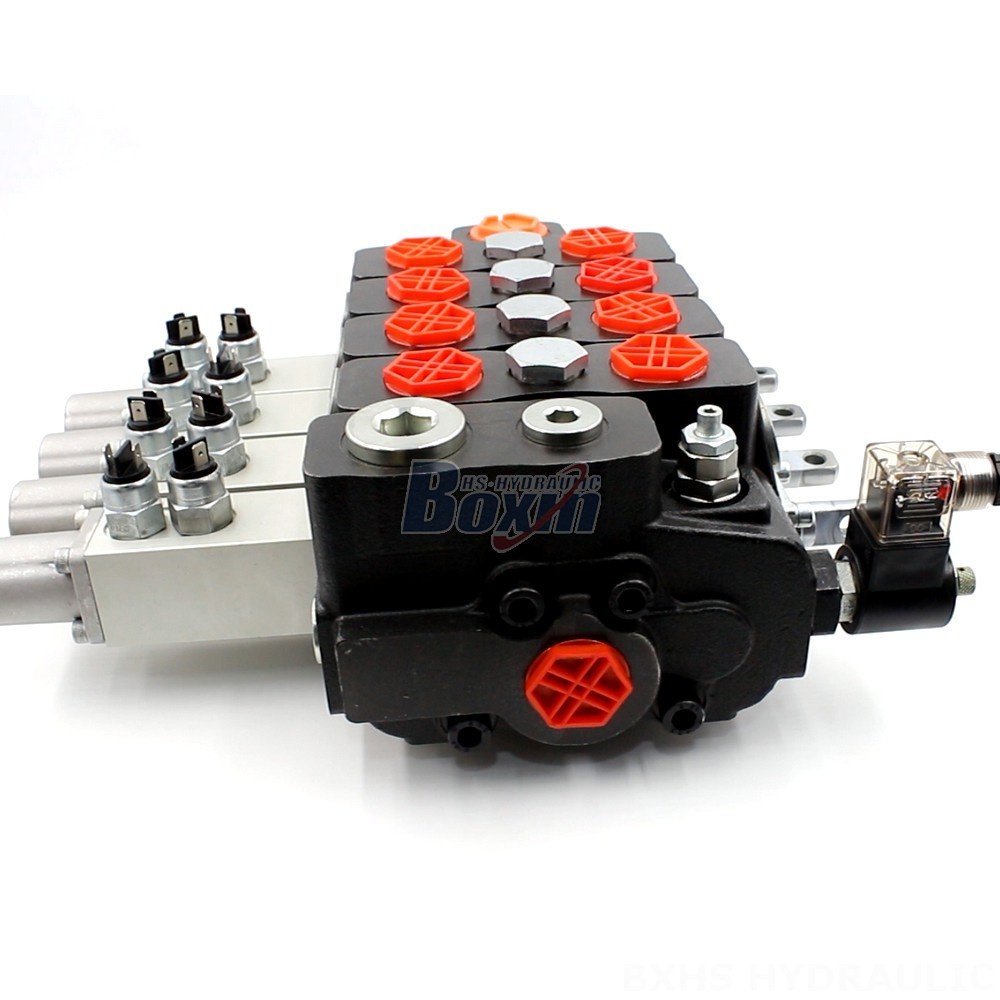

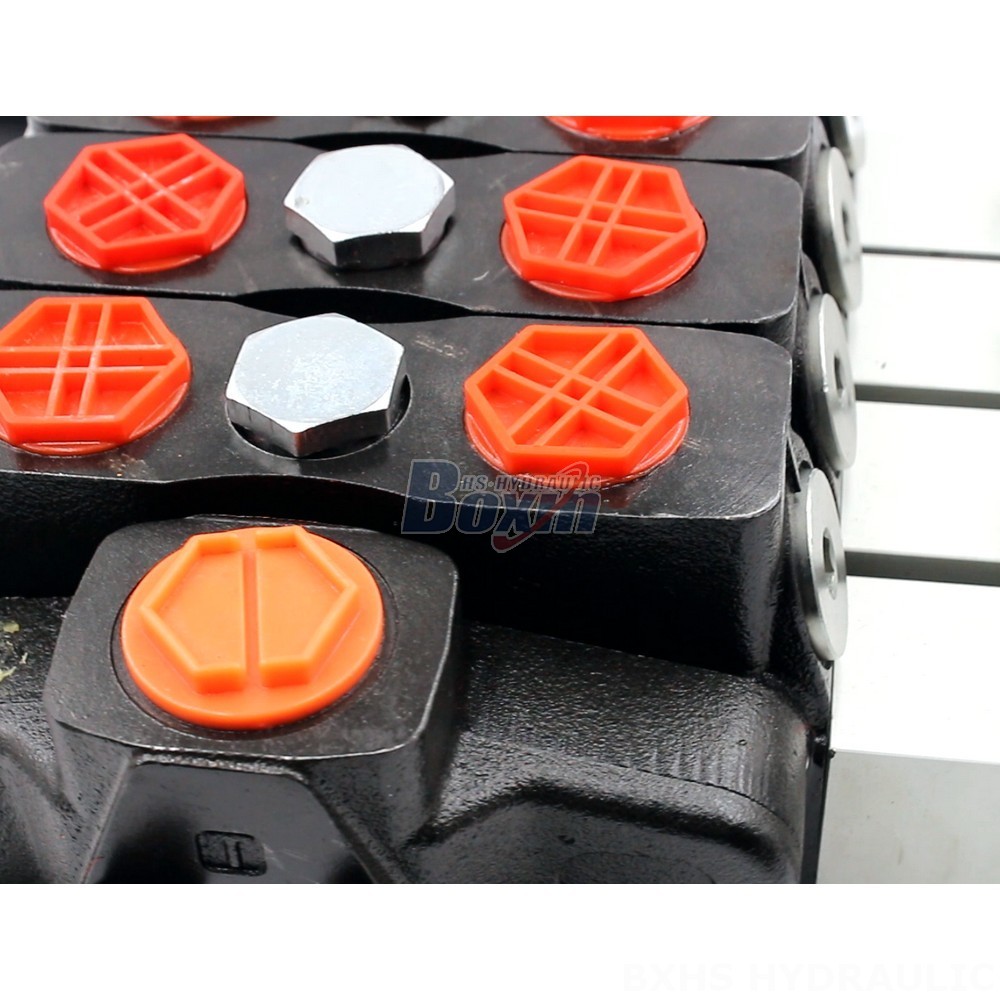

**Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 160 L/min (42.2 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Series:** SDS180 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
The Sectional Directional Hydraulic Valve: DLS180 Micro Switch Manual 4 Spool is a versatile and reliable valve that is well-suited for a wide range of applications. Its compact design and lightweight construction make it easy to install and maintain, while its durable construction ensures long-lasting performance.
