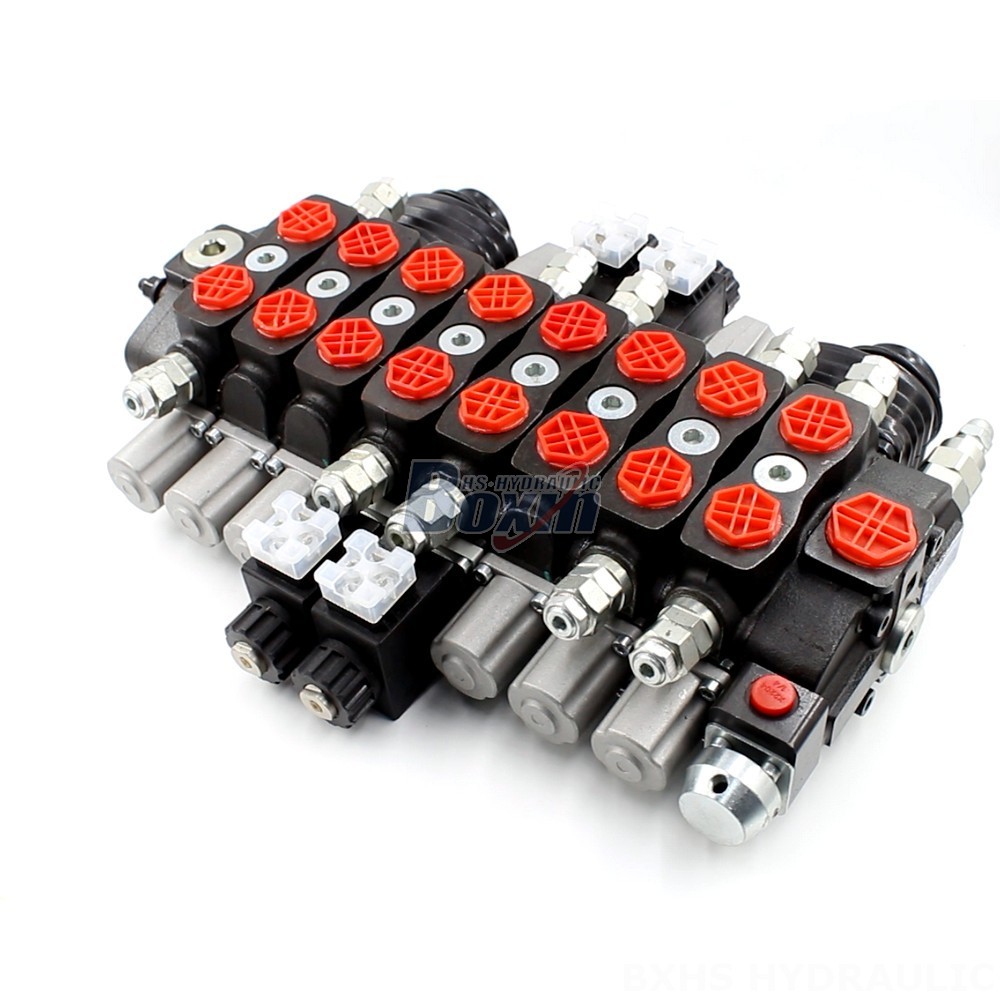

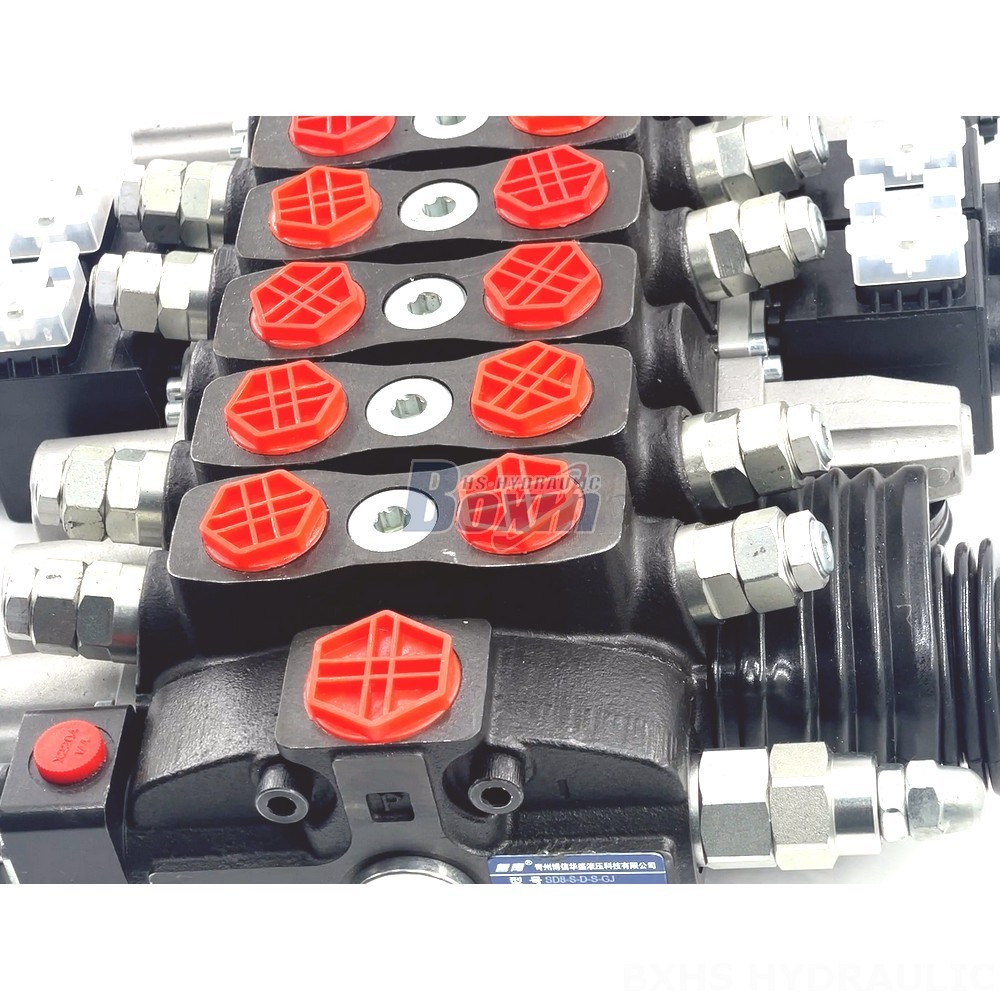

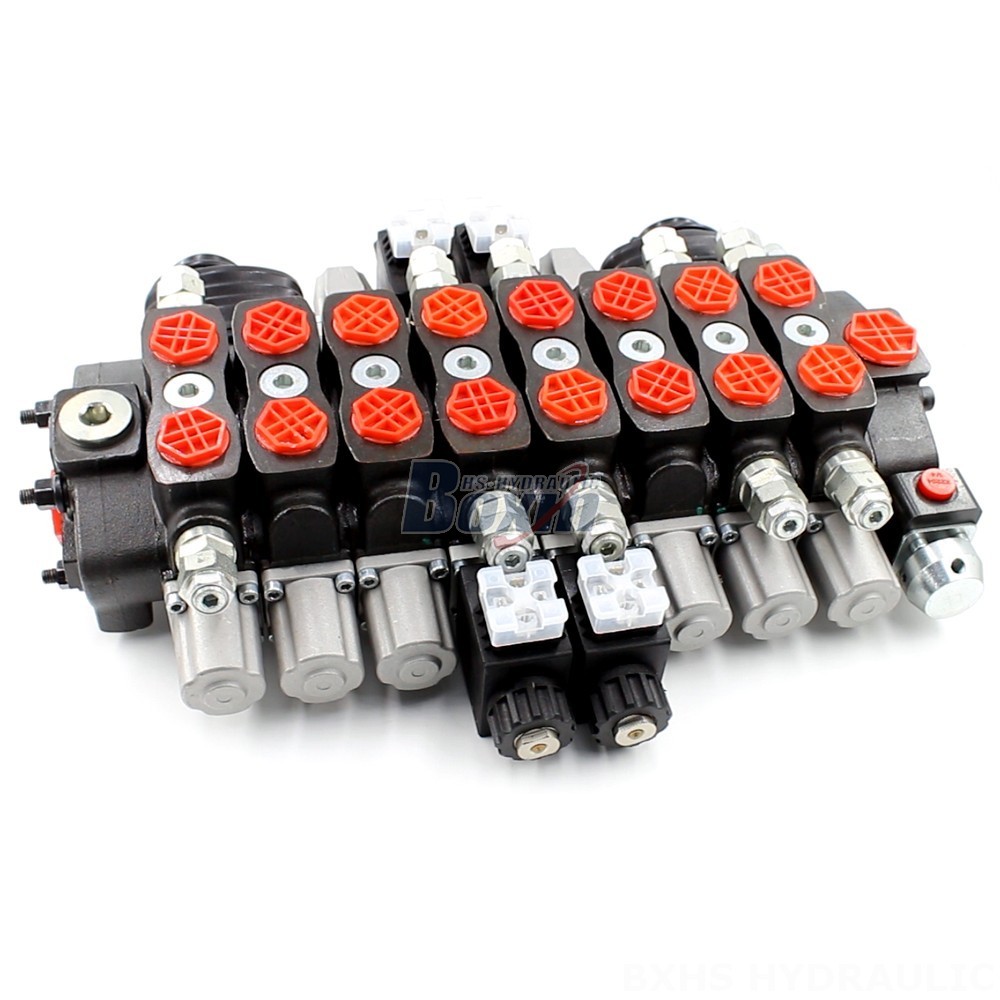

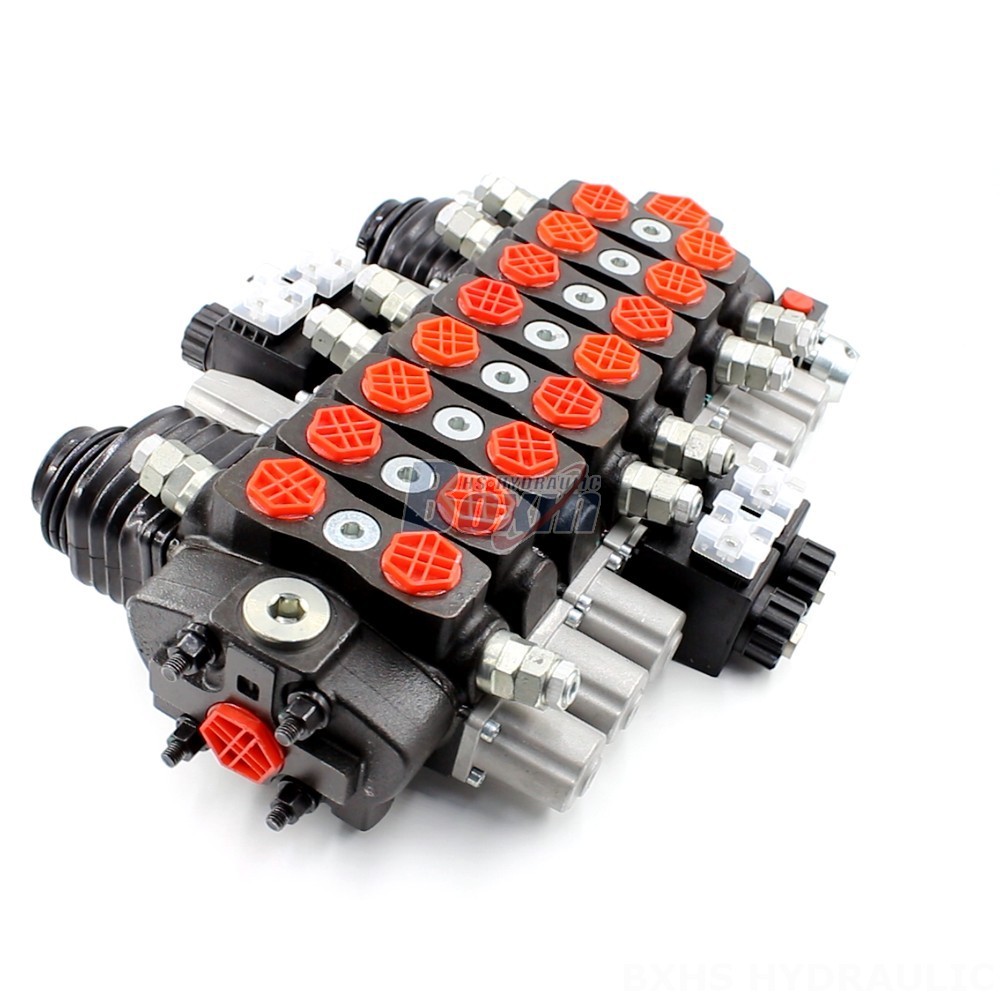

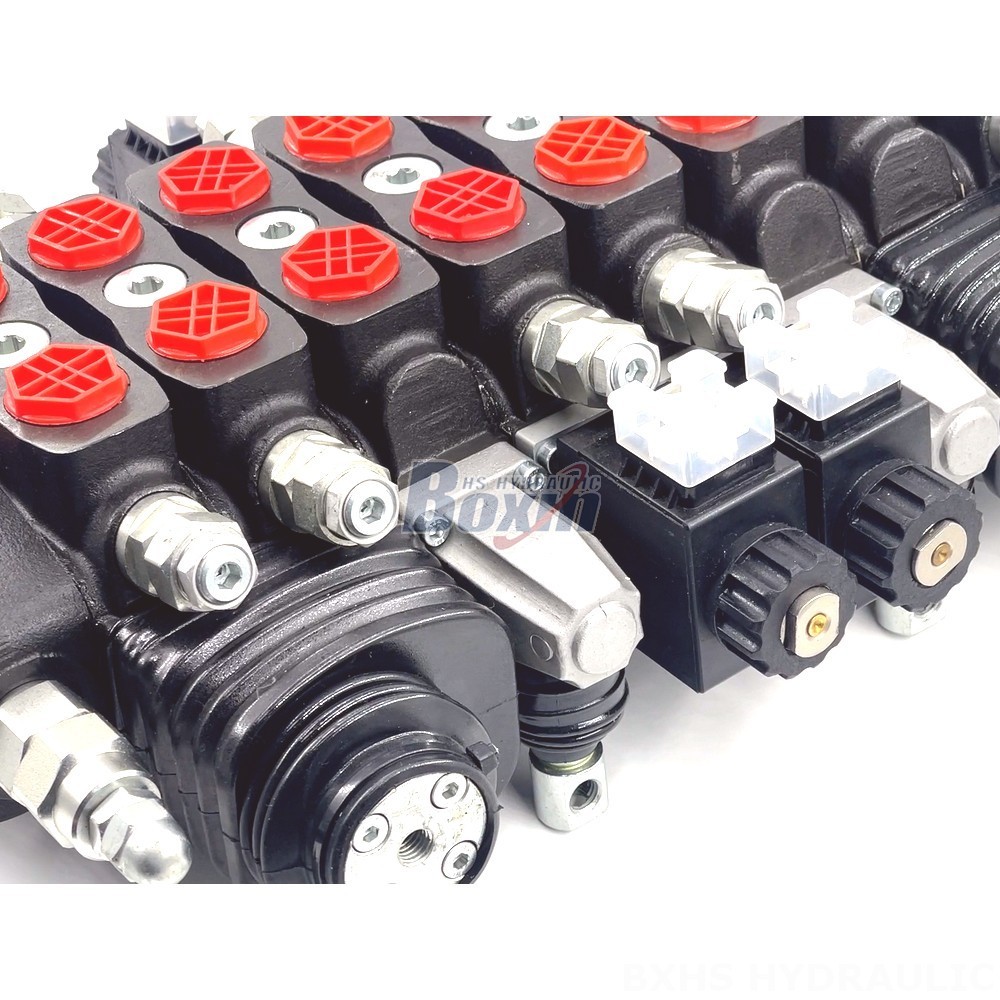

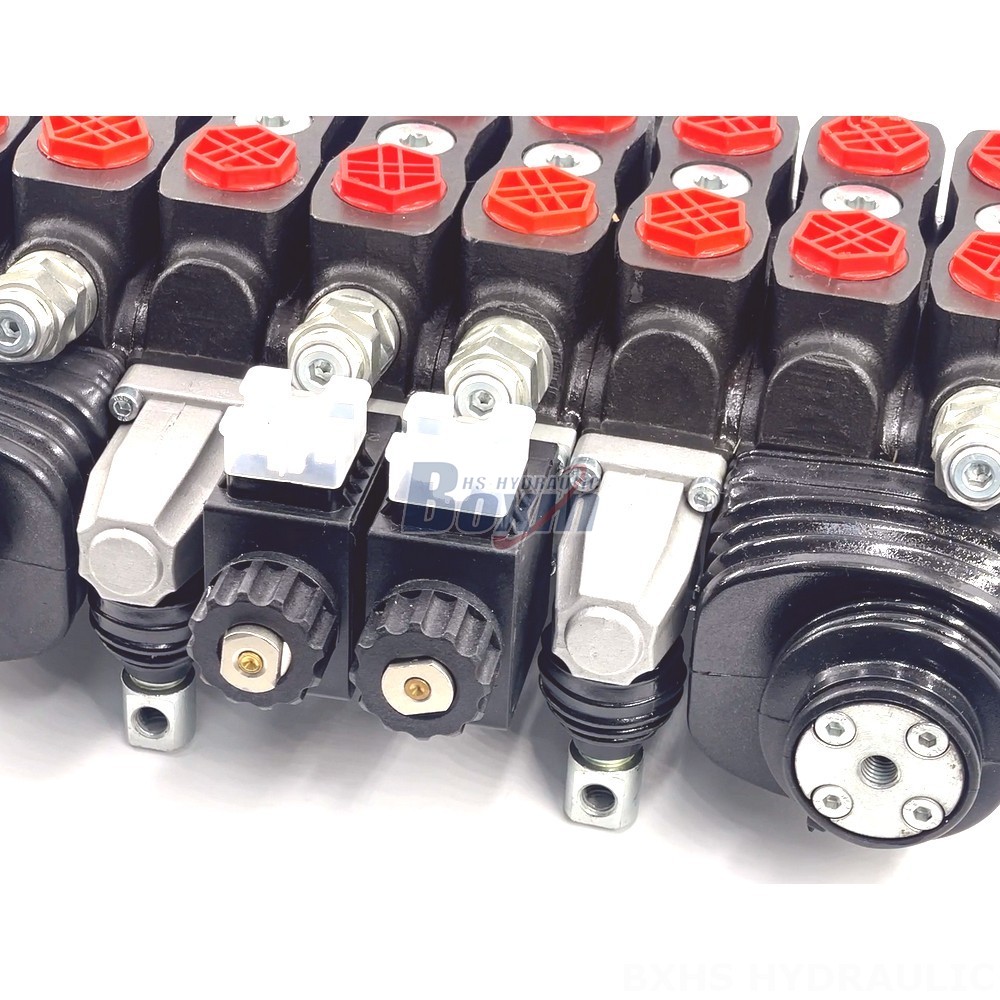

This 6 Way Hydraulic Selector Valve is a high-performance, manually operated sectional directional valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features 8 sections, a rated flow of 90 L/min, and a maximum pressure of 350 bar. This valve is available for wholesale and OEM orders.
| Seri SD8 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 90 L/menit (23,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, SAE 10 |
| Port Keluar | G1/2, G3/4, SAE 10, 3/4 NPT |
| Ukuran Port | G1/2, SAE 10 |
This 6 Way Hydraulic Selector Valve is a manually operated, 8 section sectional directional valve. It is designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. The valve features a rated flow of 90 L/min and a maximum pressure of 350 bar. It is also compatible with a wide range of operating viscosities. This valve is available for wholesale and OEM orders. Common applications include telehandlers, forklifts, mini excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, balers, and sprayers. This valve is part of the SD8 series.
