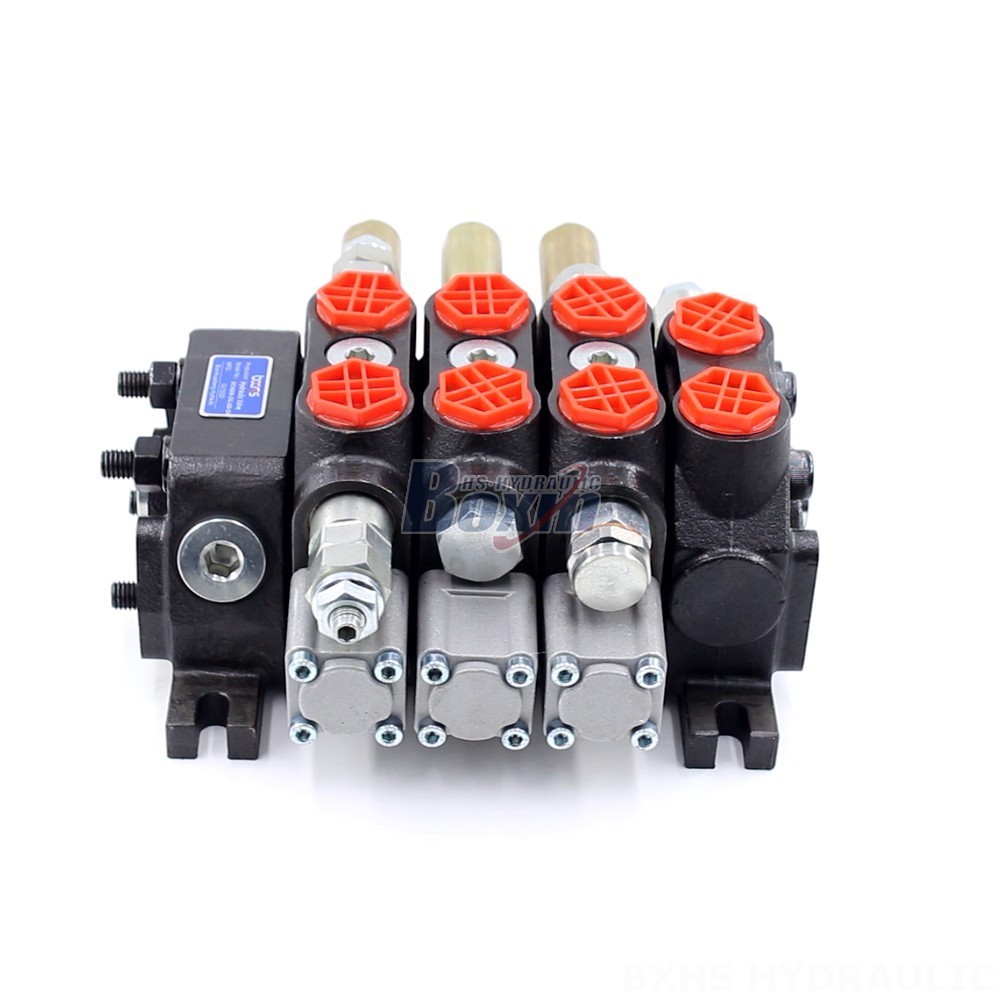

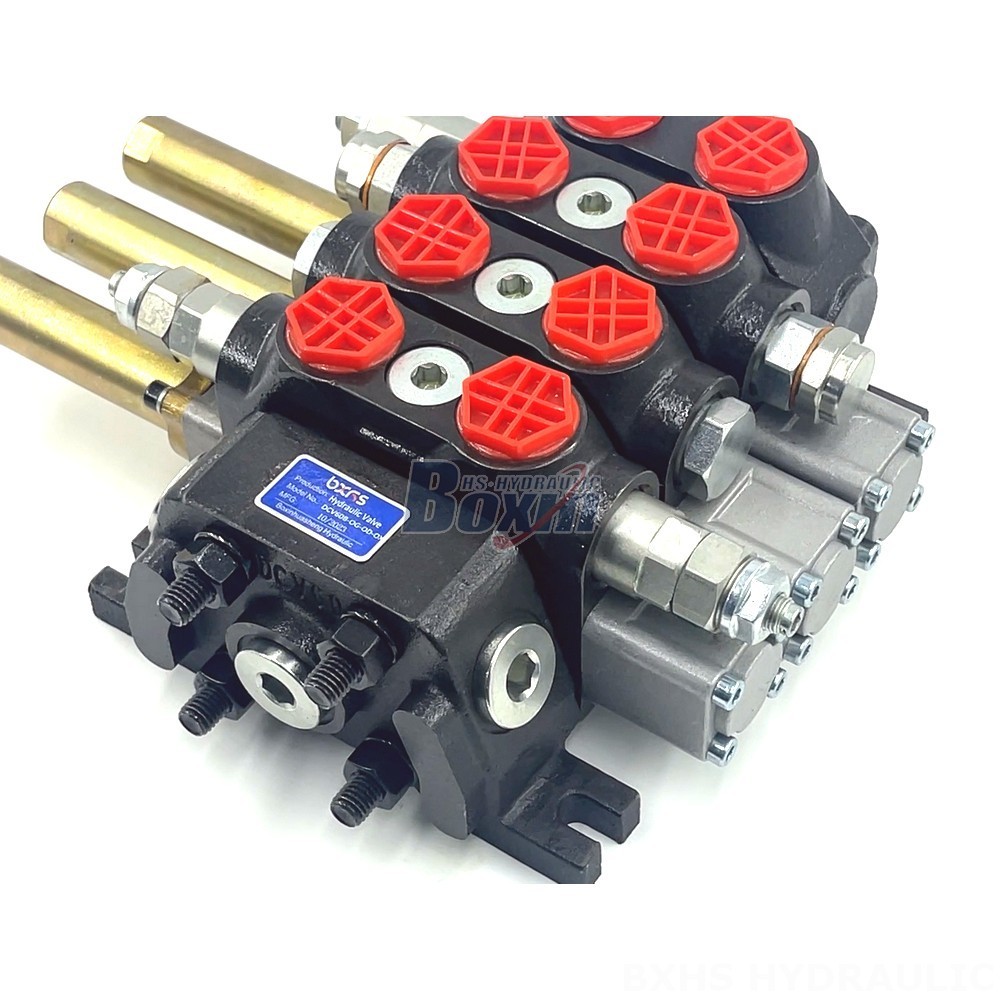

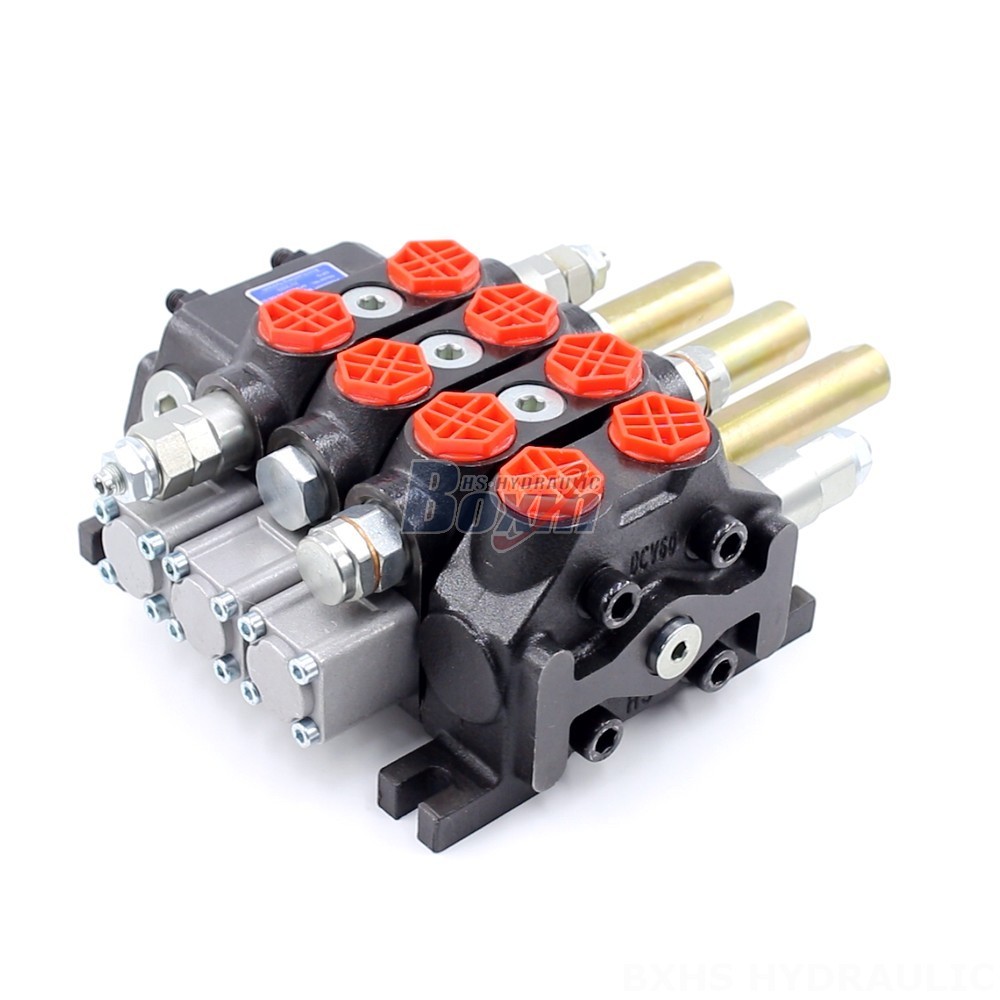

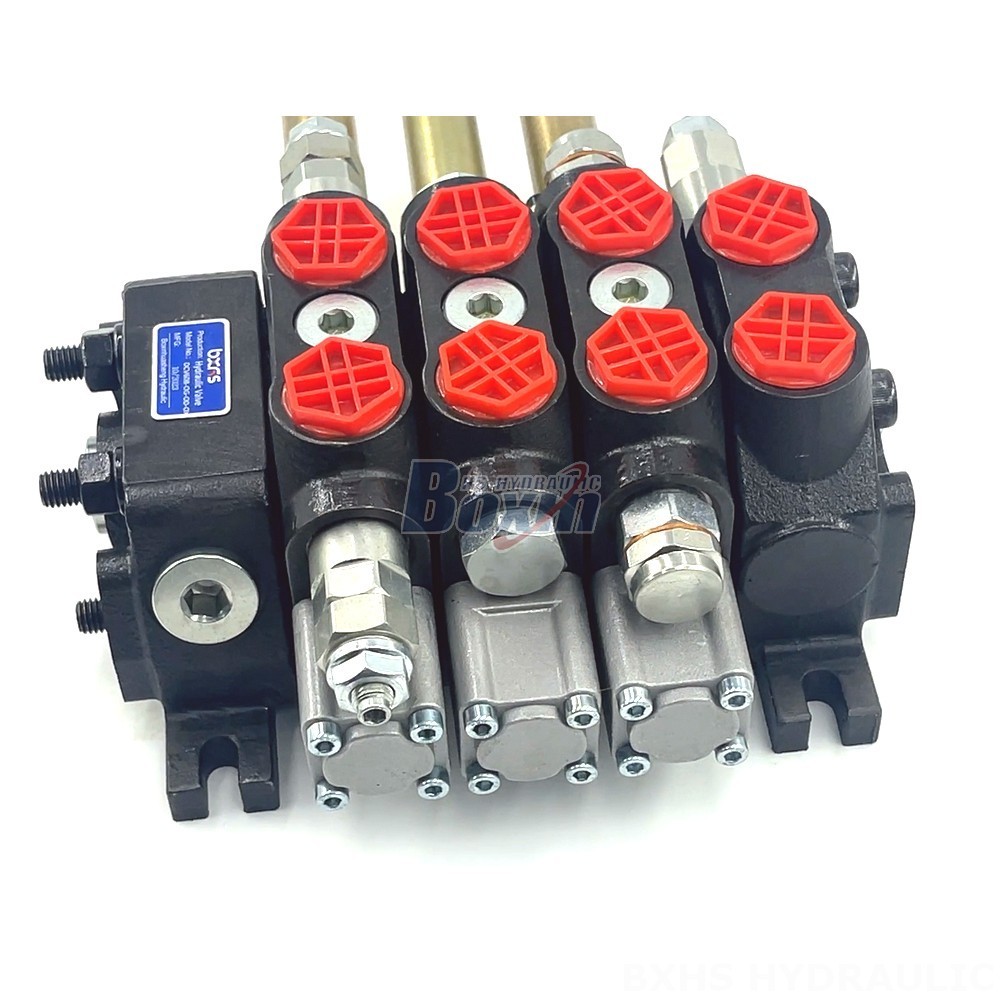

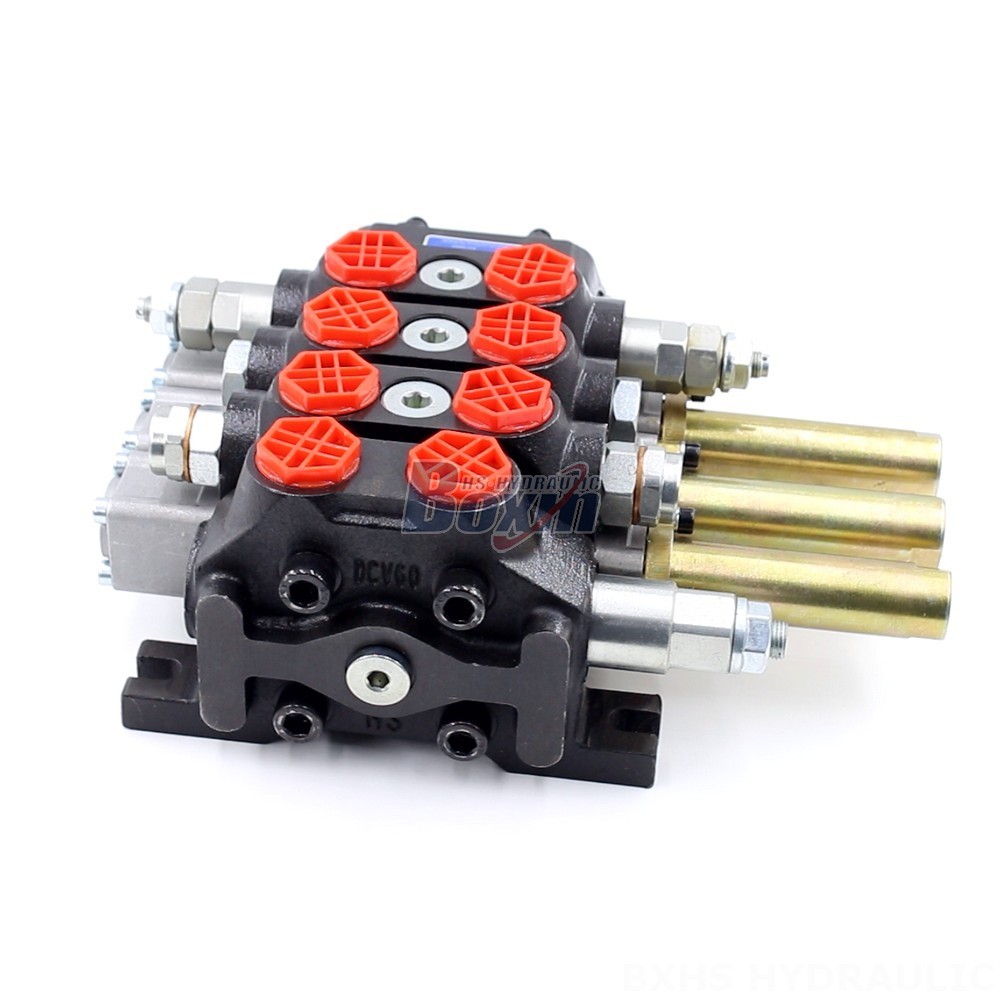

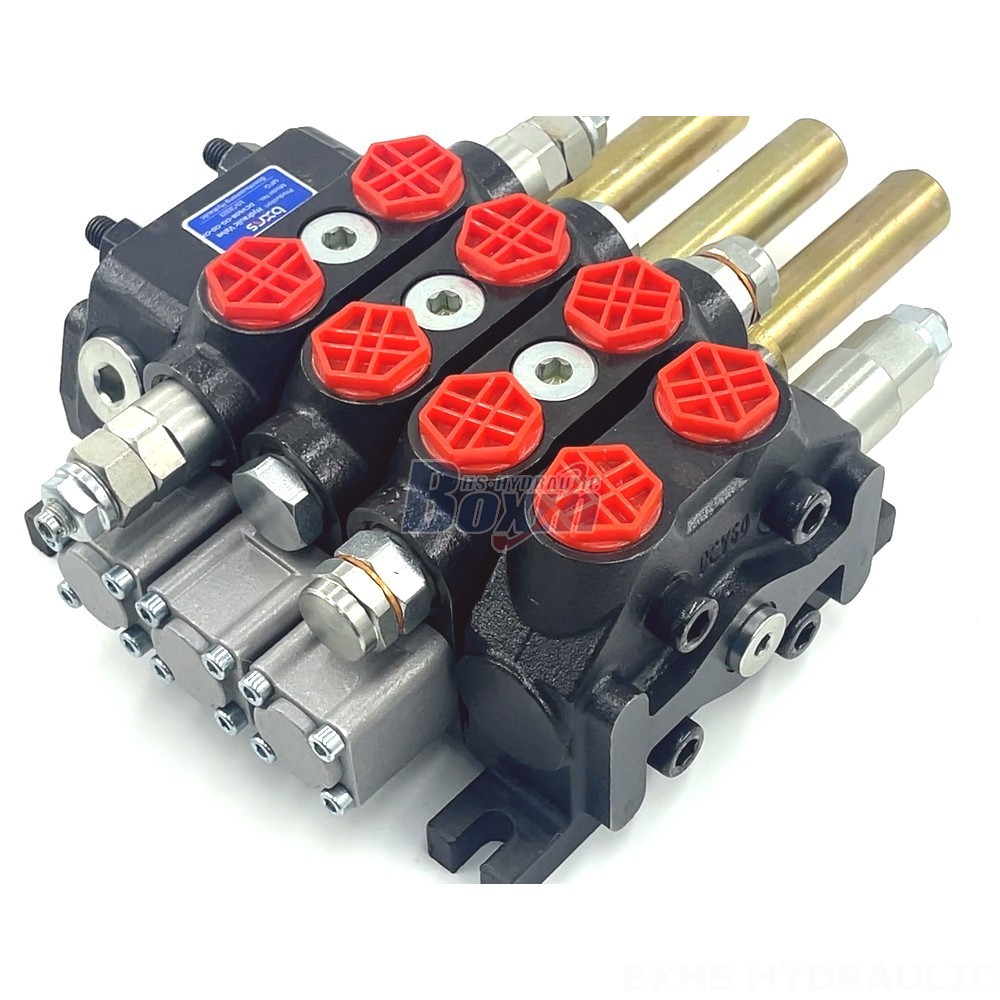

Introducing the DCV60 Series Directional Valves, a robust and reliable hydraulic solution for demanding applications. With a rated flow of 60 L/min and a maximum pressure of 350 bar, these valves are designed to meet the challenges of various industries, including material handling, construction, agriculture, and industrial vehicles. Featuring a sectional valve design and three spools, the DCV60 Series offers exceptional flexibility and customization options.
| Seri DCV60 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick, Motor listrik |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 60 L/menit (15,8 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
**DCV60 Directional Valves: A Lucrative Opportunity for Distributors**
**Product Highlights:**
* Rated flow: 60 L/min (15.8 US gpm)
* Maximum pressure: 350 bar (5100 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 3 Spool
* Section: 3 Section
* Structure type: Sectional valve
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural vehicles
* Industrial vehicles
**Benefits for Distributors:**
* High-quality and reliable hydraulic valves
* Extensive range of applications
* Competitive pricing and margins
* Marketing and technical support
* Exclusive distribution territories
Partner with us today and leverage the growing demand for hydraulic solutions worldwide. Contact us to learn more about our distribution opportunities and explore how the DCV60 Directional Valves can drive your business success.
