Seeking Global Distributors and Wholesalers for Q45-DT-2OT Monoblock Directional Valves

Metode Kontrol:Elektromagnet Manual dan Push-pull

Spul:3 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri Q45 Katup Arah Monoblok

Ukuran kemasan:22.0*36.5*19.0

Kelas kotor:9.00 kg

Ketersediaan: Tersedia

92 Pandangan Mencari Produk Ini

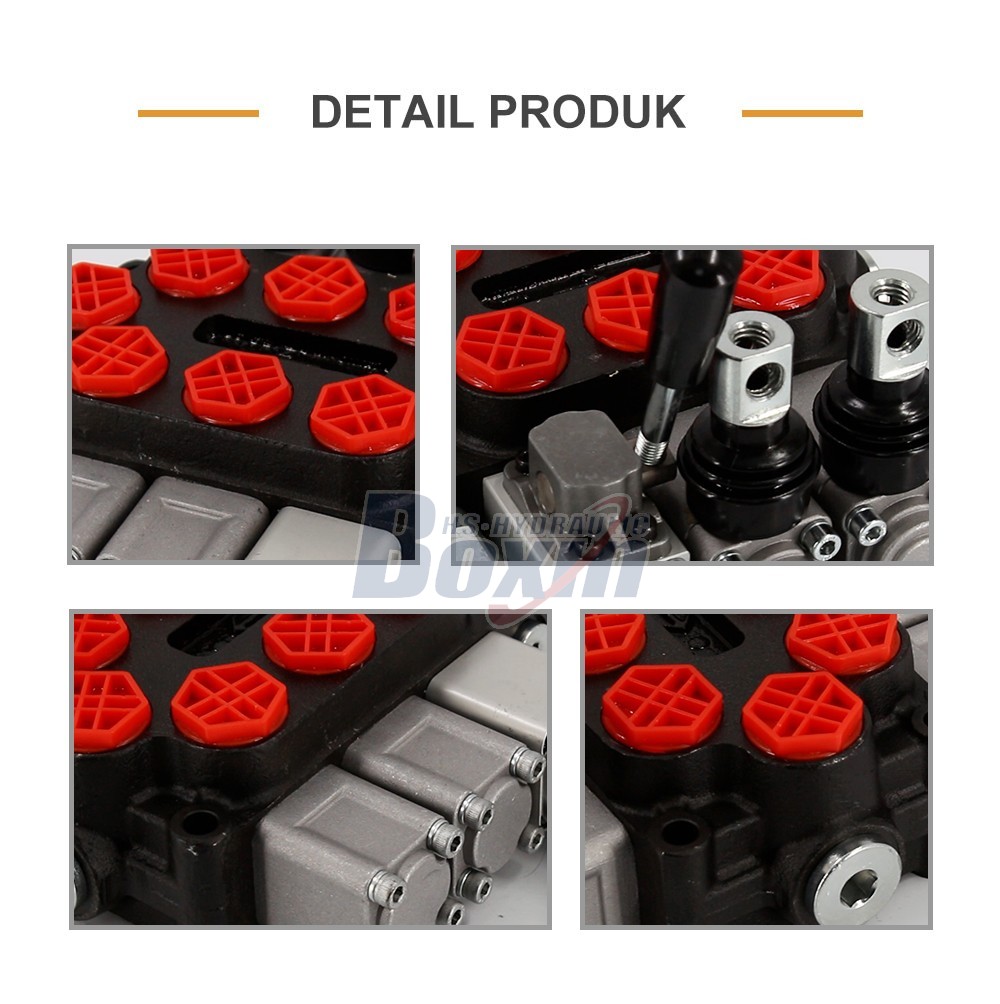

Seeking Global Distributors and Wholesalers for Q45-DT-2OT Monoblock Directional Valves

Seeking Global Distributors and Wholesalers for Q45-DT-2OT Monoblock Directional Valves

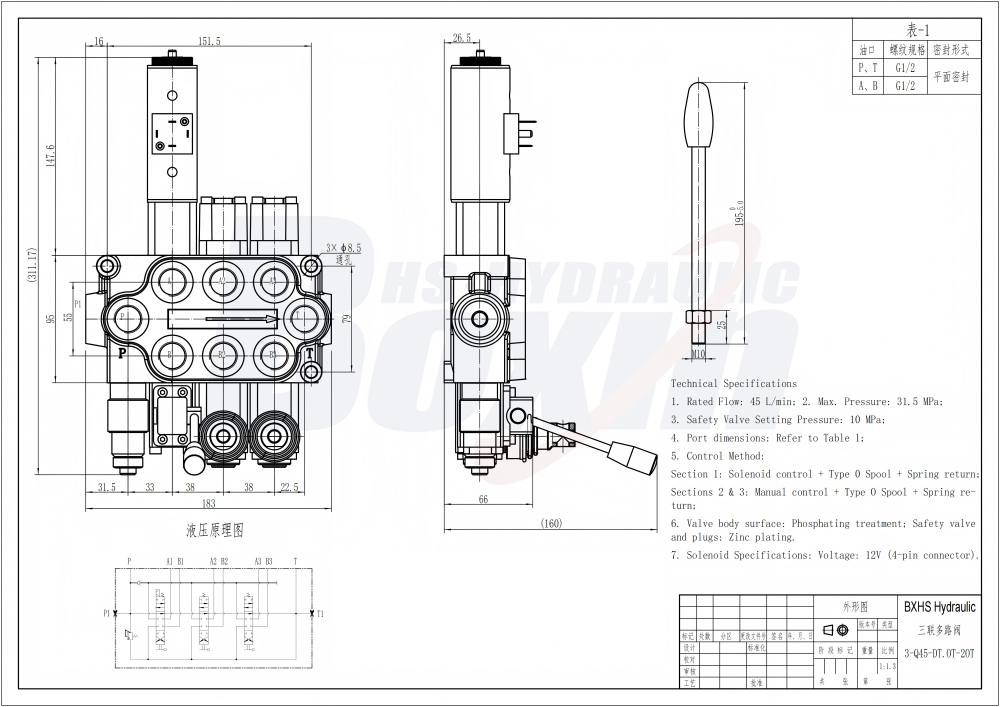

Seeking Global Distributors and Wholesalers for Q45-DT-2OT Monoblock Directional Valves drawing image

The Q45-DT-2OT is a high-performance 3-spool monoblock directional control valve designed for precise fluid management in various industrial applications. Featuring dual control methods via manual and push-pull electromagnet operations, this Q45 series valve handles a rated flow of 45 L/min and pressures up to 315 bar, making it ideal for agricultural and construction machinery.

Seri Q45 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -20°C hingga +80°C (-4°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 45 L/menit (11,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2
Port Keluar G1/2
Ukuran Port G1/2

As a leading large-scale hydraulic manufacturer, we provide the Q45-DT-2OT Monoblock Directional Valve for the global market. This 3-spool valve is engineered for versatility, supporting applications in material handling, agriculture, and construction. Our factory offers comprehensive services including manufacturing, OEM, private labeling, and custom hydraulic solutions tailored to specific technical requirements. With a robust design capable of withstanding 315 bar pressure, it is perfectly suited for tractors, mini-excavators, forklifts, and skid steers. We are actively seeking strategic partnerships with global distributors, wholesalers, regional agents, and international traders. Our facility ensures consistent factory-direct supply and wholesale pricing for bulk orders. Whether you need reliable components for aerial platforms or wood splitters, our factory-direct wholesale model provides competitive advantages through quality manufacturing and extensive customization options.
