Produksi & Pengiriman
Waktu Produksi 15-30 Hari

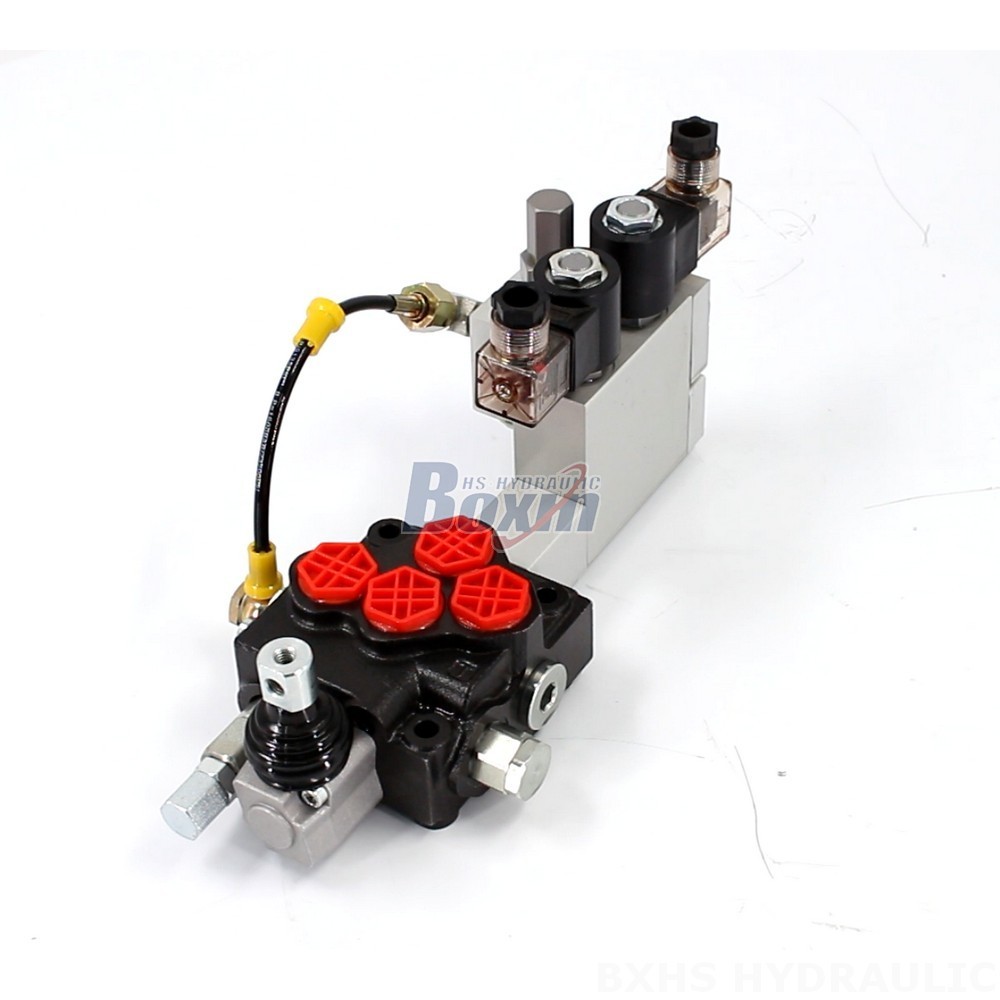

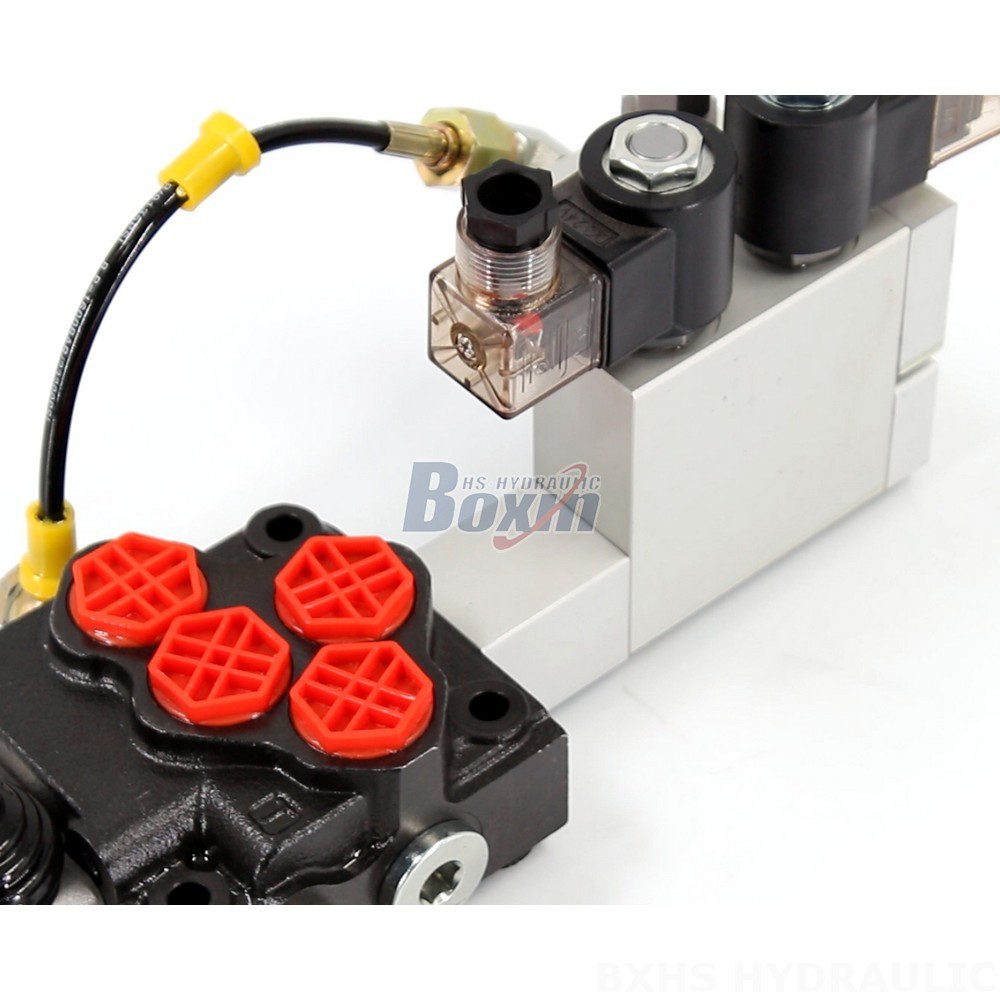

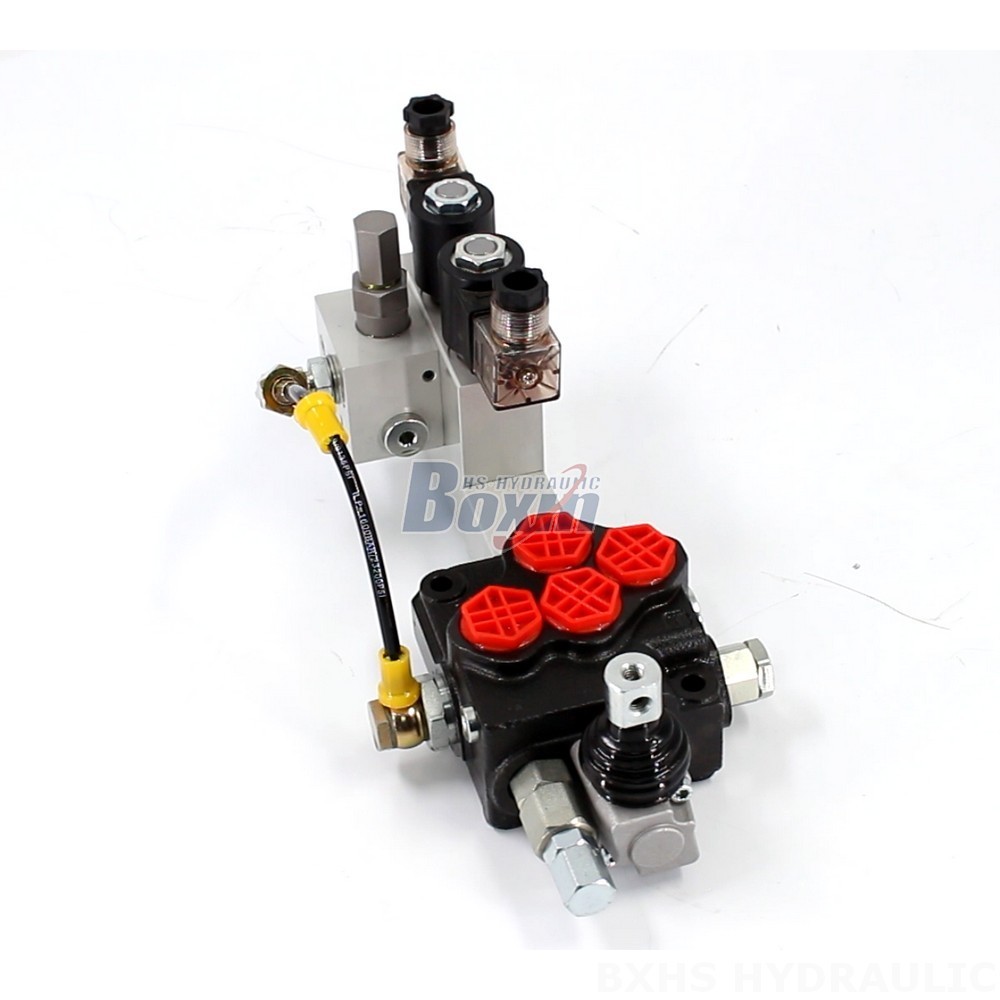

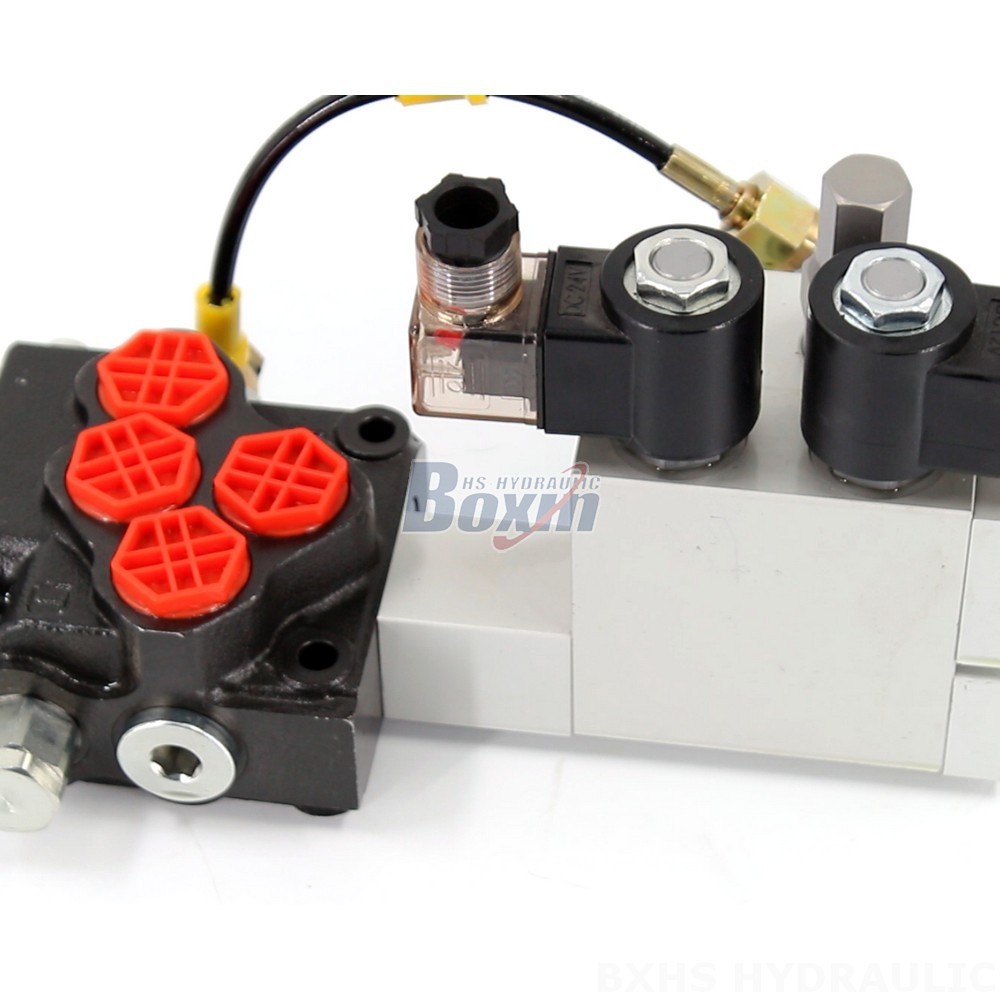

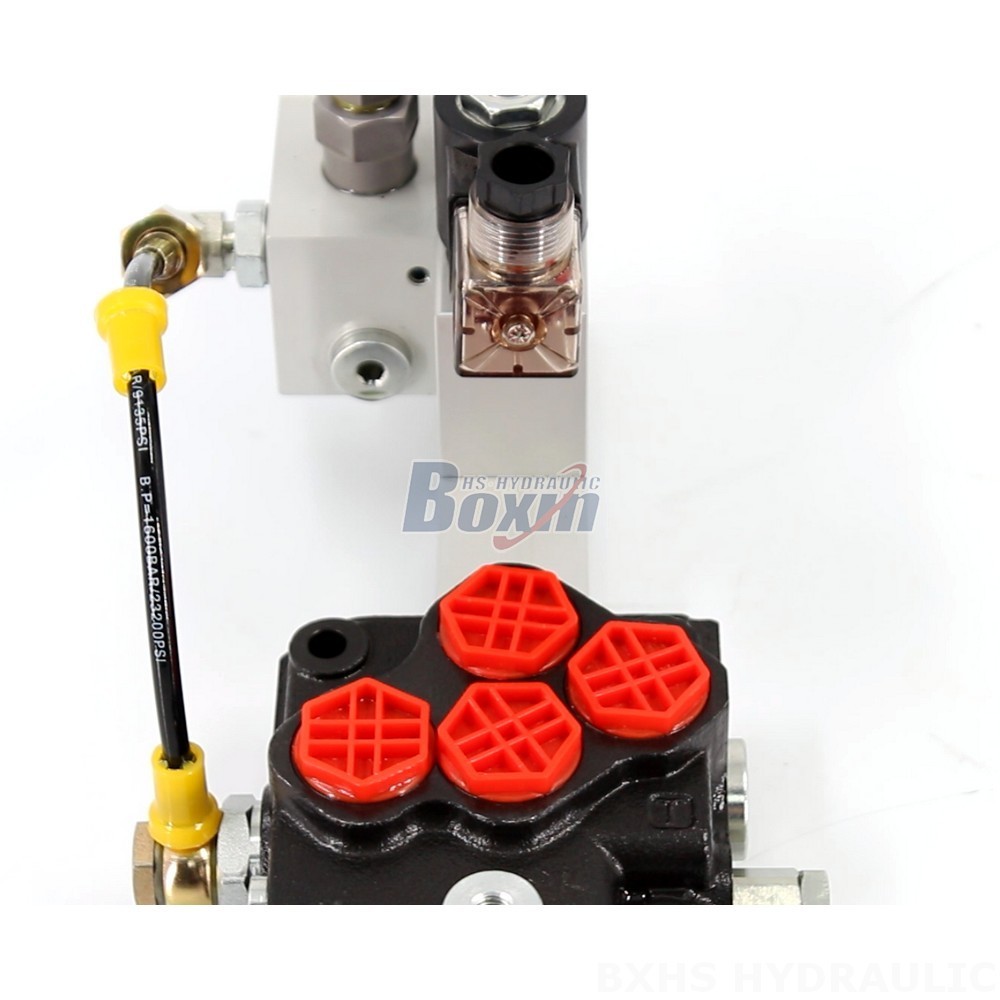

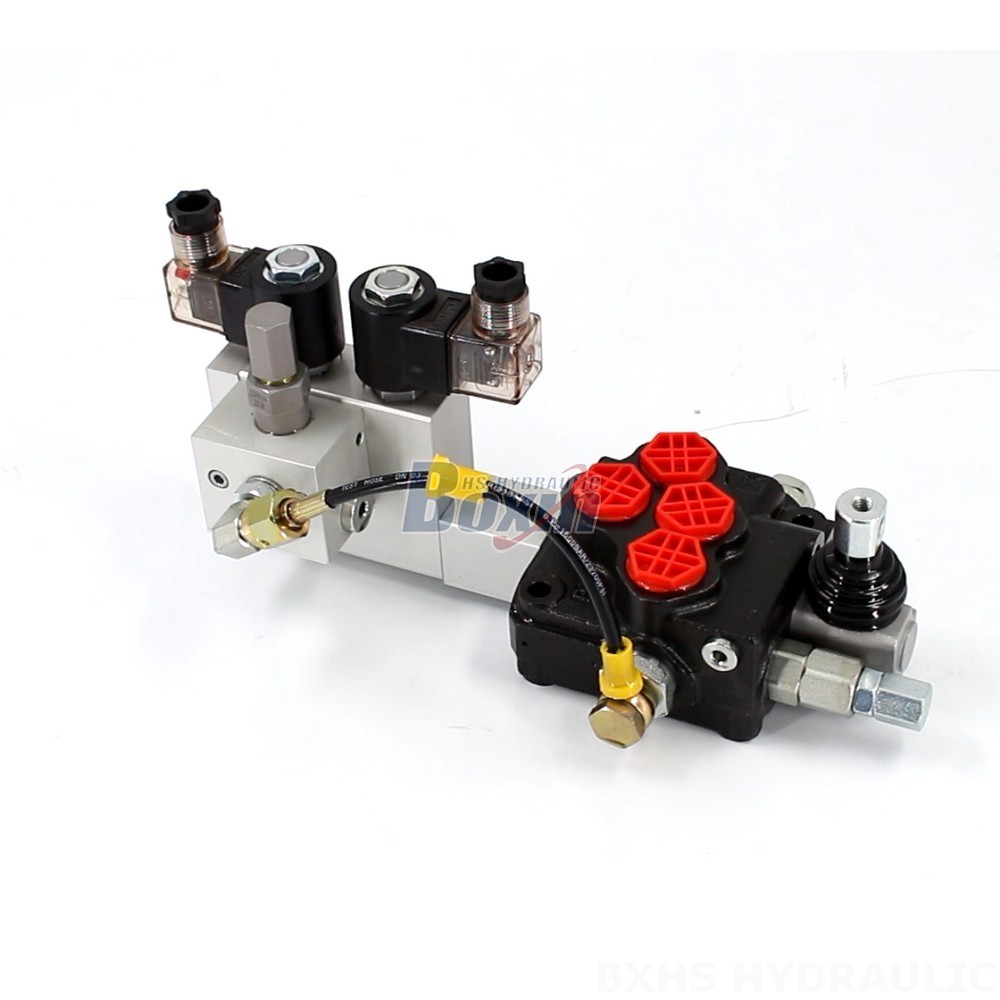

The SD5 Electro-hydraulic Directional Valve is a robust monoblock solution designed for demanding applications across material handling, construction, agriculture, and industrial vehicles. Featuring a rated flow of 45 L/min and maximum pressure of 315 bar, this single-section valve offers precise control for various heavy machinery models.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a leading manufacturer of hydraulic products, we specialize in providing the high-performance SD5 Electro-hydraulic Directional Valve, engineered to meet the rigorous demands of global industries. This single-section, monoblock valve features electro-hydraulic control, a rated flow of 45 L/min, and a maximum pressure of 315 bar, ensuring reliable operation in diverse heavy-duty applications. With an operating viscosity range of 12-400 mm²/s and an ambient temperature range of -20°C to +80°C, our **SD5 hydraulic valve** is a versatile **hydraulic system component** suitable for **material handling**, **construction**, **agriculture**, and **industrial vehicles**. It is specifically applicable to models such as **telehandlers**, **forklifts**, **mini-excavators**, **skid steer loaders**, **backhoe loaders**, **tractors**, **aerial platforms**, **compact wheel loaders**, **harvesters**, and **dumpers**.
We are a dedicated **hydraulic product manufacturer**, offering comprehensive services including direct manufacturing, **OEM**, **ODM**, **private label**, and **custom hydraulic solutions**. Our flexible production capabilities allow us to meet specific client requirements, ensuring quality and performance. We proudly offer **factory supply** and **factory wholesale** pricing, providing a competitive edge for our partners.
We are actively seeking **distributors**, **wholesalers**, **agents**, and **traders** globally to expand the reach of our **SD5 directional valve** and other hydraulic products. Partner with us to access a reliable supply of high-quality **electro-hydraulic valves** and benefit from our robust manufacturing expertise. We invite inquiries for **wholesale hydraulic valves** and long-term partnerships.
