SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:200 L/menit (52 US gpm)

Tekanan Maksimum:350 bar (5100 psi)

Port Masuk:M33×2.0

Port Keluar:M33×2.0

Ukuran Port:M33×2.0

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri SHFY-G25L-00 Katup Arah Monoblok

Ukuran kemasan:16*32*16

Kelas kotor:6.50 kg

Ketersediaan: Tersedia

1732 Pandangan Mencari Produk Ini

SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information

SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information

SHFY-G25L-00 Valve Catalog | Technical Data & Ordering Information drawing image

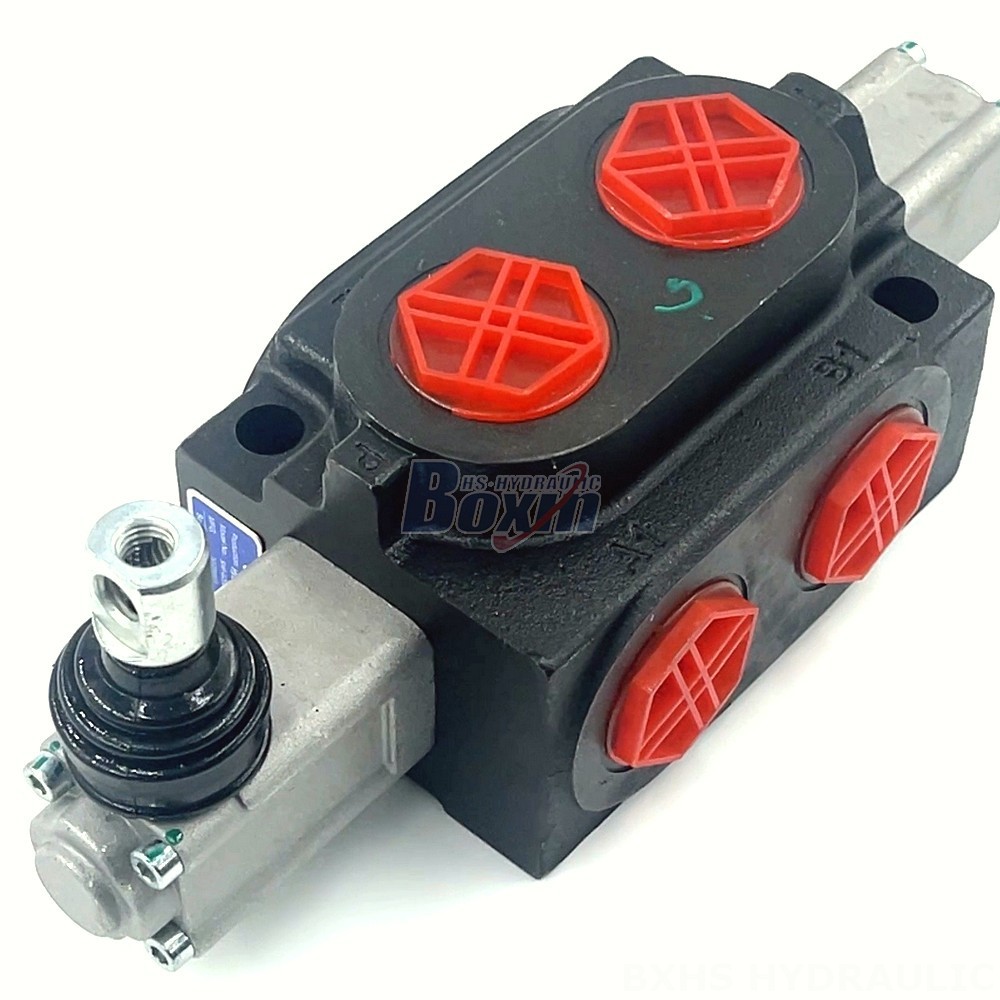

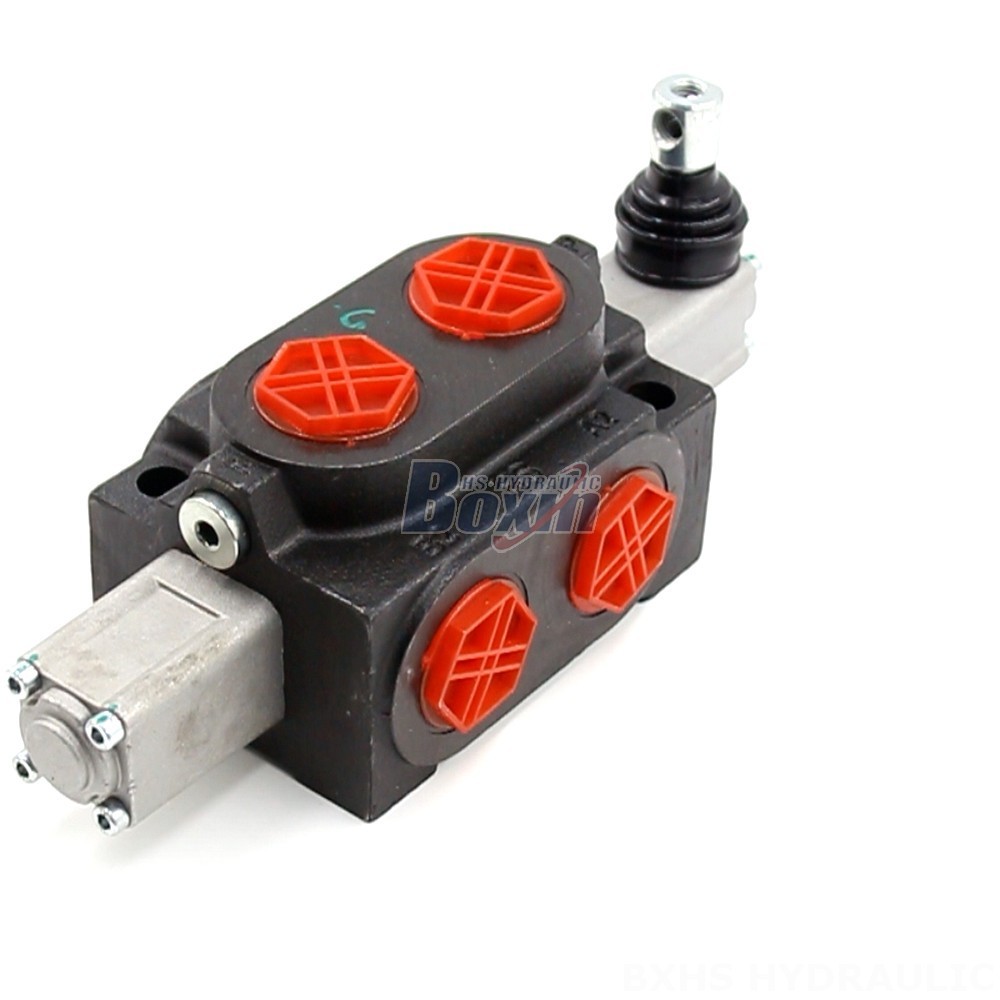

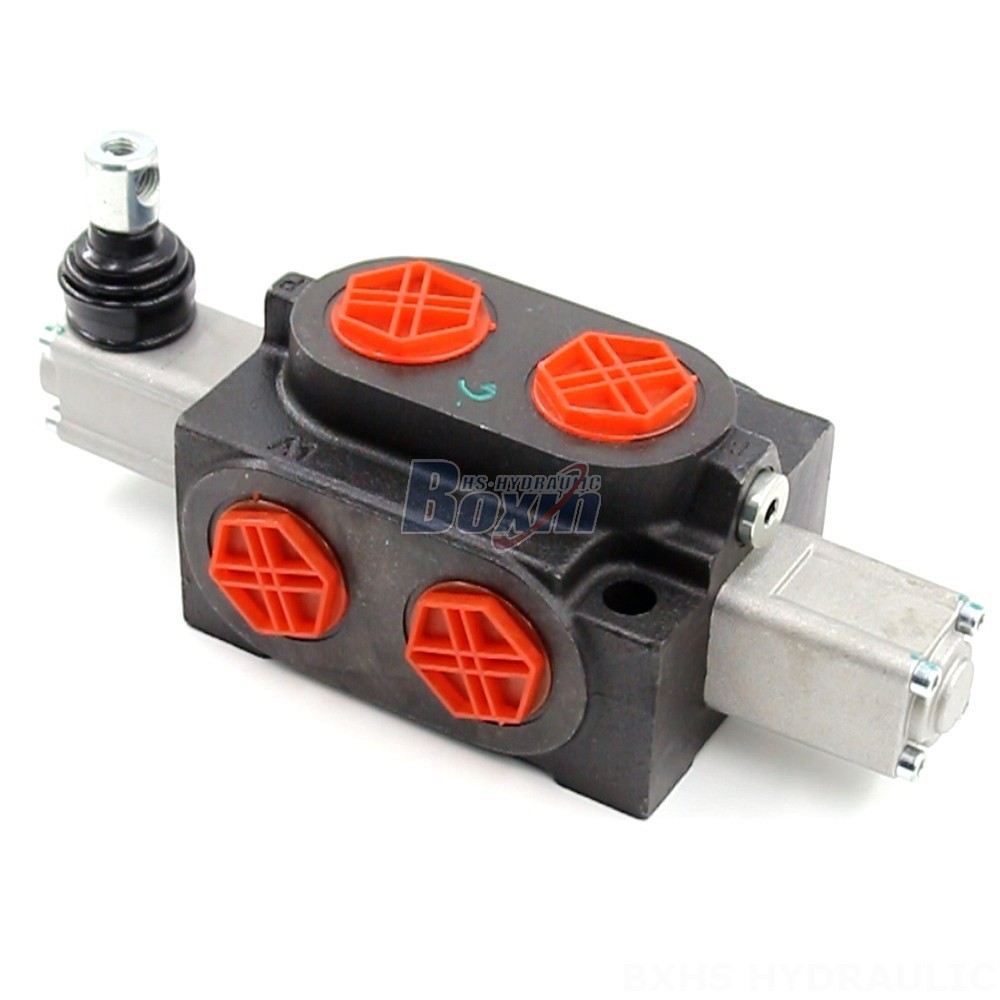

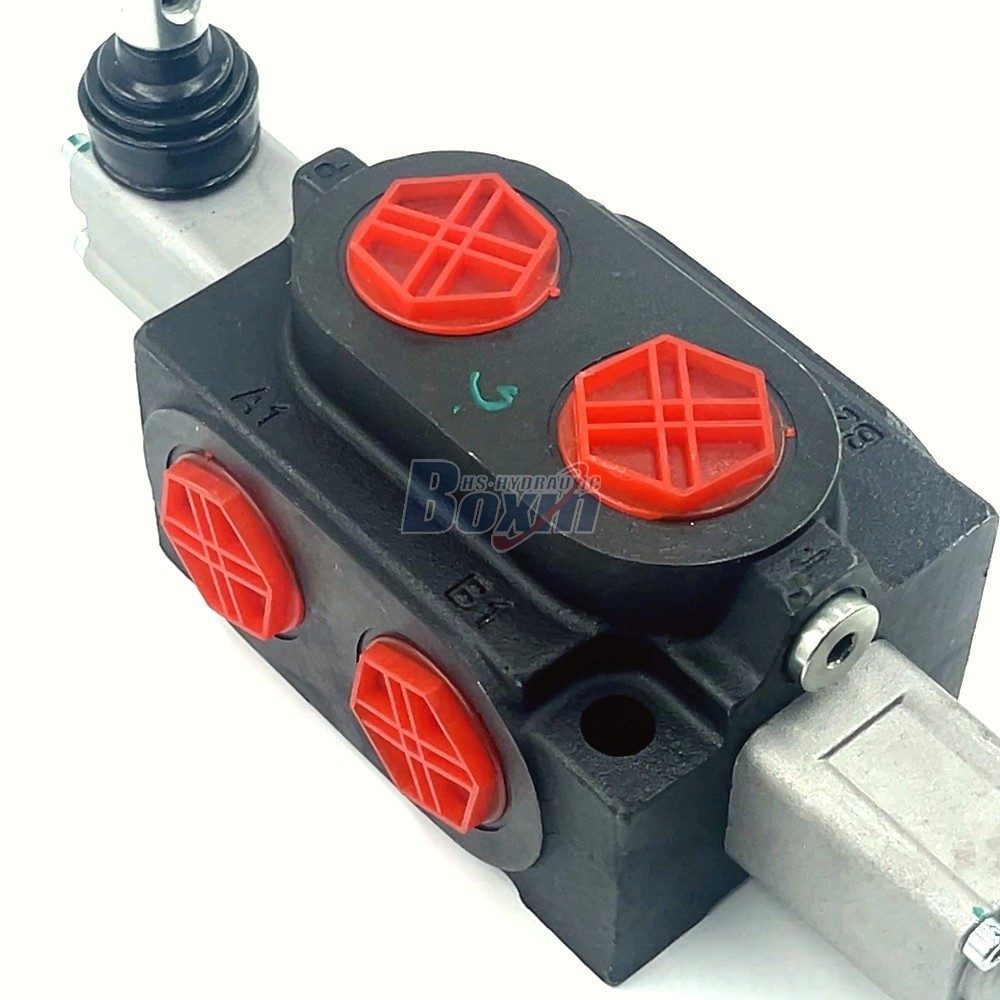

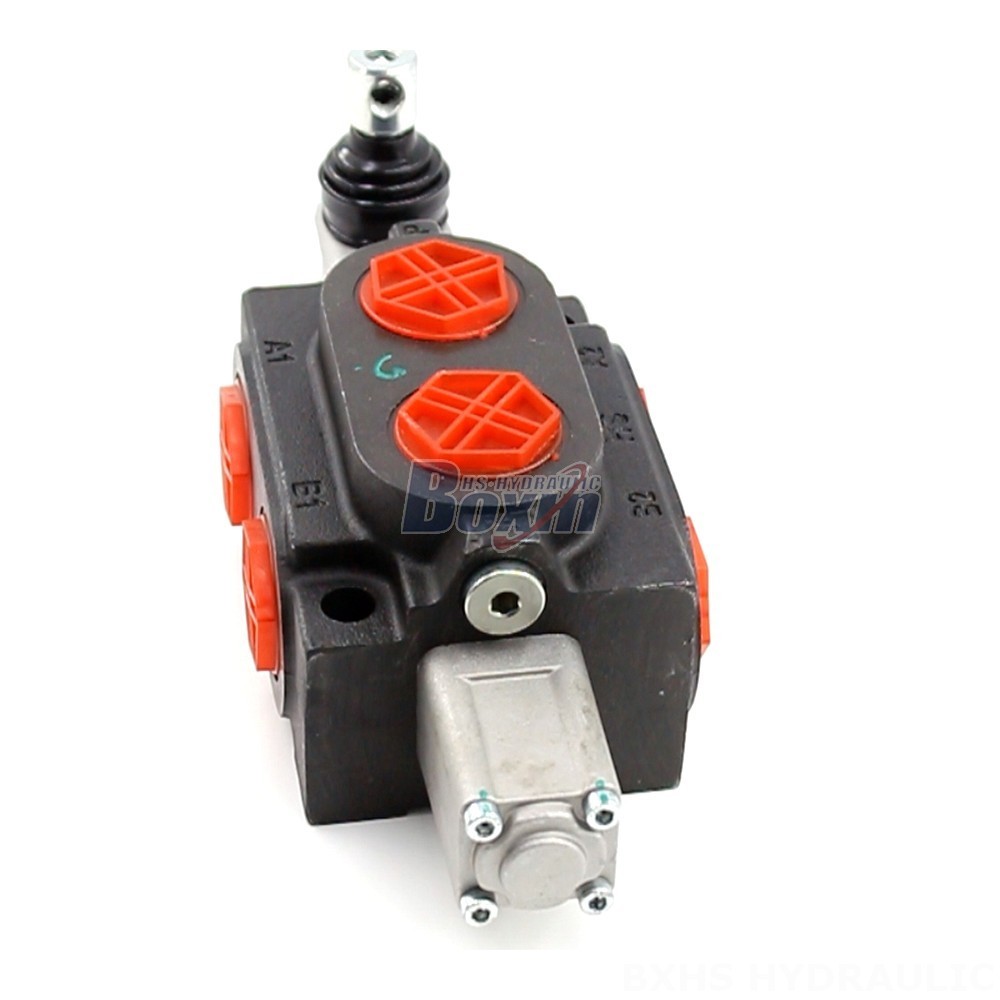

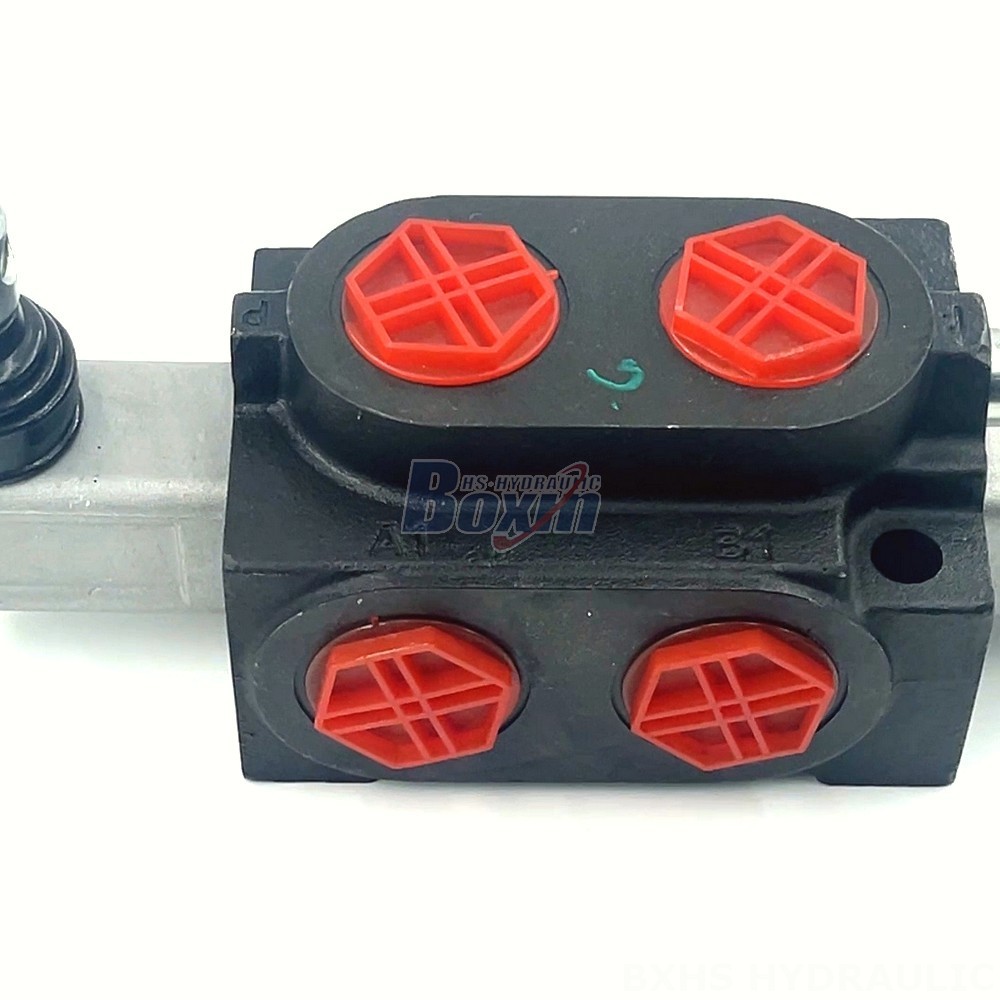

The SHFY-G25L-00 is a manual, sectional hydraulic flow divider valve with a rated flow of 200 L/min and a maximum pressure of 315 bar. It is ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, stackers, and more.

Seri SHFY-G25L-00 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Hidraulis
Spul 1 Spool
Aliran Terukur 200 L/menit (52 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk M33×2.0
Port Keluar M33×2.0
Ukuran Port M33×2.0
Bagian 1 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)

The SHFY-G25L-00 is a high-performance hydraulic flow divider valve designed for demanding applications. Featuring manual control, a sectional valve structure, and a rated flow of 200 L/min, this valve is capable of handling a maximum pressure of 315 bar. Its operating viscosity range is 12 - 400 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. This valve is specifically designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. Some examples of applicable models include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, and balers.
