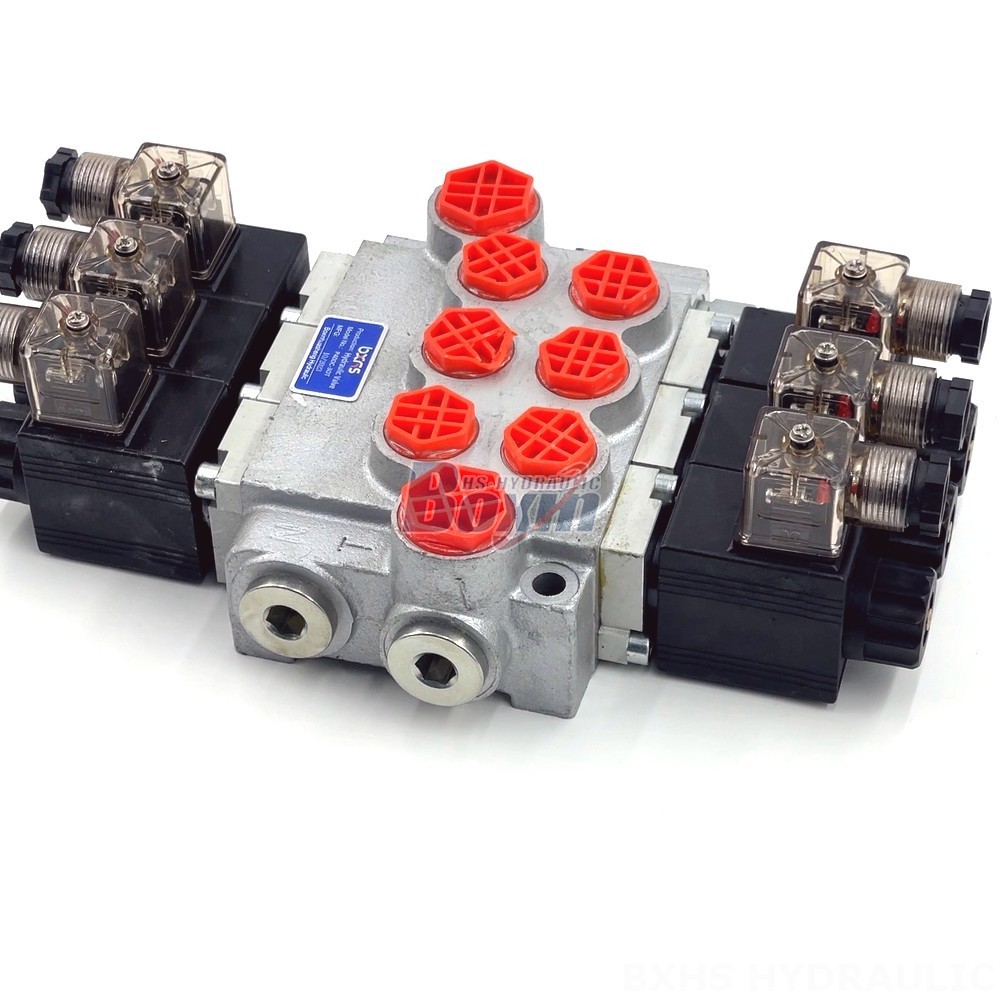

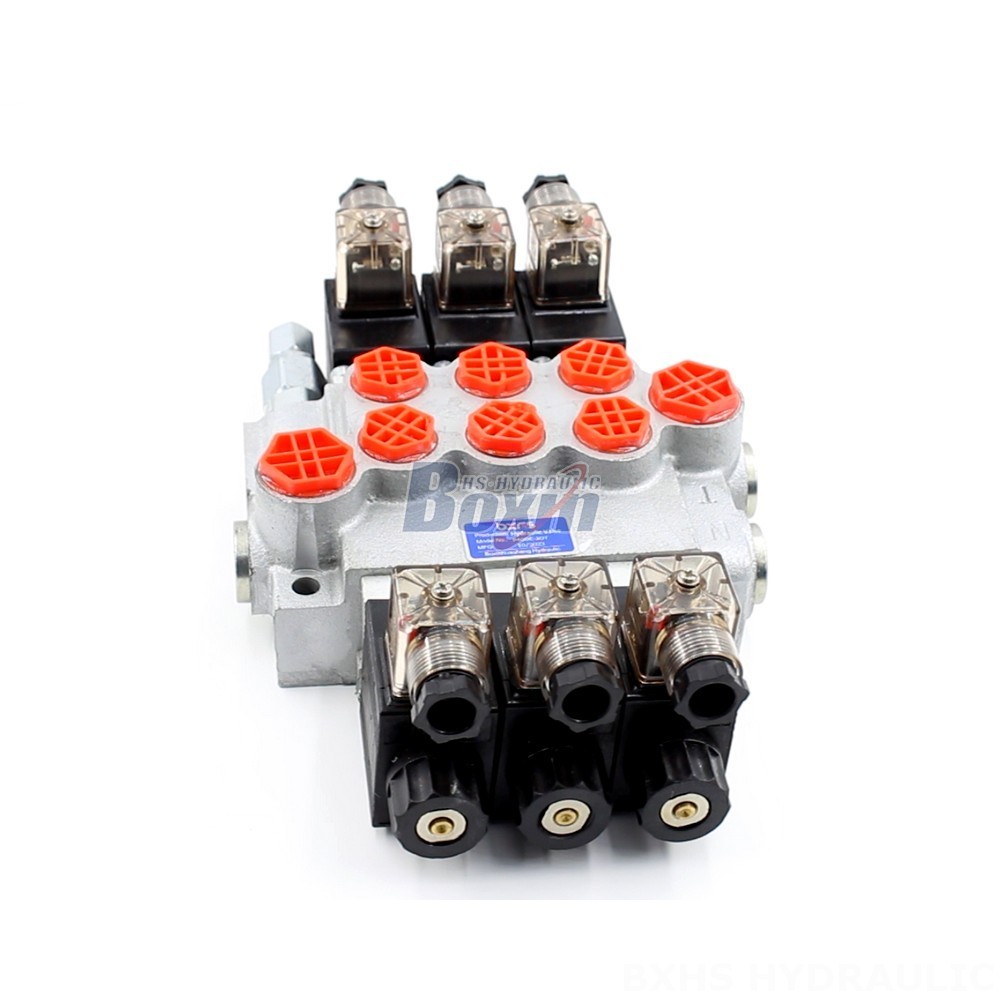

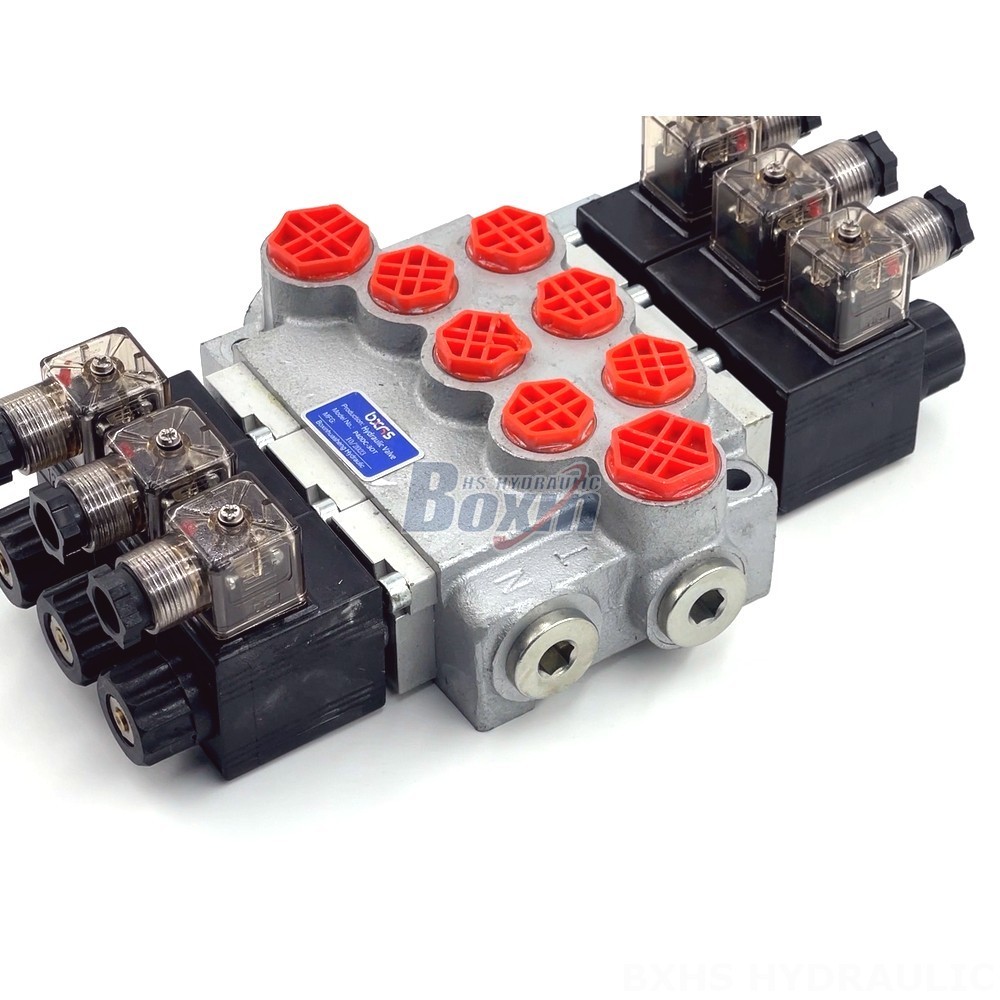

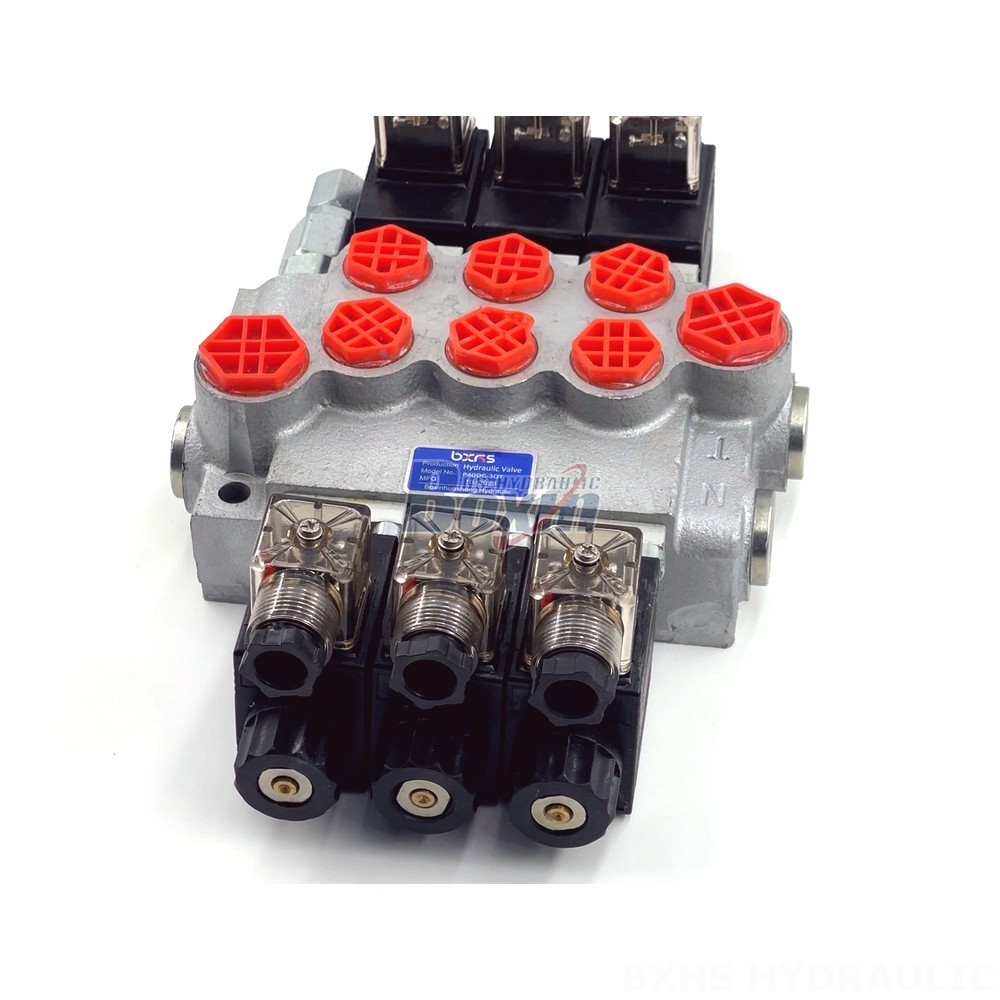

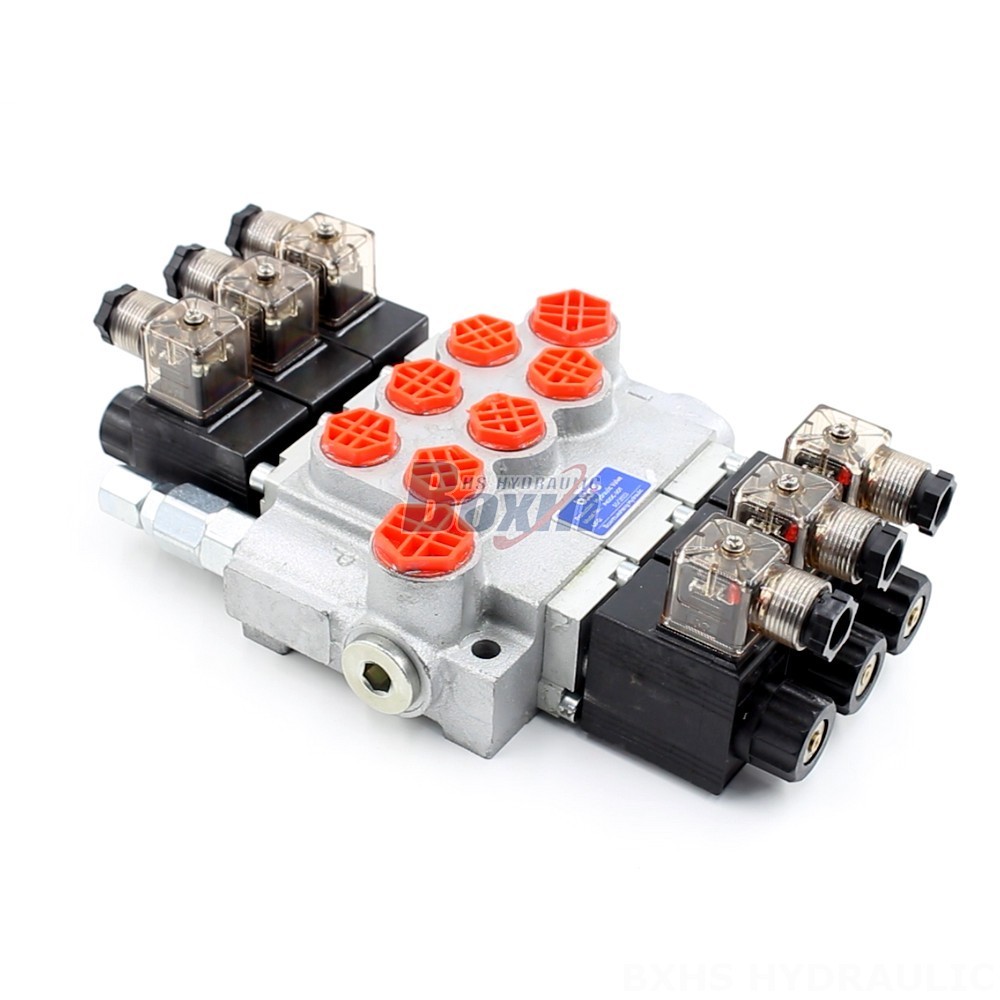

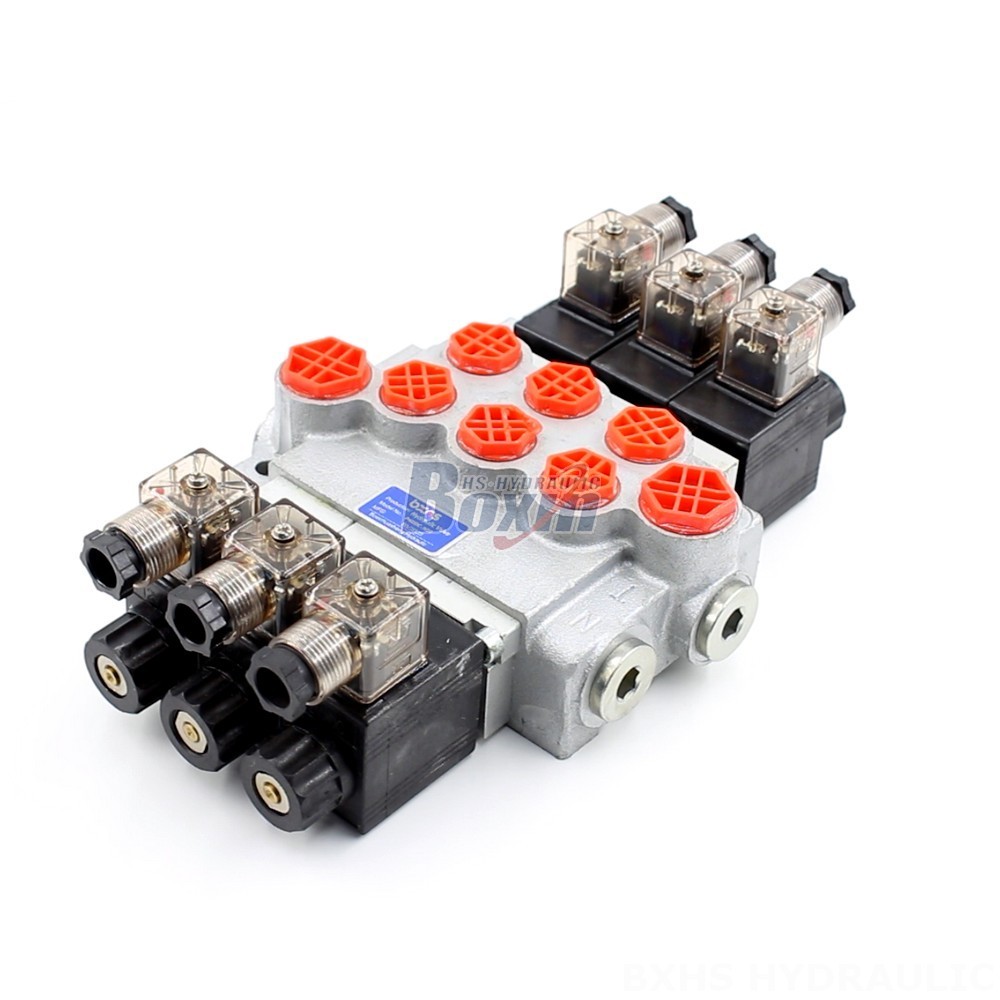

The P40-DKL hydraulic directional valve is a high-performance, solenoid-controlled valve designed for a variety of applications, including material handling, construction, and agriculture. This 3-section, monoblock valve features a 40 L/min flow rate and a 250 bar pressure rating. Available in customizable configurations, the P40-DKL is a versatile and reliable solution for your hydraulic needs.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P40-DKL is a robust and reliable hydraulic directional valve ideal for a wide range of applications. This solenoid-controlled valve features a 3-section, monoblock design for efficiency and durability. Its 40 L/min flow rate and 250 bar pressure rating make it suitable for demanding tasks in material handling, construction, agriculture, and other industrial sectors. The P40-DKL is compatible with various equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- and mini- excavators, skid steer loaders, and compact wheel loaders. This versatile valve can be customized to meet your specific needs, ensuring optimal performance for your hydraulic systems. We offer factory-direct pricing and customizable options to meet your unique requirements. Contact us today to discuss your hydraulic valve needs and explore the possibilities of the P40-DKL.
