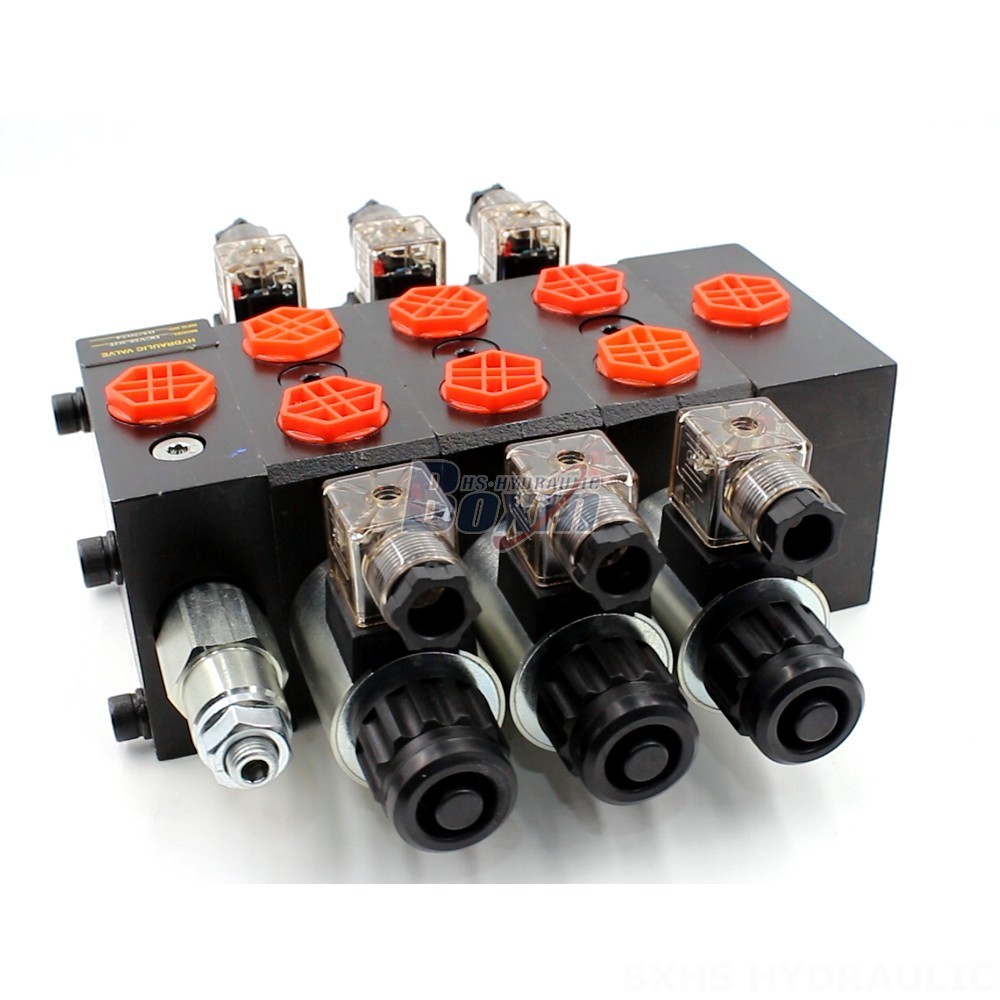

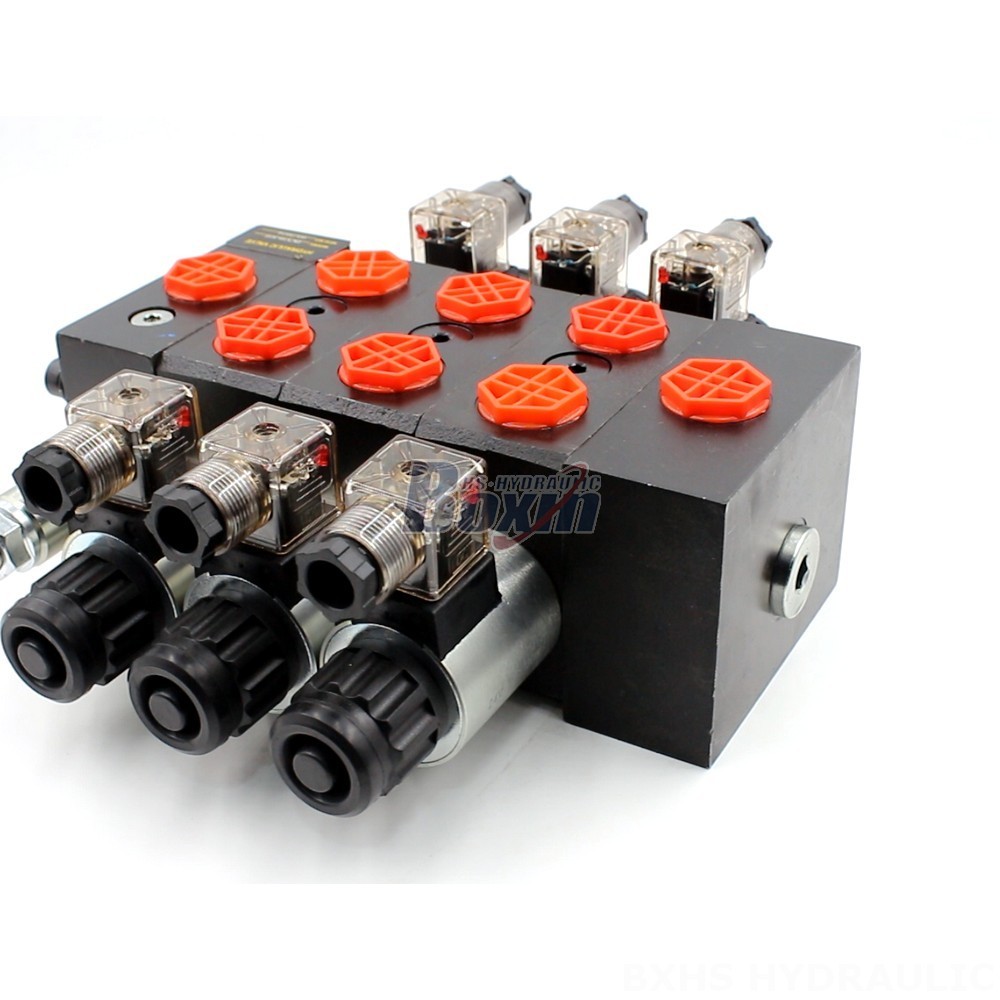

The DCV58 Series tractor hydraulic lever valve is a high-performance solenoid valve designed for demanding applications in construction, agriculture, material handling, and industrial vehicles. This 3-section, 60 L/min valve offers exceptional efficiency and versatility, with a maximum pressure rating of 350 bar.
| Seri DCV58 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Selenoid, Solenoid dan Manual |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Port Keluar | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Ukuran Port | G1/2, M22×1.5, SAE 10, 1/2 NPT |
This DCV58 Series tractor hydraulic lever valve is a 3-section, solenoid-controlled sectional valve, offering exceptional efficiency and versatility for a wide range of applications. With a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 350 bar (5100 psi), this valve is designed to handle demanding hydraulic systems. Its robust construction and operating temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable operation in challenging environments. The valve is particularly suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
