Produksi & Pengiriman
Waktu Produksi 15-30 Hari
912 Pandangan Mencari Produk Ini

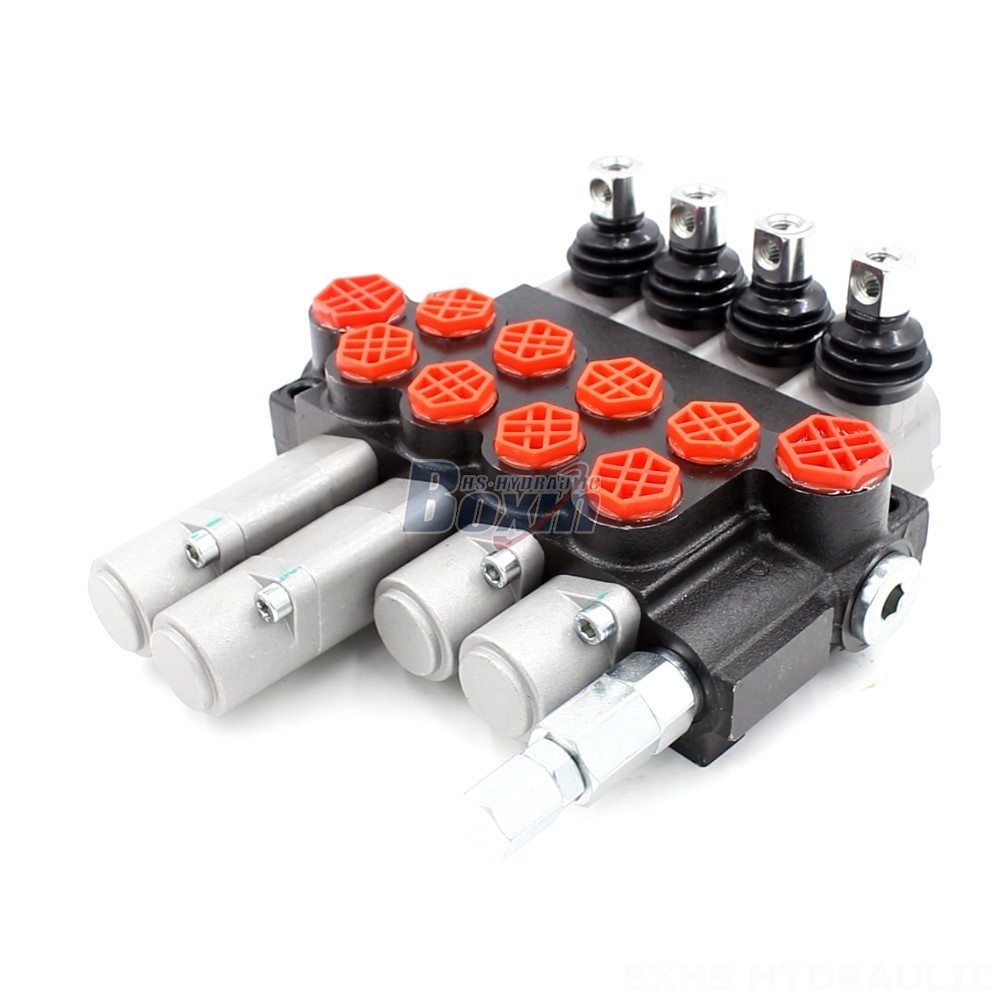

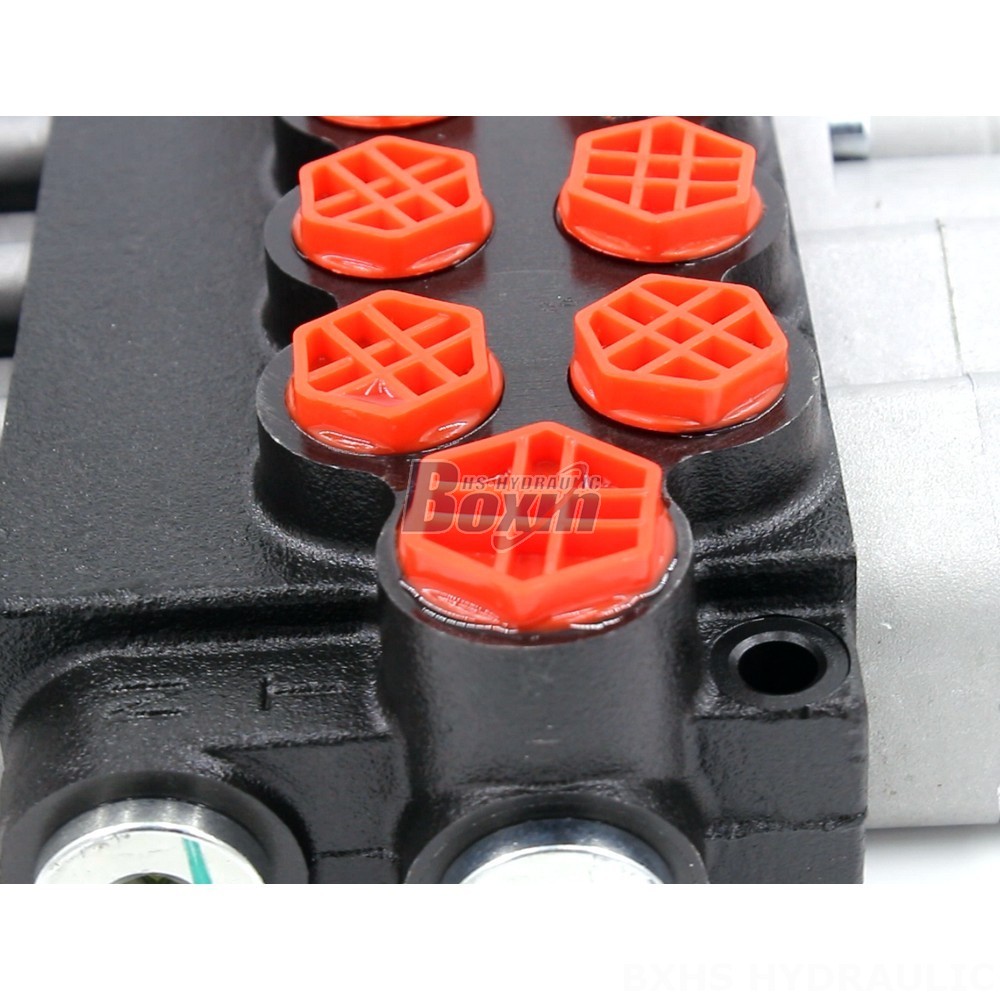

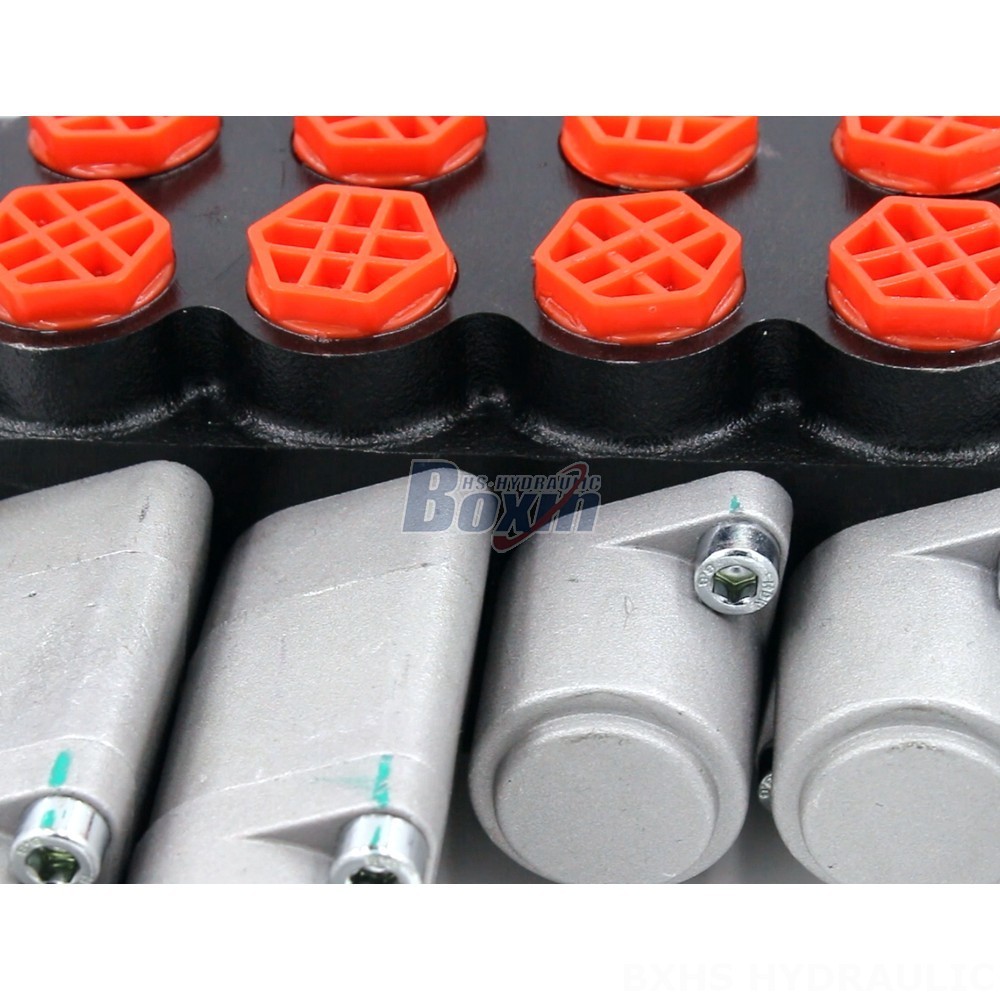

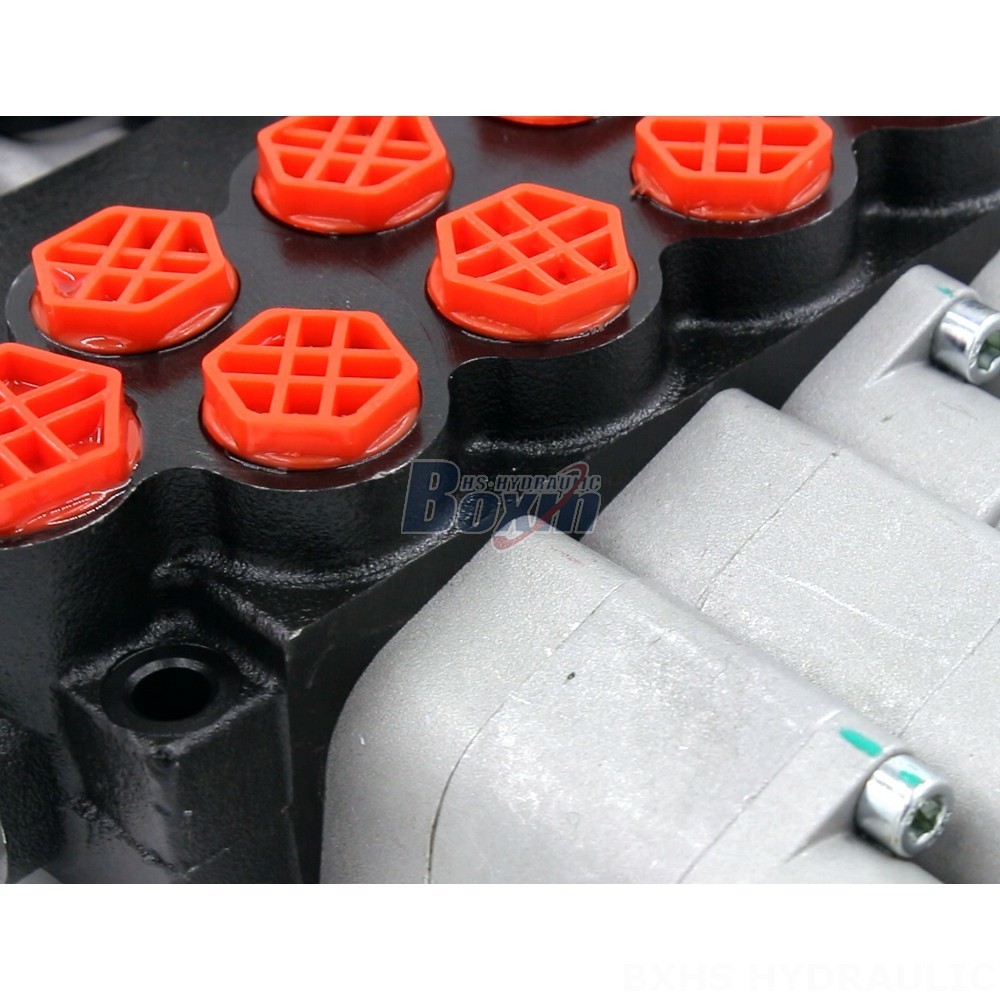

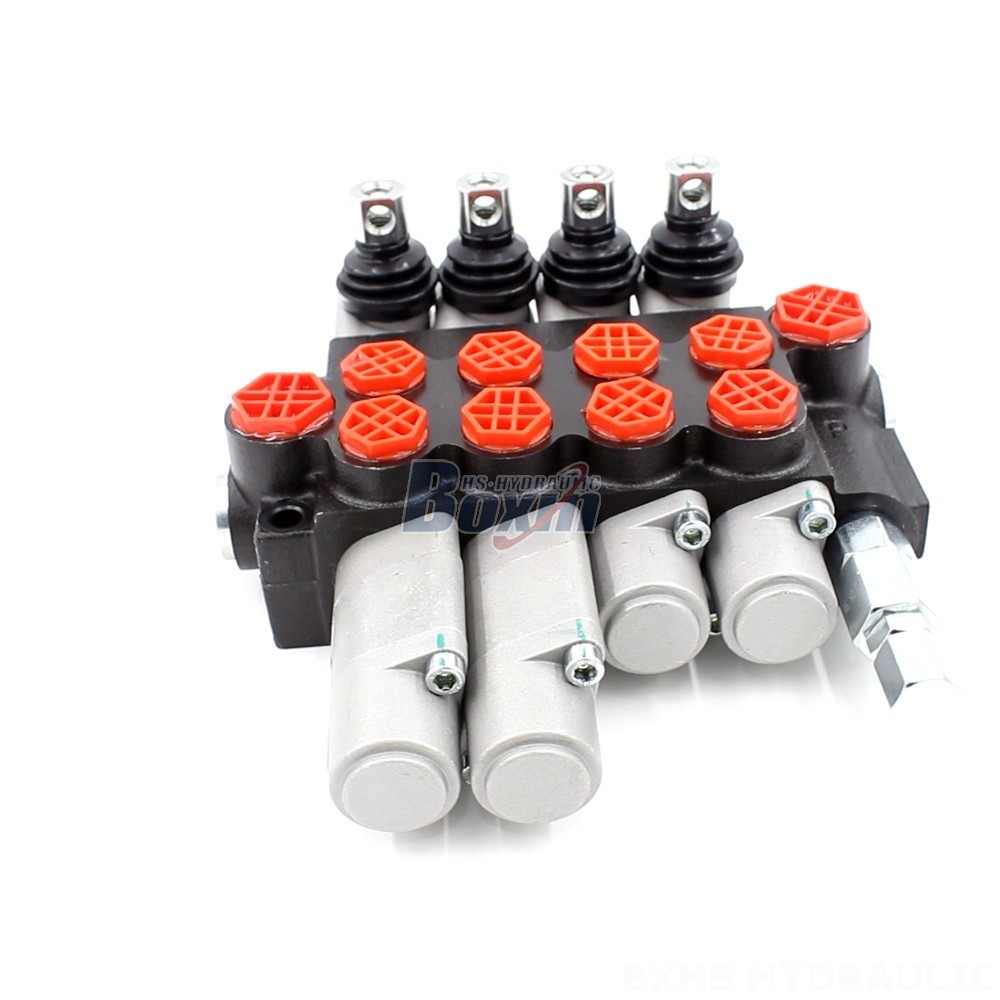

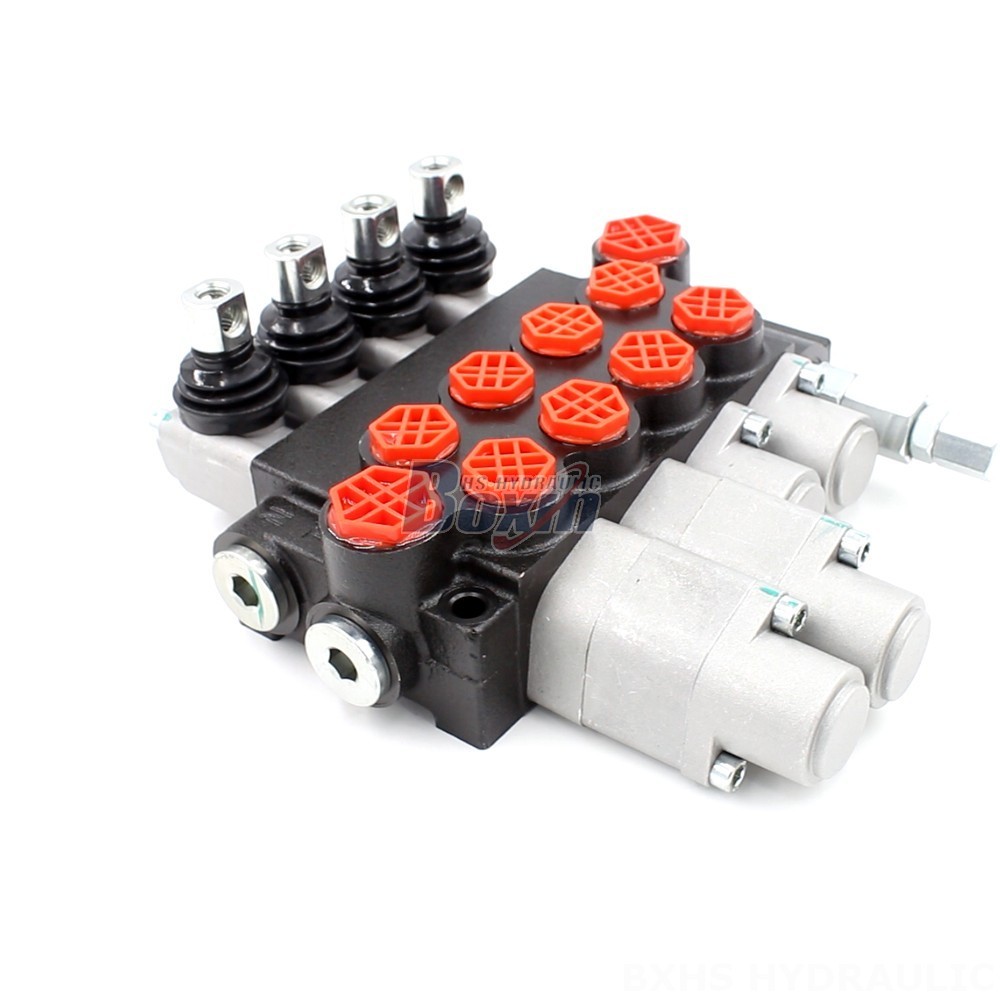

P40-G12-G38 valves are 4-spool, monoblock hydraulic directional control valves with a rated flow of 40 L/min and a maximum pressure of 250 bar. They are suitable for a wide range of applications in material handling, construction, earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our P40-G12-G38 valves are manufactured to the highest standards and are backed by our commitment to quality and customer satisfaction. We offer a wide range of customization options to meet your specific needs, and our experienced engineers are available to provide technical support and advice. As a leading manufacturer and supplier of hydraulic valves, we offer competitive prices and fast delivery times. We are committed to providing our customers with the highest quality products and services. Contact us today to learn more about our P40-G12-G38 valves and how they can benefit your business.
