Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1240 Pandangan Mencari Produk Ini

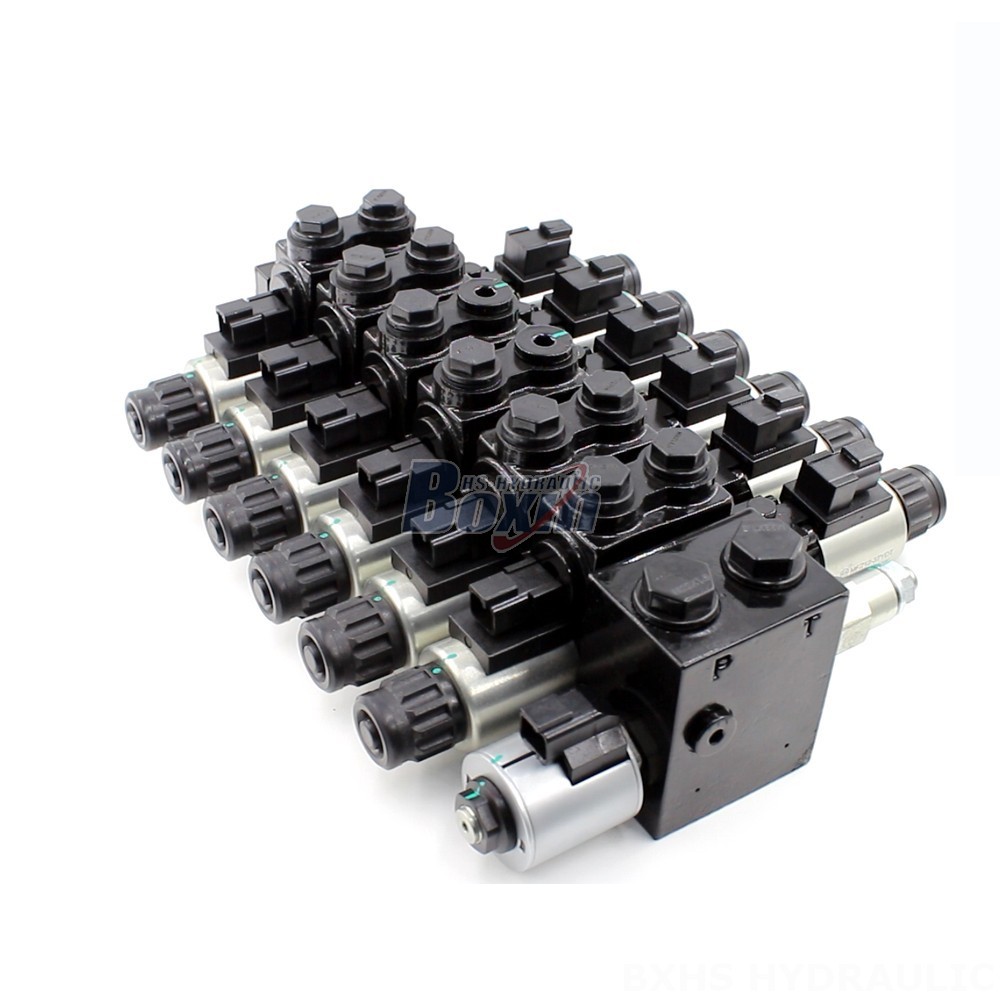

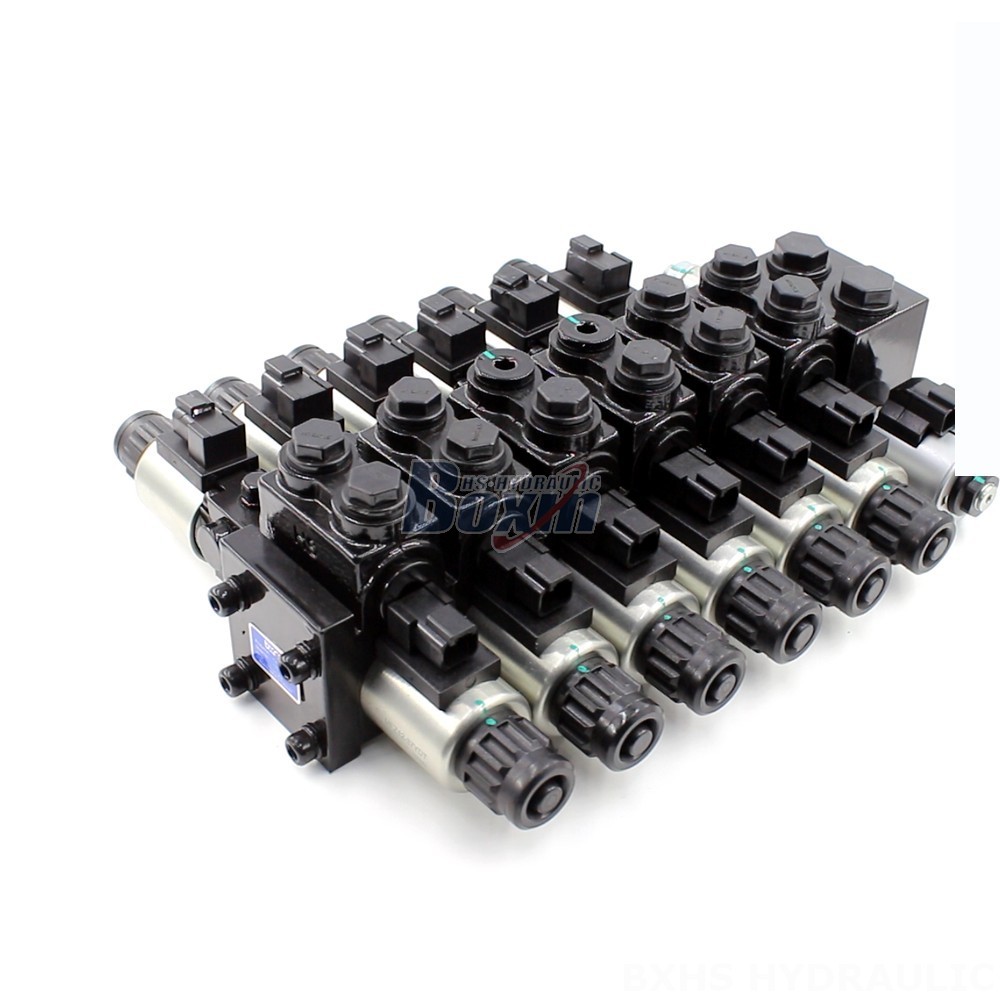

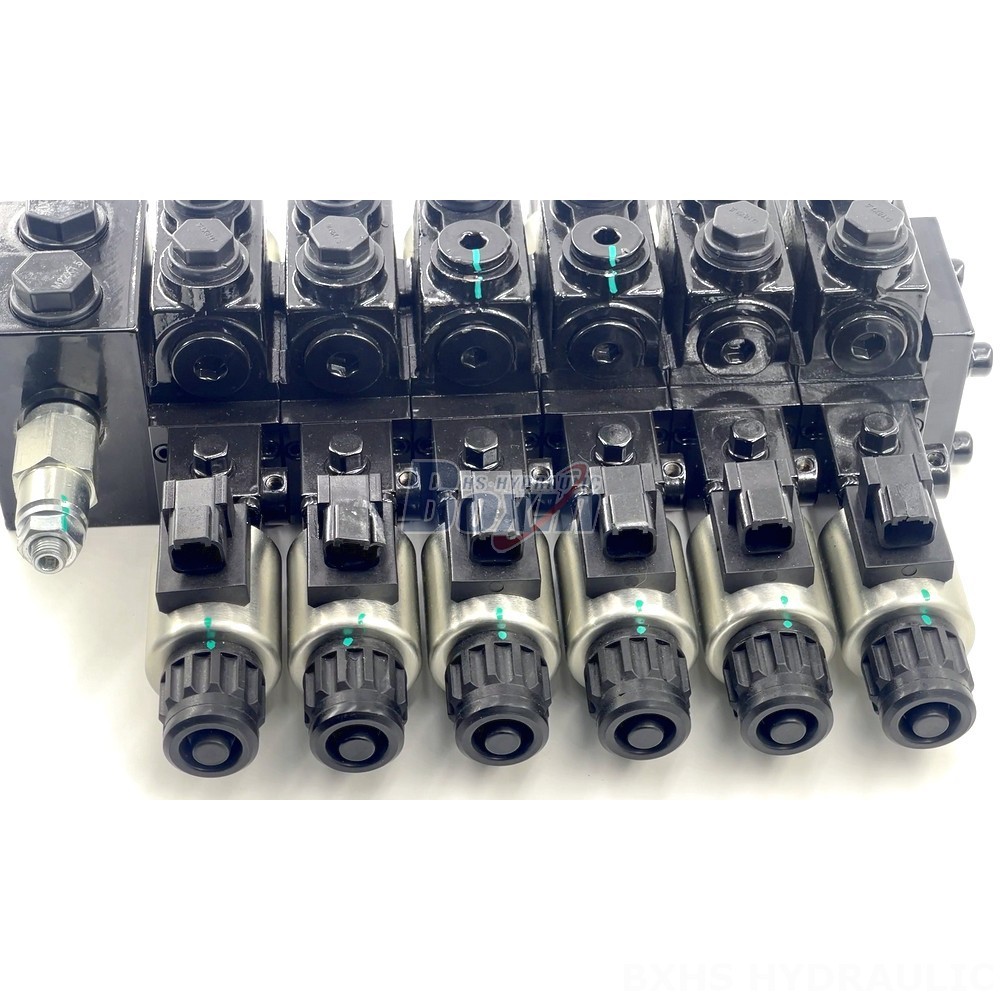

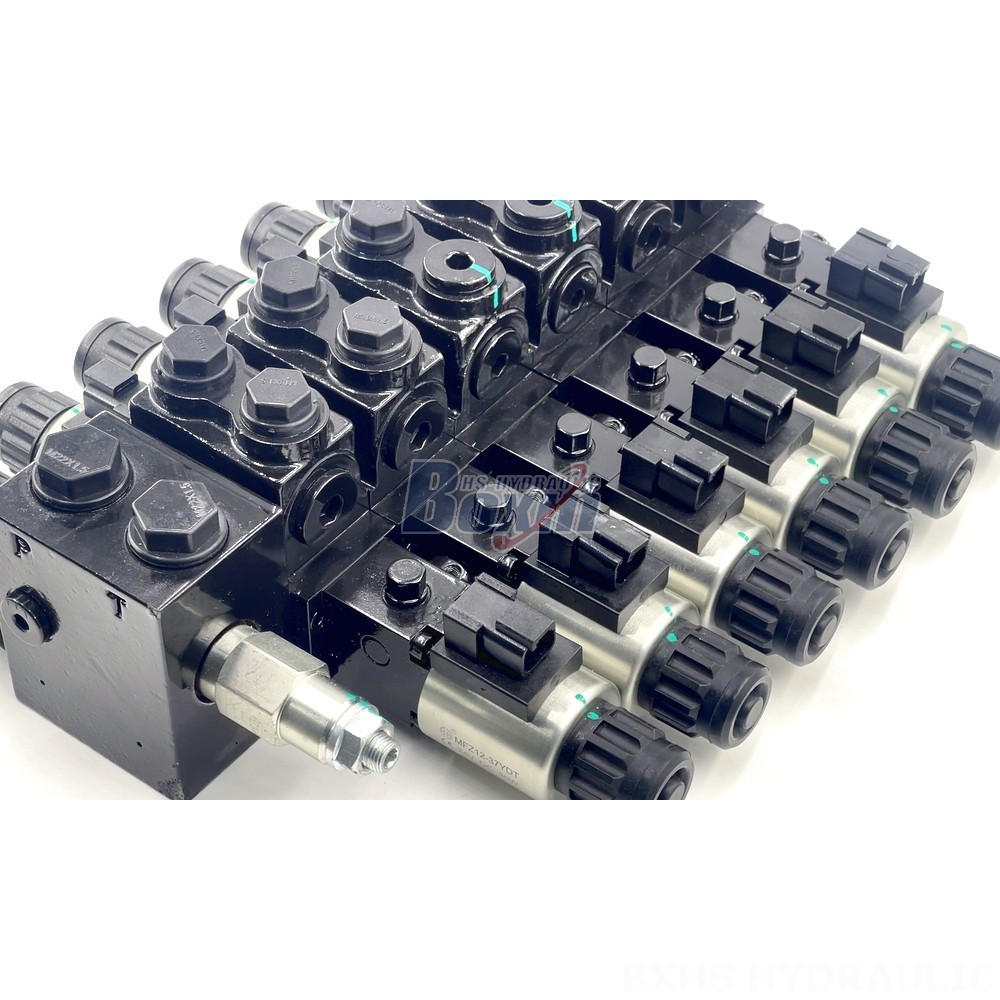

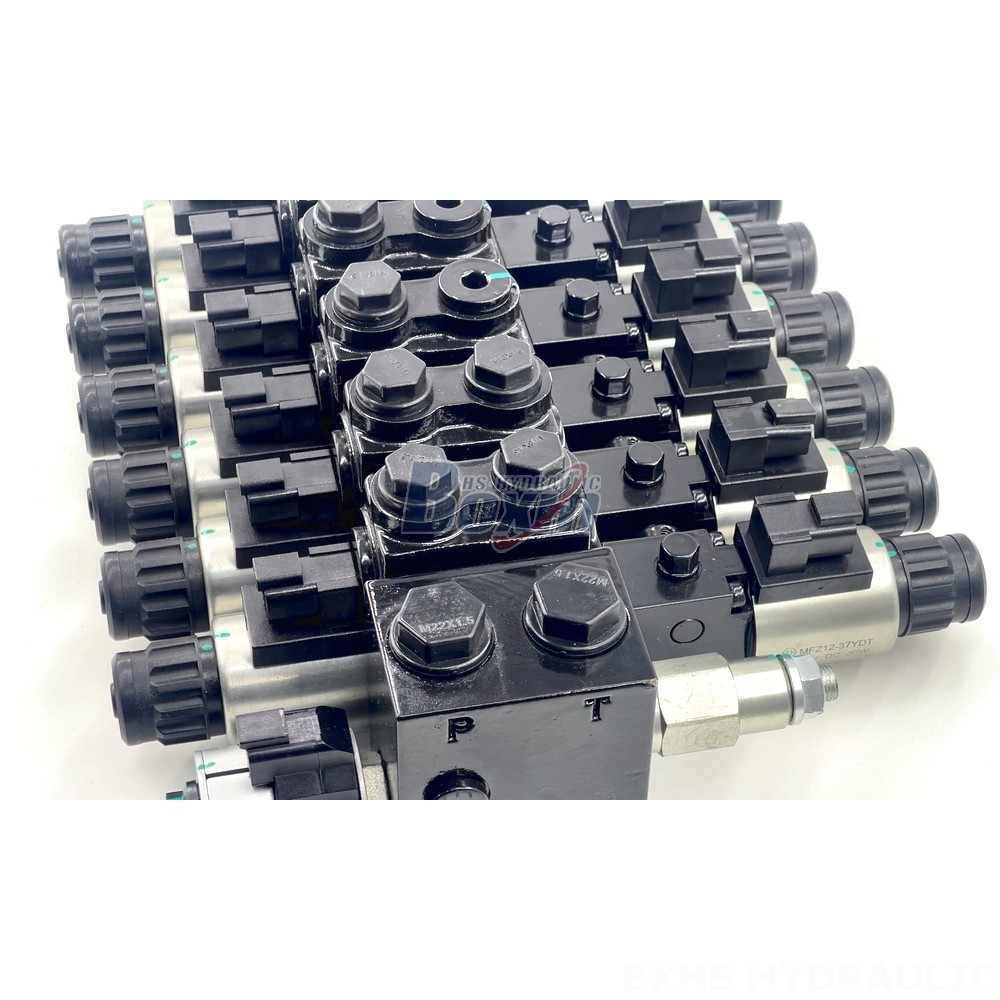

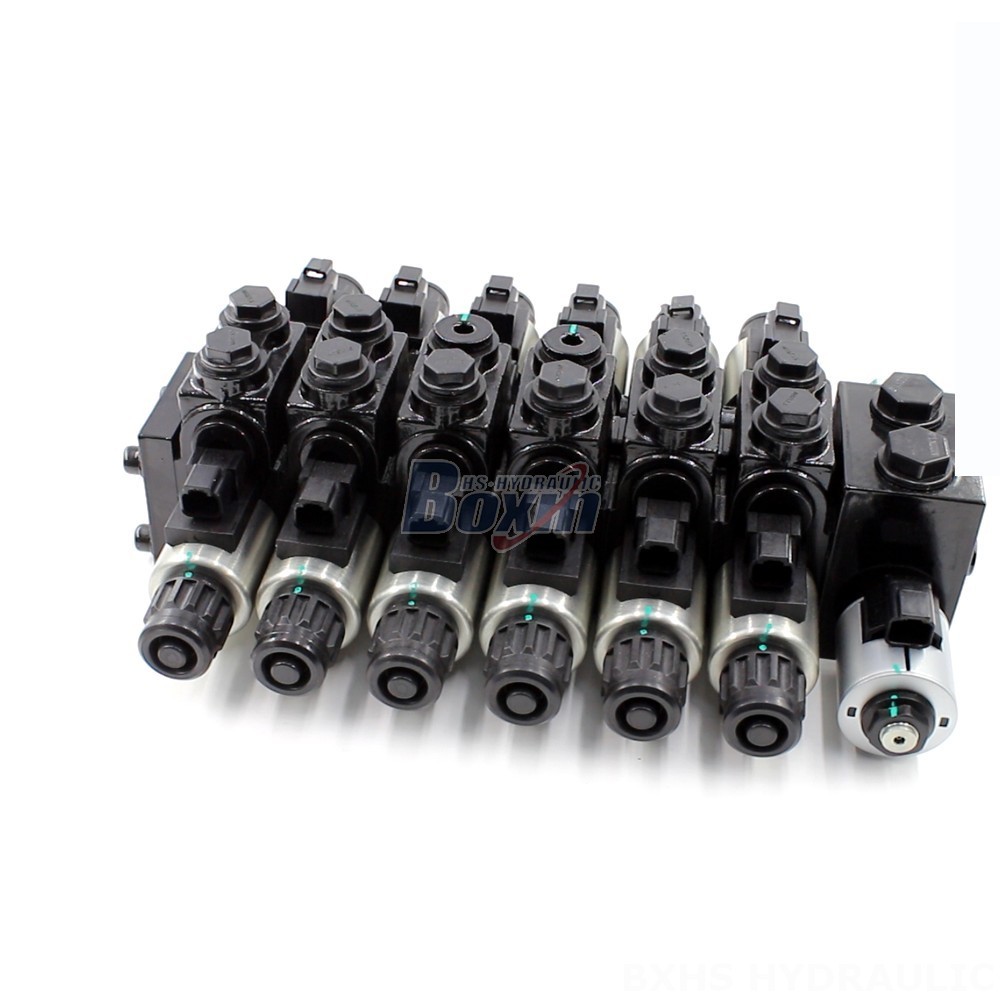

The HDCF50 is a high-performance 6-section solenoid valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 50 L/min and a maximum pressure of 160 bar, making it ideal for demanding operations.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
This HDCF50 series solenoid valve is manufactured directly from the factory, ensuring high quality and competitive pricing. It is a 6-section sectional valve with a rated flow of 50 L/min and a maximum pressure of 160 bar. The valve operates with a 12V or 24V voltage and is suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders. As a factory direct supplier, we offer competitive pricing and bulk discounts on our hydraulic valve products, making them an excellent choice for distributors, wholesalers, and traders looking for high-quality and affordable hydraulic solutions.
