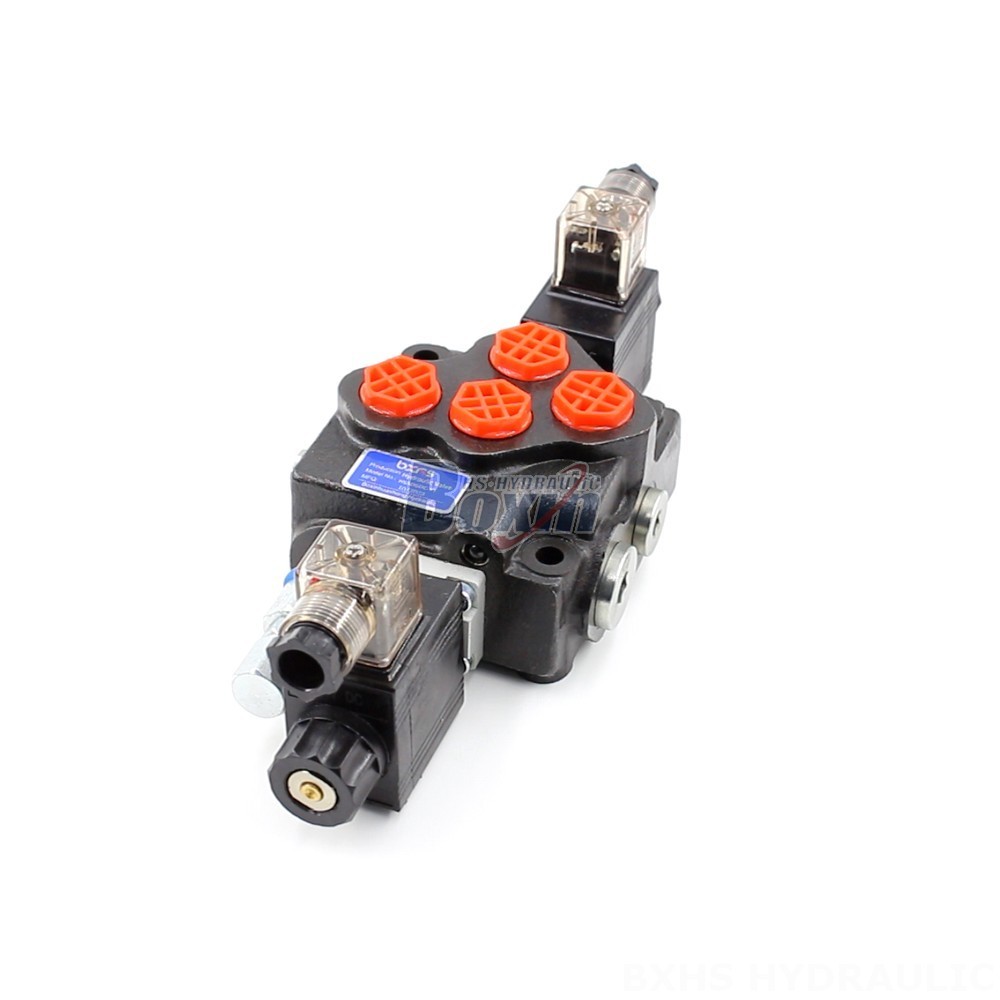

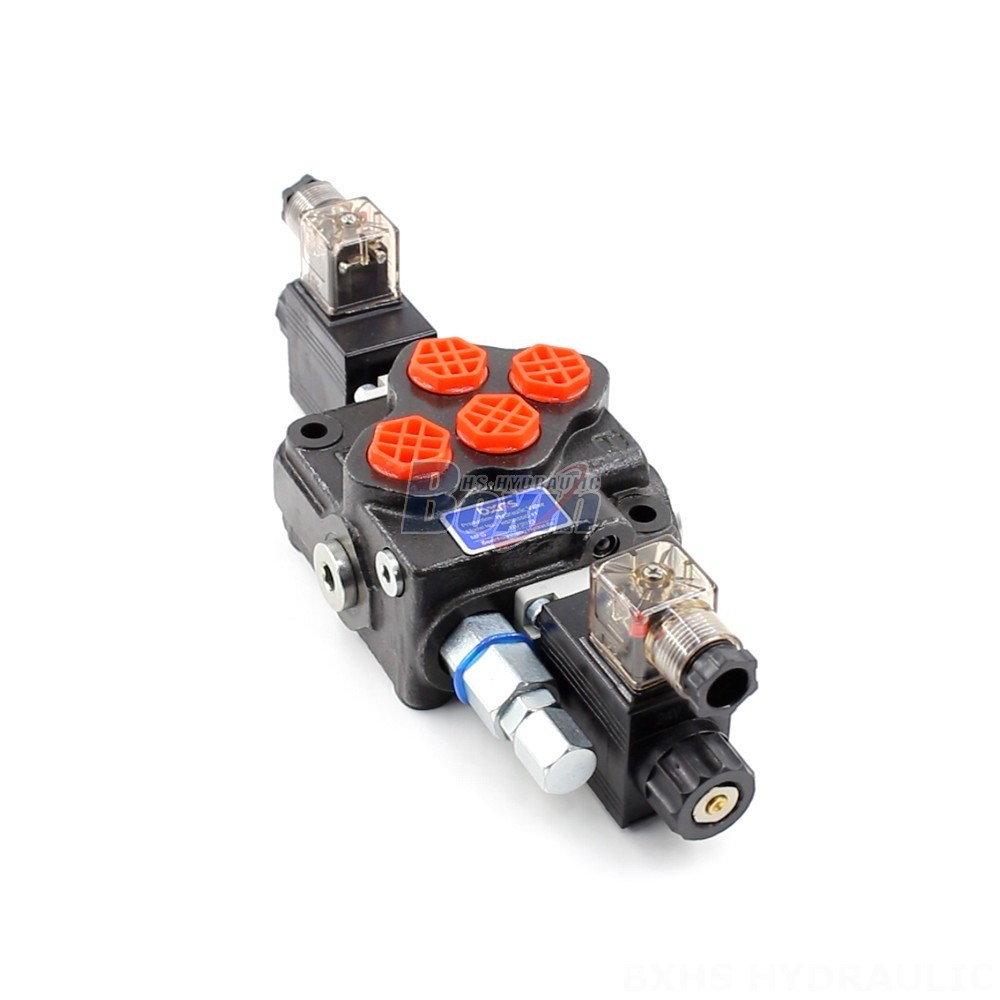

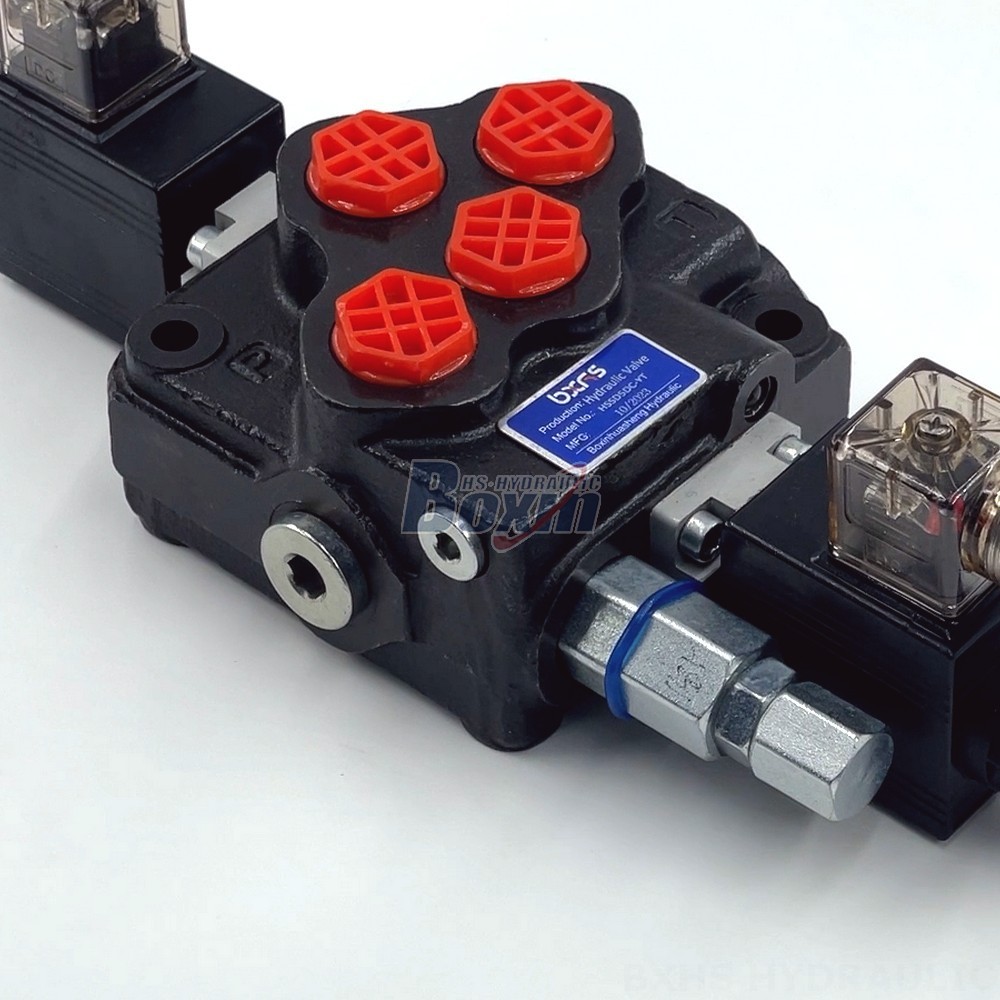

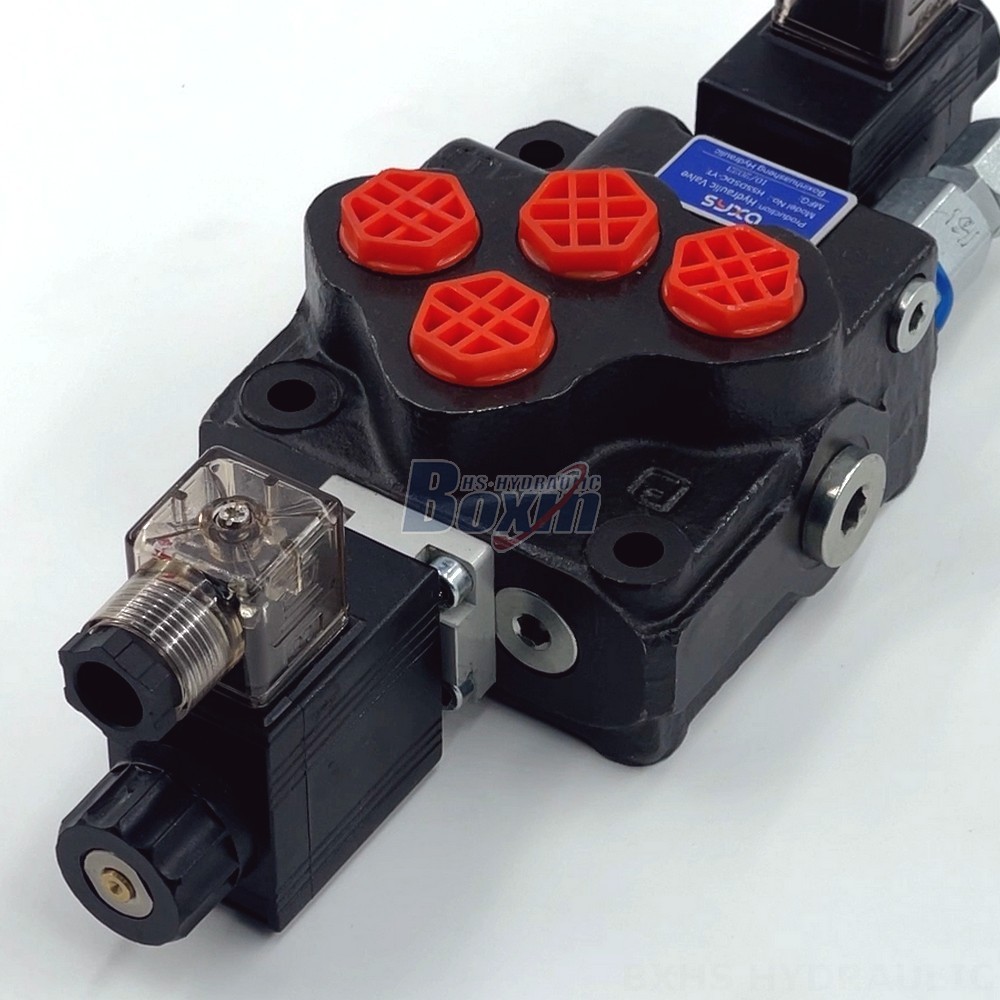

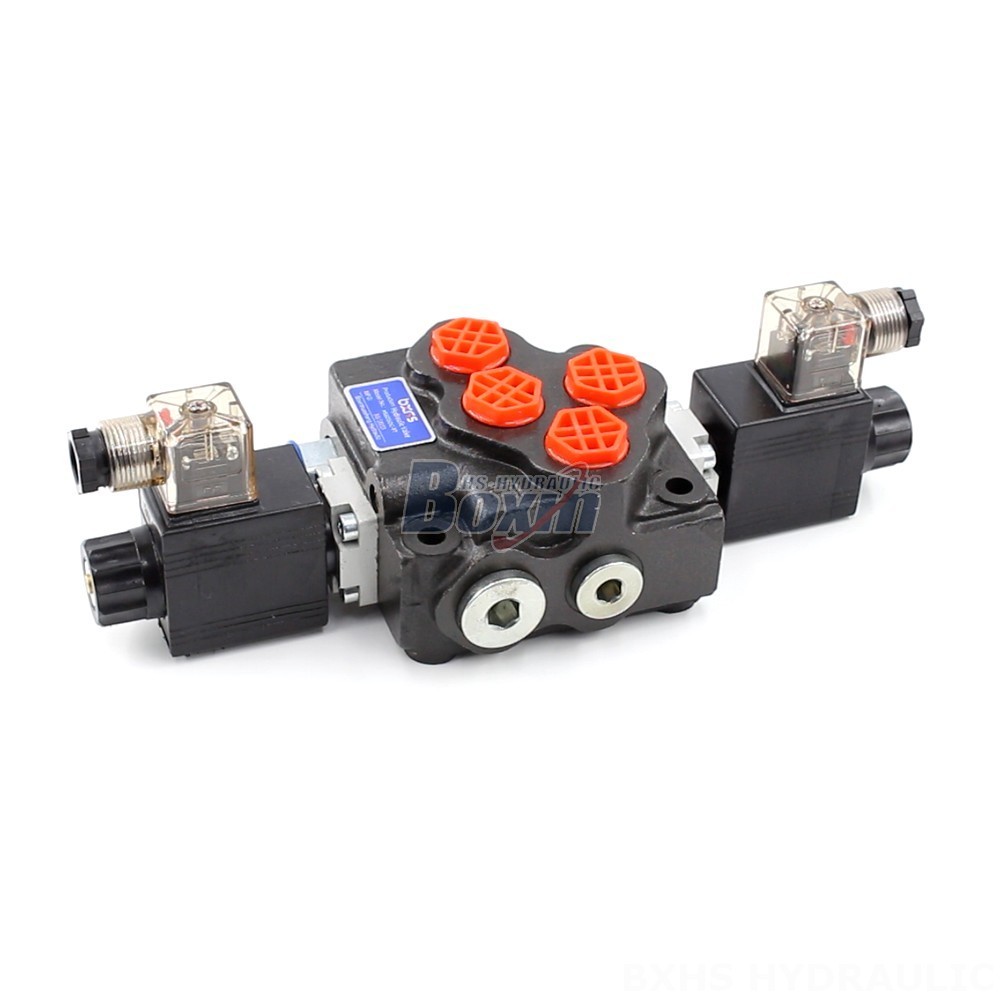

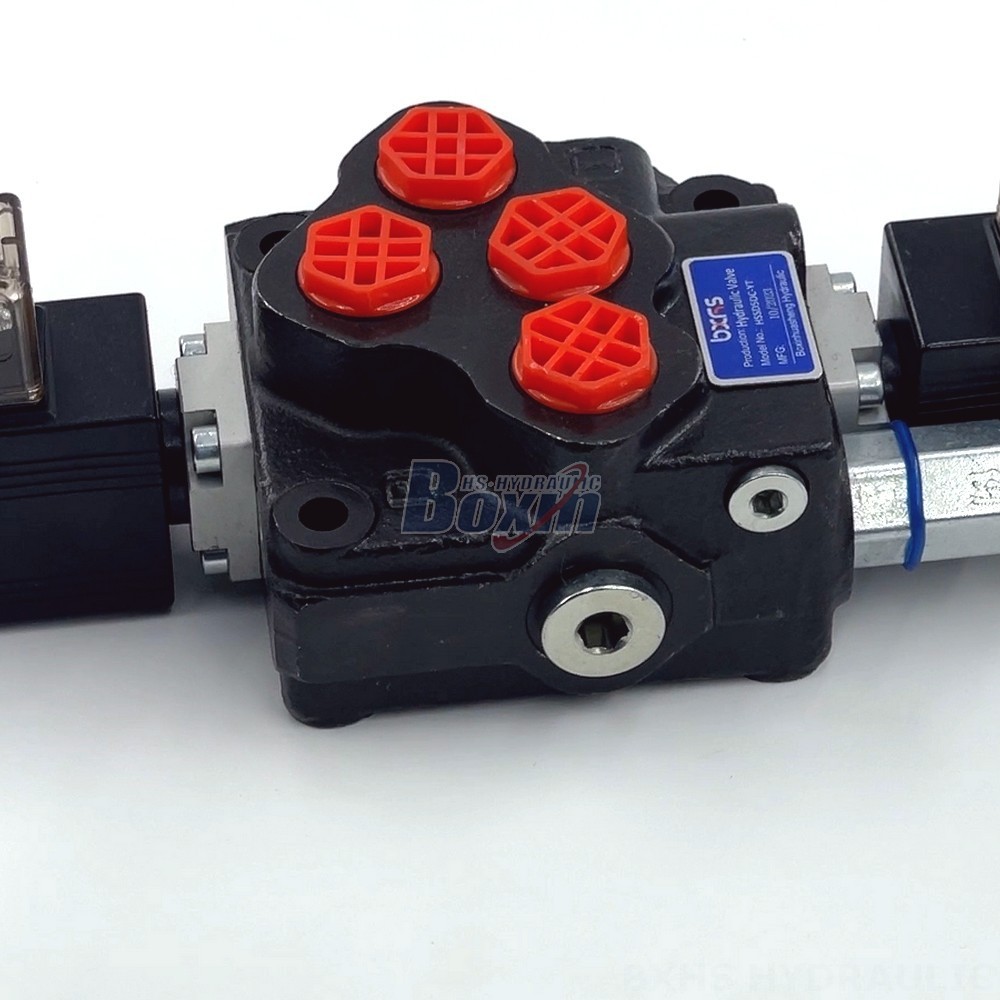

The SD5 Series Proportional Hydraulic Valve is a high-performance, compact monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features solenoid control, a 40 L/min flow rate, and a maximum pressure of 305 bar. This valve is available direct from the manufacturer, offering factory prices and wholesale options.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Proportional Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. Directly sourced from the manufacturer, this valve offers exceptional quality and value. Its monoblock construction ensures robust performance, while its compact design allows for easy installation. The SD5 valve is perfect for applications requiring precise and responsive control, such as forklifts, telehandlers, mini excavators, skid steer loaders, and more. We offer competitive factory pricing and wholesale options to meet the needs of our global customer base.
