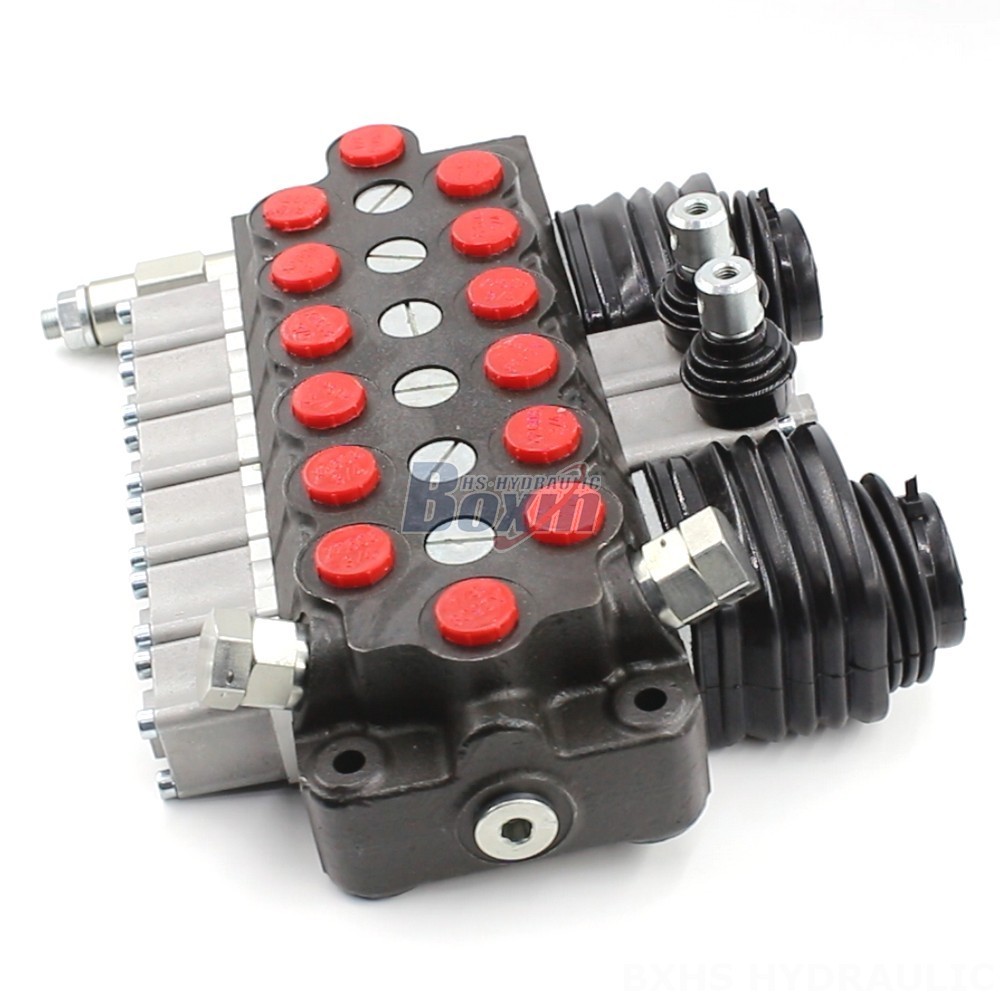

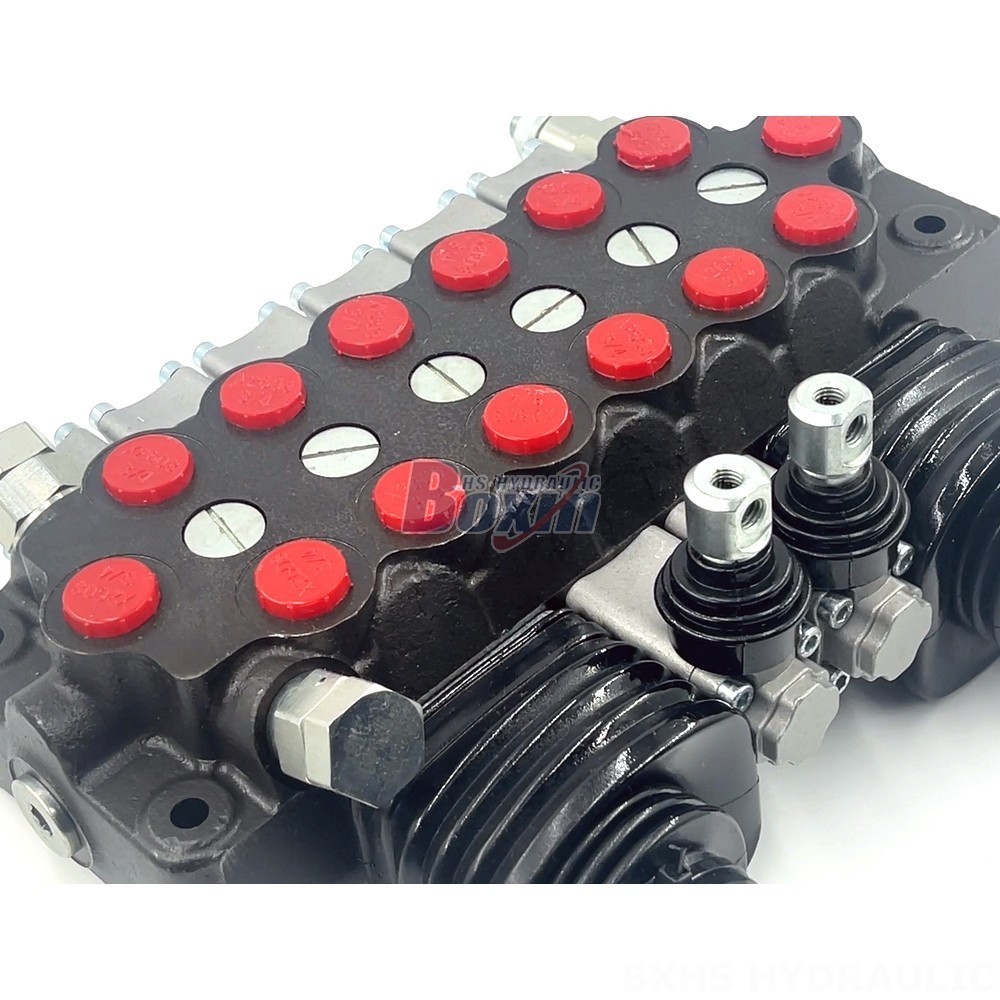

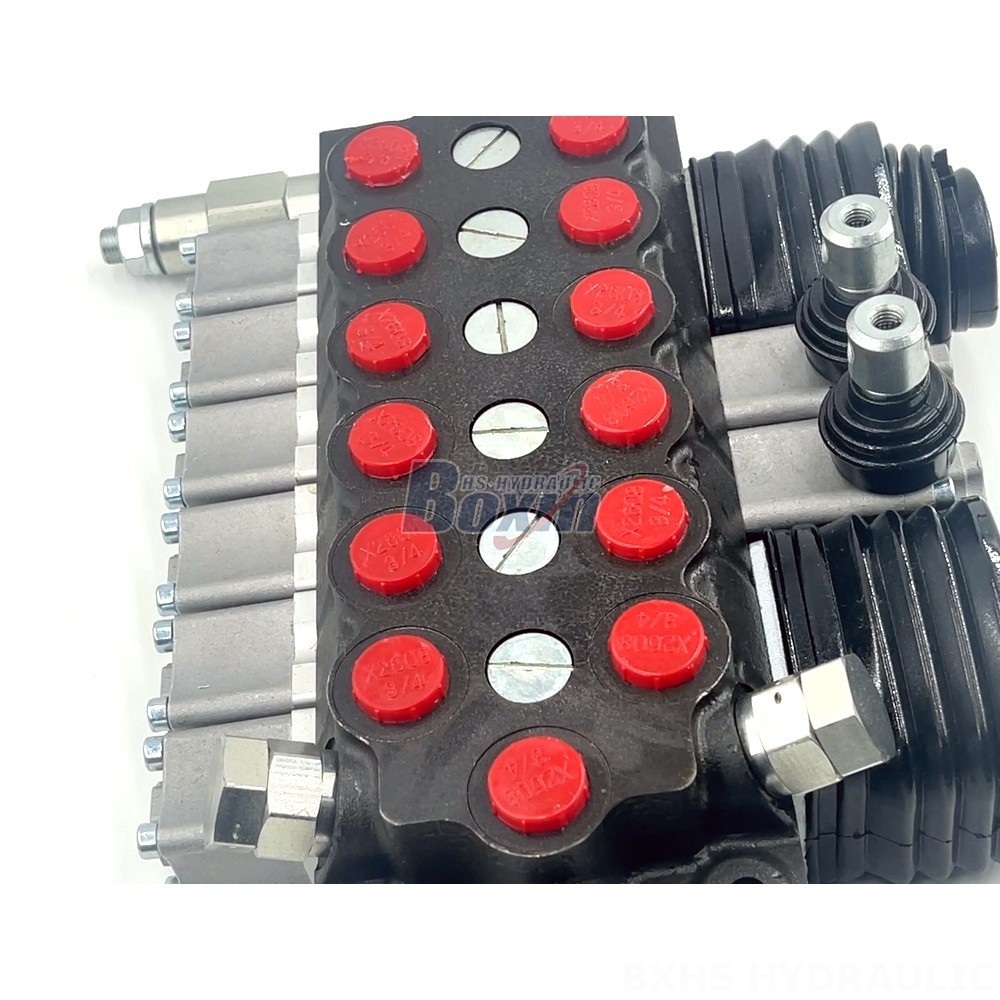

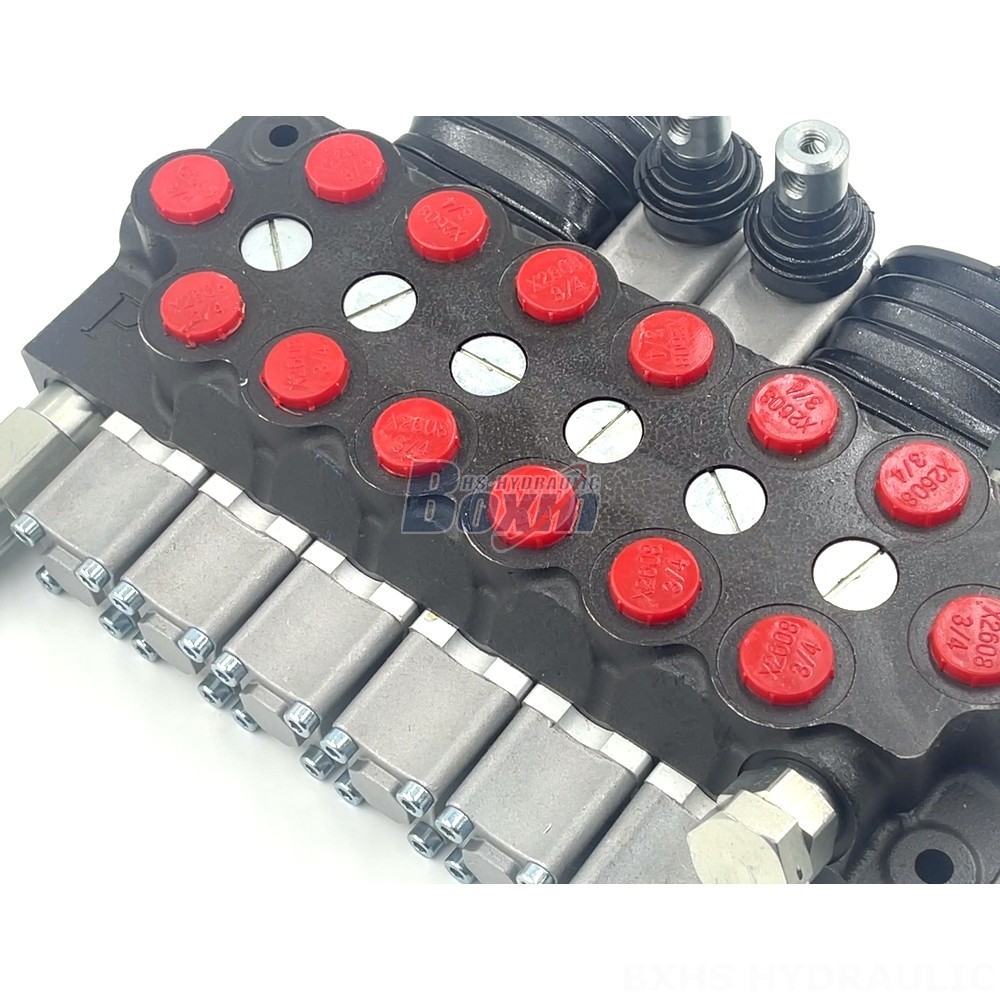

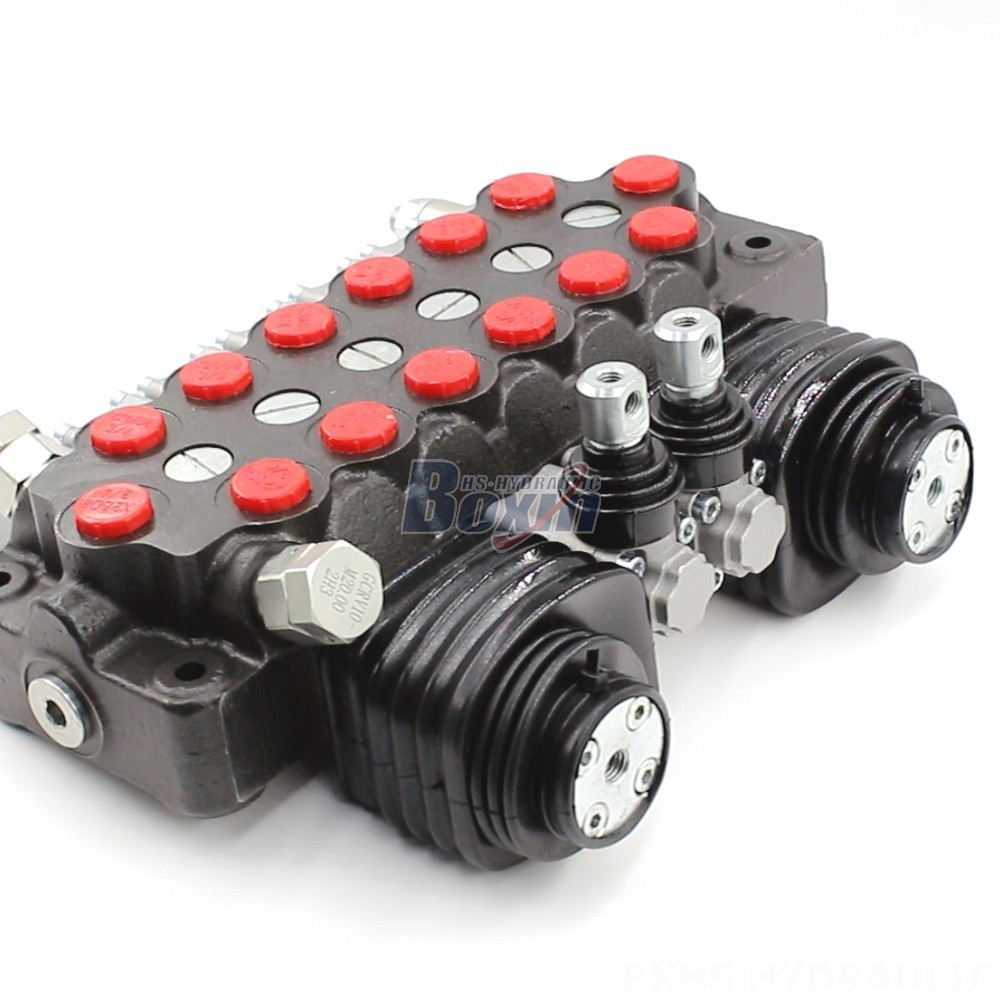

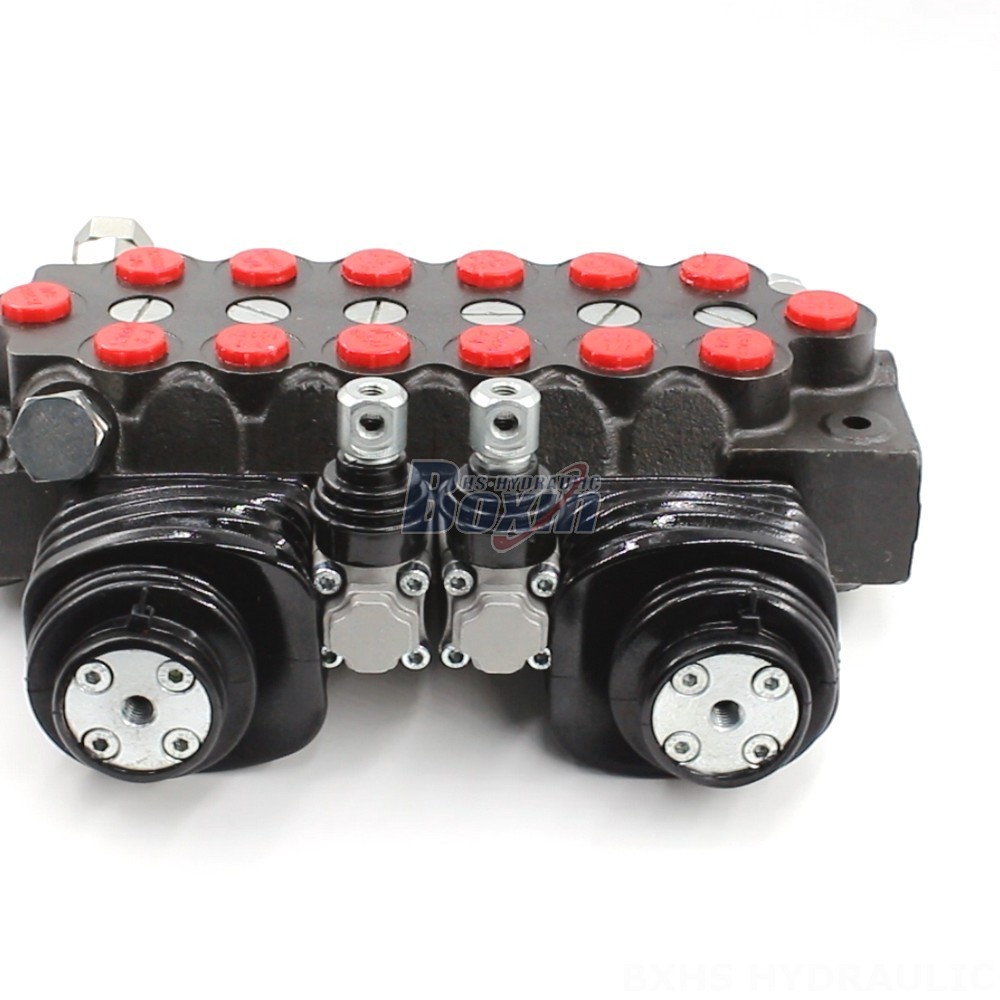

The TR55 Hydraulic Valve is a high-performance, 6-section monoblock valve designed for various applications including material handling, construction, and agriculture. It offers a rated flow of 40 L/min and a maximum pressure of 315 bar. Available with manual or joystick control, this valve is directly sourced from the manufacturer, ensuring quality and competitive pricing.
| Seri TR55 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/8, G1/2 |
| Port Keluar | G3/8, G1/2 |
| Ukuran Port | G3/8, G1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F), -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The TR55 Series Hydraulic Valve is a robust and reliable solution for various machinery applications. This 6-section monoblock valve features a rated flow of 40 L/min and a maximum pressure of 315 bar. It operates with a viscosity range of 15 - 75 mm²/s and withstands ambient temperatures ranging from -40°C to +60°C. The valve is available with both manual and joystick control options, providing flexibility for different operating needs. Direct sourcing from the manufacturer ensures high quality and competitive prices. Our factory offers wholesale options for bulk purchases, making the TR55 Series an ideal choice for businesses seeking reliable and cost-effective hydraulic valves.
