Source Hydraulic Valves Directly from the Manufacturer: P80-G12-G34-OT

Metode Kontrol:Buku Panduan

Spul:6 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*36*11

Kelas kotor:18.60 kg

Ketersediaan: Tersedia

1077 Pandangan Mencari Produk Ini

Source Hydraulic Valves Directly from the Manufacturer: P80-G12-G34-OT

Source Hydraulic Valves Directly from the Manufacturer: P80-G12-G34-OT

Source Hydraulic Valves Directly from the Manufacturer: P80-G12-G34-OT drawing image

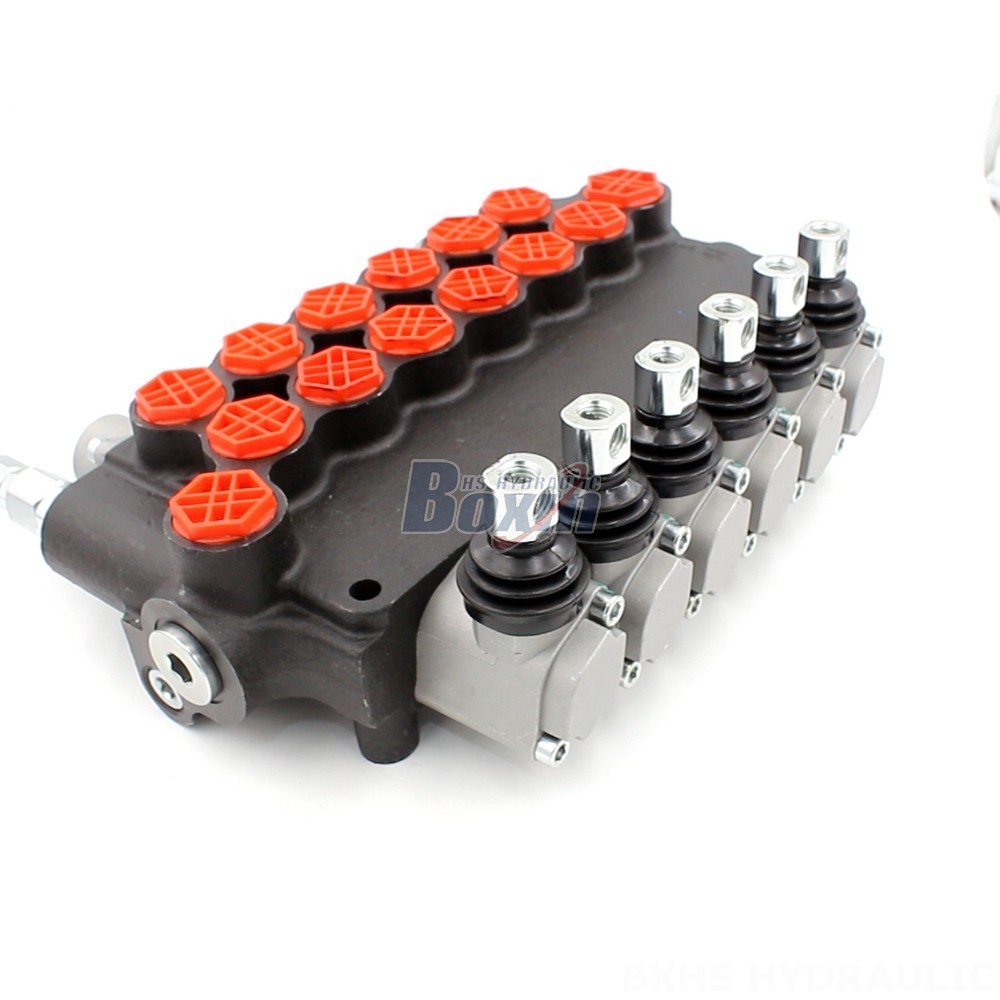

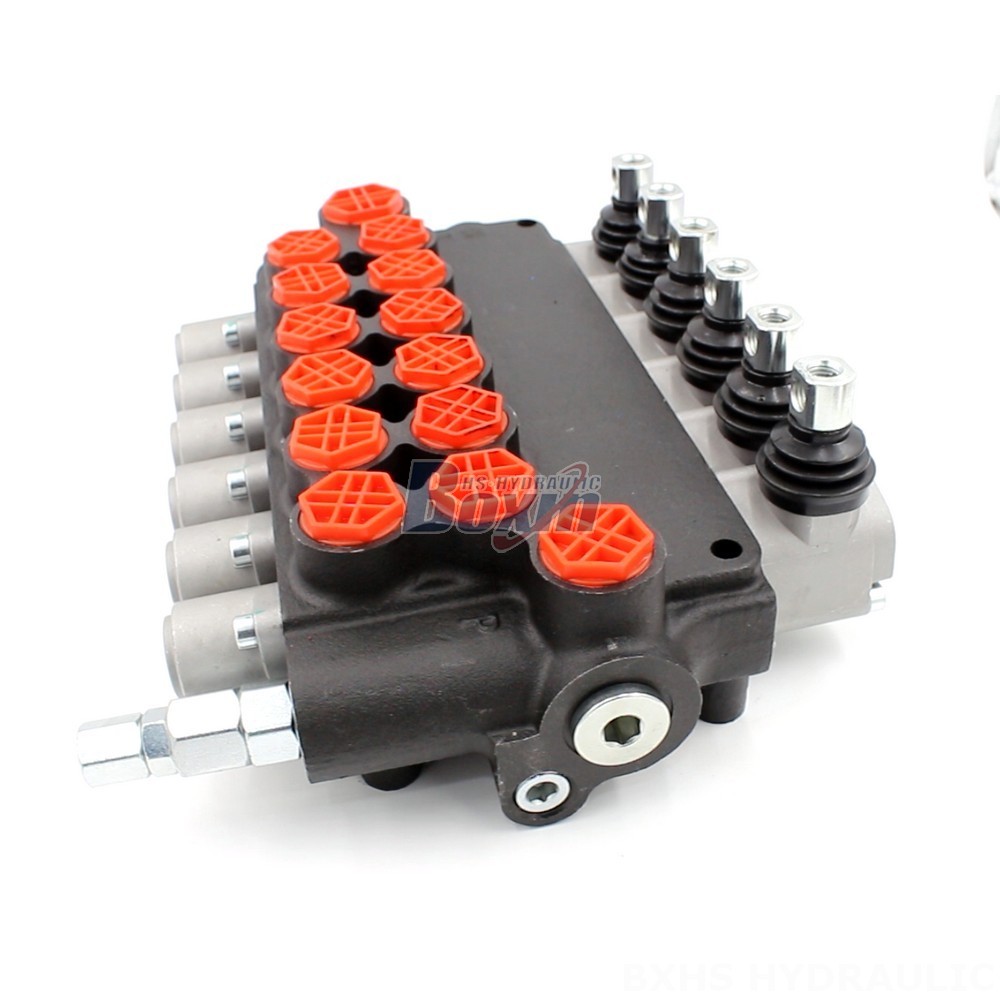

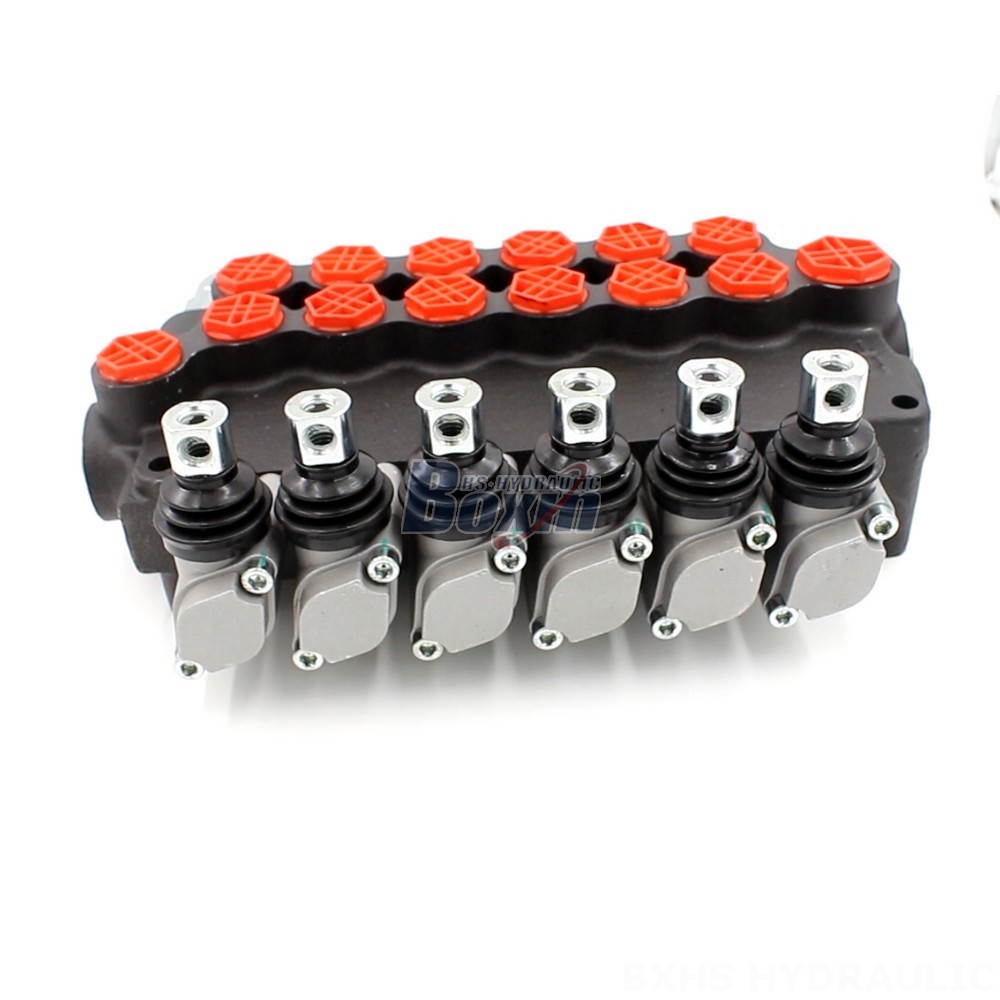

The P80 Series Hydraulic Valve is a high-performance, 6-section monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control, a rated flow of 80 L/min, and a maximum pressure of 250 bar, this valve offers reliable operation and durability. Source your P80 Series Hydraulic Valves directly from the manufacturer for competitive pricing and factory-direct support.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series Hydraulic Valve is a robust and reliable solution for your equipment. With its manual control method, 6 sections, and monoblock valve structure, it provides precise and efficient hydraulic control. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring powerful performance. Its operating viscosity range of 15 - 75 mm²/s (-40°C to +80°C) allows for operation in a variety of environmental conditions. The P80 Series is suitable for various applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. As a manufacturer, we offer factory direct supply, factory wholesale, OEM, and ODM services, providing you with competitive pricing and reliable support. Contact us today to discuss your specific needs and learn more about our P80 Series Hydraulic Valves.
