The DCV100 Directional Control Valve is a high-performance hydraulic valve designed for a wide range of applications in construction, industrial, agriculture, and material handling industries. With a rated flow of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi), it provides reliable and efficient flow control in demanding hydraulic systems.
| Seri DCV100 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel, Stik Kontrol, Manual dan Joystick, Manual dan Elektro-hidraulik, Motor listrik, Elektro-hidrolik dan Solenoid |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 100 L/menit (26,5 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Keluar | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Ukuran Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |

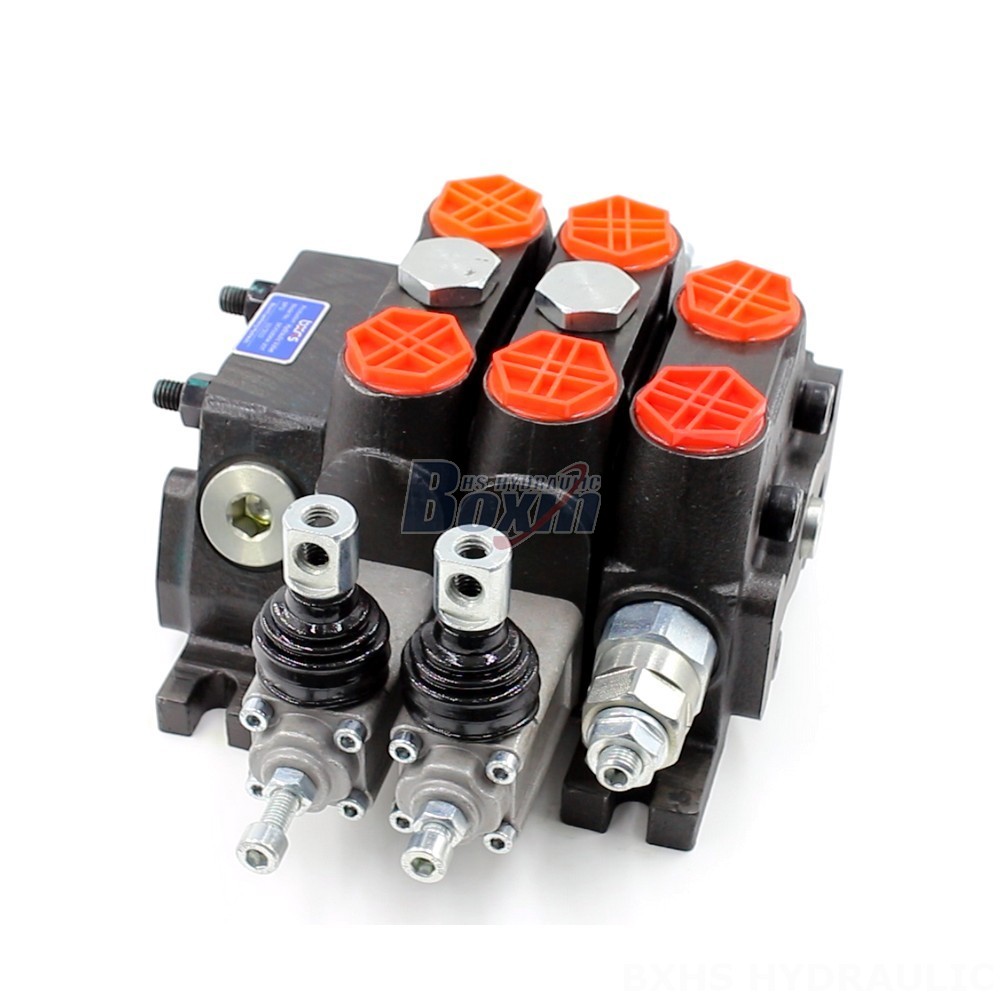

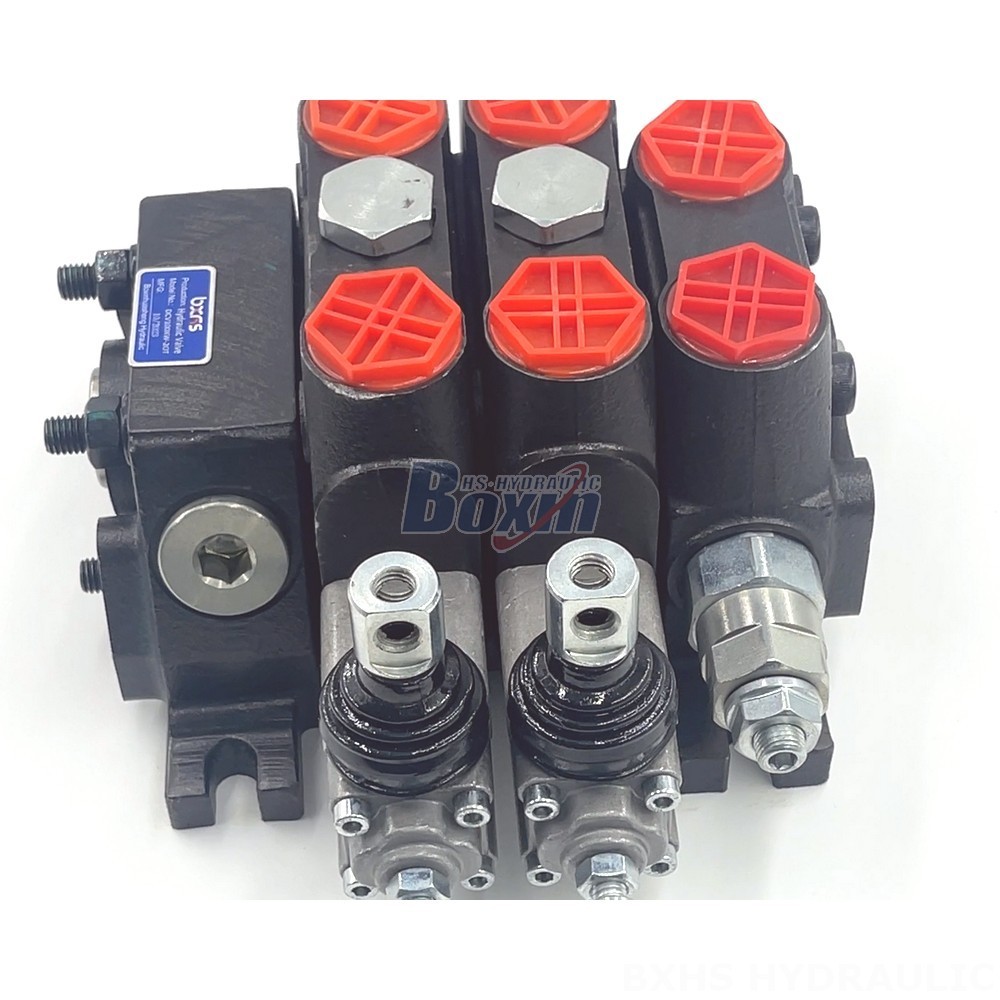

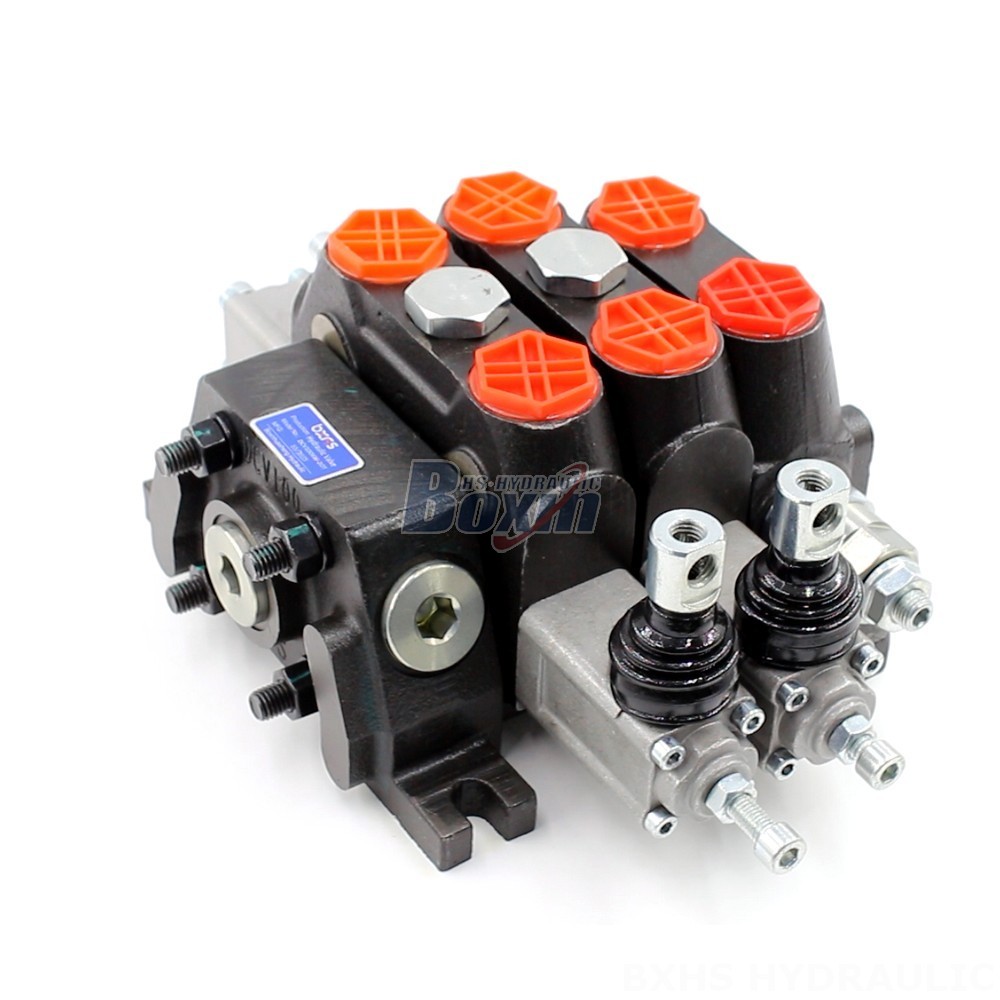

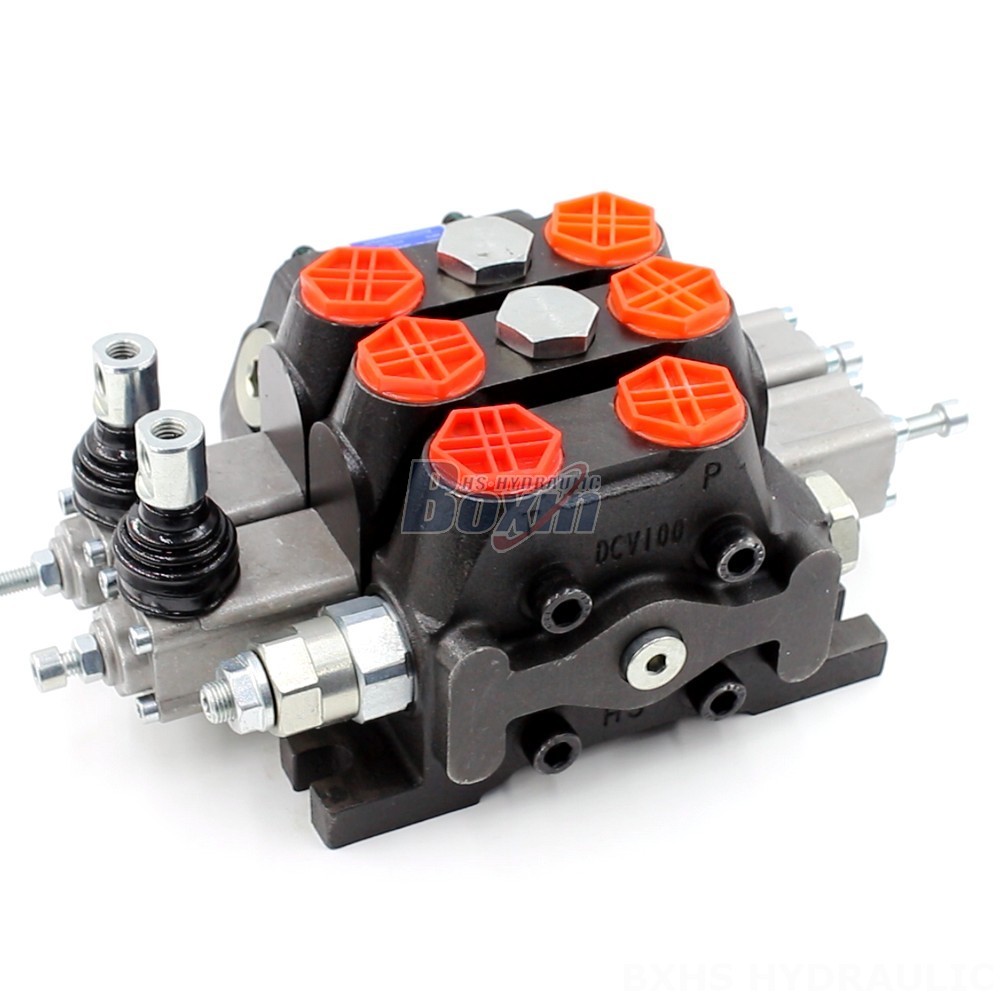

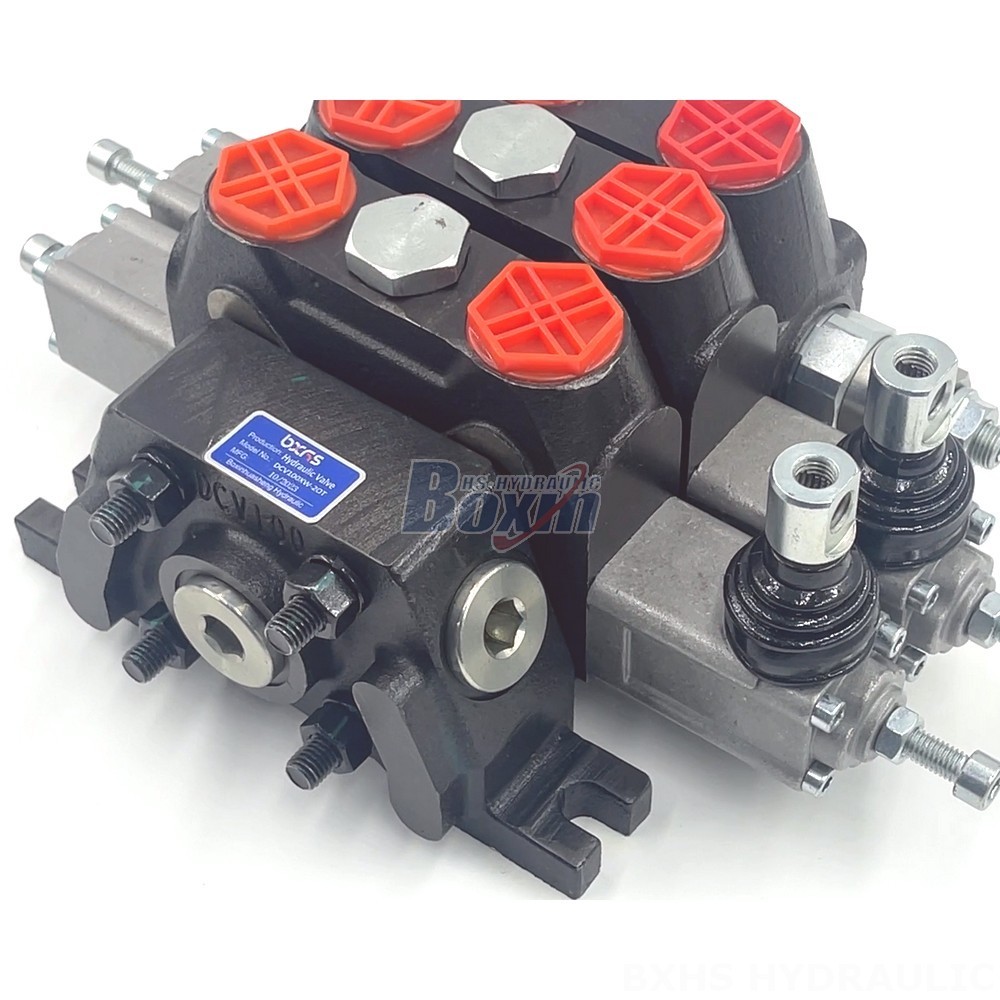

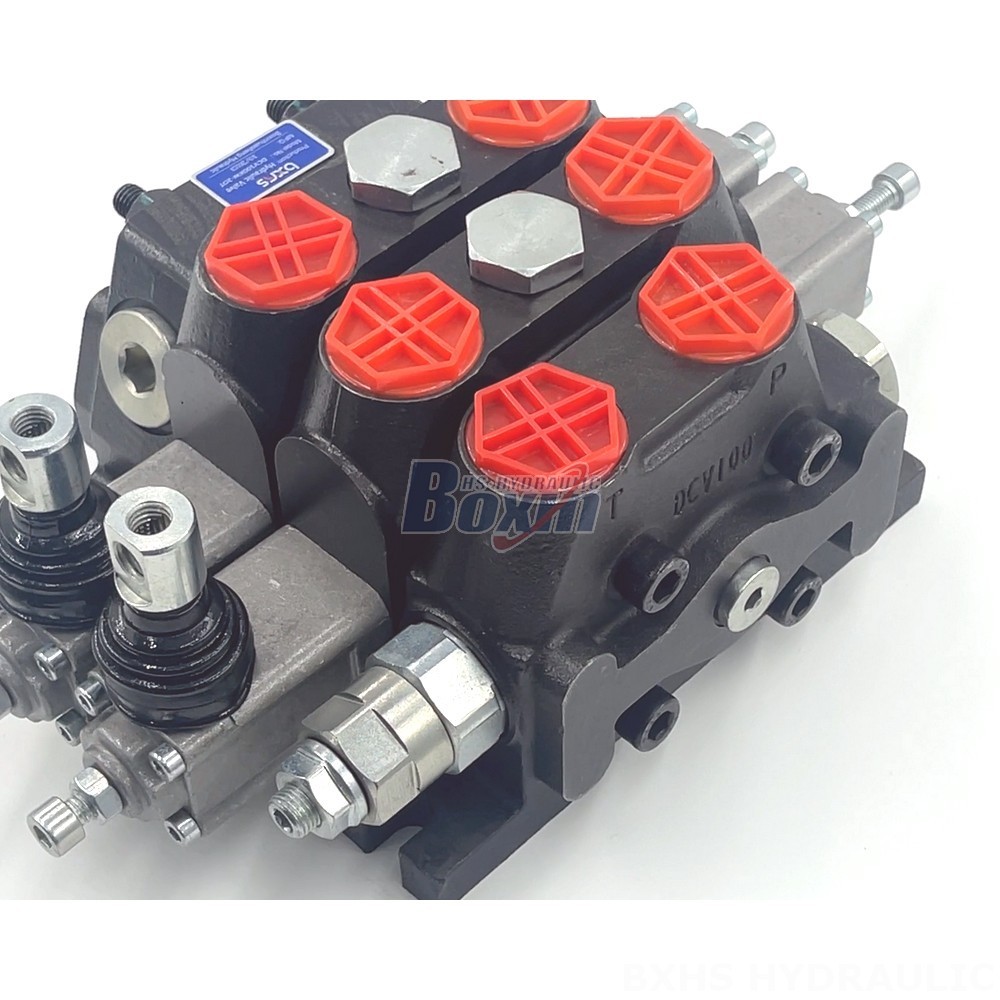

**DCV100 Directional Control Valve**
**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Sectional valve
**Rated Flow:** 100 L/min (26.5 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 2 Spool
**Series:** DCV100 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
