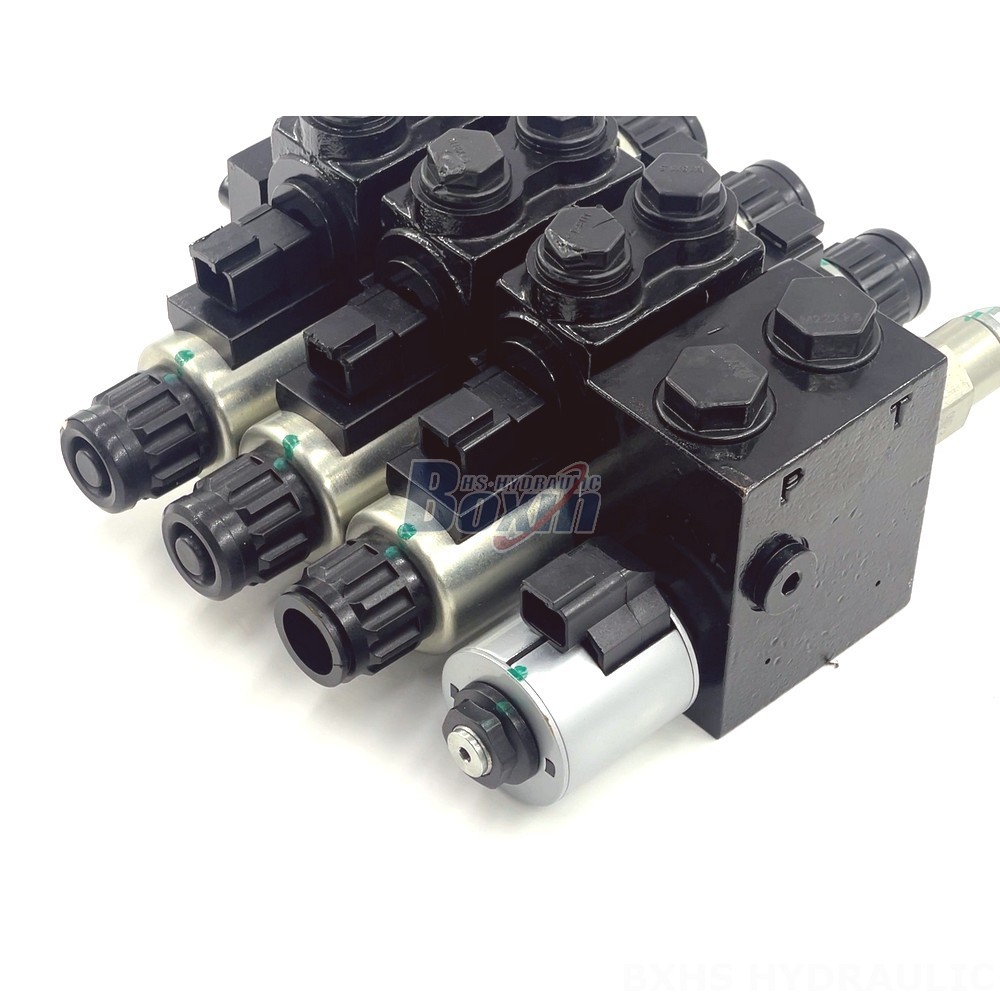

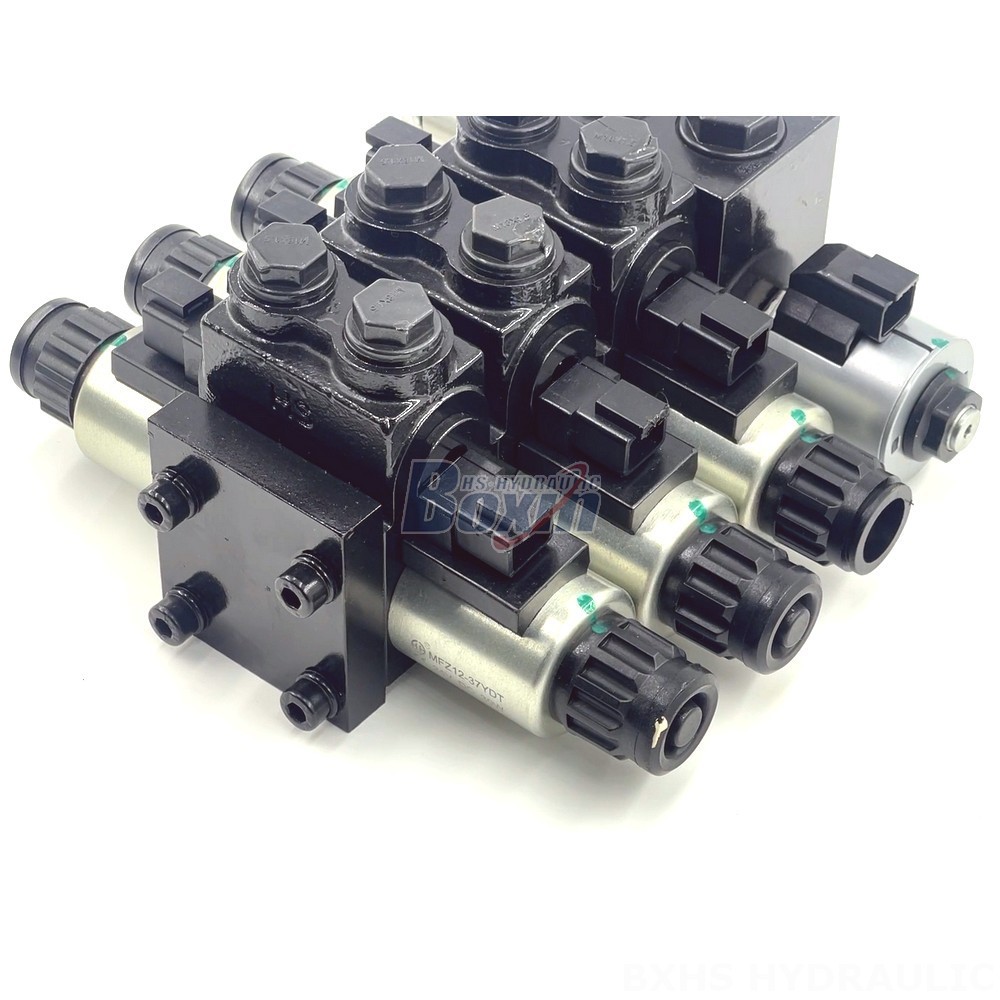

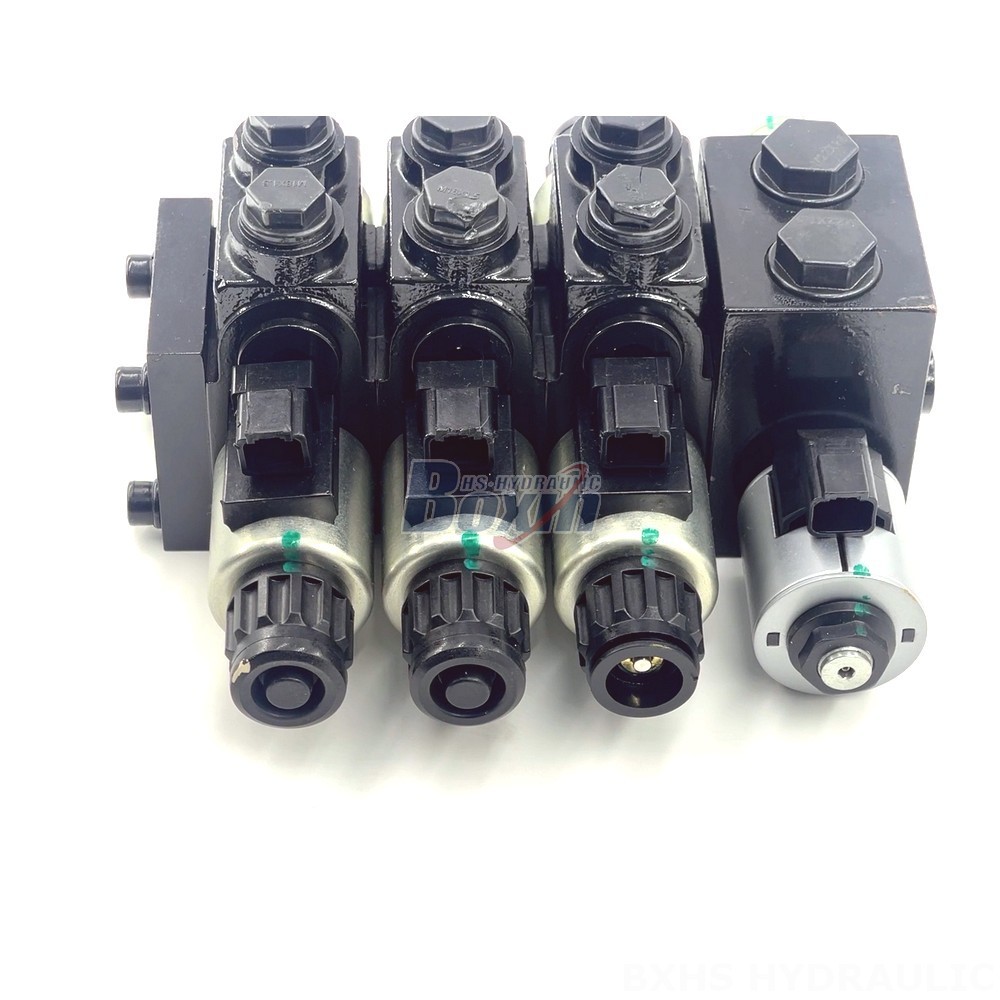

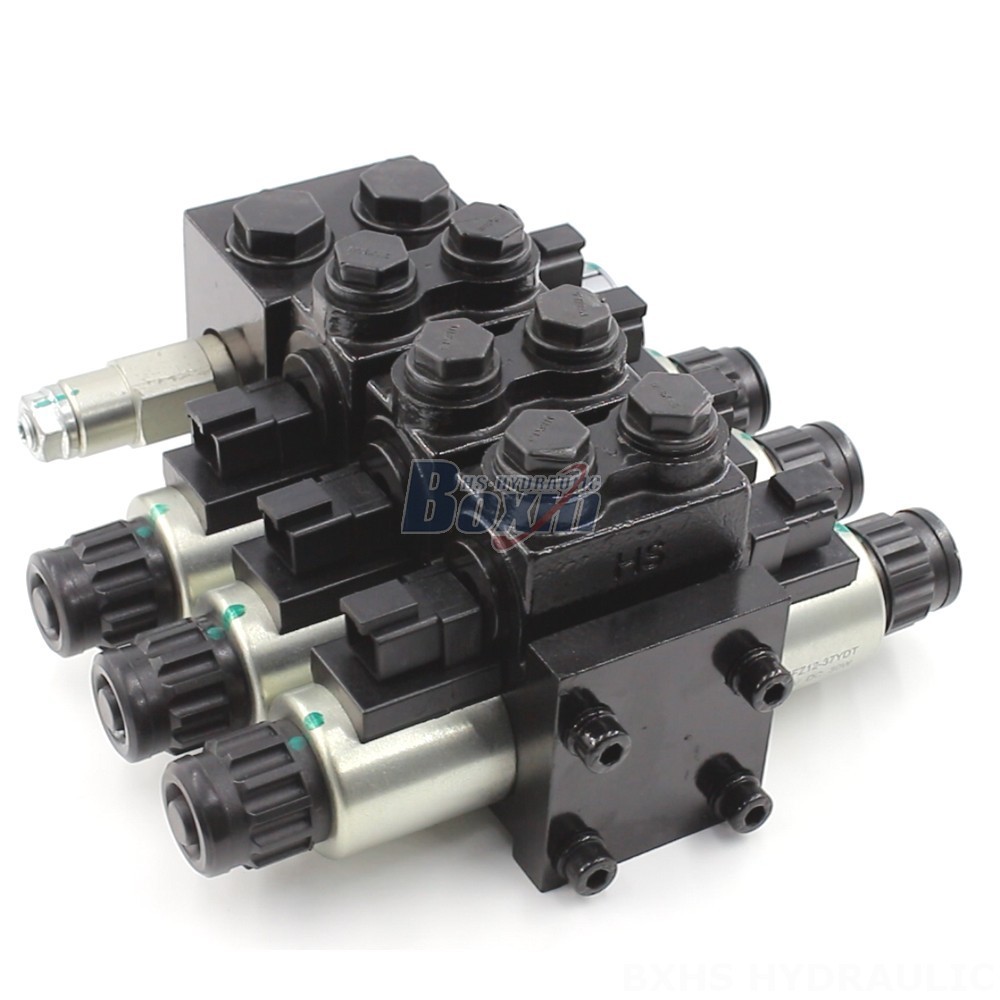

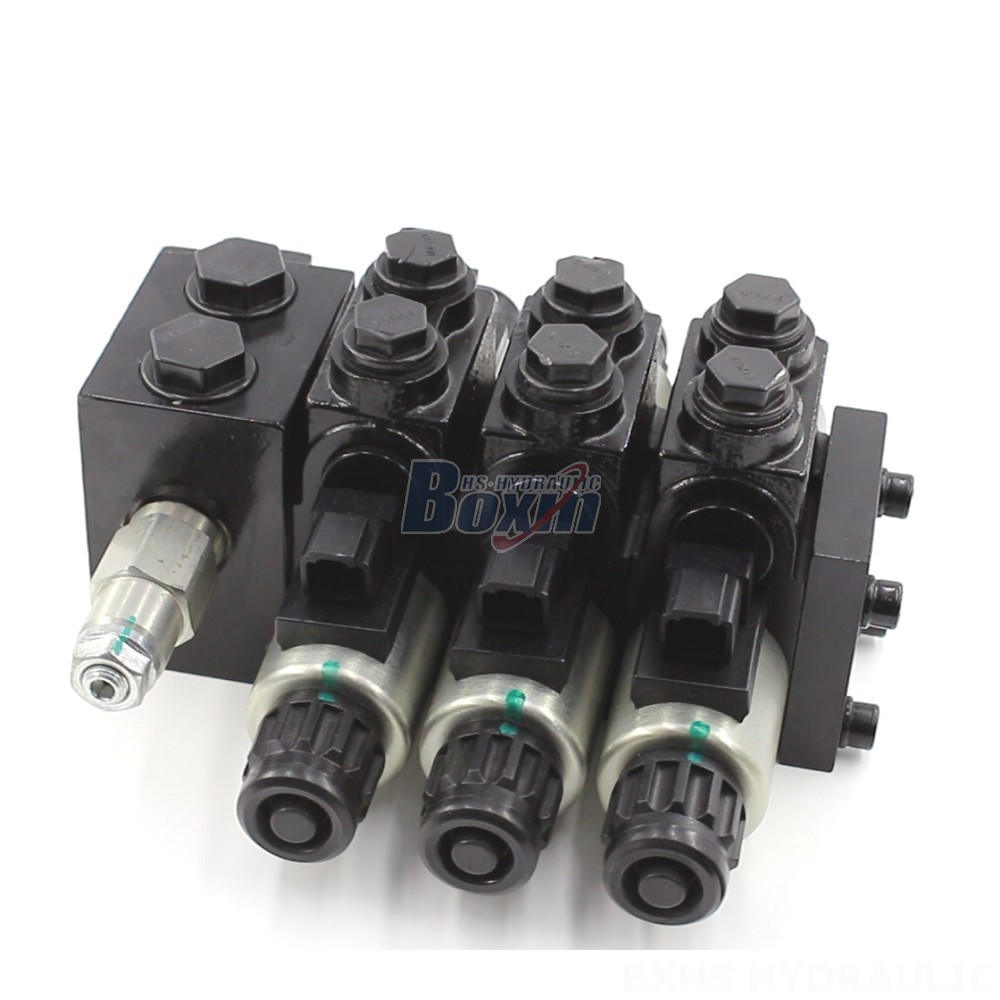

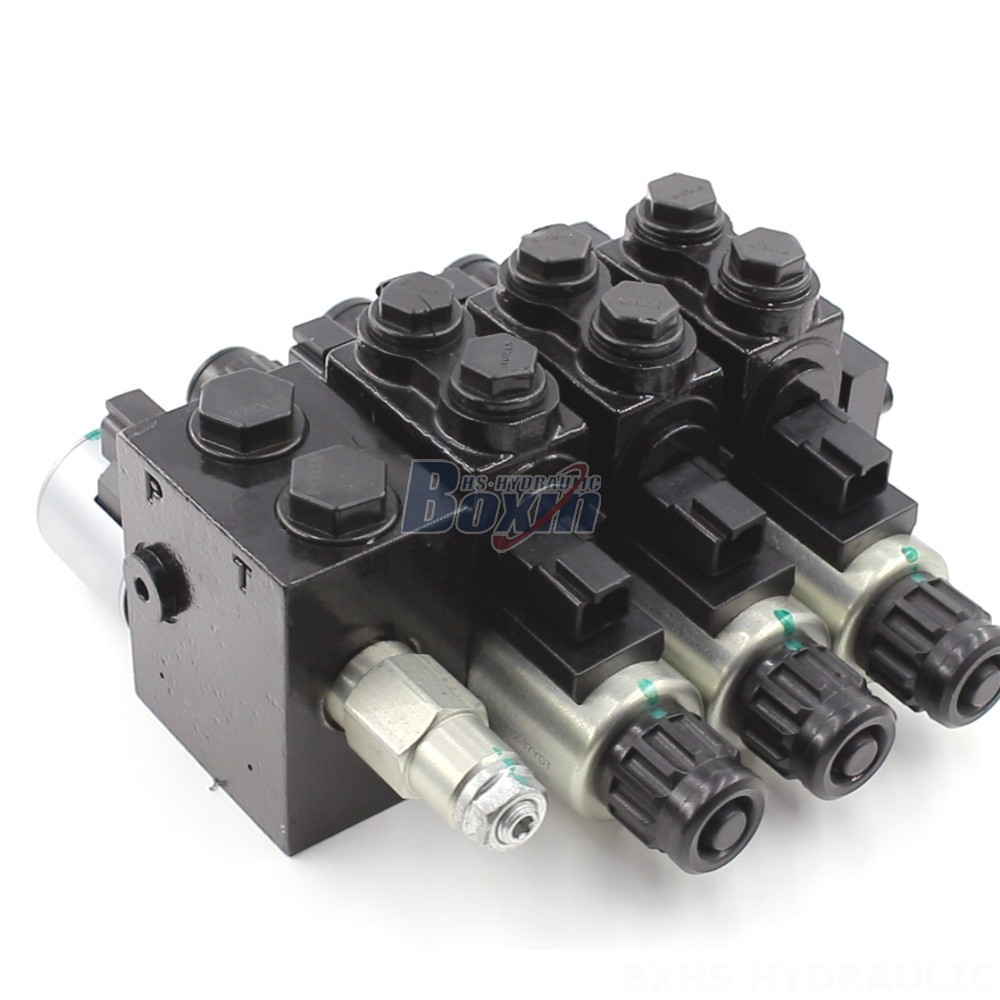

The HDCF50 series hydraulic block valve is a 3-section solenoid controlled valve designed for heavy-duty applications in construction, agriculture, and industrial vehicles. It offers a rated flow of 50 L/min and a maximum pressure of 160 bar, making it suitable for various equipment like forklifts, telehandlers, and excavators.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
This HDCF50 series hydraulic block valve is a reliable and durable solution for demanding applications. Featuring a 3-section design and solenoid control, it provides precise and efficient hydraulic control. With a rated flow of 50 L/min and a maximum pressure of 160 bar, it is suitable for a wide range of equipment in construction, agriculture, and industrial vehicles. Its compact size and robust construction make it ideal for tight spaces and demanding environments. The HDCF50 valve is available in 12V and 24V versions for compatibility with various electrical systems. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring reliable performance in diverse conditions.
