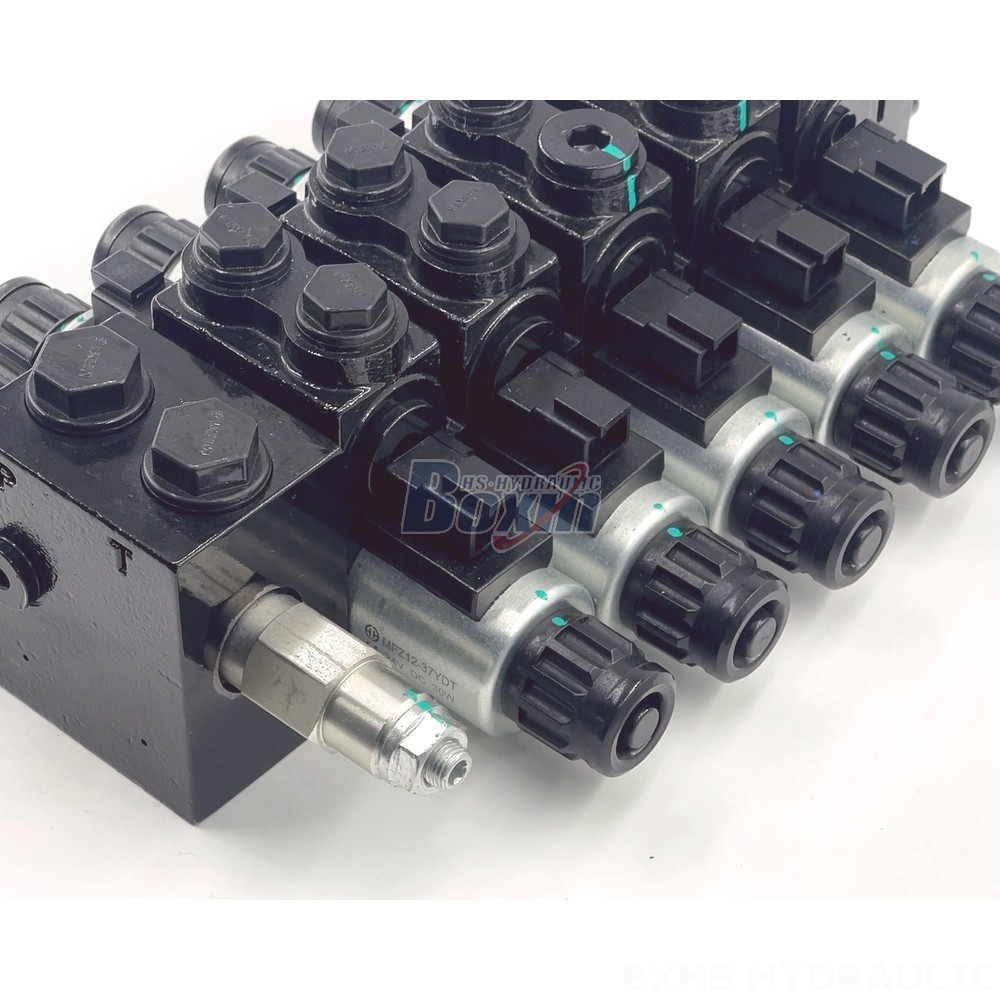

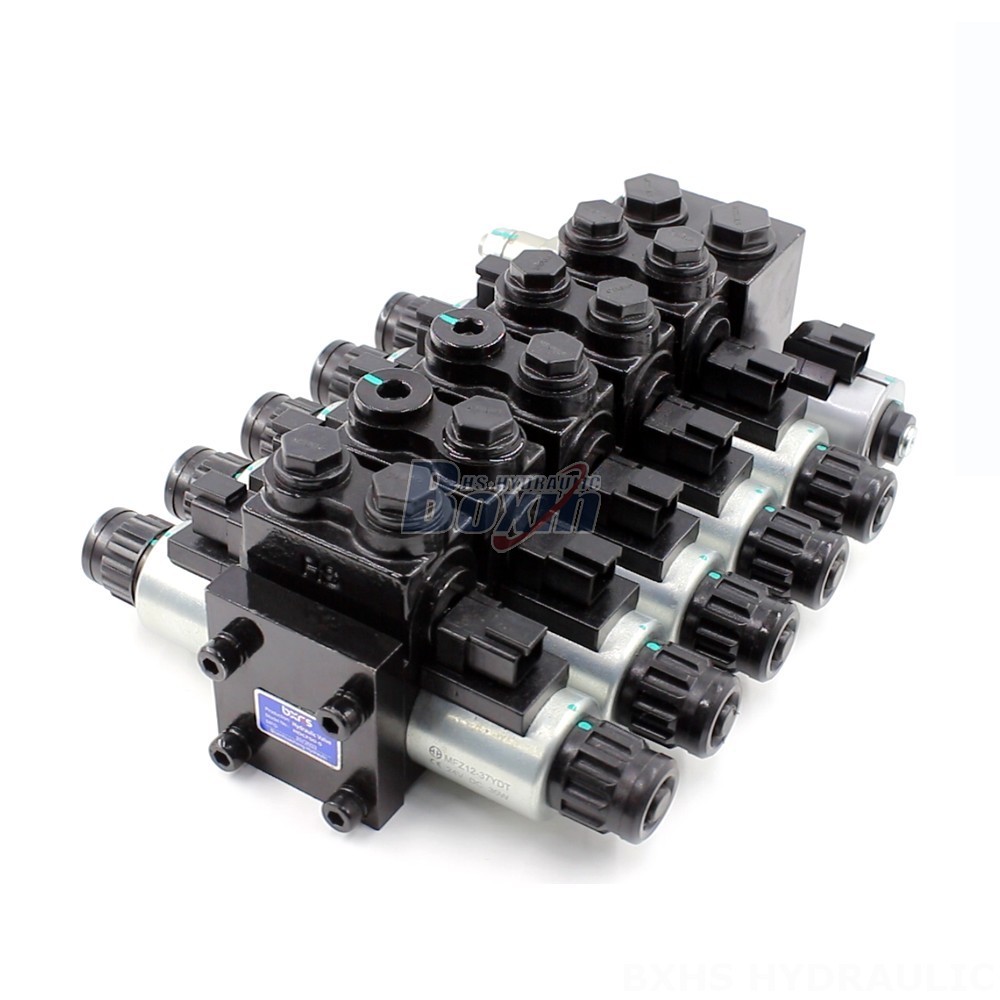

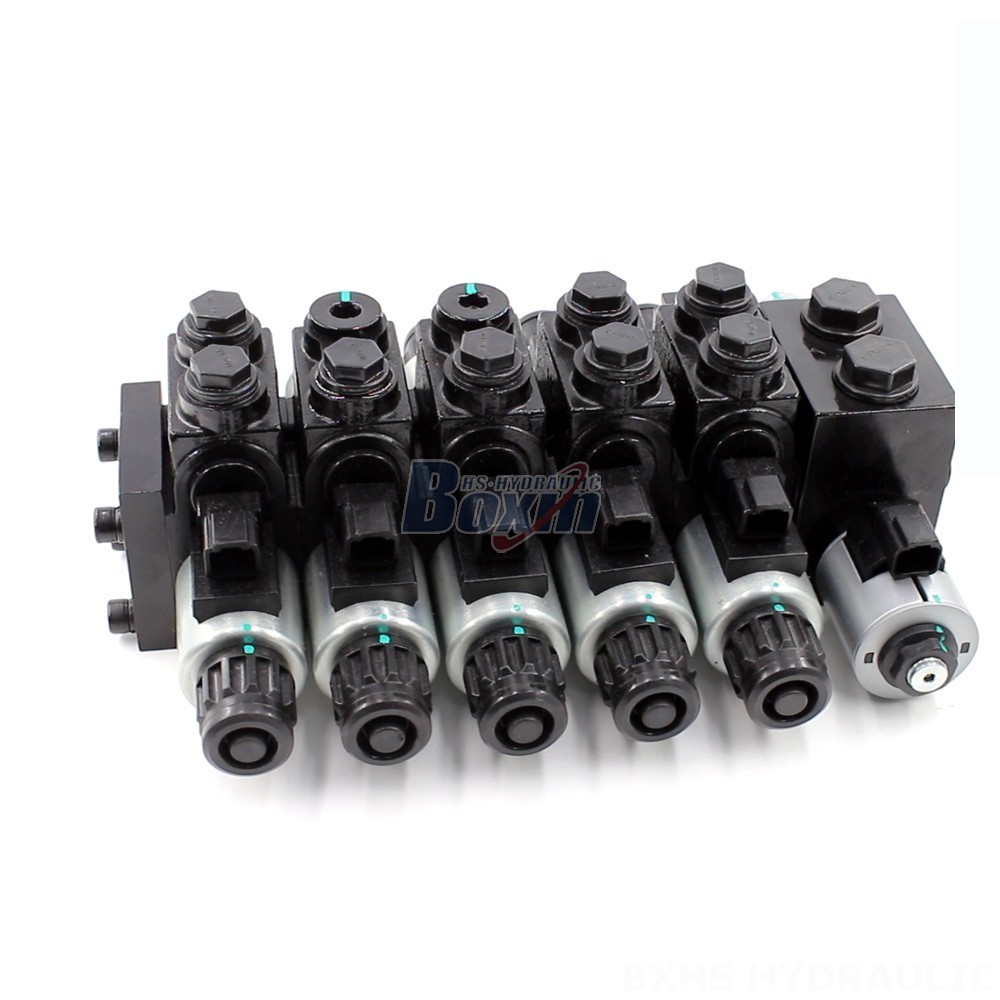

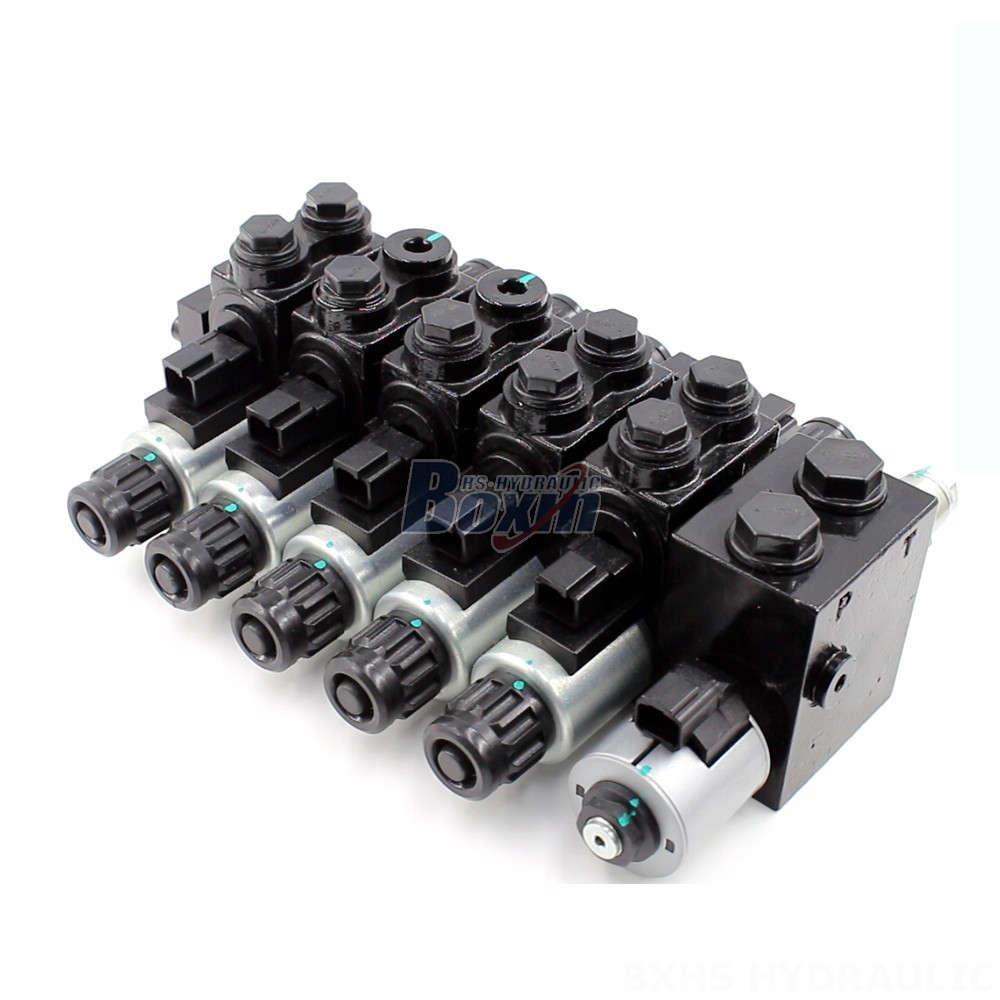

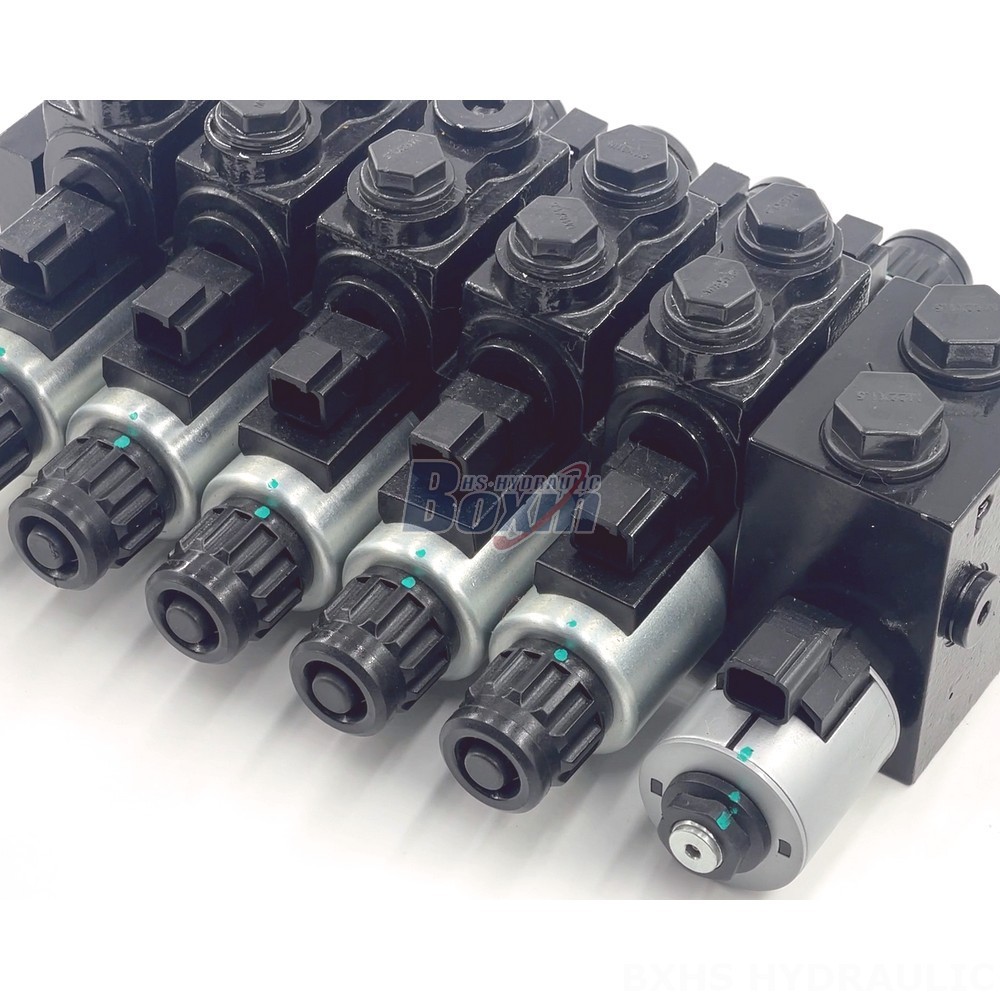

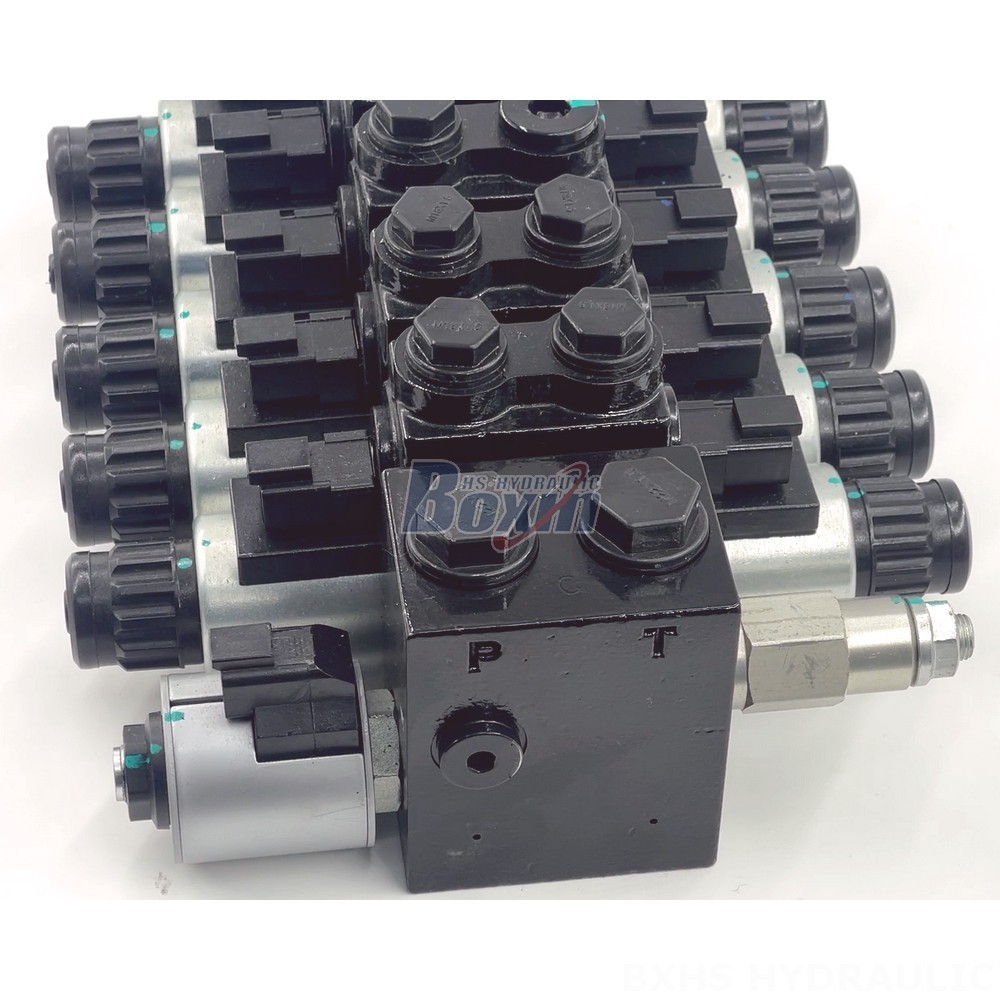

The HDCF50 Series is a 5-section, solenoid-operated directional control valve designed for demanding hydraulic applications in material handling, construction, agriculture, and industrial vehicles. This valve offers reliable performance, high flow rate, and robust construction, making it ideal for controlling various hydraulic actuators.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series is a 5-section, solenoid-operated directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure rating of 160 bar (2300 psi), this valve provides reliable and efficient control of hydraulic systems. The valve features a sectional construction, allowing for easy maintenance and repair. Its compact size and lightweight design make it suitable for various applications. The HDCF50 series is available in 12V and 24V configurations, ensuring compatibility with various power systems. The valve is designed for optimal performance in demanding environments, with an operating temperature range of -20°C to +80°C (-4°F to +176°F).
