Source Your P120 Directional Control Valves from a Trusted Manufacturer

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:120 L/min (31,7 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1

Port Keluar:G1

Ukuran Port:G1

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P120 Katup Arah Monoblok

Ukuran kemasan:30*39*17

Kelas kotor:19.00 kg

Ketersediaan: Tersedia

1110 Pandangan Mencari Produk Ini

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer

Source Your P120 Directional Control Valves from a Trusted Manufacturer drawing image

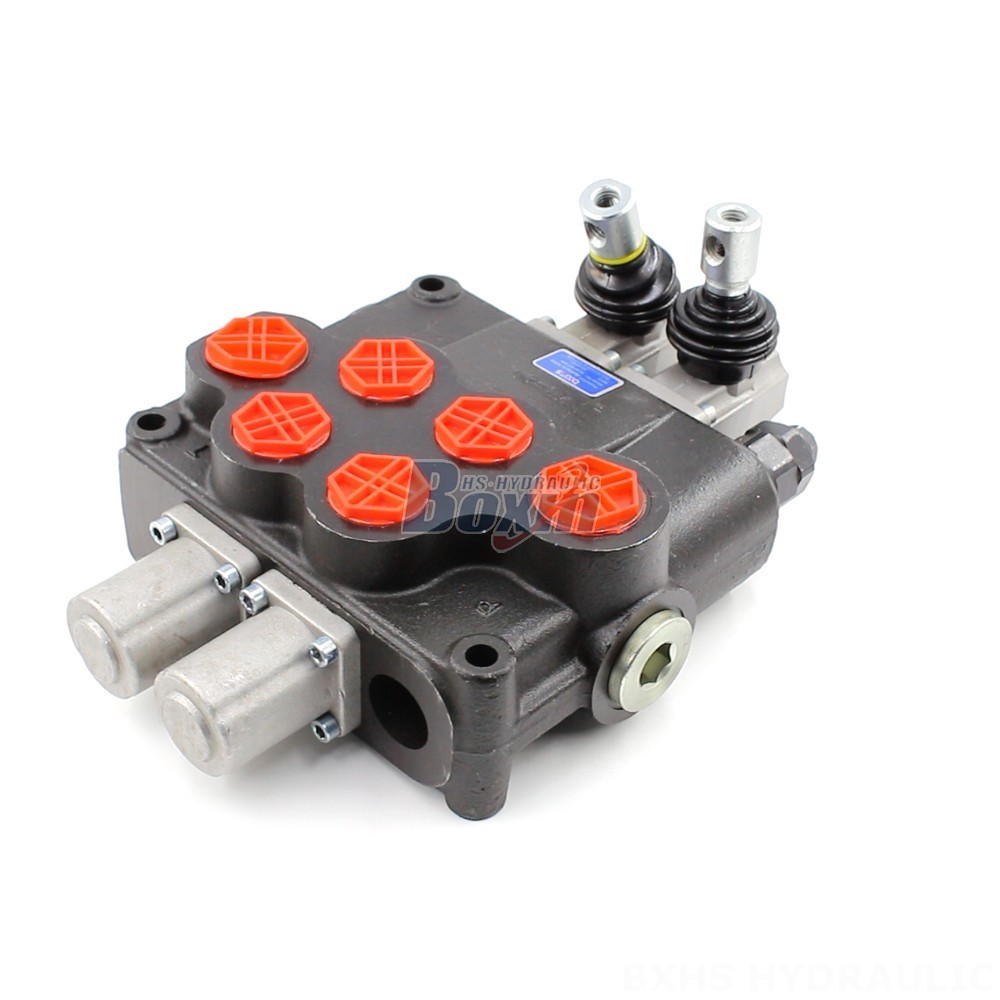

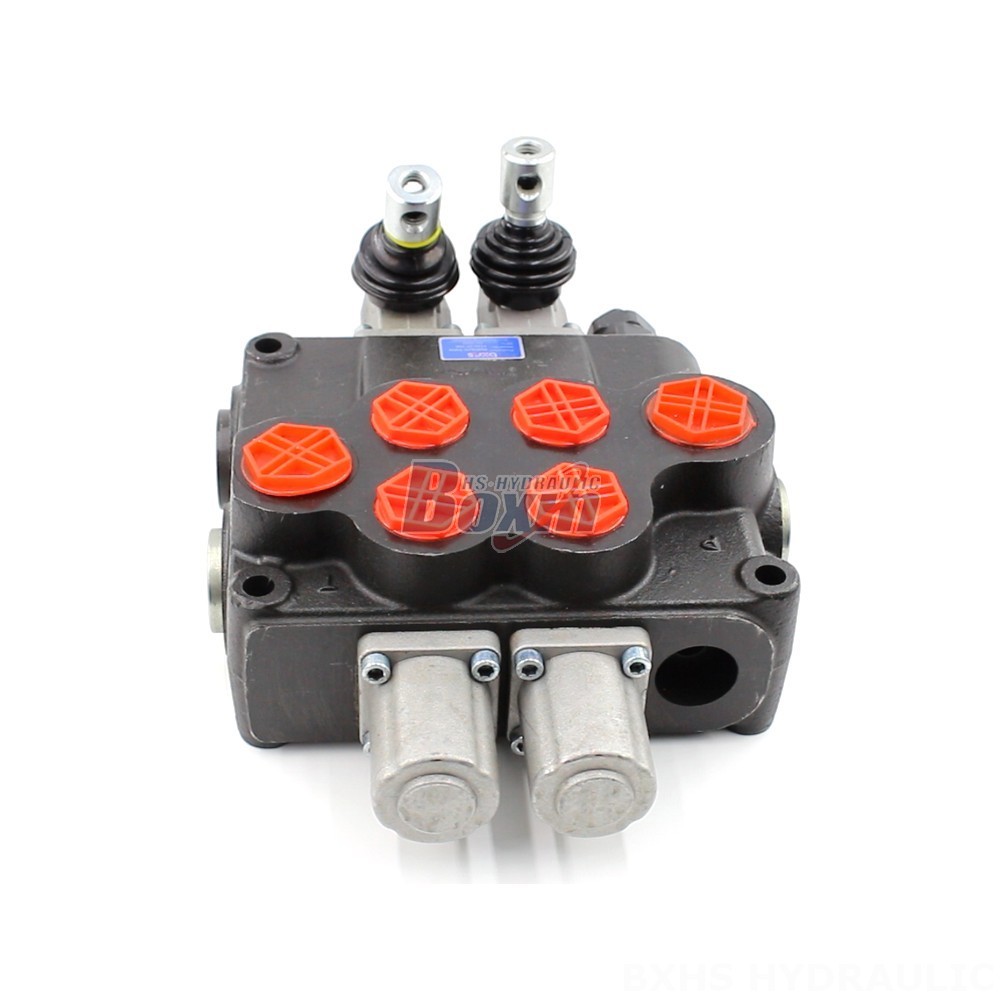

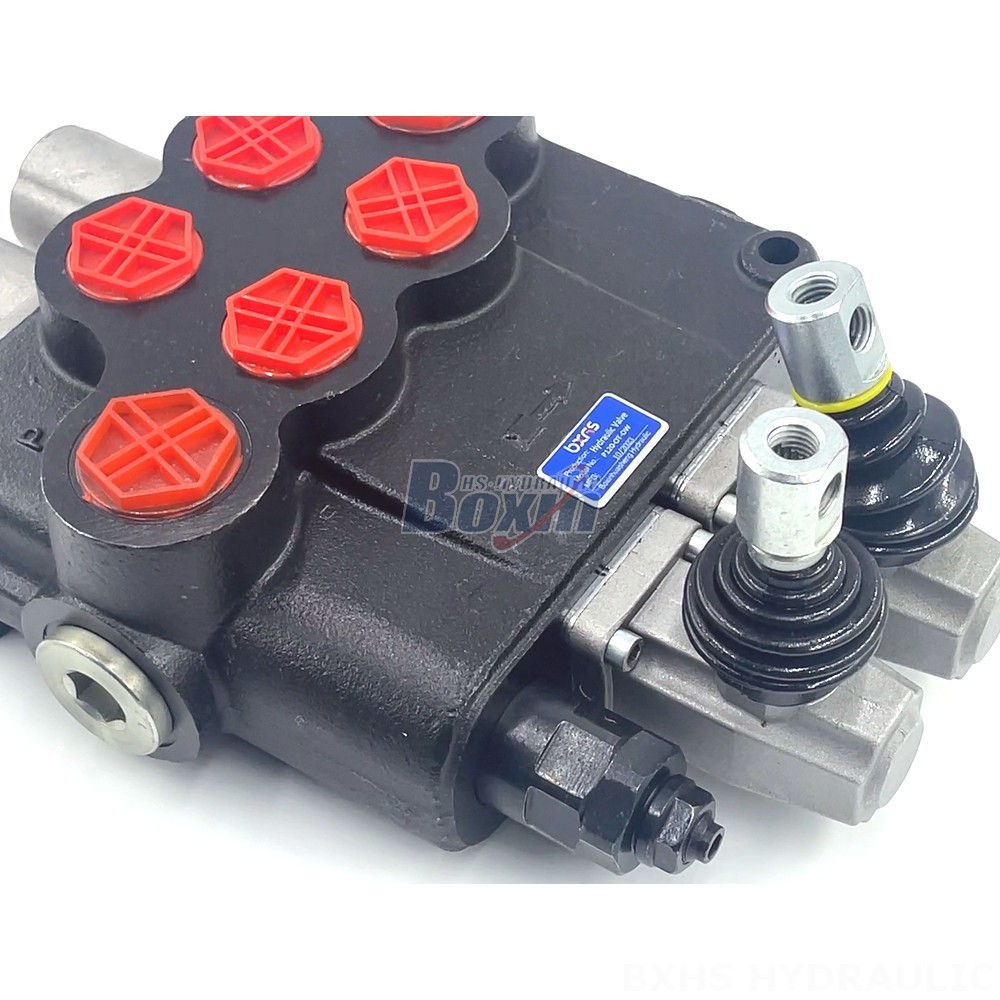

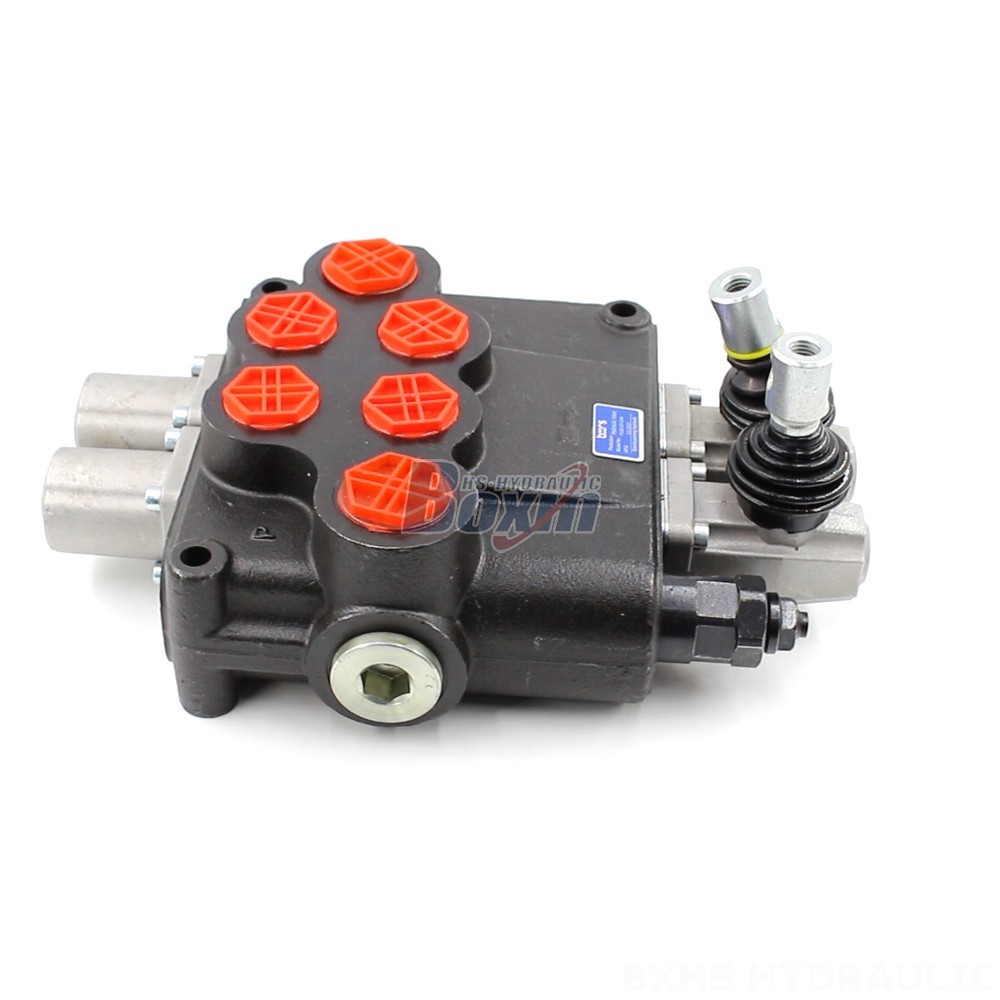

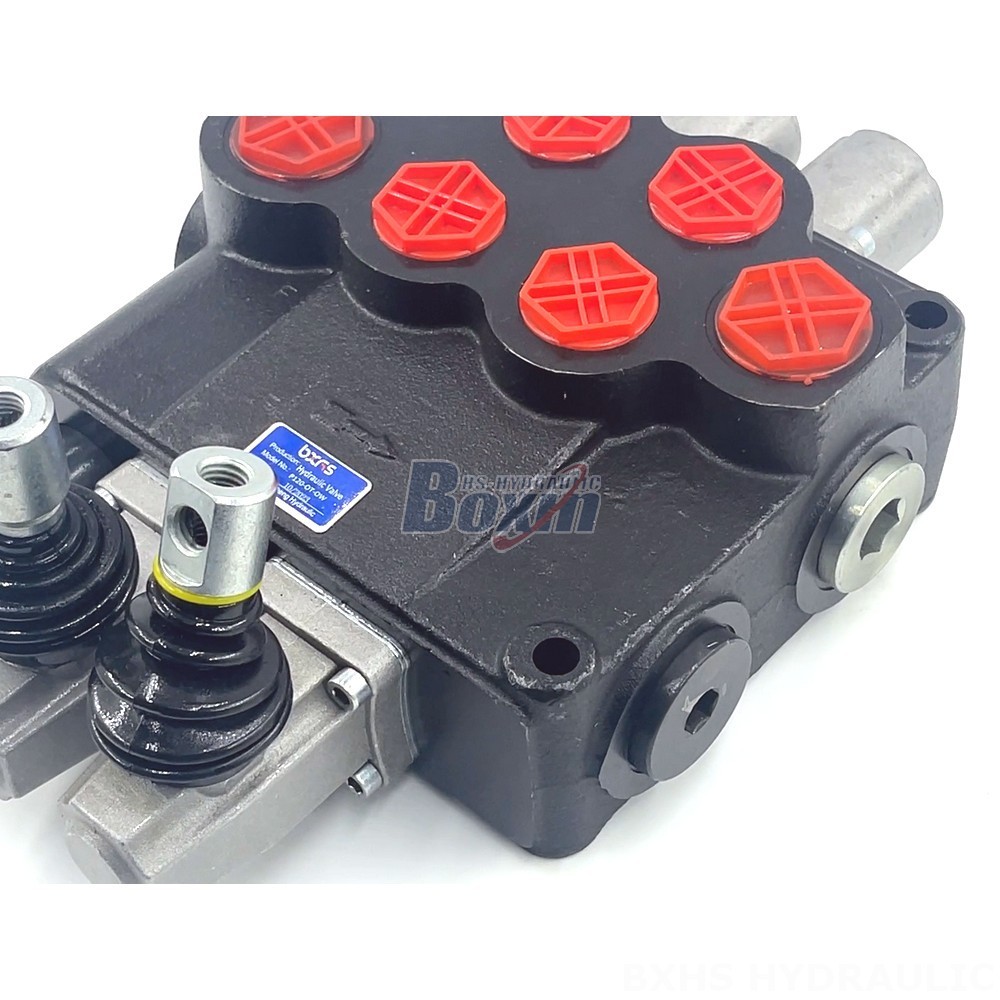

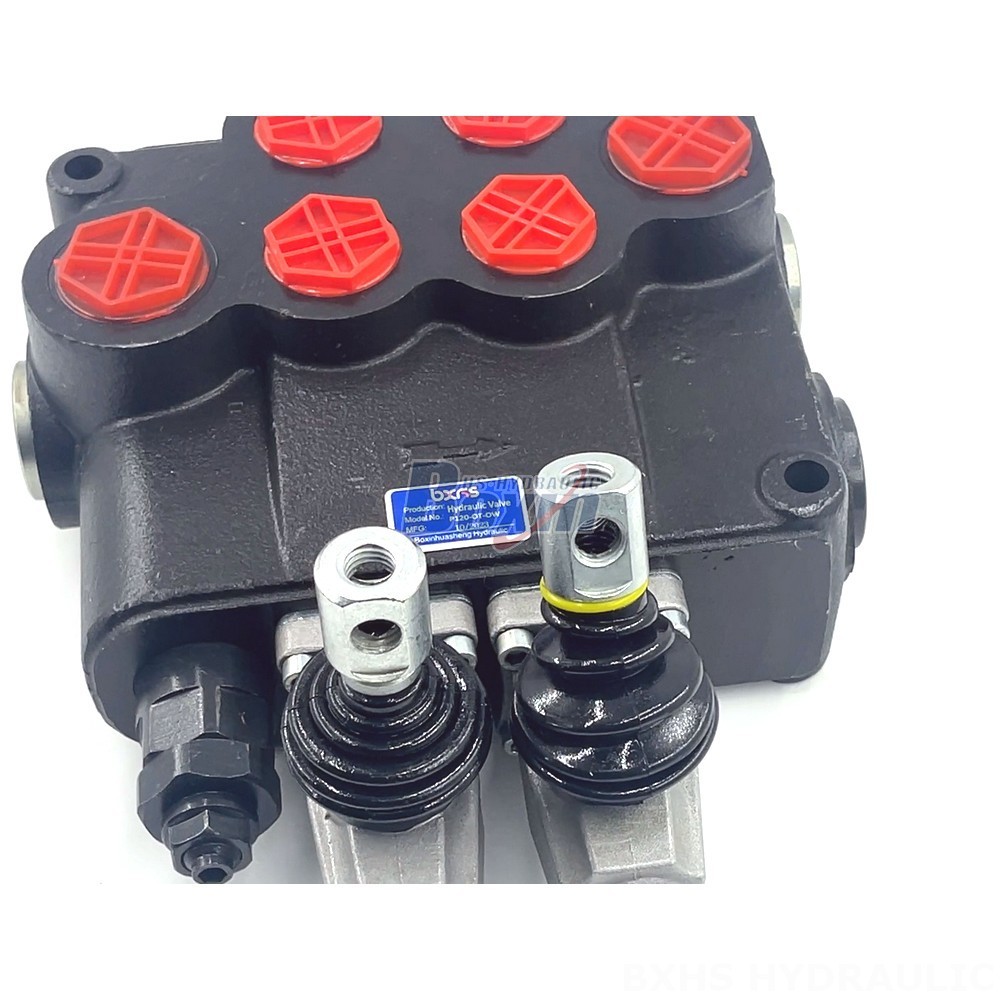

This P120 Series 12V Hydraulic Spool Valve is a 2-section, monoblock valve designed for directional control applications. It offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of machinery, including material handling, construction, agriculture, and industrial vehicles.

Seri P120 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool
Aliran Terukur 120 L/min (31,7 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Port Keluar G1, SAE 16, 1 NPT, M36×2
Ukuran Port G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

The P120 Series 12V Hydraulic Spool Valve is a reliable and durable solution for your directional control needs. This manual control valve features a 2-section, monoblock design with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosities from 15 to 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C. This valve is ideal for a variety of applications, including material handling equipment like telehandlers and forklifts, construction machinery such as all-terrain cranes and excavators, agricultural equipment, and industrial vehicles. With its robust construction and high performance, this P120 Series valve ensures reliable operation in demanding environments.
