Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1074 Pandangan Mencari Produk Ini

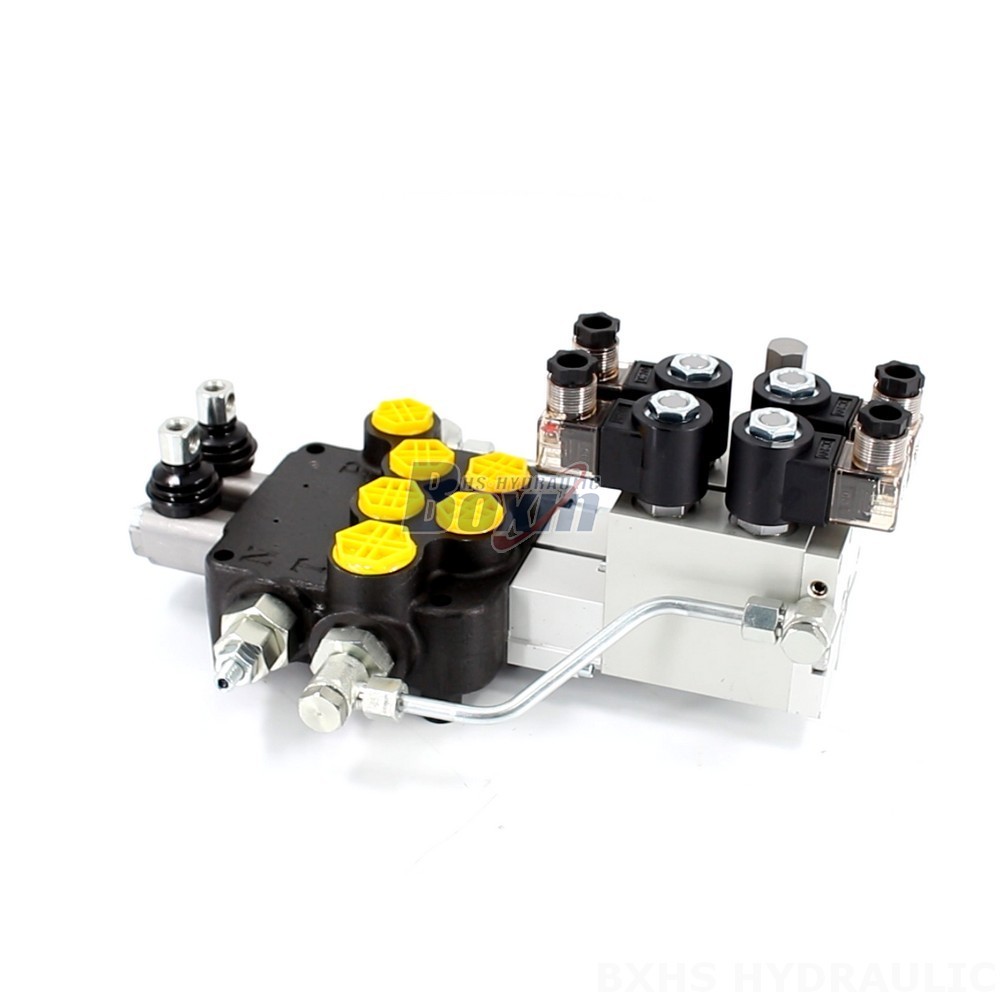

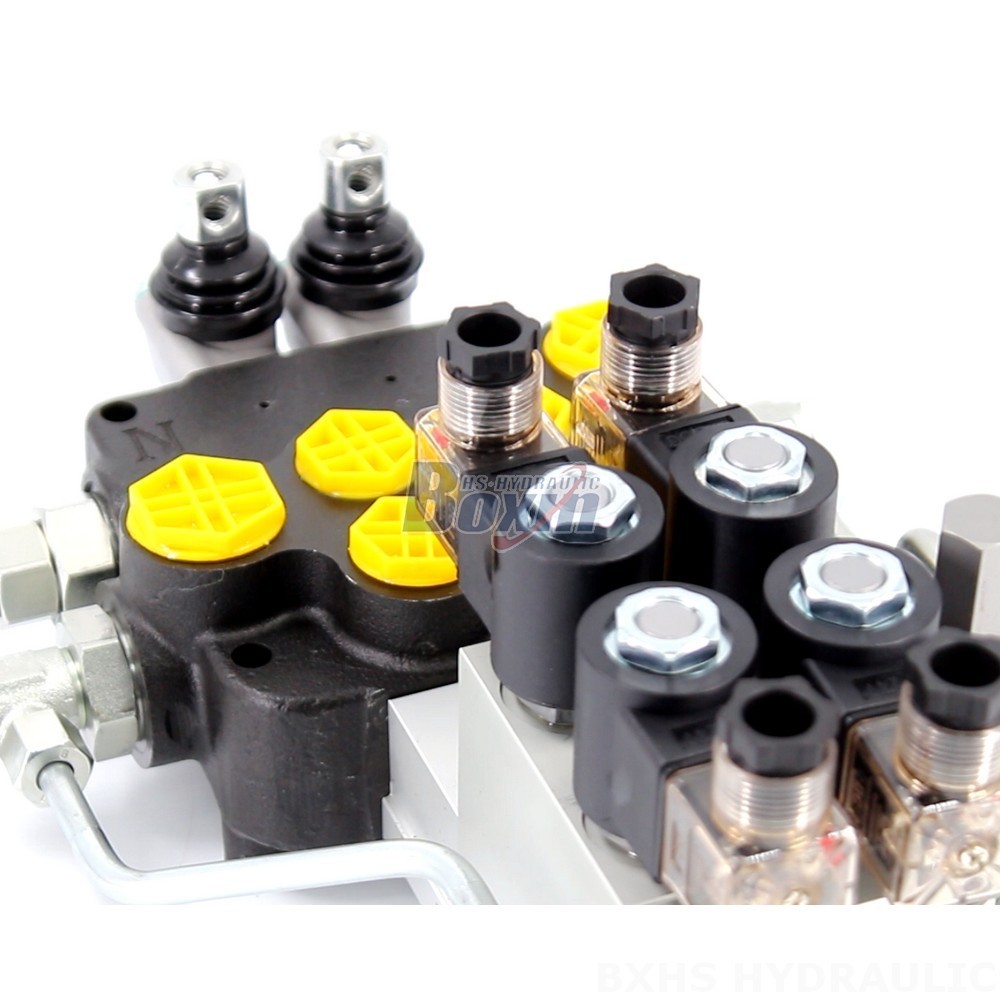

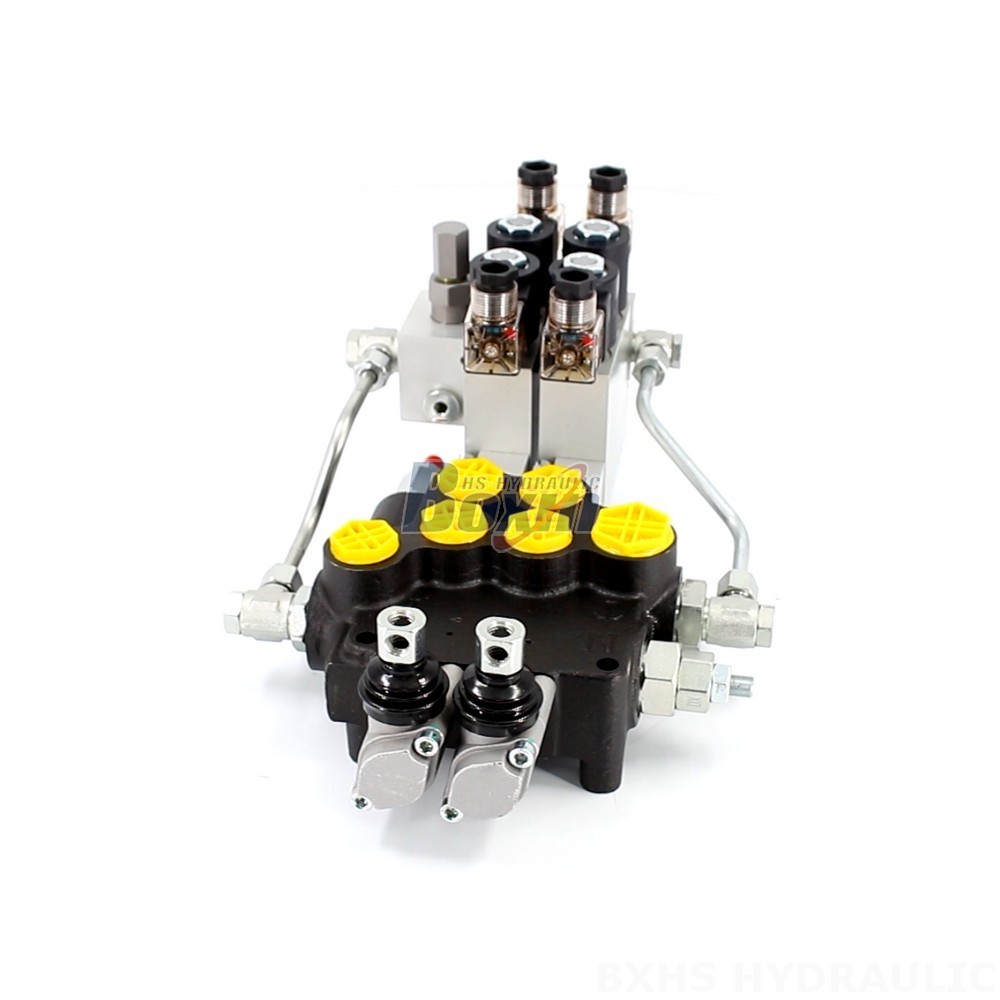

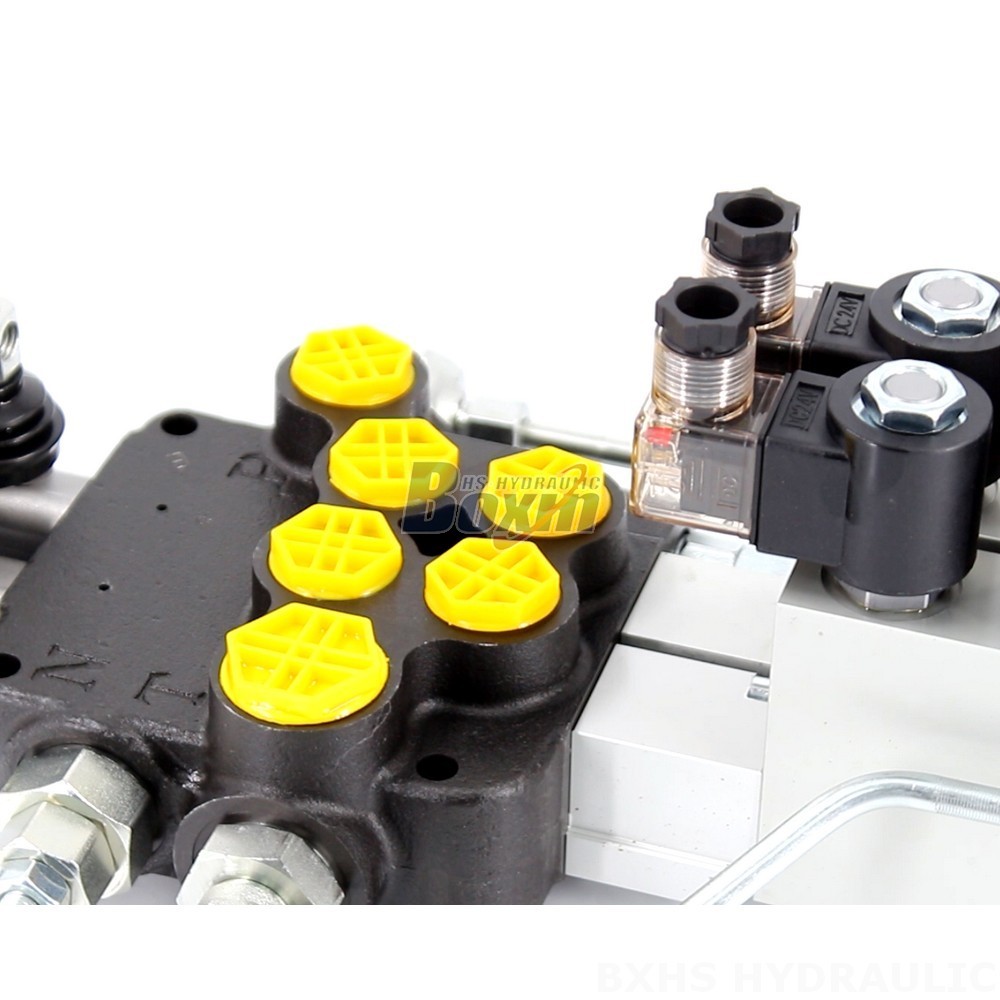

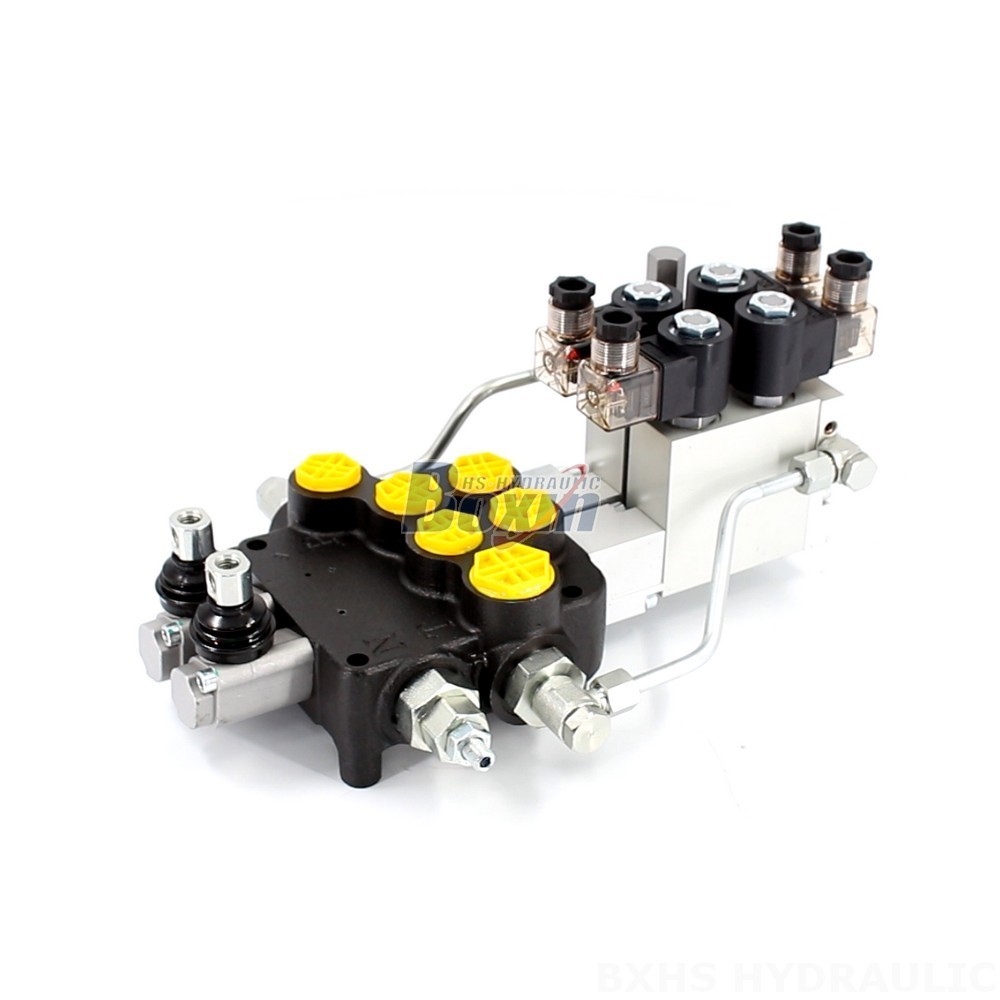

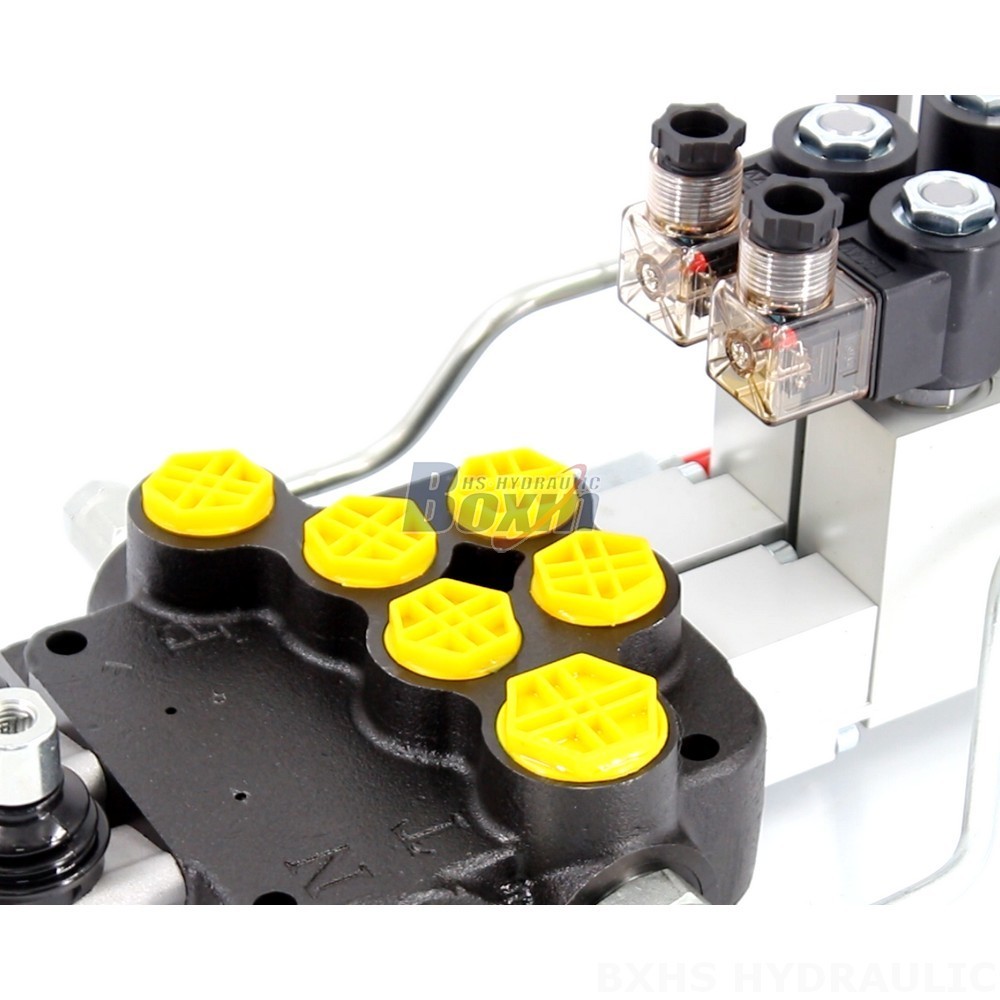

This 6 Way Hydraulic Valve is a reliable and durable electro-hydraulic directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve is ideal for demanding tasks.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series 6 Way Hydraulic Valve is a high-performance electro-hydraulic directional control valve with a 2-section monoblock structure. It is designed for heavy-duty applications and features a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is suitable for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, telehandlers, midi-excavators, mini-excavators, and skid steer loaders. The valve offers reliable operation in a wide range of temperatures and operating viscosities, making it a versatile and robust solution for hydraulic systems.
