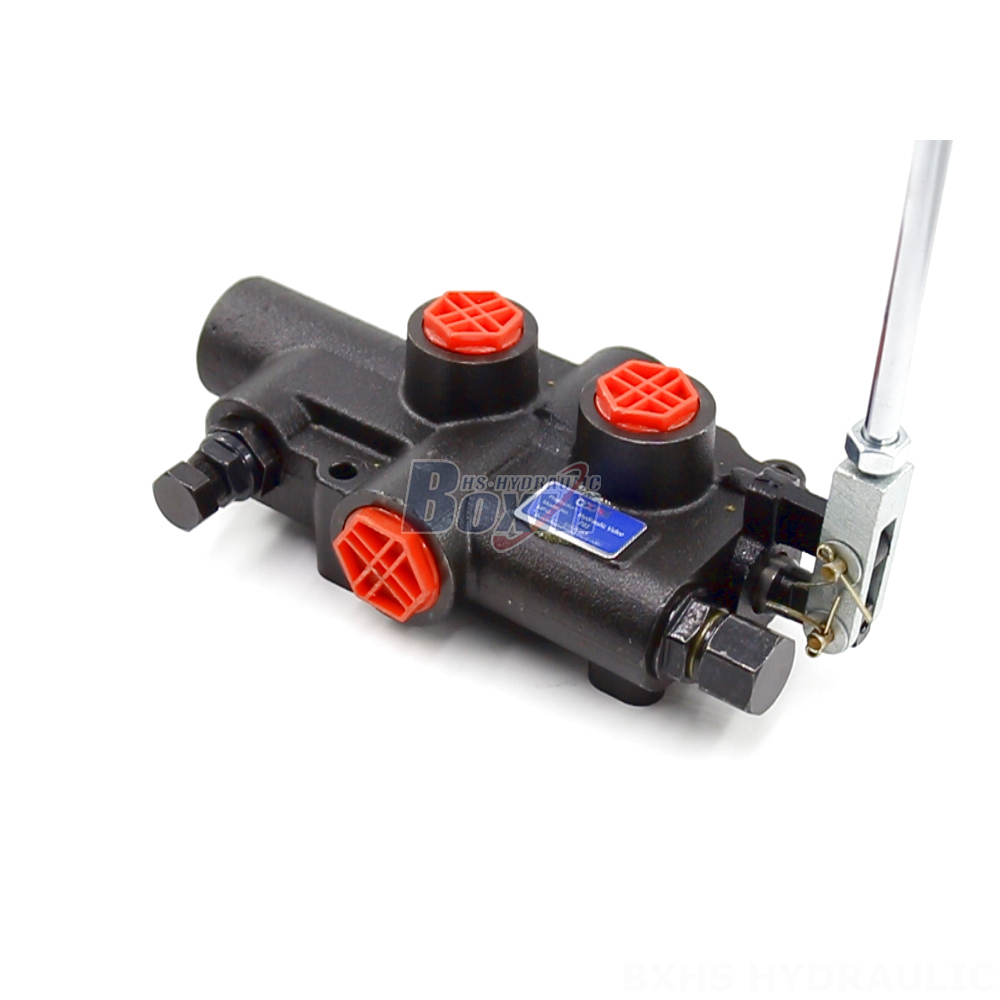

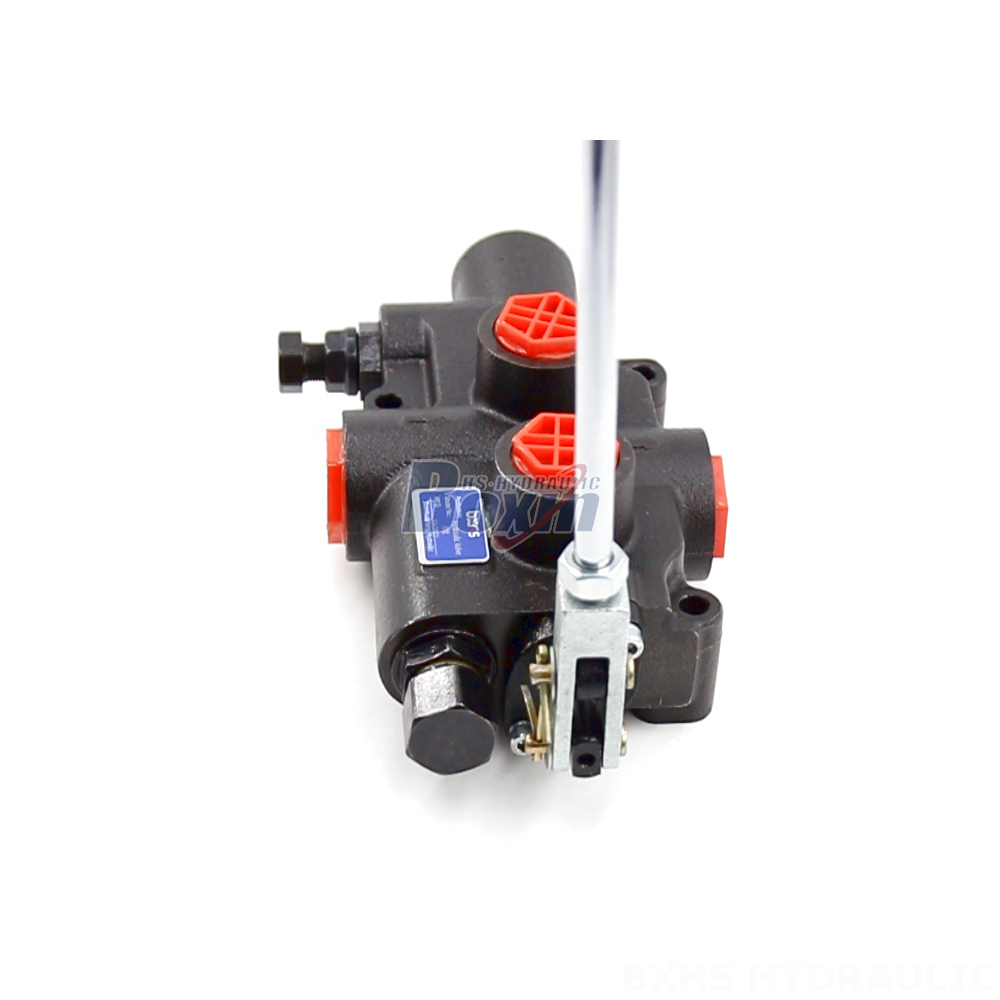

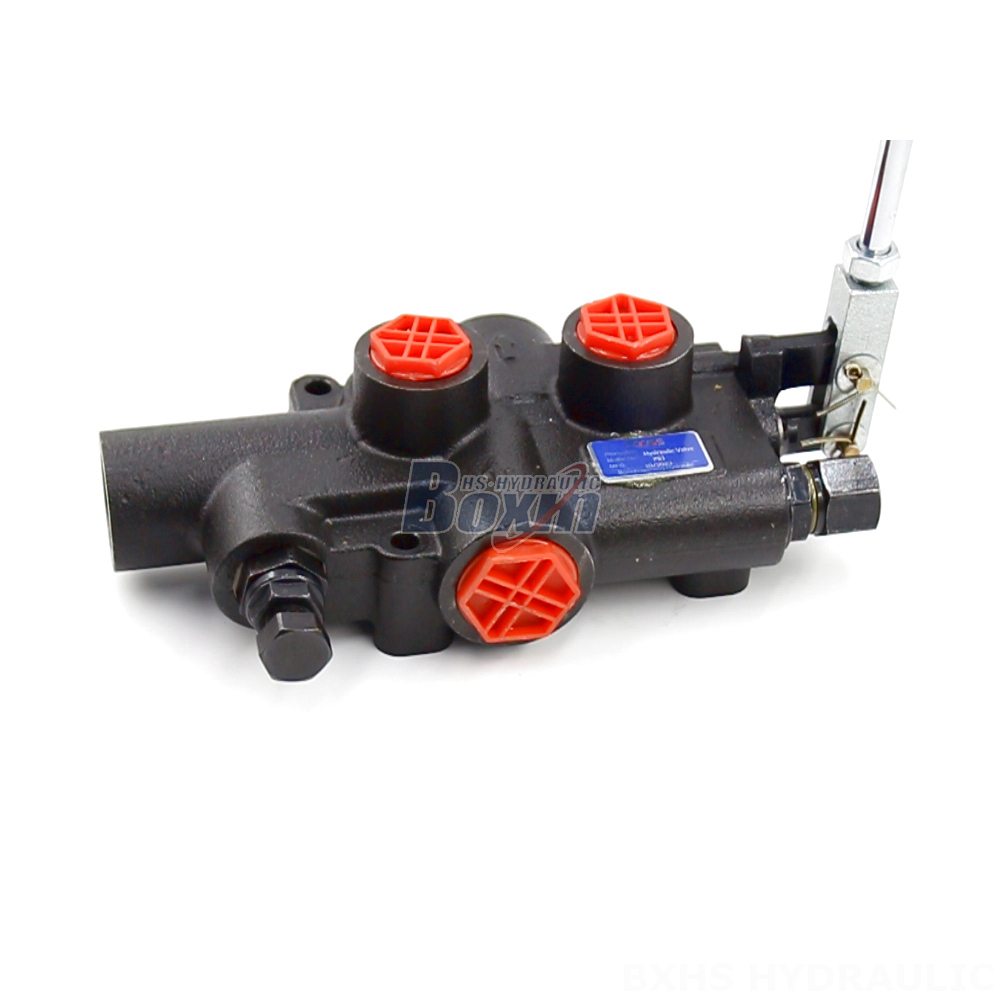

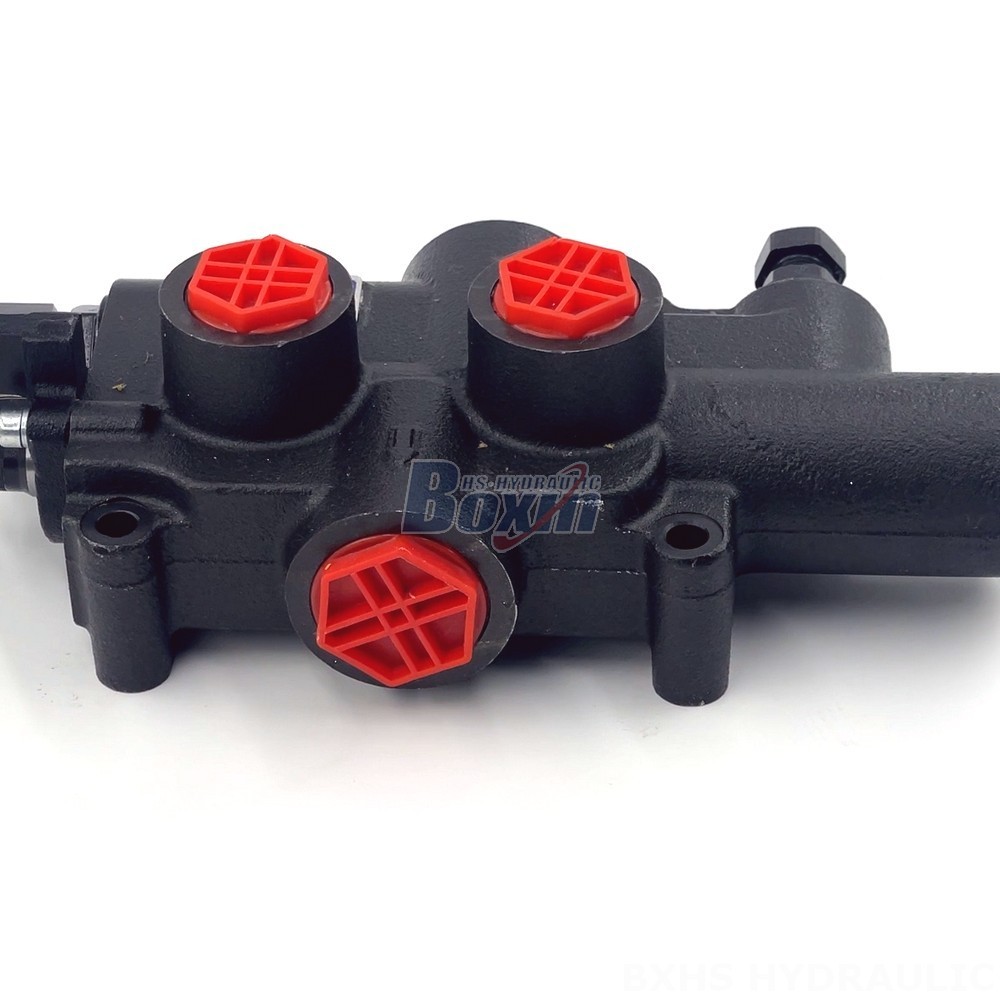

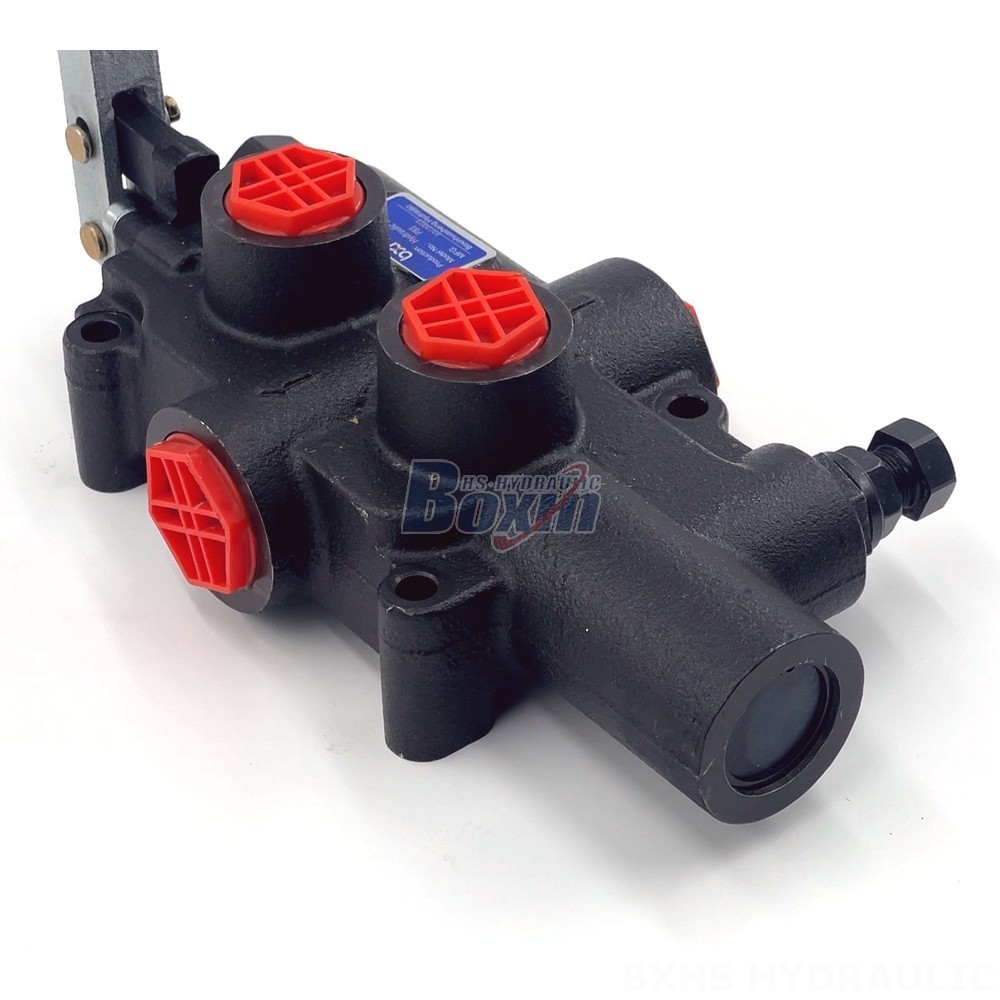

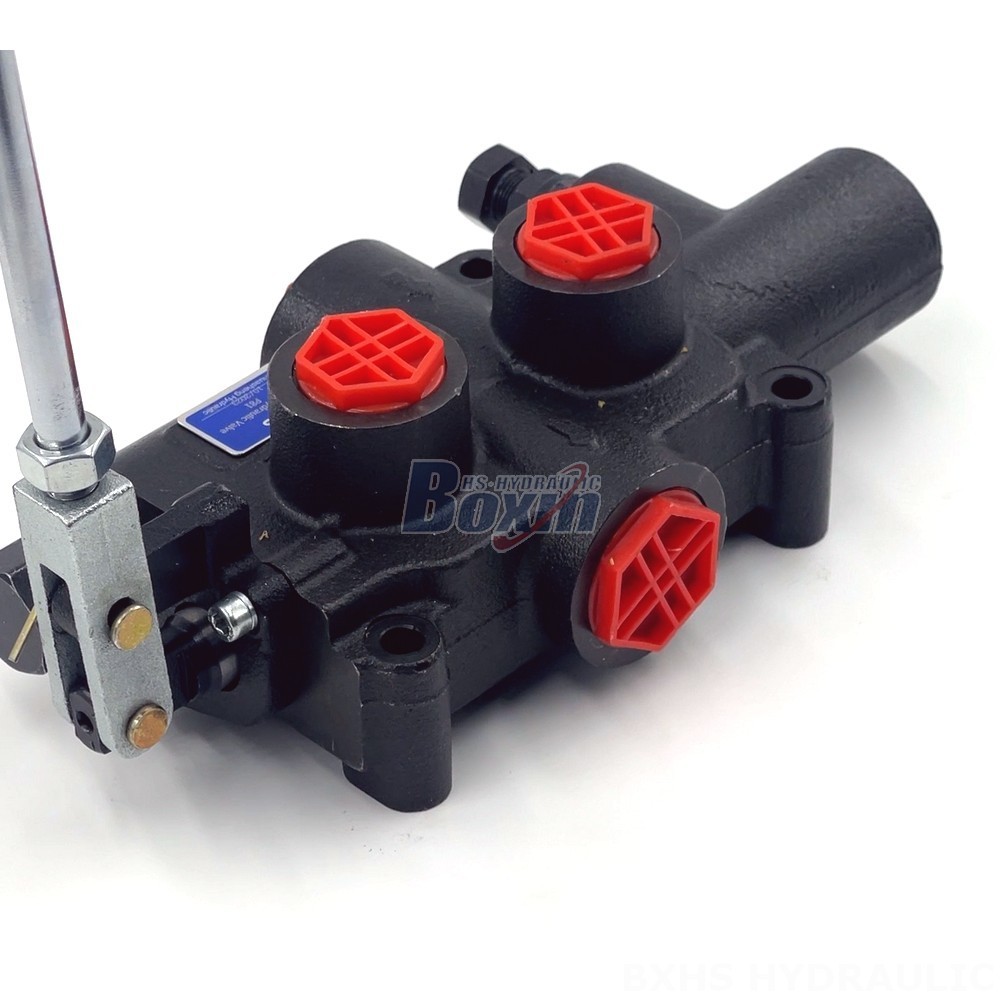

The P81 Series Hydraulic Control Valve is a high-performance, manual joystick-controlled valve designed specifically for log splitter applications. It features a monoblock construction for durability, high flow rate (80 L/min), and high pressure rating (250 bar), making it suitable for demanding industrial applications.
| Seri P81 Katup Pembelah Kayu Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan |
| Spul | 1 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm), 95 L/menit (25,1 US gpm) |
| Tekanan Maksimum | Tekanan Maksimum |
| Port Masuk | G1/2 |
| Port Keluar | G1/2 |
| Ukuran Port | G3/4 |
The P81 Series Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic log splitters. It is a single-section, monoblock valve with a single spool and manual joystick control. The valve offers a high flow rate of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). Its kick-out setting pressure is adjustable between 70 and 140 bar (1015-2030 psi) for precise operation. The valve is designed for demanding industrial applications and operates reliably within a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F). It is compatible with a wide range of hydraulic fluids with operating viscosity ranging from 15 to 75 mm²/s (15 cSt to 75 cSt). The P81 Series Hydraulic Control Valve is a high-quality, durable, and easy-to-operate solution that provides reliable control for log splitting operations.
