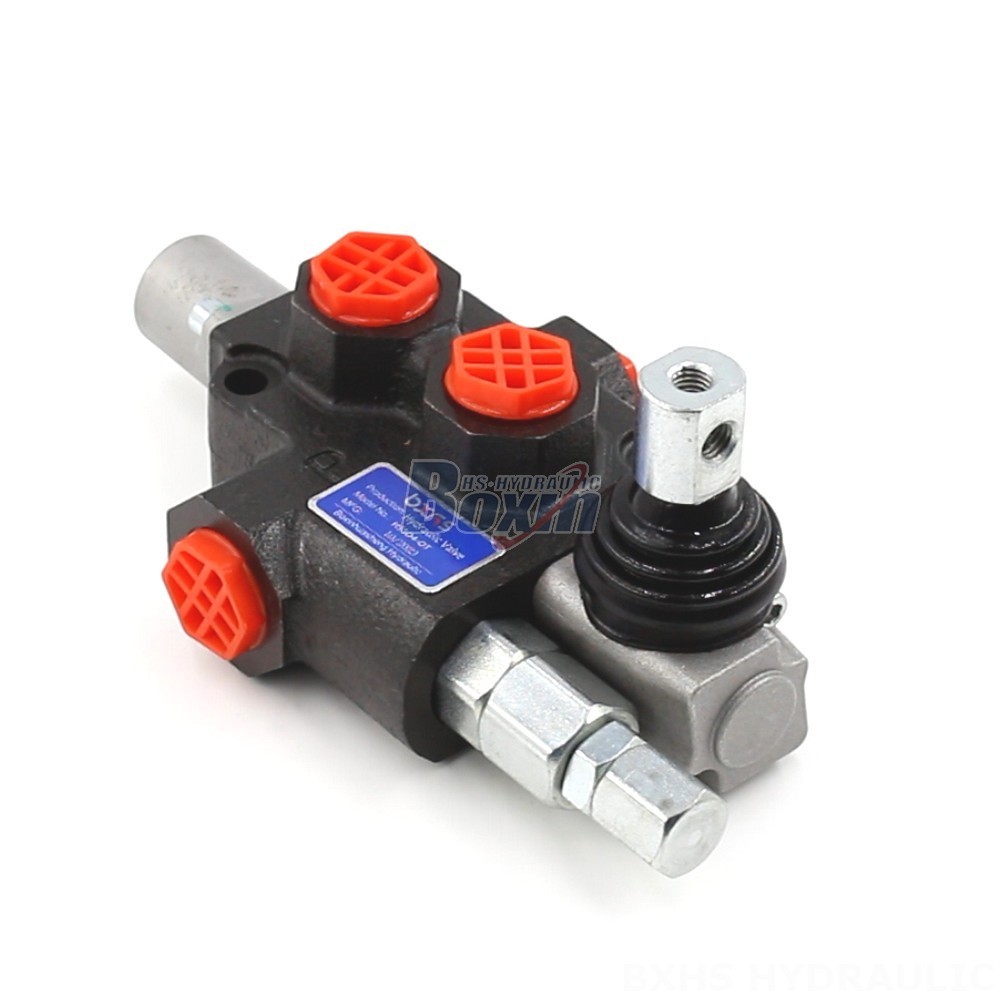

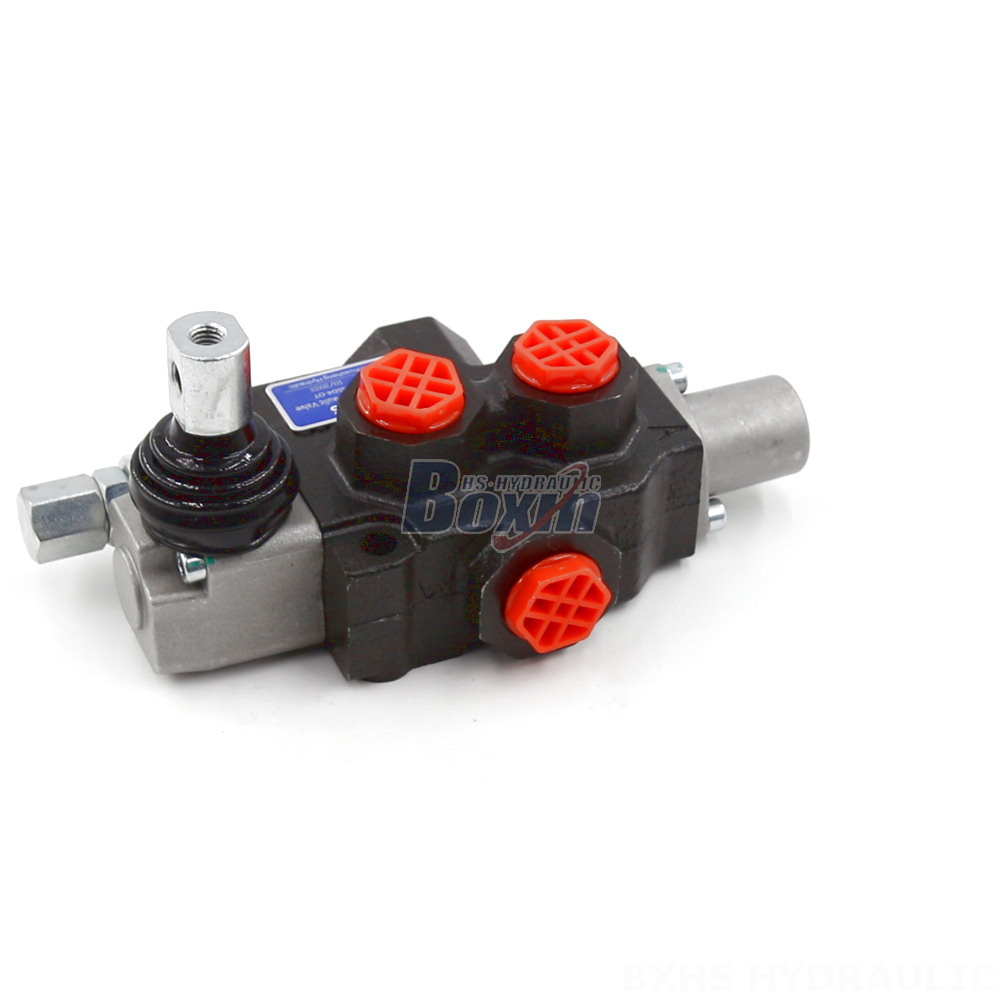

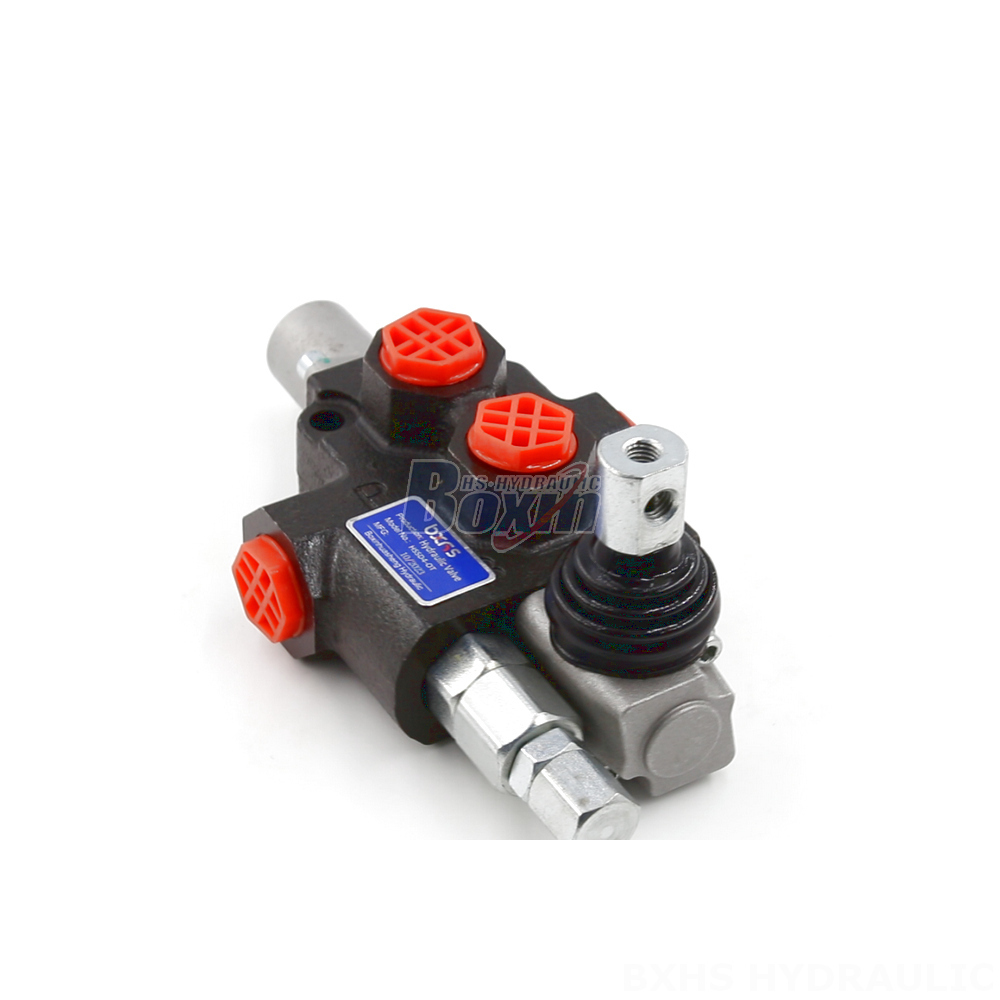

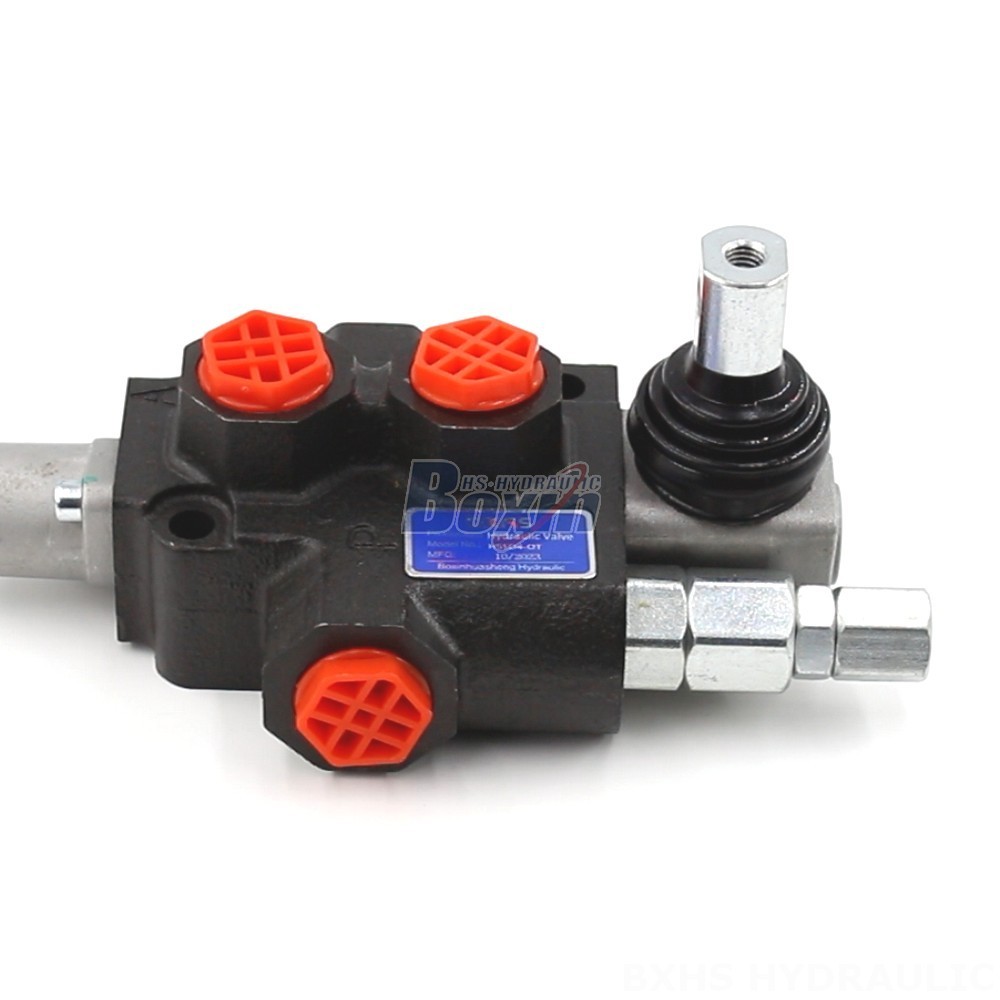

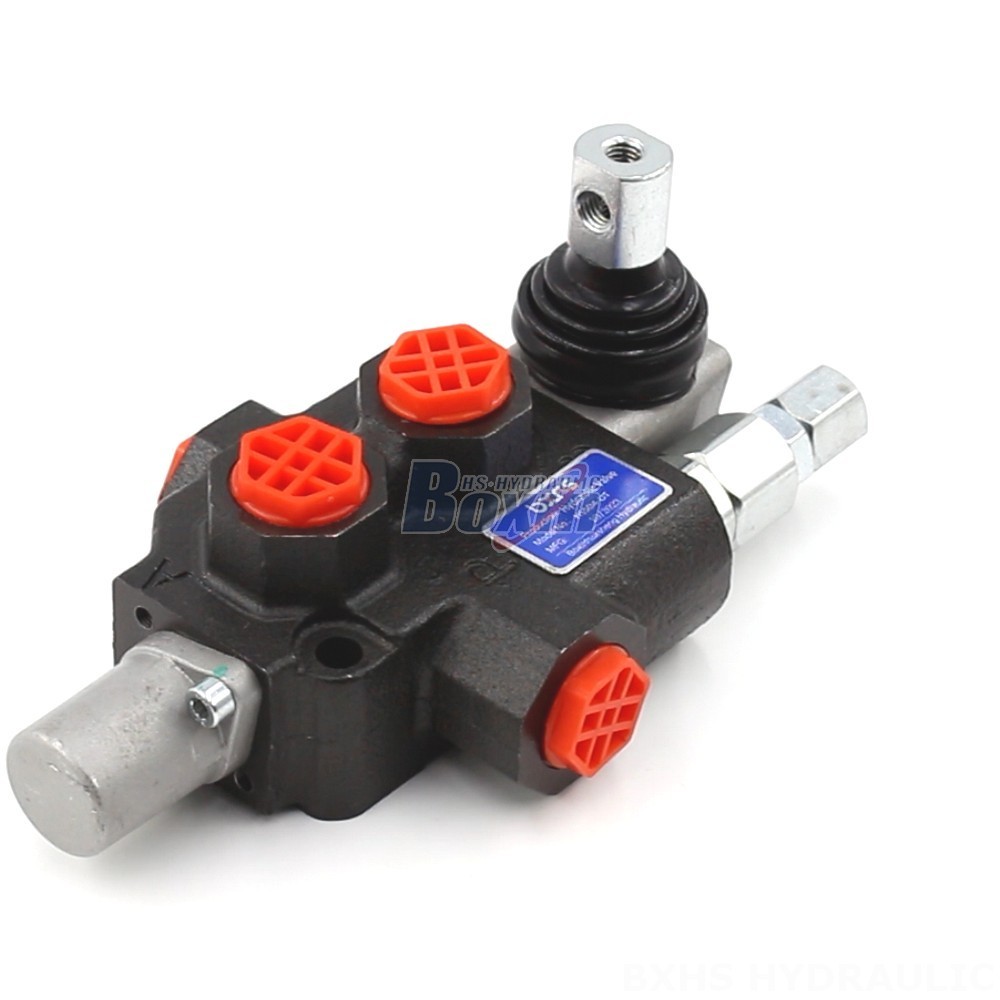

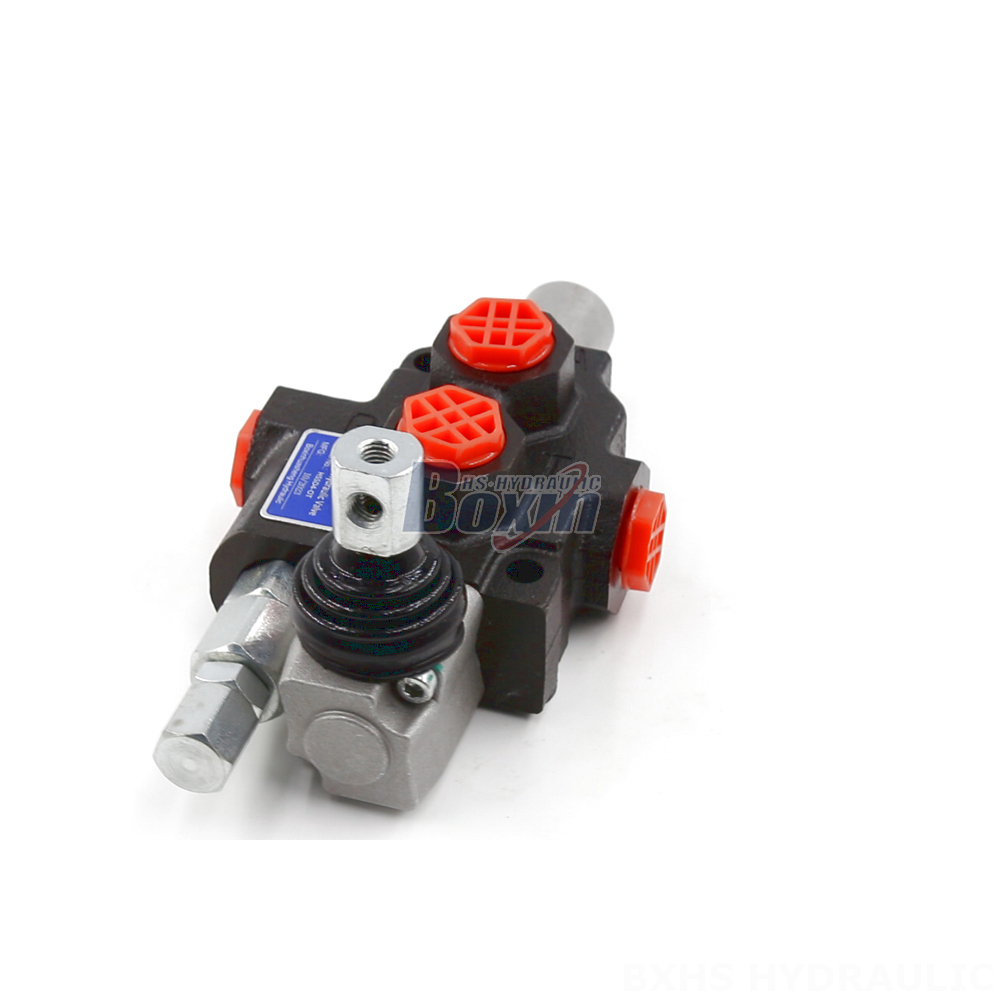

This is a reliable and durable 4-way hydraulic directional control valve (SD4 series) designed for demanding applications in construction, agriculture, and material handling. It features a compact monoblock design, manual control, and a rated flow of 40 L/min.
| Seri SD4 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan |
| Spul | 1 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi), 305 bar (4400 psi) |
| Port Masuk | G3/8, SAE 6 |
| Port Keluar | G3/8, SAE 6 |
| Ukuran Port | G3/8, SAE 6 |
| Bagian | 1 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The SD4 Series 4-Way Hydraulic Valve is a manual, monoblock valve offering a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 230 bar (3300 psi). Its robust construction and wide operating temperature range (-40°C to +80°C) make it suitable for various demanding applications. This valve is perfect for use in a variety of equipment, including telehandlers, forklifts, cranes, excavators, and loaders, making it a versatile solution for a wide range of industries.
