Source ZT20 Directional Control Valves from a Trusted Manufacturer

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Kontrol Hidrolik

Seri Produk:Seri ZT20 Katup Kontrol Hidrolik

Ukuran kemasan:23*18*11

Kelas kotor:7.91 kg

Ketersediaan: Tersedia

1155 Pandangan Mencari Produk Ini

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

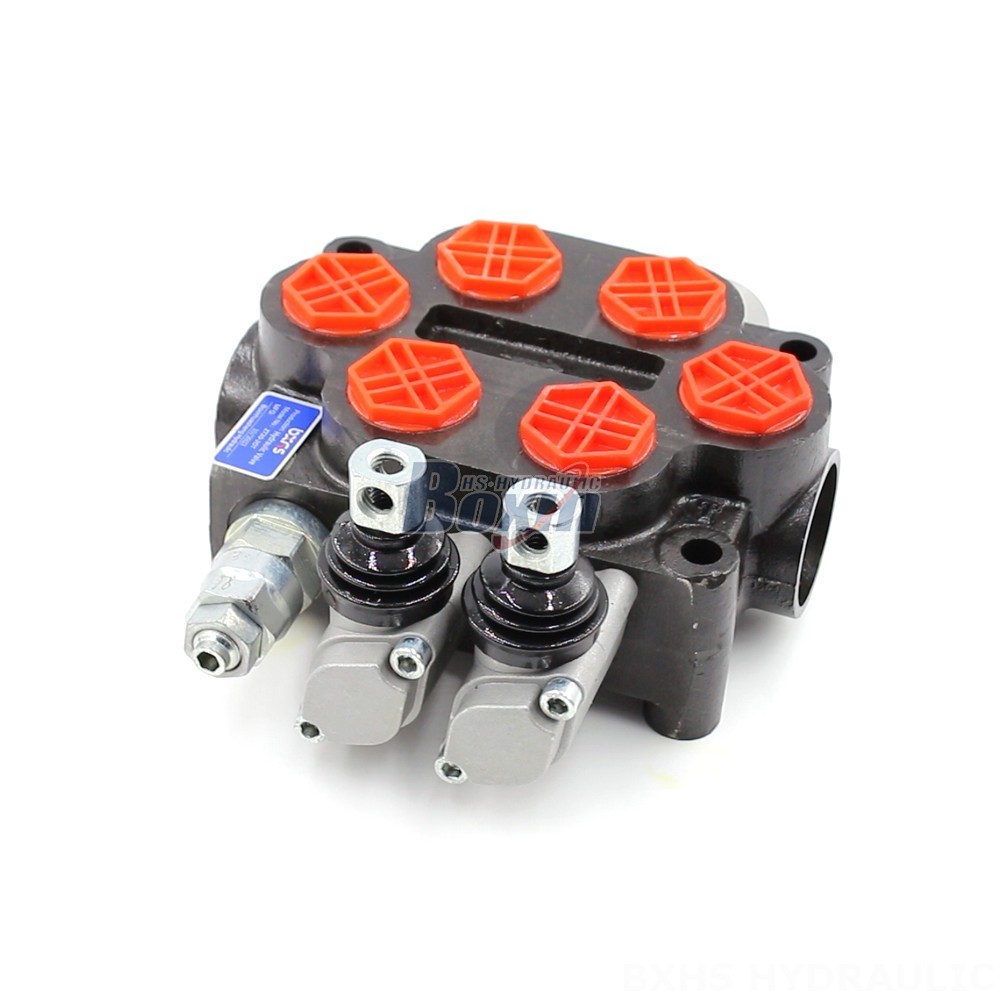

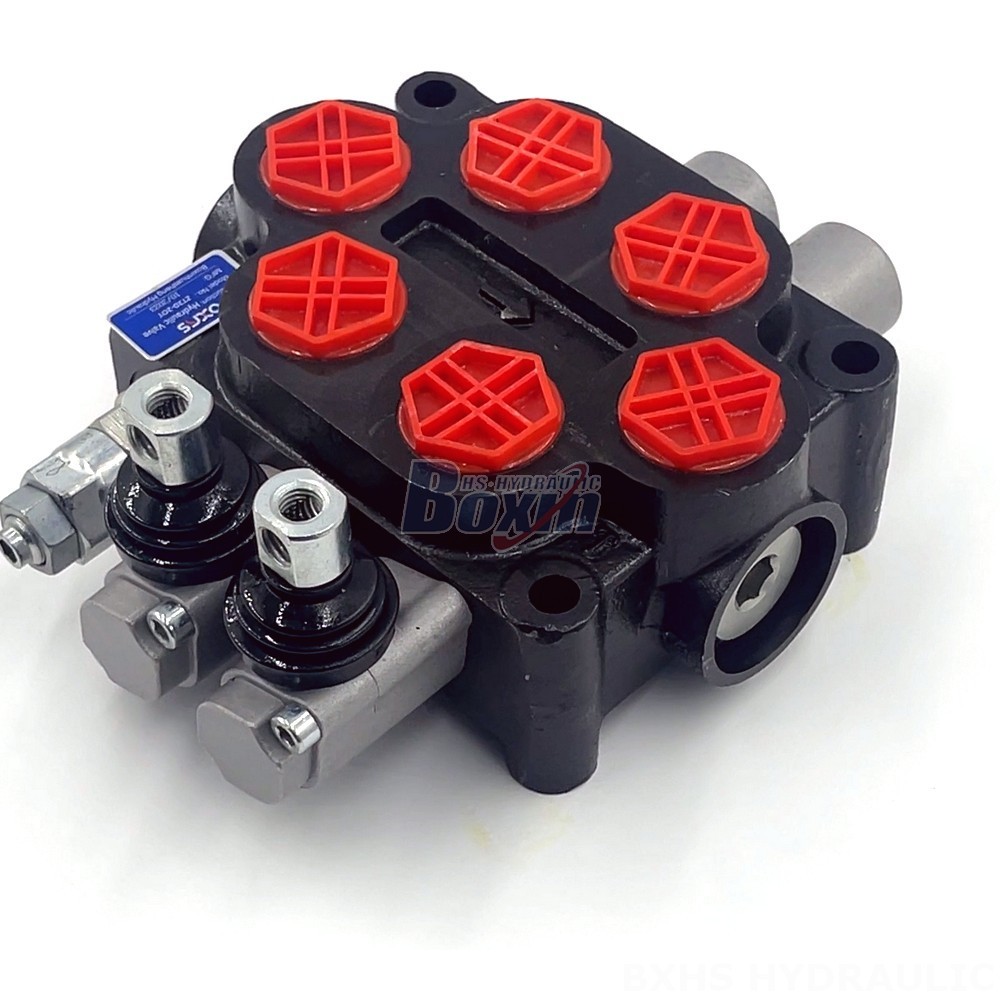

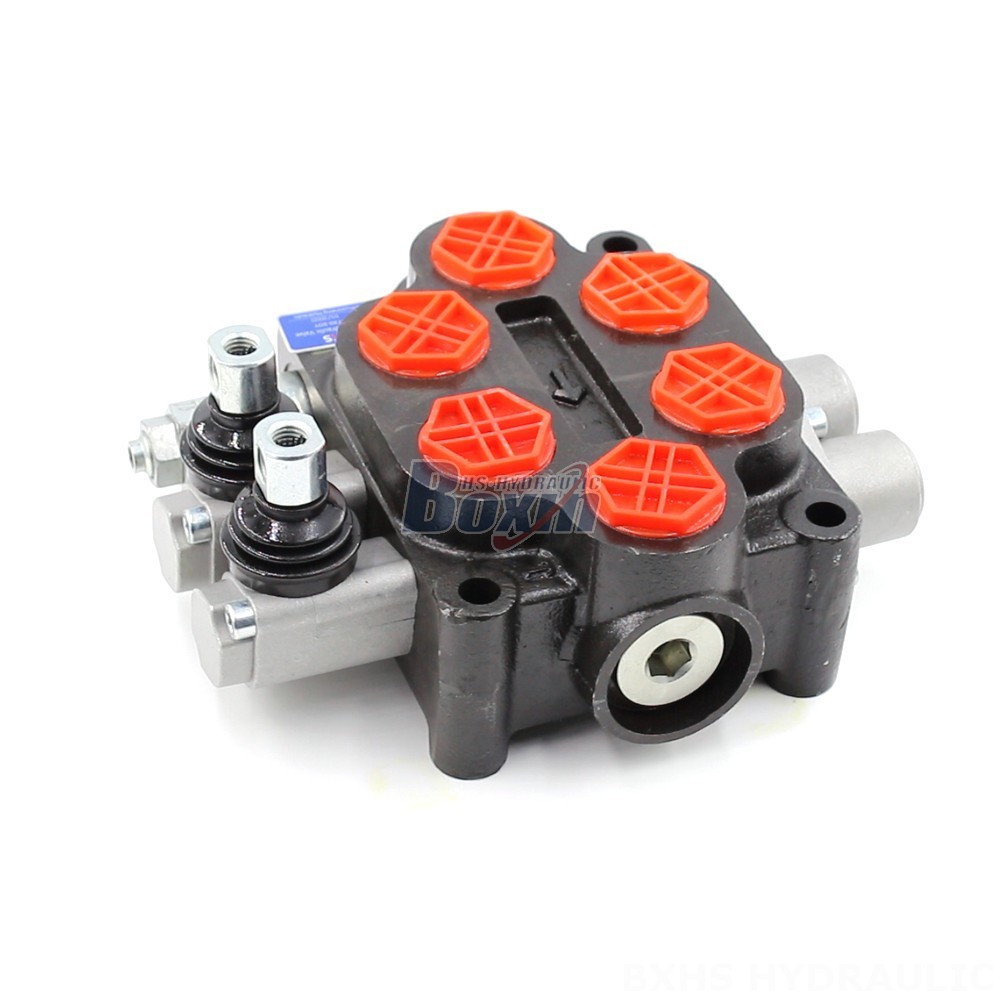

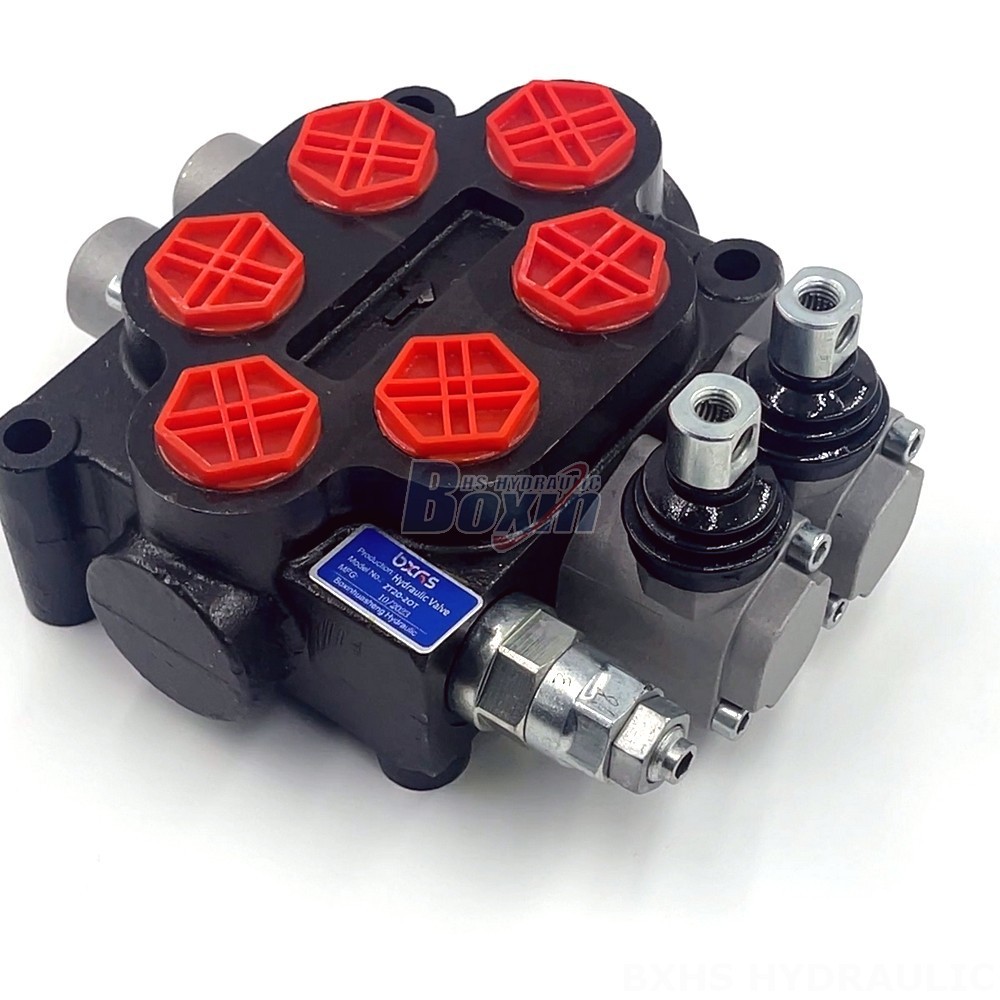

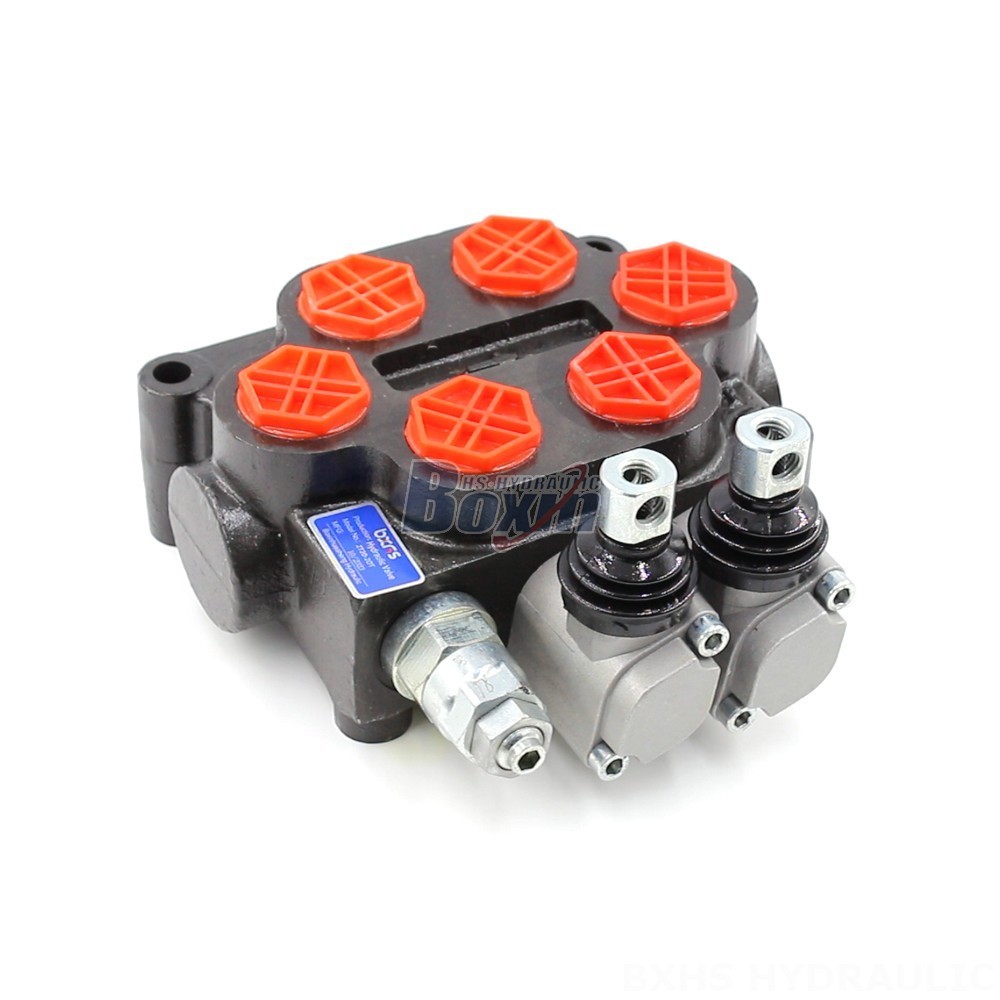

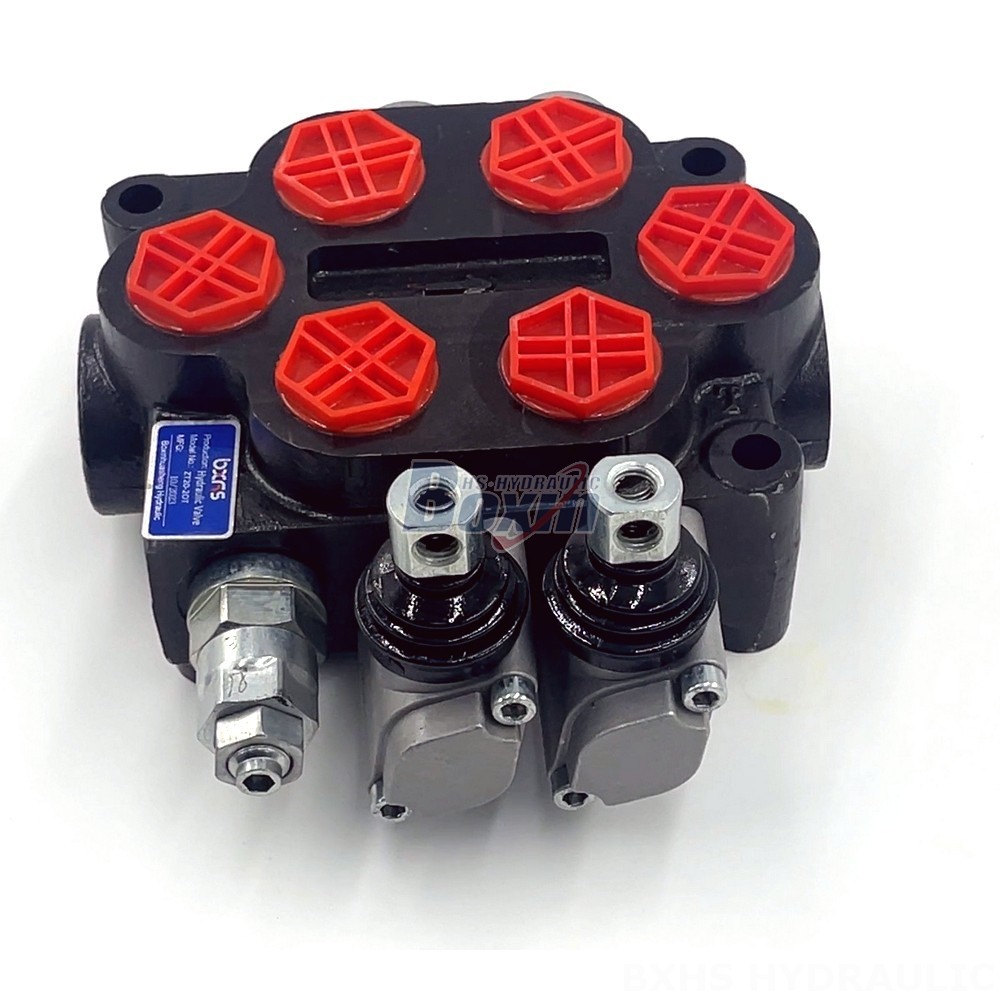

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

Seri ZT20 Katup Kontrol Hidrolik Parameter
Metode Kontrol Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Aliran Terukur 100 L/menit (26,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
