Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1120 Pandangan Mencari Produk Ini
This P40 series hydraulic control valve is a versatile and reliable solution for various applications. We offer OEM and ODM manufacturing services, allowing you to customize your valves to meet your specific needs. Our expertise and experience guarantee high quality and performance for your hydraulic systems.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

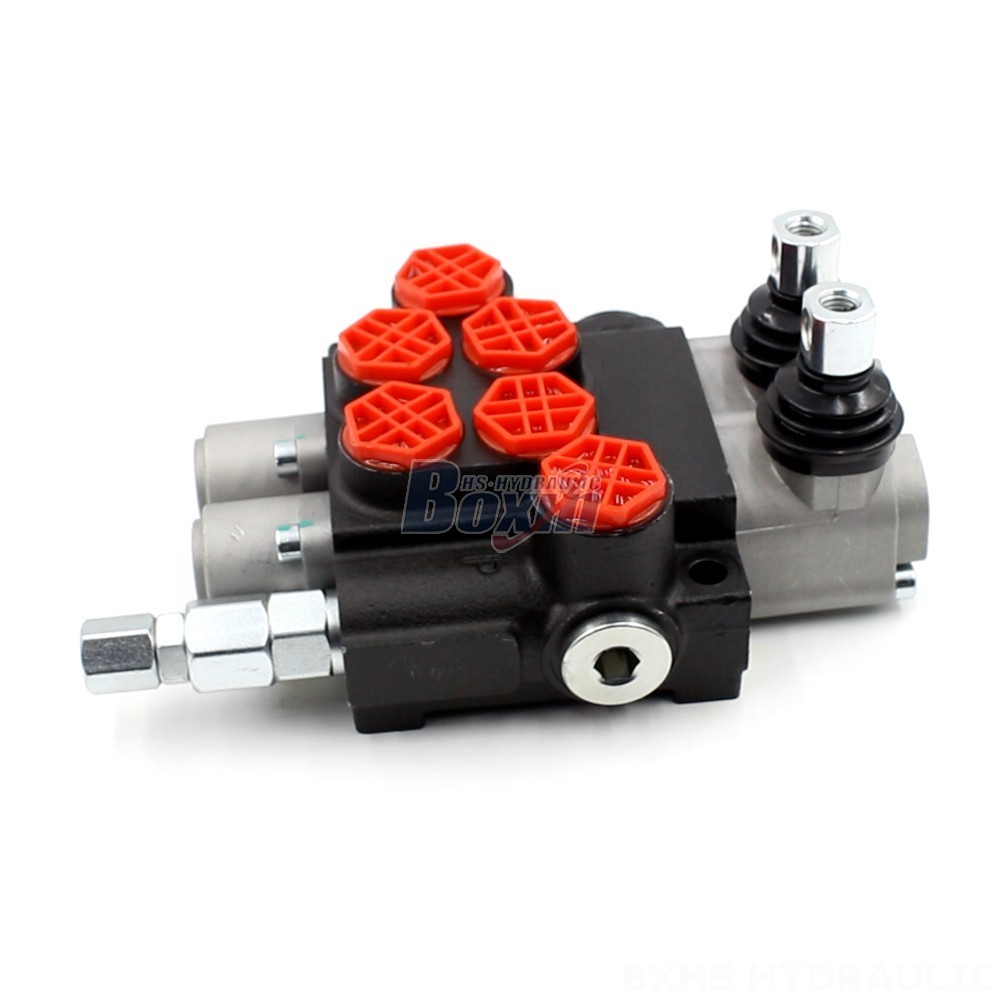

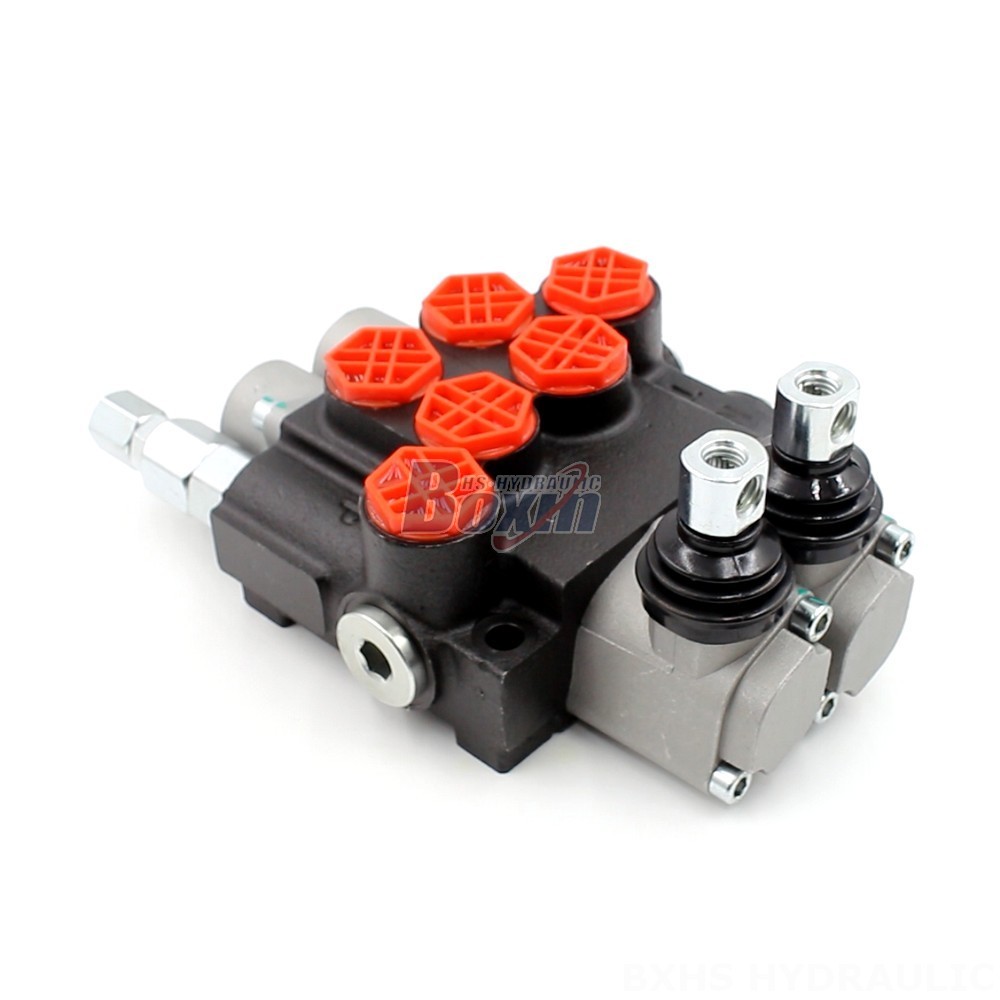

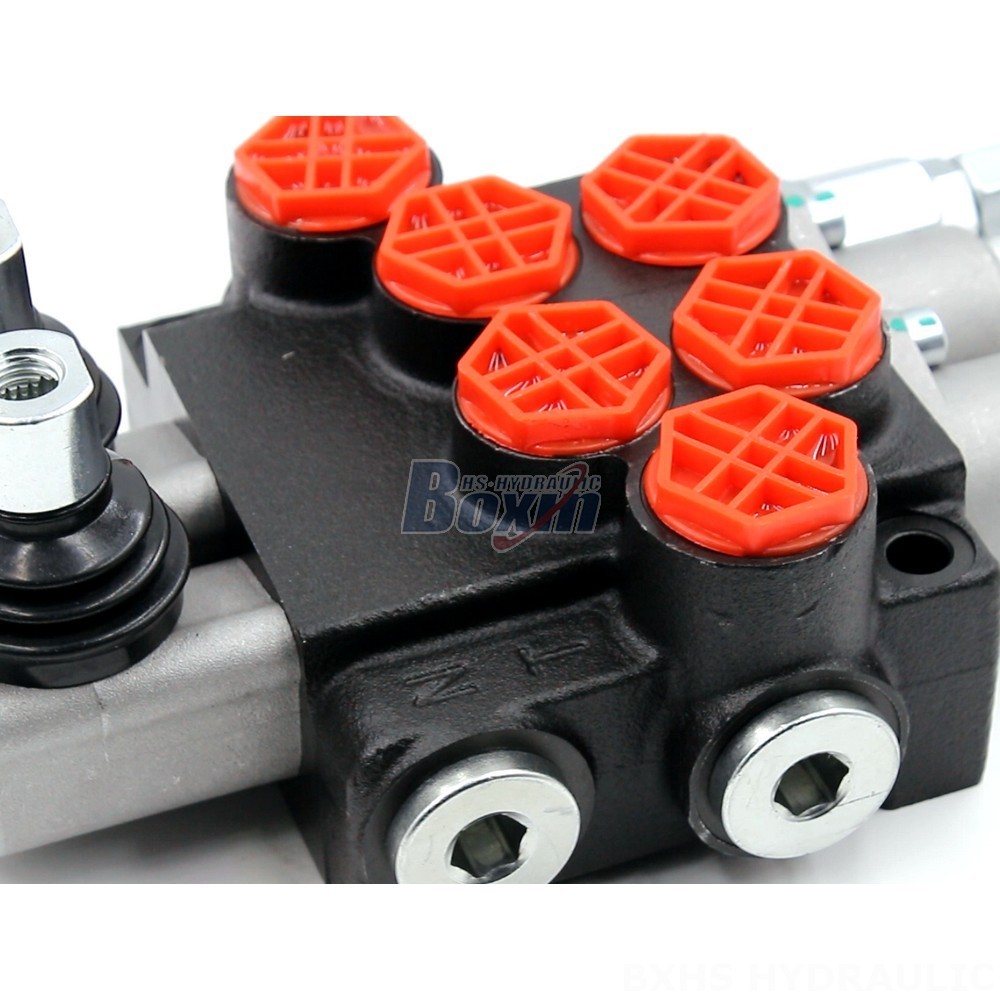

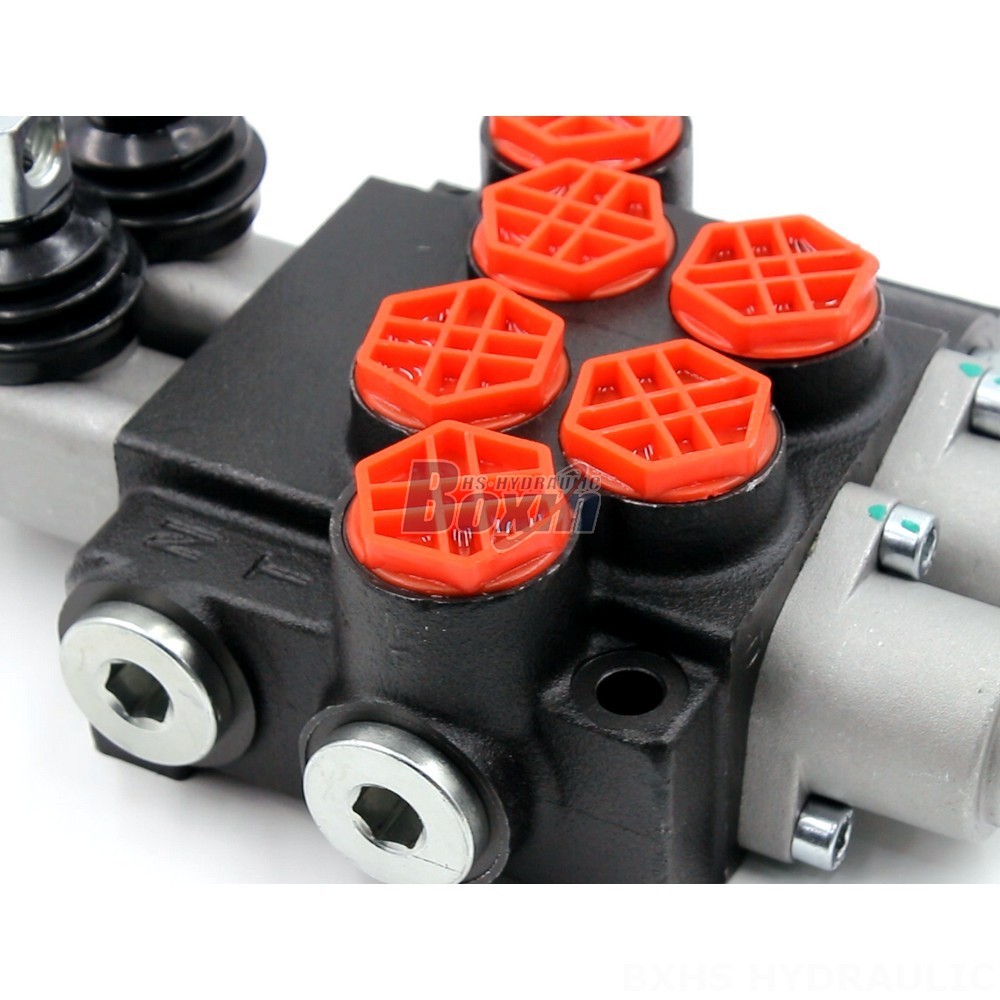

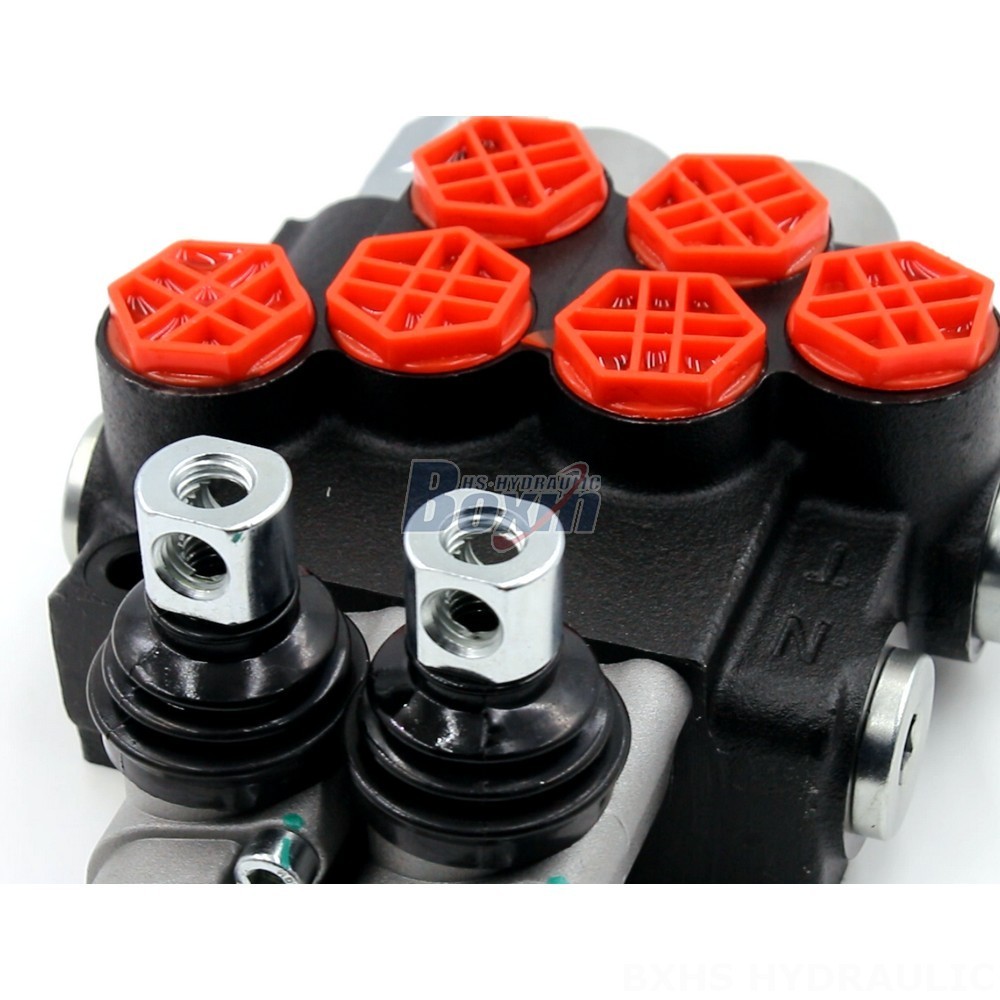

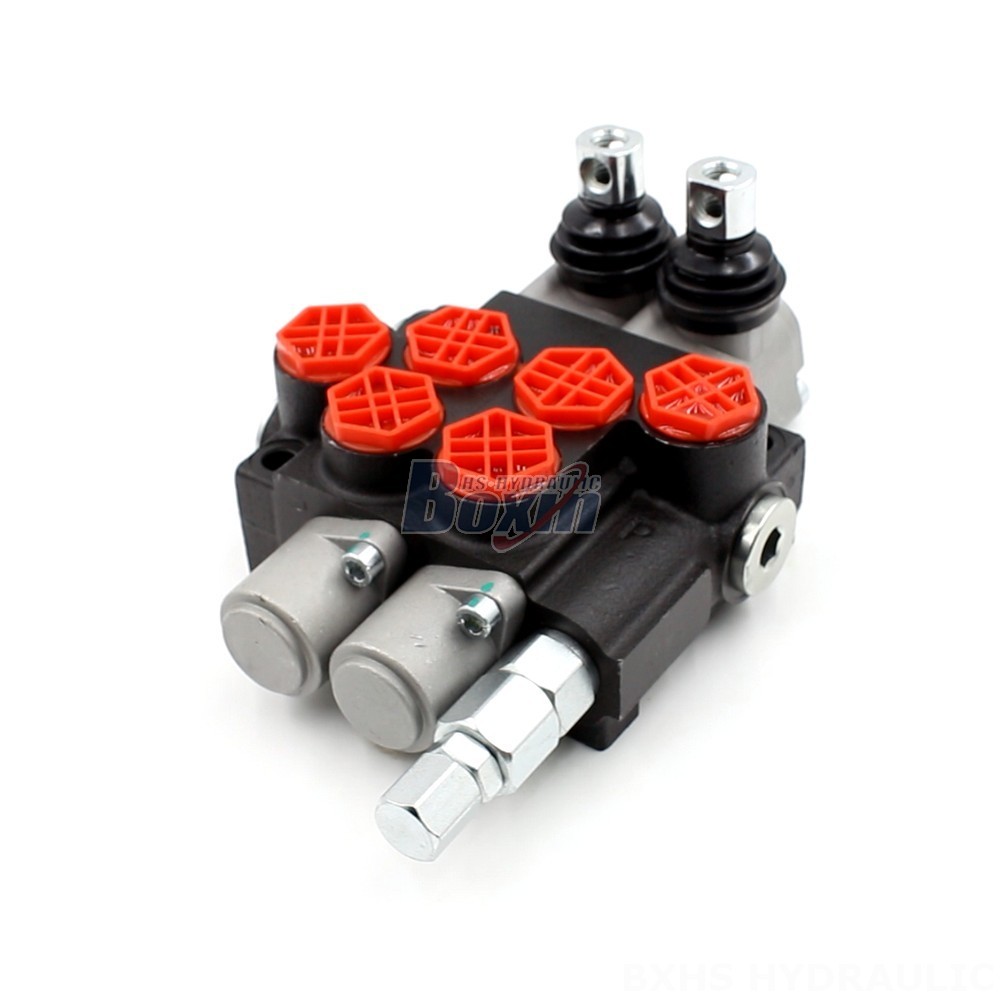

The P40 series hydraulic control valve is a manual, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It features a 2-section design and a 2-spool configuration, providing precise control over your hydraulic system. This valve is suitable for various applications in material handling, construction, earthmoving, agriculture, and industrial vehicles, including telehandlers, forklifts, cranes, excavators, and loaders. We offer flexible manufacturing options, including OEM, ODM, and private labeling, allowing you to tailor the valve to your specific requirements. Contact us today to discuss your custom hydraulic valve needs.
