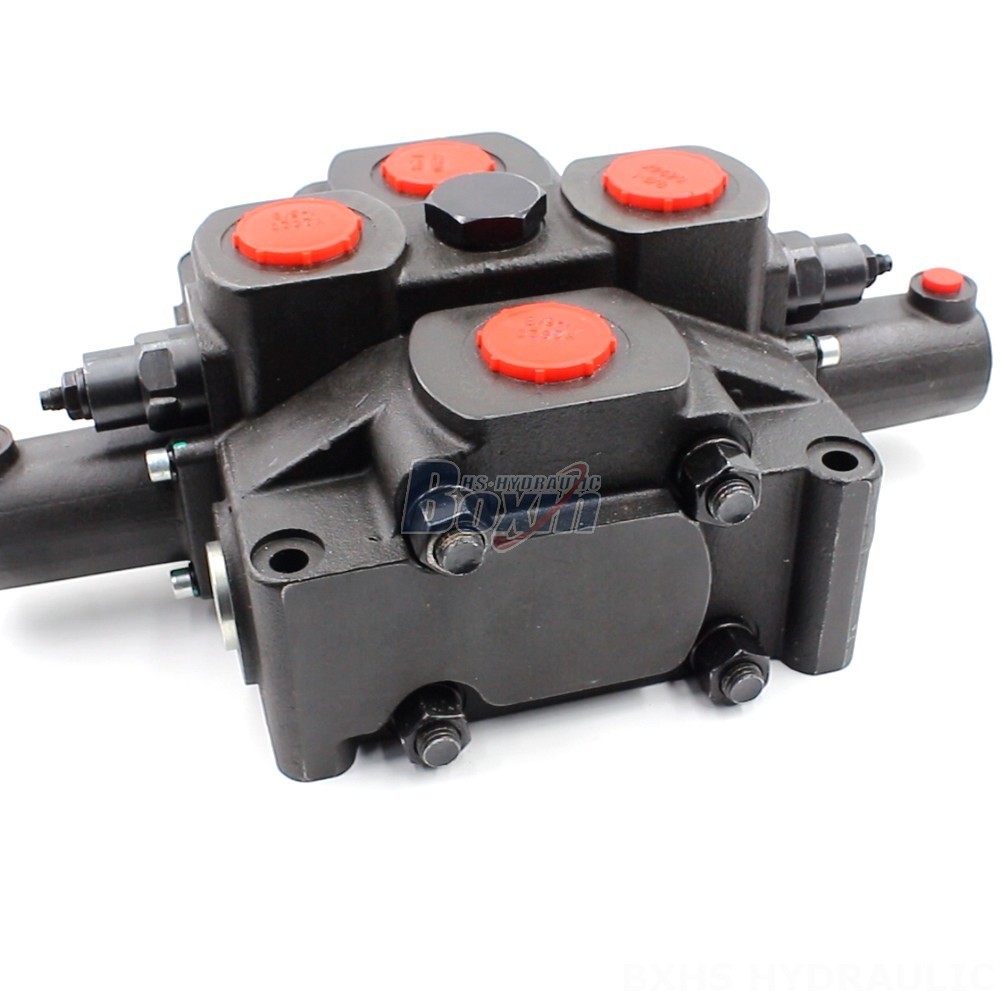

Introducing the SDS380 Series Tailor-Made Hydraulic Valves, your go-to solution for customized hydraulic system needs. These valves offer exceptional performance with a rated flow of 380 L/min and a maximum pressure of 350 bar.
| Seri SDS380 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Aliran Terukur | 380 L/menit (100,4 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1-1/2, SAE 20 |
| Port Keluar | G1-1/2 |
| Ukuran Port | G1-1/2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian, 11 Bagian, 12 Bagian |
| Tipe Struktur | Katup penampang |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
Our SDS380 Hydraulic Valves are designed to meet the specific requirements of your hydraulic system. We offer private label and custom order options to ensure your valves seamlessly integrate with your brand and application. The 1-section, sectional valve design provides flexibility and control, making it suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. The valves are compatible with various models such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, tractors and front-end loaders, and harvesters.
