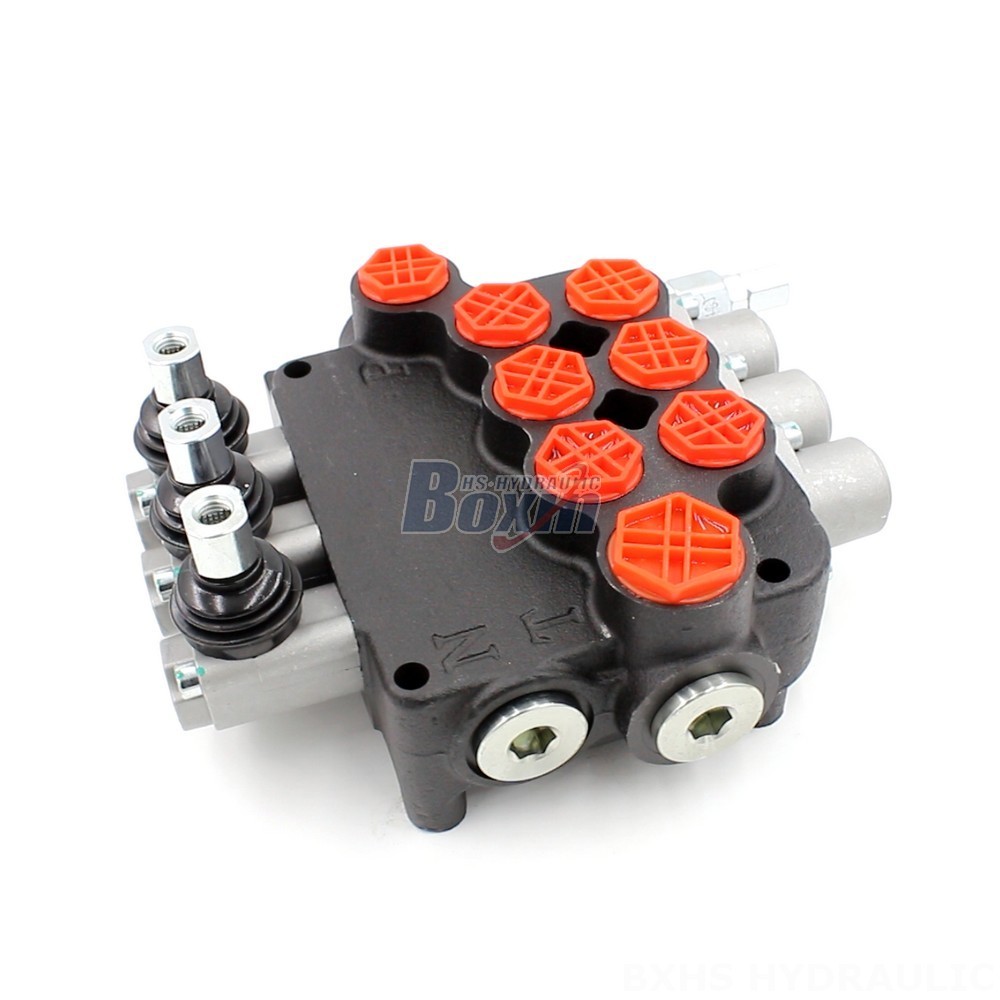

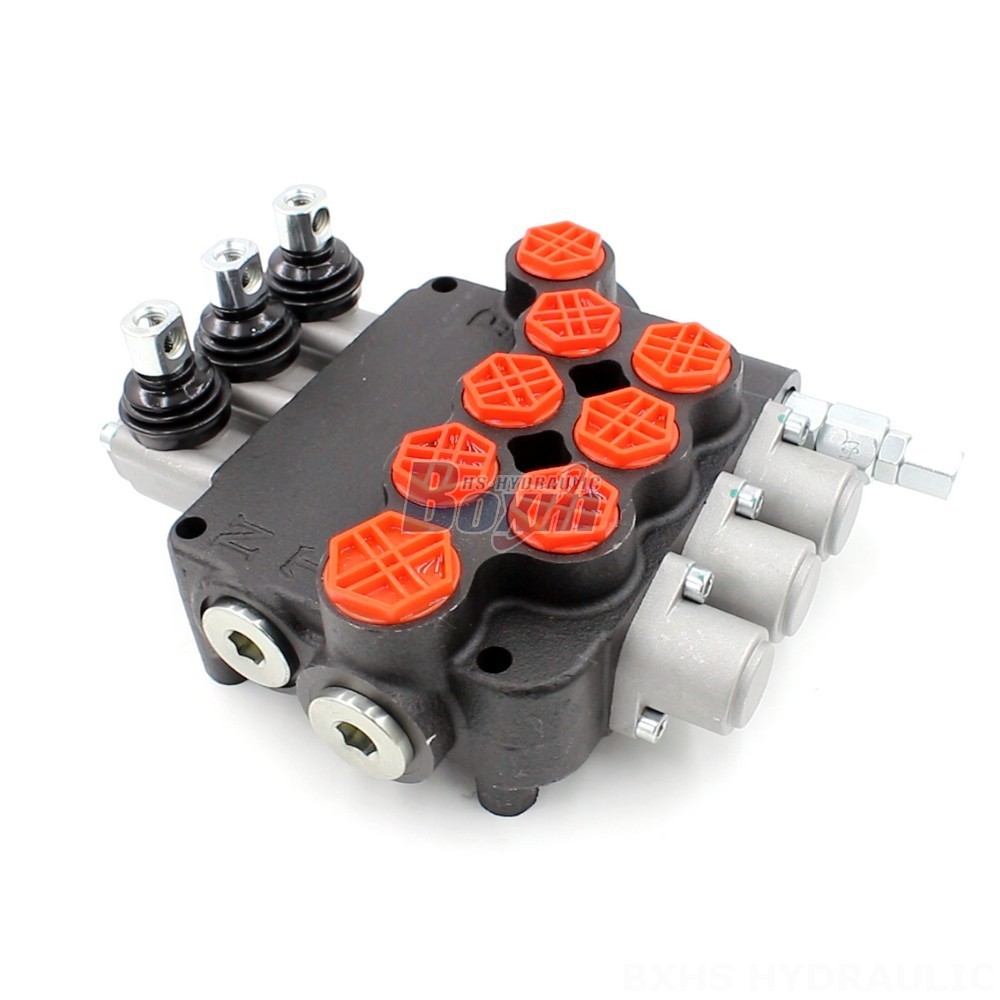

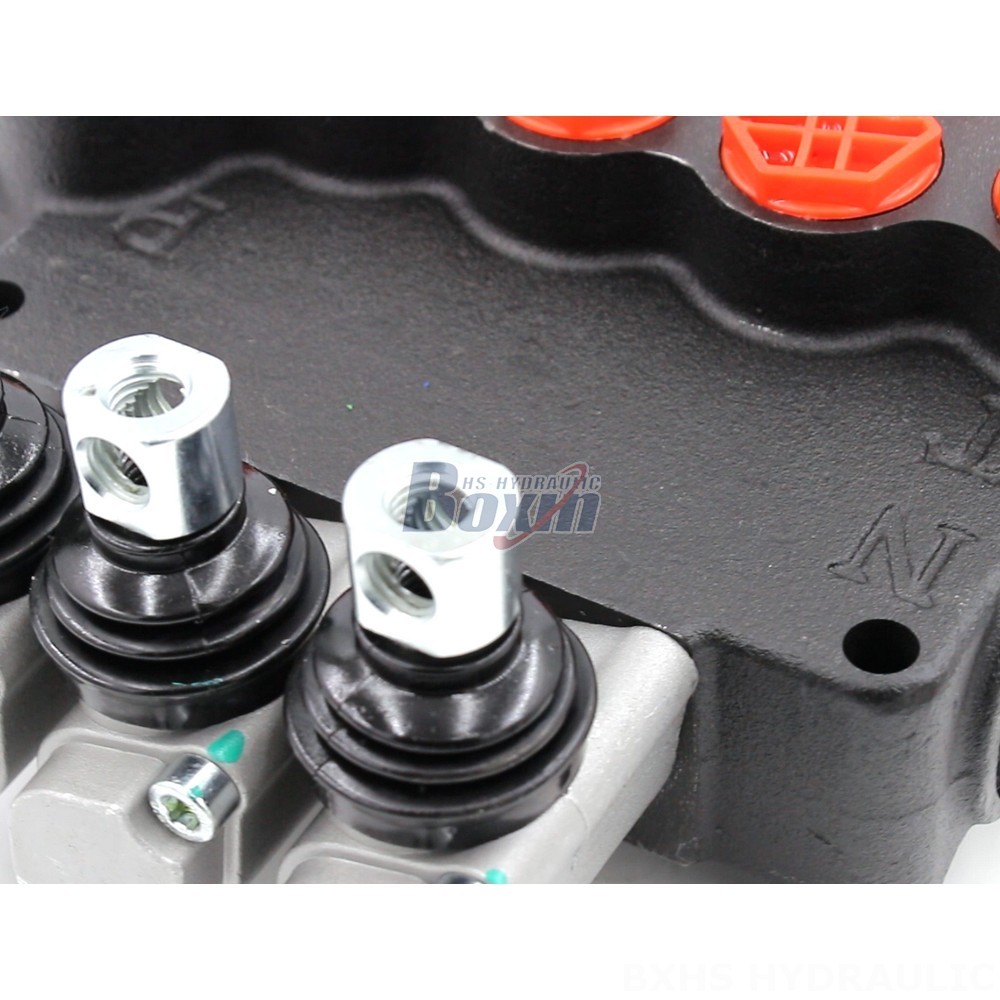

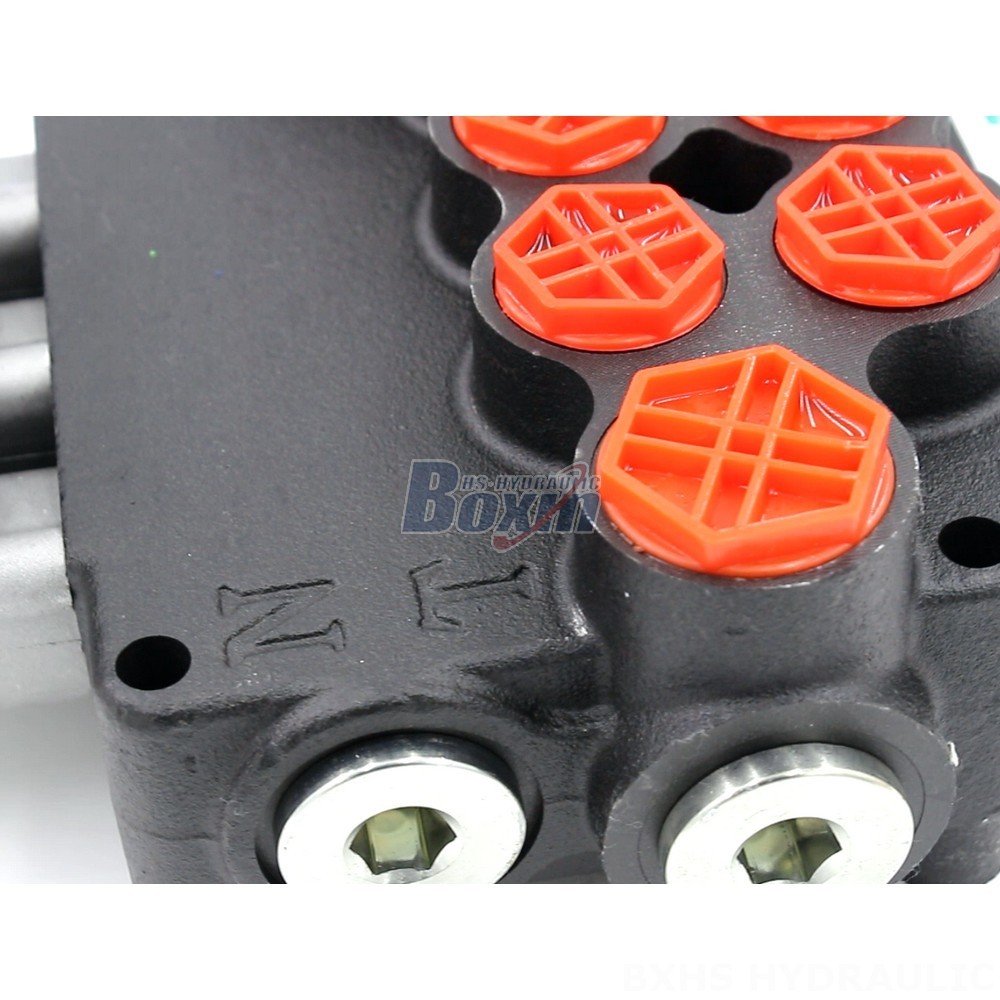

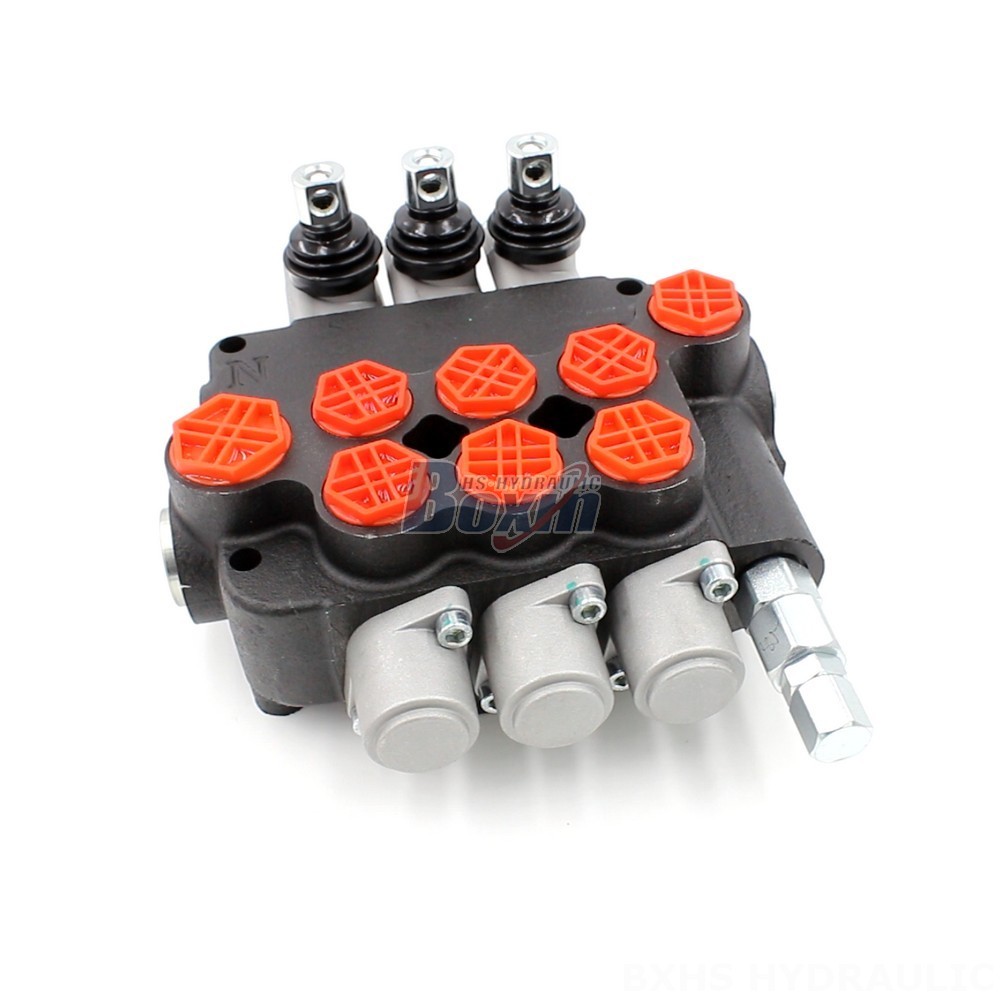

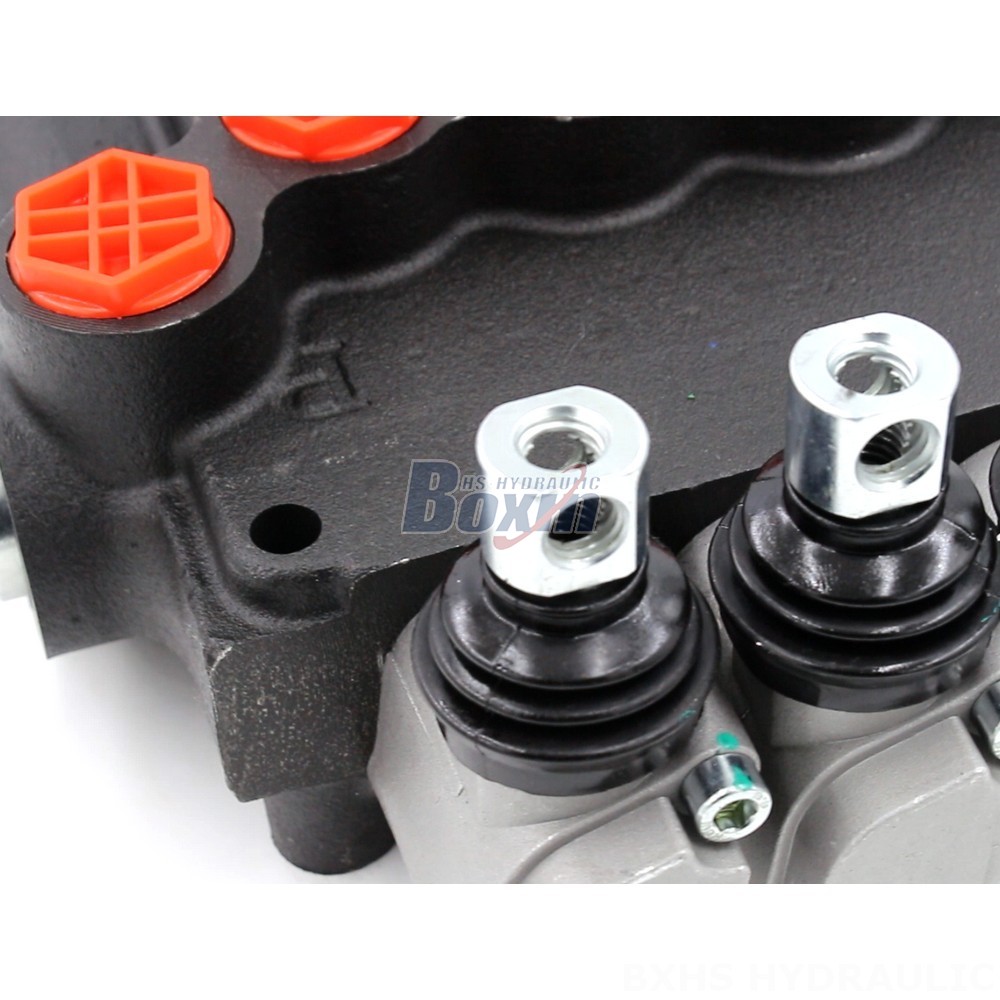

Tailor-Made P80-G34-G12-OT Hydraulic Valves are customizable hydraulic valves designed to meet specific requirements. They offer precise control, high flow rates, and durability for various applications.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G34-G12-OT Hydraulic Valves: Tailor-Made for Your Unique Specifications**
**Versatile Control Solution:**
- Manual control for precise operation
- 3-section design enables simultaneous control of multiple functions
**Robust Construction:**
- Monoblock valve structure ensures high strength and durability
- Rated flow of 80 L/min (21.2 US gpm) for efficient performance
- Maximum pressure of 250 bar (3600 psi) withstands demanding applications
**Wide Applicability:**
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) supports various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensures reliable operation in diverse environments
**OEM, ODM, and Customization Services:**
- Tailor-made solutions to meet your specific requirements
- OEM and ODM services for branding and customization
- Dedicated team for design, engineering, and manufacturing
**Applications:**
- Material handling equipment (forklifts, telehandlers)
- Construction and earthmoving machinery (excavators, skid steer loaders)
- Agricultural machinery
- Industrial vehicles (aerial platforms, motor graders)
