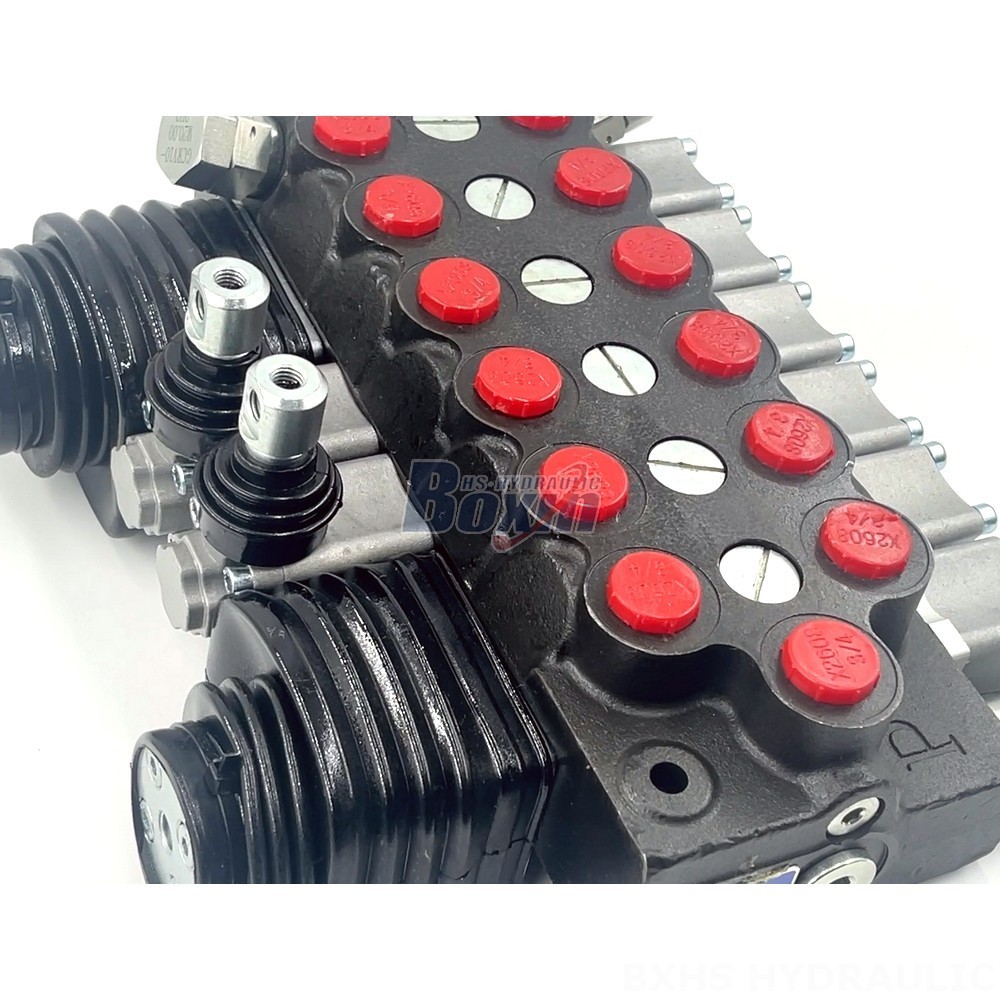

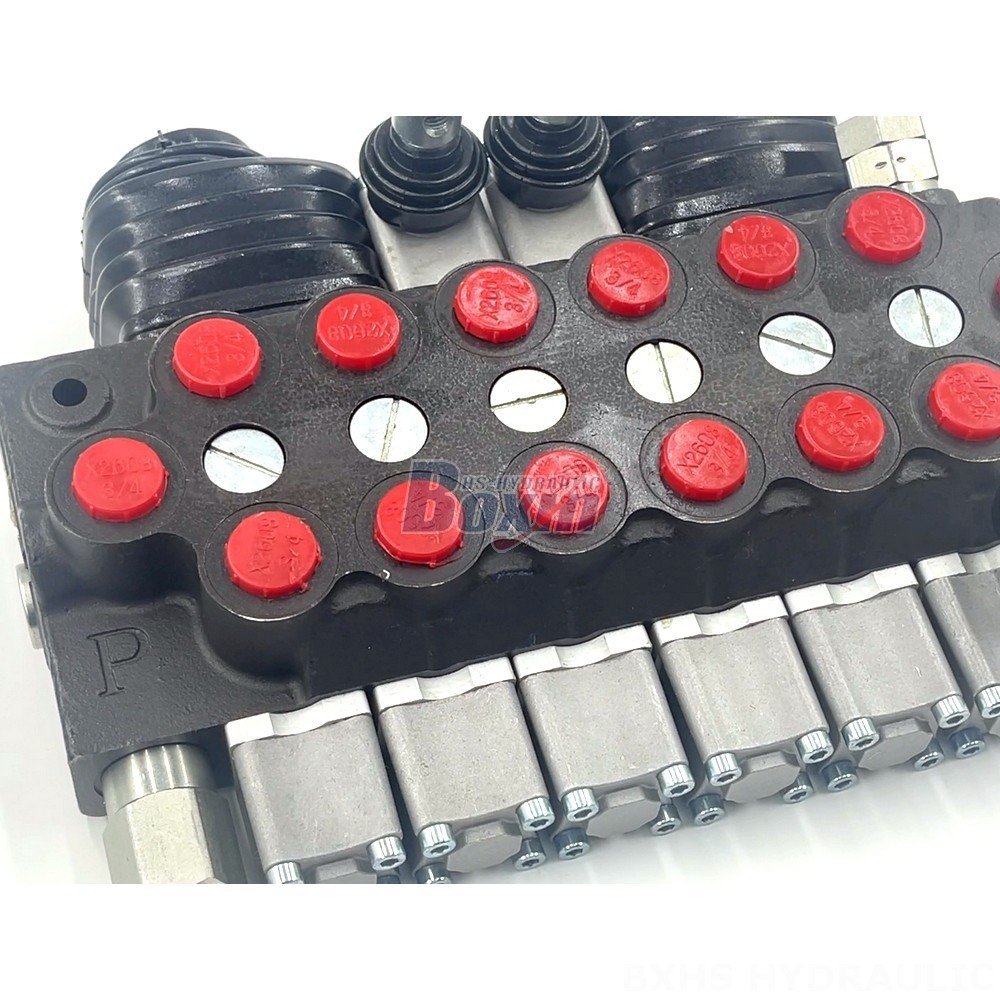

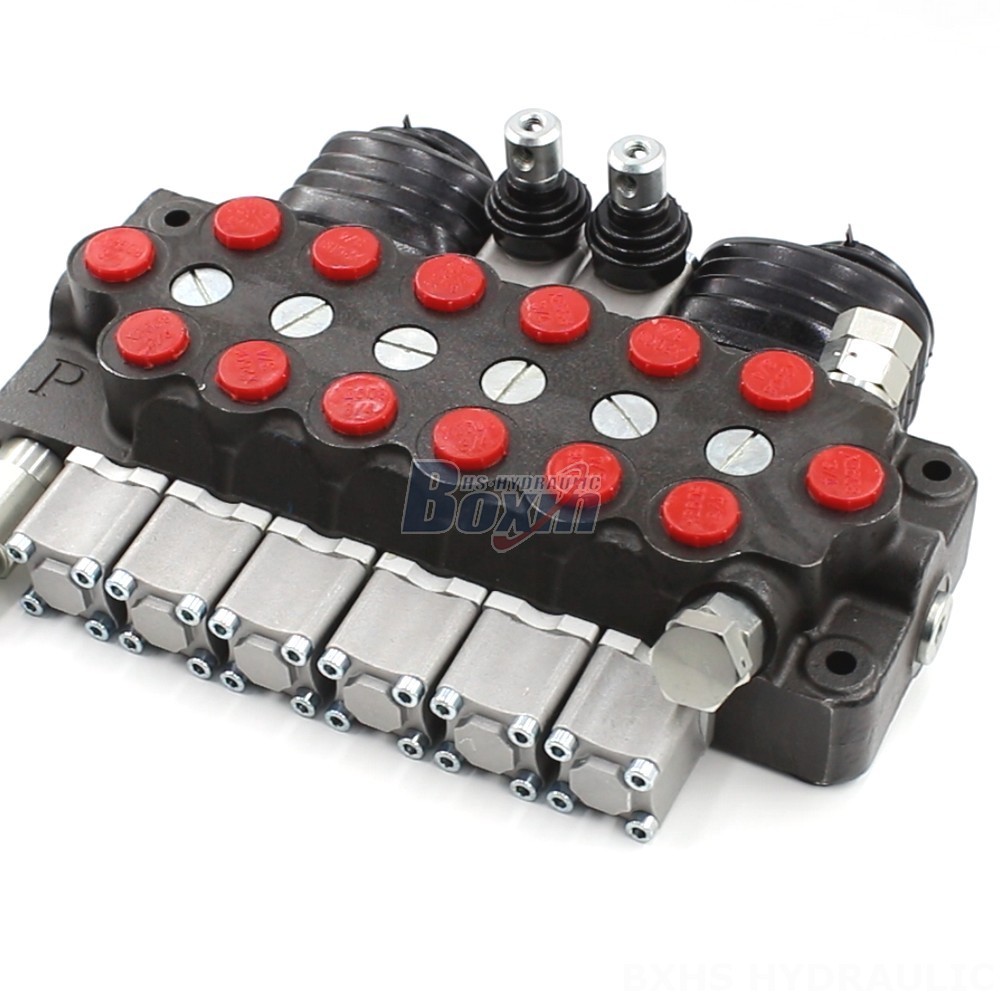

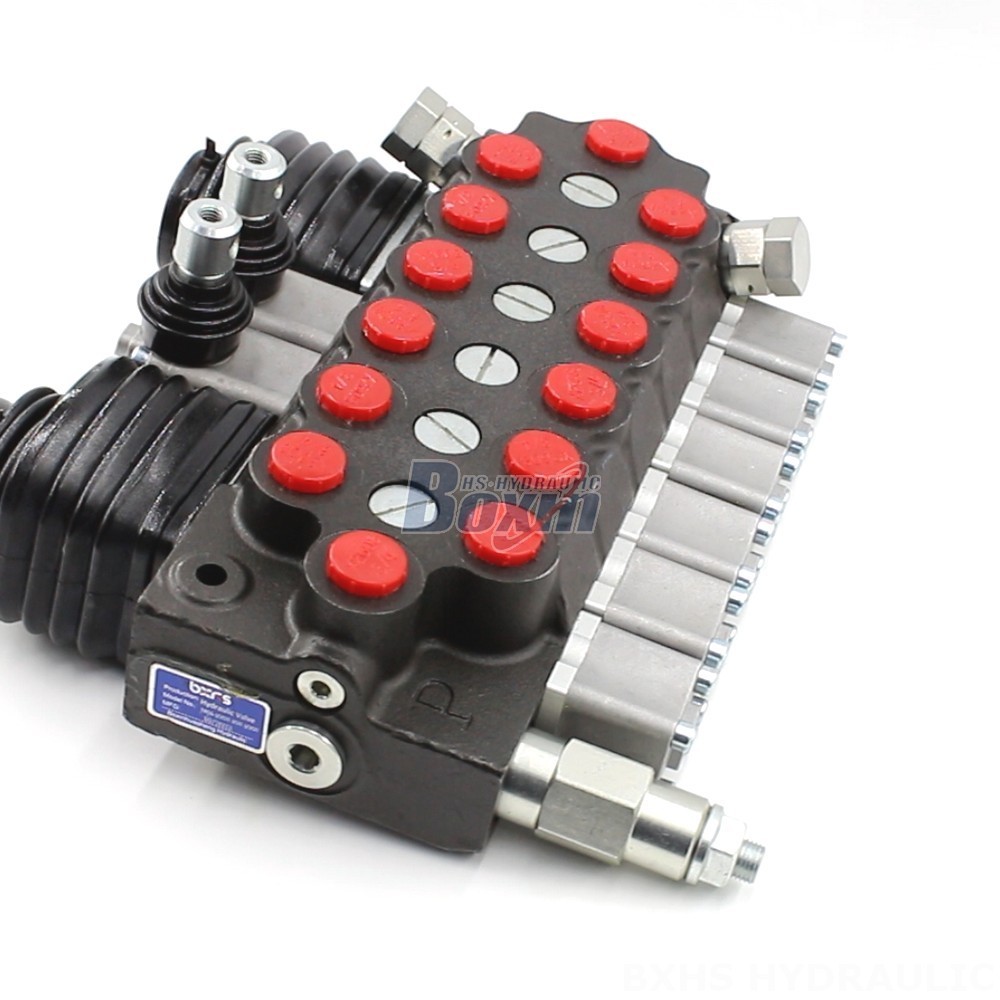

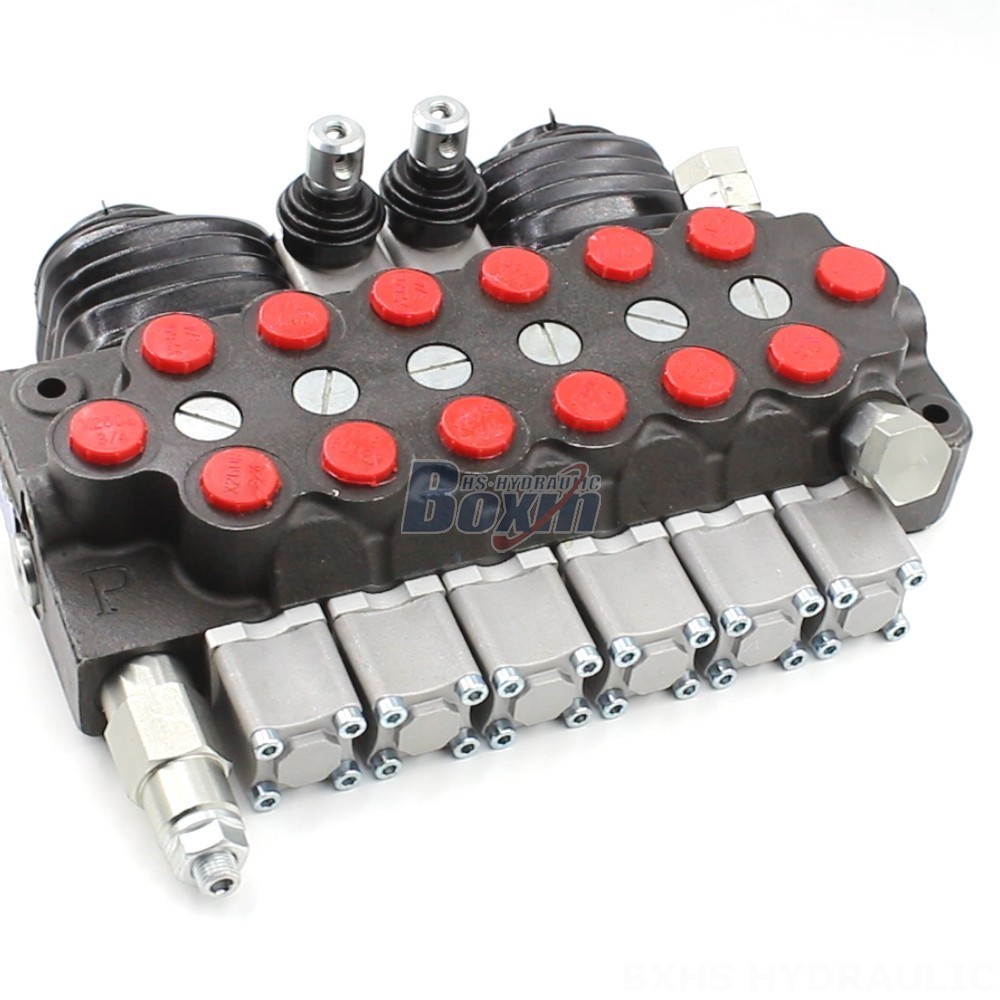

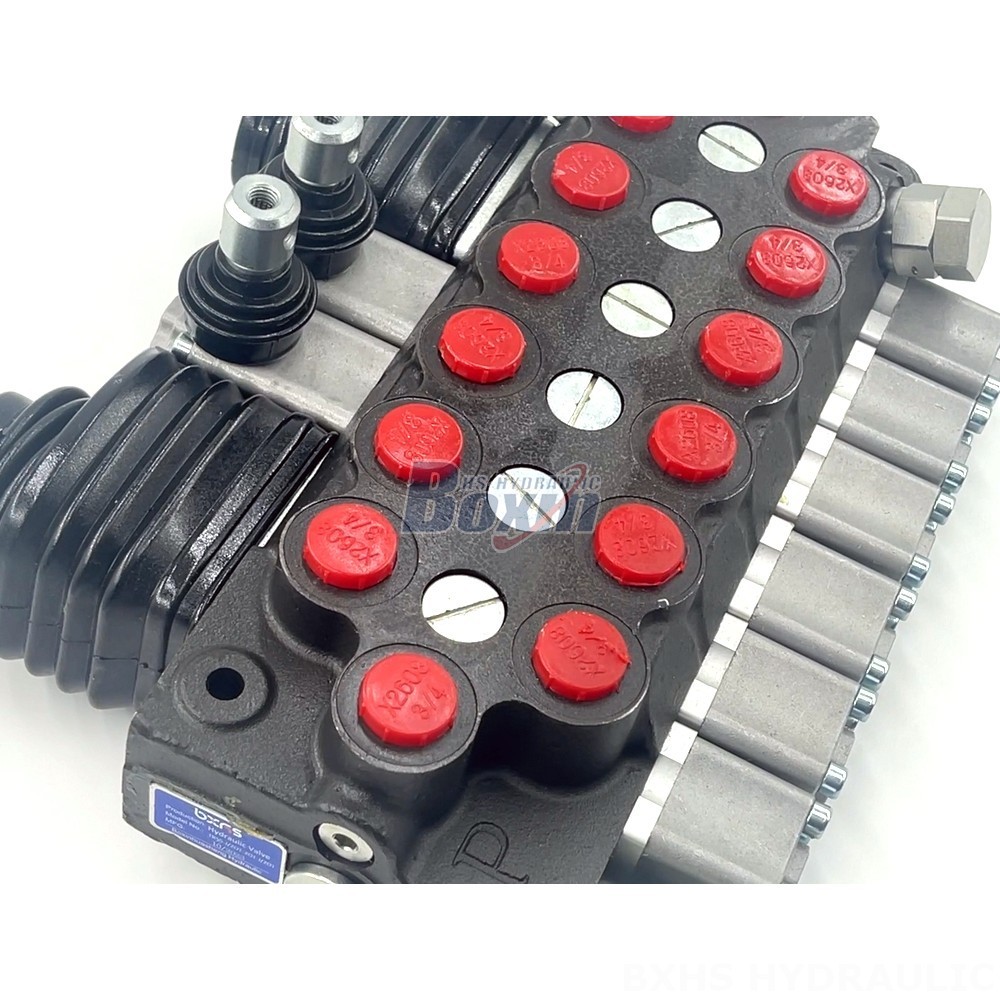

TR55 Joystick-Operated Valve | Factory Direct & Customizable

Metode Kontrol:Manual dan Joystick

Spul:6 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:SAE 8

Port Keluar:SAE 8

Ukuran Port:SAE 8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri TR55 Katup Arah Monoblok

Ukuran kemasan:33*35*16

Kelas kotor:17.00 kg

Ketersediaan: Tersedia

1068 Pandangan Mencari Produk Ini

TR55 Joystick-Operated Valve | Factory Direct & Customizable

TR55 Joystick-Operated Valve | Factory Direct & Customizable

TR55 Joystick-Operated Valve | Factory Direct & Customizable drawing image

The TR55 Series Hydraulic Pressure Reduction Valve is a robust and reliable valve designed for various applications in construction, material handling, agriculture, and industrial vehicles. It features manual and joystick control, a 6-section monoblock design, and a maximum pressure rating of 315 bar (4600 psi).

Seri TR55 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G3/8, G1/2
Port Keluar G3/8, G1/2
Ukuran Port G3/8, G1/2
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Tipe Struktur Katup monoblok
Kisaran Suhu Sekitar -40°C hingga +60°C (-40°F hingga +140°F), -40°C hingga +80°C (-40°F hingga +176°F)
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)

The TR55 Series Hydraulic Pressure Reduction Valve is a high-performance valve suitable for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 6-section monoblock valve offers both manual and joystick control options, enabling precise and efficient operation. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 315 bar (4600 psi), this valve provides exceptional performance for various equipment types, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The TR55 Series is designed for reliable operation in a wide range of ambient temperatures, from -40°C to +60°C (-40°F to +140°F) for standard versions and from -40°C to +80°C (-40°F to +176°F) for high-temperature versions. The valve's robust construction and high-quality materials ensure long-lasting performance and reliability. This valve is available for direct purchase, OEM, private label, customization, and wholesale distribution.
