Introducing our Unbeatable Prices: Factory Wholesale Pricing for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves! As a leading hydraulic product manufacturer, we offer exceptional manufacturing, OEM, and customization services. Our valves are designed for various applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

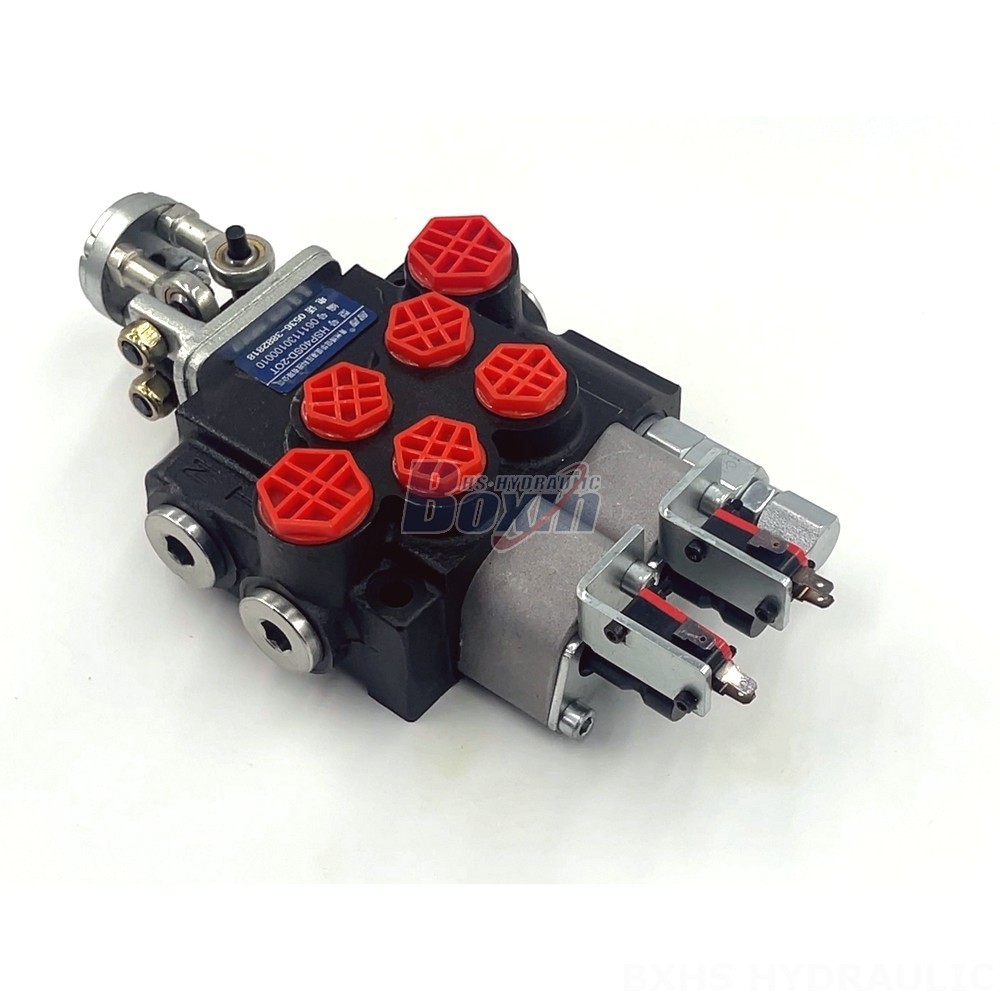

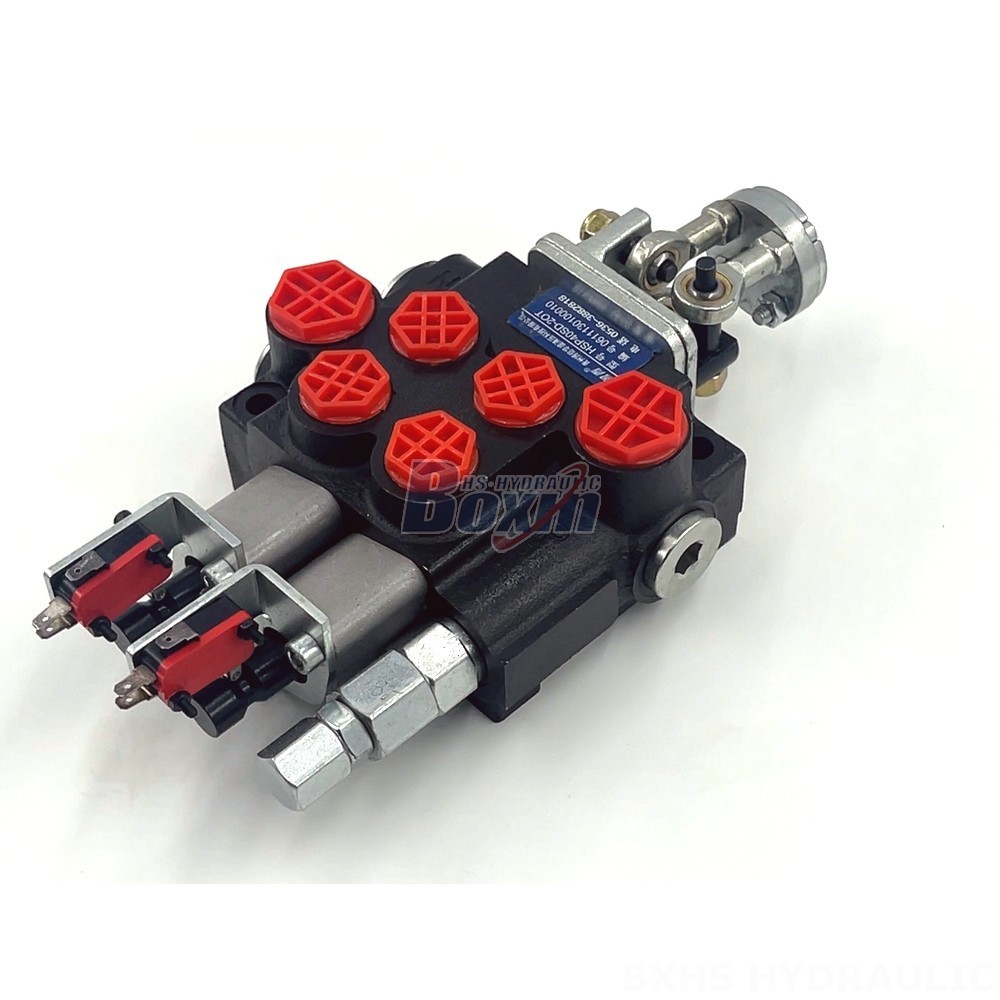

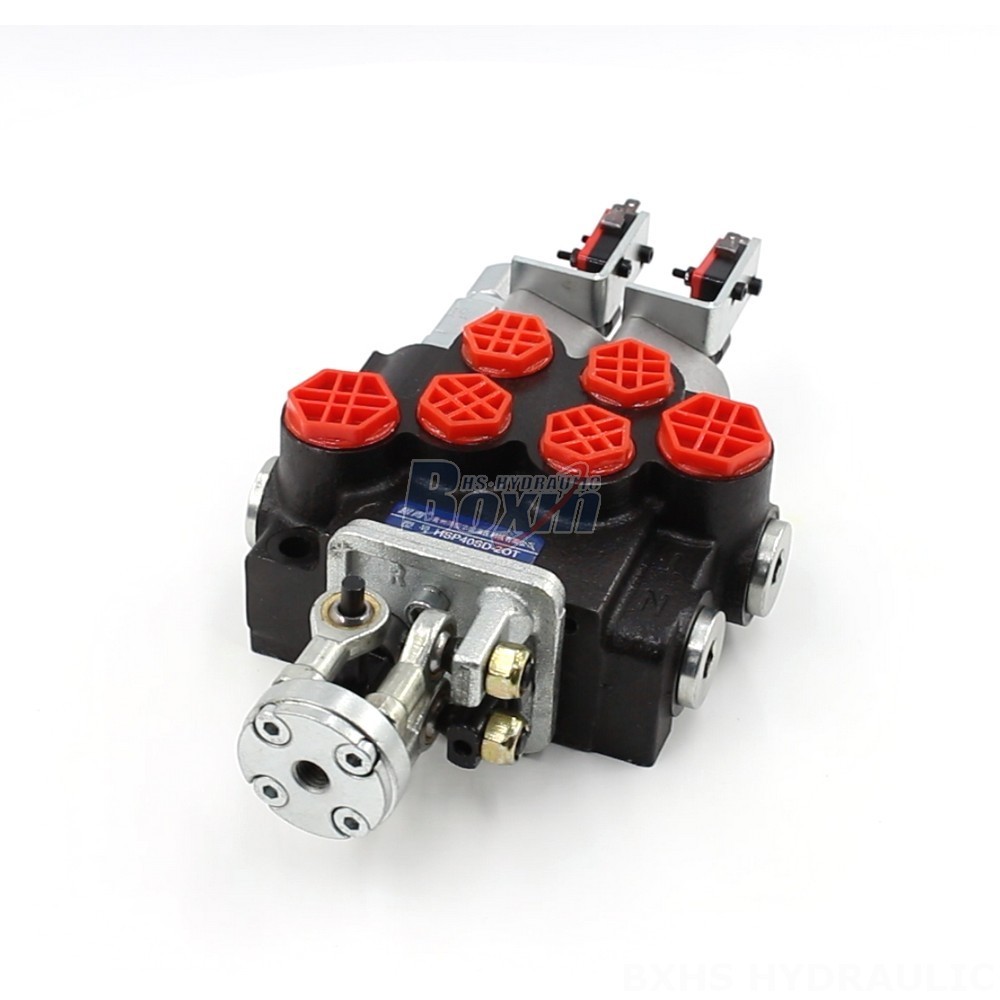

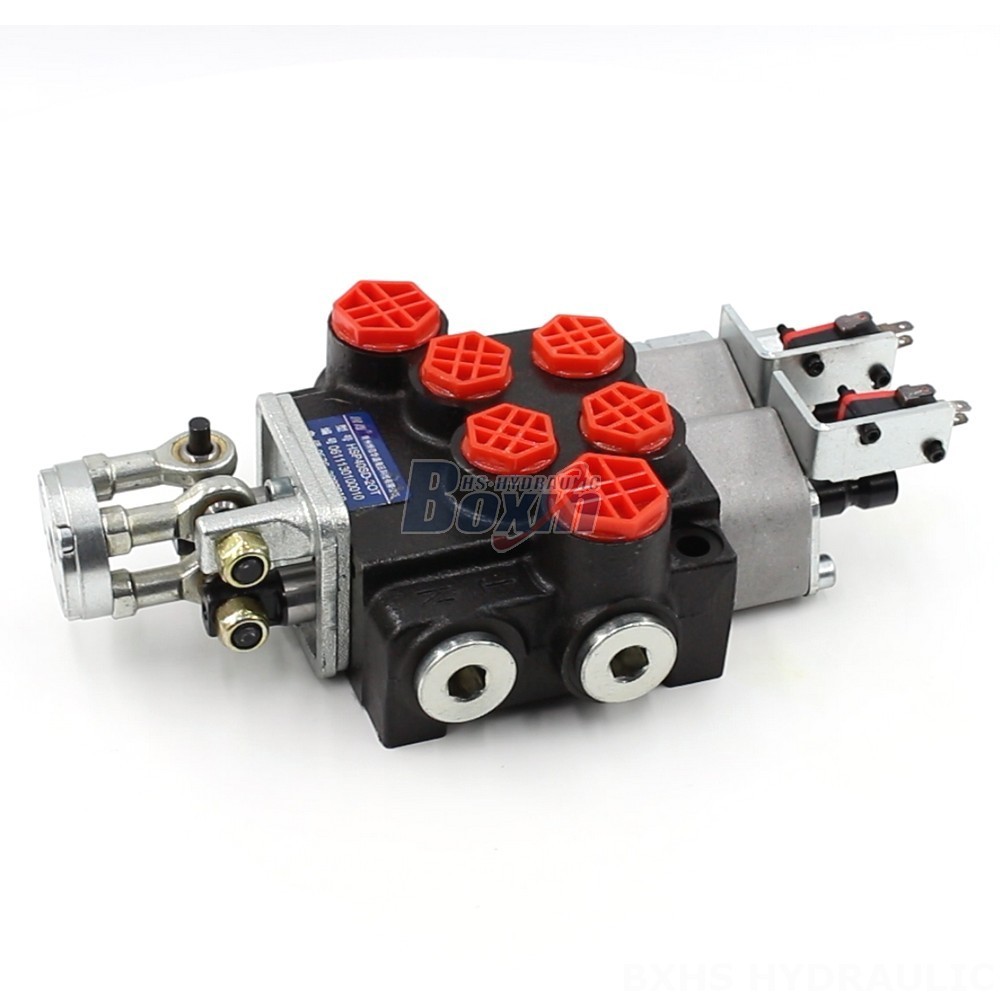

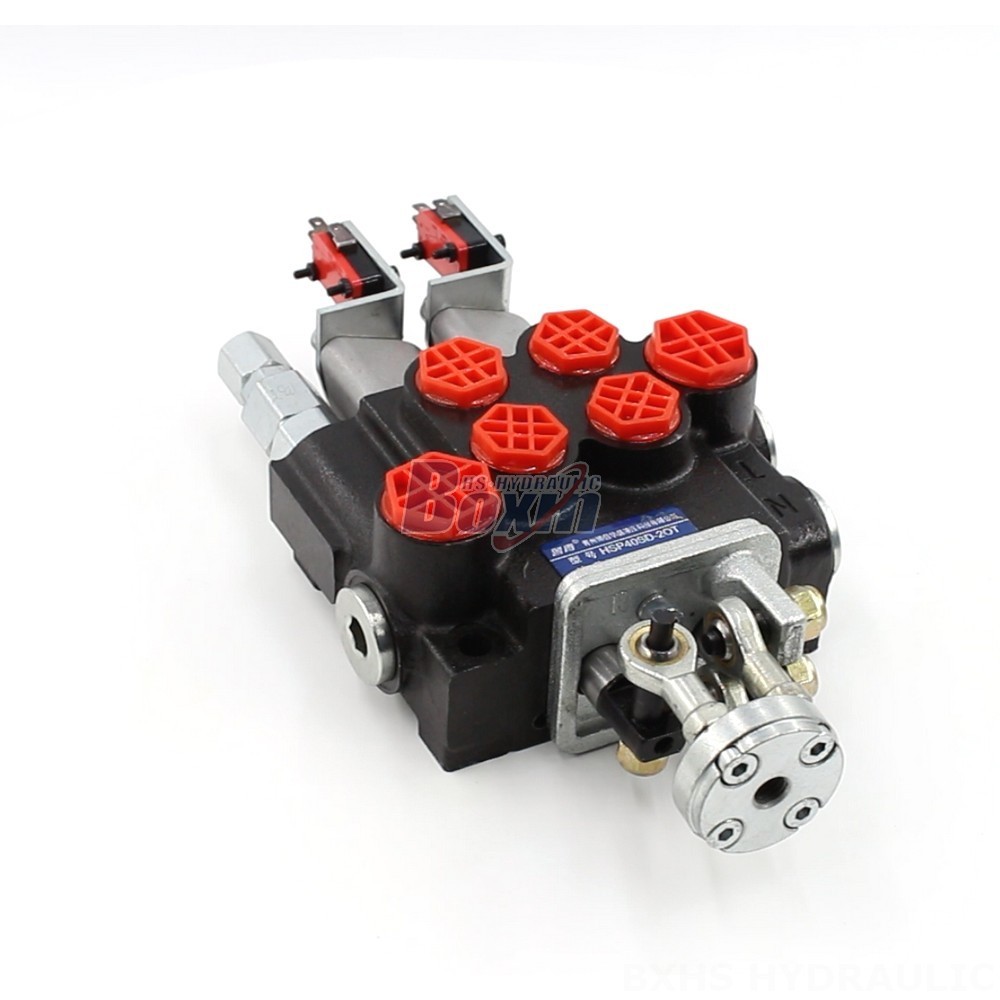

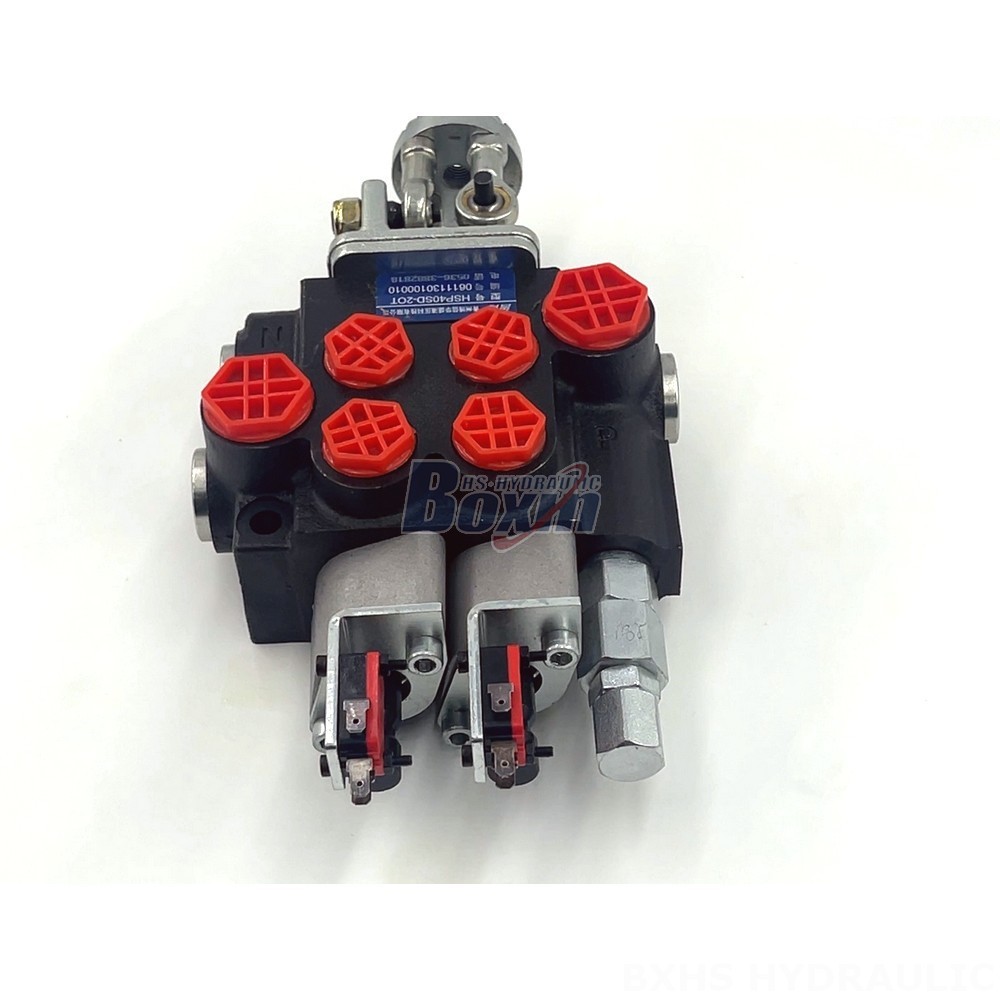

Our P40 Series 2 Spool Monoblock Directional Valves are engineered for precision and durability. Featuring a joystick control, these valves deliver precise flow control with a rated flow of 40 L/min and a maximum pressure of 250 bar. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures compatibility with a wide range of hydraulic fluids. These valves excel in extreme temperatures, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). As a manufacturer, we pride ourselves on providing factory wholesale pricing, ensuring competitive costs for our global customers. Whether you're a distributor, wholesaler, agent, or trader, we invite you to explore our Unbeatable Prices for P40 Micro Switch Joystick 2 Spool Monoblock Directional Valves and join our network of partners.
