The P40-G12-G38-4OT Manual Monoblock Directional Valve is a high-performance hydraulic component designed to control the flow of fluid in hydraulic systems. Manufactured directly by our factory, this valve offers exceptional value and reliability for various applications across industries.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

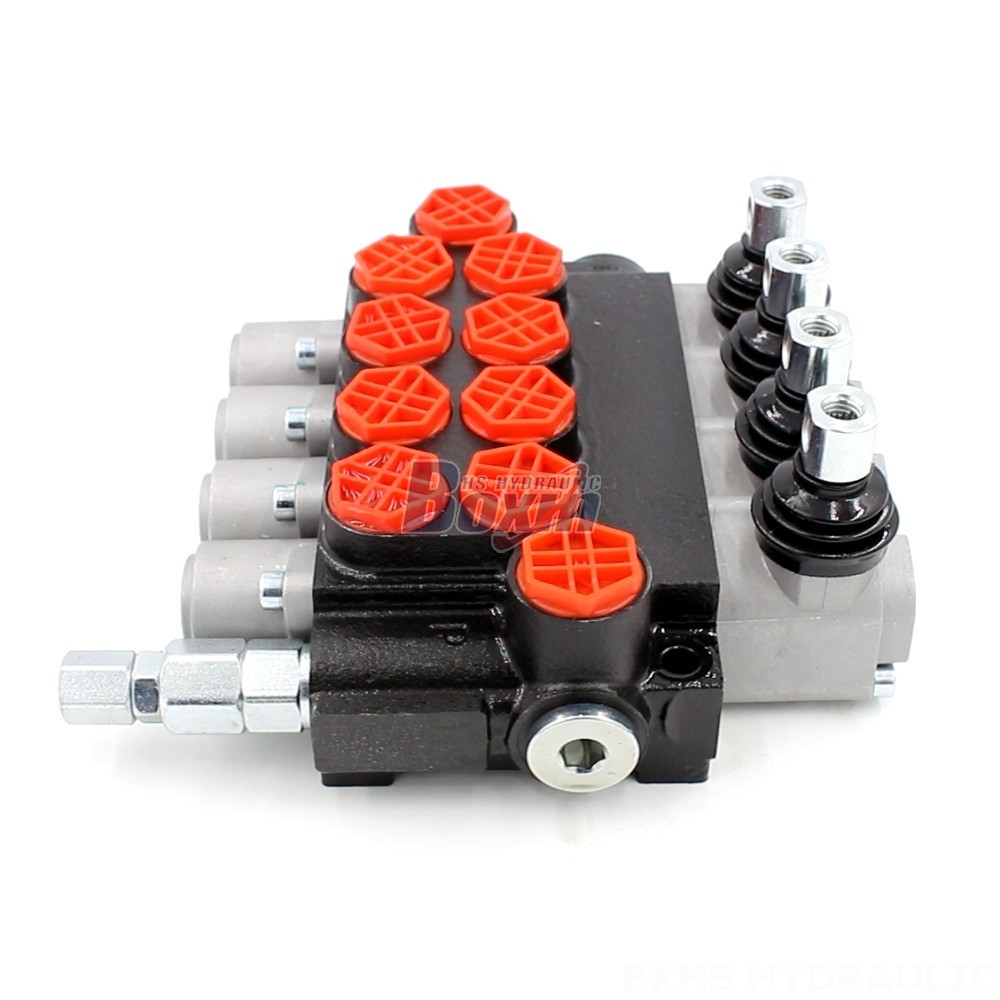

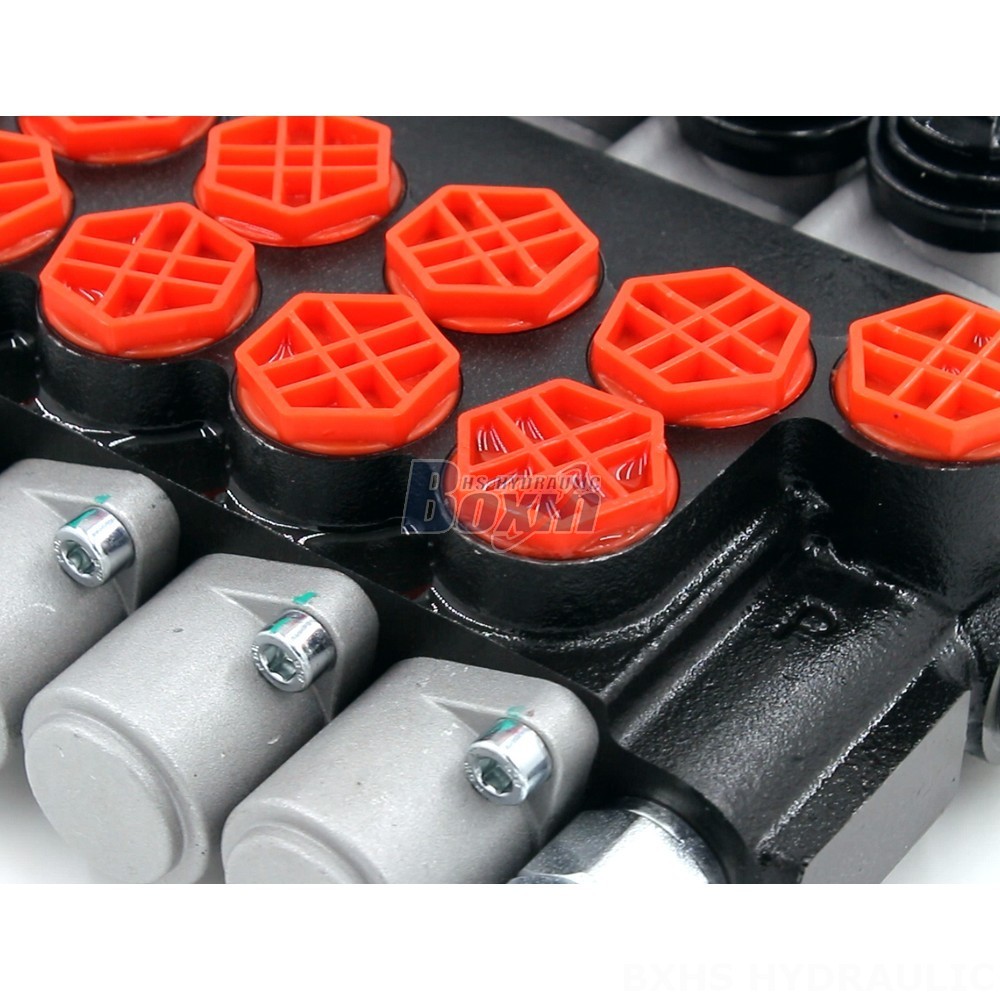

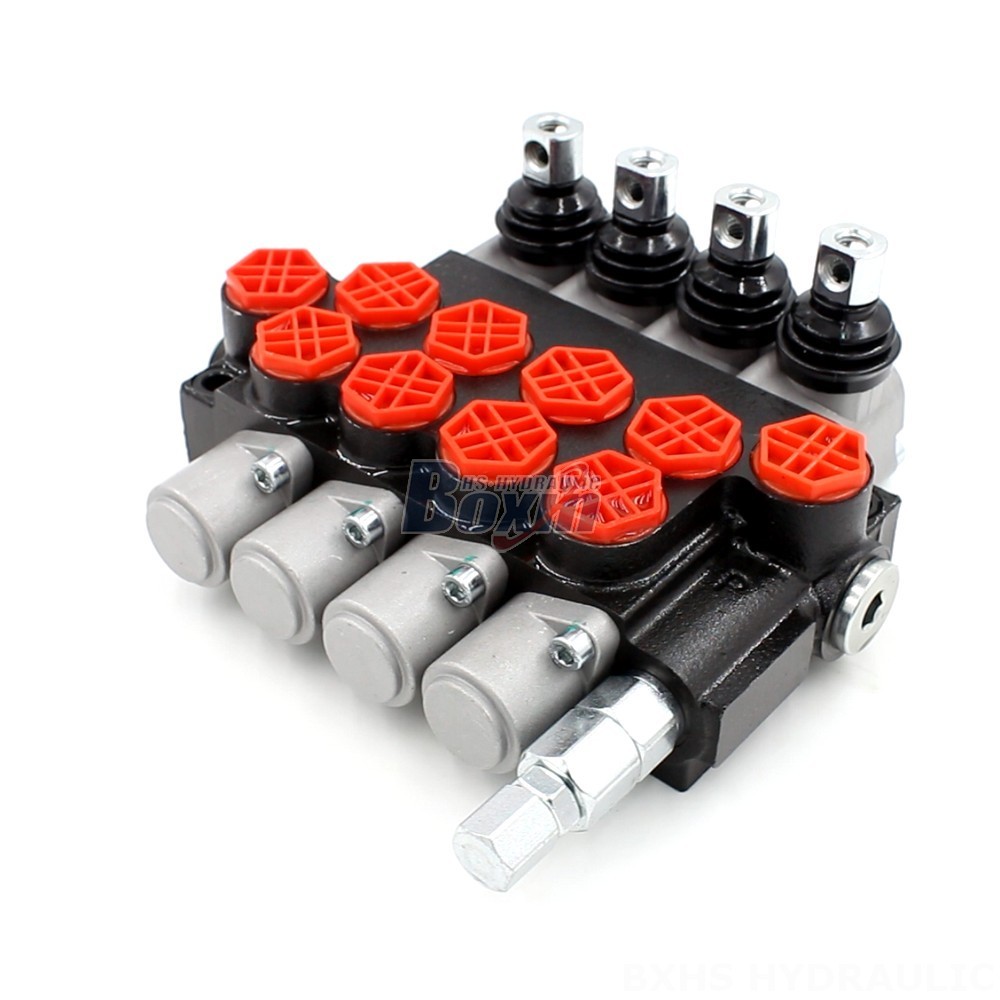

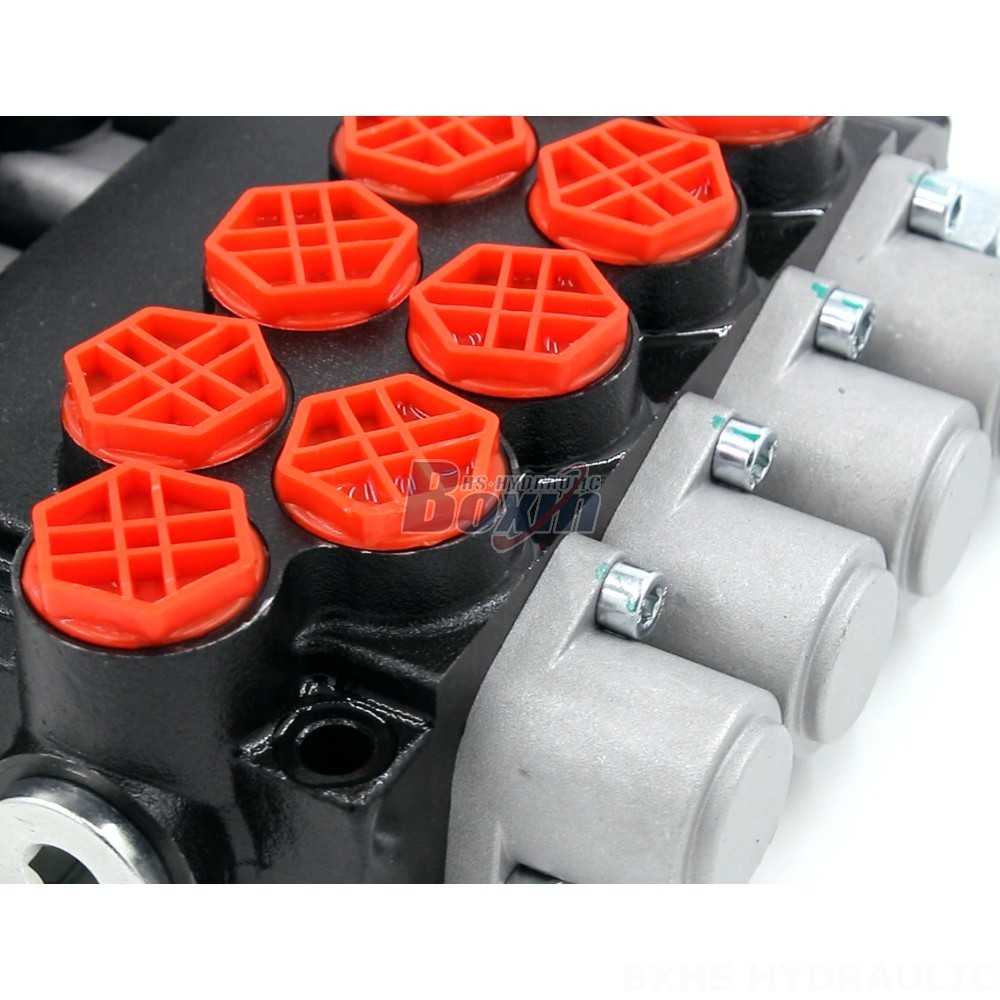

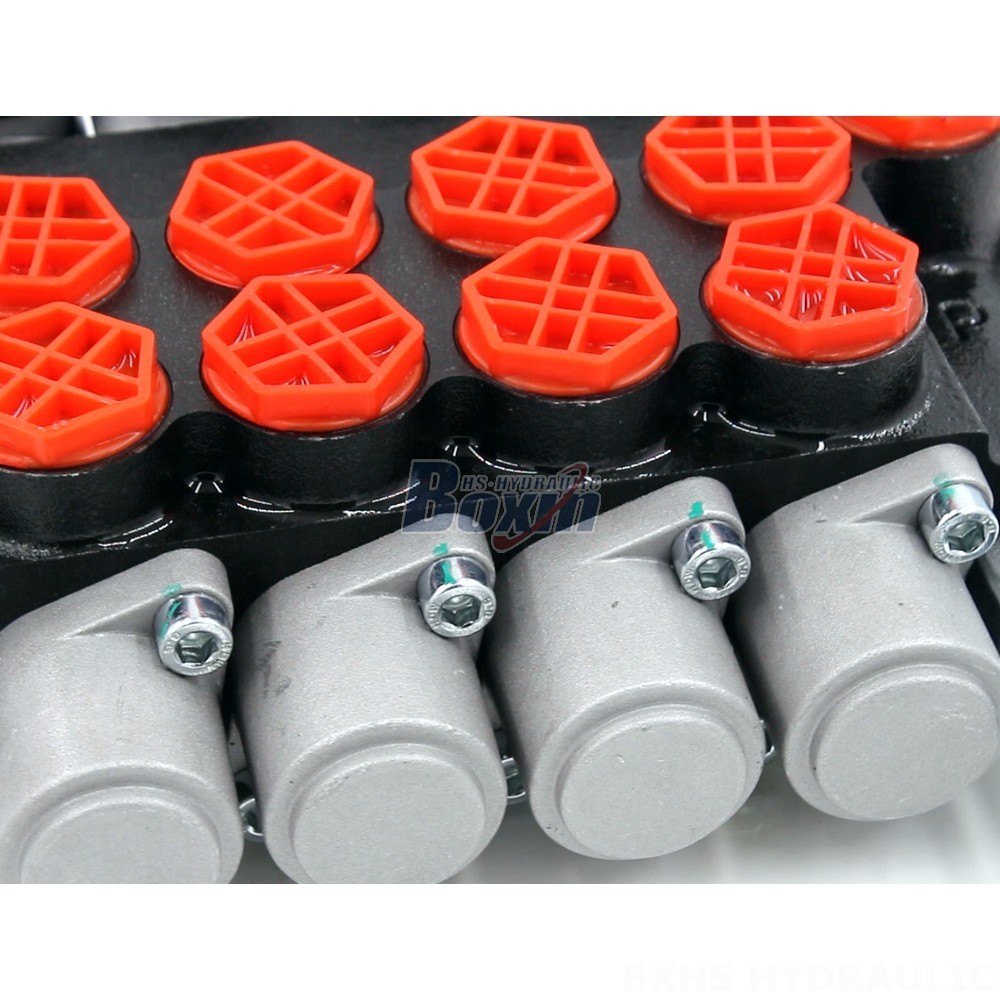

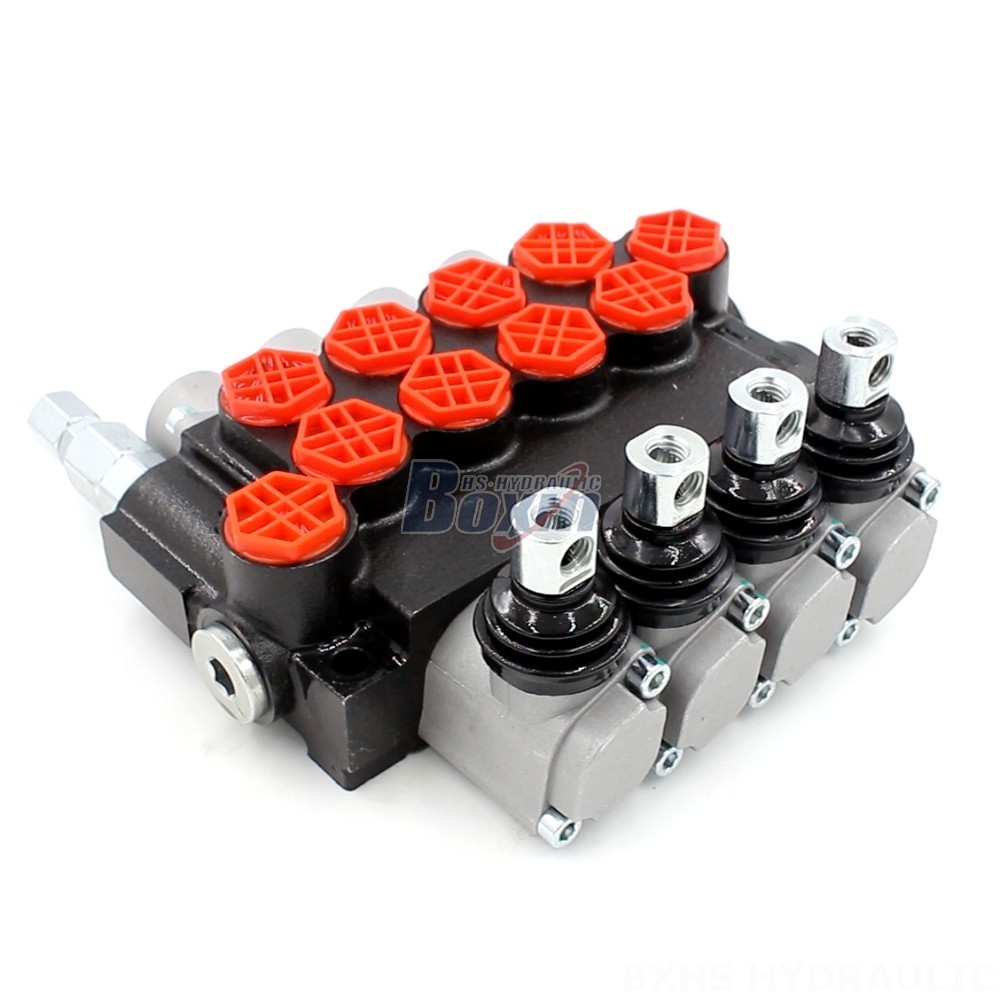

**P40-G12-G38-4OT Manual Monoblock Directional Valve**
**Factory-Direct Supply for Value and Reliability**
As a leading manufacturer of hydraulic products, we offer factory-direct supply of the P40-G12-G38-4OT Manual Monoblock Directional Valve, ensuring competitive pricing and quality control from the source.
**Product Specifications**
- Control Method: Manual
- Section: 4 Section
- Structure Type: Monoblock Valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 4 Spool
- Series: P40 Series
**Versatile Applications**
The P40-G12-G38-4OT Manual Monoblock Directional Valve finds applications in various industries, including:
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Quality Assurance**
Our P40 Series valves are ISO and CE certified, guaranteeing adherence to international quality standards. We prioritize customer satisfaction and provide comprehensive after-sales support to ensure optimal performance and longevity of our products.
