Wholesale Hydraulic Valves: P40-U34-2OT Series | Factory Direct

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 8

Port Keluar:SAE 8

Ukuran Port:SAE 8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:4.80 kg

Ketersediaan: Tersedia

978 Pandangan Mencari Produk Ini

Wholesale Hydraulic Valves: P40-U34-2OT Series | Factory Direct

Wholesale Hydraulic Valves: P40-U34-2OT Series | Factory Direct

Wholesale Hydraulic Valves: P40-U34-2OT Series | Factory Direct drawing image

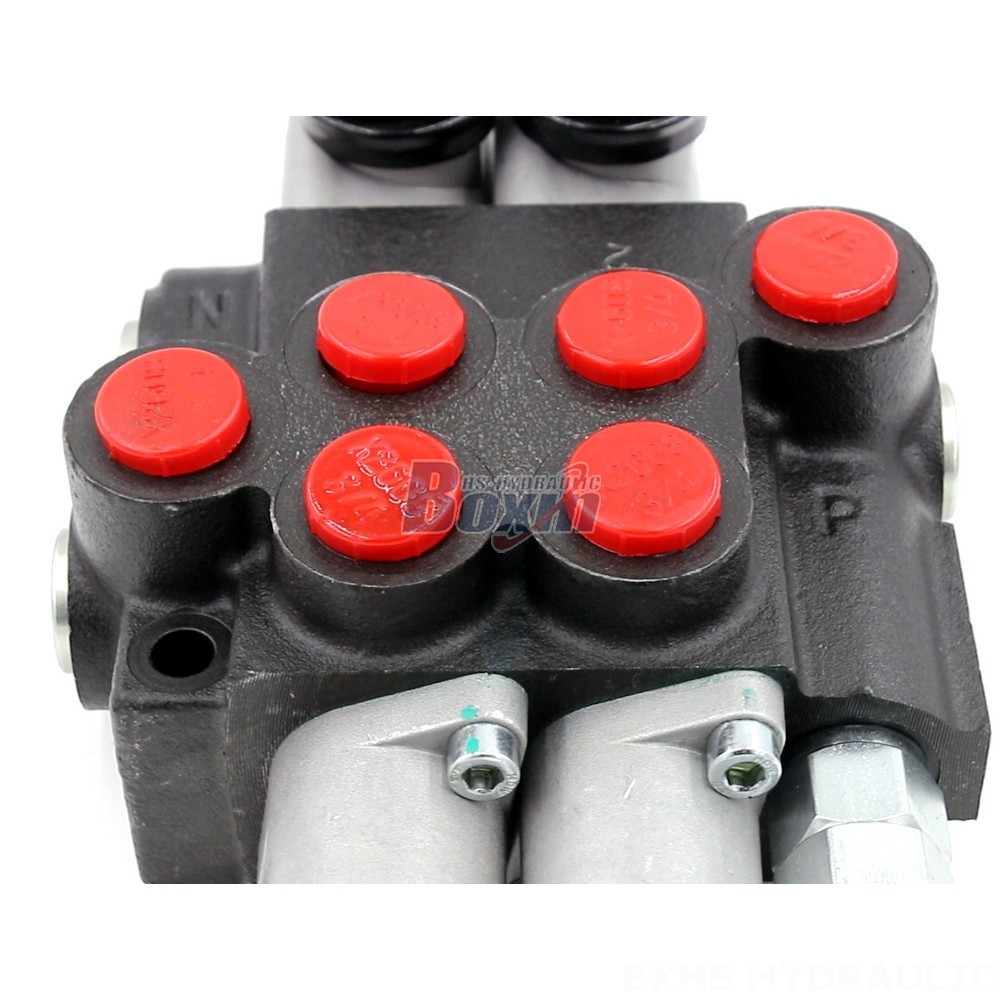

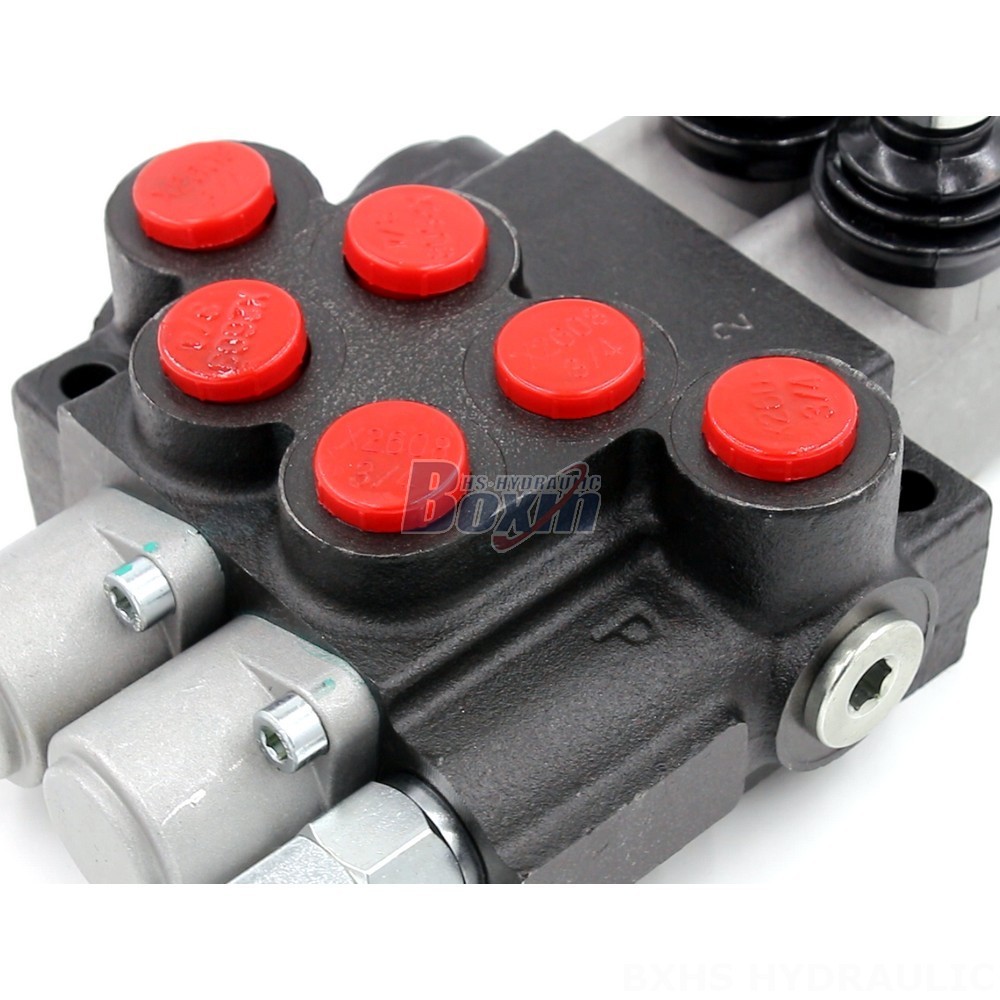

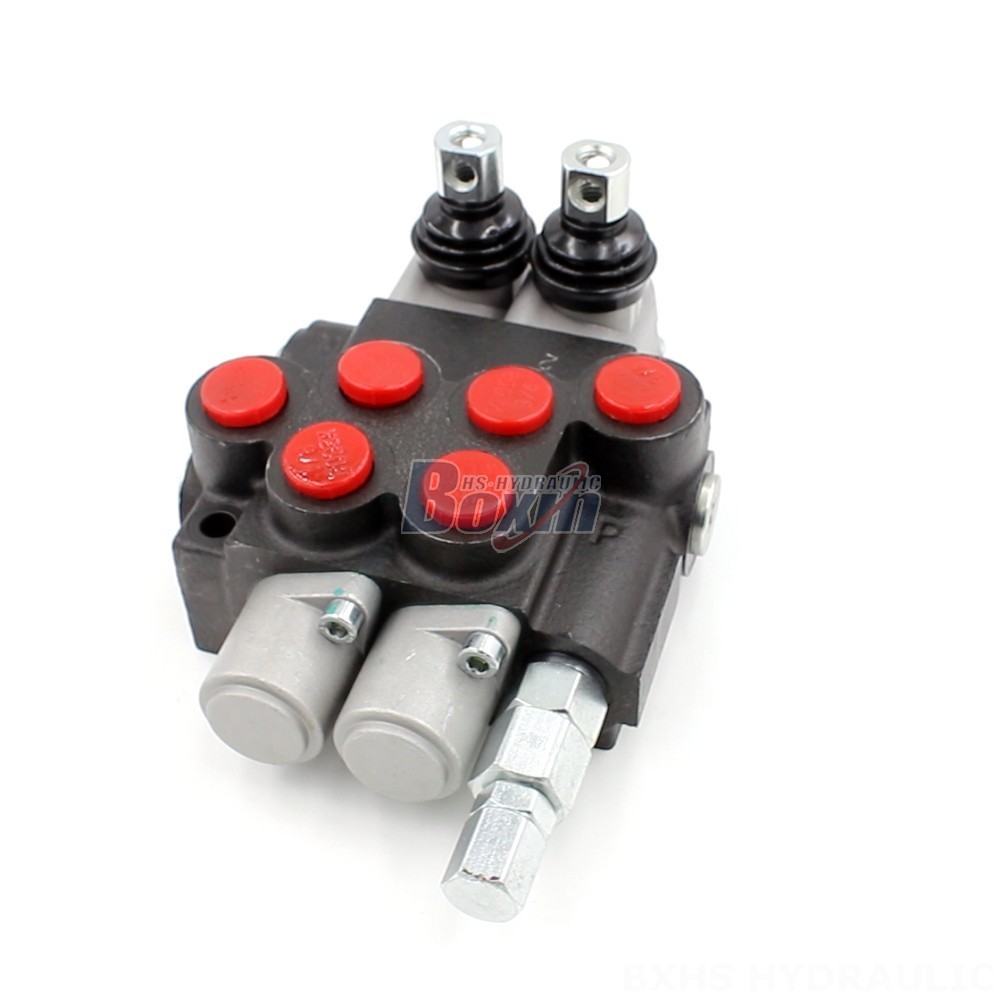

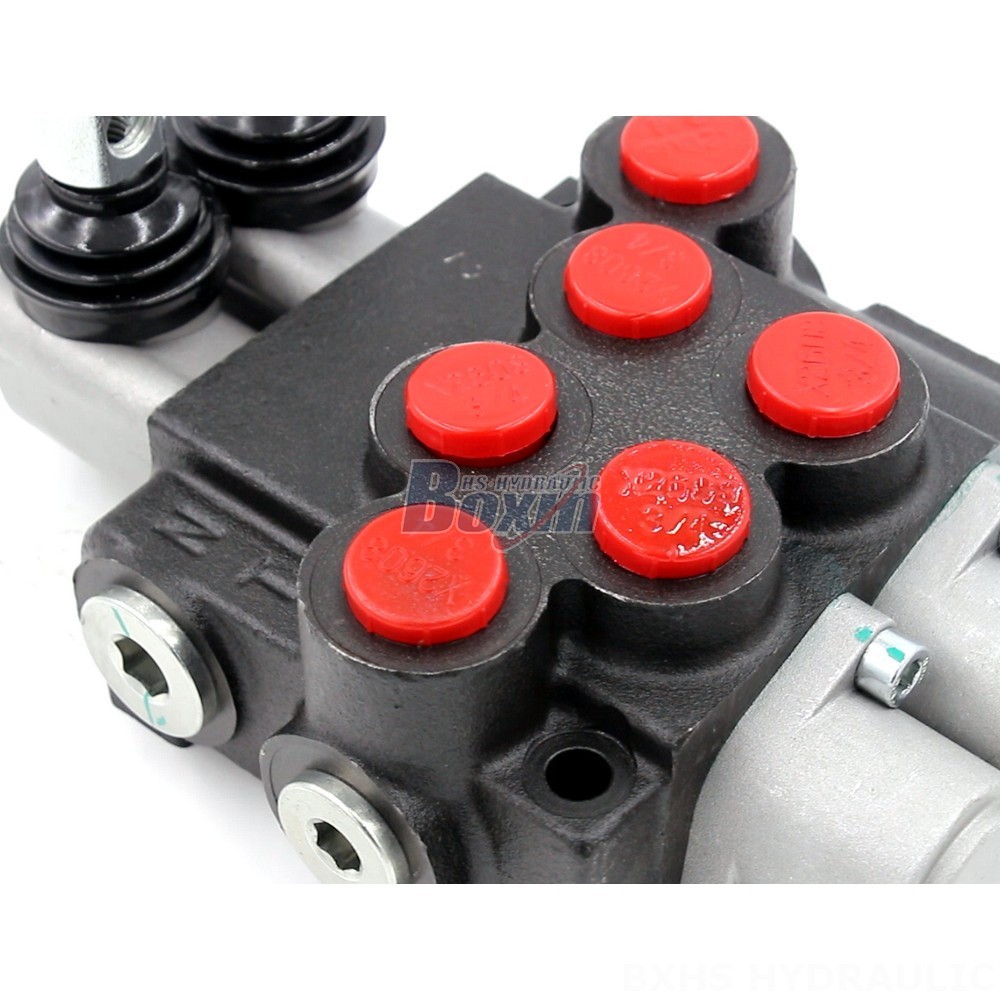

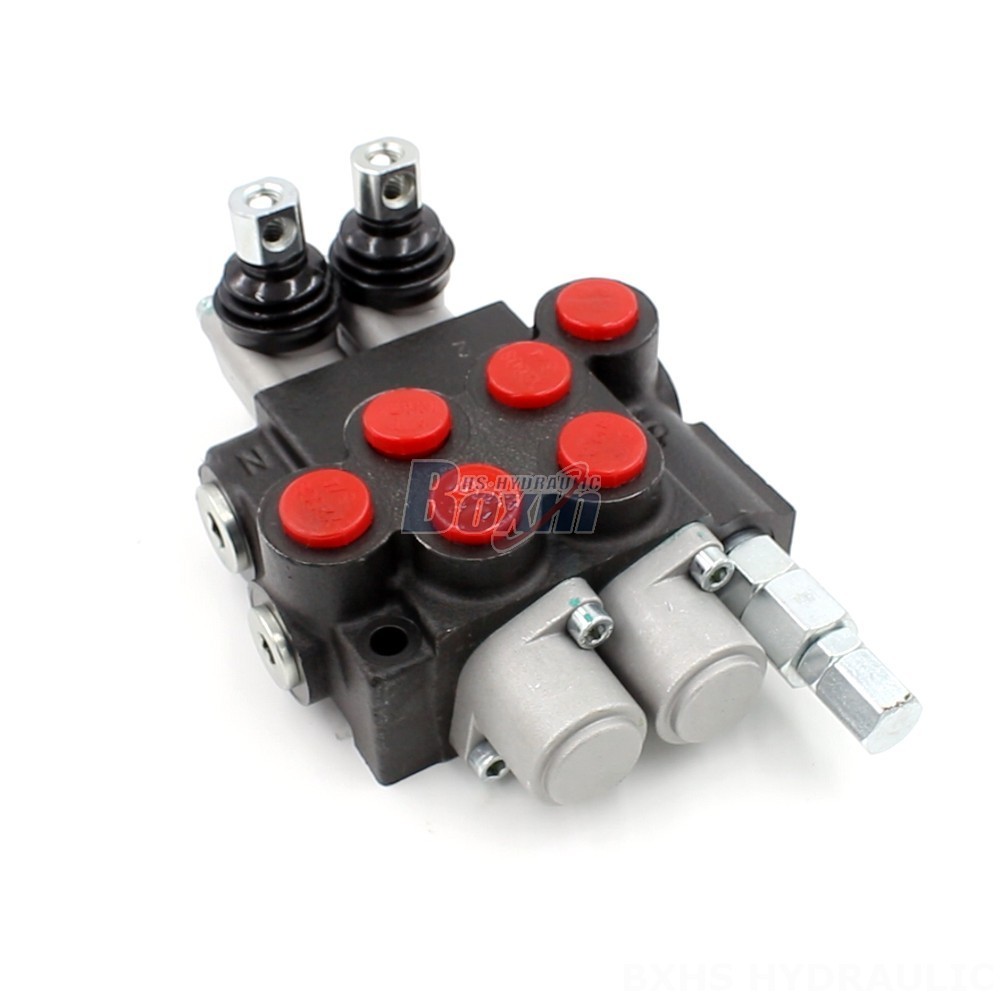

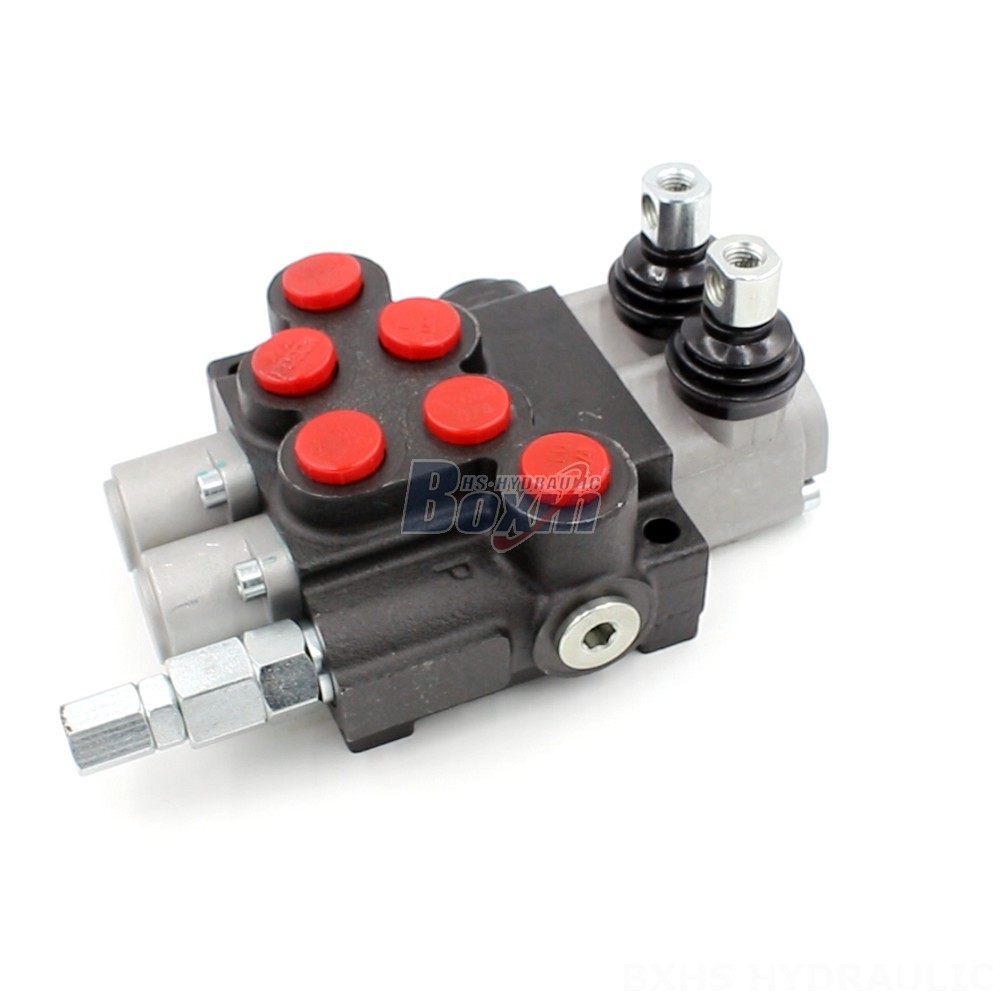

Our P40-U34-2OT Series solenoid valve is a high-quality, durable, and reliable hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. We offer factory direct wholesale pricing for bulk orders.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This 2-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It is designed for use with hydraulic fluids with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can operate in ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve is available for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. As a manufacturer, we offer a variety of options including OEM, private labeling, customization, and wholesale pricing. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Contact us today for more information and a competitive quote.
