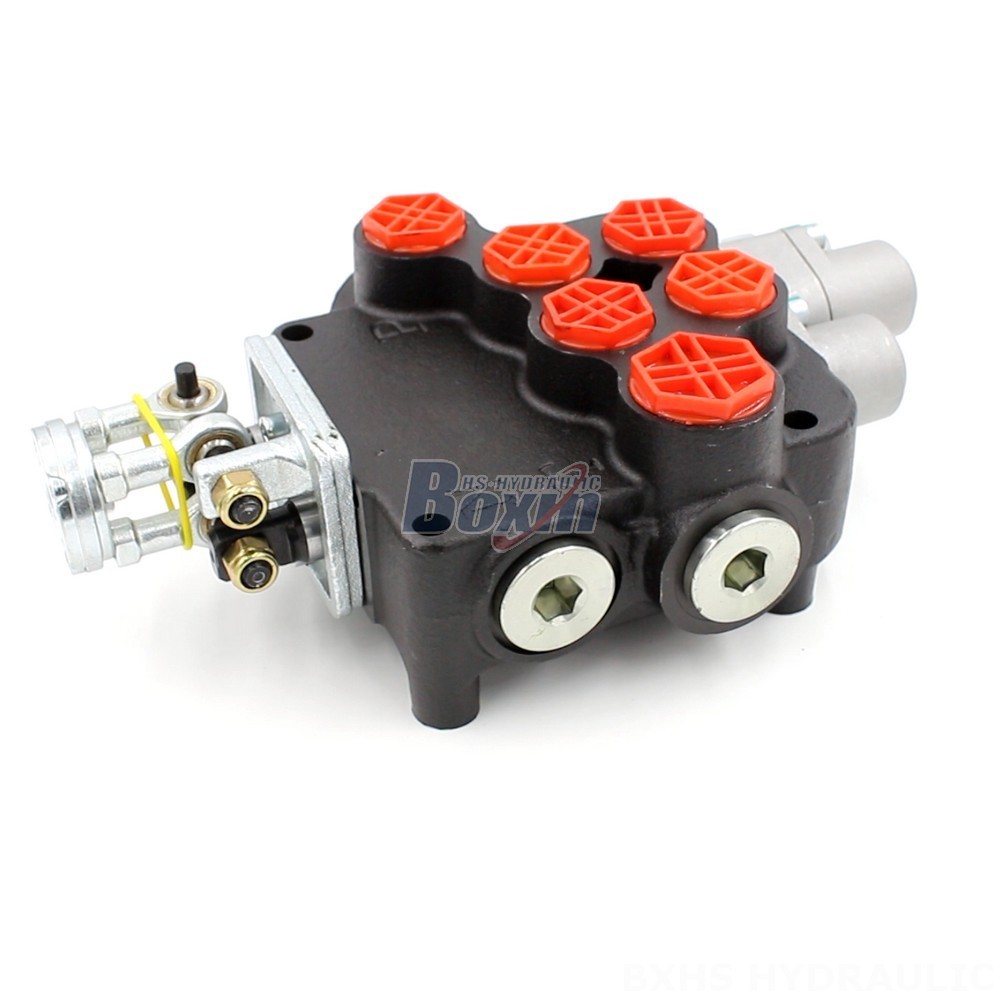

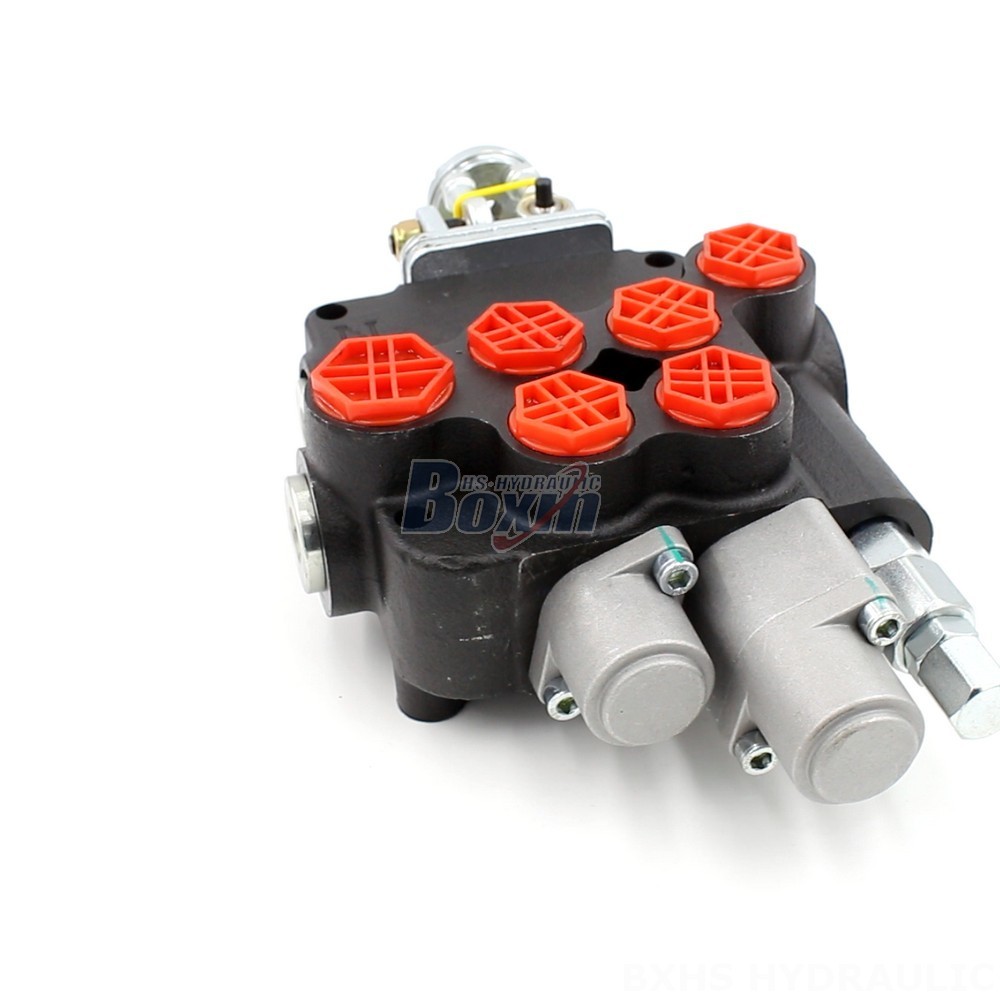

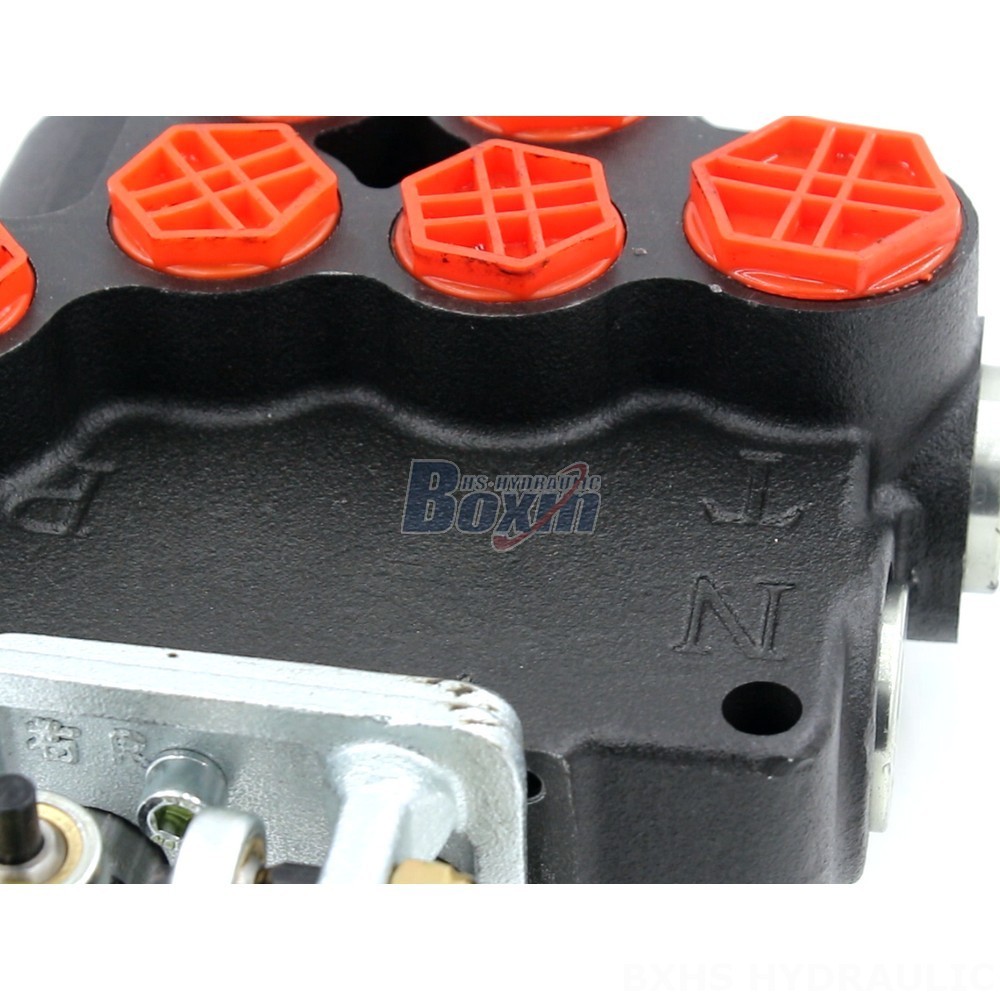

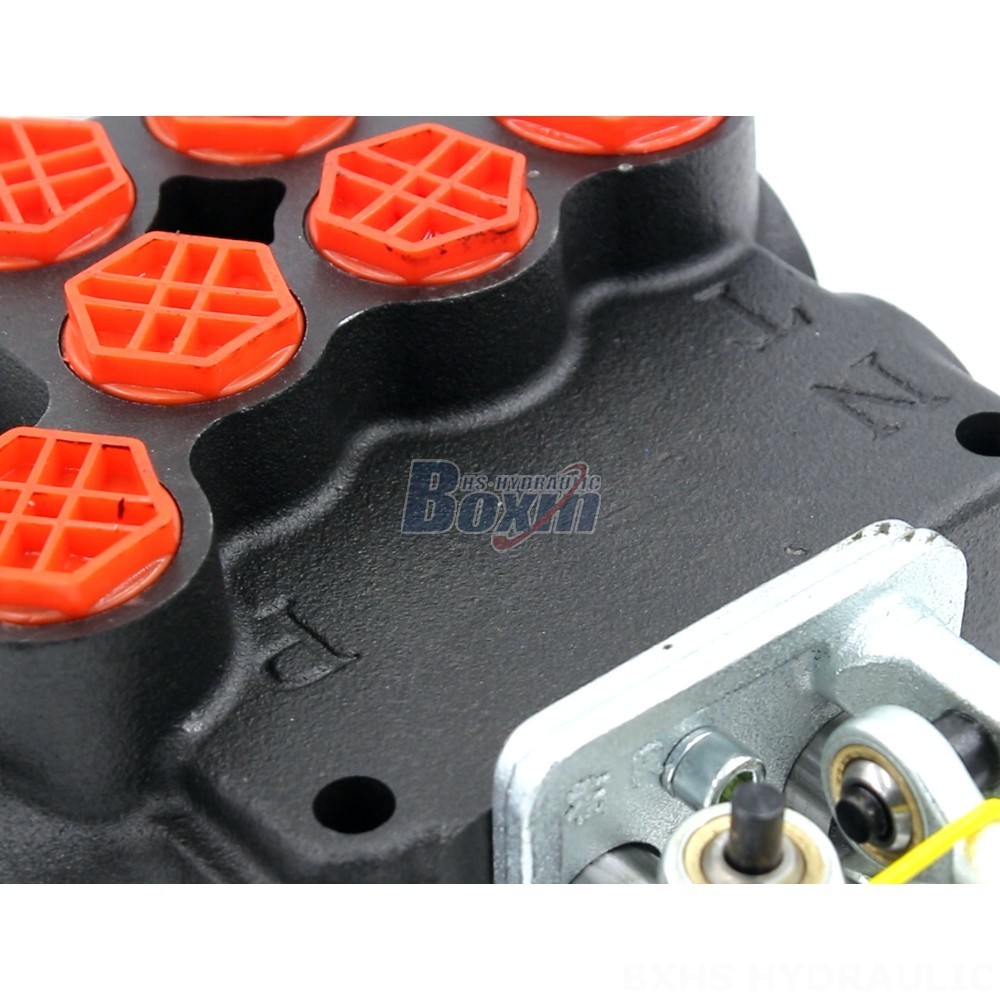

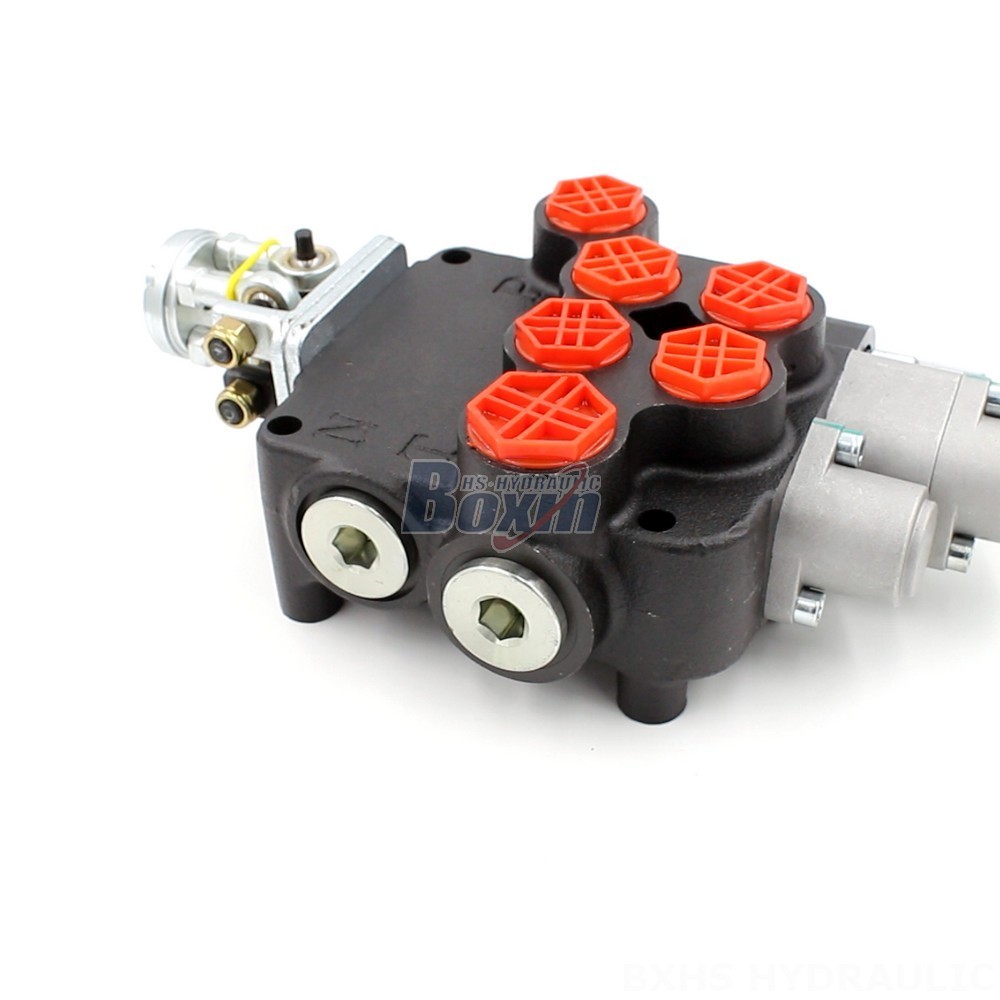

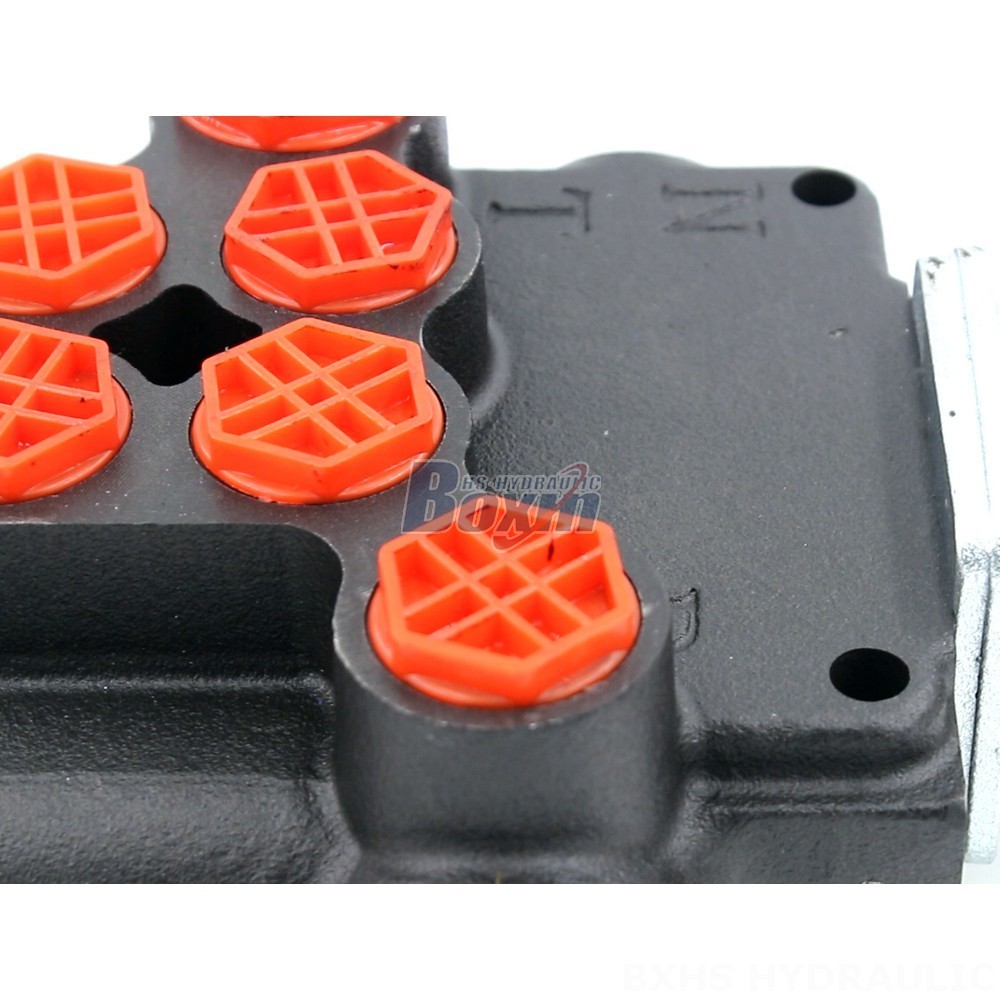

Wholesale Monoblock Directional Control Valve P80-G12-G34 with Joystick

Metode Kontrol:Manual dan Joystick

Spul:2 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*18*11

Kelas kotor:8.00 kg

Ketersediaan: Tersedia

1056 Pandangan Mencari Produk Ini

Wholesale Monoblock Directional Control Valve P80-G12-G34 with Joystick

Wholesale Monoblock Directional Control Valve P80-G12-G34 with Joystick

Wholesale Monoblock Directional Control Valve P80-G12-G34 with Joystick drawing image

The P80-G12-G34 hydraulic directional control valve is a 2-section monoblock valve with manual and joystick control, offering a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve is designed for various applications in construction, material handling, and industrial vehicles.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This high-performance hydraulic directional control valve from our manufacturing facility is designed for demanding applications in construction, material handling, and industrial vehicles. Featuring a monoblock structure with 2 sections, this P80 series valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar. It provides both manual and joystick control for precise operation. The valve is built to withstand challenging environments, with an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. Its 2 spool design offers reliable performance in various applications including telehandlers, forklifts, excavators, loaders, dumpers, and other heavy-duty equipment. We offer manufacturing, OEM, private labeling, customization, and wholesale options to meet your specific needs. Contact us to discuss your requirements and explore our distribution, wholesale, and agency opportunities.
