Our factory manufactures high-quality hydraulic diverter valves for dump trucks, specifically the P40-DKL series solenoid directional valves. These valves are designed for various applications in material handling, construction, and industrial vehicles. We offer wholesale pricing and are seeking distributors, wholesalers, agents, and traders globally.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |

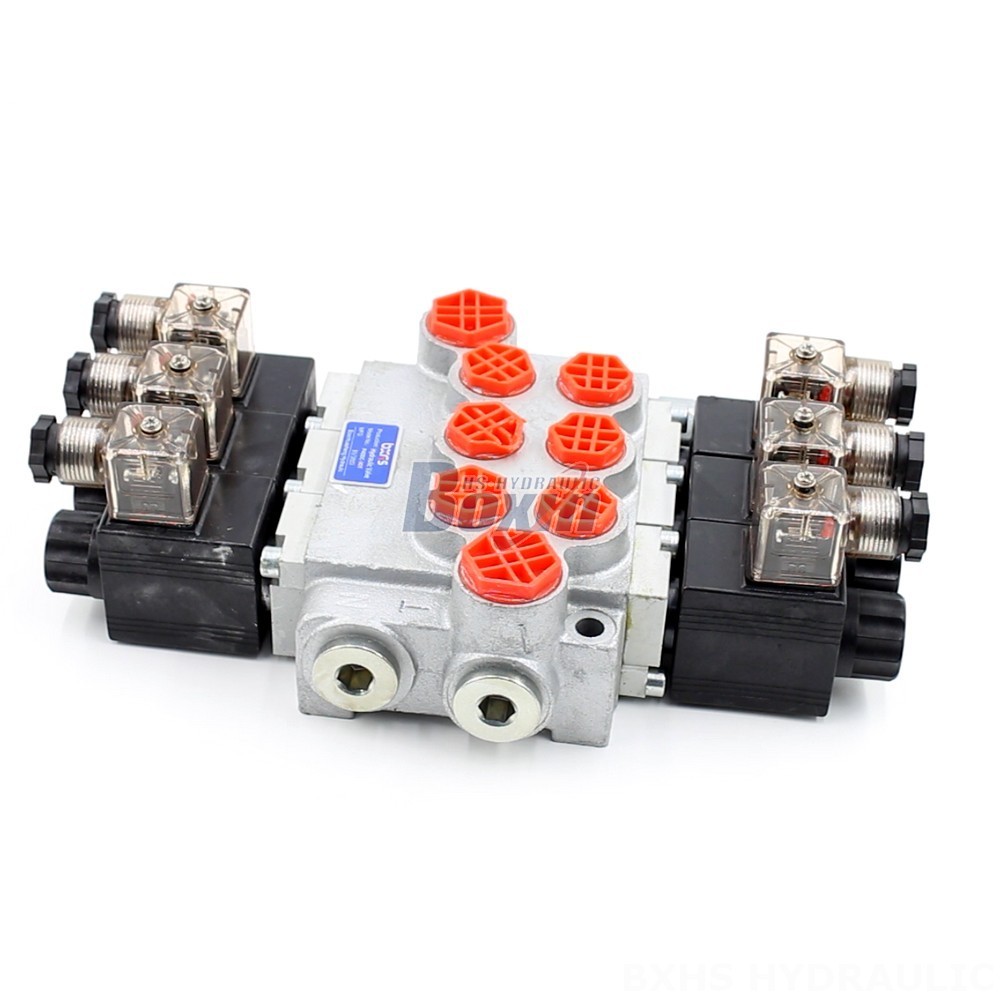

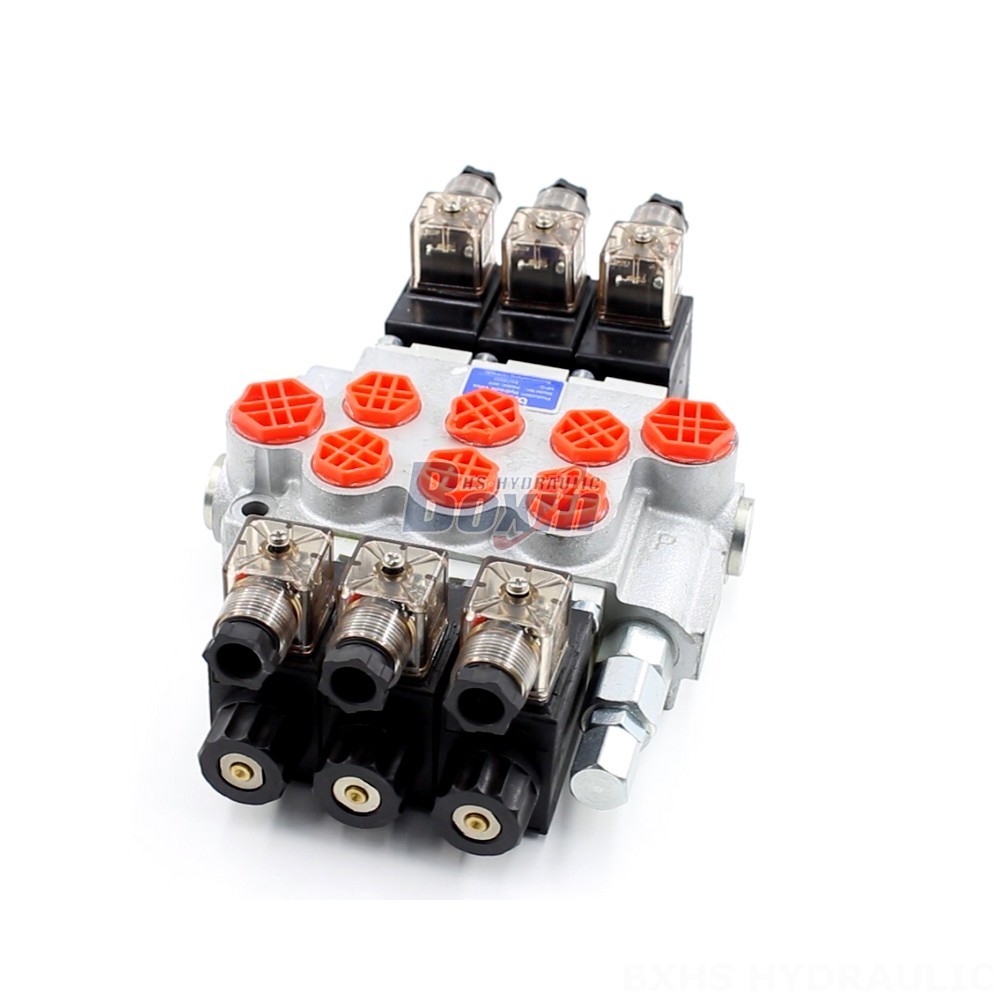

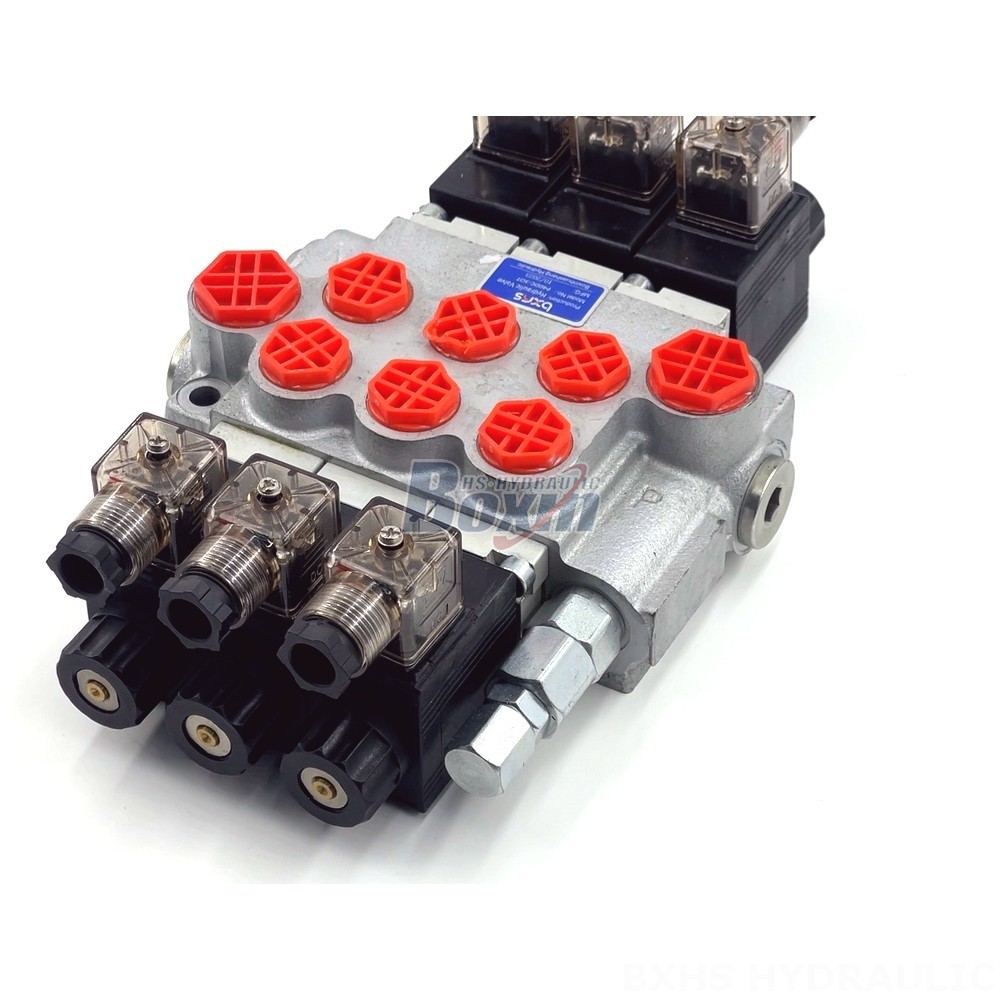

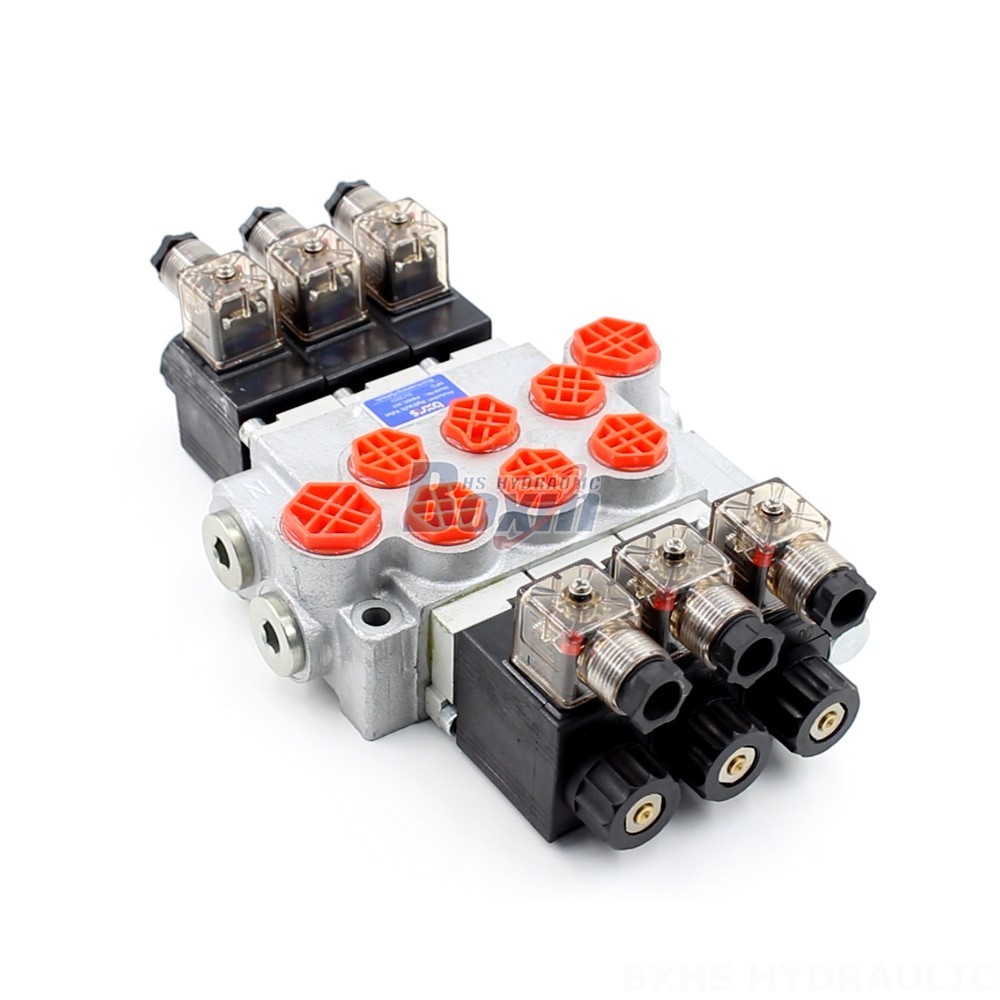

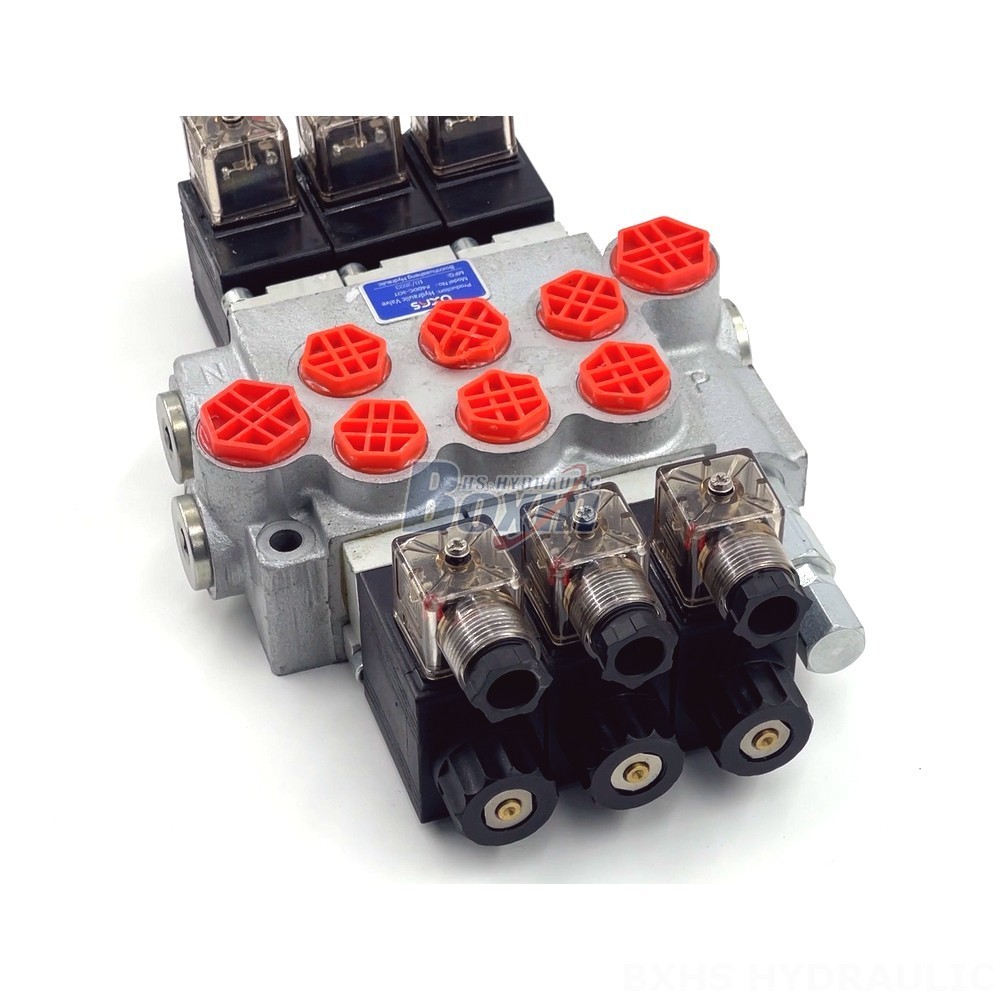

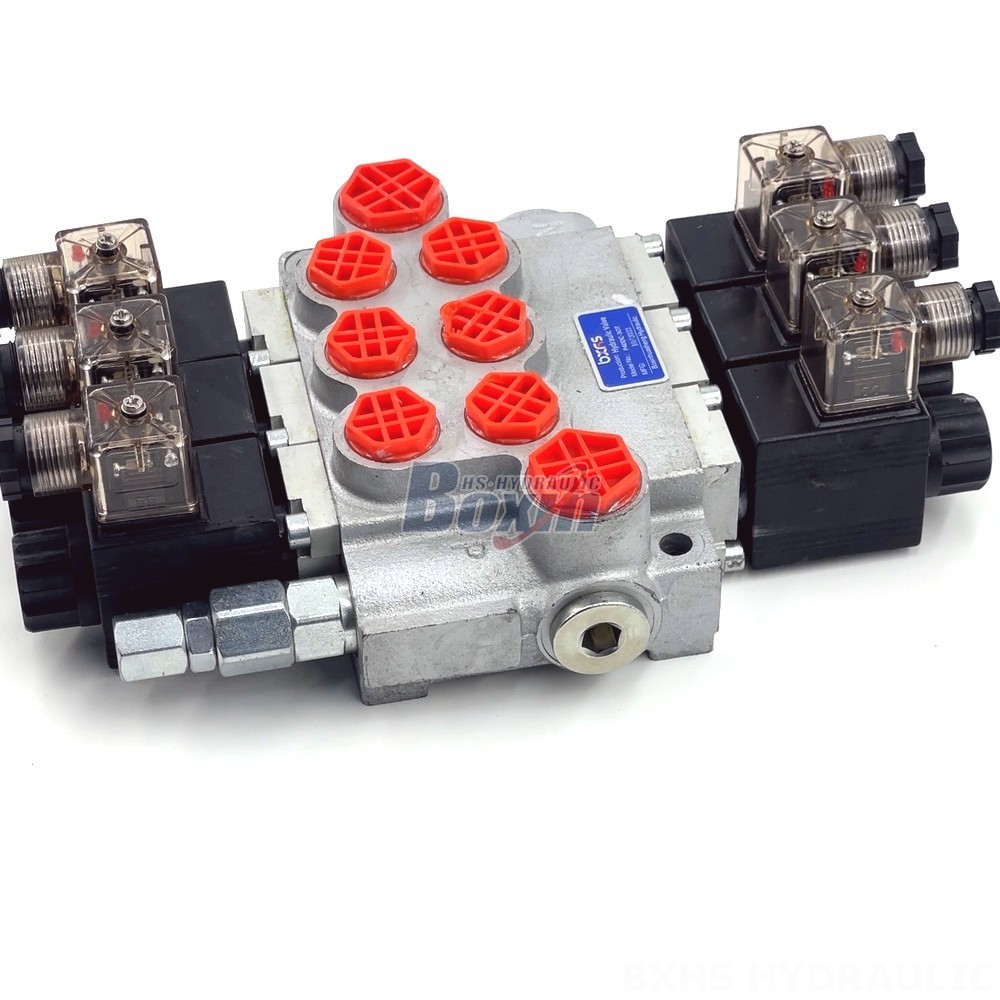

The P40-DKL series hydraulic diverter valve is a 3-section monoblock valve controlled by a solenoid. It boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). This valve is suitable for a wide range of operating temperatures (-40°C to +80°C) and viscosity ranges (15 - 75 mm²/s). Our factory specializes in manufacturing, OEM, private labeling, customization, and wholesale of hydraulic products. We are seeking distributors, wholesalers, agents, and traders to expand our global reach.
